Yada Tiny Traveler BT50424F-1 User manual

Tiny Traveler™
Baby Monitor for Your Car
BT50424F-1
USER MANUAL
ML-50424F_V2

Please register your product warranty at www.letsyada.com <http://www.letsyada.com>
IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN
THE PRODUCT TO THE STORE. CONTACT WINPLUS DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/
EXCHANGE THE PRODUCT. PLEASE KEEP YOUR ORIGINAL RECEIPT AS PROOF OF PURCHASE MUST BE
PROVIDED. FULL WARRANTY INFORMATION IS INCLUDED IN THIS USER MANUAL.
Winplus North America
Tel.: [phone]
Email us at: [e-mail]

TABLE OF CONTENTS
1. Introduction ...........................................................................................................................................................................2
2. Important Safety information ..........................................................................................................................................2
3. Package Contents ................................................................................................................................................................4
4. Product Specications ........................................................................................................................................................5
5. Installation Guide .................................................................................................................................................................5
6. Maintenance & Warranty ................................................................................................................................................ 10
7. General Information ......................................................................................................................................................... 12

2
Thank you for purchasing the Yada Tiny Traveler™ Baby Monitor for your car. Yada is dedicated to safe
driving practices and strives to limit distractions for drivers. The Yada Tiny Traveler™ is intended to aid
in helping drivers traveling with a baby remain focused on driving safely and still have the security of
being able to glance at the baby in the back seat. A driver’s main focus should always be on the road and
surroundings, with operating the vehicle safely. The Tiny Traveler™ allows the driver to monitor the baby’s
activities without having to turn around and take their eyes o the road. Please read all of the installation
instructions carefully before installing the product. Improper installation or use will void manufacturer’s
warranty.
1. INTRODUCTION
2. IMPORTANT SAFETY INFORMATION
• WARNING:Consultlocallawsandregulationsforanyrestrictiononinstallationoruseandobeyall
legal requirements for safe vehicle operation, including those related to distracted driving.
• WARNING:Afailuretoreadandfollowthesewarningsandinstructionsmayresultinaseriousaccident,
including damaged property or a serious injury, including loss of life. Please keep this user manual for
further reference.
• WARNING:TheYadaTinyTraveler™isasystemthatisintendedasanaidtomonitoryourbabywhile
you are driving by allowing for quick glances at your baby while facing forward and without turning
around and taking your eyes o the road. It is not a substitute for responsible and proper adult
supervision of children and should not be used as such.
• MakesurethatatnotimedoestheTinyTraveler™CameraorCablescomeinanycontactorwithin
reach of the baby.
• Checkyourlocallawsandregulationsabouthavingavideodisplaywithconstantcontentwhile
driving. Please take note that the Monitor will show the image taken by the Camera continuously as
long as they are connected, the car is running, and the Monitor is powered on.
• Thisproductwillonlyprovideimagesofitemsthatarewithintheeldofviewofthecamera.Thus,itis
imperative that the camera should be kept clean and unobstructed, and should be mounted so that its
eld of view includes the entire area around the baby seat.
• NotethattheimageintheMonitorwillbeareversedimageofthebaby.
• TheYadaTinyTraveler™ismadeforuseinsideyourvehicle.Itisnotmeantforoutdooruse.

3
• DonotgetanyoftheTinyTraveler™componentswetorexposedtomoisture.
• Atanytime,donotattempttoopenthemonitororcamera,orusedierentcablesotherthanprovided
with the original packaging.
• Duringinstallation,donothavethebabyinthecar.Thebabyseatshouldbecorrectlymountedinthe
car as required by law. There is no need to have the baby in the car while the Tiny Traveler™ is installed,
and should be kept away as a precaution.
• BeforemountingtheCamera,checkyourlocallawsandregulationsregardingwherethedeviceis
legally allowed to be mounted.
• TheMonitorshouldbemountedsecurelyasinstructed.Atnotimeshoulditbelooseornotxedto
the dash or windshield.
• TheCamerashouldbemountedsecurelyasinstructed.Atnotimeshoulditbelooseornotxedin
place with the mounts provided.
• DONOTattachtheCameratothebabyseat.DONOTlaythecameralooselyinthebabyseat.
• Thissystemispoweredbypluggingtheadapterintothe12/24vadapterinyourvehicle.Donot
attempt to use any other power source or cables to operate this system.
• TheYadaTinyTraveler™isnotatoy.Atnotimeshouldchildrenbeallowedtoplaywithit.Itshould
only be operated by adults who have read the safety and operating instructions listed in this manual.
• Thisproductcontainssmallparts.Adultinstallationisrequired.Exercisecarewhenunpackingand
assembling the product.

4
1. Tiny Traveler™ Night Vision
Camera with 16 Feet/5 Meters
Connection Cable
2. Tiny Traveler™ 3.5” Color Monitor
3. Monitor Windshield Mount
4. Mounts for Camera:
4a. Suction Cup
4b. Headrest with Straps
5. 12/24V USB Power Adapter with
Cable for Monitor
6. User Manual
3. PACKAGE CONTENTS
1.
2.
3.
4a. 4b.
5. 6.

5
Tiny Traveler™ Monitor
•3.5”TFTcolormonitor
•5V
Tiny Traveler™ Camera
•CMOSSensor
•Nightvision
•VGAimagequality
•45degreeviewangle
•16feet/5metercable
•MiniUSBPlug
•5V
MONITOR PLACEMENT

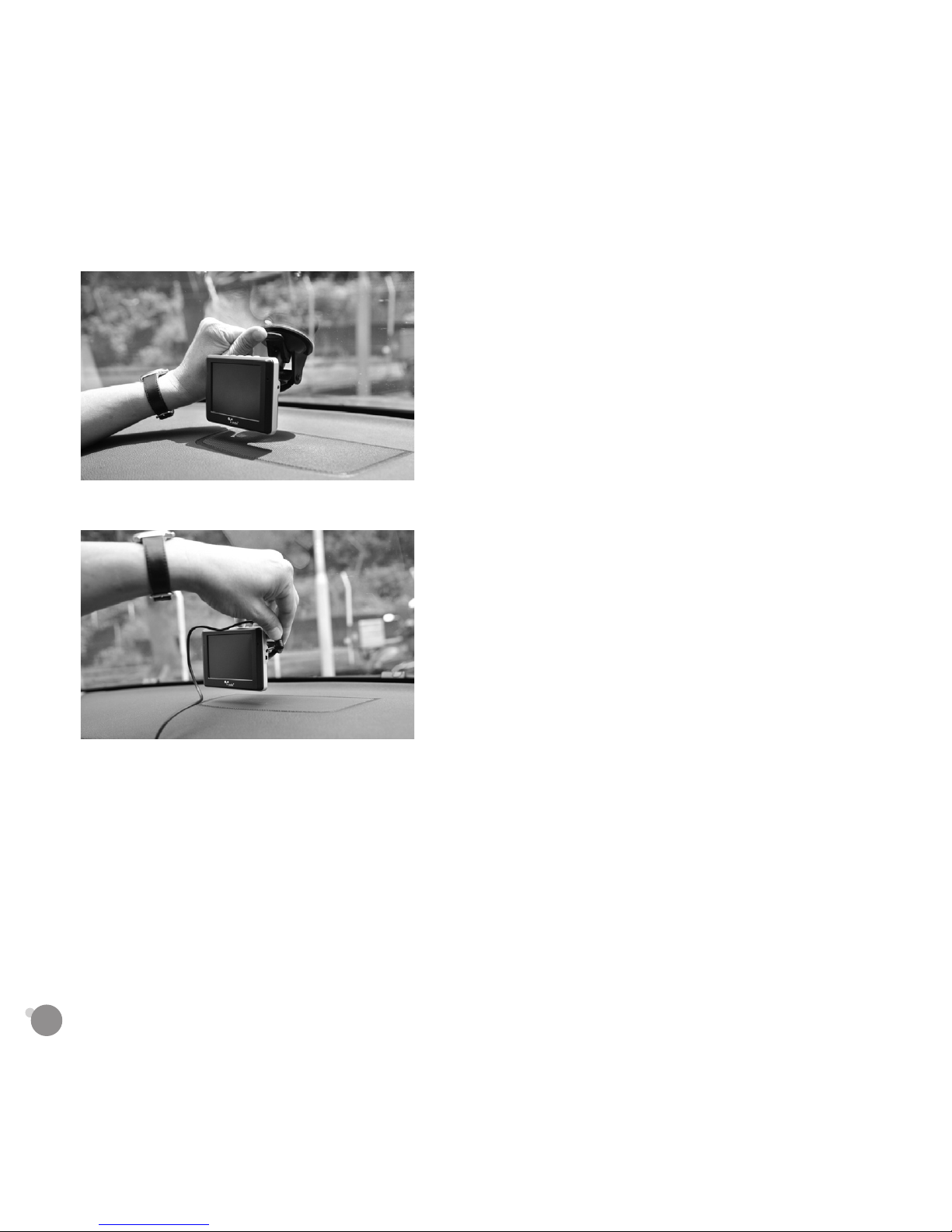

i. Take the Tiny Traveler™ Monitor from the packaging and attach the suction cup as shown.
ii. Being able to safely glance at your baby should be comfortable and not require you to turn your head
from facing forward. For optimal ease of use, we suggest mounting the Monitor low and near the center
ofyourwindshield,belowthecenterrear-viewmirror,aboveyourcentercontrolpanel,andxedsecurely
to the windshield. Be sure that the monitor does not obstruct your view out the windshield for ordinary
driving.
4.PRODUCTSPECIFICATIONS
5.INSTALLATIONGUIDE

6
iii. When mounting, you will need to sit in the driver’s seat just as you would while driving, and angle the
monitor until it is comfortable to glance at without turning your head away from watching the road.

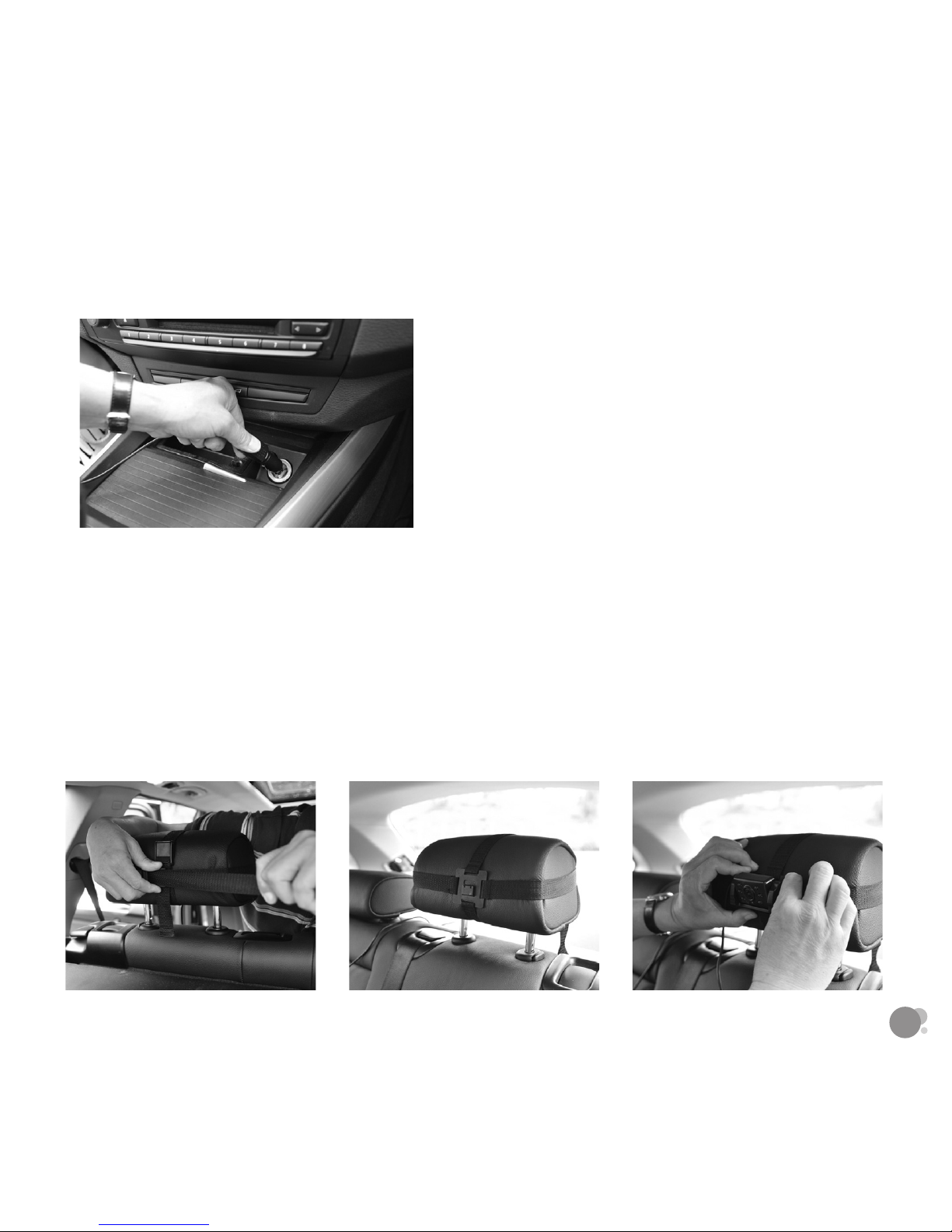

iv. Place the 12/24v Power Adapter in the port on the right side of the monitor.

7
v. Plug the other end of the Power Adapter into an available 12/24v socket in your vehicle. Please note that
the cable should not wrap around the monitor, but should stay to the right of the Monitor and run down
the interior on the passenger side of your car. At no time should the Tiny Traveler™ Power or Connection
Cable be loose or dangling on the driver’s side of the vehicle.
CAMERA PLACEMENT
Note that the image in the Monitor will be a reversed image of the baby.
i. Before selecting which Camera mount to use, it is best to determine where in the car the Camera will best
be placed in order to capture the image of the baby seat. Make sure the camera is not located near the
airbag.
ii. If your baby seat is rear facing you have several options:
•UsetheHeadrestMounttoattachtotheheadrestofthebackseatbypullingtheverticalandhorizontal
straps and securing with the strap lock. Camera should be mounted tightly to the headrest to that the
Camera is stable. The Camera can then be adjusted to angle accordingly to capture the entire baby seat.
The camera adjustment will take some force to change the angle.

8
•UsetheSuctionCupMounttoattachtotherearwindoworrear-mostsideglassthatisnotadoorwindow.
For safety, we recommend not mounting to the window of the door. Because there are cables, this can
become dangerous when opening the rear or side door. Ensure that the Suction Cup is secured tightly to
the window and adjust the Camera to the angle needed.
iii. If your baby seat is front facing we suggest using the Headrest Mount and attaching the camera to the
headrest of the front passenger headrest.
CONNECTING THE CAMERA TO THE MONITOR
i. The Yada Tiny Traveler™ is a plug and play system. No software or syncing is needed in order for the system
to operate.
ii.Next,youwillneedtoruntheConnectionCabletothemonitor.Thisstepisveryimportant.
•BystartingwiththeConnectionCableattheCamera,youwanttomakesurewhilerunningandtuckingthe
cable that it is not in contact with the baby seat or within reaching distance of the baby. It is recommended
to tuck the Connection Cable behind the seat, lining, rug or panels in order to keep it from tangling or
getting caught on any object.

9
•ContinuetorunandtucktheConnectionCabletothefrontofthecaranddirectlytotheMonitor.
•PlugtheotherendoftheConnectionCableintotheportontheMonitor.Pleasenotethatthecableshould
not wrap around the monitor, but should stay to the right of the Monitor and run down the interior on the
passenger side of your car. At no time should the Tiny Traveler™ Power or Connection Cable be loose or
dangling on the driver’s side of the vehicle.
Final Adjusting and Operation of the Tiny Traveler™
i. Now that the system is connected, sit in the driver’s seat and turn on your vehicle while remaining in
park.
ii. Turn on the monitor by pressing the POWER button on the top on the Monitor. The image from the
Camera will appear in the Monitor.
iii. You adjust the angle or the placement of the Camera so that the image of the baby seat is in complete
view on the Monitor.
iv. The brightness can be adjusted by pressing the + button on the top of the Monitor.
v. The Camera has infrared Night Vision. When the light becomes dark in the car or it is nighttime, you will
still be able to glance at your baby and see them clearly. The image color will look dierent due to the
night vision. The 6 red LEDs surrounding the camera lens will illuminate but no light will be shining on
the baby.

10
a. Maintenance
• At no time is the Monitor or Camera to become wet or immersed in water. To clean, use a soft cloth to
wipe the lens and enclosure.
• Donotusealcohol,benzeneorthinnertocleantheMonitororCamera.Thiswillcausediscoloration.To
clean the camera, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe
with a dry cloth.
i. Do not stick any foreign object into the ports on the monitor. The ports are intended for the
cables provided only.
b. Warranty
WINPLUS NORTH AMERICA
LIMITED WARRANTY
Winplus North America warrants, to the original purchaser, that its products are free from defects in material
and workmanship for 1 year from the date of original purchase. Where permitted by law, Winplus North
America’s liability shall be limited to that set forth in this limited express warranty. This limited express
warranty shall be the exclusive remedy of the purchaser and Winplus North America makes no other
warrantyofanykindasidefromthelimitedexpresswarrantystatedabove.
NOTE: Warranty only applies for North American customers of purchases made in North America.
CONDITIONS OF WARRANTY
If during the 1 year warranty period your new product is found to be defective, Winplus North America
will repair such defect, or replace the product, without charge for parts or labor subject to the following
conditions:
All repairs must be performed by Winplus North America.
• All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.
• The equipment must not have been altered or damaged through negligence, accident, improper
operation, or failure to follow the product instructions for installation, use, or care.
• Thereplacementofpartsisexcludedfromthewarrantywhenreplacementisnecessaryduetonormal
wear and tear.
• Repair or replacement parts supplied by Winplus North America under this warranty are protected only
fortheunexpiredportionoftheoriginalwarranty.
6. MAINTENANCE & WARRANTY

11
• This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation,
removal or reinstallation of the product, or damage to any other devices or vehicle.
OWNER’S RESPONSIBILITIES:
Winplus North America will make every eort to provide warranty service within a reasonable period of
time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN
OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS MONDAY
THROUGH FRIDAY 9:00 AM TO 5:00PM PST.
NOTE: Toll Free # is for North America Customers ONLY.
For customer service and technical support, please call us at 1.866.294.9244 or email us at customercare@
winplususa.com. If at that time it is determined that a replacement unit is needed, the support representative
willissueaReturnAuthorizationandinstructonhowtogetanewunit.
WinplusNorthAmericamakesnootherwarrantyofanykindasidefromthelimitedexpresswarrantystated
herein.
DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND WARRANTY OF
FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO WARRANTY OR
REPRESENTATION, EXPRESS OR IMPLIES, IS MADE AS TO THE TINY TRAVELER™. EXCEPT AS EXPRESSLY SET
FORTH HEREIN, WINPLUS NORTH AMERICA AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT
LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Winplus North America and/or its aliates do not guarantee or promise that the user of Tiny Traveler™
will not be in an accident or otherwise not collide with an object and/or person. Our Tiny Traveler™ is not
intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all
applicable trac laws and motor vehicle safety regulations.
Winplus North America and/or its aliates are not responsible for a user’s intended or actual use of the
Tiny Traveler™. In no event shall Winplus North America and/or its aliates have any liability for any losses
(whether direct or indirect, in contract, tort or otherwise) incurred in connection with the Tiny Traveler™,
including but not limited to damaged property, personal injury and/or loss of life. Neither shall Winplus
North American and/or its aliates have any liability for any decision, action or inaction taken by any person
in reliance on the Tiny Traveler™, or for any delays, inaccuracies and /or errors in connection with the Tiny

12
Traveler™ and its functioning.
Winplus North America and/or its aliates shall have no responsibility or liability for damage and/or injury
resulting from accidents occurring with vehicles having the Tiny Traveler™ installed, and Winplus North
America and/or its aliates, the manufacturer, distributor and seller shall not be liable for any injury, loss or
damage, incidental or consequential, arising out of the use or intended use of the product.
Customer Service/Contact
For questions or issues regarding the product, please visit www.letsyada.com or contact Winplus in your
area/region to speak to our customer service representative:
Winplus North America
Tel.: [phone]
Email us at: [e-mail]
You can also contact us online by visiting www.winplus.com for more information about the product.
IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN
THE PRODUCT TO THE STORE. CONTACT WINPLUS DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/
EXCHANGE THE PRODUCT.
7. GENERAL INFORMATION
FCC/ICC
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Call B device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio

13
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution:Anychangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate this equipment.
IMPORTANT NOTE
FCC Radiation Exposure Statement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.End
usersmustfollowthespecicoperatinginstructionsforsatisfyingRFexposurecompliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
TocomplywithFCCRFexposurerequirements,thedeviceandtheantennaforthisdevicemustbeinstalled
to ensure a minimum separation of 20cm or more from a person’s body. Other operating congurations
should be avoided.
IC Statement
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation of
the device.

Thisdevicehasbeendesignedtooperatewithanantennahavingamaximumgainof0dBi.Antennahaving
a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is
50 ohms.
IMPORTANT NOTE:
IC Radiation Exposure Statements:
ThisequipmentcomplieswithICradiationexposurelimitssetforthforanuncontrolledenvironment.End
usersmustfollowthespecicoperatinginstructionsforsatisfyingRFexposurecompliance.
