Yamaha A-S2200 User manual

Integrated Amplifier
Owner´s Manual

3
Thank you and congratulations on your purchase of this Yamaha product.
• You can enjoy the high-quality stereo sound of this integrated amplifier at home.
• To use the product properly and safely, we suggest that you read this manual and the “Safety Brochure” thoroughly.
Keep the manual in a safe, accessible place for future reference.
Features
◆Floating balanced circuit for power amplifier
◆Fully-balanced transmission from input to output
◆Tone control circuit with a parallel volume system
◆Large power supply with four separate circuits
◆Left-right symmetrical design
◆Fully discrete phono amp
◆Low-impedance, high-performance headphone amp

4
Things to know before using this product
About this manual
• This manual describes the unit’s features and connection procedures.
• The illustrations as shown in this manual are for instructional purposes only.
• Specifications and appearance are subject to change without notice.
•“ WARNING ” describes precautions to be followed to avoid the possibility of serious injury or even death.
•“ CAUTION” describes precautions to be followed to avoid injury.
•“NOTICE” describes precautions to be followed to avoid malfunction or damage to the product.
• “ ” describes supplemental information about the product.
Supplied accessories
Please make sure that the following accessories are included in the package.
• Remote control
• Batteries (AAA, R03, UM-4) (×2)
• Power cable*
• Owner’s Manual (this book)
• Safety Brochure
* Multiple power cables might be included in the package depending on the area of distribution.
Please use the one that is appropriate for your AC outlet.
Table of Contents
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Things to know before using this product. . 4
About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Supplied accessories. . . . . . . . . . . . . . . . . . . . . . . . .4
Part Names and Functions . . . . . . . . . . . . . . . . 5
Front panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

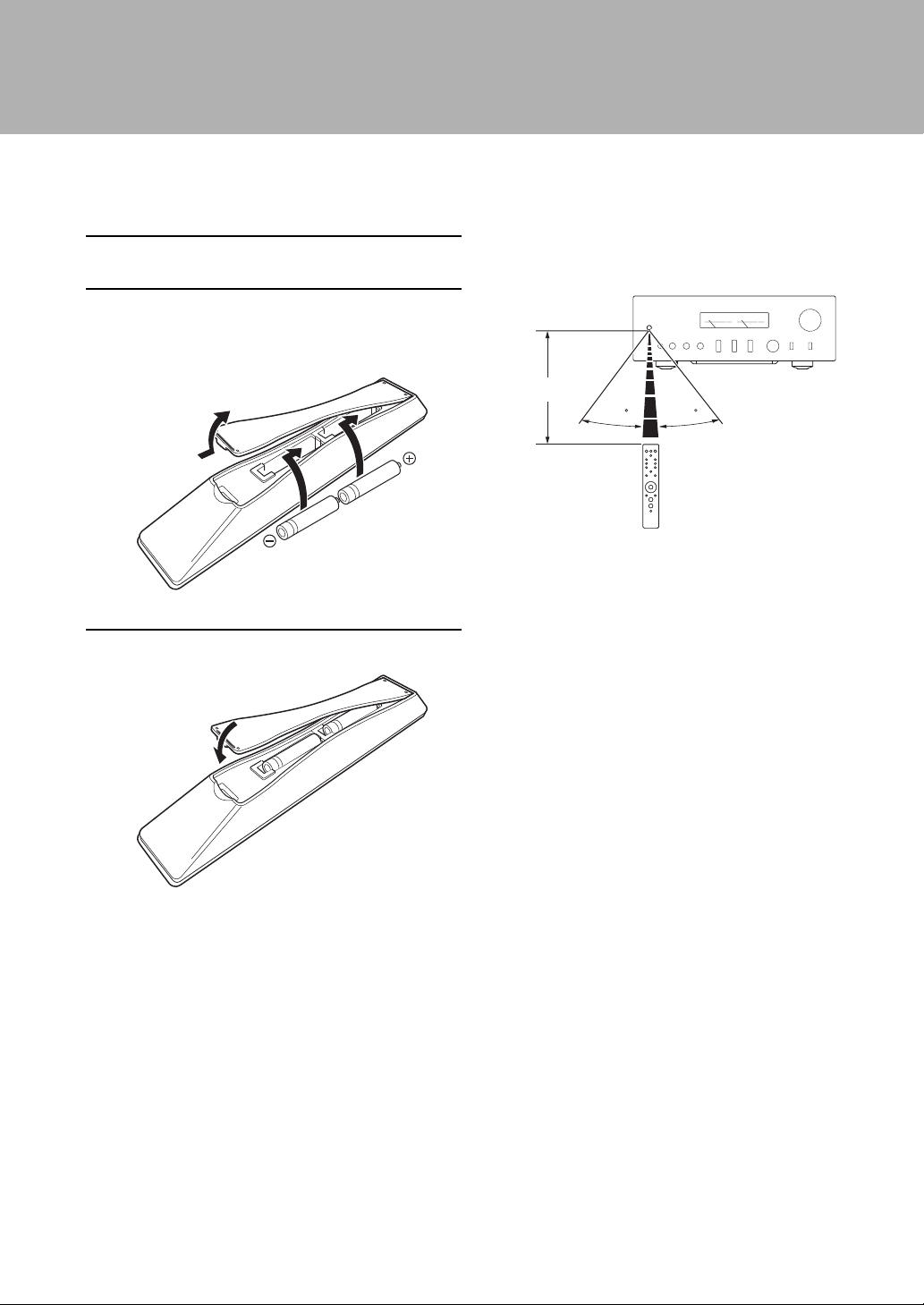

Installing batteries in the remote control . . 14
Operating the remote control. . . . . . . . . . . . . 14
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

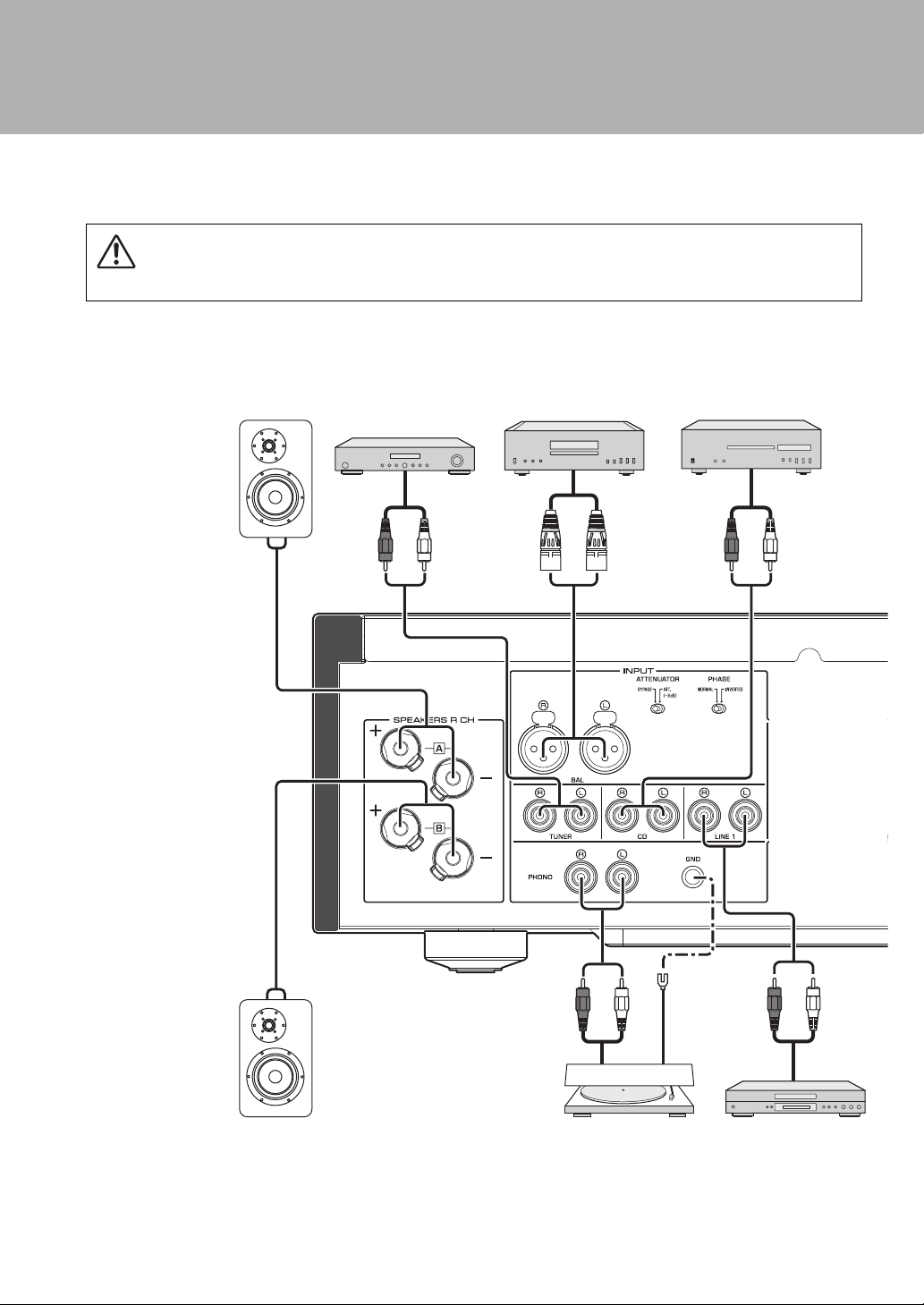

Connection diagram . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting speakers . . . . . . . . . . . . . . . . . . . . . . 18

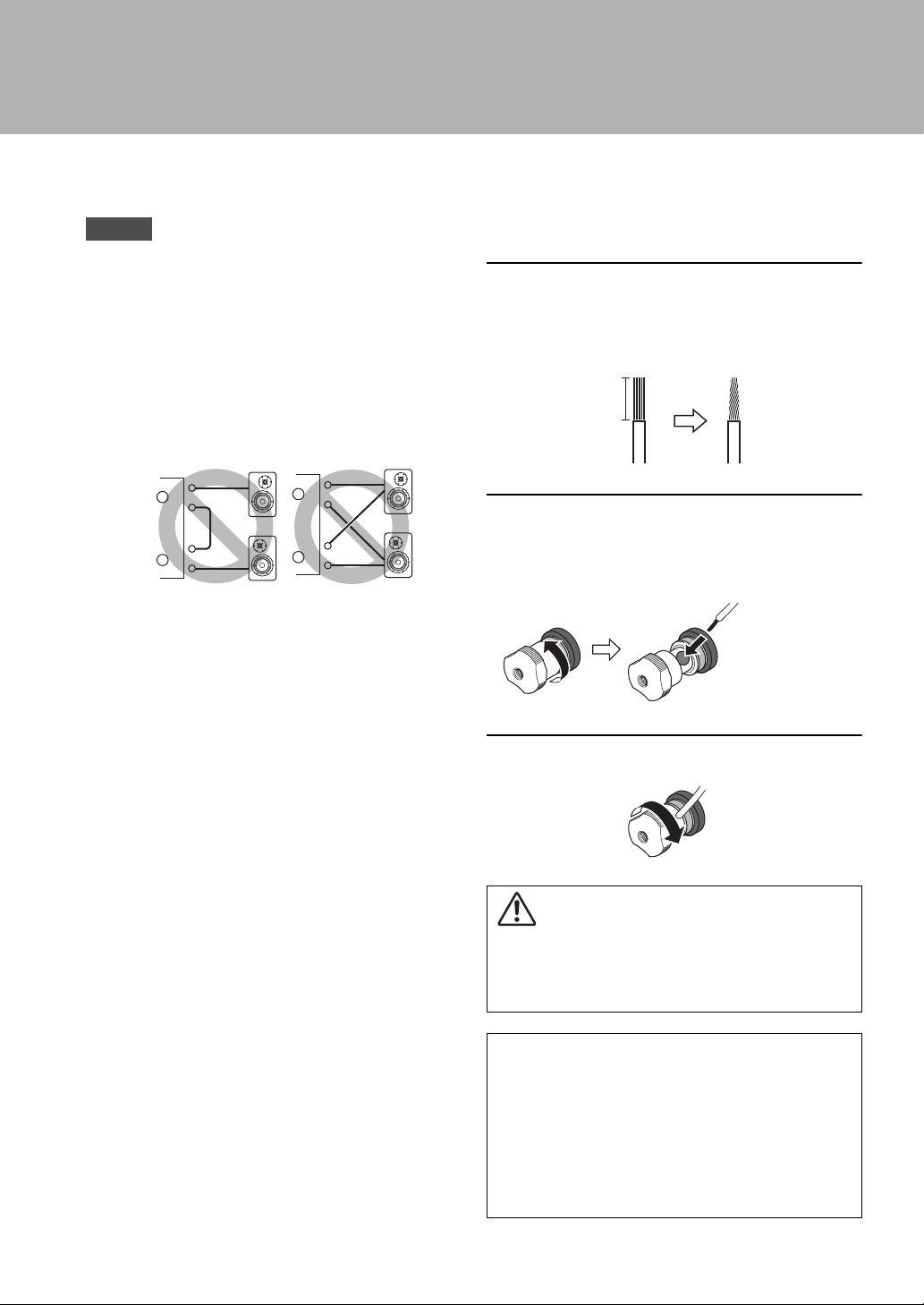

Using speaker cables . . . . . . . . . . . . . . . . . . . . . 18
Using banana plug cables. . . . . . . . . . . . . . . . . 19
Using Y-shaped lug cables . . . . . . . . . . . . . . . . 19
Bi-wired connection . . . . . . . . . . . . . . . . . . . . . . . . 19
Balanced connection . . . . . . . . . . . . . . . . . . . . . . . 20
Trigger connection . . . . . . . . . . . . . . . . . . . . . . . . . 20
Remote connection. . . . . . . . . . . . . . . . . . . . . . . . . 21
Operating the unit from another room. . . . .21
Remote connection between
Yamaha components. . . . . . . . . . . . . . . . . . . . . .21
Connecting the power cable . . . . . . . . . . . . . . . . 22
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Acoustic characteristics . . . . . . . . . . . . . . . . . . . . . 27
Tone control characteristics . . . . . . . . . . . . . . .27
Total harmonic distortion . . . . . . . . . . . . . . . . .27
Total harmonic distortion (PHONO) . . . . . . . .28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Note

5
Part Names and Functions
This section lists the names and describes the function of
various parts on the front and rear panels, and the remote control.

6
Part Names and Functions

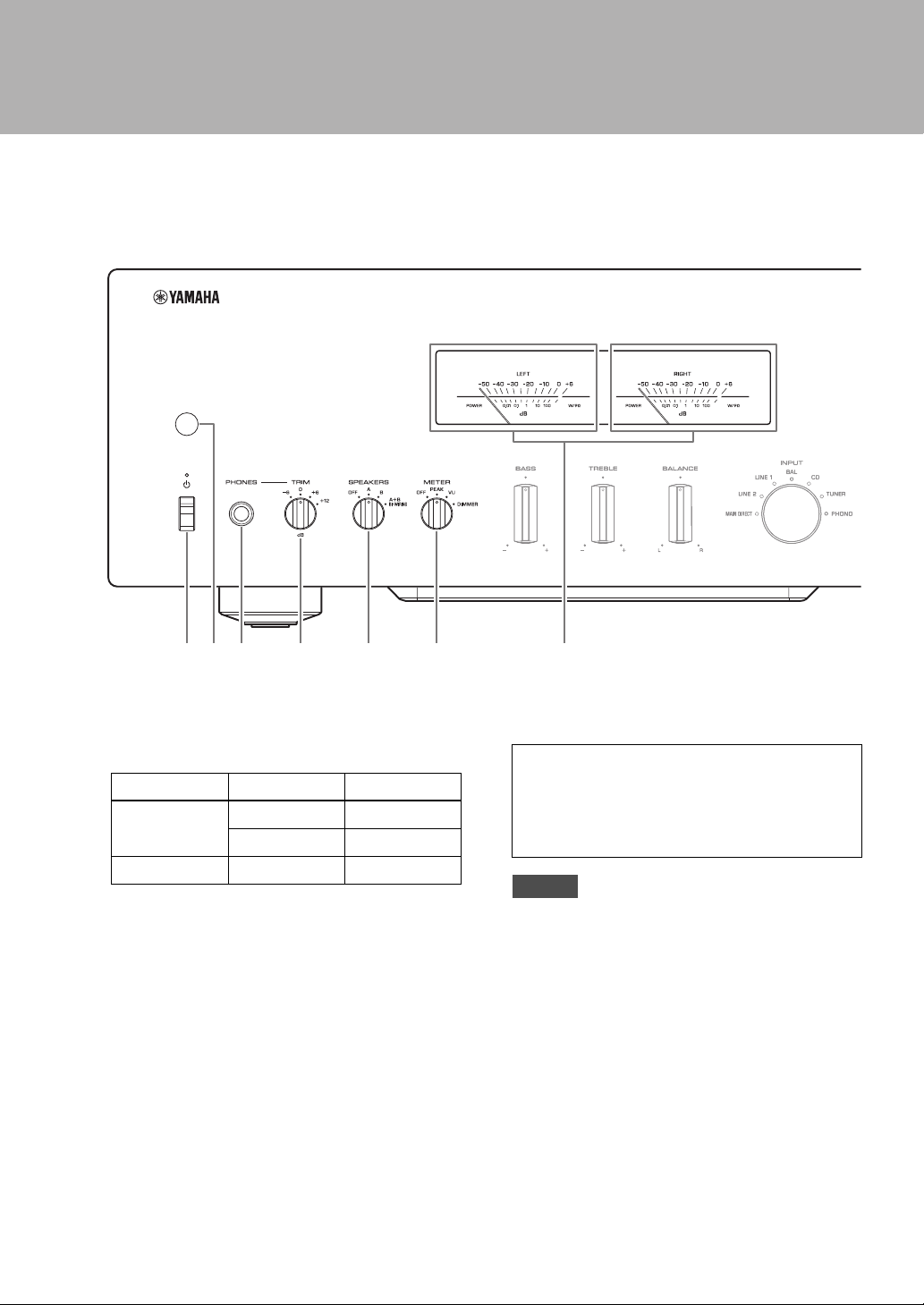

Front panel
1A(Power) switch/indicator
While the A(Power) switch is in the up position,
press the AAMP key on the remote control
repeatedly to switch the power to the unit between on
and standby mode. In addition, under either of the
following conditions, the unit will enter standby
mode.
• If the Auto Power Standby function is enabled.
(➔page 10)
• If you turn off the power to a device that has been set to
trigger connection to this unit. (➔page 20)
• After you turn on the unit, it will take a few seconds
before the unit can reproduce sound.
• Do not turn on the power to this unit again within
10 seconds after the power has been turned off. Doing so
may generate noise.
• While the unit is in standby mode, to turn on power to
the unit first set the A(Power) switch to the down
position to turn the power off, then set the switch to the
up position.
• While the unit is in standby mode, if you unplug the
power cable from the AC outlet and then plug it in again,
the power to the unit will be turned on.
13 4 5 6 72
A (Power) switch Power status Indicator
Up position
On Lit brightly
Standby Lit dimly
Down position Off Off
NOTICE
If you plan not to use the unit for an extended period of
time, be sure to unplug the power plug from the AC
outlet. Even when the power is turned off, a minimal
amount of electric current is still flowing to the unit.
Note

7
2Remote control sensor
Receives signals from the remote control. (➔page 14)
3PHONES jack
Connect your headphones here.
• Connecting the headphones here will result in the
following:
- No sound will be heard from the connected speakers.
- Audio signals will not be output at the PRE OUT jacks.
- You will be unable to select MAIN DIRECT as the input
source.
• If MAIN DIRECT is selected as the input source, audio
signals will not be output at the PHONES jack.
4TRIM selector
Switches the headphone amp gain.
Select the gain setting that is appropriate for your
headphones.
Available gain:
−6 dB, 0 dB, +6 dB, +12 dB
5SPEAKERS selector
Switches sets of speakers connected to the
SPEAKERS L/R CH A and B terminals on the rear
panel as follows:
OFF: No audio signals will be output from the
speakers.
A: Audio signals will be output from the set of
speakers connected to the A terminals.
B: Audio signals will be output from the set of
speakers connected to the B terminals.
A+B BI-WIRING: Audio signals will be output from
the sets of speakers connected to the A and B
terminals. Select this position when you plan to
make a bi-wired connection. (➔page 19)
6METER selector
Switches the meter function as follows:
OFF: Turns off meter operation and display
illumination.
PEAK: Switches the meter display type to a peak
level meter. The peak level meter shows the
highest instantaneous level of an audio output
signal.
VU: Switches the meter display type to a VU (Volume
Unit) level meter. The VU level meter shows an
effective audio output value that represents the
way sound is perceived by human ears.
DIMMER: When selected, the DIMMER
automatically changes the brightness of the meter
display in steps. When you see the brightness level
you desire, switch to another setting parameter to
lock in the new brightness setting.
7Meter (LEFT/RIGHT)
Indicates the audio output level of the left (LEFT) and
right (RIGHT) channels.
Note
NOTICE
[Model for Asia]
If you connect two sets of speakers (A+B), use the
speakers with an impedance of 12Ωor higher.
[Other models]
If you connect two sets of speakers (A+B), use the
speakers with an impedance of 8Ωor higher.

8
Part Names and Functions
Front panel
8BASS control
Adjusts the volume level of the bass range.
Adjustable range: −10 dB – 0 – +10 dB
9TREBLE control
Adjusts the volume level of the treble range.
Adjustable range: −10 dB – 0 – +10 dB
0BALANCE control
Adjusts the audio output balance between the left and
right speakers to compensate for sound imbalances
caused by speaker locations or listening room
conditions.
• If both BASS and TREBLE controls are set to 0 (zero), the
audio signal will bypass the tone control circuit.
• The BASS, TREBLE, and BALANCE control settings will not
affect the input signals at the MAIN IN jacks nor the output
signals at the LINE 2 OUT jacks.
AINPUT selector/indicator
Selects the input source. The indicator for the selected
input source lights up. Audio signals of the selected
input source will be output at the LINE 2 OUT jacks.
MAIN DIRECT: Selects the component connected to
the MAIN IN jacks as the input source.
LINE 1/LINE 2: Selects the component connected to
the LINE 1 or LINE 2 jacks as the input source.
BAL: Selects the component connected to the BAL
input jacks as the input source.
CD: Selects the CD player connected to the CD input
jacks as the input source.
TUNER: Selects the tuner connected to the TUNER
input jacks as the input source.
PHONO: Selects the turntable connected to the
PHONO input jacks as the input source.
8 9 0 A
Note

9
• If MAIN DIRECT is selected as the input source, audio
signals will not be output at the PRE OUT, LINE 2 OUT or
PHONES jacks.
• If LINE 2 is selected, audio signals will not be output at
the LINE 2 OUT jacks.
BPHONO switch
Set this switch to the MM or MC position according to
the type of magnetic cartridge of the turntable
connected to the PHONO input jacks on the rear
panel.
Before you replace the cartridge for the turntable, be sure
to turn off the power to this unit.
CFeet
If the unit is unstable, adjust the height of the feet as
needed by rotating them.
DAUDIO MUTE switch/indicator
Press this switch to reduce the current volume level by
approximately 20 dB. The indicator will light up.
Press again to restore the audio output to the previous
volume level. The indicator will turn off.
EVOLUME knob
Adjusts the volume level. This setting will not affect
the output level at the LINE 2 OUT jacks.
B EDC
Note
Note
NOTICE
If you select MAIN DIRECT as the input source for this
unit, the volume level will be fixed. In this case, to adjust
the volume level, use the volume control on the
external amplifier connected to the MAIN IN jacks.

10
Part Names and Functions

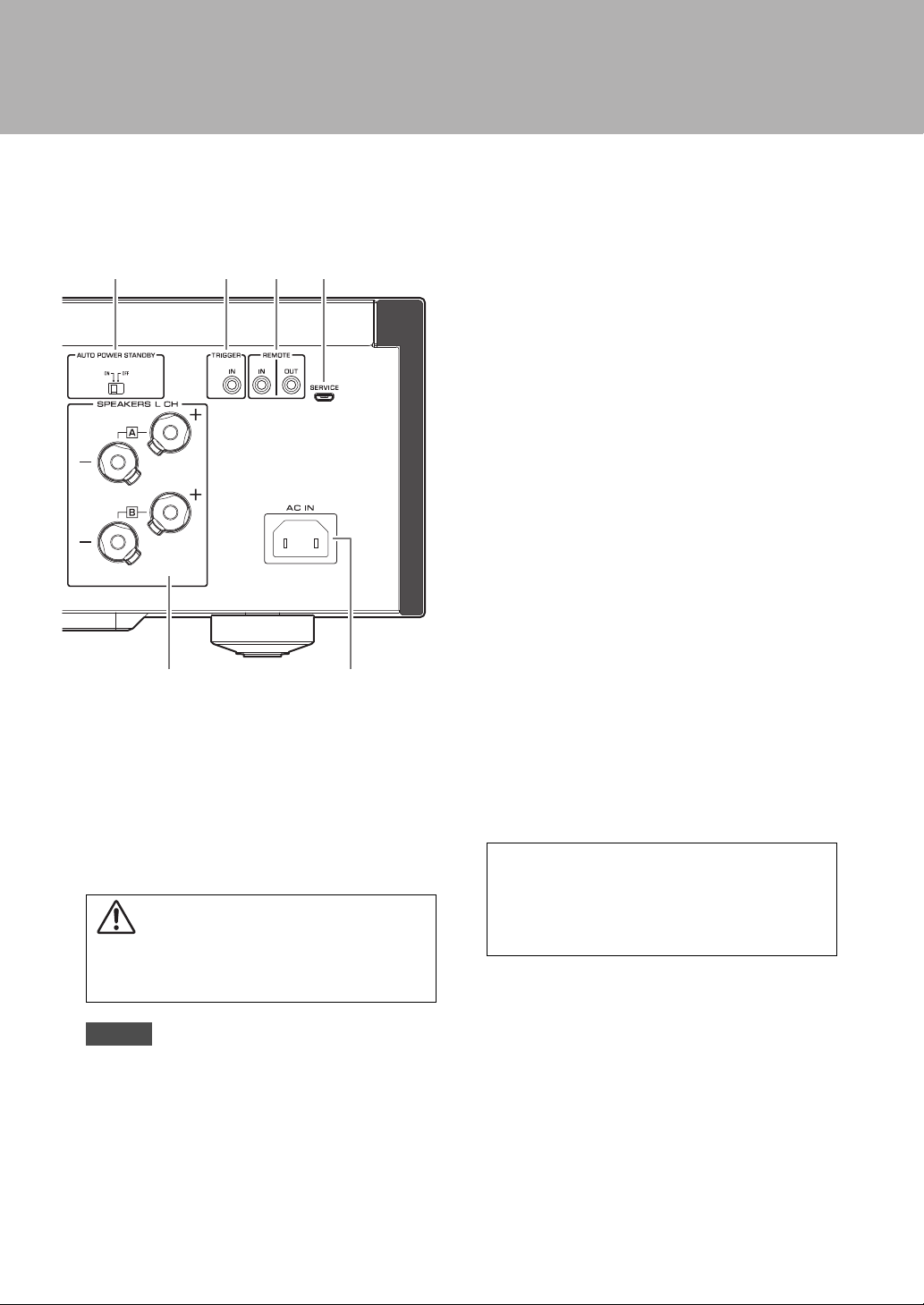

Rear panel
1BAL (balanced) input jacks
Set the ATTENUATOR selector and PHASE selector
appropriately for the playback component that is
connected to these jacks. (➔page 20)
2PRE OUT jacks
• Audio signals output at the PRE OUT jacks are the same
channel signals that are output at the SPEAKERS L/R CH
terminals.
• The following parameter settings are effective for audio
signals output at the PRE OUT jacks.
-BASS
-TREBLE
-BALANCE
-VOLUME
3AUTO POWER STANDBY switch
ON: The unit enters standby mode automatically if it
is left turned on and not operated for eight hours
(Auto Power Standby function).
OFF: The unit does not enter standby mode
automatically.
4TRIGGER IN jack
Connect external components that support the trigger
function. (➔page 20)
5REMOTE IN/OUT jacks
Connect external components that support the remote
function. (➔page 21)
6SERVICE jack
This jack is used to test the product.
7SPEAKERS L/R CH terminals
8TUNER input jacks
A97
21
C8 B0 D
Note
Note

11
9PHONO input jacks
0CD input jacks
AGND (Ground) terminal
If you connect your turntable to this unit, ground it to
the GND terminal. Doing so may reduce noise.
This is not a safety ground.
BLINE 1 input jacks
CLINE 2 jacks
Connect external components that feature analog
audio in/out jacks.
DMAIN IN jacks
Connect external components that feature a volume
control function so that you can use this unit as a
power amplifier.
EAC IN jack
Connect the supplied power cable here. (➔page 22)
7E
3456
CAUTION
Do not loosen the GND terminal knob excessively.
Otherwise, the knob may come off and a child may
swallow it accidentally.
Note
NOTICE
If you select MAIN DIRECT as the input source for this
unit, the volume level will be fixed. In this case, to adjust
the volume level, use the volume control on the
external amplifier connected to the MAIN IN jacks.

12
Part Names and Functions
Remote control
1Infrared signal transmitter
Outputs infrared control signals toward the unit.
(➔page 14)
2AAMP key
Turns on the power to the unit or switches it to
standby mode. (➔page 6)
3Input select keys
Select the input source.
Audio signals of the selected input source will be
output at the LINE 2 OUT jacks.
BAL: Selects the component connected to the BAL
input jacks as the input source.
LINE 1/LINE 2: Selects the component connected to
the LINE 1 or LINE 2 jacks as the input source.
PHONO: Selects the turntable connected to the
PHONO input jacks as the input source.
MAIN DIRECT: Selects the component connected to
the MAIN IN jacks as the input source.
CD: Selects the CD player connected to the CD input
jacks as the input source.
TUNER: Selects the tuner connected to the TUNER
input jacks as the input source.
• If MAIN DIRECT is selected as the input source, audio
signals will not be output at the PRE OUT, LINE 2 OUT or
PHONES jacks.
• If LINE 2 is selected, audio signals will not be output at
the LINE 2 OUT jacks.
4VOLUME +/− keys
Adjust the volume level. This setting will not affect
the output level at the LINE 2 OUT jacks.
5MUTE key
Press this key to reduce the current volume level by
approximately 20 dB. Press the key again to restore
the previous volume level.
1
2
3
4
6
5
7
Note
NOTICE
If you select MAIN DIRECT as the input source for this
unit, the volume level will be fixed. In this case, to adjust
the volume level, use the volume control on the
external amplifier connected to the MAIN IN jacks.

13
6Tuner control keys
Control the functions of a connected Yamaha tuner.
For more information, refer to the owner’s manual for
your tuner.
7CD player control keys
Control the functions of a connected Yamaha CD
player. For more information, refer to the owner’s
manual for your CD player.
OPEN/CLOSE key: Opens or closes the disc tray
of a connected CD player.
ACD key: Turns on the power to a connected CD
player, or switches it to standby mode.
(Play): Starts playback of the CD player.
(Pause): Pauses playback of the CD player.
Press or to resume playback.
(Stop): Stops playback of the CD player.
/ (Skip): Skips to the next track, or returns
to the beginning of the current track.
SOURCE key: Selects the source to be played on the
CD player. The playback source changes each
time this key is pressed.
LAYER key: Toggles the playback layer of a hybrid
super audio CD between “Super audio CD” and
“CD.”
Some Yamaha tuners or CD players might not support the
tuner or CD player control keys.
Note

14
Part Names and Functions
■Installing batteries in the remote
control
1Remove the battery compartment cover.
2 Insert two batteries (AAA, R03, UM-4)
according to the polarity markings (+ and −)
on the inside of the battery compartment.
3Reinstall the battery compartment cover.
■Operating the remote control
Operate the remote control in the range shown below by
pointing it toward the remote control sensor on the front
panel of the unit.
2
1
3
3030
Within 6 m

15
Connections
This section explains how to connect the unit to speakers and
audio source components.

16
Connections
Connection diagram
CAUTION
Be sure to complete all connections before plugging in the power cable to an AC outlet. (➔page 22)
+ -
+ -
Turntable
Speaker A
(R channel)
(➔page 18)
Speaker B
(R channel)
(➔page 18)
Tuner
CD player featuring
RCA jacks
CD player or network
player featuring XLR jacks
(➔page 20)
BD player, etc.

17
+ -
+–
Speaker A
(L channel)
Speaker B
(L channel)
External amplifier or
active subwoofer
Preamplifier,
AV amplifier, etc.
CD recorder, tape deck,
etc.
NOTICE
If a component is connected to the MAIN IN jacks, the unit’s volume level will be fixed. Therefore, do not connect a CD player or
other components that do not feature volume adjustment to the MAIN IN jacks. Otherwise, a loud sound may be emitted,
resulting in malfunction of the unit or damage to the speakers.

18
Connections
• Because this power amplifier is of the floating balanced type,
the following connections are not possible.
- Connecting between two “+” (or two “−”) terminals of
the left and right channels (Fig. 1).
- Connecting each “−” terminal of the unit’s left and right
channels to the opposite channel speakers (cross
connection, Fig. 2).
- Connecting the left/right channel “−” terminals (or
accidentally allowing them to come in contact) with the
metal part of the rear panel of this unit.
• Do not connect an active subwoofer to the SPEAKERS L/R CH
terminals. Connect the subwoofer to the unit’s PRE OUT
jacks.
Connecting speakers
■Using speaker cables
1Remove approximately 10 mm of insulation
from the end of each speaker cable, and
twist the exposed wires together tightly to
prevent short circuits.
2Unscrew the knob on each speaker
terminal, and then insert the bare wire into
the side hole on the terminal.
3Tighten the knob.
Note
+
–
+
–
L
R
+
–
+
–
L
R
Figure 1 Figure 2
CAUTION
• Do not loosen the knob excessively. Otherwise, the knob
may come off and a child may swallow it accidentally.
• To reduce the risk of electric shock, do not touch the
speaker terminals while the power to the unit on.
NOTICE
• If the SPEAKERS terminals come into contact with a
metallic rack, a short circuit may occur, resulting in
damage to this unit. When installing the unit in a rack,
maintain a sufficient clearance to prevent the SPEAKERS
terminals from coming into contact with the rack.
• Do not let the bare speaker wires touch each other, nor let
them touch any metal part of this unit. Otherwise, the
unit and/or the speakers may be damaged.
10 mm
Diameter of the
speaker cable wire
hole: 6.0 mm

19
All connections must be correct: L (left) to L, R (right) to R, “+” to
“+”, and “−” to “−”. For information regarding the connection
procedure, refer to the owner’s manual for your speakers.
■Using banana plug cables
(Models for U.S.A., Canada, Australia, China, and Taiwan)
First tighten the knob on the SPEAKERS
terminal, and then insert the banana plug into
the head of the knob.
■Using Y-shaped lug cables
1Unscrew the knob, and then sandwich the
Y-shaped lug between the ring part and
base of the terminal.
2Tighten the knob.
Bi-wired connection
A bi-wired connection separates the woofer from the mid
and high ranges. Speakers that support bi-wired
connection feature two pairs of terminals (total four
terminals). These two pairs of terminals can divide the
speakers into two independent parts. To make this kind of
connection, you need to connect mid and high range
drivers to one pair of terminals, and low range drivers to
the other pair of terminals.
1Remove the shorting bars or bridges on the
speakers.
2Connect this unit to the speakers as shown
in the figure below.
An example of left channel connection
3Set the SPEAKERS selector on the front
panel to A+B BI-WIRING.
Note
Banana plug
Diameter of the
banana plug hole: 4.0 mm
Y-shaped lug
Thickness of the
terminal core: 5.8 mm
Rear panel of this unit Speaker

20
Connections
Balanced connection
You can connect a CD player or network player that
features XLR-type balanced output jacks to the BAL input
jacks of this unit. Use XLR-type balanced cables for this
connection.
ATTENUATOR selector: Enables you to set the
allowable input level at the balanced input jacks.
Select ATT. (−6 dB) if the audio output from the
connected component sounds distorted.
PHASE selector: Enables you to set the position (phase)
of the HOT pin (pin #2: HOT or pin #3: HOT) at the
balanced input jacks.
Refer to the instruction manual for the connected
component to find out the position of the HOT pin at the
balanced output jacks on the component.
• Select NORMAL (pin #2 is HOT) for a Yamaha player.
• Do not use balanced and unbalanced connections for one
component simultaneously. Doing so would create a ground
loop that could generate static and noise.
• When connecting a cable, be sure to align the pins on the
connector with the holes on the jack, and then insert the
male XLR connector into the jack until you hear a click. To
remove the cable, while pressing and holding down the lever
on the BAL input jack, pull out the male XLR connector from
the jack.
• For a balanced connection, select BAL as the input source.
Trigger connection
You can connect a Yamaha AV receiver or other
component that supports the Trigger function. You can
control this unit in sync with a connected component.
When the power to the connected component is turned on,
the power to this unit is also turned on. Simultaneously,
the input source to the unit is set to MAIN DIRECT.
If MAIN DIRECT has been selected as the input source
for this unit, when the power to the connected component
is turned off, this unit will enter standby mode.
When the power switch on this unit is turned Off, the power to
the unit will not be triggered.
Note
1: GND (earth)
2: HOT (+)
3: COLD (−)
NORMAL
(Pin #2: HOT)
1: GND (earth)
2: COLD (−)
3: HOT (+)
INV.
(Pin #3: HOT)
XLR connector
(female)
XLR connector
(male)
Lever
BAL input jack
Note
TRIGGER
OUT
PRE OUT
TRIGGER
IN
MAIN IN
Rear panel of this unit
Yamaha AV receiver or
other component that features
TRIGGER OUT jacks and PRE OUT jacks
Monaural
mini-plug cable
Stereo pin cable
