Yamaha T3n User manual

SERVICE MANUAL
SPECIFICATIONS（総合仕様）.................................................................. 3/5
DIMENSIONS（寸法図）.............................................................................. 7
PANEL LAYOUT（パネルレイアウト）......................................................... 8
CIRCUIT BOARD LAYOUT（ユニットレイアウト）.................................... 9
DISASSEMBLY PROCEDURES（分解手順）............................................. 10
LSI PIN DESCRIPTION（LSI端子機能表）.................................................. 18
IC BLOCK DIAGRAM（ICブロック図）...................................................... 20
CIRCUIT BOARDS（シート基板図）........................................................... 23
INSPECTIONS（検査）.......................................................................... 36/45
PST CIRCUIT BOARD REPAIR GUIDE
（PSTシート故障修理ガイド）................................................................ 54/59
PARTS LIST
IC & DIODE FIGURES（外形図）
BLOCK DIAGRAM（ブロックダイアグラム）
CIRCUIT DIAGRAM（回路図）
■CONTENTS（目次）
PA 011844
Copyright (c) Yamaha Corporation. All rights reserved. 06.12
HAMAMATSU, JAPAN
このサービスマニュアルはエコパルプ
（ECF：無塩素系漂白パルプ）を使用しています。
This document is printed on chlorine free (ECF) paper.
T5n: 200612-682500
T4n: 200612-577500
T3n: 200612-504000
T5n
T4n
T3n
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
2
■WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those originally
installed.
印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service
procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have
therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruc-
tion of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha
product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service
representative.
IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of
any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specifica-
tion are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service
Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by
grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause
cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO
EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux
vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol or colored GREEN or colored GREEN and YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
3
■SPECIFICATIONS
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
4
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
5
■ 総合仕様
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
6
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
7
■DIMENSIONS（寸法図）
Unit: mm
単位：mm
88
426.9
480
3535 9393 224
4.4
16.5
380 26
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
8
• Rear Panel（リアパネル）
■PANEL LAYOUT（パネルレイアウト）
1TEMP indicator
2SIGNAL indicator
3CLIP indicator
4Screw holes for handles
5Air intakes
6POWER switch and indicator
7REMOTE indicator
8PROTECTION indicator
9MUTE indicator
0Volume control knobs
1322
068 497554
45
21
687
3
1Mode switch
2GAIN switch
3SPEAKERS jacks
4DATA PORT jacks
5AMP ID switch
6Input connectors
7AC IN connector
8Ground screw
1TEMPインジケーター
2SIGNALインジケーター
3CLIPインジケーター
4ハンドル用ネジ穴
5吸気口
6POWERスイッチ/インジケーター
7REMOTEインジケーター
8PROTECTIONインジケーター
9MUTEインジケーター
0ボリューム
1モードスイッチ
2GAINスイッチ
3SPEAKERS端子
4DATAPORT端子
5AMPIDスイッチ
6入力端子
7電源コード
8アース用ネジ
• Front Panel（フロントパネル）
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
9
■CIRCUIT BOARD LAYOUT（ユニットレイアウト）
Rear Panel（リアパネル）
INT5
INT4
INT3
CPUT5
CPUT4
CPUT3
INSWT5
INSWT4
INSWT3
INSWT5
INSWT4
INSWT3
PAT5
PAT5
PAT3
FPT5
FPT5
FPT3
FPT5
FPT5
FPT3
PST5
PST4
PST3
PAT5
PAT5
PAT3
ATTT5
ATTT4
ATTT3
PSWT5
PSWT4
PSWT3
Front Panel（フロントパネル）
T5n model
T4n model
T3n model
↑Top（上側）
↓Bottom（下側）
↑Top（上側）
↓Bottom（下側）
Rear
Front
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
10
■DISASSEMBLY PROCEDURES（分解手順）
[320]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
(Fig. 1)
1. トップカバー（所要時間：約3分）
1-1 ［320］のネジ9本を外し、トップカバーを外します。
（Fig.1）
1. Top Cover (Time required: about 3 minutes)
1-1 Remove the nine (9) screws marked [320].The top cover
can then be removed. (Fig. 1)
[320]
Top cover
（トップカバー）
[320]
[320][320]
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
11
[230A]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[230B]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[250A]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[250B]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[280A]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[280B]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
(Fig. 2)
2. PAユニット左側（所要時間：約6分）
2-1 トップカバーを外します。（1項参照）
2-2 ［230A］のネジ3本、［250A］のネジ3本、［280A］のネジ2
本を外し、PAユニット（サイドカバーＬ、リアアングル
付き）を外します。（Fig.2）
2-3 ［196A］のネジ4本、［195A］のネジカバー4個を外しま
す。（Fig.3）
2-4 ［190A］のネジ6本、［180A］のワッシャー6個を外し、PA
ユニットとサイドカバーL（リアアングル付き）を分離し
ます。（Fig.3）
3. PAユニット右側（所要時間：約6分）
3-1 トップカバーを外します。（1項参照）
3-2 ［230B］のネジ3本、［250B］のネジ3本、［280B］のネジ2
本を外し、PAユニット（サイドカバーR、リアアングル
付き）を外します。（Fig.2）
3-3 ［196B］のネジ4本、［195B］のネジカバー4個を外しま
す。（Fig.3）
3-4 ［190B］のネジ6本、［180B］のワッシャー6個を外し、PA
ユニットとサイドカバーR（リアアングル付き）を分離し
ます。（Fig.3）
2. PA unit on the left side
(Time required: about 6 minutes)
2-1 Remove the top cover. (See Procedure 1.)
2-2 Remove the three (3) screws marked [230A], three (3)
screws marked [250A] and two (2) screws marked
[280A]. The PA unit and side cover L (with rear angle)
can then be removed. (Fig. 2)
2-3 Remove the four (4) screws marked [196A] and four (4)
screw covers marked [195A]. (Fig. 3)
2-4 Remove the six (6) screws marked [190A] and six (6)
washers marked [180A]. The PA unit and side cover L
(with rear angle) can then be separated. (Fig. 3)
3. PA unit on the right side
(Time required: about 6 minutes)
3-1 Remove the top cover. (See Procedure 1.)
3-2 Remove the three (3) screws marked [230B], three (3)
screws marked [250B] and two (2) screws marked
[280B]. The PA unit and side cover L (with rear angle)
can then be removed. (Fig. 2)
3-3 Remove the four (4) screws marked [196B] and four (4)
screw covers marked [195B]. (Fig. 3)
3-4 Remove the six (6) screws marked [190B] and six (6)
washers marked [180B]. The PA unit and side cover R
(with rear angle) can then be separated. (Fig. 3)
PA unit
（PAユニット）
Side cover L
（サイドカバーL）
Side cover R
（サイドカバーR）
Rear angle
（リアアングル）
Rear angle
（リアアングル）
[250A]
[230A] [230B]
[280B][280A]
[250B]
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
12
[190B]
[190B]
[180B]
[195B]
[195B]
[196B]
PA unit
（PAユニット）
Rear angle
（リアアングル）
Side cover R
（サイドカバーR）
[180B]
[190A]
[190A]
[180A]
[195A]
[195A]
[196A]
Rear angle
（リアアングル）
Side cover L
（サイドカバーL）
[180A]
[180A]: Washer 4x9x0.8 MFZN2W3 (WF578000) 平座みがき丸
[180B]: Washer 4x9x0.8 MFZN2W3 (WF578000) 平座みがき丸
[190A]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[190B]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[195A]: Screw Cover (WJ618300) ネジカバー
[195B]: Screw Cover (WJ618300) ネジカバー
[196A]: Bind Head Tapping Screw-B 3x8 MFZN2B3 (WE774400) Bタイト+BIND
[196B]: Bind Head Tapping Screw-B 3x8 MFZN2B3 (WE774400) Bタイト+BIND
(Fig. 3)
4. リアAss'y（所要時間：約5分）
4-1 トップカバーを外します。（1項参照）
4-2 ［280］のネジ6本を外し、リアAss'yを外します。（Fig.4）
4. Rear Assembly
(Time required: about 5 minutes)
4-1 Remove the top cover. (See Procedure 1.)
4-2 Remove the six (6) screws marked [280]. The rear as-
sembly can then be removed. (Fig. 4)
[280]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
Rear Assembly
（リアA'ssy）
[280]
[280] [280]
(Fig. 4)
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
13
5. INT5シート、INSWT5シート（T5n）
INT4シート、INSWT4シート（T4n）
INT3シート、INSWT3シート（T3n）
（所要時間：約10分）
5-1 トップカバーを外します。（1項参照）
5-2 リアAss'yを外します。（4項参照）
5-3 ［370］のネジ2本を外し、SPターミナルカバーを外しま
す。（Fig.5）
5-4 ［70］のネジ4本、［80］のネジ4本、［90］のネジ2本、
［100］のネジを外します。（Fig.5）
INT5シートを外します。（T5n）（Fig.5）
INT4シートを外します。（T4n）（Fig.5）
INT3シートを外します。（T3n）（Fig.5）
5-5 ［30］のネジ2本を外します。（Fig.5）
INSWT5シートを外します。（T5n）（Fig.5）
INSWT4シートを外します。（T4n）（Fig.5）
INSWT3シートを外します。（T3n）（Fig.5）
5. INT5 Circuit Board, INSWT5 Circuit Board (T5n)
INT4 Circuit Board, INSWT4 Circuit Board (T4n)
INT3 Circuit Board, INSWT3 Circuit Board (T3n)
(Time required: about 10 minutes)
5-1 Remove the top cover. (See Procedure 1.)
5-2 Remove the rear assembly. (See Procedure 4.)
5-3 Remove the two (2) screws marked [370]. The speaker
terminal cover can then be removed. (Fig. 5)
5-4 Remove the four (4) screws marked [70], four (4) screws
marked [80], two (2) screws marked [90] and screw
marked [100]. (Fig. 5)
The INT5 circuit board can then be removed. (T5n) (Fig. 5)
The INT4 circuit board can then be removed. (T4n) (Fig. 5)
The INT3 circuit board can then be removed. (T3n) (Fig. 5)
5-5 Remove the two (2) screws marked [30]. (Fig. 5)
The INSWT5 circuit board can then be removed. (T5n)
(Fig. 5)
The INSWT4 circuit board can then be removed. (T4n)
(Fig. 5)
The INSWT3 circuit board can then be removed. (T3n)
(Fig. 5)
[30]: Pan Head Screw 2.6x6 MFZN2B3 (WE986400) 小ネジ+PAN
[70]: Bind Head Tapping Screw-B 2.6x8 MFZN2B3 (WE961700) Bタイト+BIND
[80]: Flat Head Tapping Screw-B 3x8 MFZN2B3 (WF266800) Bタイト+FLAT
[90]: Bind Head Tapping Screw-B 3x12 MFZN2B3 (WE998100) Bタイト+BIND
[100]: Bonding Tapping Screw-B 3x8 MFZN2B3 (WE774100) Bタイト+BOND
[370]: Bind Head Tapping Screw-B 3x8 MFZN2B3 (WE774400) Bタイト+BIND
(Fig. 5)
Speaker Terminal Cover
（SPターミナルカバー）
[90]
[70] [70][30] [80] [370] [80]
INT3
INT4
INT5
INSWT3
INSWT4
INSWT5
[100]
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
14
6. フロントAss'y（所要時間：約5分）
6-1 トップカバーを外します。（1項参照）
6-2 ［250］のネジ6本（右側3本、左側3本）、［260］のネジ2本
を外し、フロントAss'yを外します。（Fig.6）
6. Front Assembly
(Time required: about 5 minutes)
6-1 Remove the top cover. (See Procedure 1.)
6-2 Remove the six (6) screws marked [250] (3 on the left
and 3 on the right) and two (2) screws marked [260].
The front assembly can then be removed. (Fig. 6)
[250]: Bonding Tapping Screw-B 4x8 MFZN2B3 (WE999400) Bタイト+BOND
[260]: Bind Head Tapping Screw-B 3x8 MFZN2W3 (WE774300) Bタイト+BIND
(Fig. 6)
[250] [260] [250]
Front Assembly
（フロントA'ssy）
7. DCファンAss'y（所要時間：約7分）
7-1 トップカバーを外します。（1項参照）
7-2 フロントAss'yを外します。（6項参照）
7-3 ［30A］のネジ2本を外し、DCファンAss'y（左側）を外し
ます。（Fig.7）
7-4 ［30B］のネジ2本を外し、DCファンAss'y（右側）を外し
ます。（Fig.7）

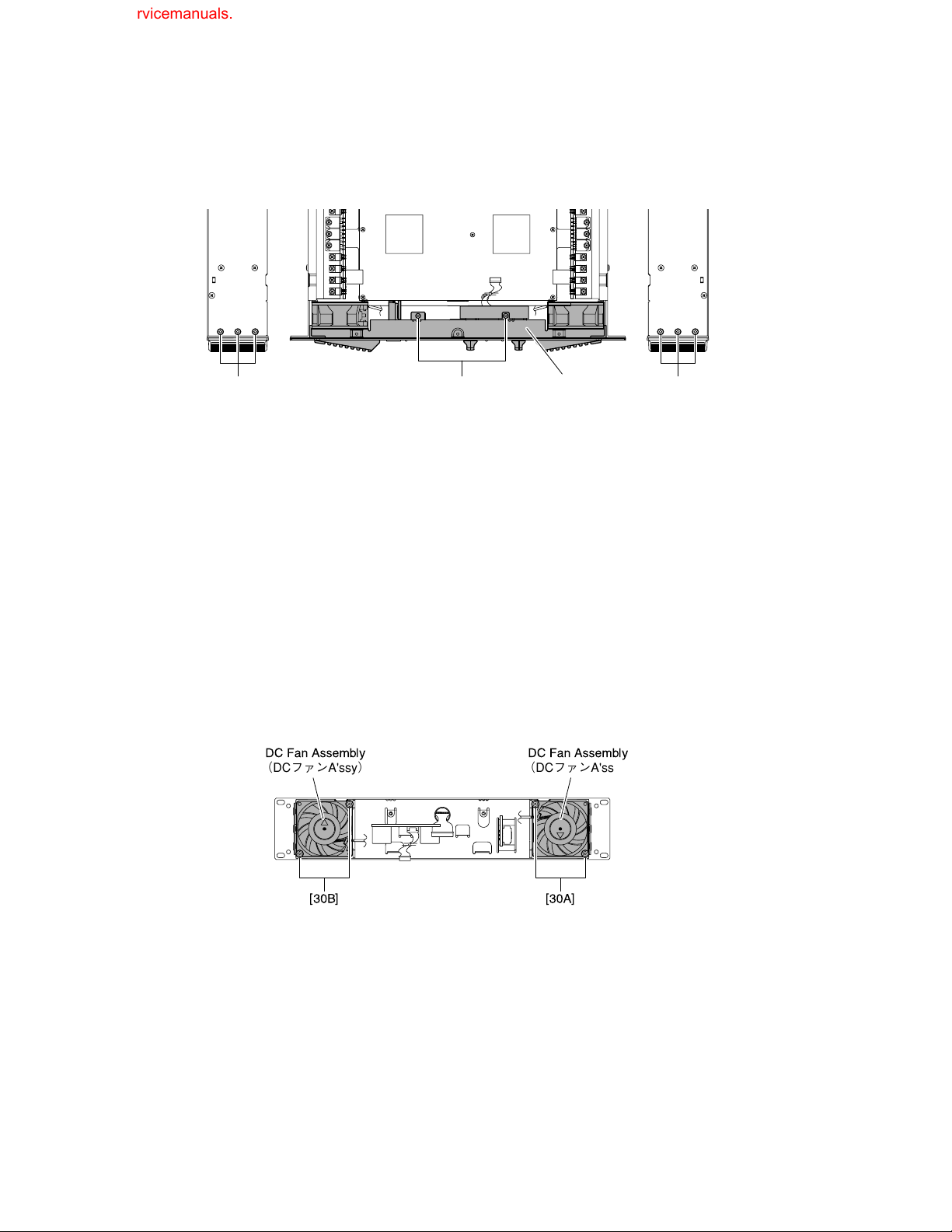

7. DC Fan Assembly
(Time required: about 7 minutes)
7-1 Remove the top cover. (See Procedure 1.)
7-2 Remove the front assembly. (See Procedure 6.)
7-3 Remove the two (2) screws marked [30A]. The DC fan
assembly on the left side can then be removed. (Fig. 7)
7-4 Remove the two (2) screws marked [30B]. The DC fan
assembly on the right side can then be removed. (Fig. 7)
[30A]: Pan Head Screw 4x45 MFZN2W3 SP (WJ124000) 小ネジ+PAN
[30B]: Pan Head Screw 4x45 MFZN2W3 SP (WJ124000) 小ネジ+PAN
(Fig. 7)
[30A][30B]
DC Fan Assembly
（DCファンA'ssy）
DC Fan Assembly
（DCファンA'ssy）
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
15
[160]: Flat Head Screw 4x8 MFZN2B3 (WE980300) 小ネジ+FLAT
[200A]: Bind Head Screw 4x10 MFZN2B3 (WE980400) 小ネジ+BIND
[200B]: Bind Head Screw 4x10 MFZN2B3 (WE980400) 小ネジ+BIND
(Fig. 8)
[200A]
[200B]
[160]
[160]
[160]
Filter
（フィルター）
Grill
（グリル）
Filter
（フィルター）
Front panel
（フロントパネル）
Grill
（グリル）
Knob
（ノブ）
8. PSWT5シート、FPT5シート、ATTT5シート（T5n）
PSWT4シート、FPT4シート、ATTT4シート（T4n）
PSWT3シート、FPT3シート、ATTT3シート（T3n）
（所要時間：約15分）
8-1 トップカバーを外します。（1項参照）
8-2 フロントAss'yを外します。（6項参照）
8-3 ［200A］のネジ2本を外し、左側のグリルとフィルターを
外します。（Fig.8）
8-4 ［200B］のネジ2本を外し、右側のグリルとフィルターを
外します。（Fig.8）
8-5 ノブ2個を外します。（Fig.8）
8-6 ［160］のネジ6本を外し、フロントパネルを外します。
（Fig.8）
8. PSWT5 Circuit Board, FPT5 Circuit Board,
ATTT5 Circuit Board (T5n)
PSWT4 Circuit Board, FPT4 Circuit Board,
ATTT4 Circuit Board (T4n)
PSWT3 Circuit Board, FPT3 Circuit Board,
ATTT3 Circuit Board (T3n)
(Time required: about 15 minutes)
8-1 Remove the top cover. (See Procedure 1.)
8-2 Remove the front assembly. (See Procedure 6.)
8-3 Remove the two (2) screws marked [200A]. The grill
and filter on the left side can then be removed. (Fig. 8)
8-4 Remove the two (2) screws marked [200B]. The grill
and filter on the left side can then be removed. (Fig. 8)
8-5 Remove the two (2) knobs. (Fig. 8)
8-6 Remove the six (6) screws marked [160].The front panel
can then be removed. (Fig. 8)
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
16
[70]
[120]
Power Switch Knob
（PSWノブ）
Hexagonal Nut
（6角ナット）
PSWT3
PSWT4
PSWT5
ATTT3
ATTT4
ATTT5
FPT3
FPT4
FPT5
8-7 PSWノブを外します。（Fig.9）
8-8 ［70］のネジ2本を外します。（Fig.9）
PSWT5シートを外します。（T5n）（Fig.9）
PSWT4シートを外します。（T4n）（Fig.9）
PSWT3シートを外します。（T3n）（Fig.9）
8-9 ［120］のネジ2本を外します。（Fig.9）
FPT5シートを外します。（T5n）（Fig.9）
FPT4シートを外します。（T4n）（Fig.9）
FPT3シートを外します。（T3n）（Fig.9）
8-10 6角ナット2個を外します。（Fig.9）
ATTT5シートを外します。（T5n）（Fig.9）
ATTT4シートを外します。（T4n）（Fig.9）
ATTT3シートを外します。（T3n）（Fig.9）
8-7 Remove the PSW knob. (Fig. 9)
8-8 Remove the two (2) screws marked [70]. (Fig. 9)
The PSWT5 circuit board can then be removed. (T5n)
(Fig. 9)
The PSWT4 circuit board can then be removed. (T4n)
(Fig. 9)
The PSWT3 circuit board can then be removed. (T3n)
(Fig. 9)
8-9 Remove the two (2) screws marked [120]. (Fig. 9)
The FPT5 circuit board can then be removed. (T5n)
(Fig. 9)
The FPT4 circuit board can then be removed. (T4n)
(Fig. 9)
The FPT3 circuit board can then be removed. (T3n)
(Fig. 9)
8-10 Remove the two (2) hexagonal nuts. (Fig. 9)
The ATTT5 circuit board can then be removed. (T5n)
(Fig. 9)
The ATTT4 circuit board can then be removed. (T4n)
(Fig. 9)
The ATTT3 circuit board can then be removed. (T3n)
(Fig. 9)
[70]: Bind Head Screw 3x6 MFZN2W3 (WE774000) 小ネジ+BIND
[120]: Bind Head Tapping Screw-B 3x8 MFZN2W3 (WE774300) Bタイト+BIND
(Fig. 9)
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
17
9. PST5 Circuit Board, CPUT5 Circuit Board (T5n)
PST4 Circuit Board, CPUT4 Circuit Board (T4n)
PST3 Circuit Board, CPUT3 Circuit Board (T3n)
(Time required: about 20 minutes)
9-1 Remove the top cover. (See Procedure 1.)
9-2 Remove the PA unit on the left side. (See Procedure 2.)
9-3 Remove the PA unit on the right side. (See Procedure 3.)
9-4 Remove the rear assembly. (See Procedure 4.)
9-5 Remove the front assembly. (See Procedure 6.)
9-6 Remove the twelve (12) screws marked [40]. (Fig. 10)
The PST5 circuit board and insulation sheet can then
be removed. (T5n) (Fig. 10)
The PST4 circuit board and insulation sheet can then
be removed. (T4n) (Fig. 10)
The PST3 circuit board and insulation sheet can then
be removed. (T3n) (Fig. 10)
9-7 Remove the four (4) screws marked [60]. (Fig. 10)
The CPUT5 circuit board can then be removed. (T5n)
(Fig. 10)
The CPUT4 circuit board can then be removed. (T4n)
(Fig. 10)
The CPUT3 circuit board can then be removed. (T3n)
(Fig. 10)
9. PST5シート、CPUT5シート（T5n）
PST4シート、CPUT4シート（T4n）
PST3シート、CPUT3シート（T3n）
（所要時間：約20分）
9-1 トップカバーを外します。（1項参照）
9-2 PAユニット左側を外します。（2項参照）
9-3 PAユニット右側を外します。（3項参照）
9-4 リアAss'yを外します。（4項参照）
9-5 フロントAss'yを外します。（6項参照）
9-6 ［40］のネジ12本を外します。（Fig.10）
PST5シートと絶縁シートを外します。（T5n）（Fig.10）
PST4シートと絶縁シートを外します。（T4n）（Fig.10）
PST3シートと絶縁シートを外します。（T3n）（Fig.10）
9-7 ［60］のネジ4本を外します。（Fig.10）
CPUT5シートを外します。（T5n）（Fig.10）
CPUT4シートを外します。（T4n）（Fig.10）
CPUT3シートを外します。（T3n）（Fig.10）
[40]: Bind Head Tapping Screw-B 3x8 MFZN2W3 (WE774300) Bタイト+BIND
[60]: Bind Head Tapping Screw-B 3x8 MFZN2W3 (WE774300) Bタイト+BIND
(Fig. 10)
[40]
[60]
[40]
[40]
[40]
Insulation Sheet
（絶縁シート）
CPUT3
CPUT4
CPUT5
PST3
PST4
PST5
[60]
[40]
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
ZCEN1
ZCEN2
CSN
SDATAI
DGND
REF
DVSS
SCLK
SDATAO
TE1
TE2
TE3
IN2
REF2A
REF2B
OUT2
AVDD
AVSS
AVSS
AVDD
OUT1
REF1B
REF1A
IN1
Zero-cross control input 1. Select one from four types of zero-cross modes including nonzero cross mode. When
changing zero-cross modes during operation, set the system so that it changes at 1 second or more after the rise
of CSN signal.
Zero-cross control input 2. Select one from four types of zero-cross modes including nonzero cross mode. When
changing zero-cross modes during operation, set the system so that it changes at 1 second or more after the rise
of CSN signal.
Chip select input.
Serial data input.
Digital ground.
Reference voltage output for digital for attaining stabilization, connect this terminal to DVSS terminal through a
capacitance of 10 µF or higher (CREF).
And please do not use this terminal output for the drive purpose of an external circuit.
Minus power supply for digital (-6.0 V Typ.).
Serial clock input.
Serial data output.
Serial data are outputted from this terminal when CSN pin is “L” level.
This terminal becomes high-impedance state when CSN pin is “H”. Since it is an open drain output pin, pull it up
through a resistor to the power supply voltage (to be AVDD or less) of a device to be connected. Do not allow
output current of 1.5 mA or over.
Test terminal (Pull-down) non connection or connect to DGND terminal.
Test terminal (Pull-down) non connection or connect to DGND terminal.
Test terminal (Pull-down) non connection or connect to DGND terminal.
CH2 analog input. The output impedance of input signal source is used less than 10 kΩ.
When avoid the use of this terminal, connect to ground.
CH2 analog reference voltage input A connect to ground directly.
CH2 analog reference voltage input B connect to ground directly.
CH2 analog output.
Plus power supply for analog (+6.0 V Typ.).
Minus power supply for analog (-6.0 V Typ.).
Minus power supply for analog (-6.0 V Typ.).
Plus power supply for analog (+6.0 V Typ.).
CH1 analog output.
CH1 analog reference voltage input B connect to ground directly.
CH1 analog reference voltage input A connect to ground directly.
CH1 analog input. The output impedance of input signal source is used less than 10 kΩ.
When avoid the use of this terminal, connect to ground.
PIN
No.
NAME I/O FUNCTION
•YAC526-EZE2 (X5574A00) DIGITAL VOLUME INT: IC408
I
I
I
I
-
O
-
I
OD
I
I
I
AI
AI
AI
AO
-
-
-
-
AO
AI
AI
AI
Note A: Analog terminal, OD: Open drain output terminal, “L” level means VIL, “H” level means VIH.
■LSI PIN DESCRIPTION（LSI端子機能表）
www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
PE1/TIOC4C/DACK0/AH
PE15/TIOC4D/DACK1/IRQOUT
Vss
PC0/A0
PC1/A1
PC2/A2
PC3/A3
PC4/A4
PC5/A5
PC6/A6
PC7/A7
PC8/A8
PC9/A9
PC10/A10
PC11/A11
PC12/A12
PC13/A13
PC14/A14
PC15/A15
PB0/A16
Vcc
PB1/A17
Vss
PB2/IRQ0/POE0/RAS
PB3/IRQ1/POE1/CASL
PB4/IRQ2/POE2/CASH
Vss
PB5/IRQ3/POE3/RDWR
PB6/IRQ4/A18/BACK
PB7/IRQ5/A19/BREQ
PB8/IRQ6/A20/WAIT
PB9/IRQ7/A21/ADTRG
Vss
PA14/RD
WDTOVF
PA13/WRH
Vcc
PA12/WRL
Vss
PA11/CS1
PA10/CS0
PA9/TCLKD/IRQ3
PA8/TCLKC/IRQ2
PA7/TCLKB/CS3
PA6/TCLKA/CS2
PA5/SCK1/DREQ1/IRQ1
PA4/TXD1
PA3/RXD1
PA2/SCK0/DREQ0/IRQ0
PA1/TXD0
PA0/RXD0
PD15/D15
PD14/D14
PD13/D13
Vss
PD12/D12
Port E / MTU I/O / DMA transfer strobe / Address hold
Port E / MTU I/O / DMA transfer strobe / Interrupt request output
Ground
Port C / Address bus
Port B / Address bus
Power supply
Port B / Address bus
Ground
Port B / Interrupt request / Port output enable / Row address strobe
Port B / Interrupt request / Port output enable / Lower column address strobe
Port B / Interrupt request / Port output enable / Upper column address strobe
Ground
Port B / Interrupt request / Port output enable / DRAM read/write
Port B / Interrupt request / Address bus / Bus request acknowledge
Port B / Interrupt request / Address bus / Bus request
Port B / Interrupt request / Address bus / Wait
Port B / Interrupt request / Address bus / A/D conversion trigger input
Ground
Port A / Read
Watchdog time overflow
Port A / Upper write
Power supply
Port A / Lower write
Ground
Port A / Chip select
Port A / MTU timer clock input / Interrupt request
Port A / MTU timer clock input / Chip select
Port A / Serial clock / DMA transfer request / Interrupt request
Port A / Data transmission
Port A / Data reception
Port A / Serial clock / DMA transfer request / Interrupt request
Port A / Data transmission
Port A / Data reception
Port D / Data bus
Ground
Port D / Data bus
I/O
I/O
I
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
I
O
I
I/O
I/O
I/O
I
I/O
I/O
I/O
I/O
I/O
I
O
O
O
I
O
I
O
O
I
I
I/O
I/O
I/O
O
I
I/O
O
I
I/O
I/O
I/O
I
I/O
PIN
No.
NAME FUNCTION
I/O
PIN
No.
NAME I/O FUNCTION
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
PD11/D11
PD10/D10
PD9/D9
PD8/D8
Vss
PD7/D7
PD6/D6
PD5/D5
Vcc
PD4/D4
PD3/D3
PD2/D2
PD1/D1
PD0/D0
Vss
XTAL
MD3
EXTAL
MD2
NMI
Vcc
MD1
MD0
PLLVcc
PLLCAP
PLLVss
PA15/CK
RES
PE0/TIOC0A/DREQ0
PE1/TIOC0B/DRAK0
PE2/TIOC0C/DREQ1
PE3/TIOC0D/DRAK1
PE4/TIOC1A
Vss
PF0/AN0
PF1/AN1
PF2/AN2
PF3/AN3
PF4/AN4
PF5/AN5
AVss
PF6/AN6
PF7/AN7
AVcc
Vss
PE5/TIOC1B
Vcc
PE6/TIOC2A
PE7/TIOC2B
PE8/TIOC3A
PE9/TIOC3B
PE10/TIOC3C
Vss
PE11/TIOC3D
PE12/TIOC4A
PE13/TIOC4B/MRES
I/O
I/O
I/O
I/O
I
I/O
I/O
I/O
I
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I
I
I
I
I
I
I
I
O
I
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I
I
I
I
I
I
I
I
I/O
I
I/O
I/O
I/O
I/O
I/O
I
I/O
I/O
I/O
Port D / Data bus
Ground
Port D / Data bus
Power supply
Port D / Data bus
Ground
Crystal oscillator
Mode set
External clock
Mode set
Non-maskable interrupt request
Power supply
Mode set
PLL power supply
PLL capacitance
PLL ground
Port A / System clock
Power-on reset
Port E / MTU I/O / DMA transfer request
Port E / MTU I/O / DREQ request acknowledgement
Port E / MTU I/O / DMA transfer request
Port E / MTU I/O / DREQ request acknowledgement
Port E / MTU I/O
Ground
Port F / Analog input
Analog ground
Port F / Analog input
Analog power supply
Ground
Port E / MTU I/O
Power supply
Port E / MTU I/O
Ground
Port E / MTU I/O
Port E / MTU I/O / Manual reset
•HD64F7044F28V (X5719E00) CPU CPUT: IC801



















































































www.freeservicemanuals.info
Free World of Manuals

T5n/T4n/T3n
20
■IC BLOCK DIAGRAM（ICブロック図）
• DS36276M (X2155A00)
1
2
3
4
R8
7
6
5
RO
DE
DI
V
CC
DO/RI
DO/RI
GND
RE
D
Transceiver
CPUT: IC802
1LO
2
3
4
5
6
7
COM
VCC
VS
VB
HO
9
10
11
12
13
14
VSS
LIN
SD
HIN
VDD
8
V DD /V CC
LEVEL
SHIFT PULSE
GEN
V
DD
V SS
HIN
SD
LIN
10
9
11
12
13
R
SQ
RSQ
V DD /V CC
LEVEL
SHIFT
HV
LEVEL
SHIFT
UV
DETECT
UV
DETECT
DELAY
PULSE
FILTER
R
R
S
Q
6
7
5
3
1
2COM
LO
V
CC
V
S
V
B
HO
• IR2110 (X2382A00)
Driver
PST: IC103,104
1
2
3
4 -V
8
7
6
5
Output A +V
Non-Inverting
Input A
-DC Voltage Supply
+DC Voltage
Supply
Output B
Inverting
Input B
Non-Inverting
Input B
Inverting
Input A
+-
+-
• NJM2068M-D (TE2) (X3505A00)
Dual Operational Amplifier
INT: IC402-407, 410, 414, 901-906
• NJM78L06UA (TE1) (X3620A00)
Regulator +6V
INT: IC412
VIN
VOUT
GND
–+ –+
AB
1AMP BIAS INPUT A
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
DIODE BIAS A
+INPUT A
–INPUT A
OUTPUT A
V–
BUFFER INPUT A
BUFFER OUTPUT A
AMP BIAS INPUT B
DIODE BIAS B
+INPUT B
–INPUT B
OUTPUT B
V+
BUFFER INPUT B
BUFFER OUTPUT B
• NJM13600M (TE2) (X5042A00)
Operational Amplifier
INT: IC409
SCLK
SDATAO
TE1
DGND
REF
DVSS
AVDD
IN1
IN2
AVSS
1
2
3
4
5
6
7
8
9
10
11
12
SDATAI
CSN
ZCEN2
ZCEN1
OUT1
OUT2
24
23
22
21
20
19
18
17
16
15
14
13
TE2
TE3
REF1A
REF1B
AVSS
AVDD
REF2A
REF2B
IN1
REF1A
OUT1
OUT2
0 ~ -95dB
0 ~ -95dB
0 ~ +31.5dB
0 ~ +31.5dB
REF2A
IN2
Zero
Crossing
Detector
Zero
Crossing
Detector
Control
Register
S/P
Register
16
TE3
ZCEN1
ZCEN2
SDATAO (OpenDrain)
SDATAI
SCLK
CSN
AVSS
DGND
REF
AVDD
REF1B
REF2B
OPAmp
TE2
TE1
Vol A:
15 k-ohms
Vol A:
15 k-ohms
Vol B:
10 k-ohms
Vol B:
10 k-ohms
OPAmp
DVSS
100 ohms
100 ohms
• YAC-526-EZE2 (X5574A00)
2ch high grade digital volume LSI
INT: IC408
www.freeservicemanuals.info
Free World of Manuals
