SERVICE MANUAL
COMPACT DISC PLAYER
CD-S2100
101302
'14.06
■CONTENTS
TO SERVICE PERSONNEL ........................................2–4
PREVENTION OF ELECTROSTATIC DISCHARGE ......5
FRONT PANELS .............................................................6
REAR PANELS ...........................................................7–9
REMOTE CONTROL PANEL ........................................ 10
SPECIFICATIONS / 参考仕様 ................................. 10–11
INTERNAL VIEW .......................................................... 12
SERVICE PRECAUTIONS / サービス時の注意事項 ..... 12
DISASSEMBLY PROCEDURES / 分解手順 ........... 13–23
UPDATING FIRMWARE /
ファームウェアのアップデート ............................24–30
SELF-DIAGNOSTIC FUNCTION /
ダイアグ（自己診断機能）
.....................................31–41
DISPLAY DATA .............................................................42
IC DATA ...................................................................43–46
BLOCK DIAGRAM ........................................................47
WIRING DIAGRAMS ...............................................48–49
PRINTED CIRCUIT BOARDS .................................50–59
PIN CONNECTION DIAGRAMS ...................................60
SCHEMATIC DIAGRAMS .......................................61–68
REPLACEMENT PARTS LIST ................................69–82
REMOTE CONTROL .....................................................83
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known
and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise
all Yamaha product owners that any service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and specifications
are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's
Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
Copyright (c) Yamaha Corporation All rights reserved.
This manual is copyrighted by Yamaha and may not be copied or
redistributed either in print or electronically without permission.
CD-S2100

WALL
OUTLET EQUIPMENT UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or
expose eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
1. Critical Components Information
Components having special characteristics are marked ⚠and
must be replaced with parts having specifications equal to those
originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
• Meter impedance should be equivalent to 1500 ohms shunted
by 0.15 μF.
■TO SERVICE PERSONNEL
• Leakage current must not exceed 0.5mA.
• Be sure to test for leakage with the AC plug in both polarities.
WARNING: CHEMICAL CONTENT NOTICE!
本機に搭載されているすべての基板およびハンダ付けに
よる接合部は無鉛ハンダでハンダ付けされています。
無鉛ハンダにはいくつかの種類がありますが、修理時に
は下記のような無鉛ハンダの使用を推奨します。
󱾁 Sn+Ag+Cu（錫+銀+銅）
󱾁 Sn+Cu（錫 + 銅）
󱾁 Sn+Zn+Bi（錫 + 亜鉛 + ビスマス）
注意：
無鉛ハンダの融点温度は通常の鉛入りハンダに比べ 30 〜
40℃程度高くなっていますので、それぞれのハンダに合っ
たハンダごてをご使用ください。
All of the P.C.B.s installed in this unit and solder joints are
soldered using the lead free solder.
Among some types of lead free solder currently available,
it is recommended to use one of the following types for
the repair work.
• Sn + Ag + Cu (tin + silver + copper)
• Sn + Cu (tin + copper)
• Sn + Zn + Bi (tin + zinc + bismuth)
Caution:
As the melting point temperature of the lead free solder
is about 30°C to 40°C (50°F to 70°F) higher than that of
the lead solder, be sure to use a soldering iron suitable
to each solder.
About lead free solder / 無鉛ハンダについて
For U model
“CAUTION”
“F901: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 2A, 125V
FUSE.”
For C model
CAUTION
F901: REPLACE WITH SAME TYPE 2A, 125V FUSE.
ATTENTION
F901: UTILISER UN FUSIBLE DE RECHANGE DE MÉME TYPE DE 2A, 125V.
2
CD-S2100
CD-S2100

WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm/1 feet
away from the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
Laser Emitting conditions:
1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the “ON” position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate
through the lens of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any
laser emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
Type: SA-CD Semiconductor laser (AlGaInP)
CD Semiconductor laser (AlGaAs)
Wavelength: SA-CD 655 nm
CD 790 nm
Output Power: SA-CD 1.89 mW (max.)
CD 1.36 mW (max.)
Laser Diode Properties
3
CD-S2100
CD-S2100

The primary side of the power supply carries live mains voltage when the player is connected to the mains even
when the player is switched off !
This primary area is not shielded so it is possible to accidentally touch copper tracks and/or components when servicing
the player.
Service personnel have to take precautions to prevent touching this area or components in this area.
Note:
The screws on the Loader mechanism may never be touched, removed or re-adjusted.
Handle the Loader mechanism with care when the unit has to be exchanged!
The Loader mechanism is very sensitive for dropping or giving shocks.
Warning for power supply
4
CD-S2100
CD-S2100

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence
of component damage caused by electro static discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD
on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging
ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protect-
ed)” can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as
brushing together of your fabric clothes or lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).

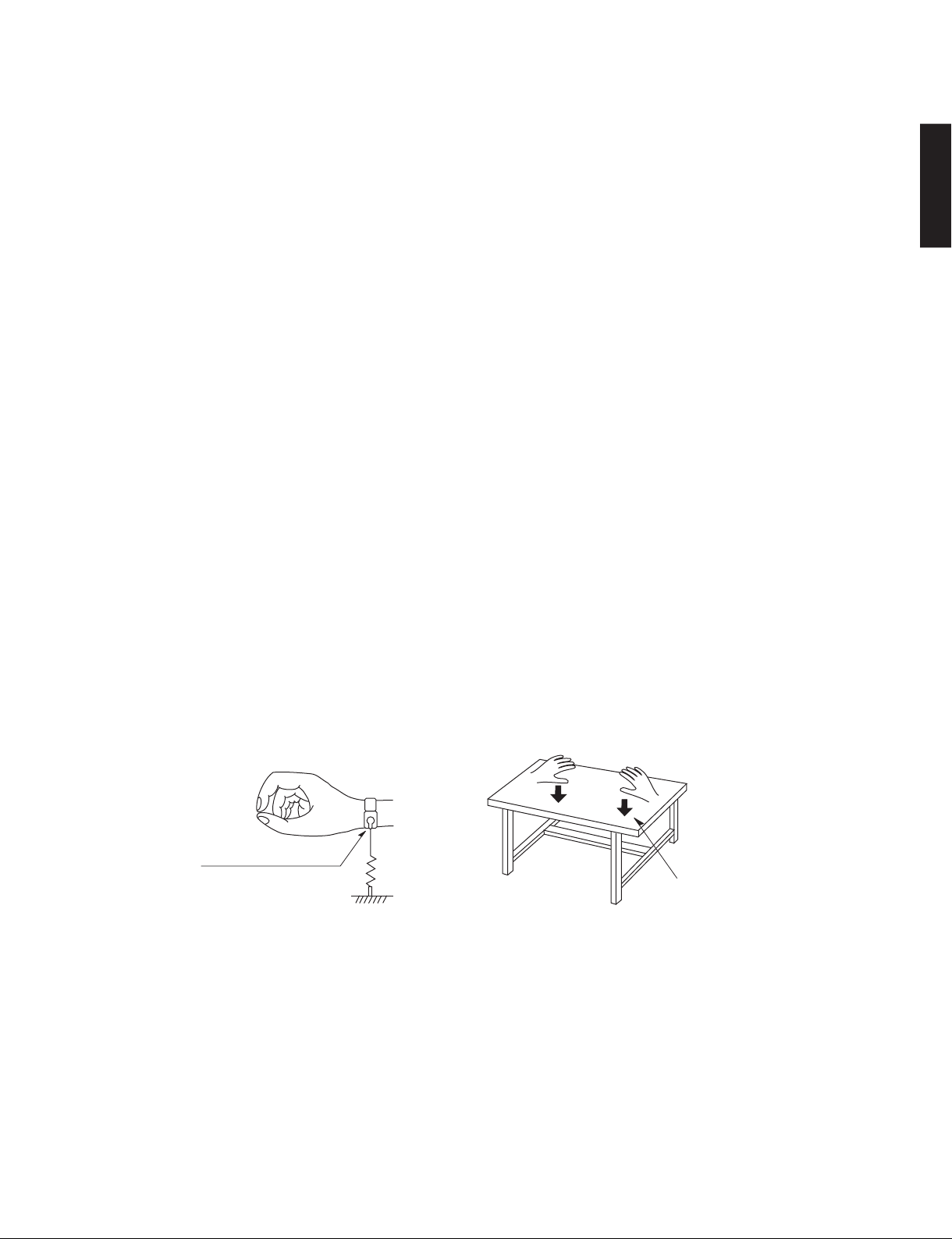

Grounding for electrostatic breakdown prevention
1. Human body grounding.
Use the antistatic wrist strap to discharge the static electricity from your body.
2. Work table grounding.
Put a conductive material (sheet) or steel sheet on the area where the optical pickup is placed and ground the sheet.
Caution:
The static electricity of your clothes will not be grounded through the wrist strap. So take care not to let your clothes touch
the optical pickup.
■PREVENTION OF ELECTROSTATIC DISCHARGE
1M-ohms
Conductive material
(sheet) or steel sheet
Anti-static wrist strap
5
CD-S2100
CD-S2100

■FRONT PANELS
U, K, A, B, G, L, V, S, J models
T model
6
CD-S2100
CD-S2100

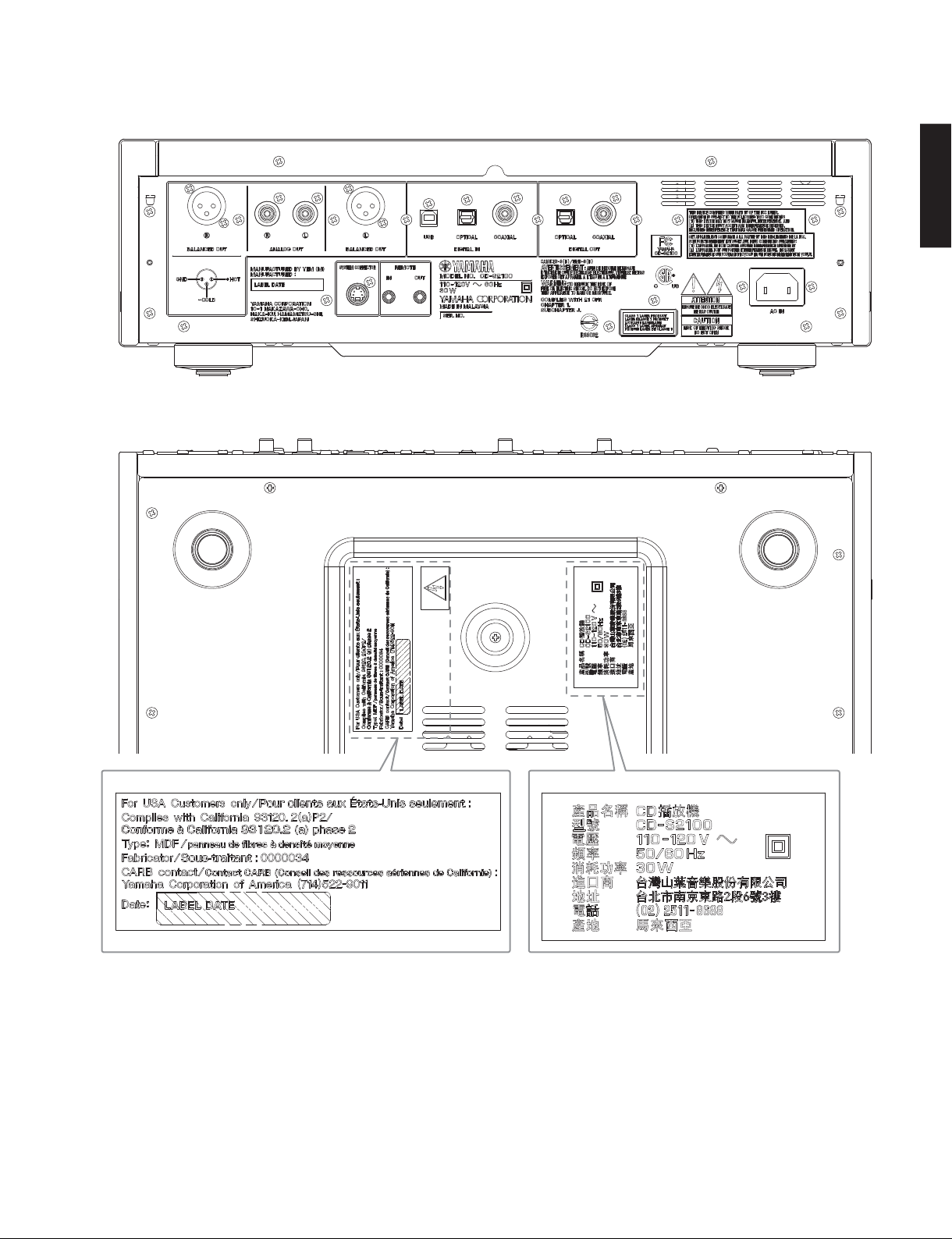

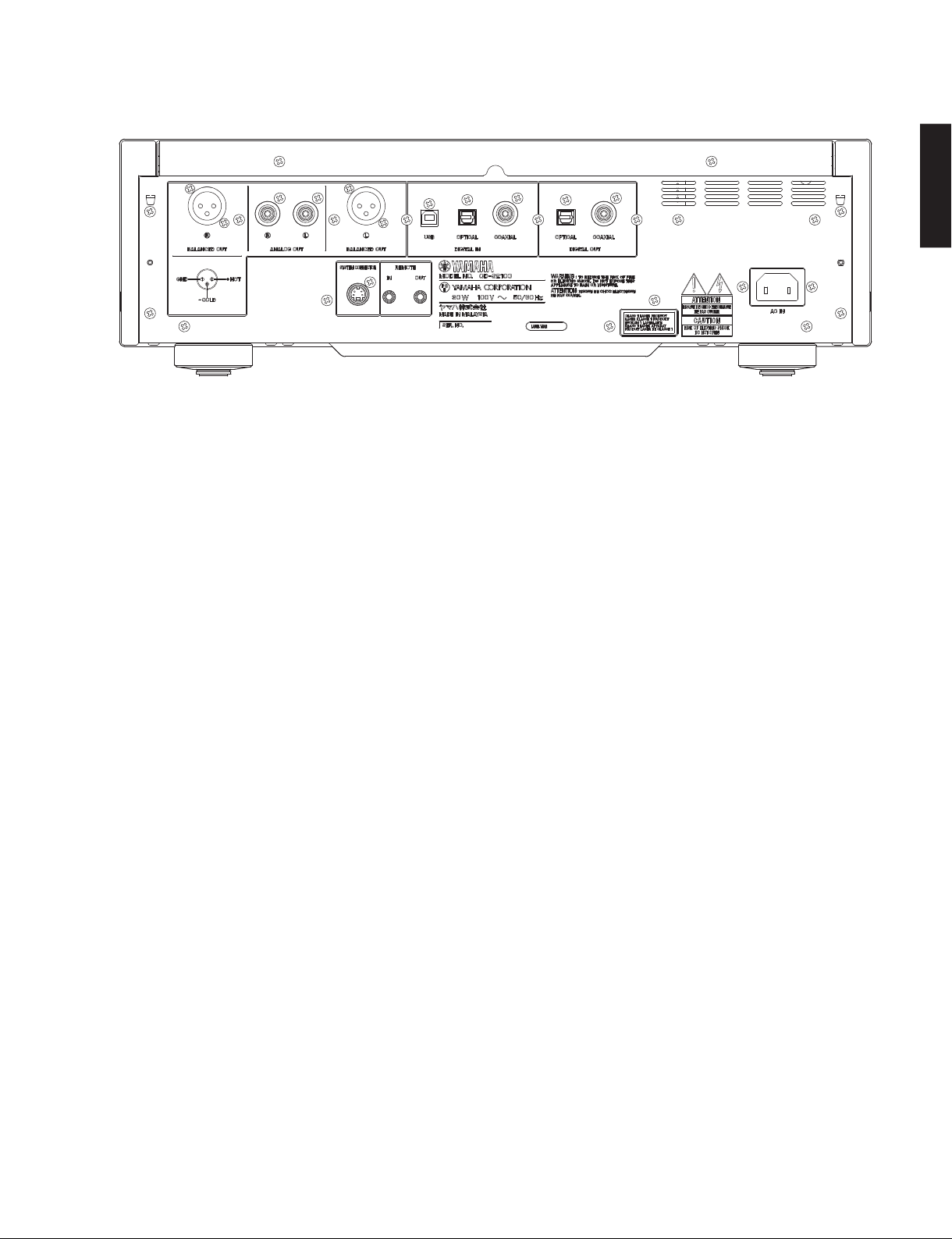

■REAR PANELS
U, V, S models
U model V model
Bottom view
7
CD-S2100
CD-S2100

A, B, G, L models
K model
T model
8
CD-S2100
CD-S2100

J model
9
CD-S2100
CD-S2100

■REMOTE CONTROL PANEL
CDX30
■SPECIFICATIONS /
参考仕様
■Audio Section / オーディオ部
Output Level / 出力レベル (1 kHz, 0 dB)
SA-CD / CD .......................................................................2.0 ±0.4 V
Signal to Noise Ratio / 信号対雑音比 (IHF-A network) (1 kHz, 0 dB)
SA-CD / CD .............................................................. 116 dB or more
Dynamic Range / ダイナミックレンジ (1 kHz, 0 dB)
SA-CD ...................................................................... 110 dB or more
CD ............................................................................ 100 dB or more
Total Harmonic Distortion / 全高調波歪率 (1 kHz, 0 dB)
SA-CD / CD ...............................................................0.002 % or less
Frequency Response / 周波数特性 (1 kHz, 0 dB)
SA-CD ............................................................2 Hz to 50 kHz (-3 dB)
CD ..............................................................................2 Hz to 20 kHz
Playback Frequency Range / 再生周波数帯域
...................................................................................2 Hz to 96 kHz
■Input/Output / 入出力部
Digital Input / デジタル入力 (DIGITAL IN)
OPTICAL ....................................................................................x 1
COAXIAL ....................................................................................x 1
USB (type B, 2.0 compliant) ......................................................x 1
Support Audio Sample Rate / 対応サンプリング周波数
............................................. 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Depths / 対応ビット長
................................................................................... 16 bit / 24 bit
Digital Output / デジタル出力 (DIGITAL OUT)
OPTICAL ....................................................................................x 1
COAXIAL ....................................................................................x 1
Support Audio Sample Rate / 対応サンプリング周波数
............................................. 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Depths / 対応ビット長
................................................................................... 16 bit / 24 bit
Audio Output / オーディオ出力
ANALOG OUT (unbalanced) ..........................................x 2 ch (L/R)
BALANCED OUT ............................................................x 2 ch (L/R)
Remote Input/Output / リモート入出力
REMOTE IN ...................................................................................x 1
REMOTE OUT ...............................................................................x 1
System connector / システムコネクター
SYSTEM CONNECTOR ................................................................x 1
■General / 総合
Power Consumption / 消費電力
.................................................................................................. 30 W
Standby Power Consumption (reference data) /
待機時消費電力（参考値）
U, T, B, G, S, J models ............................................................. 0.3 W
K, A, L, V models ..................................................................... 0.4 W
10
CD-S2100
CD-S2100

435 (17-1/8")
120 (4-3/4")
17
(5/8") 137 (5-3/8")
416 (16-3/8") 438 (17-1/4")
Front view
Top view ø 45
315 (12-3/8") 55
(2-1/8")
8 (3/8")
14
(1/2")
46
(1-3/4")
325 (12-3/4")
55
(2")
Power Supply / 電源電圧
U, V, S models ................................................. AC 110–120 V, 60 Hz
T model ................................................................... AC 220 V, 50 Hz
K model .................................................................. AC 220 V, 60 Hz
A, B, G, L models ...................................... AC 220–240 V, 50/60 Hz
J model .............................................................. AC 100 V, 50/60 Hz
Dimensions (W x H x D) / 寸法（幅 × 高さ × 奥行き）
............................... 435 x 137 x 438 mm (17-1/8" x 5-3/8" x 17-1/4")
Weight / 質量
............................................................................. 16.0 kg (35.3 lbs.)
Finish / 仕上げ
U, A, G, L, V, S models ........................Black/Dark brown (BL) color
U, A, B, G, L models.............................Black/Piano black (BP) color
U, A, G, L, V, J models .....................................Silver/Birch (SI) color
U, T, K, A, B, G, L, J models.................Silver/Piano black (SP) color
Color: Front and top panels / Side panel
U .....
U.S.A. and Canadian model
T ........................ Chinese model
K ......................... Korean model
A .................... Australian model
B ..........................British model
G .....................European model
L .....................Singapore model
V ..........................Taiwan model
S ...................... Brazilian model
J ...................... Japanese model
•DIMENSIONS /
寸法図
Unit: mm (inch)
単位：mm（インチ）
Accessories / 付属品
Remote control ..............................................................................x 1
Battery (R03, AAA, UM-4) .............................................................x 2
Audio pin cable (1.5 m) ................................................................x 1
Power cable (2.0 m) .....................................................................x 1
*Specifications are subject to change without notice.
※ 参考仕様および外観は、製品の改良のため予告なく変更すること
があります。
11
CD-S2100
CD-S2100

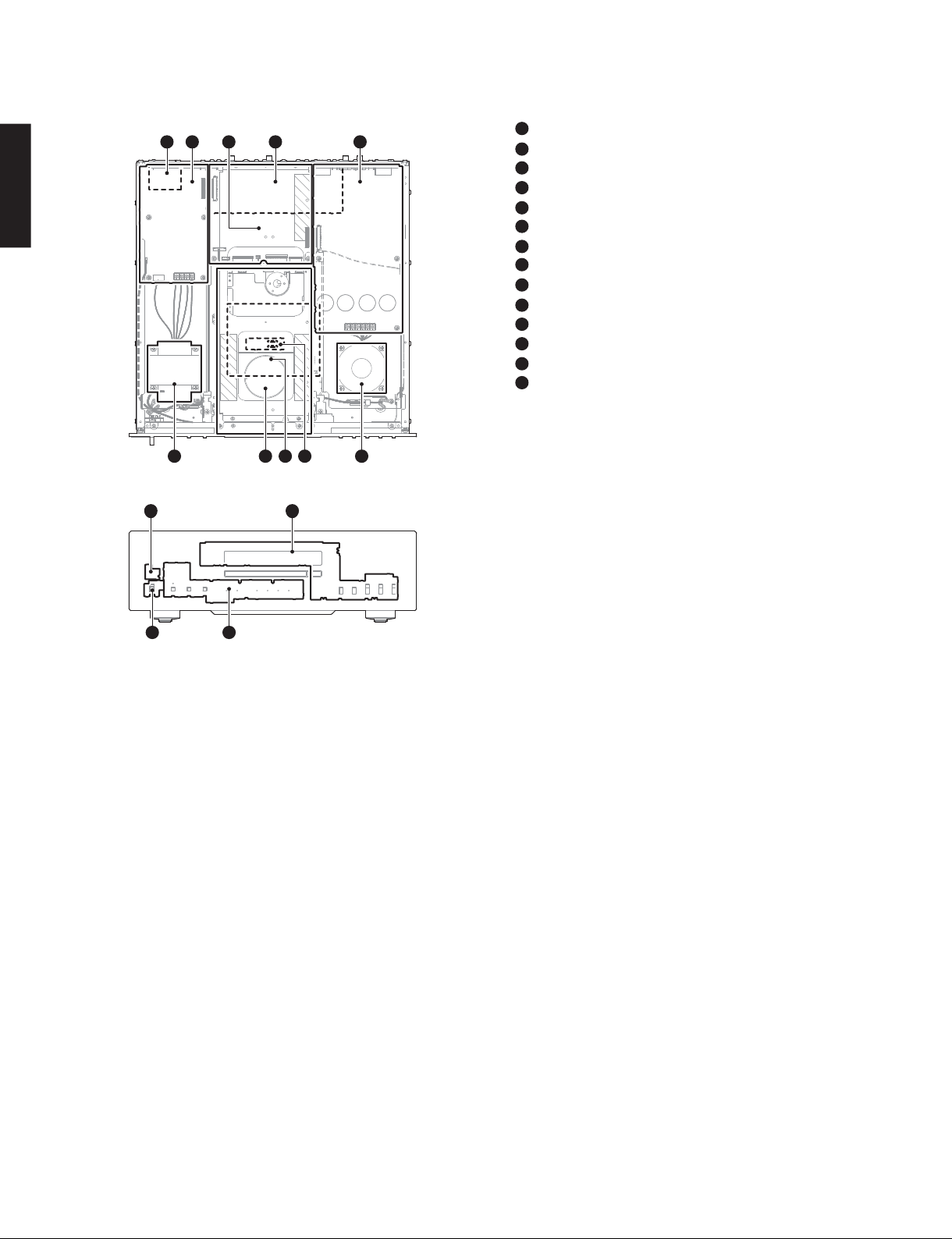

■INTERNAL VIEW
■SERVICE PRECAUTIONS / サービス時の注意事項
安全対策
・ この製品の内部には高電圧部分があり危険です。修理
の際は、絶縁性の手袋を使用するなどの安全対策を
行ってください。
・ 下記のコンデンサには電源を OFF にした後も電荷が残
り、高電圧が維持されており危険です。
修理作業前に放電用抵抗（5kΩ/10W）を下記の各コ
ンデンサの端子間に接続して放電してください。
放電所用時間は各々約 30 秒間です。
AUDIOP.C.B. の C305 〜 C308
FRONT（1）P.C.B. の C914 〜 C917
FRONT（2）P.C.B. の C955
詳しくは “PRINTEDCIRCUITBOARDS” を参照してくだ
さい。
Safety measures
• Some internal parts in this product contain high voltages
and are dangerous.
Be sure to take safety measures during servicing, such
as wearing insulating gloves.
• Note that the capacitors indicated below are dangerous
even after the power is turned off because an electric
charge remains and a high voltage continues to exist
there.
Before starting any repair work, connect a discharging
resistor (5 k-ohms/10 W) to the terminals of each
capacitor indicated below to discharge electricity.
The time required for discharging is about 30 seconds
per each.
C305 to C308 on AUDIO P.C.B.
C914 to C917 on FRONT (1) P.C.B.
C955 on FRONT (2) P.C.B.
For details, refer to “PRINTED CIRCUIT BOARDS”.
計測機器取り扱い上の注意
本機の音声出力は BALANCEDOUT 接続となっていま
すので、音声出力端子に接続する計測器のアース側は
フローティング状態に保つ必要があります。
Precaution for handling measuring instrument
Since the audio signal output of this unit is BALANCED
OUT connected, the ground side of the measuring
instrument to be connected to the audio signal output
connector MUST be kept in floating condition.
FRONT (8) P.C.B.
FRONT (1) P.C.B.
DIGITAL P.C.B.
FRONT (2) P.C.B.
AUDIO P.C.B.
POWER TRANSFORMER for AUDIO
FRONT (7) P.C.B.
MODULE BOARD
LOADER MECHANISM UNIT
POWER TRANSFORMER for DIGITAL/FRONT
FRONT (5) P.C.B.
FRONT (3) P.C.B.
FRONT (4) P.C.B.
FRONT (6) P.C.B.
Top view
Front view
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1211
6
5421
14 13
10 9 8 7
3
12
CD-S2100
CD-S2100

Side panel L
サイドパネル L
Hook
フック
Washer
ワッシャー
Coned disc spring L
サラバネ L
①
Hook
フック
Hook
フック
Washer
ワッシャー
Coned disc spring L
サラバネ L
②
④
③
③
③
③
Side panel R
サイドパネル R
Top cover
トップ カ バ ー

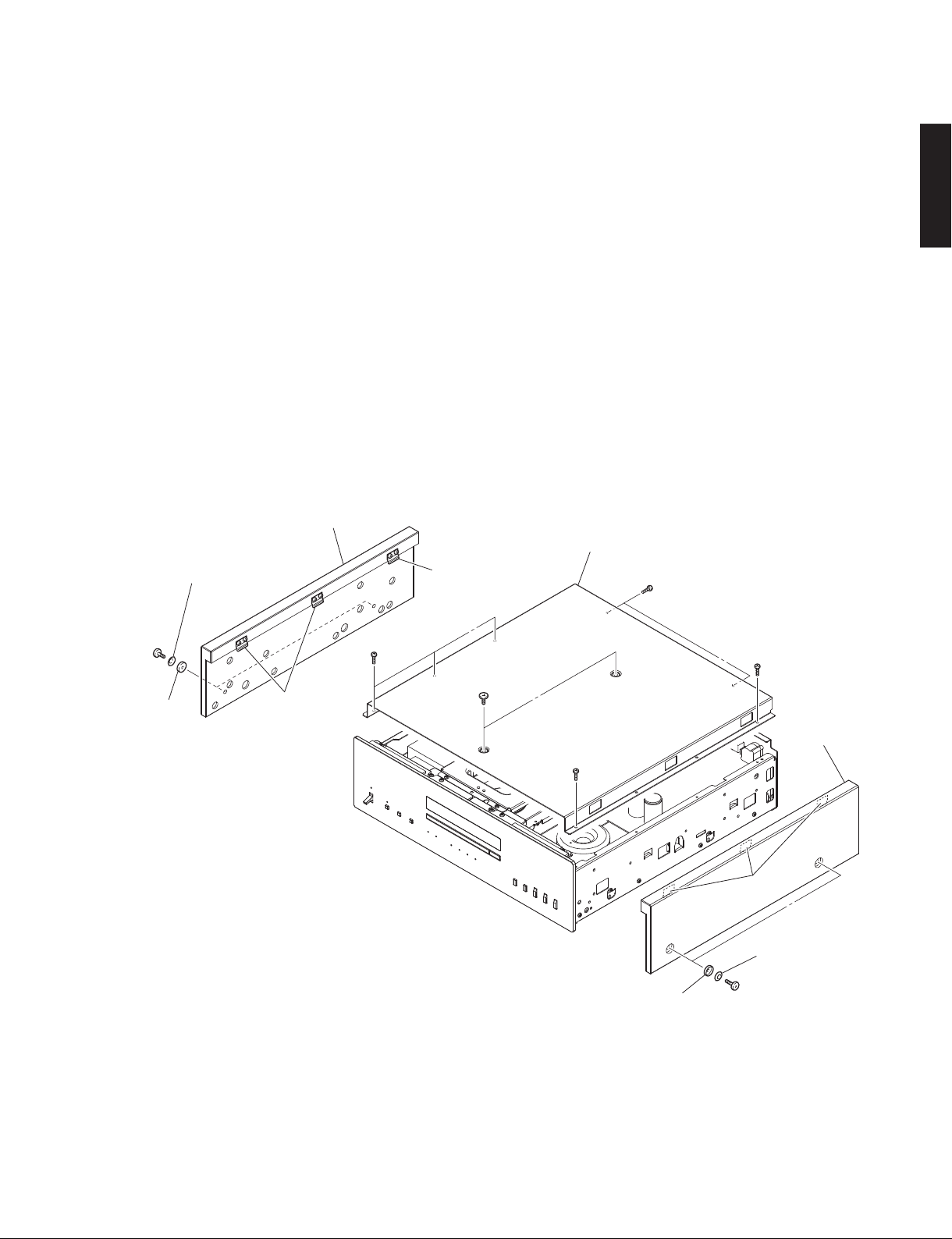

■DISASSEMBLY PROCEDURES / 分解手順
Fig. 1
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Side Panel L and Side Panel R
a. Remove 2 screws (①) together with the coned disc
spring L and washer. (Fig. 1)
b. Lift the side panel L a little, release hooks at 3 locations
and then remove the side panel L. (Fig. 1)
c. Remove 2 screws (②) together with the coned disc
spring L and washer. (Fig. 1)
d. Lift the side panel R a little, release hooks at 3 locations
and remove the side panel R. (Fig. 1)
2. Removal of Top Cover
a. Remove 7 screws (③) and 2 screws (④). (Fig. 1)
b. Remove the top cover. (Fig. 1)
（番号順に部品を外してください。）
AC 電源コンセントから、電源コードを抜いてください。
1. サイドパネル L、サイドパネル R の外し方
a. ①のネジ 2 本をサラバネ L、ワッシャーと一緒に外し
ます。（Fig.1）
b. サイドパネル L を少し持ち上げ、3 ヶ所のフックを外
し、サイドパネル L を外します。（Fig.1）
c. ②のネジ 2 本をサラバネ L、ワッシャーと一緒に外し
ます。（Fig.1）
d. サイドパネル R を少し持ち上げ、3 ヶ所のフックを外
し、サイドパネル R を外します。（Fig.1）
2. トップカバーの外し方
a. ③のネジ 7 本、④のネジ 2 本を外します。（Fig.1）
b. トップカバーを外します。（Fig.1）
13
CD-S2100
CD-S2100

⑥
⑥
⑤
CB911
CB913
FRONT (6) P.C.B.
FRONT (5) P.C.B.
Lid
リッド
Flatblade screwdriver
マイナスドライバー
Bottom side
底面
3. Removal of Front Panel
a. Using a flatblade screwdriver, move the slider at the
bottom in the direction of the arrow shown below.
(Fig. 2)
*Tray lock will be released but will not come out.
b. Push out the tray by pushing its rear. (Fig. 3)
c. Using a phillips screwdriver, remove 2 screws (⑤) and
then remove the lid. (Fig. 4)
d. Close the tray by pushing its front.
e. Remove CB911. (Fig. 4)
f. Remove 8 screws (⑥). (Fig. 4)
g. Remove the front panel forward gradually. (Fig. 4)
h. Remove CB913. (Fig. 4)
3. フロントパネルの外し方
a. マイナスドライバーで底面のスライダーを下図の矢印
の方向に動かします。（Fig.2）
※ このとき、トレイは押し出されません。
b. トレイの後方を押し、トレイを押し出します。（Fig.3）
c. プラスドライバーで⑤のネジ 2 本を外し、リッドを
外します。（Fig.4）
d. トレイの前方を押し、トレイを閉じます。
e. CB911 を外します。（Fig.4）
f. ⑥のネジ 8 本を外します。（Fig.4）
g. フロントパネルを前方へゆっくり外します。（Fig.4）
h. CB913 を外します。（Fig.4）
Fig. 2 Fig. 3
Fig. 4
Tray
トレイ
14
CD-S2100
CD-S2100

Fig. 6
Fig. 5
4. Removal of Front Frame Assembly
a. Remove 4 screws (⑦) and then remove the top frame.
(Fig. 5)
b. Remove 8 screws (⑧). (Fig. 5)
c. Remove CB908, CB909 and CB910. (Fig. 5)
d. Remove the front frame assembly. (Fig. 5)
5. Removal of AUDIO P.C.B.
a. Remove 4 screws (⑨). (Fig. 5)
b. Remove 6 screws (⑩) and disconnect 6 cables. (Fig. 5)
*Make sure that all the removed cables are reinstalled
at specified positions. (Fig. 5)
c. Remove 4 screws (⑪) and 4 screws (⑫). (Fig. 6)
d. Remove CB1. (Fig. 5)
e. Lift the front of AUDIO P.C.B. and then remove it.
(Fig. 5)
4. フロントフレーム Ass'y の外し方
a. ⑦のネジ 4 本を外し、トップフレームを外します。
（Fig.5）
b. ⑧のネジ 8 本を外します。（Fig.5）
c. CB908、CB909、CB910 を外します。（Fig.5）
d. フロントフレーム Ass'y を外します。（Fig.5）
5. AUDIOP.C.B. の外し方
a. ⑨のネジ 4 本を外します。（Fig.5）
b. ⑩のネジ6 本を外し、ケーブル6 本を外します。（Fig.5）
※ 取り外したケーブルはすべて決められた位置に取
り付けてください。（Fig.5）
c. ⑪のネジ 4 本、⑫のネジ 4 本を外します。（Fig.6）
d. CB1 を外します。（Fig.5）
e. AUDIOP.C.B. の前方を持ち上げて外します。（Fig.5）
FRONT (3) P.C.B.
CB910
CB1
CB908
Top frame
トップフレーム
AUDIO P.C.B.
⑧
⑧
⑧
⑦
⑦
Front frame assembly
フロントフレーム Ass'y
⑨
⑩
⑨
CB909
Cable color of TE301
Red
123456
Black
Gray
Blue
Brown White
Rear view
⑪⑫
15
CD-S2100
CD-S2100

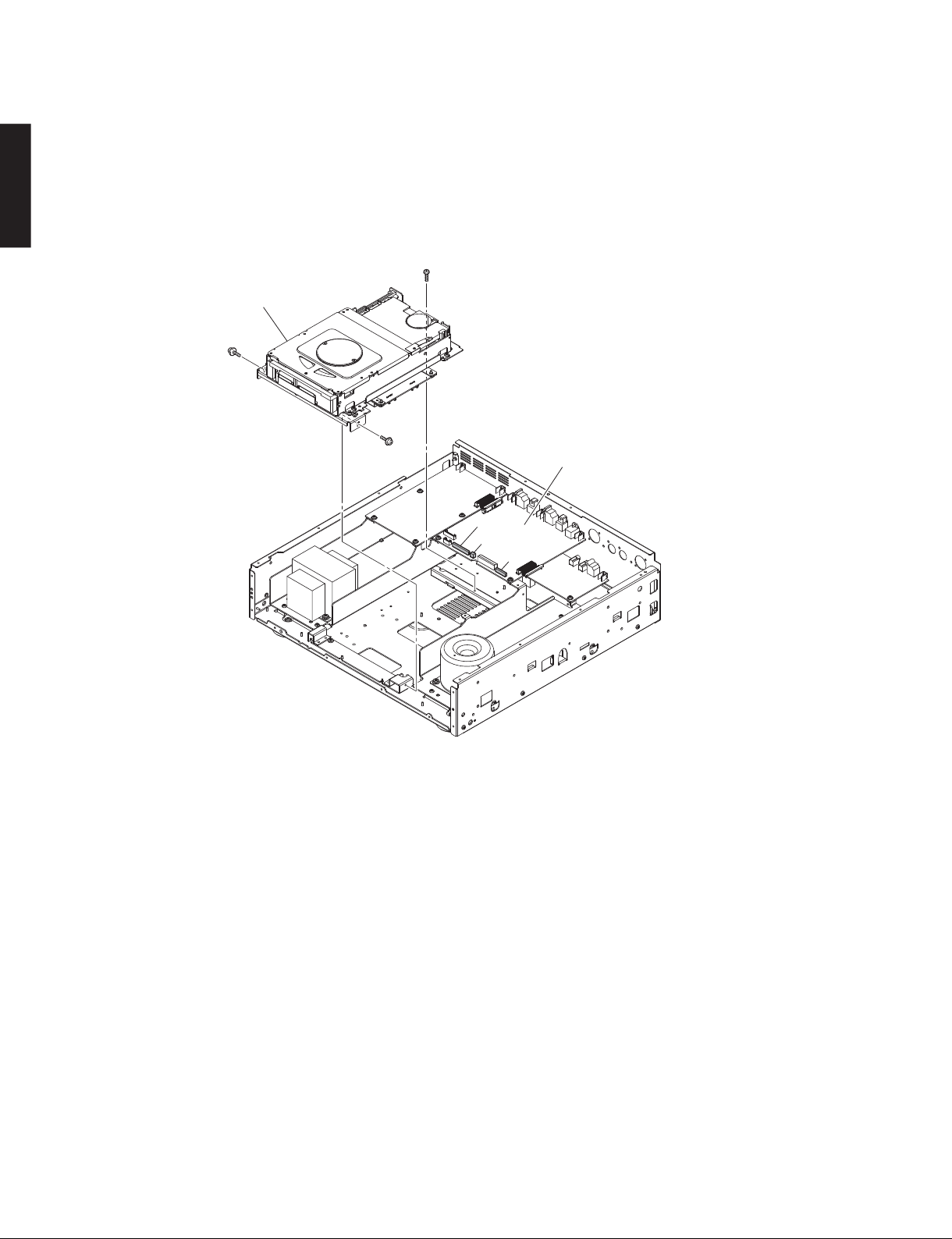

6. Removal of Loader Mechanism Unit
a. Remove 2 screws (⑬) and screw (⑭). (Fig. 7)
b. Remove CB402, CB404 and CB407. (Fig. 7)
c. Remove the loader mechanism unit. (Fig. 7)
6. ローダーメカユニットの外し方
a. ⑬のネジ 2 本、⑭のネジ 1 本を外します。（Fig.7）
b. CB402、CB404、CB407 を外します。（Fig.7）
c. ローダーメカユニットを外します。（Fig.7）
Fig. 7
DIGITAL P.C.B.
Loader mechanism unit
ローダーメカユニット
CB402
CB404
CB407
⑬
⑬
⑭
16
CD-S2100
CD-S2100

Loader mechanism unit
ローダーメカユニット
Top view
①
②
②
Lid
リッド
“ ” (Open/Close) key
（開閉）キー
Aligned to the same position
同じ位置に揃える

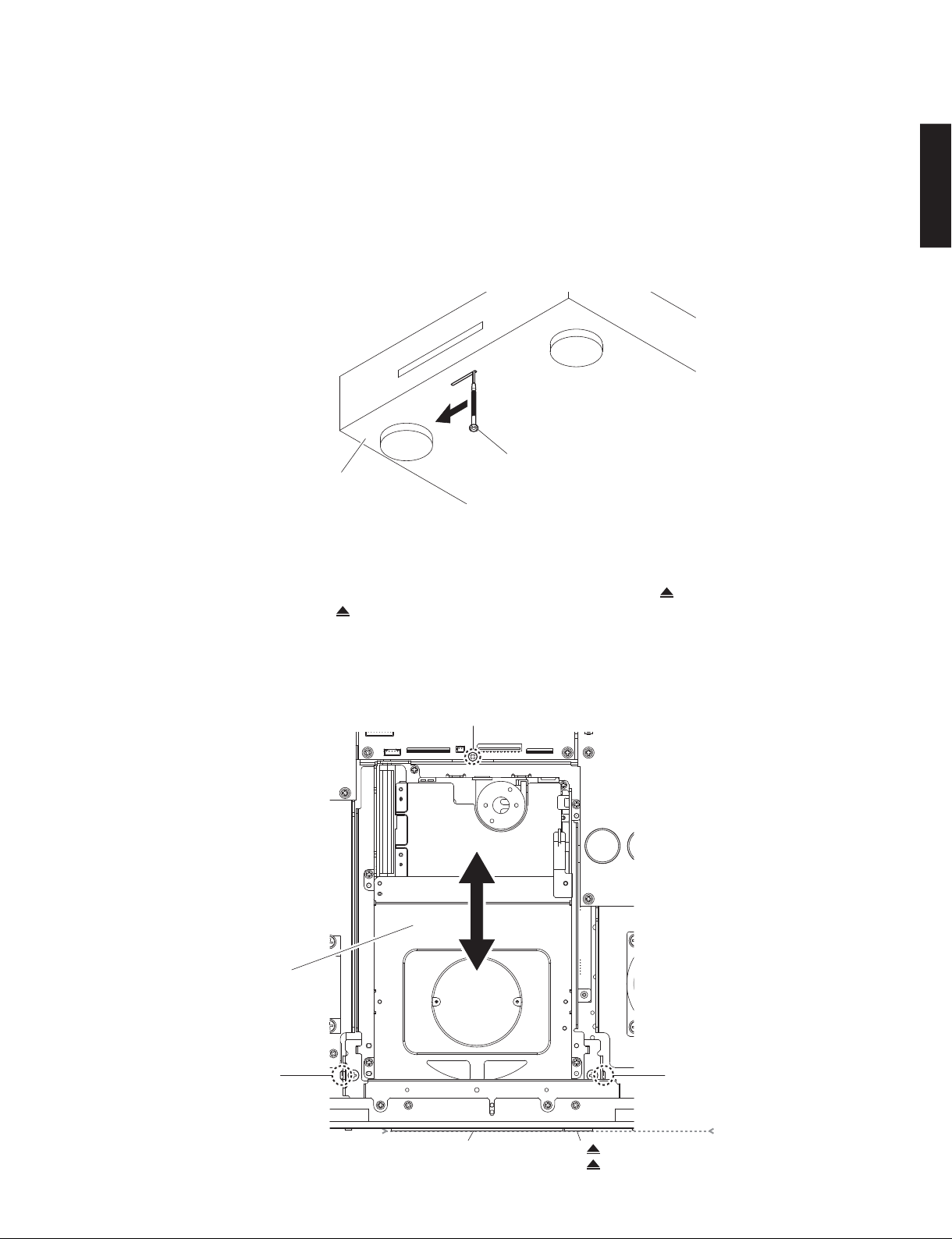

●When installing the Loader Mechanism Unit:
When installing the loader mechanism unit, adjust its
inclination so that the clearance between the front
panel and lid becomes equal at the top, bottom, right
and left.
1. Lock the disc tray by moving the slider at the
bottom in the direction of the arrow shown below
with a flatbrade screwdriver. (Fig. A)
2. Loosen screw (①) and 2 screws (②). (Fig. B)
3. Adjust the loader mechanism unit by moving it
back and forth so that the “ ” (Open/Close) key
and lid are aligned to the same position viewed
from the top. (Fig. B)
4. Tighten screw (①) to fix the longitudinal position.
(Fig. B)
● ローダーメカユニットを取り付ける場合：
ローダーメカユニットを取り付ける場合には、フロン
トパネルとリッドの隙間が上下左右同じになるように
ローダーメカユニットの傾きを調整してください。
1. マイナスドライバーで底面のスライダーを下図の
矢印の方向に動かし、ディスクトレイをロックし
ます。（Fig.A）
2. ①のネジ 1 本と②のネジ 2 本を緩めます。（Fig.B）
3. 上側から見て “ ”（開閉）キーとリッドが同じ位
置になるように、ローダーメカユニットを前後に
動かして調整します。（Fig.B）
4. ①のネジ 1 本を締めて、前後の位置を固定します。
（Fig.B）
Fig. A
Fig. B
Flatblade screwdriver
マイナスドライバー
Bottom side
底面
17
CD-S2100
CD-S2100

Front view
Loader mechanism unit
ローダーメカユニット
Top view
“ ” (Open/Close) key
（開閉）キー
Lid
リッド
③③
Adjust the lid to be horizontal
水平になるように調整する
②②

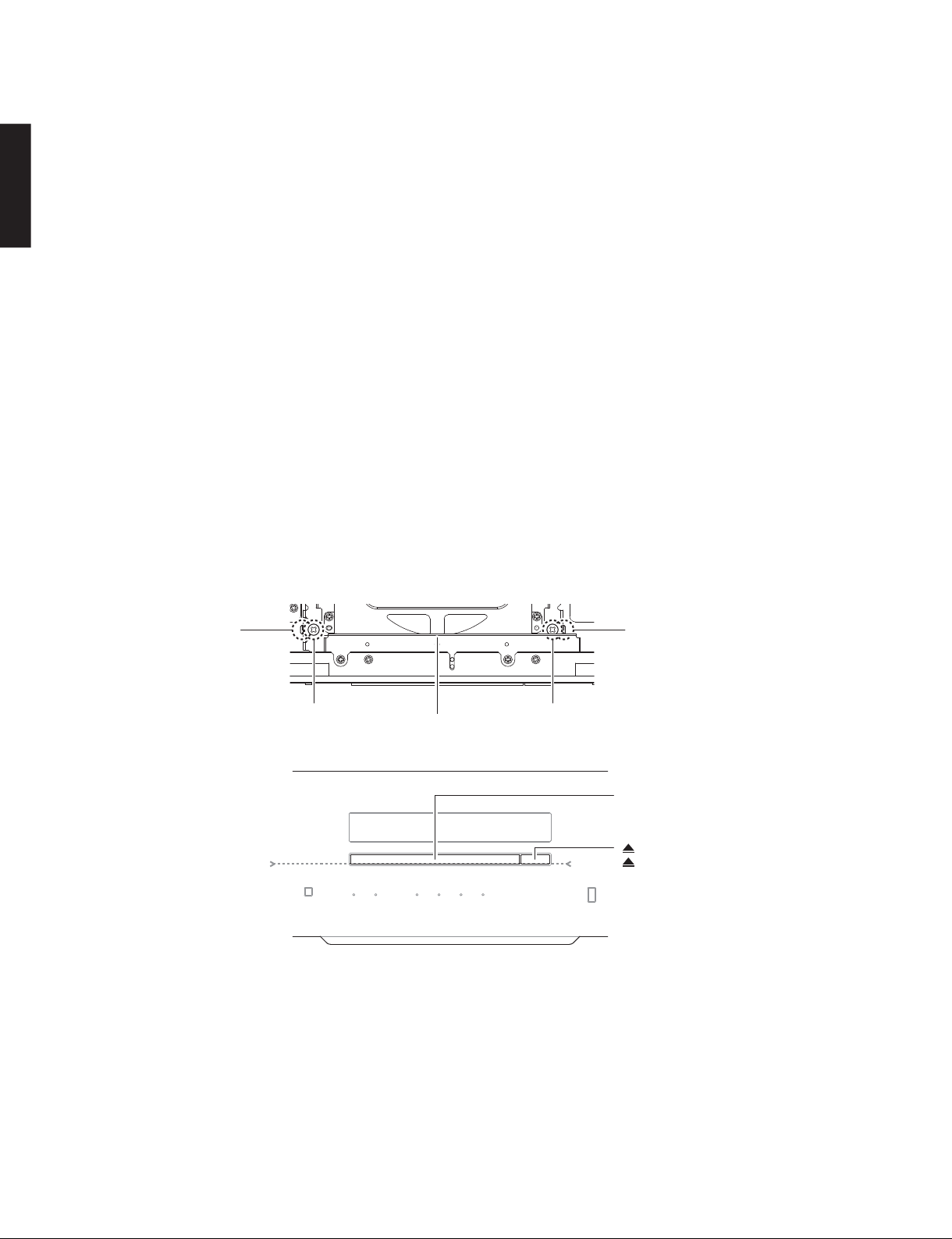

5. Turning screw (③), adjust the lid so that it becomes
horizontal viewed from the front. (Fig. C)
To change the position upward, loosen screw (③)
by turning it clockwise.
To change the position downward, tighten screw
(③) by turning it counterclockwise.
*Turn screw (③) gradually and slowly.
*Be sure to adjust at one side, either right or left,
first and then at the other side.
*The screws marked (②) and (③) have adhesive
applied after adjustment.
When removing such screws and retightening
them, remove the adhesive from each screw
thoroughly first. Then after adjustment, apply
adhesive to it and tighten it again.
Note that if no adhesive is applied to the screw,
it may become loose.
Recommended adhesive:
ThreeBond Screw-lock 1400 series 1401B
6. Fix the vertical position by tightening 2 screws (②).
(Fig. C)
5. 前面から見てリッドが水平になるように、③のネ
ジを回して調整します。（Fig.C）
位置を上方向に変更する場合は、③のネジを右へ
回して緩めます。
下方向に変更する場合は、③のネジを左へ回して
締めます。
※ ③のネジは、ゆっくりと少しずつ回してくだ
さい。
※ 調整は必ず、左右のどちらか一方からおこなっ
てください。
※ ②、③のネジには、調整後に接着剤が塗布さ
れています。
ネジを外してもう一度締め直す場合は、ネジに
塗布された接着剤をきれいに取り除き、調整後
に接着剤を塗布し直してください。
ネジに接着剤を塗布しないとネジが緩む場合が
あります。
推奨接着剤：
スリーボンドネジロック 1400 シリーズ
1401B
6. ②のネジ 2 本を締めて、上下の位置を固定します。
（Fig.C）
Fig. C
18
CD-S2100
CD-S2100

Front view
“ ” (Open/Close) key
（開閉）キー
Lid
リッド
Adjust the lid for equal clearance around it
ディスクトレイの隙間が均一になるように調整する
7. Adjust the lid so that the clearance around the disc
tray becomes equal viewed from the front. (Fig. D)
8. Using a flatblade screwdriver, move the slider
at the bottom in the direction of the arrow shown
below. (Fig. E)
*At this time, the disc tray is not pushed out.
9. Push out the disc tray by pushing its rear. (Fig. E)
10. Loosen 2 screws (④) and adjust the lid position.
(Fig. E)
11. Tighten 2 screws (④). (Fig. E)
12. Close the disc tray by pushing its front and lock it.
(Fig. E)
7. 前面から見てディスクトレイの隙間が均一になる
ように、リッドを調整します。（Fig.D）
8. マイナスドライバーで底面のスライダーを下図の
矢印の方向に動かします。（Fig.E）
※ このとき、ディスクトレイは押し出されません。
9. ディスクトレイの後方を押し、ディスクトレイを
押し出します。（Fig.E）
10.④のネジ 2 本を緩め、リッドの位置を調整します。
（Fig.E）
11.④のネジ 2 本を締めます。（Fig.E）
12.ディスクトレイの前方を押してディスクトレイを
閉じ、ロックします。（Fig.E）
Fig. D
Fig. E
Lid
リッド
Disc tray
ディスクトレイ
Bottom side
底面
Flatblade screwdriver
マイナスドライバ ー
④
19
CD-S2100
CD-S2100

7. Removal of DIGITAL P.C.B.
a. Remove 2 screws (⑮). (Fig. 8)
b. Remove 7 screws (⑯) and screw (⑰). (Fig. 9)
c. Remove CB406 and CB410. (Fig. 8)
d. Remove the DIGITAL P.C.B. (Fig. 8)
8. Removal of FRONT (1) P.C.B.
a. Remove 4 screws (⑱). (Fig. 8)
b. Remove 4 screws (⑲) and disconnect 4 cables. (Fig. 8)
*Make sure that all the removed cables are reinstalled
at specified positions. (Fig. 8)
c. Remove 2 screws (⑳). (Fig. 9)
d. Remove CB901. (Fig. 8)
e. Remove the FRONT (1) P.C.B. (Fig. 8)
9. Removal of FRONT (2) and (8) P.C.B.s
a. Remove 2 screws (㉑). (Fig. 8)
b. Remove 4 screws (㉒) and disconnect 4 cables. (Fig. 8)
*Make sure that all the removed cables are reinstalled
at specified positions. (Fig. 8)
c. Remove 5 screws (㉓). (Fig. 9)
d. Remove the FRONT (2) and (8) P.C.B. (Fig. 8)
7. DIGITALP.C.B. の外し方
a. ⑮のネジ 2 本を外します。（Fig.8）
b. ⑯のネジ 7 本、⑰のネジ 1 本を外します。（Fig.9）
c. CB406、CB410 を外します。（Fig.8）
d. DIGITALP.C.B. を外します。（Fig.8）
8. FRONT（1）P.C.B. の外し方
a. ⑱のネジ 4 本を外します。（Fig.8）
b. ⑲のネジ4 本を外し、ケーブル4 本を外します。（Fig.8）
※ 取り外したケーブルはすべて決められた位置に取
り付けてください。（Fig.8）
c. ⑳のネジ 2 本を外します。（Fig.9）
d. CB901 を外します。（Fig.8）
e. FRONT（1）P.C.B. を外します。（Fig.8）
9. FRONT（2）、（8）P.C.B. の外し方
a. ㉑のネジ 2 本を外します。（Fig.8）
b. ㉒のネジ4 本を外し、ケーブル4 本を外します。（Fig.8）
※ 取り外したケーブルはすべて決められた位置に取
り付けてください。（Fig.8）
c. ㉓のネジ 5 本を外します。（Fig.9）
d. FRONT（2）、（8）P.C.B. を外します。（Fig.8）
Fig. 9
Fig. 8
㉒
⑲
DIGITAL P.C.B.
FRONT (1) P.C.B.
FRONT (2) P.C.B.
FRONT (8) P.C.B.
⑮
⑱
⑱
CB901
CB410
CB406
TE901 ㉑
Black
1234
Cable color of TE901
Gray Brown
Red
Cable color of ST905 to ST908
Blue
Brown
Gray
Red
Rear view
⑰㉓ ⑳⑯
20
CD-S2100
CD-S2100
