Yamaha O1V 96 User manual

01V96
1
SERVICE MANUAL
PA 011680
1.329K-1933 Printed in Japan ’03.03
HAMAMATSU, JAPAN
CONTENTS
SPECIFICATIONS ................................................... 4
DIMENSIONS .......................................................... 12
PANEL LAYOUT .................................. 13
CIRCUIT BOARD LAYOUT ............... 21
DISASSEMBLY PROCEDURE ............................ 23
INSTALLING AN OPTIONAL CARD
............................................ 32
LSI PIN DESCRIPTION ................................ 33
IC BLOCK DIAGRAM .................................. 41
CIRCUIT BOARDS ....................................... 46
INSPECTIONS .......................................................76/83
SERVICE CHECK PROGRAM ...90/102
INITIALIZING THE 01V96 ....................... 114
TRANSMITTING PARAMETER SETTINGS VIA MIDI (BULK DUMP)
....115/117
CHECKING THE BATTERY AND THE SYSTEM VERSION
.......... 119
CALIBRATING THE FADERS ................................... 119
MIDI DATA FORMAT ............... 120
MIDI IMPLEMENTATION CHART ............................ 134
PARTS LIST
BLOCK DIAGRAM
OVERALL CONNECTOR CIRCUIT DIAGRAM
CIRCUIT DIAGRAM
This document is printed on chlorine free (ECF) paper with soy ink.
DIGITAL MIXING CONSOLE
200304-250000
（目次）
（
総合仕様 ）
（寸法図）
（パネルレイアウト）
（ユニットレイアウト）
（分解手順）
（オプションカードの取り付け）
（LSI端子機能表）
（ICブロック図）
（シート基板図）
（検査）
（サービス検査プログラム）
（01V96の初期化）
（内部設定をMIDI経由で出力（バルクダンプ機能））
（バッテリーの残量やシステムのバージョンの確認）
（フェーダーのキャリブレーション）
（MIDIデータフォーマット）
（MIDIインプリメンテーションチャート）
（ブロックダイアグラム）
（総コネクタ接続回路図）
（回路図）
このサービスマニュアルはエコパルプ
（ECF：無塩素系漂白パルプ）を使用しています。
このサービスマニュアルは大豆油
インクで印刷しています。

01V96
2
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked by the letter E
or by the safety earth symbol or coloured GREEN and YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
* This applies only to products distributed by YAMAHA KEMBLE
MUSIC (U.K.) LTD.
印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用下さい。

01V96
3
Take care not to trap your fingers.
LITHIUM BATTERY HANDLING
This product uses a lithium battery for memory back-up.
WARNING : Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following pre-
cautions when handling or replacing lithium batteries.
Leave lithium battery replacement to qualified service personnel.
Always replace with batteries of the same type.
When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
Never reverse the battery polarities when installing.
Do not short the batteries.
Do not attempt to recharge these batteries.
Do not disasemble the batteries.
Never heat batteries or throw them into fire.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. lever det brugte
batteri tilbage til leverandren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera anvant batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi rajahtaa, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin.
Havita kaytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES.
• Please refer to the diassembly procedure for the removal of Back-up Battery.
• Leest u voor het verwijderen van de backup batterij deze beschrijving.
リチウム電池の取り扱い
＜注意＞
リチウム電池を誤って交換すると爆発する危険があります。交換する場合は、サービスマニュアルで指定された部品を
使用してください。
（作業中は指を挟まない様に注意して下さい。）

01V96
4
SPECIFICATIONS
General Spec
Number of scene memories 99
Sampling Frequency Internal 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
External Normal rate: 44.1 kHz–10% to 48 kHz+6%
Double rate: 88.2 kHz–10% to 96 kHz+6%
Signal Delay fs=48 kHz Less than 1.6 ms CH INPUT to STEREO OUT
fs=96 kHz Less than 0.8 ms CH INPUT to STEREO OUT
Fader 100 mm motorized with touch sense ×17
Fader Resolution +10 to –138, – ∞dB input faders
0 to –138, – ∞dB master faders, stereo fader
Total Harmonic Distortion
*1
(CH INPUT to STEREO OUT)
(Input Gain=Min.)
fs=48 kHz Less than 0.05% 20 Hz–20 kHz @ +14 dB into 600 Ω
Less than 0.01% 1 kHz @ +24 dB into 600 Ω
fs=96 kHz Less than 0.05% 20 Hz–40 kHz @ +14 dB into 600 Ω
Less than 0.01% 1 kHz @ +24 dB into 600 Ω
Frequency Response
(CH INPUT to STEREO OUT) fs=48 kHz 20 Hz–20 kHz, 0.5, –1.5 dB @ +4 dB into 600 Ω
fs=96 kHz 20 Hz–40 kHz, 0.5, –1.5 dB @ +4 dB into 600 Ω
Dynamic Range
(maximum level to noise level)
110 dB typ. DA Converter (STEREO OUT)
105 dB typ. AD+DA (to STEREO OUT) @ fs=48 kHz
105 dB typ. AD+DA (to STEREO OUT) @ fs=96 kHz
Hum & Noise
*2
(20 Hz–20 kHz)
Rs=150 Ω
–128 dB Equivalent Input Noise
–86 dB residual output noise. STEREO OUT (STEREO OUT off)
Input Gain=Max.
Input Pad =0 dB –86 dB (90 dB S/N) STEREO OUT
(STEREO fader at nominal level and all CH INPUT faders at minimum level)
Input Pad =0 dB
Input Sensitivity
=–60 dB
–64 dB (68 dB S/N) STEREO OUT
(STEREO fader at nominal level and one CH INPUT fader at nominal level)
Maximum Voltage Gain
74 dB CH INPUT (CH1–12) to STEREO OUT/OMNI (BUS) OUT
40 dB CH INPUT (CH13–16) to STEREO OUT
74 dB CH INPUT (CH1–12) to OMNI (AUX) OUT (via pre input fader)
74 dB CH INPUT (CH1–12) to MONITOR OUT (via STEREO BUS)
Crosstalk
(@ 1 kHz)
Input Gain=Min.
80 dB adjacent input channels (CH1–12)
80 dB adjacent input channels (CH13–16)
80 dB input to output
AD Input (1–12)
Phantom switch +48 V DC (each 4ch)
Pad switch 0/20 dB attenuation
Gain control 44 dB (–60 to –16), detented
Peak indicator LED (red) turns on when post HA level reaches 3 dB below clipping at dig-
ital domain
Signal indicator LED (green) turns on when post HA level reaches 20 dB below nominal at
digital domain
AD converter 24-bit linear, 128-times oversampling (fs=44.1, 48 kHz), 64-times over-
sampling (fs=88.2, 96 kHz)
AD Input (13–16)
Gain control 30 dB (–26 to +4), detented
Peak indicator LED (red) turns on when post HA level reaches 3 dB below clipping at dig-
ital domain
Signal indicator LED (green) turns on when post HA level reaches 20 dB below nominal at
digital domain
AD converter 24-bit linear, 128-times oversampling (fs=44.1, 48 kHz), 64-times over-
sampling (fs=88.2, 96 kHz)
Input selector CH15/16/2TR IN for CH15/16
（総合仕様）
（一般仕様）

01V96
5
Digital Input
(2TR IN DIGITAL, ADAT input)
Option Input (SLOT) Available cards Optional digital interface cards (MY16, MY8, MY4 series)
Input Channel CH1–32
Input patch —
Phase Normal/reverse
Gate-type*3 On/off
Key in: 12 ch Group (1–12, 13–24, 25–32)/AUX1–8
Comp-type*4 On/off
Key in: self /Stereo Link
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ (TYPE1) *5
On/off
Delay 0–43400 samples
On/off —
Fader 100 mm motorized (INPUT/AUX1–8)
Aux send On/off
AUX1–8; pre fader/post fader
Solo On/off
Pre fader/after pan
Pan 127 positions (Left= 1–63, Center, Right= 1–63)
Surround pan 127 ×127 positions
[(Left= 1–63, Center, Right= 1–63)], [(Front= 1–63, Center, Rear= 1–63)]
LFE level –∞, –96 dB to +10 dB (256 step)
Routing STEREO, BUS1–8, DIRECT OUT
Direct out Pre EQ/pre fader/post fader
Metering Displayed on LCD
Peak hold on/off
Stereo Input Channel CH1–4
Input patch (L/R) —
Phase (L/R) Normal/reverse
Attenuator (L/R) –96.0 to +12.0 dB (0.1 dB step)
Equalizer 4band PEQ (TYPE1) *5
On/off —
Fader 100 mm motorized
INPUT/AUX1–8 send
Aux send On/off
AUX1–8; pre fader/post fader
Solo On/off
Pre fader/after pan
Pan (L/R) 127 positions (Left= 1–63, Center, Right= 1–63)
Surround pan
(L/R) 127 ×127 positions
([Left= 1–63, Center, Right= 1–63] x [Front= 1–63, Center, Rear= 1–63])
LFE level (L/R) –∞, –96 dB to +10 dB (256 step)
Routing STEREO, BUS1–8, DIRECT OUT
Metering Displayed on LCD
Peak hold on/off
OSCILLATOR
Level 0 to –96 dB (1 dB step)
On/off —
Waveform Sine 100 Hz, sine 1 kHz, sine 10 kHz, pink noise, burst noise
Routing BUS1–8, AUX1–8, STEREO L/R
STEREO OUT DA converter 24-bit linear, 128-times oversampling (@fs=44.1, 48 kHz), 64-times over-
sampling (@fs=88.2, 96 kHz)

01V96
6
MONITOR OUT DA converter 24-bit linear, 128-times oversampling (@fs=44.1, 48 kHz), 64-times over-
sampling (@fs=88.2, 96 kHz)
OMNI OUT 1–4 Output patch STEREO, BUS1–8, AUX1–8, DIRECT OUT 1–32, INSERT OUT (CH1–32,
BUS1–8, AUX1–8, STEREO), CASCADE OUT (BUS1–8, AUX 1–8, STEREO,
SOLO)
DA converter 24-bit linear, 128-times oversampling (@fs=44.1, 48 kHz), 64-times over-
sampling (@fs=88.2, 96 kHz)
2TR OUT DIGITAL
Dither On/off
Word length 16, 20, 24-bit
Output patch
STEREO, BUS1–8, AUX 1–8, DIRECT OUT 1–32, INSERT OUT (CH 1–32,
BUS 1–8, AUX 1–8, STEREO), CASCADE OUT (BUS 1–8, AUX 1–8, STEREO,
SOLO)
ADAT Output
Dither On/off
Word length 16, 20, 24-bit
Output patch
STEREO, BUS1–8, AUX 1–8, DIRECT OUT 1–32, INSERT OUT (CH 1–32,
BUS 1–8, AUX 1–8, STEREO), CASCADE OUT (BUS 1–8, AUX 1–8, STEREO,
SOLO)
Option Output (SLOT)
Available card Optional digital interface card (MY16, MY8, MY4 series)
Dither On/off
Word length 16/20/24-bit
Output patch
STEREO, BUS1–8, AUX 1–8, DIRECT OUT 1–32, INSERT OUT (CH 1–32,
BUS 1–8, AUX 1–8, STEREO), CASCADE OUT (BUS 1–8, AUX 1–8, STEREO,
SOLO)
STEREO
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Balance 127 positions (Left=1–63, Center, Right=1–63)
Delay 0–29100 samples
Metering Displayed on LCD
Peak hold on/off
12-elements x2 LED meters
BUS1–8
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Delay 0–29100 samples
Bus to stereo Level (–∞, –130 dB–0 dB)
On/off
Pan: 127 positions (Left=1–63, Center, Right=1–63)
Metering Displayed on LCD
Peak hold on/off

01V96
7
AUX1–8
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Delay 0–29100 samples
Metering Displayed on LCD
Peak hold on/off
INTERNAL EFFECTS
(EFFECT 1–4)
Number of
effects [email protected], 48kHz
[email protected], 96kHz
Bypass On/off
In/out 2-in, 2-out
Effect-in from AUX1–8/INSERT OUT
Effect-out to
Japan
U.S/Canada
Others
Input patch
Power Requirements
100 V, 50/60 Hz 90 W
120 V, 60 Hz 90 W
220-240 V, 50/60 Hz 90 W
Dimensions (H x D x W) 150 x 548 x 436 mm
Net weight 15 kg
Operating free-air temperature range 10–35°C
Storage temperature range –20–60°C
Supplied Accessories
AC Cable (3P/2P AC plug adapter)
CD-ROM (Studio Manager)
Owner’s Manual
Studio Manager Installation Guide
Options Digital interface card (MY16, MY8, MY4 series)
RACK MOUNT KIT: RK1
*1. Total harmonic distortion is measured with a 6 dB/octave filter @ 80 kHz.
*2. Hum & Noise are measured with a 6 dB/octave filter @ 12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave
attenuation.
*3. See “Gate Parameters” on page 8.
*4. See “Comp Parameters” on page 8.
*5. See “EQ Parameters” on page 7.
LOW/HPF L-MID H-MID HIGH /LPF
Q
0.1–10.0
(41 points)
low shelving
HPF
0.1–10.0
(41 points)
0.1–10.0
(41 points)
high shelving
LPF
F20 Hz–20 kHz (1/12 oct step)
G±18 dB
(0.1 dB step)
HPF: on/off
±18 dB
(0.1 dB step)
±18 dB
(0.1 dB step)
LPF: on/off
Warranty card (J)
EQ Parameters（EQ パラメーター）

01V96
8
Gate
Threshold –54 dB–0 dB (0.1 dB step)
Range –70 dB–0 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Hold
0.02 ms–1.96 s (216 points) @ 48 kHz
0.02 ms–2.13 s (216 points) @ 44.1 kHz
0.01 ms–981 ms (216 points) @ 96 kHz
0.01 ms–1.06 s (216 points) @ 88.2 kHz
Decay
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Ducking
Threshold –54 dB–0 dB (0.1 dB step)
Range –70 dB–0 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Hold
0.02 ms–1.96 s (216 points) @ 48 kHz
0.02 ms–2.13 s (216 points) @ 44.1 kHz
0.01 ms–981 ms (216 points) @ 96 kHz
0.01 ms–1.06 s (216 points) @ 88.2 kHz
Decay
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Compressor
Threshold –54 dB–0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20, ∞(16 points)
Out gain 0 dB to +18 dB (0.1 dB step)
Knee Hard, 1, 2, 3, 4, 5 (6 step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Expander
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20, ∞(16 points)
Out gain 0 dB to +18 dB (0.1 dB step)
Knee Hard, 1, 2, 3, 4, 5 (6 points)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Gate Parameters
Comp Parameters
（Gateパラメーター）
（Compパラメーター）

01V96
9
Compander H
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20 (15 points)
Out gain –18 dB to 0 dB (0.1 dB step)
Width 1 dB–90 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Compander S
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20 (15 points)
Out gain –18 dB to 0 dB (0.1 dB step)
Width 1 dB–90 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Effect library (EFFECT 1–4) Presets 44
User memories 76
Compressor library Presets 36
User memories 92
Gate library Presets 4
User memories 124
EQ library Presets 40
User memories 160
Channel library Presets 2
User memories 127
Input patch library Presets 1
User memories 32
Output patch library Presets 1
User memories 32
Libraries
（ライブラリー）

01V96
10
In these specifications, when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms.
For 2TR IN levels, 0 dBV is referenced to 1.00 Vrms.
All input AD converters (CH INPUT 1–16) are 24-bit linear, 128-times oversampling. (@fs=44.1, 48 kHz)
+48 V DC (phantom power) is supplied to CH INPUT (1–12) XLR type connectors via individual switches.
Three PHANTOM +48V switches CH1–4, 5–8, 9–12 turn on the phantom power for inputs 1–4, 5–8, 9–12 respectively.
In these specifications, when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms.
2TR OUT [L, R] levels, 0 dBV is referenced to 1.00 Vrms.
All output DA converters are 24-bit, 128-times oversampling. (@fs=44.1, 48 kHz)
Input PAD GAIN Actual Load
Impedance For Use With Nominal
Input level Connector
Sensitivity
*1
*1. Sensitivity is the lowest level that will produce an output of +4 dB (1.23 V) or the nominal output level when the unit
is set to maximum gain. (All faders and level controls are maximum position.)
Nominal Max.
before clip
INPUT A/B
1–12
0–60 dB
3k Ω50–600 Ω Mics & 600 Ω
Lines
–70 dB
(0.245 mV) –60 dB (0.775 mV) –40 dB (7.75 mV) A: XLR-3-31 type
(Balanced)
*2
B: Phone jack
(TRS) (Balanced)
*3
*2. XLR-3-31 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
*3. Phone jacks are balanced (Tip=HOT, Ring=COLD, Sleeve=GND).
–16 dB
–26 dB
(38.8 mV) –16 dB (123 mV) +4 dB (1.23 V)
20 –6 dB
(338 mV) +4 dB (1.23 V) +24 dB (12.28 V)
INPUT 13–16 —–26 dB 10k Ω600 ΩLines
–36 dB
(1.23 mV) –26 dB (38.8 mV) –6 dB (388 mV) Phone jack (TRS)
(Balanced)
*3
+4 dB –6 dB
(388 mV) +4 dB (1.23 V) +24 dB (12.28 V)
CH INSERT IN
1–12 — 10k Ω600 ΩLines –12 dB
(195 mV) –2 dB (616 mV) +18 dB (6.16 V) Phone jack (TRS)
(Unbalanced)
*4
*4. CH INSERT IN/OUT phone jacks are unbalanced. (Tip=OUTPUT, Ring=INPUT, Sleeve=GND).
2TR IN [L, R] — 10k Ω600 ΩLines –10 dB
(316 mV) –10 dBV (316 mV) +10 dBV (3.16 V) RCA pin jack (Unbalanced)
Output Actual Source
Impedance
For Use With
Nominal
Output level Connector
Nominal Max.
before clip
STEREO OUT [L, R] 150 Ω600 ΩLines +4 dB
(1.23 V) +24 dB (12.28 V) XLR-3-32 type (Balanced)
*1
*1. XLR-3-32 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
OMNI OUT 1–4 150 Ω10k ΩLines +4 dB
(1.23 V) +24 dB (12.28 V) Phone jack (TRS) (Balanced)
*2
*2. Phone jacks are balanced (Tip=HOT, Ring=COLD, Sleeve=GND).
MONITOR OUT [L, R] 150 Ω10k ΩLines +4 dB
(1.23 V) +24 dB (12.28 V) Phone jack (TRS) (Balanced)
*2
CH INSERT OUT 1–12 600 Ω10k ΩLines –2 dB
(616 mV) +18 dB (6.16 V) Phone jack (TRS) (Unbal-
anced)
*3
*3. CH INSERT IN/OUT phone jacks are unbalanced. (Tip=OUTPUT, Ring=INPUT, Sleeve=GND).
2TR OUT [L, R] 600 Ω10k ΩLines –10 dBV
(316 mV) +10 dBV (3.16 V) RCA Pin Jack (Unbalanced)
PHONES 100 Ω8 ΩPhones 4 mW 25 mW Stereo Phone Jack (TRS)
(Unbalanced)
*4
*4. PHONES stereo phone jack is unbalanced (Tip=LEFT, Ring=RIGHT, Sleeve=GND).
40 ΩPhones 12 mW 75 mW
Analog Input Spec
Analog Output Spec
（アナログ入力仕様）
（アナログ出力仕様）

01V96
11
Each I/O SLOT accepts a Digital interface card. SLOT1 has a serial interface.
Input Format Data length Level Connector
2TR IN DIGITAL IEC-60958 24-bit 0.5 Vpp/75 ΩRCA pin jack
ADAT IN ADAT
*1
*1. ALESIS proprietary multichannel optical digital interface format
24-bit — OPTICAL
Output Format Data length Level Connector
2TR OUT DIGITAL IEC-60958
*1
Consumer use
*1. Channel status of 2TR OUT DIGITAL
Type: linear PCM
Category code: Digital signal mixer
Copy prohibit: NO
Emphasis: NO
Clock accuracy:Level II (1000 ppm)
Sampling rate: depends on the internal configuration
24-bit
*3
0.5V pp/75 ΩRCA pin jack
ADAT OUT ADAT
*2
*2. ALESIS proprietary multichannel optical digital interface format
24-bit
*3
*3. Dither: word length 16/20/24 bit
— OPTICAL
Maker Model Function INPUT OUTPUT
*1
*1. Selectable from STEREO/BUS/AUX/DIRECT/OUT/INSERT OUT/CASCADE OUT (STEREO, BUS1–8, AUX1–8, SOLO).
Details depend on each interface card.
Format Resolution Frequency
The
numberof
Available
cards
Note
Yamaha
MY8-AT
Digital I/O
88
ADAT 20 bit 44.1/48 kHz 1 Can handle
24 bit/96 kHz by
double channel mode
MY16-AT 16 16
24 bit
44.1/48 kHz 1
MY8-TD 8 8 TASCAM 44.1/48 kHz 1
MY8-AE 8 8
AES/EBU
44.1/48 kHz 1
MY8-AE96S 8 8 44.1/48/88.2/96 kHz 1 Sampling Rate Con-
verter for input
MY8-AE96 8 8 44.1/48/88.2/96 kHz 1
MY4-AD
ANALOG IN
4 — — 44.1/48 kHz 1
MY8-AD 8 — — 20 bit 44.1/48 kHz 1
MY8-AD24 8 — — 24 bit 44.1/48 kHz 1
MY8-AD96 8 — — 44.1/48/88.2/96 kHz 1
MY4-DA ANALOG OUT — 4 — 20 bit 44.1/48 kHz 1
MY8-DA96 — 8 —
24 bit
44.1/48/88.2/96 kHz 1
MY-mLAN mLAN Interface 8 8 IEEE1394 44.1/48 kHz 1 Maximum 5 nodes
Waves Y56K Effect & I/O 8 8 ADAT 44.1/48 kHz 1
Apogee AP8AD ANALOG IN 8 — — 44.1/48/88.2/96 kHz 1 4ch @fs=88.2, 96 kHz
AP8DA ANALOG OUT — 8 — 44.1/48/88.2/96 kHz 1
Digital Input Spec
Digital Output Spec
I/O Slot Spec
（デジタル入力仕様）
（デジタル出力仕様）
（I/Oスロット仕様）

01V96
12
430 (Not included Screw Heads) 436 (Included Screw Heads)
150
540
350101
548
350

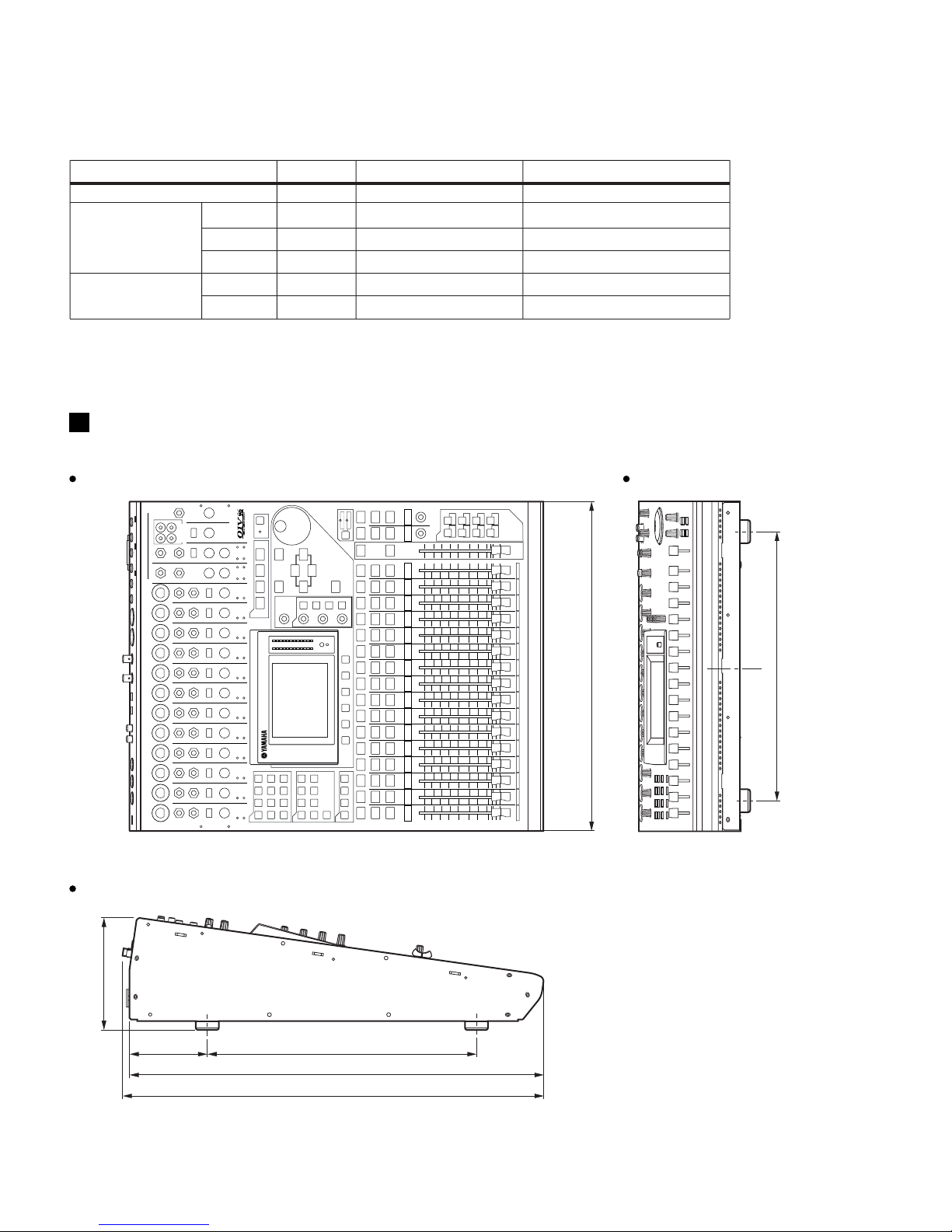

DIMENSIONS
Top view
Side view
Control I/O Spec
I/O Port Format Level Connector in Console
TO HOST USB USB 0 V–3.3 V Btype USB connector
MIDI
IN
*1
*1. MIDI IN can use as TIME CODE IN MTC.
MIDI — DIN Connector 5P
OUT MIDI — DIN Connector 5P
THRU MIDI — DIN Connector 5P
WORD CLOCK IN — TTL/75 ΩBNC Connector
OUT — TTL/75 ΩBNC Connector
Units: mm
（単位）
Front view
（寸法図）
（コントロールI/O仕様）

13
01V96
Control Panel
PANEL LAYOUT
SOLO SOLO
ON ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ON
SOLO
ONON
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
1-16 17-32 MASTER REMOTE
LAYER
SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SEL SELSEL
ST IN
ENTER
EQUALIZER
HIGH
HIGH-MID
LOW-MID
LOW
Q
FREQUENCY
GAIN
STEREO
SELECTED CHANNEL
PAN DEC INC
SOLO CLEAR
RECALL
STORE
SCENE MEMORY
PHONES
MONITOR
OUT
MONITOR
2TR IN
CH15 / 16
2TR IN
LEVEL
PHONES
LEVEL 010
010
+4 -26
GAIN
+4 -26
GAIN
+4 -26
GAIN
GAIN +4 -26
GAIN
20dB
-16 -60
GAIN
20dB
-16 -60
GAIN
20dB20dB20dB20dB20dB20dB20dB20dB20dB20dB
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
PAD
FADER MODE
DISPLAY ACCESS
AUX 1
AUX 1AUX 2AUX 3AUX 4AUX 5AUX 6AUX 7AUX 8BUS 1BUS 2BUS 3BUS 4BUS 5BUS 6BUS 7BUS 8
AUX 2AUX 3AUX 4
AUX 8AUX 7AUX 6AUX 5
HOME (METER)
DYNAMICS EQ EFFECT VIEW
PATCH
UTILITYMIDISCENE
DIO/SETUP
/ INSERT/
DELAY PAN/
ROUTING PAIR/ GROUP
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B16
1513
121110987643215
14
INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O
L
R
IN OUT
2TR
-10dBV (UNBAL)
PHANTOM +48V
CH9-12CH5-8CH1-4
INPUT
(BAL)
INSERT
OUTIN
(UNBAL)
ST IN 1 ST IN 2
USER DEFINED
KEYS
12
34
56
78
55
5
+10
5
1010
10
1515
15
2020
20
303030
30
4040
40
5050
50
6060 7070
20
30
40
40
50
50
60
70
00
5
10
15
20
0
0
5
+10
5
10
15
30
20
30
40
40
50
50
60
70
20
30
40
40
50
50
60
70
20
30
40
40
50
50
60
70
20
30
40
40
50
50
60
70
20
30
40
40
50
50
60
70
15
0
5
10
15
20
0
5
+10
5
10
0
30
15
5
10
15
20
0
5
+10
5
10
0
30
15
5
10
15
20
0
5
+10
5
10
0
30
15
5
10
15
20
0
5
+10
5
10
0
30
15
20
30
40
40
50
50
60
70
30
15
20
30
40
40
20
30
40
20
30
40
20
30
40
50
50505050
20
30
40
50
20
30
40
50
60
70
40
50
60
70
40
50
60
70
40
50
60
70
40
50
60
70
40
50
60
70
40
50
60
70
40
50
60
70
30
15
5
10
15
20
0
5
+10
5
10
0
5
10
15
20
0
5
+10
5
10
0
5
10
15
20
0
30
5
10
15
20
0
30
5
10
15
20
0
30
5
10
15
20
0
30
5
10
15
20
0
303030
5
10
15
20
0
5
10
15
20
0
5
10
15
20
0
5
+10
5
10
0
15
5
+10
5
10
0
15
5
+10
5
10
0
15
5
+10
5
10
0
15
20
30
40
50
15 15
20
30
40
50
15
5
+10
5
10
0
5
+10
5
10
0
5
+10
5
10
0
5
+10
5
10
0
123456
123456
78 9 10 11 12
78 9 10 11 12
13 14 15 16
13 14 15 16
32313029282726252423222120191817 STEREO
13 14 15 16
OVER
0
-3
-6
-9
-12
-15
-18
-24
-30
-36
-48
AD Input Section (p. 14)
SELECTED
CHANNEL
Section (p. 17)
Monitor Out
& Head-
phones Sec-
tion (p. 14)
SOLO Section (p. 18)
Channel Strip Section (p. 15) STEREO Section (p. 15) USER DEFINED KEYS
Section (p. 18)
Data Entry
Section (p. 18)
LAYER Section (p. 16)
SCENE MEMORY Section (p. 17)
Display Section
(p. 17)
DISPLAY ACCESS
Section (p. 16)
ST IN Section (p. 16)
FADER MODE
Section (p. 16)
（ADインプットセクション）
（ディスプレイアクセス
セクション）
（フェーダーモード
セクション）
（レイヤーセクション）
（ステレオセクション）（ユーザー定義キーセクション）
（ステレオインセクション
）
（データーエントリー
セクション）
（ディスプレイセクション）
（ソロセクション）
（モニターアウト/
ヘッドフォン
セクション）
（セレクテッド
チャンネル
セクション）
（チャンネルモジュールセクション）
（シーンメモリーセクション）
（パネルレイアウト）
（コントロールパネル）

01V96
14
q[INPUT] connectors A/B
w[INPUT] connectors 13–16
e[INSERT I/O] connectors
r[PAD] switches
t[GAIN] controls
y[PEAK] indicators
u[SIGNAL] indicators
i[AD15/16] selector
AD Input Section
Monitor Out & Headphones Section
q[2TR IN/OUT] connectors
wMonitor Source selector
e[MONITOR LEVEL] control
r[PHONES LEVEL] control
t[PHONES] jack
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
CH15
/ 16
2TR IN
+4 -26
GAIN
+4 -26
GAIN
+4 -26
GAIN
GAIN +4 -26
GAIN
20dB
-16 -60
GAIN
20dB
-16 -60
GAIN
20dB20dB20dB20dB20dB20dB20dB
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
GAIN
-16 -60
PAD
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
16
1513
121110943215
14
INSERT I / O INSERT I / O INSERT I / O INSERT I / O INSERT I / O I NSERT I / O INSERT I / O INSERT I / O INSERT I / O
CH1-4
INPUT
(BAL)
INSERT
OUTIN
(UNBAL)
13 14 15 16
PHONES
MONITOR
OUT
MONITOR
2TR IN
LEVEL
PHONES
LEVEL 010
010
L
R
IN OUT
2TR
-10dBV (UNBAL)
PHANTOM +48V
CH9-12CH5-8
（インプット端子 A/B）
（インプット端子 13〜 16）
（インサートイン / アウト端子）
（パッドスイッチ）
（ゲインコントロール）
（ピークインジケーター）
（シグナルインジケーター）
（［AD15/16］ソース選択スイッチ）
（ADインプットセクション）
（モニターアウト／ヘッドフォンセクション）
（2 トラックイン / アウト端子）
（モニターソース選択スイッチ）
（モニターレベルコントロール）
（ヘッドフォンレベルコントロール）
（ヘッドフォン端子）

15
01V96
STEREO Section
q[SEL] buttons
w[SOLO] buttons
e[ON] buttons
rChannel faders
SOLO
ON
SEL
AUX 1
40
50
60
70
30
5
10
15
20
0
20
30
40
50
15
5
+10
5
10
0
1
1
17
ON
SEL
5
10
15
20
30
40
50
60
70
0
STEREO
q[SEL] button
w[ON] button
e[STEREO] fader
（ステレオセクション）
（セレクトキー）
（ソロキー）
（オンキー）
（チャンネルフェーダー）
Channel Strip Section
（チャンネルモジュールセクション）
（セレクトキー）
（オンキー）
（ステレオフェーダー）

01V96
16
LAYER Section
ST IN Section
q[ST IN] button
w[SEL] buttons
e[SOLO] buttons
r[ON] buttons
tLevel controls
FADER MODE Section
SOLO
ON
SOLO
ON
SEL SEL
ST IN
ST IN 1 ST IN 2
FADER MODE
AUX 1 AUX 2 AUX 3 AUX 4
AUX 8 AUX 7 AUX 6 AUX 5
HOME (METER)
q[AUX 1] - [AUX 8] buttons
w[HOME] button
DISPLAY ACCESS Section
DISPLAY ACCESS
DYNAMICS EQ EFFECT VIEW
PATCH
UTILITYMIDISCENE
DIO/SETUP
/ INSERT/
DELAY PAN/
ROUTING PAIR/ GROUP
UTILITYMIDISCENE
DIO/SETUP
q[SCENE] button
w[DIO/SETUP] button
e[MIDI] button
r[UTILITY] button
t[
Ø
/INSERT/DELAY] button
y[PAN/ROUTING] button
u[PAIR/GROUP] button
i[PATCH] button
o[DYNAMICS] button
!0 [EQ] button
!1 [EFFECT] button
!2 [VIEW] button
1-16 17-32 MASTER REMOTE
LAYER
q[1-16]/[17-32] buttons
w[MASTER] button
e[REMOTE] button
（レイヤーセクション）
（ステレオインセクション）
（ステレオインキー）
（セレクトキー）
（ソロキー）
（オンキー）
（レベルコントロール）
（フェーダーモードセクション）
（［AUX1］〜［AUX8］キー）
（ホームキー）
（ディスプレイアクセスセクション）
（シーンキー）
（デジタル入出力 / セットアップキー）
（ミディキー）
（ユーティリティーキー）
（フェーズ / インサート / ディレイキー）
（パン / ルーティングキー）
（ペア / グループキー）
（パッチキー）
（ダイナミクスキー）
（イコライザーキー）
（エフェクトキー）
（ビューキー）
（［1‐16］/［17‐32］キー）
（マスターキー）
（リモートキー）

17
01V96
qDisplay
wStereo meters
eContrast control
r[F1]-[F4] buttons
tLeftTab Scroll [ ] button
yRightTab Scroll [ ] button
SELECTED CHANNEL Section
Display Section
STEREO
OVER
0
-3
-6
-9
-12
-15
-18
-24
-30
-36
-48
q[PAN] control
w[HIGH] button
e[HIGH-MID] button
r[LOW-MID] button
t[LOW] button
y[Q] control
u[FREQUENCY] control
i[GAIN] control
EQUALIZER
HIGH
HIGH-MID
LOW-MID
LOW
Q
FREQUENCY
GAIN
SELECTED CHANNEL
PAN
SCENE MEMORY Section
RECALL
STORE
SCENE MEMORY
q[STORE] button
wScene Up [ ] /
Down [ ] buttons
e[RECALL] button
（ディスプレイ）
（ステレオメーター）
（コントラスト調節ノブ）
（［F1］〜［F4］キー）
（タブスクロール［ ］キー）
（タブスクロール［ ］キー）
（セレクテッドチャンネルセクション）
（ディスプレイセクション）
（パンコントロール）
（ハイキー）
（ハイ - ミッドキー）
（ロー - ミッドキー）
（ローキー）
（［Q］コントロール）
（フリーケンシーコントロール）
（ゲインコントロール）
（シーンメモリーセクション）
（ストアキー）
（シーン［ ］/［ ］キー）
（リコールキー）

01V96
18
USER DEFINED KEYS Section
q[1]-[8] buttons
（ユーザー定義キーセクション）
USER DEFINED
KEYS
12
34
56
78
qParameter wheel
w[ENTER] button
e[DEC] & [INC] buttons
rLeft, Right, Up, Down
([ ] / [ ] / [ ] / [ ])
cursor buttons
Data Entry Section
ENTER
DEC INC
SOLO Section
q[SOLO] indicator
w[CLEAR] button
SOLO CLEAR
（［1］〜［8］キー）
（データエントリーセクション）
（パラメーターホイール）
（エンターキー）
（［DEC］/［INC］キー）
（カーソル左、右、上、下）
（［ ］/［ ］/［ ］/［ ］）キー）
（ソロセクション）
（ソロインジケーター）
（クリアキー）

19
01V96
Rear Panel
PHANTOM +48V (p. 19)
Power Section (p. 20)
AD Output Section (p. 19)
SLOT Section (p. 20)
MIDI/Control Section (p. 20)Digital I/O Section (p. 20)
（ファンタム+48V）
（電源セクション）（スロットセクション）
（アナログアウトプットセクション）（デジタルイン/アウトセクション）（ミディ/コントロールセクション）
q[CH1-4 ON/OFF] switch
w[CH5-8 ON/OFF] switch
e[CH9-12 ON/OFF] switch
PHANTOM +48V
AD Output Section
q[MONITOR OUT] connectors L/R
w[OMNI OUT] connectors 1-4
e[STEREO OUT] connectors L/R
（リアパネル）
（ファンタム +48V）
（CH1‐4オン / オフスイッチ）
（CH5‐8オン / オフスイッチ）
（CH9‐12オン / オフスイッチ）
（アナログアウトプットセクション）
（モニターアウト端子L/R）
（オムニアウト端子 1〜 4）
（ステレオアウト端子L/R）

01V96
20
q[WORD CLOCK OUT] connector
w[WORD CLOCK IN] connector
e[ADAT IN/OUT] connectors
r[2TR OUT DIGITAL COAXIAL] connector
t[2TR IN DIGITAL COAXIAL] connector
Digital I/O Section
q[MIDI IN/THRU/OUT] ports
w[TO HOST USB] port
MIDI/Control Section
q[SLOT]
SLOT Section
Power Section
q[POWER ON/OFF] switch
w[AC IN] connector
（ワードクロックアウト端子）
（ワードクロックイン端子）
（ADATイン / アウト端子）
（2トラックデジタルアウトCOAXIAL端子）
（2トラックデジタルインCOAXIAL端子）
（デジタルイン / アウトセクション）
（ミディイン / スルー / アウト端子）
（トゥホスト端子）
（ミディ / コントロールセクション）
（SLOTセクション）
（スロット）
（電源セクション）
（電源オン / オフスイッチ）
（[ACIN]ソケット）
