Yamaha RIVAGE PM10 User manual

CONTROL SURFACE
CS-R10
System Setup Guide
EN

RIVAGE PM10 System Setup Guide
2
The above warning is located on the rear of the unit.
L’avertissement ci-dessus est situé sur l’arriere de l’unité.
Explanation of Graphical Symbols
Explication des symboles
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “danger-
ous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
L’éclair avec une flèche à l’intérieur d’un triangle équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’une « tension
dangereuse » non isolée à l’intérieur de l’appareil, pouvant être suffisamment élevée pour constituer un risque d’électrocution.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (ser-
vicing) instructions in the literature accompanying the product.
Le point d’exclamation à l’intérieur d’un triangle équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’instructions
importantes sur l’emploi ou la maintenance (réparation) de l’appareil dans la documentation fournie.
IMPORTANT SAFETY
INSTRUCTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the pro-
vided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13 Unplug this apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
(UL60065_03)
PRÉCAUTIONS CONCER-
NANT LA SÉCURITÉ
1 Lire ces instructions.
2 Conserver ces instructions.
3 Tenir compte de tous les avertissements.
4 Suivre toutes les instructions.
5 Ne pas utiliser ce produit à proximité d’eau.
6 Nettoyer uniquement avec un chiffon propre et sec.
7 Ne pas bloquer les orifices de ventilation. Installer l’appareil confor-
mément aux instructions du fabricant.
8 Ne pas installer l’appareil à proximité d’une source de chaleur comme
un radiateur, une bouche de chaleur, un poêle ou tout autre appareil
(y compris un amplificateur) produisant de la chaleur.
9 Ne pas modifier le système de sécurité de la fiche polarisée ou de la
fiche de terre. Une fiche polarisée dispose de deux broches dont une
est plus large que l’autre. Une fiche de terre dispose de deux broches
et d’une troisième pour le raccordement à la terre. Cette broche plus
large ou cette troisième broche est destinée à assurer la sécurité de
l’utilisateur. Si la fiche équipant l’appareil n’est pas compatible avec
les prises de courant disponibles, faire remplacer les prises par un
électricien.
10 Acheminer les cordons d’alimentation de sorte qu’ils ne soient pas
piétinés ni coincés, en faisant tout spécialement attention aux fiches,
prises de courant et au point de sortie de l’appareil.
11 Utiliser exclusivement les fixations et accessoires spécifiés par le
fabricant.
12 Utiliser exclusivement le chariot, le stand, le
trépied, le support ou la table recommandés par
le fabricant ou vendus avec cet appareil. Si
l’appareil est posé sur un chariot, déplacer le
chariot avec précaution pour éviter tout risque
de chute et de blessure.
13 Débrancher l’appareil en cas d’orage ou
lorsqu’il doit rester hors service pendant une période prolongée.
14 Confier toute réparation à un personnel qualifié. Faire réparer l’appa-
reil s’il a subi tout dommage, par exemple si la fiche ou le cordon
d’alimentation est endommagé, si du liquide a coulé ou des objets
sont tombés à l’intérieur de l’appareil, si l’appareil a été exposé à la
pluie ou à de l’humidité, si l’appareil ne fonctionne pas normalement
ou est tombé.
(UL60065_03)
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
AVERTISSEMENT
POUR RÉDUIRE LES RISQUES D’INCENDIE OU DE DÉCHARGE
ÉLECTRIQUE, N’EXPOSEZ PAS CET APPAREIL À LA PLUIE OU À
L’HUMIDITÉ.

RIVAGE PM10 System Setup Guide 3
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions con-
tained in this manual, meets FCC requirements. Modifications not
expressly approved by Yamaha may void your authority, granted by
the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/
or another product use only high quality shielded cables. Cable/s
supplied with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the
requirements listed in FCC Regulations, Part 15 for Class “B” digital
devices. Compliance with these requirements provides a reason-
able level of assurance that your use of this product in a residential
environment will not result in harmful interference with other elec-
tronic devices. This equipment generates/uses radio frequencies
and, if not installed and used according to the instructions found in
the users manual, may cause interference harmful to the operation
of other electronic devices. Compliance with FCC regulations does
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)
not guarantee that interference will not occur in all installations. If
this product is found to be the source of interference, which can be
determined by turning the unit “OFF” and “ON”, please try to elimi-
nate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by
the interference.
Utilize power outlets that are on different branch (circuit breaker or
fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change the
lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type of
product. If you can not locate the appropriate retailer, please con-
tact Yamaha Corporation of America, Electronic Service Division,
6600 Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products distributed by
Yamaha Corporation of America or its subsidiaries.
FCC INFORMATION (U.S.A.)
* This applies only to products distributed by
YAMAHA CORPORATION OF AMERICA.
COMPLIANCE INFORMATION STATEMENT
(DECLARATION OF CONFORMITY PROCEDURE)
Responsible Party : Yamaha Corporation of America
Address : 6600 Orangethorpe Ave., Buena Park, Calif.
90620
Telephone : [phone]
Type of Equipment : Control Surface
Model Name : CS-R10
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interfer-
ence that may cause undesired operation.
See user manual instructions if interference to radio reception is sus-
pected.
(FCC DoC)
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT.
The wires in this mains lead are coloured in accordance with the fol-
lowing code:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected
to the terminal in the plug which is marked by the letter E or by the
safety earth symbol or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the termi-
nal which is marked with the letter L or coloured RED.
(3 wires)
ADVARSEL!
Lithiumbatteri—Eksplosionsfare ved fejlagtig håndtering. Udskiftning
må kun ske med batteri af samme fabrikat og type. Levér det brugte
batteri tilbage til leverandoren.
VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller
en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty
paristo valmistajan ohjeiden mukaisesti.
(lithium caution)
NEDERLAND / THE NETHERLANDS
• Dit apparaat bevat een lithium batterij voor geheugen back-up.
• This apparatus contains a lithium battery for memory back-up.
• Raadpleeg uw leverancier over de verwijdering van de batterij op het
moment dat u het apparaat ann het einde van de levensduur of gelieve
dan contact op te nemen met de vertegenwoordiging van Yamaha in
uw land.
• For the removal of the battery at the moment of the disposal at the end
of life please consult your retailer or Yamaha representative office in
your country.
• Gooi de batterij niet weg, maar lever hem in als KCA.
• Do not throw away the battery. Instead, hand it in as small chemical
waste.
(lithium disposal)
This product contains a battery that contains perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
* This applies only to products distributed by
YAMAHA CORPORATION OF AMERICA.
(Perchlorate)
이 기기는 가정용(B급) 전자파적합기기로서 주로
가정에서 사용하는 것을 목적으로 하며, 모든
지역에서 사용할 수 있습니다.
(class b korea)

RIVAGE PM10 System Setup Guide
4
PRECAUTIONS
PLEASE READ CAREFULLY
BEFORE PROCEEDING
Please keep this manual in a safe place for
future reference.
WARNING
Always follow the basic precautions listed below to avoid
the possibility of serious injury or even death from
electrical shock, short-circuiting, damages, fire or other
hazards. These precautions include, but are not limited
to, the following:
Power supply/power cord
• Do not place the power cord near heat sources such as
heaters or radiators, and do not excessively bend or otherwise
damage the cord, place heavy objects on it, or place it in a
position where anyone could walk on, trip over, or roll anything
over it.
• Only use the voltage specified as correct for the device. The
required voltage is printed on the name plate of the device.
• Use only the supplied power cord/plug.
If you intend to use the device in an area other than in the one
you purchased, the included power cord may not be
compatible. Please check with your Yamaha dealer.
• Check the electric plug periodically and remove any dirt or
dust which may have accumulated on it.
• When setting up the device, make sure that the AC outlet you
are using is easily accessible. If some trouble or malfunction
occurs, immediately turn off the power switch and disconnect
the plug from the outlet. Even when the power switch is turned
off, as long as the power cord is not unplugged from the wall
AC outlet, the device will not be disconnected from the power
source.
• Remove the electric plug from the outlet when the device is
not to be used for extended periods of time, or during
electrical storms.
• Be sure to connect to an appropriate outlet with a protective
grounding connection. Improper grounding can result in
electrical shock, damage to the device(s), or even fire.
Do not open
• This device contains no user-serviceable parts. Do not open
the device or attempt to disassemble the internal parts or
modify them in any way. If it should appear to be
malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
Water warning
• Do not expose the device to rain, use it near water or in damp
or wet conditions, or place on it any containers (such as
vases, bottles or glasses) containing liquids which might spill
into any openings. If any liquid such as water seeps into the
device, turn off the power immediately and unplug the power
cord from the AC outlet. Then have the device inspected by
qualified Yamaha service personnel.
• Never insert or remove an electric plug with wet hands.
Hearing loss
• Avoid setting all equalizer controls and faders to their
maximum. Depending on the condition of the connected
devices, doing so may result in feedback that can cause
hearing loss and damage the speakers.
• Do not use the headphones for a long period of time at a high
or uncomfortable volume level, since this can cause
permanent hearing loss. If you experience any hearing loss or
ringing in the ears, consult a physician.
• When turning on the AC power in your audio system, always
turn on the power amplifier LAST, to avoid hearing loss and
speaker damage. When turning the power off, the power
amplifier should be turned off FIRST for the same reason.
Fire warning
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
If you notice any abnormality
• If any of the following problems occur, immediately turn off the
power switch and disconnect the electric plug from the outlet.
- The power cord or plug becomes frayed or damaged.
- Unusual smells or smoke are emitted.
- Some object has been dropped into the device.
- There is a sudden loss of sound during use of the device.
- Cracks or other visible damage appear on the device.
Then have the device inspected or repaired by qualified
Yamaha service personnel.
• If this device should be dropped or damaged, immediately
turn off the power switch, disconnect the electric plug from the
outlet, and have the device inspected by qualified Yamaha
service personnel.
CAUTION
Always follow the basic precautions listed below to avoid
the possibility of physical injury to you or others, or
damage to the device or other property. These
precautions include, but are not limited to, the following:
Power supply/power cord
• When removing the electric plug from the device or an outlet,
always hold the plug itself and not the cord. Pulling by the
cord can damage it.
• To disconnect the device from the mains, unplug both power
cords.
Location
• Do not place the device in an unstable position where it might
accidentally fall over and cause injuries.
• Do not block the vents. This device has ventilation holes at the
rear/under the front to prevent the internal temperature from
becoming too high. In particular, do not place the device on
its side or upside down. Inadequate ventilation can result in
overheating, possibly causing damage to the device(s), or
even fire.
• Do not place the device in a location where it may come into
contact with corrosive gases or salt air. Doing so may result in
malfunction.
PA_en_4 1/3

RIVAGE PM10 System Setup Guide 5
• Avoid being near the device during a disaster, such as an
earthquake. Since the device may turn over or fall and cause
injury, stay away from the device quickly and move to a safe
place.
• Before moving the device, remove all connected cables.
• When transporting or moving the device, always use four or
more people. Attempting to lift the device by yourself may
damage your back, result in other injury, or cause damage to
the device itself.
• Keep device away from the reach of children.
Connections
• Before connecting the device to other devices, turn off the
power for all devices. Also, before turning the power of all
devices on or off, make sure that all volume levels are set to
the minimum. Failing to do so may result in electric shock,
hearing loss, or equipment damage.
Maintenance
• Remove the power plug from the AC outlet when cleaning the
device.
Handling caution
• Do not insert your fingers or hands in any gaps or openings on
the device (vents, etc.).
• Avoid inserting or dropping foreign objects (paper, plastic,
metal, etc.) into any gaps or openings on the device (vents,
panel, etc.) If this happens, turn off the power immediately
and unplug the power cord from the AC outlet. Then have the
device inspected by qualified Yamaha service personnel.
• Do not rest your weight on the device or place heavy objects
on it, and avoid use excessive force on the buttons, switches
or connectors.
Backup battery
• Do not replace the backup battery by yourself. Doing so may
cause an explosion and/or damage to the device(s). If the
backup battery power is fully depleted, have qualified Yamaha
service personnel replace the battery.
NOTICE
To avoid the possibility of malfunction/damage to the
product, damage to data, or damage to other property,
follow the notices below.
Handling and maintenance
• Do not use the device in the vicinity of a TV, radio, AV
equipment, mobile phone, or other electric devices.
Otherwise, the device, TV, or radio may generate noise.
• Do not expose the device to excessive dust or vibration, or
extreme cold or heat (such as in direct sunlight, near a heater,
or in a car during the day), in order to prevent the possibility of
panel disfiguration, unstable operation, or damage to the
internal components.
• Do not place vinyl, plastic or rubber objects on the device,
since this might discolor the panel.
• When cleaning the device, use a dry and soft cloth. Do not
use paint thinners, solvents, cleaning fluids, or chemical-
impregnated wiping cloths.
• Condensation can occur in the device due to rapid, drastic
changes in ambient temperature—when the device is moved
from one location to another, or air conditioning is turned on or
off, for example. Using the device while condensation is
present can cause damage. If there is reason to believe that
condensation might have occurred, leave the device for
several hours without turning on the power until the
condensation has completely dried out.
• During extreme changes in temperature or humidity,
condensation may occur and water may collect on the surface
of the device. If water is left, the wooden parts may absorb the
water and be damaged. Make sure to wipe any water off
immediately with a soft cloth.
• Avoid setting all equalizer controls and faders to their
maximum. Depending on the condition of the connected
devices, doing so may cause feedback and may damage the
speakers.
• Do not apply oil, grease, or contact cleaner to the faders.
Doing so may cause problems with electrical contact or fader
motion.
• When turning on the AC power in your audio system, always
turn on the power amplifier LAST, to avoid speaker damage.
When turning the power off, the power amplifier should be
turned off FIRST for the same reason.
• Always turn the power off when the device is not in use.
Saving data
• This device has a built-in backup battery that maintains clock
data even when the device’s power is switched off. The
backup battery will eventually become depleted, however,
and when that happens the clock data will be lost. To prevent
loss of data be sure to replace the backup battery before it
becomes fully depleted. If you need to replace the backup
battery, then have qualified Yamaha service personnel replace
the backup battery. The average life of the internal backup
battery is approximately 5 years, depending on operating
conditions.
Connectors
• XLR-type connectors are wired as follows (IEC60268
standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (–).
Yamaha cannot be held responsible for damage caused by
improper use or modifications to the device, or data that is
lost or destroyed.

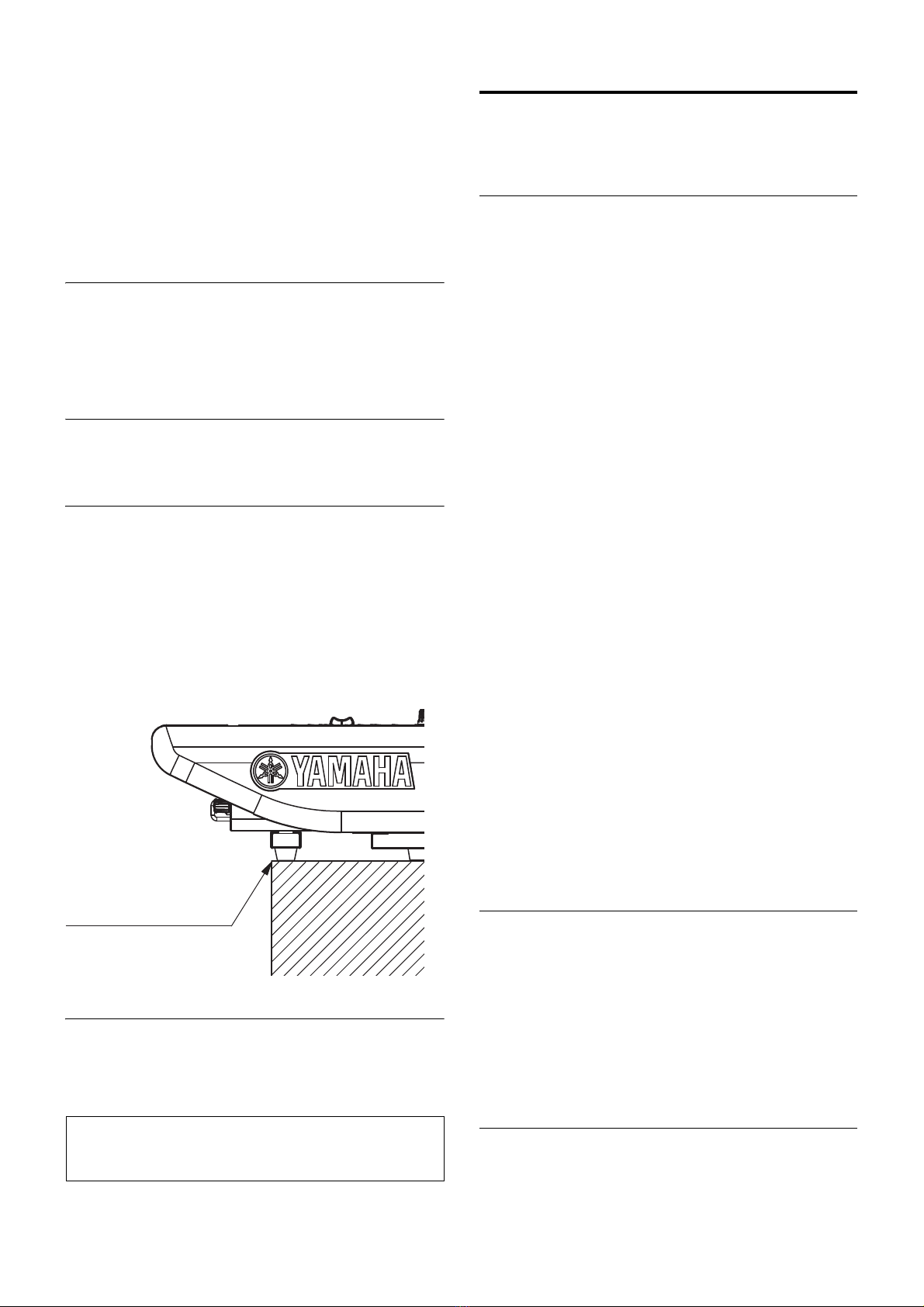

Make sure that the front end of
the table will be under the
front legs of the unit.
PA_en_4 2/3

RIVAGE PM10 System Setup Guide
6
Information
About copyrights
Copying of the commercially available musical data including
but not limited to MIDI data and/or audio data is strictly
prohibited except for your personal use.
About this manual
• The illustrations and LCD screens as shown in this manual are
for instructional purposes only.
• Windows is a registered trademark of Microsoft(R)
Corporation in the United States and other countries.
• Supply of this product does not convey a license nor imply
any right to distribute content created with this product in
revenue-generating broadcast systems (terrestrial, satellite,
cable and/or other distribution channels), streaming
applications (via Internet, intranets and/or other networks),
other content distribution systems (pay-audio or audio-on-
demand applications and the like) or on physical media
(compact discs, digital versatile discs, semiconductor chips,
hard drives, memory cards and the like). An independent
license for such use is required. For details, please visit
http://mp3licensing.com.
• The company names and product names in this manual are
the trademarks or registered trademarks of their respective
companies.
(rear_en_01)
(weee_eu_en_01)
European Models
Purchaser/User Information specified in EN55103-1:2009
and EN55103-2:2009.
Inrush Current: 7.5A (on initial switch-on)
4.5A (after a supply interruption of 5s)
Conforms to Environments: E1, E2, E3 and E4
The model number, serial number, power requirements, etc., may
be found on or near the name plate, which is at the rear of the
unit. You should note this serial number in the space provided
below and retain this manual as a permanent record of your pur-
chase to aid identification in the event of theft.
Model No. CS-R10
Serial No.
Information for Users on Collection and Disposal of Old
Equipment
This symbol on the products, packaging, and/or
accompanying documents means that used elec-
trical and electronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling of
old products, please take them to applicable col-
lection points, in accordance with your national
legislation and the Directives 2002/96/EC.
By disposing of these products correctly, you will help to save
valuable resources and prevent any potential negative effects on
human health and the environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and recycling of old prod-
ucts, please contact your local municipality, your waste disposal
service or the point of sale where you purchased the items.
[For business users in the European Union]
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European
Union]
This symbol is only valid in the European Union. If you wish to dis-
card these items, please contact your local authorities or dealer
and ask for the correct method of disposal.
PA_en_4 3/3

RIVAGE PM10 System Setup Guide 7
Introduction ............................8
Main Features ................................... 8
About manuals.................................. 8
Firmware updates ............................. 8
Conventions in this manual............... 9
Accessories (CS-R10) ......................... 9
System Overview....................10
Introducing the devices................... 10
About network card ........................ 12
Part Names & Functions ........13
Top panel ....................................... 13
Front panel ..................................... 25
Rear panel....................................... 25
Power Supply .........................28
Connecting to power sources.......... 28
Installing and Removing
Optional Cards .....................28
Installing a Mini-YGDAI card ........... 28
Removing the Mini-YGDAI card....... 29
Touch Screen .........................29
Basic touch screen operations ......... 29
On-screen user interface.................. 29
Viewing a touch screen ................... 31
Quick Guide ...........................31
Basic system configuration .............. 31
Installing an optional card ............... 32
Setting the Unit ID .......................... 34
Connecting the devices ................... 34
Turning on the power to the
RIVAGE PM10 system ...................... 35
Setting the word clock .................... 35
Assigning channels to the
TWINLANe network ........................ 36
Patching the input ports.................. 37
Patching the output ports ............... 38
Setting the analog gain for HA
(Head Amp) .................................... 39
Sending an input channel signal to
the STEREO bus............................... 40
Check list ........................................ 41
Other Operations...................42
Initializing the unit to factory default
settings ........................................... 42
Adjusting the faders
(Calibration function) ...................... 42
Troubleshooting ....................44
Specifications (CS-R10) .........45
General Specifications ..................... 45
Pin Assignment Table ...................... 49
Dimensional Diagrams .................... 50
Index......................................53
Contents

RIVAGE PM10 System Setup Guide
8
Thank you for purchasing the Yamaha RIVAGE PM10
digital mixing system. To take full advantage of the
superior features and performance offered by your
RIVAGE PM10 system, and to enjoy years of trouble-free
use, please read this manual carefully before operating
your console. After you have read the manual, keep it in a
safe place for future reference.
Main Features
The RIVAGE PM10 system features superb sound quality,
intuitive controls, and innovative functionality. It is a
state-of-the-art mixing system that supports a variety of
applications.
Superb sound quality
The design of the RIVAGE PM10 digital mixing system is
an uncomprised expression of Yamaha’s philosophy of Pro
Audio device design. This philosophy is called “white
canvas,” and suggests that the ideal starting point for sonic
creativity is pure, natural reproduction achieved through
the use of high quality analog circuits. Only then can
sound be colored effectively by a variety of aural paints for
the desired creative impact. Numerous processing options
(such as plug-ins, SILK, etc.) enable powerful sound
production capabilities in the digital domain. Through a
fusion of analog and digital technologies, the RIVAGE
PM10 has achieved both the creation of a pure,
transparent sound, and fluid capabilities for coloring that
sound.
Intuitive controls
The RIVAGE PM10 features a farther advanced top panel
controls, including large touch panel screens, a full
implementation of Yamaha’s acclaimed Selected Channel
interface, and highly user-friendly USER DEFINED
KEYS/KNOBS section and TOUCH AND TURN knobs.
This feature provides the system’s extraordinary
operability.
Innovative functionality
The RIVAGE PM10 also features abundant inputs and
outputs; flexible signal routing; powerful DSP engine
processing with two insert points; and scene memory and
library management that supports an enormous amount
of sophisticated requirements. The system also provides
numerous benefits for users by maintaining reliability
through power and network redundancy.
These core features are supported by state-of-the-art
technologies and an advanced level of product reliability
that have been cultivated through years of experience in
developing digital mixing consoles, such as the PM1D and
PM5D. The deep passion of Yamaha’s engineering team
has been infused into the RIVAGE PM10.
About manuals
• RIVAGE PM10 System Setup Guide (this book)
This guide describes an overview of the RIVAGE
PM10 system, and explains step by step how to set up
the system from connecting devices to producing
sound.
This guide also serves as the CS-R10 User’s Manual,
explaining part names and functions on the panels.
• Manuals for other devices
The manuals for other devices describe part names and
functions of the corresponding devices.
These manuals are supplied with the corresponding
device packages.
•RIVAGEPM10OperationManual
The Operation Manual provides detailed explanations
of all screens and functions, and includes step-by-step
procedures to help you operate the RIVAGE PM10
system.
Using the PDF manual
The Operation Manual is an electronic file in PDF
format. You can read this book on a computer. Use
Adobe®Reader®to read this book on screen, search
for words very quickly, print specific pages, or click
links to display sections of special interest. The ability
to search for words, or to follow links directly to
relevant sections in the document, are helpful
attributes of this electronic file format. We encourage
you to take advantage of these benefits.
You can download the latest Adobe Reader application
from the website listed below.
http://www.adobe.com/
All manuals can be downloaded from the Yamaha website.
If necessary, you can review updated manual information,
which is always posted in the Yamaha website.
http://download.yamaha.com/
Firmware updates
You can update the unit firmware to improve operations,
add functions, and correct possible malfunctions.
Details on updating the firmware are available on the
following Yamaha Pro Audio website:
http://www.yamahaproaudio.com/
For information on updating and setting up the unit,
please refer to the firmware update guide available on the
website.
Introduction

RIVAGE PM10 System Setup Guide 9
Conventions in this manual
In this manual, switch-type controllers on the panel are
called “keys.” Control knobs on the panel are called
“knobs.” Some knobs rotate from a minimum value to a
maximum value, while others rotate endlessly.
Virtual buttons displayed on the screen are called
“buttons,” and virtual knobs are called “knobs.”
Controls located on the panel are enclosed in square
brackets [ ] (e.g., [CUE] key) to distinguish them from
virtual buttons and knobs displayed on screen. For certain
controls, the name of the section appears before the
brackets (e.g., Selected Channel [ISOLATE] key).
Accessories (CS-R10)
•ACPowerCords(×2)
•Dustcover
• Gooseneck Lamps LA1L (×4)
• System Setup Guide (this book)

RIVAGE PM10 System Setup Guide
10
Introducing the devices
The RIVAGE PM10 system consists of the following components:
NOTE
• Please refer to the owner’s manual supplied with the host device for information on installing the I/O cards.
• For detailed information on I/O card settings, refer to the owner’s manual for the I/O card.
For the latest information on which I/O cards can be used with the system, visit the Yamaha Pro Audio website at:
http://www.yamahaproaudio.com/
System Overview
Control surface DSP engine I/O rack
CS-R10 DSP-R10 RPio622
The control surface enables you to perform general
operations on the RIVAGE PM10 system.
The DSP engine handles mixing and plug-
in processing, and all other audio
processing for the RIVAGE PM10 system.
The I/O rack transfers analog and
digital audio signals to and from the
DSP engine.
RY card HY card
RY16-ML-SILK
This is a 16-channel mic/line input card.
It features SILK digital processing technology that has been co-developed by
Rupert Neve Designs and Yamaha.
RY16-DA
This card features 16-channel analog outputs.
RY16-AE
This card features 16-channel digital I/Os that support the AES/EBU format.
A sampling rate converter is built in for both inputs and outputs.
HY256-TL
This digital I/O card supports TWINLANe (Yamaha’s
proprietary audio transfer network protocol). It can
handle 256 channels and be installed in the HY card
slot 1.
HY144-D
This digital I/O card supports the Dante digital audio
network. It can handle 128 channels and be installed
in the HY card slot 2.

RIVAGE PM10 System Setup Guide 11
About Console Network and I/O Network
• Console Network
A DSP engine is equipped with a special control
surface terminal. You can connect a single control
surface to one DSP engine. A network created by the
control surface and a DSP engine is called a “Console
Network.”
•I/ONetwork
A DSP engine and I/O racks are connected via a
TWINLANe network, using an HY card slot. A
network created by a DSP engine and I/O racks is
called an “I/O Network.”
TWINLANe network
TWINLANe is Yamaha’s proprietary audio transfer
network protocol. With this protocol, 400-channel digital
audio and control signals can be transfered via a single
cable simultaneously.
To connect devices, first install a TWINLANe network
card in an HY card slot of each device, then use fiber optic
cables to connect the TWINLANe network cards in a ring
network topology.
* If the number of connected devices is much larger, or if the
total length of all cables is too long, the listed value may not
apply.
NOTE
Yamaha recommends that you use opticalCON DUO multi-mode
fiber cable made by Neutrik. In general, fiber optic cables are
susceptible to bending or pulling. Use a fiber optic cable that
features a strong plastic jacket and lock mechanism to avoid
cable-related problems.
About cleaning
If dirt or dust attached to the contact surface of jacks on
the fiber optic cables or connectors on the device, data
may not be transferred properly. Clean the contact surface
of jacks and connectors regularly using a commercially-
available fiber optic cleaning tool.
Console Network
I/O Network
(TWINLANe)
DSP Engine
Control Surface
I/O Rack I/O Rack
Transferred data 400-channel audio signal and control
signal
Sampling frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Network latency* 11 sample@Fs= 44.1 kHz (0.25 msec)
11 sample@Fs= 48 kHz (0.23 msec)
12 sample@Fs= 88.2 kHz (0.14 msec)
12 sample@Fs= 96 kHz (0.13 msec)
Bit-length 32-bit
Topology Ring

RIVAGE PM10 System Setup Guide
12
Ring connection
A TWINLANe network uses a ring topology, which
provides redundancy in case of broken cables. If a cable in
the network breaks down for some reason, the signal will
be automatically re-routed and audio will flow without
interruption. Even if a device in the network malfunctions,
other working devices will be able to continue
communicating.
■Normal situation
■When a cable is broken
About network card
The RIVAGE PM10 system uses an “HY256-TL”
TWINLANe network card to configure the I/O network.
.....
IN NIOUT NIOUT NIOUT OUT
Device
TWINLANe
Network Card
Device
TWINLANe
Network Card
Device
TWINLANe
Network Card
Device
TWINLANe
Network Card
TWINLANe network card HY256-TL
Connection cable Graded-Index multimode
fiber optic cable
Maximum cable length between
devices
Max. 300m
Maximum number of channels 256-in/256-out
INOUT INOUT INOUT
INOUT INOUT INOUT
Even if a cable is severed at one point, the
signal will be re-routed automatically and
communication will continue without
interruption.

RIVAGE PM10 System Setup Guide 13
Top panel
ATouch Screen section ➔page 21
BChannel Strip section ➔page 22
CSelected Channel section ➔page 14
DUTILITY section ➔page 18
ESCENE MEMORY section ➔page 19
FUSER DEFINED KEYS/KNOBS section ➔page 20
Part Names & Functions
A
B
CD
FB
E

RIVAGE PM10 System Setup Guide
14
Selected Channel section
This section enables you to adjust parameters for the selected channel.
1
4
5
6
!
2
3
7
8
9
)
@
#
$
%
1[ISOLATE] key
Switches Isolate on or off. The Isolate function
enables you to protect the entire selected channel
strip from any memory recall operations, including
EQ and dynamics library recall.
2[RCL SAFE] key
Switches Recall Safe on or off.
The Recall Safe function protects certain parameters
of a channel from scene recall operations.
3[MUTE SAFE] key
Switches Mute Safe on or off.
The Mute Safe function protects a channel from mute
operations.
4TO ST [A]/[B] keys
Switch on or off the signal sent from the input
channel to stereo bus A or B.
5LED meter
Displays the channel signal level.
6[CUE] key
Switches channel cue send on or off.

RIVAGE PM10 System Setup Guide 15
7[PAN/BAL] knob
Sets the panning/balance of the signal sent to the
stereo buses.
8[Fn] (Function) key
Executes the pre-assigned function.
9[ON] key
Switches the channel on or off.
)[FADER] knob
Adjusts the channel fader level.
![COPY] key
Copies a channel parameter.
@[PASTE] key
Pastes the copied channel parameter.
#Channel name display
Indicates the channel name, fader value, etc.
$Channel color indicator
Indicates the channel color.
%[INC]/[DEC] keys
Switch channels to edit parameters.
INPUT/A.GAIN/SILK/D.GAIN/DELAY
1INPUT [A]/[B] keys
Switch the input source for the selected input
channel.
2[ANALOG GAIN] knob
Sets the analog gain for the head amp.
3[+48V] key
Switches phantom power (+48V) on or off.
4SILK [TEXTURE] knob
Adjusts the intensity of SILK processing.
5SILK [ON] key
Switches SILK on or off.
SILK processing can be applied only to specific
channels to bring the corresponding parts to life
within the mix, or to all channels to add depth and
perspective to the mix overall.
6SILK [BLUE/RED] key
Toggles between BLUE and RED: “BLUE” for solidity
and power, and “RED” for sparkling energy.
7[DIGITAL GAIN] knob
Sets the digital gain of the channel.
8GC indicator
Lights up when GC (GAIN COMPENSATION) is
enabled.
9[ ] (Phase) key
Reverses the phase of the input signal.
)DELAY [ON] key
Switches Delay on or off.
!DELAY display
Indicates the delay value.
@[DELAY] knob
Sets the delay value.
1
2
4
7
3
5
6
8
9
)
!
@

RIVAGE PM10 System Setup Guide
16
EQUALIZER
1EQUALIZER [1-4]/[(5-8)] keys
Switch the EQ bands for which you want to make
settings.
Pressing both [1-4] and [5-8] keys simultaneously
will set the gain for all bands to 0 (FLAT).
2EQUALIZER [ON] key
Switches EQ on or off.
3EQUALIZER [SHELF] key
Switches peaking filter to shelving filter.
4EQ display
Indicates parameters for each EQ band.
5EQUALIZER [Q] knob
Specifies the Q value.
6EQUALIZER [FREQUENCY] knob
Sets the frequency.
7EQUALIZER [GAIN] knob
Sets the gain.
LPF/HPF
1LPF/HPF [FREQUENCY] knobs
Specify the cutoff frequency of LPF and HPF
respectively.
2LPF/HPF display
Indicates the LPF and HPF settings.
3LPF/HPF [ON] keys
Switch the LPF and HPF on or off respectively.
4LPF/HPF [SLOPE] keys
Switch the LPF and HPF slope settings respectively.
DCA/MUTE/INSERT
1DCA ASSIGN LEDs
Indicate the assigned DCAs.
2MUTE GROUP ASSIGN LEDs
Indicate the assigned Mute Groups.
3INSERT [PLUG-INS] key
Enables you to recall a parameter setting screen for
the inserted plug-ins.
4INSERT 1/2 [ON] keys
Switch the INSERT1 and INSERT2 on or off
respectively.
1
5
6
3
2
7
4
2
3
4
1
1
2
34

RIVAGE PM10 System Setup Guide 17
DYNAMICS
1DYNAMICS 1/2 IN LED
Indicates the Dynamics input level.
2DYNAMICS 1/2 GR LED
Indicates the amount of Dynamics gain reduction.
3DYNAMICS 1/2 [<]/[>] keys
Switch parameters that are indicated on the
DYNAMICS display.
4DYNAMICS 1/2 setting knobs
Set parameters that are indicated on the DYNAMICS
display.
5DYNAMICS 1/2 display
Indicates the Dynamics parameters.
6DYNAMICS 1/2 [ON] key
Switches Dynamics on or off.
MIX/MATRIX SENDS
1MIX/MATRIX knobs
Adjust the send levels for the corresponding buses.
2MIX/MATRIX SENDS [PRE] keys
Toggle the send point between PRE and POST. If a
key lights up, the send point is set to PRE.
3MIX/MATRIX SENDS [ON] keys
Switch the send signal to the corresponding bus on or
off.
4MIX/MATRIX SENDS display
Indicates the corresponding bus.
5MIX/MATRIX SENDS [MIX]/[MATRIX] keys
Switch the type of the send destination bus.
6MIX/MATRIX SENDS [1-12]/[13-24]/[25-36]/
[37-48]/[49-60]/[61-72] keys
Selects a bank for the send destination bus.
1 2 4
56
3
4
1
2
3
5
6

RIVAGE PM10 System Setup Guide
18

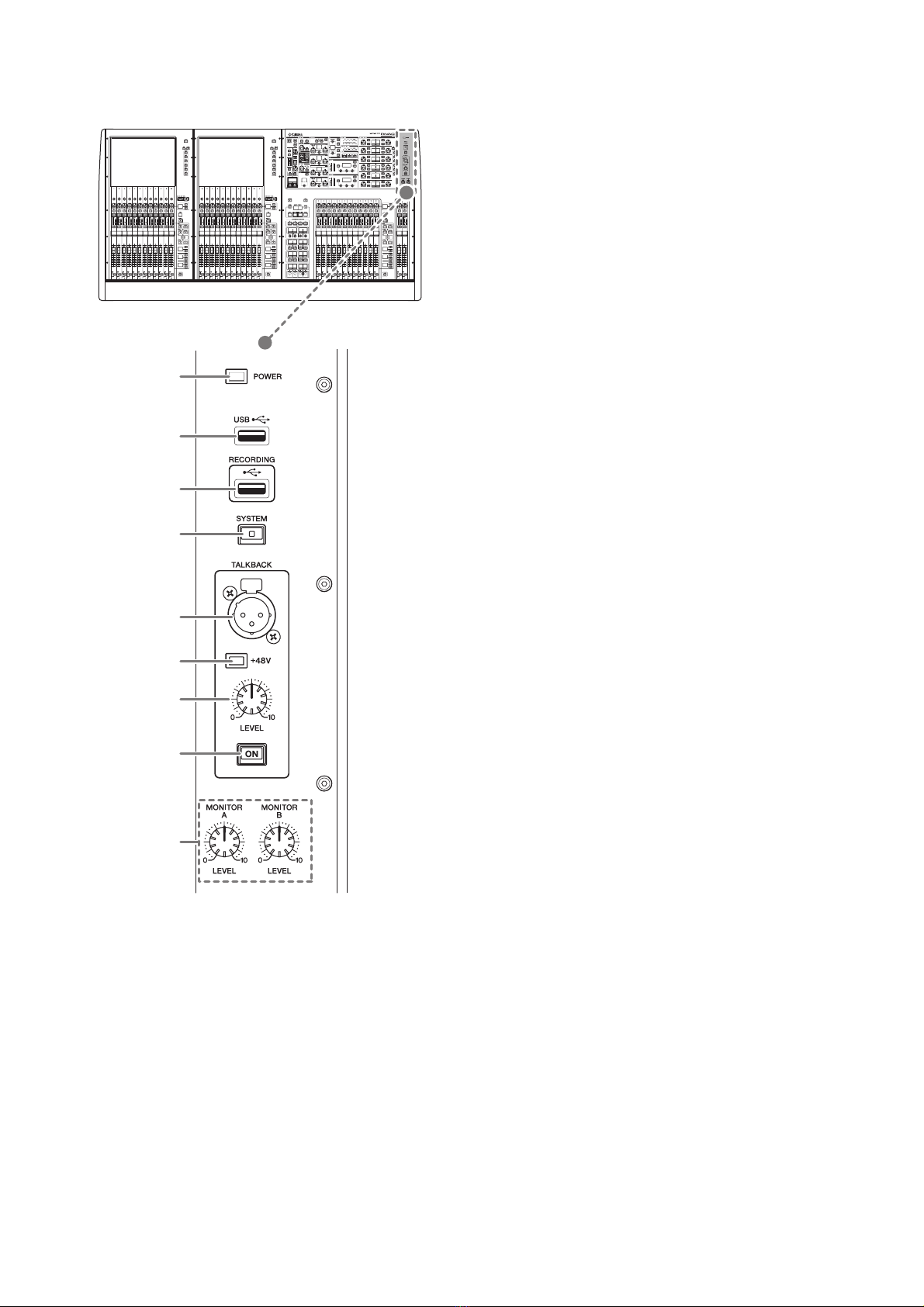

UTILITY section
1POWER Indicator
Lights when AC power to the unit is ON.
2USB port
Enables you to connect a USB device (such as a
mouse, keyboard, or USB flash drive).
■Supported USB flash drive format
The FAT16 and FAT32 formats are supported.
■Write Protection
Some USB flash drives feature write protection that
prevents data from being erased inadvertently.
If your USB flash drive contains important data, we
suggest that you use write protection to prevent
accidental erasure.
On the other hand, you will need to make sure that
your USB flash drive’s write-protect setting is turned
off before you save data onto the USB flash drive.
For the latest information on which USB flash drives
can be used with the system, visit the Yamaha Pro
Audio website at:
http://www.yamahaproaudio.com/
NOTICE
Do not remove the USB flash drive from the USB
connector or turn off the power to the unit while the unit is
accessing data, e.g., saving, loading or deleting data.
Doing so may damage your flash drive, or may damage the
data in the unit or on your media device.
3RECORDING port
Enables you to connect a USB flash drive to record
and play back audio files. Supported file formats
include WAV and MP3.
For the latest information on what USB flash drives
can be used with the system, visit the Yamaha Pro
Audio website at:
http://www.yamahaproaudio.com/
4[SYSTEM] key
Press this key to display information about the
RIVAGE PM10 system on the touch screens.
Press and hold down the key for two seconds or
longer to shut down the control section of the console
(➔page 27). Be sure to shut down before turning off
the power to the unit.
5TALKBACK jack
This is a balanced XLR-3-31 jack to which a talkback
mic can be connected.
6+48V indicator
Lights up when +48V phantom power is supplied to
the TALKBACK jack.
7TALKBACK [LEVEL] knob
Adjusts the input level of the mic connected to the
TALKBACK jack.
8TALKBACK [ON] key
Switches the Talkback function on or off.
9MONITOR A/B [LEVEL] knobs
Adjust the output level of the monitoring signals.
1
2
3
4
5
6
7
8
9

RIVAGE PM10 System Setup Guide 19
SCENE MEMORY section
1[OVERLAY] key
Switches Overlay on or off.
(This feature will be supported by a future update.)
2[UNDO] key
Cancels the most recent scene operation of storing,
recalling or updating a scene.
After you cancel the operation by pressing the [UNDO]
key, you can “redo” the canceled operation by pressing
the [UNDO] key again.
3[UPDATE] key
Updates scene data by overwriting the current scene
(that has been recalled most recently) with the
current mix data.
4Scene memory display
Indicates scene memory.
5[PREVIEW] key
Switches Preview mode on or off.
(This feature will be supported by a future update.)
6[STORE] key
Stores the current scene settings to the selected scene
memory. If you select the existing scene, it will be
overwritten.
7[INC]/[DEC] keys
Enable you to select the scene number of a scene that
you want to store or recall.
8[RECALL] key
Enables you to recall a stored scene from scene
memory.
1
3
6
42
5
8
7

RIVAGE PM10 System Setup Guide
20
USER DEFINED KEYS/KNOBS section
1USER DEFINED [A]/[B]/[C]/[D] BANK keys
Select the bank ([A], [B], [C], or [D]) for the USER
DEFINED knobs or USER DEFINED keys.
2USER DEFINED KNOBS displays
Indicate the functions assigned to the USER
DEFINED knobs.
3USER DEFINED KNOBS [1]/[2]/[3]/[4]
Control the functions as assigned by the user.
4USER DEFINED KEYS displays
Indicate the functions assigned to the USER
DEFINED keys.
5USER DEFINED KEYS [1]-[12]
Control the functions as assigned by the user.
3
1
4
2
5
