02R96-v2 Quick Start Guide
1 02R96-v2 Quick Start Guide

Getting Started with a ‘blank’ desk
To erase all memories in the desk, and return it to its factory settings,
hold the SCENE MEMORY STORE switch while turning on the power.
(You don’t need to do this if you have just unpacked the product from
its box for the first time)!
To start from blank settings without erasing the memories, just recall
SCENE 00. To do this, use the SCENE MEMORY Up-Arrow/Down-
Arrow switches to select Scene ‘00’ and then press RECALL.
All the faders will then move down and all the mixing functions set to
their default status.
2 02R96-v2 Quick Start Guide

Understanding the Rear Panel
All the audio connectors are on the rear panel. They include:
1. 16 Mic inputs with XLR and TRS Jack inputs, and
TRS inserts (un-balanced)
2. 8 Line inputs with TRS Jack inputs
3. 8 ‘OMNI’ analog outputs with TRS Jacks
4. Various Stereo, Studio and Control Room outputs
5. 3x 2-Track Digital Inputs and Outputs
6. 4 option slots for expansion.
4
2
5
3
1
6
Other connectors on the rear panel are for various control and sync
functions. For example, the CONTROL port (25-pin D-sub) is for low
voltage GPI relays. The CASCADE IN and OUT ports are for
connecting with other 02R96 consoles to share audio buses. The
METER connector is for the optional Meter Bridge.
3 02R96-v2 Quick Start Guide

Understanding the Front Panel
All the controls are on the front panel, laid out in logical areas:
1. Analog input gain, pad, insert and +48V.
2. Faders, On, Solo, Sel, Auto switches for the channels
3. Aux and Pan controls
4. Selected Channel area
5. Effect controls
6. Monitor controls
7. Display Access switches (grey diamond shapes)
8. Machine Control and Display control switches
1
2
3
7
8
8
6
4
3
5
The SELECTED CHANNEL area is a fundamental concept to
understand. It shows all the important functions for one channel at a
time. Only one channel can be selected at any time. To select a
channel (and see its settings in the SELECTED CHANNEL area), just
press the SEL switch. Then press the SEL switch for another channel
when you are ready to move on.
4 02R96-v2 Quick Start Guide

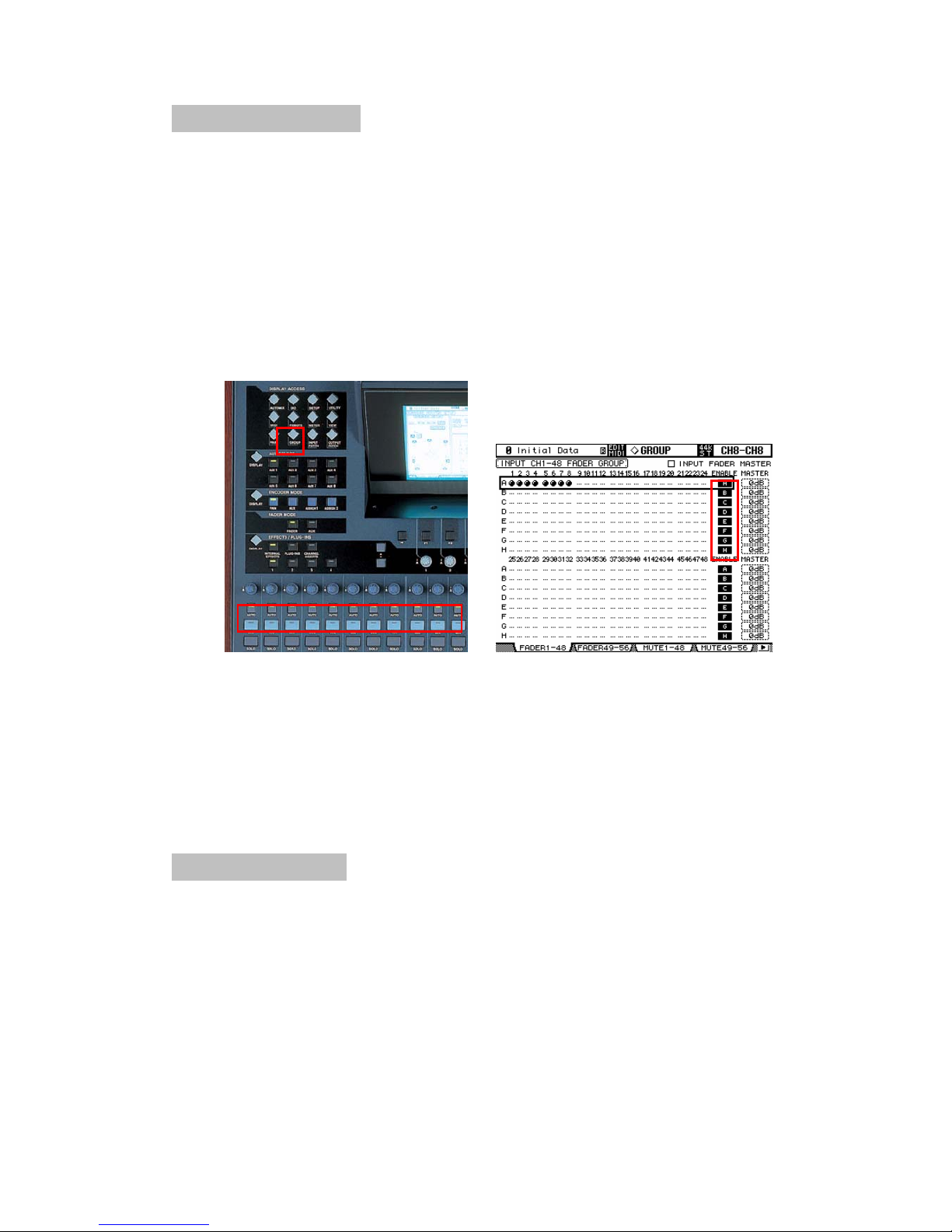

Controlling Channel Faders
There are 4 layers of faders on the 02R96:
1. Input channels 1-24
2. Input channels 25-48
3. Input channels 49-56 + Auxes 1-8 + Buses 1-8
4. Remote Layer for controlling other functions / devices.
When you change layers, all the channel settings are remembered.
You just change which channels you are looking at!
Each fader controls a different input to the 02R96. This assignment is
not fixed: it can be changed in the INPUT PATCH menu.
Here is the default patch:
channels 1-24 control the 24 analog inputs on the top on the
console;
channels 25-32 control inputs 1-8 from Slot 1;
channels 33-40 control inputs 1-8 from Slot 2;
channels 41-48 control inputs 1-8 from Slot 3;
channels 49-56 control inputs from internal Effects 1-4.
5 02R96-v2 Quick Start Guide

Changing INPUT PATCH
To assign different inputs to the input channels, such as the Slot 4
inputs, follow these steps:
1. press the INPUT PATCH Display Access key.
2. If necessary, press it repeatedly until the CH1-48 or CH49-56
page is displayed.
3. Press the SEL switch for the required channel (or move the
cursor on the screen to the required channel number).
4. Press ENTER (by the data wheel at the bottom right corner
of the console).
5. Select the type of input from the first list (AD in / Slot in / FX
out and so on).
6. Press ENTER and choose the required item from the next
column (Slot # or FX # for example).
7. Press ENTER and choose the required item from the last
column (CH# or L/R for example).
8. Press ENTER and click YES on the screen to complete the
Patch change.
6
8
75
4
6 02R96-v2 Quick Start Guide

ENCODER MODE / FADER MODE
The encoders above the faders can be used to edit various channel
parameters. The most useful ones are Pan and Aux send.
1. To edit Pan on the encoders, just press the PAN ENCODER
MODE switch and turn the required encoder. The LCD display will
show the pan position in a ‘pop-up’ window.
3 2
21
4
2. To edit Aux on the encoders, press the AUX ENCODER
MODE switch, then select the required AUX# (1-8) with one of the AUX
SELECT switches above. The LCD display will show the Aux level in a
‘pop-up’ window.
3. To see the Aux send information for many channels at the
same time, press the AUX SELECT DISPLAY switch. Each time this
switch is pressed, it will change the LCD to a different page to see the
information for other channels. In these pages Pre/Post status can be
edited, and the Aux sends can be switched off by pressing ENTER
while the cursor is high-lighting the level encoder.
4. When the AUX FADER MODE switch is pressed, the Aux
Send levels are shown on the faders instead of the channel level.
Choose which Aux to see on the faders with the AUX SELECT
switches (as in step 2 above). Press the FADER switch to resume
normal level operation on the faders.
7 02R96-v2 Quick Start Guide

Using the SELECTED CHANNEL controls
When a channel is selected, its settings can be seen and controlled in
the SELECTED CHANNEL area. The currently selected channel’s
name and number is always shown in the top-right corner of the LCD
screen.

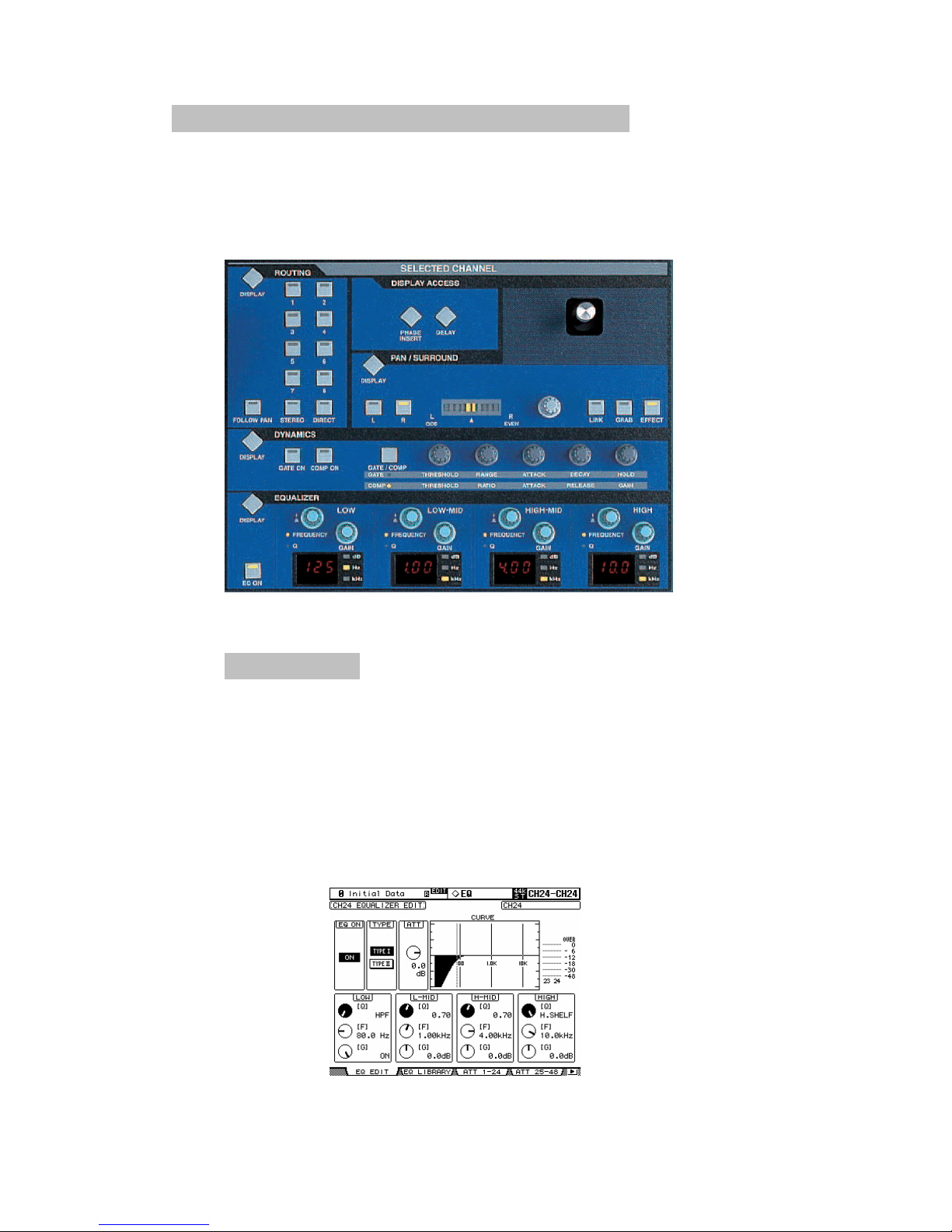

EQUALIZER
When one of the EQ controls is moved, the LCD will show the EQ edit
screen. There are 4 parametric bands. To change between controlling
FREQUENCY and Q, press down quickly on the encoder. Note that
the LOW band can be a Low Shelf or a HPF by changing the Q to the
maximum or minimum position. In the same way, the HIGH band can
be a High Shelf or a LPF. There are 2 types of EQ (TYPE I or TYPE II),
with slightly different sound characteristics. The ATT function is an
attenuator, or digital trim to adjust the channel level pre-eq.
8 02R96-v2 Quick Start Guide

DYNAMICS
Each input channel has both a GATE and a COMP. The output
channels only have a COMP. When a DYNAMICS switch or encoder
is moved, the LCD shows the relevant GATE or COMP screen. Gain
Reduction meters and Key-In status can also be viewed here. Usefully,
the COMP can be positioned pre-eq, pre-fader (post-eq) or post-fader.
PAN
The PAN and SURROUND PAN settings of the selected input channel
can be edited here (Output channels do not have Pan). The L and R
switches show if the channel is the Left or Right side of a stereo pair.
The Joystick is not active until a surround mode is selected. To do this,
press the PAN/SURROUND DISPLAY switch so the SURR MODE
page is shown. Then choose the SURROUND MODE: 3-1 or 5.1 or
6.1. This will then convert some of the buses (1-8) into Surround
Buses.
9 02R96-v2 Quick Start Guide

ROUTING
In this section, the Selected Channel can be routed to any of the 8
Buses, to the Stereo Bus and to a Direct Output. Just press the
relevant switch to route the channel to the Bus (these switches are not
available for Output Channels). The FOLLOW PAN switch ensures
that the PAN of the channel will follow through to the Buses. This is
particularly useful when using the Buses as stereo sub-groups (as on a
typical analog console).

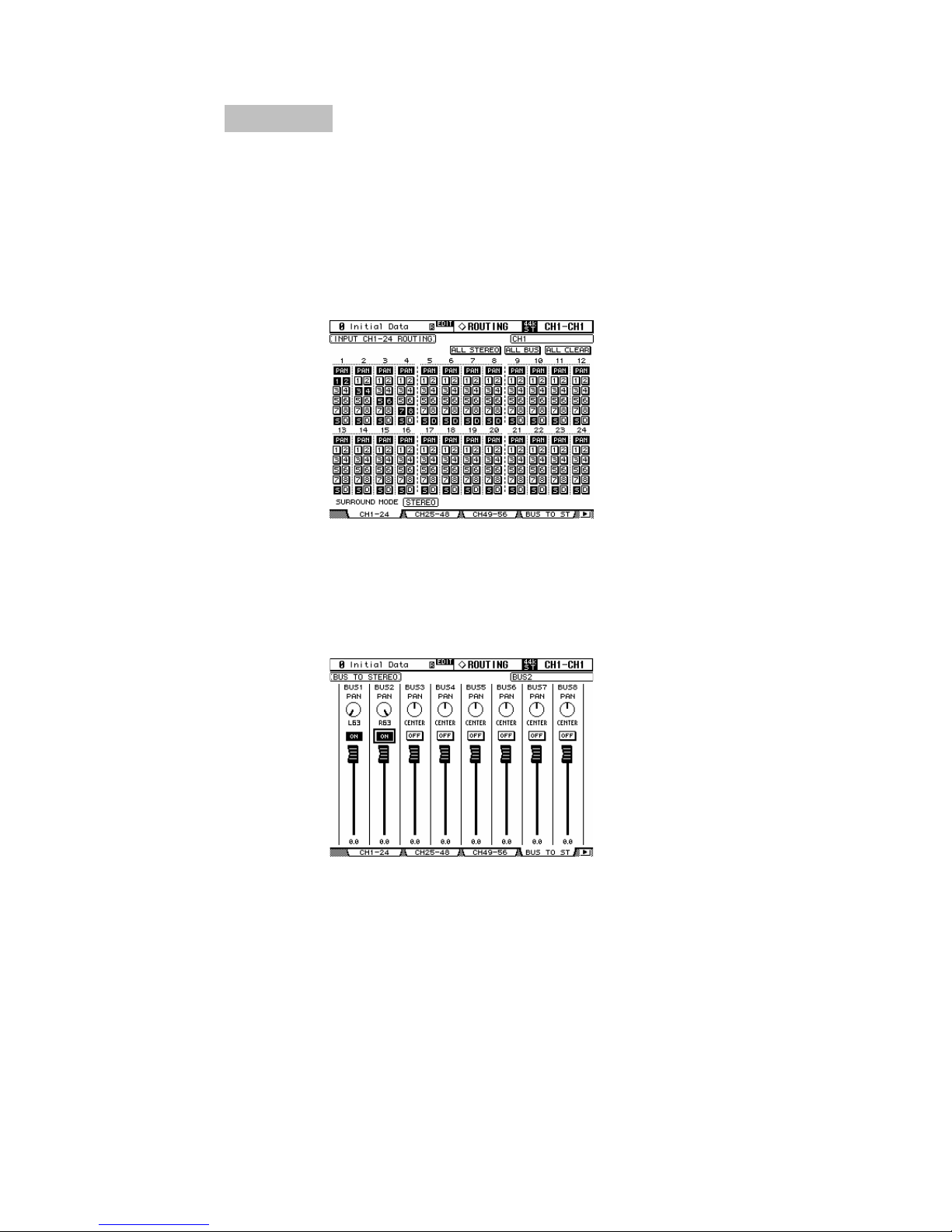

Buses can be routed to Stereo (just like Sub-Groups on an
analog console). To do this, press the ROUTING DISPLAY switch to
see the BUS TO ST screen. Here Buses 1-8 can be routed, panned
and mixed to the Stereo Bus. Use the cursor keys, data wheel and
ENTER switch to adjust the parameters.
