Yamaha PF-1500 User manual

YAMAHA
PF1500
ELECTRONIC PIANO
PIANO ELECTRONIQUE
ELECTRONIC PIANO
in
OPERATING MANUAL
MANUEL P'UTILISATION
BEDIENUNGSANLEITUNG

INTRODUCTION
AA EN API VES
Thank you for purchasing this Yamaha PF1500 Electronic Piano. This keyboard
instrument incorporates the following features:
Yamaha's AWM (Advanced Wave Memory) tone genera-
tion system, which digitally processes the sounds of actual
instruments, creating authentic timbres. The AWM sys-
tem compresses data so that more data can be stored in the
piano.
Specially developed keyboard provides an action that is
lighter than that of an acoustic piano, yet sensitive and
natural, so the player who is used to a grand piano can
switch easily to a PF1500 piano.
Velocity sensitivity to allow expressive performance with
subtle variations in tone and volume that respond to the
way you play.
e Full 16-note polyphonic capacity
e. A powerful internal 20W+20W amplifier, with a stereo 2-
way speaker system to reproduce the sounds of an acous-
tic piano with full, rich, and deep tones.
MIDI capability to allow control of and control by other
MIDI instruments (refer to the MIDI OPERATION section
of this manual for more information).
The PF1500 is equipped with a digital reverberation unit
with three programs, enabling performances with ambi-
ence and atmosphere. In addition, this effect may be used
to modify the sounds of external devices (rhythm program-
mers, tone generators or synthesizers) amplified through
the piano.
.
~
PRECAUTIONS
pa
Your new PF1500 piano is a fine musical instrument and should. be treated as
such. Though it is ruggediv constructed and offers the reliabilitv of solid-state
circuitrv, handle it with care and common sense. Keep the following points in
mind, and vour piano will give vou vears of reliable service.
e Location
Avoid exposure to direct sunlight or other sources of heat.
Vibration, excessive dust, cold, low or high humiditv can
also cause malfunction.
e Relocation
When moving the piano, unplug the AC power supply and
all other connecting cables to prevent damage to cords and
jacks.
e Handling
Avoid rough handling. Don't drop or subject the piano to
shock as this can damage the internal circuitrv. Applving
excessive force to terminals or controls mav lead to malfunc-
tions. Alwavs remove plugs from sockets or other terminals
bv gripping them directiv, not bv pulling the cord.
e. AC Power Connection
The voltage requirements for vour Vamaha electronic piano
have been set specifically for the mains supply voltage used
in vour area. If vou have anv doubts about voltage suitabil-
itv, please consult vour local Vamaha dealer. If vou intend
to use vour piano in an area with a different voltage, be sure
to use an appropriate convertor.
Disconnect the piano from the AC outlet when not using it
for an extended period of time. Electrical storms (lightning)
can give rise to power surges, damaging digital cicuitrv even
if the power is turned off.
e Cleaning
Do not use abrasive cleaners, waxes, solvents or chemical ®a
dust cloths to clean the cabinet or keys of your piano, as—
these may dull the keys or damage the finish. Use a slightly
damp cloth and a neutral cleanser.
© Service and Modification
The piano contains no user-servicable parts. Opening it or
tampering with it in any way can lead to electrical shock as
well as damage and will void the product warranty. Refer all
servicing to qualified YAMAHA personnel.
e Interference through Electromagnetic Fields
Do not use your piano close to television sets, radio receiv-
ers or other equipment generating electromagnetic fields.
This could cause both malfunctions of the piano’s digital
circuitry as well as interference noise in the other appliance.

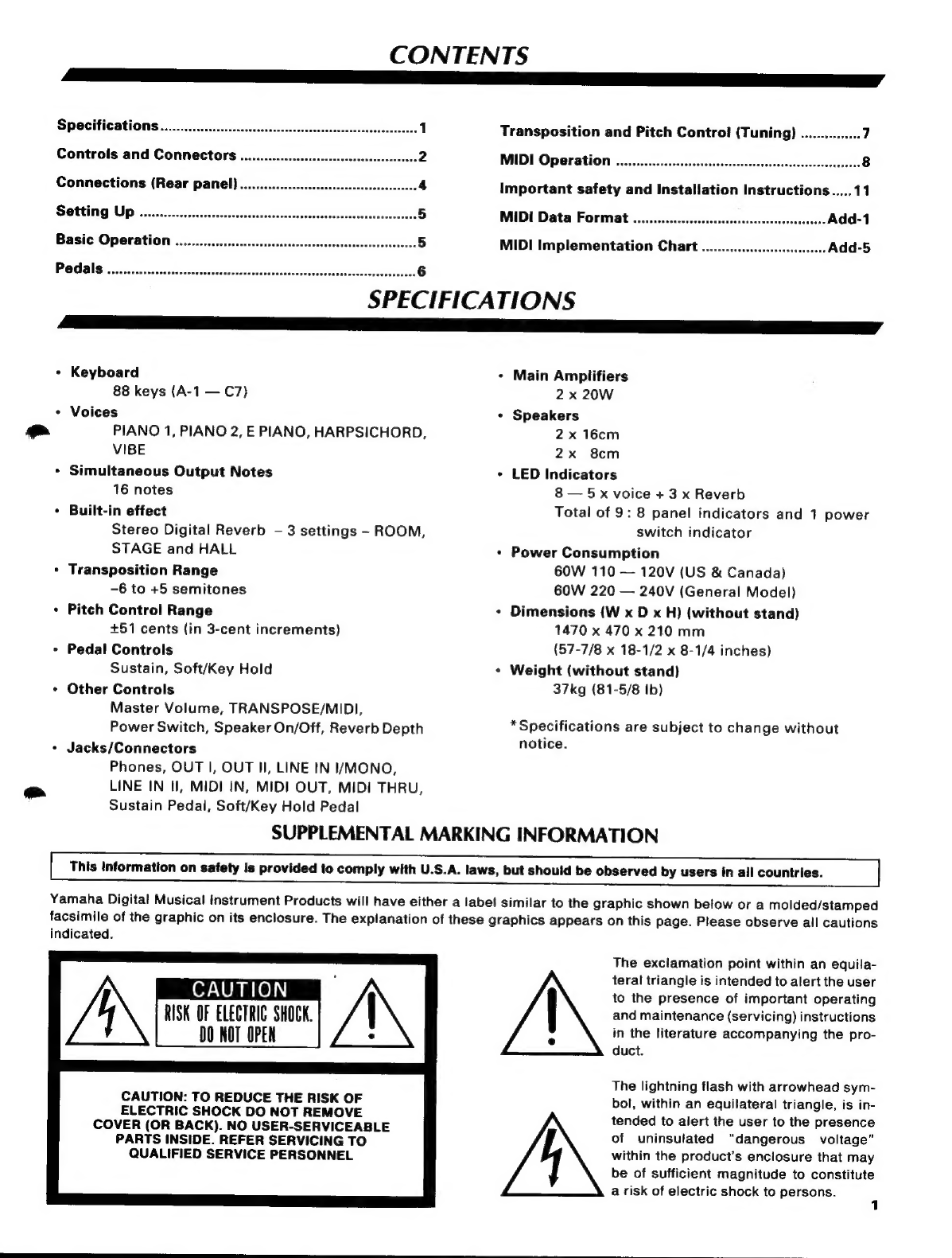

CONTENTS
Connections (Rear panel)
AAA ka ep, 5
Basic Operation ..............s.sssseensenanzzzannensanzenenzzzznznznzanzzz 5
Pa
a
6
Transposition and Pitch Control (Tuning) ............... 7
MIDI Operation .................ssesrensenzanenznzanenenzenenznzzznsnenanza 8
Important safety and Installation Instructions..... 11
MIDI Data Format ...............s.ssseneenazanzanzannznranazanan Add-1
MIDI Implementation Chart ............. 0. ss seeeeemeren Add-5
SPECIFICATIONS
==
A
A
A
A
a
ET
Keyboard
88 keys (A-1 — C7)
Voices
PIANO 1, PIANO 2, EPIANO, HARPSICHORD,
VIBE
Simultaneous Output Notes
16 notes
Built-in effect
Stereo Digital Reverb — 3 settings - ROOM,
STAGE and HALL
Transposition Range
-6 to +5 semitones
Pitch Control Range
+51 cents (in 3-cent increments)
Pedal Controls
Sustain, Soft/Key Hold
Other Controls
Master Volume, TRANSPOSE/MIDI,
Power Switch, Speaker On/Off, Reverb Depth
Jacks/Connectors
Phones, OUT I, OUT Il, LINE IN /MONO,
LINE IN II, MIDI IN, MIDI OUT, MIDI THRU,
Sustain Pedal, Soft/Key Hold Pedal
.
Main Amplifiers
2 x 20W
Speakers
2 x 16cm
2x 8cm
LED Indicators
8 — 5 x voice + 3 x Reverb
Total of 9: 8 panel indicators and 1 power
switch indicator
Power Consumption
60W 110 — 120V (US & Canada)
60W 220 — 240V (General Model)
Dimensions (W x D x H) (without stand)
1470 x 470 x 210 mm
(57-7/8 x 18-1/2 x 8-1/4 inches)
Weight (without stand)
37kg (81-5/8 Ib)
*
Specifications
are
subject
to
change
without
notice.
SUPPLEMENTAL
MARKING
INFORMATION
This
information
on
safety
is
provided
to
comply
with
U.S.A.
laws,
but
shouid
be
observed
by
users
in
all
countries.
Yamaha
Digital
Musical
Instrument
Products
will
have
either
a
label
similar
to
the
graphic
shown
below
or
a
molded/stamped
facsimile
of
the
graphic
on
its
enclosure.
The
explanation
of
these
graphics
appears
on
this
page.
Please
observe
all
cautions
indicated.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
The exclamation point within an equila-
teral triangle is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the pro-
duct.
The lightning flash with arrowhead sym-
bol, within an equilateral triangle, is in-
tended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute
a risk of electric shock to persons.

CONTROLS AND CONNECTORS
FRONT PANEL
8 9 © OGCO0OOG
AO DU
DADI
A"
PHONES
~
1 £
O
Power
switch
@
HARPSICHORD
voice
select
button
and
indicator
(illuminated
when
on)
Press
this
button
for
the
sound
of
a
harpsichord.
@
Volume
control
@
VIBE
voice
select
button
and
indicator
Slide
right
to
increase
the
volume,
left
to
decrease
the
Press
this
button
for
a
vibraphone
(vibes)
sound.
volume.
l O Reverb Depth slider
@
PIANO
1
voice
select
button
and
indicator
Pushing
this
slider
to
the
left
decreases
the
amount
of
rever-
Press
this
button
for
the
full
sound
of
a
concert
grand
piano.
beration
applied
(full
left
is
equivalent
to
off),
and
pushing
(4)
PIANO
2
voice
select
button
and
indicator
it
to
the
right
increases
the
amount
of
reverberation.
Press this button for a lighter acoustic piano sound.
O) E. PIANO voice select button and indicator
Press this button for the sound of an electric piano.

ALTI ona wre mc
©
©
Reverb select buttons and indicators:
HALL, STAGE and ROOM
The PF1500’s digital reverb can simulate the reverberation
types associated with these three environments. Press one
of
these
switches
to
pick
the
one
which
suits
your
musical
mood.
TRANSPOSE/MIDI button
This
has
many
functions
in
conjunction
with
other
buttons,
which are described later in this manual
ġ 88-kev kevboard
@ 8cm speakers
Do not put sheet music, etc over the speakers when using the
piano's internal amplifier and speakers, otherwise the sound
will be muffled.
Headphone socket
Insert
headphones
here
for
private
practice.
Note
that
the
speakers
will
be
automatically
be
turned
off
when
the
head-
phones
are
inserted.
Music stand
Pull towards you and lift, as described in the SETTING UP
section.

CONNECTIONS (REAR PANEL)
m “QO0 0?
il 1 i/Mjġno
SPEAKER Lomo) LINE INPU aa
Sound
System
Rhythm
Programmer
or
Tone
Generator
@ Speaker ON/OFF switch
This switch turns the sound from the PF1500's speakers on
and off.
O OUTPUT terminals (I and ll)
These jack terminals can be used to connect the PF1500 to
an external amplifier, mixer, etc. A stereo signal is output
when the reverb is used.
© LINE INPUT terminals (I/MONO and ll)
These jack terminals can be used to connect other equip-
ment (eg RX rhythm programmer, TQS tone generator) to be
played through the PF1500's amplifier and speakers. DO
NOT use these sockets to connect speaker-level signals.
Damage will occur to the PF1500, and possibly to the other
equipment.
(4) SUSTAIN and SOFT pedal connections
Use these sockets to connect the PF1500 stand pedals, as
described in the section SETTING UP.
* Effects can also be turned on and off using the optional
foot pedals FC4, FCS, or FC8. (The half-pedal effect is not
accessible with the FC8.)
MIDI THRU, OUT and IN terminals
MIDI (Musical Instrument Digital Interface) allows the
PF1500 to transmit and receive musical commands to and
from other MIDI-equipped devices. The IN terminal should
be used if the PF1500 is to be controlled by a sequencer (eg
TQ5) or another keyboard, and the OUT terminal for when
the PF1500 is to control another device (eg the tone genera-
tors of the TOS). The THRU terminal echoes the data
received at the IN terminal, and is used when “daisy-
chaining” MIDI devices. See the sectionon MIDI OPERA-
TION for full details.
‘2

En
SETTING UP
A TE LETT
The PF1500 has a second set of speakers located on the underside of the
keyboard. Before playing, attach the stand, referring to the separate Assembly
Instructions sheet.
When the keyboard has been placed on the stand, continue with
the following procedure for playing.
1. Plug the AC power cord into an AC outlet.
2. Though the PF1500 has its own internal amplifier/speaker
system, you can also play it through an external sound
system via the LINE OUT (I,II) sockets. The piano’s
output is normally mono, but when the reverb is used, a
stereo signal is output. The SPEAKER switch on the back
panel may be used to turn the internal speakers on and off.
3. For headphone listening, connect a pair of headphones to
the PHONES socket. When headphones are inserted, the
internal speakers are automatically turned off.
4. Tocontrol the piano from an external MIDI device, connect
the MIDI OUT of the MIDI device to the MIDI IN of the
piano. To control an external MIDI device from the piano,
connect the MIDI IN of the MIDI device to the MIDI OUT
of the piano. (Refer to the MIDI OPERATION section for
further details.)
5. The LINE IN sockets can be used for connecting a tape
recorder, synthesizer, drum machine, etc, which can be
listened to through the piano's own internal amplifier and
speakers while you play. The OUTPUT connectors of the
external source should be connected to the LINE IN sockets
on the piano. The level should be adjusted at the external
source.
NOTE:
Never feed speaker-level signals to the piano's LINE IN
sockets - it could cause damage to the piano's internal cir-
cuitry.
Set the music stand in position by pushing it about 5cm (2")
away from the keyboard, and then lifting it back. The exact
position may then be adjusted forwards or backwards.
BASIC OPERATION
POWER
VOLUME
Turn on the power switch. If the piano is to be connected to other
amplification or MIDI instruments, do not turn on the power
until all connections have been made.
VOICE SELECT
MINTED EOL a DE MAX
UD
VOLUME
Adjust the volume using the Volume slider on the front panel
(pushing it to the right increases the volume, and pushing it to the
left decreases the volume).
Select the desired voice by pressing a voice select button on the
front panel. There are five voices: PIANO 1, PIANO 2, E
PIANO, HARPSICHORD and VIBE. When a voice has been
selected, the corresponding LED above the select switch will
light.

REVERB
Select a reverb program
with these buttons.
jiġ
MINDED OEE ER ES IE MAX
DEPTH ROOM STAGE HALL
L..-—— REVERB
Move this slider to the right for more
reverb effect, and to the left for less.
There are three reverberation settings which may be selected:
ROOM, STAGE and HALL. ROOM simulates the reverbera-
tions to be found in a normal sized room. STAGE simulates the
reverberation characteristics of a stage, and HALL provides a
larger, more spacious feeling than ROOM. Once the selection of
reverberation type has been made, the corresponding LED will
light up. The amount of reverberation affecting the piano sound
can be adjusted by means of the Depth slider (pushing it right
adds more reverberation, and pushing it to the left decreases the
effect). Note that any external sound sources connected to the
LINE IN sockets on the PF1500 will also be affected by the
reverberation settings.
PEDALS
The two pedals on the stand of the PF1500 may be used to create sustain and soft
(una corda) or key hold (sostenuto) effects as on an acoustic piano.
USE OF THE SUSTAIN PEDAL
Press the sustain pedal (the right-hand pedal) to sustain all notes
played, up to the 16-note polyphonic limit. Further notes played
will cancel the first notes played, in the order in which they were
played.
SELECTION OF SOFT/
KEY HOLD PEDAL FUNCTIONS
g
TRANSPOSE/
MIDI
Press the pedal and TRANSPOSE/MIDI button
together to change the function of the left pedal.
The left-hand pedal may be used as either a soft (una corda) or
Key Hold (Sostenuto) pedal. To switch between these two pedal
functions, hold down the TRANSPOSE/MIDI button and de-
press the left-hand pedal. To change the function, repeat the
above procedure.
NOTE:
When the power to the piano is turned on, the soft key
function is automatically selected.
USE OF THE SOFT PEDAL
Pressing the pedal when the Soft pedal function is selected mutes
the sound of the piano (una corda).
USE OF THE KEY HOLD PEDAL
Pressing the pedal when the Key Hold function is selected causes
only the notes which are currently held down to be selected. Sub-
sequent notes played while the pedal is depressed are not sus-
tained (sostenuto).

A
TRANSPOSITION
AND
PITCH
CONTROL
(TUNING)
For Pitch control
MT
For Pitch controKC,-B,)
For transposing, hold down the TRANSPOSE/MIDI button, then
g press a kev on the kevboard.
TRANSPOSITION
This feature allows vou to change the kev of the entire instrument
in half-step (semitone) intervals.
To change the transposition setting, hold down the TRANS-
POSE/MIDI button and press one of the keys between F#5 and
F6. The piano will then be transposed by an interval correspond-
ing to the interval between C6 and the key pressed.
NOTE:
The normal playing key (Middle C=C3) is automatically se-
lected when the power is turned on.
For Transposer(F*,~F,)
PITCH CONTROL
This feature allows you to make fine adjustments to the pitch of
the entire instrument in about 3-cent steps (1 cent equals 1/100th
of a semitone). This allows you to match the tuning of the piano
to that of accompanying instruments or tapes.
To raise the pitch, simultaneously hold down the two lowest
white keys and press any key between C3 (Middle C) and B3 (the
B above Middle C). Each press of the key raises the pitch by three
cents.
To lower the pitch, execute the same procedure while holding
down the lowest white key and lowest black key. Tuning can be
adjusted up to a maximum of +51 cents. Thus, when used in
combination with the Transposition function, the piano can be
set to any pitch within a one-octave range.
NOTE:
Concert pitch (A3=440Hz) is automatically selected when
the piano is first turned on.

MIDI OPERATION
A
A
A
A
A
LETTS
The MIDI (Musical Instrument Digital Interface) connections on the piano allow
you to connect it to other MIDI keyboards, tone generator modules, samplers,
sequencers, drum machines, computers and other signal processors.
This
enables
the
piano
to
play
or
be
played
by
other
synthesizers
and
execute
many
other
MIDI performance
functions.
MIDI data
is
transmitted
on
any of
up
to
16
MIDI channels.
Normally,
MIDI devices
connected
together
should be
set to the
same MIDI channel number.
The piano can transmit and receive the following MIDI data:
+ KevOn/KevOff (indicate that a note has been presssed and
released, respectively).
+ Note Number (indicates which note has been pressed).
e Velocity (indicates the speed or force with which a key was
pressed).
+ Foot Pedal Functions (also known as control changes).
SETTING MIDI FUNCTIONS
+ Program Changes (Programs 1 through 5 can be selected
on an external MIDI instrument using the piano’s Voice
Select buttons, or the piano's voices can be selected from
an external MIDI device. The program numbers for the
piano's voices are as follows: 1 = PIANO 1, 2 = PIANO
2, 3 = E PIANO, 4 = HARPSICHORD, 5 = VIBE).
Refer to the MIDI section and MIDI Implementation Chart at
the end of this manual for further information.
WI down the TRANSPOSE/MIDI button then press one of the keys.
4 791 lt
For setting the is channel.
(C,-D')
1. MIDI TRANSMIT CHANNEL SELECT
MIDI data can be sent on anv of up to 16 MIDI channels. The
piano's MIDI Transmit channel (sending channel) should match
the MIDI Receive channel of the MIDI device that it is control-
ling.
Hold down the MIDI/TRANSPOSE button, then press one of the
keys between C1 and D#2 to select the MIDI Transmit channel
number.
NOTE:
When the piano's power is turned on, the MIDI Transmit
channel is automatically set to 1.
2. OMNI ON/OFF, MIDI caló pages SELECT
O O O
g 00008
TRANSPOSE
1 PIANO-IE ENS Kia a
Press these two buttons together to set OMNI on or off.
4
7 911 1416
CUCUTA
kull
MIDI data may be received on any of 16 MIDI channels. The S
piano’s MIDI Receive mode may be set to Omni On (in which E
case, MIDI data received on any or all of the MIDI channels will
be recognized) or to Omni Off (in which case, MIDI data is
received only on the single selected MIDI channel, which should
match the MIDI Transmit channel of the controlling device).
Hold down the TRANSPOSE/MIDI button, then press the PI-
ANO 1 Voice Select button to switch between Omni On and
Omni Off. When the PIANO 1 LED is lit, the Omni mode is
turned off. To select the MIDI Receive channel, hold down the
TRANSPOSE/MIDI button and press one of the keys between
C3 and D#4 (as shown in the diagram at the start of the SETTING
MIDI FUNCTIONS section).
erro reno setting the receiving channel.
(C,-D')
NOTE:
When the piano's power is turned on, the MIDI Receive
channel is automaticallv set to 1, and the OMNI mode is set
to ON.

~
3. LOCAL ON/OFF FUNCTION
8 60060
IE PIANO E PIANO HARPS! VIBE
Press these two buttons together
to set LOCAL on or off.
The Local On/Off function allows you to select whether or not
the piano's own internal voices will be played by its keyboard. In
normal use, this function will be set to ON. However, if you wish
to use the piano only as a MIDI controller keyboard (for example
to play a synthesizer or a tone generator module), you can turn off
the Local function, effectively isolating the piano's internal
voices from its keyboard, so that only the external MIDI device
will produce sound when you play the piano keyboard. Using the
Local Off function, you could also use another external MIDI
device (such as a sequencer) to play the piano’s internal voices.
Hold down the TRANSPOSE/MIDI button, then press the Pl-
ANO 2 voice select button to switch between Local On and Local
Off. When the PIANO 2 LED is lit, the Local function is turned
off.
NOTE:
When the piano's power is turned on, the Local function is
automatically set to Local On.
4. PROGRAM CHANGE CANCEL
(EJ CI
CI CI
-Qo
CIo
TRANSPOSE/ l
MID! L— PIANO—! E PIANO HARPS! VIBE
Press these two buttons together to
set Program Change on or off.
When controlling a MIDI device from the piano, the external
MIDI device’s programs can be selected by pressing Voice
Select buttons on the piano. Also, when the piano is controlled
from another MIDI device, the piano's voices can be selected
from the external MIDI device. For both transmission and
reception, the piano's Voice Select buttons correspond to Pro-
grams 1 through 5.
You can have independent program change ability by cancelling
the piano’s ability to receive and transmit program changes. This
is done by turning off the piano's Program Change function.
Hold down the TRANSPOSE/MIDI button, then press the E
PIANO Voice Select button, to switch between Program Change
On and Program Change Off. When the E PIANO LED is lit, the
Program Change function is turned on.
NOTE:
==
When
the
piano's
power
is
turned
on,
the
Program
Change
function
is
automatically
set
to
Program
Change
On.
5. CONTROL CHANGE CANCEL
g 408
oo
TRANSPOSE/ 1 1
MIDI L— PIANO4 E PIANO HARPS! VIBE
Press these two buttons together to
turn Control Change on or off.
When controlling a MIDI device from the piano, the external
MIDI device will be affected by the piano's foot pedals (sustain
and soft/key hold). Also, when controlling the piano from an
external MIDI device, the piano will respond to the external
device”s foot pedals. You may wish to have independent foot
pedal capability by cancelling the piano's ability to receive and
transmit foot pedal data. This is done by turning off the piano's
Control Change function.
Hold down the TRANSPOSE/MIDI button, then press the HARP-
SICHORD Voice Select button to switch between Control Change
On and Control Change Off. When the HARPSICHORD LED
is lit, the Control Change function is turned on.
NOTE:
When the piano’s power is turned on, the Control Change
function is automatically turned to Control Change On.

MIDI APPLICATIONS
1. BASIC MIDI SYSTEM
(PIANO plus YS100 SYNTHESIZER)
In this example, the piano is used to play the Yamaha YS100
Digital Synthesizer, allowing you to add rich orchestral or instru-
mental voices or exciting synth-type voices to the sound of your
piano. Connect the MIDI OUT of your piano to the MIDI IN of
your YS100. The YS100 will respond to your playing as sensi-
tively as does the piano, and you can select whether or not the
Y $100 responds to the piano’s foot pedals. A volume pedal may
be used to independently control the YS100’s volume, which
may be listened to through the piano's internal speakers (using
the LINE IN audio connections on the piano).
PF1500
2. EXPANDED SYNTH SYSTEM
(PIANO plus TQS plus RX8)
This svstem, using the TQS tone generator/sequencer, allows
you not only to add other voices and percussion accompaniments
to the piano’s voice, but to record and play back multi-part music
on the TQS Digital Tone Generator/Sequencer, which controls
its own and the piano's voices as well as synchronizing the RX8.
The piano's Omni function should be turned off, to avoid receiv-
ing data on unwanted MIDI channels. The RX8 can be pro-
grammed to add full rhythm and percussion parts to songs, kept
in perfect time by the TQ5’s sequencer section.
IMAM)
MIDI IN
MIDI OUT
MID! IN
3. FULL MIDI SEQUENCER SYSTEM
(PIANO, QXSFD, TX81Z and RX8)
Using this high-potential MIDI system, full professional-quality
musical performances can be created, stored on diskette and
replayed using the QX5FD to control all the other components of
the system. Different parts can be recorded on separate tracks of
the QXSFD, and replayed on different MIDI channels for full
multi-timbral polyphonic performances. In addition, with the
QXSFD, transposition, tempo changes within pieces, and full
editing functions on recorded performances are all possible. The
TX81Z can be played from the piano keyboard to give combina-
tions of up to eight sounds simultaneously with 8-note polyph-
ony, so the resources of a full digital orchestra and/or synth
effects are at your fingertips. To round off the system, the
incredibly versatile and realistic RX8 rhythm programmer is
used to add sparkling drums and percussion to the music.
MIDI OUT
MIDIIN į MIDI OUT
MID} IN
MIDI THRU
MID} IN
MIDI THRU
f'MOLIN
>

IMPORTANT
SAFETY AND INSTALLATION INSTRUCTIONS
INFORMATION RELATING TO POSSIBLE PERSONAL INJURY, ELECTRIC SHOCK AND
FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.
WARNING — When using electronic products, basic pre-
cautions should always be followed, including the following:
1.
Read all Safetv and Installation Instructions, Supple-
mental Marking and Special Message Section data, and
any applicable assembly instructions BEFORE using
this product.
. Check unit weight specifications BEFORE you attempt
to move this product.
. Main power supply verification. Yamaha Digital Musical
Instrument products are manufactured specifically for
use with the main supply voltage used in the area where
they are to be sold. The main supply voltage required
by those products is printed on the name plate. If any
doubt exists please contact the nearest Yamaha Digital
Musical Instrument retailer.
. Some Yamaha Digital Musical Instrument products
utilize external power supplies or adapters. Do NOT
connect products of this type to any power supply or
adapter other than the type described in the owners
manual or as marked on the unit.
This product may be equipped with a plug having three
prongs or a polarized line plug (one blade wider than
the other). If you are unable to insert the plug into the
outlet, contact an electrician to have the obsolete outlet
replaced. Do NOT defeat the safety purpose of the plug.
Yamaha products not having three prong or polarized
line plugs incorporate construction methods and de-
signs that do not require line plug polarization.
. WARNING — Do NOT place objects on the power cord
or place the unit in a position where anyone could walk
on, trip over, or roll anything over cords of any kind.
An improper installation of this type can create the
possibility of a fire hazard and/or personal injury.
. Environment: Your Yamaha Digital Musical Instrument
should be installed away from heat sources such as
heat registers and/or other products that produce heat.
. Ventilation: This product should be installed or posi-
tioned in a way that its placement or location does not
interfere with proper ventilation.
. Yamaha Digital Musical Instrument products are fre-
quently incorporated into “Systems” which are as-
sembled on carts, stands or in racks. Utilize only those
carts, stands, or racks that have been, designed for this
purpose and observe all safety precautions supplied
with the products. Pay special attention to cautions that
relate to proper assembly, heavier units being mounted
at the lower levels, load limits, moving instructions,
maximum usable height and ventilation.
. Yamaha Digital Musical Instrument products, either
alone or in combination with amplification, headphones,
or speakers, may be capable of producing sound levels
that could cause permanent hearing loss. Do NOT op-
erate at high volume levels or at a level that is un-
comfortable. If you experience any discomfort, ringing
in the ears, or suspect any hearing loss, you should
consult an audiologist.
. Do NOT use this product near water or in wet environ-
ments. For example, near a swimming pool, spa, in the
rain, or in a wet basement.
. Care should be taken so that objects do not fall, and
liquids are not spilled into the enclosure.
. Yamaha Digital Musical Instrument products should be
serviced by a qualified service person when:
a. The power supply/power adapter cord or plug has
been damaged; or
b. Objects have fallen, or liquid has been spilled into
the products; or
c. The unit has been exposed to rain; or
d. The product does not operate, exhibits a marked
change in performance; or
e. The product has been dropped, or the enclosure of
the product has been damaged.
. When not in use, always turn your Yamaha Digital Mu-
sical Instrument equipment “OFF”. The power supply
cord should be unplugged from the outlet when the
equipment is to be left unused for a long period of time.
NOTE: In this case, some units may lose some user
programmed data. Factory programmed memories
will not be affected.
. Electromagnetic Interference (RFI), Yamaha Digital
Musical Instruments utilize digital (high frequency
pulse) technology that may adversely affect Radio/TV
reception. Please read FCC Information (next page) for
additional information.
. Do NOT attempt to service this product beyond that
described in the user maintenance section of the owners
manual. All other servicing should be referred to qua-
lified service personnel.
PLEASE KEEP THIS MANUAL
FOR FUTURE REFERENCE!
This Information on safety is provided to comply with U.S.A. laws, but shouid be observed by users in al! countries.

SPECIAL MESSAGE SECTION
ELECTROMAGNETIC INTERFERENCE (RFi): Your Yamaha
Digital Musical Instrument Product has been type tested and
found to comply with all applicable regulations. However,
if it is installed in the immediate proximity of other electronic
devices, some form of interference may occur. For additional
RFI information see the FCC information section located in
this manual.
IMPORTANT NOTICE: This product has been tested and
approved by independent safety testing laboratories in order
that you may be sure that when it is properly installed and
used in its normal and customary manner, all foreseeable
risks have been eliminated. DO NOT modify this unit or
commission others to do so unless specifically authorized
by Yamaha. Product performance and/or safety standards
may be diminished. Claims filed under the expressed war-
ranty may be denied if the unit is/has been modified. Implied
warranties may also be affected.
SPECIFICATIONS SUBJECT TO CHANGE: The information
contained in this manual is believed to be correct at the time
of printing. Yamaha reserves the right to change or modify
specifications at any time without notice or obligation to
update existing units.
NOTICE: Service charges incurred due to a lack of know-
ledge relating to how a function or effect works (when the
unit is operating as designed), are not covered by the
manufacturer’s warranty. Please study this manual carefully
before requesting service.
STATIC ELECTRICITY CAUTION: Some Yamaha Digital
Musical Instrument products have modules that plug into the
unit to perform various functions. The contents of a plug-in
module can be altered/damaged by static electricity dis-
charges. Static electricity build-ups are more likely to occur
during cold winter months (or in areas with very dry cli-
mates) when the natural humidity is low. To avoid possible
damage to the plug-in module, touch any metal object ( a
metal desk lamp, a door knob, etc.) before handling the
module. If static electricity is a problem in your area, you
may want to have your carpet treated with a substance that
reduces static electricity build-up. See your local carpet
retailer for professional advice that relates to your specific
situation.
Model
Serial No.
Purchase Date
FCC INFORMATION
While the following statements are provided to comply
with FCC Regulations in the United States, the cor-
rective measures listed below are applicable world-
wide.
This series of Yamaha professional music equipment
uses frequencies that appear in the radio frequency
range and if installed in the immediate proximity of
some types of audio or video devices (within three
meters), interference may occur. This series of Yamaha
professional music equipment has been type tested
and found to comply with the specifications set for
a class B computing device in accordance with those
specifications tisted in subpart J of part 15 of the FCC
rules. These rules are designed to provide a reasonable
measure of protection against such interference.
However, this does not guarantee that interference
will not occur. If your professional music equipment
should be suspected of causing interference with other
electronic devices, verification can be made by turning
your professional music equipment off and on. If the
interference continues when your equipment is off,
the equipment is not the source of interference. If your
equipment does appear to be the source of the inter-
ference, you should try to correct the situation by using
one or more of the following measures:
Relocate either the equipment or the electronic device
that is being affected by the interference. Utilize power
outlets for the professional music equipment and the
device being affected that are on different branch
(circuit breaker or fuse) circuits, or install AC line
filters.
In the case of radio or TV interference, relocate the
antenna or, if the antenna lead-in is 300 ohm ribbon
lead, change the lead-in to a co-axial type cable.
If these corrective measures do not produce satisfac-
tory results, please contact your authorized Yamaha
professional products dealer for suggestions and/or
corrective measures.
H you cannot locate a franchised Yamaha professional
products dealer in your general area contact the
Electronic Service Department, Yamaha Corporation
of America, 6600 Orangethorpe Ave., Buena Park,
CA 90620, U.S.A.
If for any reason, you should need additional infor-
mation relating to radio or TV interference, you may
find a booklet prepared by the Federal Communi-
cations Commission helpful:
“How to Identify and Resolve Radio — TV Interference
Problems”. This booklet is available from the U.S.
Government Printing Office, Washington D.C. 20402
— Stock No. 004-000-00345-4.
This informatlon on safety is provided to comply with U.S.A. laws, but should be observed by users in all countries.
12

IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter
N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the
letter L or coloured RED.

MIDI DATA FORMAT
1. Transmission Conditions
NOTE ON/OFF $9n
CONTROL CHANGE CANCEL
SUSTAIN $Bn, $40
KEY HOLD $Bn, $42
TRANSMIT CHANNEL
SOFT $Bn, $43
Ch1~Ch16
PROGRAM CHANGE $Cn
ACTIVE SENSING $FE
2. Transmission Data
Messages other than Active Sensing messages can be transmitted on the specified MIDI
transmission channel. Received messages are output without modification from the MIDI
THRU terminal.
2-1. Channel Information
1) Channel Voice Message
O Key On/Off
Sent when a key is pressed or released.
Status: 1001nnnn (9nH) n=0 (channel number 1) - 15 (channel number 16)
Note No.: Okkkkkkk k-21 (A-1) — 108 (C7)
Velocitv: Ovvvvvvv v=0 - 127 (1 - 127: Key On; 0: Key Off)
@ Control Change
Sent when the foot pedal is pressed or released. Three kinds of messages can be
sent.However, the Control, Change Cancel must be OFF.
Status: 1011nnnn (BnH) n=0 (channel number 1) - 15 (channel number 16)
Control No.: Ocecccce
Control Value: Ovvvvvvv
Control No. Control Value
c=64 SUSTAIN v=0 (OFF), 127 (ON)
c=66 KEY HOLD v=0 (OFF), 127 (ON)
c=67 SOFT v=0 (OFF), 127 (ON)
MIDI OUT
Add-1

B Program Change
Sent when the voice has been changed, or when a Program Change Dump Request has been
received. However, the Program Change Cancel must be OFF.
Status: 1100nnnn
Program No.: Oppppppp
2-2. System Information
1) System Realtime Message
O Active Sensing
1
B® wN
(PIANO II)
(E PIANO)
(HARPSI)
(VIBE)
Transmitted once every approximately 200msec.
Status: 11111110
3. Reception Conditions
OMNI ON
RECEIVE
CHANNEL
MIDI IN 9
OMNI OFF
(Chl-Ch16)
Add-2
$8n
$9n
n=0 (channel number 1) - 15 (channel number 16)
p=0 (PIANO I)
NOTE OFF
NOTE ON/OFF
CONTROL CHANGE CANCEL
OFF
9 $Bn,
|
|
l
|
LS $Bn,
|
l
t
1
> $Bn,
$40 SUSTAIN
$42 KEY HOLD
$43 SOFT
PROGRAM CHANGE CANCEL
OFF
9 $Cn
o ON
$Bn,
$Bn,
SBn,
$Bn,
$Bn,
$Bn,
SFO,
SFE
SFF
PROGRAM CHANGE
STA LOCAL CONTROL ON/OFF
$7B ALL NOTES OFF
$70 OMNI MODE OFF
$7D OMNI MODE ON
STE MONO MODE ON
$7F POLY MODE ON
$43, $2n PROGRAM CHANGE
DUMP REQUEST
ACTIVE SENSING
SYSTEM RESET

4. Reception Data
Messages other than Active Sensing or System Reset messages can be received on the
specified MIDI reception channel. Received messages are output without modification
through the MIDI THRU terminal. l
4-1. Channel Information
1) Channel Voice Message
O Key Off
Corresponds to an instrument which transmits Note Off with 8nH.
Status: 1000nnnn (8nH) n=0 (channel number 1) - 15 (channel number 16)
Note No.: Okkkkkkk k-21 (A-1) — 108 (C7)
Velocitv: Ovvvvvvv v:ignored
Ġ Key On/Off
The sounded pitch changes depending on the note number, while the volume and voice
change depending on the velocity.
Status: 1000nnnn (9nH) n=0 (channel number 1) - 15 (channel number 16)
Note No.: Okkkkkkk k-21 (A-1) - 108 (C7)
Velocitv: Ovvvvvvv v=0 - 127 (1 - 127: Key On; 0: Key Off)
® Control Change
Three kinds of messages can be sent. However, the Control Change Cancel must be OFF.
Status: 1011nnnn (BnH) n=0 (channel number 1) - 15 (channel number 16)
Control No.: Ocecccce
Control Value: Ovvvvvvv
Control No. Control Value
c=64 SUSTAIN v=0 (OFF), 127 (ON)
c=66 KEY HOLD v=0 (OFF), 127 (ON)
c=67 SOFT v=0 (OFF), 127 (ON)
W Program Change
Voice is determined by prógram number.
Status: 1100nnnn (CnH) n=0 (channel number 1) - 15 (channel number 16)
Program No.: Oppppppp p=0 (PIANO I)
1 (PIANO II)
2 (E PIANO)
3 (HARPSI)
4 (VIBE)
5 - 127 (ignored)
Add-3

Status:
1011nnnn
(BnH)
n=0
(channel
number
1)
-
15
(channel
number
16)
Control No.: Occccccc
Control Value: Ovvvvvvv
Control No. Control Value
c=122 LOCAL CONTROL ON/OFF V=0 (OFF),
(upon reception, local control setting 127 (0N)
goes ON or OFF)
c=123 ALL NOTE OFF v=0
(upon reception, all keys are
considered to have been released)
c=124 OMNI OFF v=0
(upon reception, OMNI goes OFF)
c=125 OMNI ON v=0
(upon reception, OMNI goes ON)
c=126 MONO MODE ON v=0
(upon reception, Mono Mode is entered,
so that only a single voice sounds
at a time)
c=127 POLY MODE ON v=0
(upon reception, Poly Mode is entered,
enabling multiple voices)
4-2. System Information
1) System Realtime Message
O Active Sensing
When
this
message
is
received,
sensing
begins.
After
this,
if
neither
status
nor
data
is
received
for
400msec
or
more,
the
MIDI
reception
buffer
is
cleared,
and
sound
production
is
forcibly
stopped.
Status: 11111110 (FEH)
®© System Reset
When
this
is
received,
all
MIDI-related
settings
are
initialized,
and
ALL
NOTES
OFF
is
processed.
Status: 11111111 (FFH)
—Contents of Initialization—
OMNI ON
LOCAL ON
| PROGRAM CHANGE CANCEL | OFF
L CONTROL CHANGE CANCEL | OFF
2) Svstem Exclusive Message
O Program Change Dump Request
When this is received, a Program Change Message is sent from the MIDI OUT terminal.
Status: 11110000 (FOH) System Exclusive
ID No.: 01000011 (43H) YAMAHA
Sub-status:
0010nnnn
(2nH)
n=0
(channel
number
1)
-
15
(channel
number
16)
Format
No.:
01111100
(7CH)
Universal
Bulk Dump Request
EOX: 11110111 (F7H)
Add-4

YAMAHA [ Electronic Piano |] Date : 9/24, 1988
Model PF1500 MIDI Implementation Chart Version : 1.0
toe A AM +
Transmitted $ Recognized Remarks
Function 2
SSS SSS SS SSeS Se. aS SSS Se ee Se SS eS SS eS SS A SS SSS SS SS SS See
:Basic Default al 2 ip
:Channel Changed : 1 - 16 : 1 - 16
l—8—-————————-———-— +---------------- too ~~ +----------------
: Default 79 ħal
:Mode Messages : x : Omni ,Mono/Poly
è Altered AEREA LOX
—-———————z A ee Ho nn frre Hr A — fo === 228 SS SS SS Se
:Note : 21 - 108 : 21 - 108
Number True voice: rerrrrrrrrrie* : 21 - 108
A A A A AA A e E — wr rrr rrr t--—-————— —— l—8€81-——-—-—-——-————
:Velocitv Note ON : o 90H,v=1-127 : o v=1-127
H Note OFF : x 90H,v=0 : X
—--——————————— l—8——— a ett ee
After Kev's x i X
Touch Ch's x : X
-—-—————————— —————-— l-——————— A
Pitch Bender x X
Zorro ooo o---o-—- l-——--————————— et
64 : o : 0 : Sustain
66 : 0 : 0 : Key hold
: 67 : O : 0 : Soft pedal
:Control :
:Change
----—-—————— AAA a o $ oo FSSD TS
:Prog >: 0 0-4 :0 0- 127
:Change : True + HE Z E E E E E E EEE EEE S O -4
DA +o eee ee +---------------- +---------------- +----------------
System Exclusive X : 0
o a lk
:System : Song Pos X $
: Song Sel : x or aX
xX
:Common : Tune UX
DR eer err een eee to--- o-- +---------------- +----------------
:System :Clock A. : x
:Real Time :Commands: x 3) xk
A ee Sr ee a honor nooo FA SS eS O A ana ai: e HE e SSS S33 e aa
:Aux :Local ON/OFF : x : 0
: :A11 Notes OFF: x o (122-127)
:Mes- :Active Sense : o 0
:sages:Reset Xx : 0
e +---------------- +---------------- +----------------
Notes
l-——————————————— U +
Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO o : Yes Add-5
Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO x : No
