Yamaha Electone F-25 User manual

F2.5
OWNER’S MANUAL
LIT-18626-08-01
69M-F8199-17
U.S.A.Edition
Read this manual carefully before operating this
outboard motor.
©2019 Yamaha Motor Corporation, U.S.A.

ZMU01690
Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.
©2019 Yamaha Motor Corporation, U.S.A.

Important manual information
EMU31283
To the owner
Thank you for choosing a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWM00781
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00701
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
T
IP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current product
information available at the time of printing,
there may be minor discrepancies between
your machine and this manual. If there is any
question concerning this manual, please con-
sult your Yamaha dealer.
T
IP:
The F2.5MH and the standard accessories
are used as a base for the explanations and
illustrations in this manual. Therefore some
items may not apply to every model.
EMU25131
F2.5
OWNER’S MANUAL
©2008 by Yamaha Motor Corporation,
USA
1st Edition, March 2008
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, USA
is expressly prohibited.
Printed in France
P/N LIT-18626-08-01
U69M17E0.book Page 1 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Table of contents
Safety information............................. 1
Outboard motor safety .................... 1
Propeller ............................................. 1
Rotating parts ..................................... 1
Hot parts............................................. 1
Electric shock ..................................... 1
Engine shut-off cord (lanyard) ............ 1
Gasoline ............................................. 1
Gasoline exposure and spills ............. 1
Carbon monoxide ............................... 1
Modifications ...................................... 2
Boating safety ................................. 2
Alcohol and drugs............................... 2
Personal flotation devices .................. 2
People in the water............................. 2
Passengers ........................................ 2
Overloading ........................................ 2
Avoid collisions................................... 2
Weather.............................................. 3
Accident reporting .............................. 3
Boat education and training................ 3
Passenger training ............................. 3
Boating safety publications................. 3
Laws and regulations ......................... 3
Boating organizations...................... 4
Basic boating rules
(Rules of the road) ....................... 4
Steering and sailing rules and sound
signals............................................. 4
Rules when encountering vessels...... 5
Other special situations ...................... 6
General information .......................... 8
Identification numbers record.......... 8
Outboard motor serial number ........... 8
Read manuals and labels................ 9
Warning labels.................................... 9
Specifications and requirements... 12
Specifications ................................ 12
Installation requirements ............... 13
Boat horsepower rating .................... 13
Mounting motor ................................ 13
Propeller selection ........................ 13
Engine oil requirements ................ 14
Fuel requirements ......................... 14
Gasoline ........................................... 14
Ring Free Fuel Additive .................... 15
Muddy or acidic water ................... 15
Anti-fouling paint ........................... 15
Motor disposal requirements......... 16
Emergency equipment .................. 16
Emission control information......... 16
North American models.................... 16
Star labels ........................................ 16
Components .................................... 19
Components diagram.................... 19
Fuel tank........................................... 19
Fuel tank cap.................................... 20
Air vent screw................................... 20
Fuel cock .......................................... 20
Tiller handle...................................... 20
Gear shift lever ................................. 21
Throttle grip ...................................... 21
Throttle indicator............................... 21
Throttle friction adjuster.................... 21
Engine shut-off cord (lanyard) and
clip................................................. 22
Engine stop button ........................... 22
Choke knob for pull type................... 22
Manual starter handle....................... 22
Steering friction adjuster................... 23
Trim rod (tilt pin) ............................... 23
Tilt support lever for manual tilt
model ............................................ 23
Top cowling lock lever
(pull up type) ................................. 23
Carrying handle ................................ 24
Installation ....................................... 25
Installation..................................... 25
Mounting the outboard motor ........... 25
Clamping the outboard motor........... 26
Operation ......................................... 28
First-time operation ....................... 28
Fill engine oil .................................... 28
Breaking in engine............................ 28
Getting to know your boat ................ 28
U69M17E0.book Page 1 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Table of contents
Checks before starting engine ...... 28
Fuel level .......................................... 29
Remove cowling ............................... 29
Fuel system ...................................... 29
Controls ............................................ 29
Engine shut-off cord (lanyard) .......... 29
Engine oil.......................................... 30
Engine .............................................. 30
Install cowling ................................... 30
Filling fuel for built-in tank ............. 31
Operating engine........................... 32
Feeding fuel...................................... 32
Starting engine ................................. 32
Checks after starting engine ......... 34
Cooling water ................................... 34
Warming up engine ....................... 34
Warming up
(Manual start models) ................... 34
Checks after engine warm-up ....... 34
Shifting ............................................. 34
Stop switches ................................... 34
Shifting .......................................... 35
Stopping engine ............................ 36
Procedure......................................... 36
Trimming outboard motor.............. 36
Adjusting trim angle for manual tilt
models .......................................... 37
Adjusting boat trim............................ 37
Tilting up and down ....................... 38
Procedure for tilting up
(manual tilt models)....................... 39
Procedure for tilting down
(manual tilt models)....................... 40
Cruising in other conditions........... 40
Maintenance..................................... 41
Transporting and storing outboard
motor .......................................... 41
Clamp screw mounting models ........ 41
Storing outboard motor..................... 42
Procedure......................................... 42
Lubrication........................................ 43
Cleaning and anticorrosion
measures ...................................... 43
Cleaning the outboard motor............ 43
Checking painted surface of motor... 44
Periodic maintenance ................... 44
Replacement parts ........................... 44
Maintenance interval guidelines ....... 44
Maintenance chart 1......................... 45
Maintenance chart 2......................... 47
Greasing ........................................... 47
Cleaning and adjusting spark plug ... 48
Inspecting idling speed..................... 48
Changing engine oil.......................... 49
Checking wiring and connectors ...... 50
Checking propeller ........................... 50
Removing propeller .......................... 51
Installing propeller ............................ 51
Changing gear oil ............................. 52
Inspecting and replacing anode(s) ... 53
Trouble Recovery............................ 54
Troubleshooting ............................ 54
Temporary action in emergency ... 57
Impact damage................................. 57
Starter will not operate ..................... 57
Emergency Starting Engine.............. 58
Treatment of submerged motor .... 60
Consumer information ................... 61
Important warranty information
for U.S.A. and Canada............... 61
YAMAHA MOTOR
CORPORATION, U.S.A.
FOUR-STROKE OUTBOARD
MOTOR THREE-YEAR
LIMITED WARRANTY ............... 63
IMPORTANT WARRANTY
INFORMATION IF YOU USE
YOUR YAMAHA OUTSIDE
THE USA OR CANADA ............. 65
U69M17E0.book Page 2 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

1
Safety information
EMU33622
Outboard motor safety
Observe these precautions at all times.
EMU36500
Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller can
keep moving even when the motor is in neu-
tral, and sharp edges of the propeller can cut
even when stationary.
●Shut off the engine when a person is in the
water near you.
●Keep people out of reach of the propeller,
even when the engine is off.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in se-
rious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions in
the manual. Keep hands, feet, hair, jewelry,
clothing, PFD straps, etc. away from any ex-
posed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while starting
or operating the engine. They can cause
shock or electrocution.
EMU33671
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the en-
gine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear loose,
or route the cord where it could become en-
tangled, preventing it from functioning.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel accord-
ing to the procedure on page 32 to reduce the
risk of fire and explosion.
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33900
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking ex-
haust outlets.
U69M17E0.book Page 1 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
2
EMU33780
Modifications
Do not attempt to modify this outboard motor.
Modifications to your outboard motor may re-
duce safety and reliability, and render the out-
board unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should fol-
low when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most common
factors contributing to boating fatalities.
EMU33720
Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. Yamaha
recommends that you must wear a PFD
whenever boating. At a minimum, children
and non-swimmers should always wear
PFDs, and everyone should wear PFDs when
there are potentially hazardous boating condi-
tions.
EMU33730
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and shut off the motor.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Shut off the engine
when a person is in the water near you.
EMU33750
Passengers
Consult your boat manufacturer’s instructions
for details about appropriate passenger loca-
tions in your boat and be sure all passengers
are positioned properly before accelerating
and when operating above an idle speed.
Standing or sitting in non-designated loca-
tions may result in being thrown either over-
board or within the boat due to waves, wakes,
or sudden changes in speed or direction.
Even when people are positioned properly,
alert your passengers if you must make any
unusual maneuver. Always avoid jumping
waves or wakes.
EMU33760
Overloading
Do not overload the boat. Consult the boat ca-
pacity plate or boat manufacturer for maxi-
mum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturers instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33771
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other boats.
●Do not follow directly behind other boats or
waterskiers.
ZMU06025
U69M17E0.book Page 2 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
3
●Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
●Avoid areas with submerged objects or
shallow water.
●Ride within your limits and avoid aggressive
maneuvers to reduce the risk of loss of con-
trol, ejection, and collision.
●Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle can
reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in anoth-
er direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid boat-
ing in hazardous weather.
EMU33800
Accident reporting
Boat operators are required by law to file a
Boating Accident Report with their state boat-
ing law enforcement agency if their boat is in-
volved in any of the following accidents:
1. There is loss of life or probable loss of life.
2. There is personal injury that requires
medical attention beyond first aid.
3. There is property damage to boats or oth-
er property over a certain amount.
4. There is complete loss of a boat.
Contact local law enforcement personnel if a
report is necessary.
EMU33870
Boat education and training
Operators should take a boating safety
course. This may be required in your state.
Many of the organizations listed in the next
section can provide information about cours-
es in your area.
You may also want to consider an Internet-
based program for basic boater education.
The Online Boating Safety Course provided
by the BoatU.S. Foundation, is approved by
the National Association of State Boating Law
Administrators (NASBLA) and recognized by
the United States Coast Guard. Most, but not
all, states accept this course to meet their
minimum requirements. While it cannot re-
place an in-depth course such as one offered
by the U.S. Coast Guard, U.S. Power Squad-
ron, or other organization, this online course
does provide a general overview of the basics
in boating safety, requirements, navigation,
and operation. Upon successful completion of
the course, the user can download a certifi-
cate of completion immediately or, for a small
charge, request one by mail. To take this free
course, go to boatus.org.
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33590
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road. The rules
presented in the following section are con-
densed- and have been provided for your
convenience only.
U69M17E0.book Page 3 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
4
Contact the U.S. Coast Guard, the National
Association of State Boating Law Administra-
tors, or your local Power Squadron for a com-
plete set of rules governing the waters in
which you will be using your boat.
EMU33680
Boating organizations
The following organizations provide boating
safety training and information about boating
safety and laws.
United States Coast Guard
Consumer Affairs Staff (G-BC)
Office of Boating, Public, and Consumer Af-
fairs
U.S. Coast Guard Headquarters
Washington, D.C. 20593-0001
Boating Safety Hotline: [phone]
www.uscgboating.org
United States Power Squadrons
1-888-FOR-USPS (1-888-367-8777)
www.usps.org
Boat Owners Association of The United
States
1-800-336-BOAT (1-800-336-2628)
www.boatus.com
National Association of State Boating Law
Administrators (NASBLA)
1500 Leestown Road, Suite 330
Lexington, KY 4051 859-225-9497
859-225-9497
www.nasbla.org
National Marine Manufacturers Associa-
tion (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 606001
www.nmma.org
Marine Retailers Association of America
155 N. Michigan Ave. Chicago,
IL 60601
www.mraa.com
EMU33690
Basic boating rules (Rules of
the road)
Just as there are rules that apply when you
are driving on streets and highways, there are
waterway rules that apply when you are driv-
ing your boat. These rules are used interna-
tionally. (For USA: and are also enforced by
the United States Coast Guard and local
agencies.) You should be aware of these
rules, and follow them whenever you encoun-
ter another vessel on the water.
EMU33700
Steering and sailing rules and sound
signals

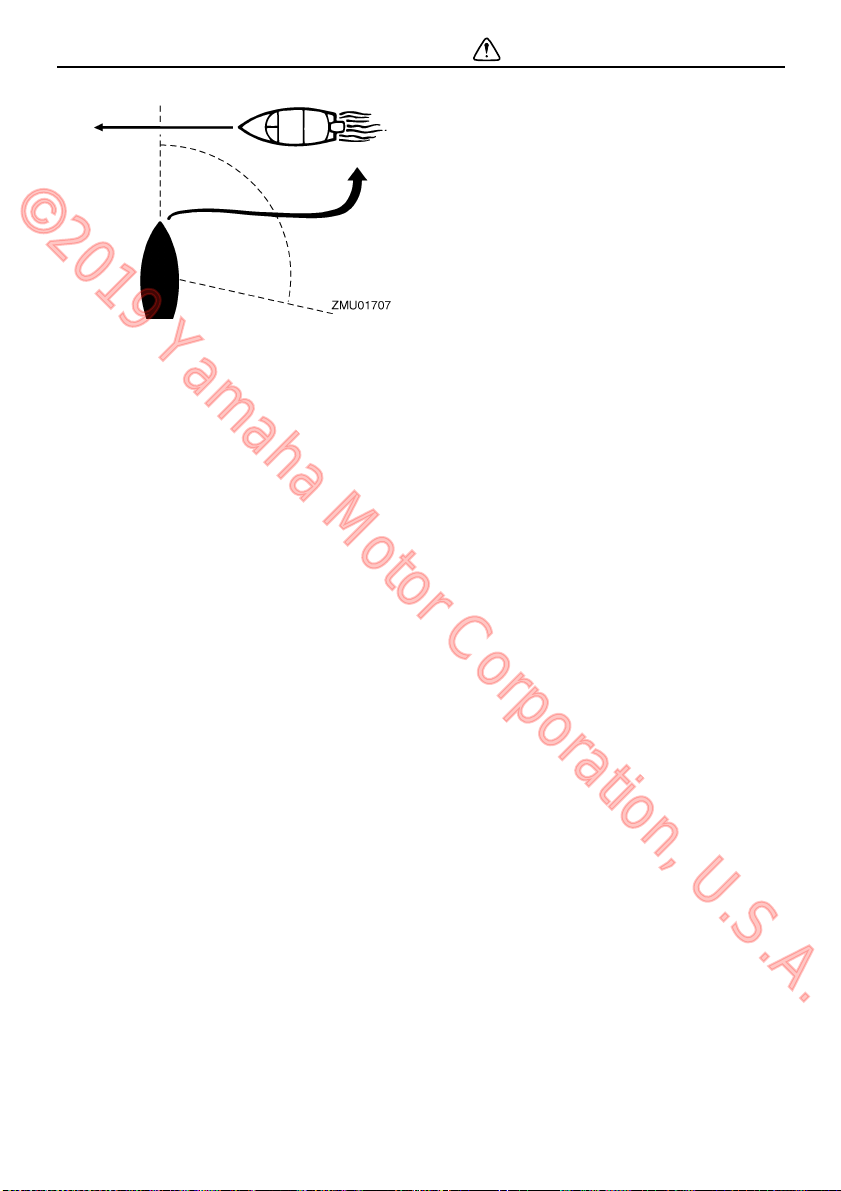

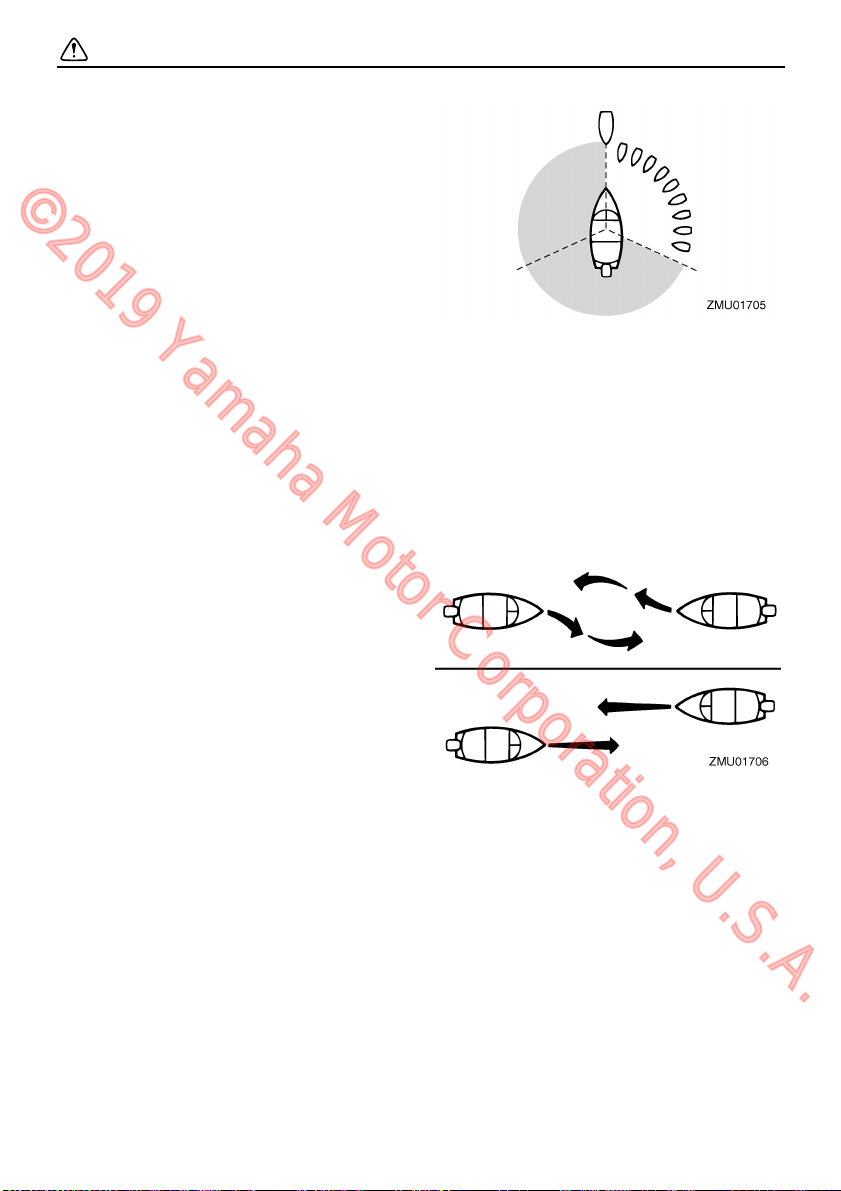

Whenever two vessels on the water meet one
another, one vessel has the right-of-way; it is
called the “stand-on”vessel. The vessel that
does not have the right-of-way is called the
“give-way”or “burdened”vessel. These rules
determine which vessel has the right-of-way,
and what each vessel should do.
Stand-on vessel
The vessel with the right-of-way has the duty
to continue its course and speed, except to
avoid an immediate collision. When you main-
tain your direction and speed, the other vessel
will be able to determine how best to avoid
you.
Give-way vessel
The vessel that does not have the right-of-
way has the duty to take positive and timely
action to stay out of the way of the Stand-On
U69M17E0.book Page 4 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
5
vessel. Normally, you should not cross in front
of the vessel with the right-of-way. You should
slow down or change directions briefly and
pass behind the other vessel. You should al-
ways move in such a way that the operator of
the other vessel can see what you are doing.
“The general prudential rule ”
This rule is called Rule 2 in the International
Rules and says,
“In obeying and construing these rules due
regard shall be had to all dangers of naviga-
tion and collision, and to any special circum-
stances, which may render a departure from
the above rules necessary in order to avoid
immediate danger.”
In other words, follow the standard rules ex-
cept when a collision will occur unless both
vessels try to avoid each other. If that is the
case, both vessels become “Give-Way ”ves-
sels.
EMU25521
Rules when encountering vessels
There are three main situations that you may
encounter with other vessels which could lead
to a collision unless the Steering Rules are fol-
lowed:
Meeting: (you are approaching another ves-
sel head-on)
Crossing: (you are traveling across the other
vessel’s path)
Overtaking: (you are passing or being
passed by another vessel)

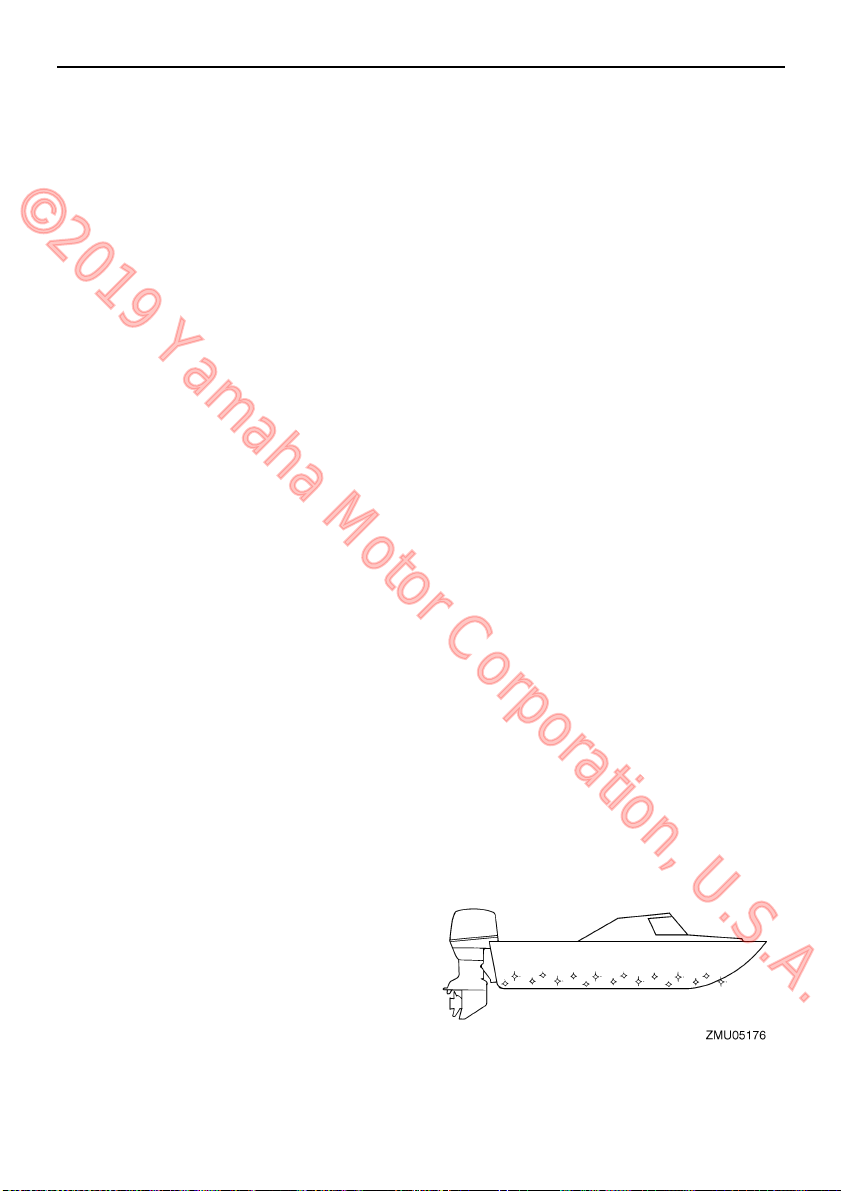

In the following illustration, your boat is in the
center. You should give the right-of-way to
any vessels shown in white area (you are the
Give-Way vessel). Any vessels in the shaded
area must yield to you (they are the Give-Way
vessels). Both you and the meeting vessel
must alter course to avoid each other.
Meeting
If you are meeting another power vessel head
on, and are close enough to run the risk of col-
lision, neither of you has the right-of-way Both
of you should alter course to avoid an acci-
dent. You should keep the other vessel on
your port (left) side. This rule doesn’t apply if
both of you will clear one another if you con-
tinue on your set course and speed.
Crossing
When two power driven vessels are crossing
each other’s path close enough to run the risk
of collision, the vessel which has the other on
the starboard (right) side must keep out of the
way of the other. If the other vessel is on your
right, you must keep out of its way; you are the
Give-Way vessel. If the other vessel is on
your port (left) side, remember that you
should maintain course and direction, provid-
ed the other vessel gives you the right-of-way
as it should.
U69M17E0.book Page 5 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
6
Overtaking
If you are passing another vessel, you are the
“Give-Way”vessel. This means that the other
vessel is expected to maintain its course and
speed. You must stay out of its way until you
are clear of it. Likewise, if another vessel is
passing you, you should maintain your speed
and direction so that the other vessel can
steer itself around you.
EMU25531
Other special situations
There are three other rules you should be
aware of when driving your boat around other
vessels.
Narrow channels and bends
When navigating in narrow channels, you
should keep to the right when it is safe and
practical to do so. If the operator of a power-
driven vessel is preparing to go around a
bend that may obstruct the view of other water
vessels, the operator should sound a pro-
longed blast on the whistle (4 to 6 seconds). If
another vessel is around the bend, it too
should sound the whistle. Even if no reply is
heard, however, the vessel should still pro-
ceed around the bend with caution. If you nav-
igate such waters with your boat, you will
need to carry a portable air horn, available
from local marine supply stores.
Fishing vessel right-of-way
All vessels that are fishing with nets, lines or
trawls are considered to be “fishing vessels”
under the International Rules. Vessels with
trolling lines are not considered fishing ves-
sels. Fishing vessels have the right-of-way re-
gardless of position. Fishing vessels cannot,
however, impede the passage of other ves-
sels in narrow channels.
Sailing vessel right-of-way
Sailing vessels should normally be given the
right-of-way. The exceptions to this are:
1. When the sailing vessel is overtaking the
power-driven vessel, the power-driven
vessel has the right-of-way.
2. Sailing vessels should keep clear of any
fishing vessel.
3. In a narrow channel, a sailing vessel
should not hamper the safe passage of a
power-driven vessel that can navigate
only in such a channel.

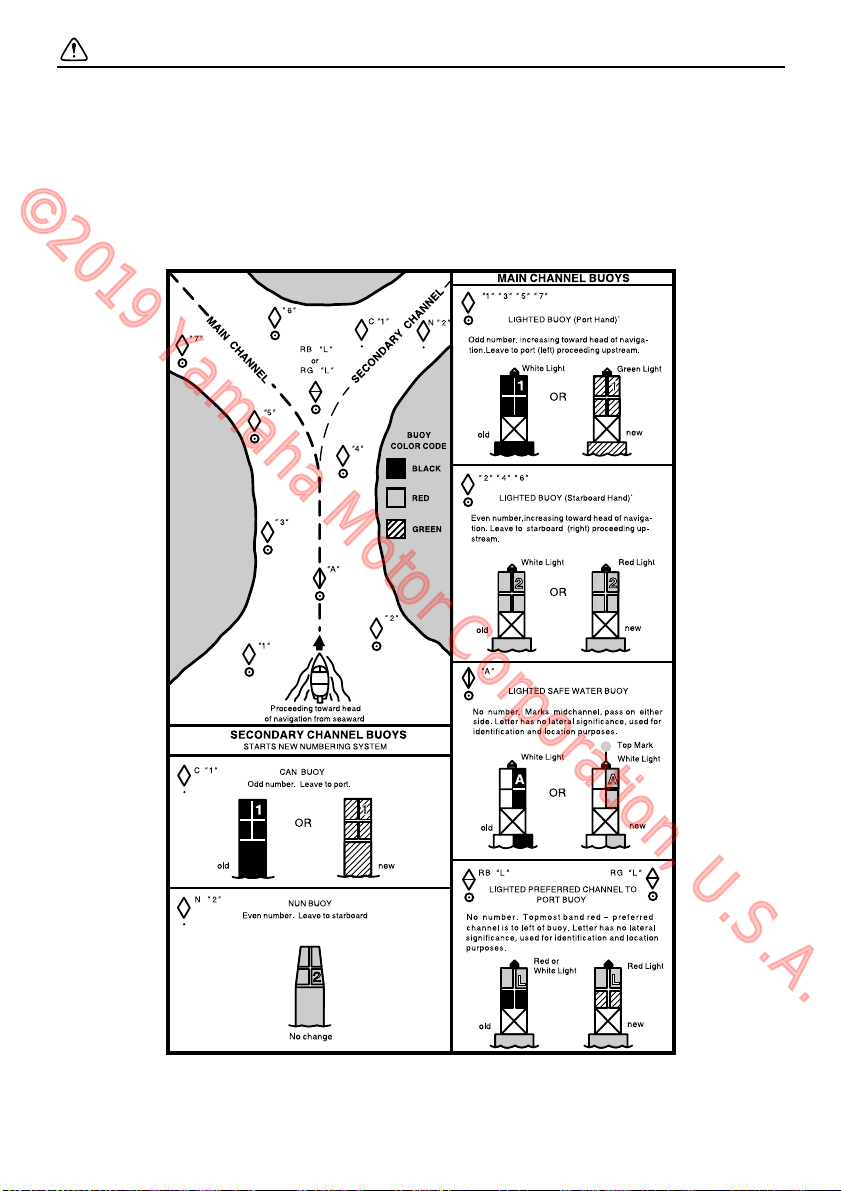

Reading buoys and other markers
The waters of the United States are marked
for safe navigation by the lateral system of
buoyage. Simply put, buoys and markers
have an arrangement of shapes, colors, num-
bers and lights to show which side of the buoy
a boater should pass on when navigating in a
particular direction. The markings on these
buoys are oriented from the perspective of be-
ing entered from seaward (the boater is going
towards the port). This means that red buoys
are passed on the starboard (right) side when
proceeding from open water into port, and
black buoys are to port (left) side. When navi-
gating out of port, your position with respect to
the buoys should be reversed; red buoys
should be to port and black buoys to star-
board.
U69M17E0.book Page 6 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Safety information
7
Many bodies of water used by boaters are en-
tirely within the boundaries of a particular
state. The Uniform State Waterway Marking
System has been devised for these waters.
This system uses buoys and signs with dis-
tinctive shapes and colors to show regulatory
or advisory information. These markers are
white with black letters and orange boarders.
They signify speed zones, restricted areas,
danger areas, and general information.
Remember, markings may vary by geograph-
ic location. Always consult local boating au-
thorities before driving your boat in unfamiliar
waters.
ZMU01708
U69M17E0.book Page 7 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

General information
8
EMU25171
Identification numbers record
EMU25183
Outboard motor serial number
The outboard motor serial number is stamped
on the label attached to the port side of the
clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
1. Outboard motor serial number location
U69M17E0.book Page 8 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

General information
9
EMU33520
Read manuals and labels
Before operating or working on this motor:
●Read this manual.
●Read any manuals supplied with the boat.
●Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33831
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
F2.5
U69M17E0.book Page 9 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

General information
10
EMU35132
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
ZMU05810
12
3
ZMU05696
ZMU05664
U69M17E0.book Page 10 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

General information
11
Hazard caused by continuous rotation
Electrical hazard
ZMU05665
ZMU05666
U69M17E0.book Page 11 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Specifications and requirements
12
EMU34520
Specifications
T
IP:
“(AL)”stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
Likewise, “(SUS)”represents the value for
stainless steel propeller installed and “(PL)”
for plastic propeller installed.
T
IP:
“*”means, select the engine oil referring to the
chart of engine oil paragraph. For further infor-
mation, see page 14.
EMU2821C
Dimension:
Overall length:
623 mm (24.5 in)
Overall width:
345 mm (13.6 in)
Overall height S:
1021 mm (40.2 in)
Transom height S:
432 mm (17.0 in)
Weight (AL) S:
17.1 kg (38 lb)
Performance:
Full throttle operating range:
5250–5750 r/min
Maximum output:
1.8 kW@5500 r/min (2.5 HP@5500
r/min)
Idling speed (in neutral):
1900 ±100 r/min
Engine:
Type:
4-stroke S
Displacement:
72.0 cm³
Bore ×stroke:
54.0 ×31.5 mm (2.13 ×1.24 in)
Ignition system:
TCI
Spark plug (NGK):
BR6HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Control system:
Tiller
Starting system:
Manual
Starting carburetion system:
Choke valve
Valve clearance (cold engine) IN:
0.08–0.12 mm (0.0032–0.0047 in)
Valve clearance (cold engine) EX:
0.08–0.12 mm (0.0032–0.0047 in)
Drive unit:
Gear positions:
Forward-neutral
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Propeller mark:
BS
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. pump octane:
86
Fuel tank capacity (built in type):
0.9 L (0.24 US gal, 0.20 Imp.gal)
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil group 1*:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Recommended engine oil group 2*:
SAE 15W-40/20W-40/20W-50
API SH/SJ/SL
U69M17E0.book Page 12 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Specifications and requirements
13
Lubrication:
Wet sump
Engine oil quantity without replacement of
oil filter (Oil pan capacity):
0.4 L (0.42 US qt, 0.35 Imp.qt)
Recommended gear oil:
Hypoid gear oil SAE#90
Gear oil quantity:
0.075 L (0.079 US qt, 0.066 Imp.qt)
Tightening torque for engine:
Spark plug:
25.0 Nm (2.55 kgf-m, 18.4 ft-lb)
Engine oil drain bolt:
18.0 Nm (1.84 kgf-m, 13.3 ft-lb)
EMU33553
Installation requirements
EMU33563
Boat horsepower rating
WARNING
EWM01560
Overpowering a boat can cause severe in-
stability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your motor(s)
does not exceed the boats maximum horse-
power rating. See the boat’s capacity plate or
contact the manufacturer.
EMU33571
Mounting motor
WARNING
EWM01570
●Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
●Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
25.
EMU34191
Propeller selection
Next to selecting an outboard, choosing the
right propeller is one of the most important
purchasing decisions a boater can make. The
type, size, and design of your propeller have
a direct impact on acceleration, top speed,
fuel economy, and even engine life. Yamaha
designs and manufactures propellers for ev-
ery Yamaha outboard motor and every appli-
cation.
Your outboard motor came with a Yamaha
propeller chosen to perform well over a range
of applications, but there may be uses where
a different propeller would be more appropri-
ate.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, chose a larger pitch propeller
for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, chose the propeller
that lets the engine run in the proper range for
your maximum load but remember that you
may need to reduce your throttle setting to
stay within the recommended engine speed
range when carrying lighter loads.
For instructions on propeller removal and in-
stallation, see page 50.
U69M17E0.book Page 13 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Specifications and requirements
14
EMU35102
Engine oil requirements
If the recommended engine oil grades are not
available, select an alternative from the fol-
lowing chart according to the average temper-
atures in your area.
EMU36360
Fuel requirements
EMU36780
Gasoline
Use a good quality gasoline that meets the
minimum octane rating. If knocking or pinging
occurs, use a different brand of gasoline or
premium unleaded fuel. Yamaha recomends
that you use alcohol-free (see Gasohol) gas-
oline whenever possible.
NOTICE
ECM01980
●Do not use leaded gasoline. Leaded gas-
oline can seriously damage the engine.
●Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance or engine dam-
age. Use only fresh gasoline that has
been stored in clean containers.
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
Recommended engine oil:
YAMALUBE 4-M FC-W oil or 4-stroke
motor oil with a combination of the fol-
lowing SAE and API oil classifications
Engine oil type SAE:
10W-30 or 10W-40
Engine oil grade API:
SE, SF, SG, SH, SJ, SL
Engine oil quantity:
0.4 L (0.42 US qt, 0.35 Imp.qt)
ZMU04604
-
x
123
Recommended gasoline:
Regular unleaded gasoline with a mini-
mum Octane rating of 86 (Pump Oc-
tane Number) = (R+M)/2
U69M17E0.book Page 14 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.

Specifications and requirements
15
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol (E10) and that containing
methanol. Ethanol can be used if the ethanol
content does not exceed 10% and the fuel
meets the minimum octane ratings. E85 is a
fuel containing 85% ethanol and must not be
used in your outboard motor. All ethanol
blends containing more than 10% ethanol can
cause fuel system damage or cause engine
starting and running problems. Yamaha does
not recommend gasohol containing methanol
because it can cause fuel system damage or
engine performance problems.
It is recommended that you install a water-
separating marine fuel filter assembly (10 mi-
cron minimum) between your boat’s fuel tank
and outboard motor when using ethanol. Eth-
anol is known to allow moisture to be ab-
sorbed into boat fuel tanks and systems.
Moisture in the fuel can cause corrosion of
metallic fuel system components, starting and
running complaints and require additional fuel
system maintenance.
EMU27270
Ring Free Fuel Additive
Gasoline is a precise blend of many different
substances, each chosen to give certain char-
acteristics. Gasoline blends have been
changing in recent years in response to con-
cerns about pollution and resulting emissions
regulations. One of the most obvious changes
has been the elimination of lead from most fu-
els.
As gasoline has changed, the amount of addi-
tives such as aromatics and oxygenates has
increased. These additives are important for
the engines in passenger cars, but they can
have detrimental effects in marine engines,
because of increased deposits in the combus-
tion chamber. When enough deposits collect,
piston rings begin sticking. Performance
drops and engine wear increases dramatical-
ly.
While many additives available may reduce
deposits, Yamaha recommends the use of
Ring Free Fuel Additive, available from your
Yamaha dealer. Ring Free Fuel Additive
has repeatedly proven its ability to clean com-
bustion deposits from inside the engine, nota-
bly the critical piston-ring-land area, and fuel
system components. Follow product labeling
for use instructions.
EMU36880
Muddy or acidic water
Yamaha strongly recommends that you have
your dealer install the optional chromium-plat-
ed water pump kit if you use the outboard mo-
tor in muddy or acidic water conditions.
However, depending on the model it might not
be required.
EMU36330
Anti-fouling paint
A clean hull improves boat performance. The
boat bottom should be kept as clean of marine
growth as possible. If necessary, the boat bot-
tom can be coated with an anti-fouling paint
approved for your area to inhibit marine
growth.
Do not use anti-fouling paint which includes
copper or graphite. These paints can cause
more rapid engine corrosion.
U69M17E0.book Page 15 Thursday, May 8, 2008 11:55 AM
©2019 Yamaha Motor Corporation, U.S.A.
