PREFACE
This Supplementary Service Manual has been prepared to introduce the modification and
additional information for the Z200N and LZ200N. Also, new information for Z150P, LZ150P,
Z150Q, Z175G, Z175H and Z200P based on Z200N and LZ200N is included. For complete ser-
vice information and procedures, it is necessary to add the following manual with the corre-
sponding sections in this Supplementary Service Manual.
Z200N, LZ200N SERVICE MANUAL: 68F-28197-Z9-A1
CAUTION
USE UNLEADED STRAIGHT GASOLINE ONLY
• Gasoline containing lead can cause performance
lose and engine damage.
• Do not use gasoline mixed with oil (premix).
• Use YAMALUBE 2 stroke outboard oil or another
2-stroke engine oil with a BIA-certified TC-W3 rate.
Z150P, LZ150P, Z150Q,
Z175G, Z175H, Z200N, LZ200N, Z200P
SUPPLEMENTARY SERVICE MANUAL
©2000 by Yamaha Motor Co., Ltd.
1st Edition, May 2000
All rights reserved. Any reprinting or
unauthorized use without the written
permission of Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan

E
HOW TO USE THIS MANUAL
MANUAL FORMAT
All of the procedures in this manual are organized in a sequential, step-by-step format. The
information has been compiled to provide the mechanic with an easy to read, handy refer-
ence that contains comprehensive explanations of all disassembly, repair, assembly, and
check operations.
In this revised format, the condition of a faulty component will precede an arrow symbol and
the course of action required will follow the symbol, e.g.,
•Bearings
Pitting/scratches → Replace.
To assist you in finding your way through this manual, the section title and major heading is
given at the top of every page.
MODEL INDICATION
Multiple models are mentioned in this manual and their model indications are noted as fol-
lows.
ILLUSTRATIONS
The illustrations within this service manual represent all of the designated models.
CROSS REFERENCES
The cross references have been kept to a minimum. Cross references will direct you to the
appropriate section or chapter.
Model name Z150PETO LZ150PETO Z150QETO Z175GETO Z175HETO Z200NETO LZ200NETO Z200PETO
USA and
Canada name Z150TR LZ150TR VZ150TR Z175TR VZ175TR Z200TR LZ200TR VZ200TR
Indication Z150PETO LZ150PETO Z150QETO Z175GETO Z175HETO Z200NETO LZ200NETO Z200PETO

E
IMPORTANT INFORMATION
In this Service Manual particularly important information is distinguished in the following
ways.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING
Failure to follow WARNING instructions could result in severe injury or death to the machine
operator, a bystander, or a person inspecting or repairing the outboard motor.
CAUTION:
A CAUTION indicates special precautions that must be taken to avoid damage to the out-
board motor.
NOTE:
A NOTE provides key information to make procedures easier or clearer.

E
HOW TO USE THIS MANUAL
1 The main points regarding removing/installing and disassembling/assembling procedures
are shown in the exploded views.
2 The numbers in the exploded views indicate the required sequence of the procedure and
should be observed accordingly.
3 Symbols are used in the exploded views to indicate important aspects of the procedure.
A list of meanings for these symbols is provided on the following page.
4 It is important to refer to the job instruction charts at the same time as the exploded views.
These charts list the sequence that the procedures should be carried out in, as well as pro-
viding explanations on part names, quantities, dimensions and important points relating
to each relevant task.
Example:
O-ring size 39.5 × 2.5 mm: inside diameter (D) × ring diameter (d)
5 In addition to tightening torques, the dimensions of the bolts or screws are also men-
tioned.
Example:
Bolt or screw size : diameter (D) × length (L)
6 In addition to the exploded views and job instruction charts, this manual provides individ-
ual illustrations when further explanations are required to explain the relevant procedure.
d
D
10 ×25 mm
D
L

E
SYMBOLS
Symbols 1 to 9 are designed as thumb-
tabs to indicate the content of a chapter.
1 General information
2 Specifications
3 Periodic inspections and adjustments
4 Fuel system
5 Power unit
6 Lower unit
7 Bracket unit
8 Electrical systems
9 Trouble analysis
Symbols 0 to E indicate specific data.
0 Special tool
A Specified liquid
B Specified engine speed
C Specified torque
D Specified measurement
E Specified electrical value
[Resistance ( Ω ), Voltage (V), Electric current
(A)]
Symbol F to I in an exploded diagram
indicate the grade of lubricant and the loca-
tion of the lubrication point.
FApply Yamaha 2-stroke outboard motor oil
GApply water resistant grease
(Yamaha grease A, Yamaha marine grease)
HApply molybdenum disulfide grease
IApply corrosion resistant grease
(Yamaha grease D)
Symbols Jto Oin an exploded diagram
indicate the grade of the sealing or locking
agent and the location of the application
point.
JApply Gasket Maker®
KApply Yamabond #4
(Yamaha bond number 4)
LApply silicon sealant
MApply LOCTITE®No. 271 (Red LOCTITE)
NApply LOCTITE®No. 242 (Blue LOCTITE)
OApply LOCTITE®No. 572
12
34
56
78
90
AB
CD
EF
GH
IJ
KL
MNO
GEN
INFO
SPEC
INSP
ADJ
FUEL
POWR
LOWR
BRKT
–+
ELEC
TRBL
ANLS
T
R
.
.
E
AM
DGM
4LT
SS
271
LT
242
LT
572
LT

E
GENERAL INFORMATION
IDENTIFICATION ............................................................................................... 1
SERIAL NUMBER........................................................................................ 1
STARTING SERIAL NUMBERS .................................................................. 1

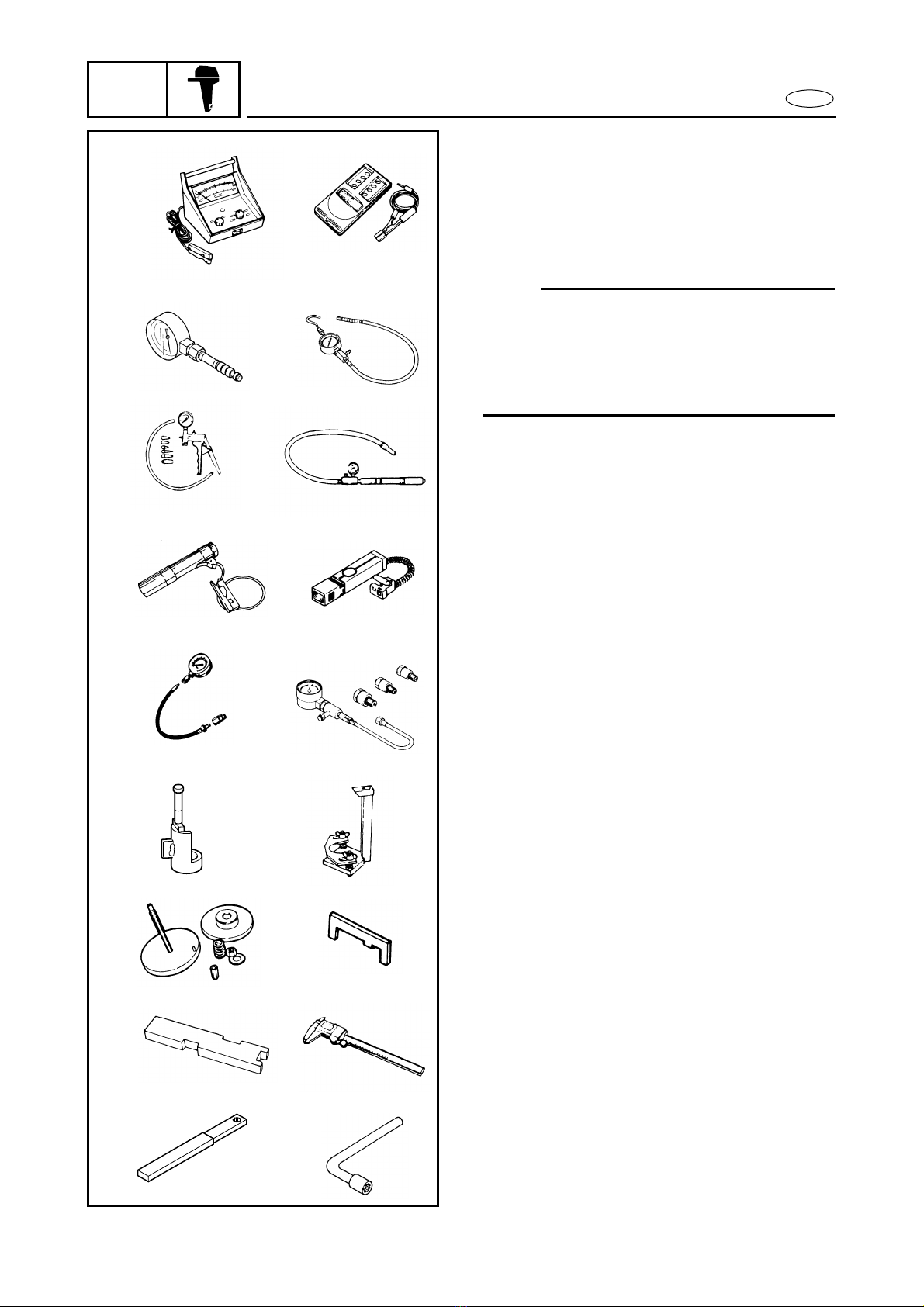

SPECIAL TOOLS................................................................................................ 2
MEASURING ............................................................................................... 2
REMOVING AND INSTALLING .................................................................. 5
SPECIFICATIONS
GENERAL SPECIFICATIONS............................................................................. 8
MAINTENANCE SPECIFICATIONS................................................................. 14
POWER UNIT............................................................................................. 14
LOWER UNIT............................................................................................. 16
ELECTRICAL .............................................................................................. 16
POWER UNIT............................................................................................. 20
LOWER UNIT............................................................................................. 22
ELECTRICAL .............................................................................................. 22
DIMENSIONS ............................................................................................ 26
TIGHTENING TORQUES................................................................................. 31
SPECIFIED TORQUES............................................................................... 31
GENERAL TORQUES................................................................................ 33
PERIODIC INSPECTION AND ADJUSTMENT
MAINTENANCE INTERVAL CHART............................................................... 34
FUEL SYSTEM ................................................................................................. 36
MEASURING THE FUEL PRESSURE
(MEDIUM-PRESSURE FUEL LINE).......................................................... 36
CHECKING THE FUEL PRESSURE (MECHANICAL FUEL PUMP).......... 37
CHECKING THE MECHANICAL FUEL PUMP OIL LEVEL........................ 38
CHANGING THE MECHANICAL FUEL PUMP OIL .................................. 38

E
CONTROL SYSTEM......................................................................................... 39
ADJUSTING THE THROTTLE POSITION SENSOR................................. 39
ADJUSTING THE REMOTE CONTROL SHIFT CABLE
(EXCEPT FOR Z150Q, Z175H/VZ150, VZ175) ......................................... 41
ADJUSTING THE REMOTE CONTROL SHIFT CABLE
(FOR Z150Q, Z175H/VZ150, VZ175) ........................................................ 42
ADJUSTING THE CRANK POSITION SENSOR....................................... 42
OIL INJECTION SYSTEM................................................................................ 43
AIR BLEEDING THE OIL INJECTION SYSTEM........................................ 43
CHECKING THE ELECTRIC OIL PUMP..................................................... 44
POWER TRIM AND TILT SYSTEM ................................................................. 44
CHECKING THE POWER TRIM AND TILT FLUID LEVEL ........................ 44
ADJUSTING THE TRIM SENSOR CAM................................................... 45
LOWER UNIT ................................................................................................... 46
CHECKING THE GEAR OIL LEVEL ........................................................... 46
CHANGING AND CHECKING THE GEAR OIL ......................................... 46
CHECKING THE LOWER UNIT (FOR AIR LEAKS)................................... 47
GENERAL ......................................................................................................... 48
CHECKING THE SPARK PLUGS............................................................... 48
CHECKING THE IGNITION TIMING ......................................................... 49
MEASURING THE COMPRESSION PRESSURE ..................................... 51
LUBRICATION POINTS............................................................................. 52
FUEL SYSTEM
MEDIUM-PRESSURE FUEL LINE ................................................................... 53
REDUCING THE FUEL PRESSURE
(MEDIUM-PRESSURE FUEL LINE).......................................................... 53
CHECKING THE PRESSURE REGULATOR.............................................. 53
VAPOR SEPARATOR....................................................................................... 56
REMOVING/INSTALLING THE VAPOR SEPARATOR............................. 56
ELECTRIC FUEL PUMP.................................................................................... 58
DISASSEMBLING/ASSEMBLING THE ELECTRIC FUEL PUMP ............. 58
DRIVE BELT ..................................................................................................... 61
REMOVING/INSTALLING THE DRIVE BELT............................................ 61
HIGH-PRESSURE FUEL LINE ASSEMBLY..................................................... 63
DISASSEMBLING/ASSEMBLING THE HIGH-PRESSURE FUEL LINE
ASSEMBLY............................................................................................... 63

E
MECHANICAL FUEL PUMP ............................................................................ 66
DISASSEMBLING/ASSEMBLING THE MECHANICAL
FUEL PUMP BODY................................................................................... 66
POWER UNIT
POWER UNIT ................................................................................................... 69
REMOVING/INSTALLING THE EXHAUST EXPANSION CHAMBER ..... 69
INSTALLING THE APRON ........................................................................ 71
REED VALVES ................................................................................................. 72
CHECKING THE REED VALVE ASSEMBLY ............................................. 72
CRANKCASE.................................................................................................... 72
ASSEMBLING THE OIL SEAL HOUSING ................................................ 72
CYLINDER BODY ASSEMBLY ........................................................................ 73
DISASSEMBLING THE UPPER BEARING HOUSING ............................. 73
ASSEMBLING THE UPPER BEARING HOUSING ................................... 73
LOWER UNIT
LOWER UNIT (REGULAR ROTATION MODELS) .......................................... 74
REMOVING/INSTALLING THE LOWER UNIT ......................................... 74
PROPELLER SHAFT HOUSING ASSEMBLY
(REGULAR ROTATION MODELS) ................................................................. 76
DISASSEMBLING THE PROPELLER SHAFT HOUSING ......................... 76
ASSEMBLING THE PROPELLER SHAFT HOUSING ............................... 77
DRIVE SHAFT (REGULAR ROTATION MODELS).......................................... 78
REMOVING/INSTALLING THE DRIVE SHAFT......................................... 78
REMOVING THE PINION .......................................................................... 80
DISASSEMBLING THE DRIVE SHAFT HOUSING ASSEMBLY .............. 80
DISASSEMBLING THE FORWARD GEAR ASSEMBLY .......................... 80
ASSEMBLING THE FORWARD GEAR ASSEMBLY ................................ 81
ASSEMBLING THE DRIVE SHAFT HOUSING ASSEMBLY .................... 81
INSTALLING THE PINION ........................................................................ 82
LOWER CASE ASSEMBLY (REGULAR ROTATION MODELS)..................... 83
DISASSEMBLING/ASSEMBLING THE LOWER CASE ASSEMBLY ....... 83
DISASSEMBLING THE LOWER CASE ASSEMBLY ................................ 84
ASSEMBLING THE LOWER CASE ASSEMBLY ...................................... 84

E
LOWER UNIT (COUNTER ROTATION MODELS).......................................... 85
REMOVING/INSTALLING THE LOWER UNIT ......................................... 85
PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)................................................................. 87
ASSEMBLING THE PROPELLER SHAFT HOUSING ............................... 87
DRIVE SHAFT (COUNTER ROTATION MODELS) ......................................... 88
REMOVING/INSTALLING THE DRIVE SHAFT......................................... 88
REMOVING THE PINION .......................................................................... 90
REMOVING THE REVERSE GEAR............................................................ 90
DISASSEMBLING THE DRIVE SHAFT HOUSING ASSEMBLY .............. 90
DISASSEMBLING THE REVERSE GEAR ASSEMBLY............................. 90
ASSEMBLING THE REVERSE GEAR ASSEMBLY................................... 91
ASSEMBLING THE DRIVE SHAFT HOUSING ASSEMBLY .................... 92
INSTALLING THE REVERSE GEAR.......................................................... 92
INSTALLING THE PINION ........................................................................ 93
LOWER CASE ASSEMBLY (COUNTER ROTATION MODELS) .................... 93
ASSEMBLING THE LOWER CASE ASSEMBLY ...................................... 93
SHIMMING (REGULAR ROTATION MODELS)
(FOR USA AND CANADA) ............................................................................. 94
SELECTING THE REVERSE GEAR SHIMS............................................... 95
SHIMMING (REGULAR ROTATION MODELS) (FOR WORLDWIDE) ........... 97
SELECTING THE REVERSE GEAR SHIMS............................................... 98
BACKLASH (REGULAR ROTATION MODELS)............................................ 100
MEASURING THE FORWARD GEAR BACKLASH ................................ 100
MEASURING THE REVERSE GEAR BACKLASH................................... 102
SHIMMING (COUNTER ROTATION MODELS)
(FOR USA AND CANADA) ........................................................................... 105
SELECTING THE FORWARD GEAR SHIMS .......................................... 106
SHIMMING (COUNTER ROTATION MODELS) (FOR WORLDWIDE)......... 108
BACKLASH (COUNTER ROTATION MODELS) ........................................... 109
MEASURING THE FORWARD GEAR BACKLASH ................................ 109
MEASURING THE REVERSE GEAR BACKLASH................................... 110

E
BRACKET UNIT
CLAMP BRACKETS ....................................................................................... 113
REMOVING/INSTALLING THE CLAMP BRACKETS.............................. 113
TILT RAM ASSEMBLY AND GEAR PUMP UNIT......................................... 115
REMOVING/INSTALLING THE TILT RAM ASSEMBLY AND
GEAR PUMP UNIT ................................................................................. 115
REMOVING THE TILT RAM END SCREW ............................................. 117
INSTALLING THE TILT RAM ASSEMBLY ............................................. 117
TRIM RAM ASSEMBLIES AND FREE PISTON ............................................ 118
REMOVING THE TRIM RAM END SCREWS ......................................... 118
INSTALLING THE TRIM RAMS .............................................................. 118
ELECTRICAL SYSTEM
ELECTRICAL COMPONENTS ANALYSIS .................................................... 120
DIGITAL CIRCUIT TESTER...................................................................... 120
MEASURING THE PEAK VOLTAGE....................................................... 120
PEAK VOLTAGE ADAPTOR.................................................................... 120
MEASURING A LOW RESISTANCE....................................................... 121
IGNITION CONTROL SYSTEM ..................................................................... 122
MEASURING THE THROTTLE POSITION SENSOR
OUTPUT VOLTAGE................................................................................ 122
FUEL CONTROL SYSTEM............................................................................. 123
CHECKING THE FUEL PRESSURE SENSOR......................................... 123
CHARGING SYSTEM..................................................................................... 124
MEASURING THE LIGHTING COIL OUTPUT PEAK VOLTAGE ........... 124
POWER TRIM AND TILT SYSTEM ............................................................... 124
MEASURING THE TRIM SENSOR RESISTANCE.................................. 124

E
TROUBLE ANALYSIS
SELF-DIAGNOSIS.......................................................................................... 125
DIAGNOSIS CODE INDICATION............................................................ 125
DIAGNOSIS THE ELECTRONIC CONTROL SYSTEM ........................... 125
YAMAHA DIAGNOSTIC SYSTEM ................................................................ 127
CONNECTING THE COMPUTER TO THE OUTBOARD ........................ 127
YAMAHA DIAGNOSTIC SYSTEM FUNCTION...................................... 128
WIRING DIAGRAM

–1 –
GEN
INFO E
IDENTIFICATION
IDENTIFICATION
SERIAL NUMBER
The outboard motor’s serial number is
stamped on a label which is attached to the
port side of the clamp bracket.
NOTE:
If the serial number label is removed,
“VOID”marks will be appear on the label.
1Model name
2Approved model code
3Transom height
4Serial number
S68L1010
1020
STARTING SERIAL NUMBERS
The starting serial number blocks are as fol-
lows:
Model name Approved
model
code
Starting
serial
number
Worldwide USA Canada
Z150PETO Z150TR —6G4 L: 800101 -
Z150TR X: 850101 -
LZ150PETO LZ150TR — 6K0 X: 800101 -
Z150QETO VZ150TR VZ150TR 6J9 L: 800101 -
Z175GETO Z175TR — 6G5 X: 800101 -
Z175HETO VZ175TR VZ175TR 62H L: 800101 -
Z200NETO Z200TR —6G6 L: 150101 -
Z200TR X: 100101 -
LZ200NETO LZ200TR — 6K1 X: 100101 -
Z200PETO VZ200TR VZ200TR 60F L: 000101 -

–2 –
GEN
INFO E
SPECIAL TOOLS
SPECIAL TOOLS
Using the correct special tools recom-
mended by Yamaha, will aid the work and
enable accurate assembly and tune-up.
Improvising and using improper tools can
damage the equipment.
NOTE:
•For USA and Canada, use part numbers
that start with “J-”, “YB-”, “YM-”, “YS-”,
“YU-”, “YW-”or “YX-”.
•For worldwide, use part numbers that
start with “90890-”.
MEASURING
1Tachometer
P/N. YU-08036-B ............................ a
90890-06760 ........................... b
2Fuel pressure gauge
P/N. YB-06766 ................................ a
90890-06786 ........................... b
3Mity vac
P/N. YB-35956-A
90890-06756
4Leakage tester
P/N. 90890-06762
5Timing light
P/N. YM-33277-A............................ a
90890-03141 ........................... b
6Compression gauge
P/N. YU-33223-1............................. a
90890-03160 ........................... b
7Pinion height gauge
P/N. YB-34432-7, YB-34432-11 ...... a
90890-06702 ........................... b
8Shimming gauge
P/N. YB-34446-1, YB-34446-3,
YB-34446-4, YB-34446-7,
YB-34446-8
9Shimming gauge
P/N. YB-34468-1A
0Shimming plate
P/N. 90890-06701
ADigital caliper
P/N. 90890-06704
BShift rod wrench
P/N. YB-06052 ................................ a
90890-06052 ........................... b
1b
34
a
8
0
5ba
9
2ba
Bba
A
7ba
6ba

–3 –
GEN
INFO E
SPECIAL TOOLS
CMagnetic base
P/N. YU-34481
90890-06705
DMagnetic base attaching plate
P/N. YB-07003
90890-07003
EBacklash indicator
P/N. YB-06265
90890-06706
FDial gauge set
P/N. YU-03097
90890-01252
GHydraulic pressure gauge
P/N. 90890-06776
HUp-relief valve attachment
P/N. 90890-06773
Down-relief valve attachment
P/N. 90890-06774
IDigital tester
P/N. YU-34899-A ............................ a
90890-06752 ........................... b
JPeak voltage adapter
P/N. YU-39991 ................................ a
90890-03172 ........................... b
KSpark gap tester
P/N. YM-34487 ............................... a
90890-06754 ........................... b
LTest harness
P/N. YB-06757, YB-06767,
YB-06769, YB-06779,
YB-06787, YB-06788
90890-06757, 90890-06767,
90890-06769, 90890-06779,
90890-06787, 90890-06788
MDiagnostic indicator
P/N. YB-06444
90890-06765
Jb
H
a
Kba
M
L
G
E F
CD
Iba

–4 –
GEN
INFO E
SPECIAL TOOLS
NYamaha Diagnostic System
P/N. 68F-85300-00
Check the engine condition by using a
personal computer when it is con-
nected to the Electronic Control Unit
(ECU).
Diagnosis:
Indicates the name of a failed part.
Diagnosis Record:
Displays the name of the part whose diag-
nosis is detected, along with the engine
running total hours.
Engine Monitor:
Indicates information on the sensors and
switches by converting it to each value
while the engine is running.
Stationary Test:
Checks operation sound and ignition sparks
by activating the electric fuel pump, electric
oil pump, injector and spark plug while the
engine is stopped.
Active Test:
Checks the engine for operation through
any change in its speed by stopping the
operation of the spark plug on each cylinder
while the engine is in the neutral position.
Data Logger:
Indicates in numeric values the engine
speed, throttle opening voltage, oxygen
density sensor voltage, water temperature
sensor voltage and fuel pressure sensor
voltage that occurred within 13 minutes.
ECM No.:
Displays the ECM identification number.
NOTE:
To use any of these functions a personal
computer, connection cables, adapter and
communication software are required.
The personal computer should be compati-
ble with Windows®95/98, equipped with a
CD-ROM and the RS232C terminal.
N
1030

–5 –
GEN
INFO E
SPECIAL TOOLS
REMOVING AND INSTALLING
1Flywheel magnet assembly holder
P/N. YB-06139 ................................ a
90890-06522 ........................... b
2Universal puller
P/N. YB-06117 ................................ a
90890-06521 ........................... b
3Bearing/oil seal attachment
P/N. YB-06205-1 ............................. a
90890-06663 ........................... b
4Piston ring compressor
P/N. YU-33294 ................................ a
90890-06530 ........................... b
5Bearing separator
P/N. YB-06219 ................................ a
90890-06534 ........................... b
6Guide plate stand
P/N. 90890-06538
7Guide plate
P/N. 90890-06501
8Bearing puller
P/N. 90890-06535
9Small universal claws
P/N. 90890-06536
0Ring nut wrench
P/N. YB-34447, YB-06578 .............. a
90890-06512,
908900-06578 ......................... b
ARing nut wrench extension
P/N. 90890-06513
1ba
3
ba
67
4ba
5ba
2ba
8 9
A
0ba

–6 –
GEN
INFO E
SPECIAL TOOLS
BPropeller shaft housing puller
P/N. YB-06207 ................................ a
90890-06502 ........................... b
CCenter bolt
P/N. 90890-06504
DSlide hammer
P/N. YB-06096
90890-06531
EDrive shaft holder
P/N. YB-06201
90890-06520
FPinion nut holder
P/N. 90890-06505
GPinion nut holder attachment
P/N. 90890-06507
HBearing puller
P/N. YB-06029, YB-06430
90890-06523
ILarge universal claws
P/N. 90890-06532
JDriver rod
P/N. YB-06071, YB-06229
90890-06604, 90890-06605,
90890-06606, 90890-06652
KBearing/oil seal depth plate
P/N. 90890-06603
LBearing/oil seal attachment
P/N. YB-06194, YB-06196, YB-06246
MBearing/oil seal attachment
P/N. YB-06195, YB-06258,
YB-06348, YB-06434
NBearing/oil seal attachment
P/N. YB-06261
OBearing/oil seal attachment
P/N. YB-06336, YB-41446
PBearing/oil seal attachment
P/N. 90890-06610, 90890-06612,
90890-06633, 90890-06636,
90890-06653, 90890-06654,
90890-06655
QBearing/oil seal attachment
P/N. 90890-06619, 90890-06622
RBearing/oil seal attachment
P/N. 90890-06629, 90890-06630
CD
EF
G
P
H
I
L
K
J
M
R
N
Q
O
Bab

–7 –
GEN
INFO E
SPECIAL TOOLS
SBearing/oil seal attachment
P/N. 90890-06635
TBearing/oil seal attachment
P/N. 90890-06640, 90890-06660,
90890-06661, 90890-06662
Slide hammer attachment
P/N. YB-06335
90890-06514
VEnd screw wrench
P/N. YB-06175, YX-06765
90890-06548
WUniversal holder
P/N. YU-01235
90890-01235
XSheave holder
P/N. YS-1880-A
90890-01701
YUniversal puller
P/N. YB-06540
90890-06540
ST
V
W
Y
X

–8 –
SPEC E
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Item Unit
Model
Worldwide Z150PETO LZ150PETO Z150QETO
USA Z150TR LZ150TR VZ150TR
Canada Z150TR —VZ150TR
DIMENSION
Overall length mm (in) 792 (31.2)
Overall width mm (in) 554 (21.8)
Overall height
(L) mm (in) 1,655 (65.2) —1,693 (66.7)
(X) mm (in) 1,782 (70.2) —
Boat transom height
(L) mm (in) 508 (20.0) —508 (20.0)
(X) mm (in) 635 (25.0) —
WEIGHT
(with aluminum propeller)
(L) kg (lb) 214 (472) —215 (474)
(X) kg (lb) 218 (481) —
(with stainless steel propeller)
(L) kg (lb) 216 (476) —217 (478)
(X) kg (lb) 222 (489) —
PERFORMANCE
Maximum output (ISO) kW (hp) @
5,000 r/min
110.3 (150)
Full throttle operating range r/min 4,500 - 5,500
Maximum fuel consumption L (US gal,
lmp gal)/hr
@ 5,500 r/min
55.0 (14.5, 12.1)
POWER UNIT
Type 2 stroke - V
Number of cylinders 6
Displacement cm3(cu. in) 2,596 (158.4)
Bore ×stroke mm (in) 90.0 ×68.0 (3.54 ×2.68)
Compression ratio Cylinders #1 - #4: 6.7
Cylinders #5 - #6: 6.4
Compression pressure* kPa
(kgf/cm2, psi)
650 (6.5, 92)
Fuel system Electronic fuel injection
Fuel injection system Sequential injection
Intake system Reed valve
Induction system Loop charge
Starting system Electric
* Measuring conditions:
Ambient temperature 20 ˚C (68 ˚F), wide open throttle, plugs disconnected from all
cylinders.
The figures are for reference only.
