Yamaha FL350A User manual

Read this manual carefully before operating this
outboard motor.
OWNER’S MANUAL
F300A
FL300A
F350A
FL350A
F350A1
FL350A1
6AW-28199-77-E0
6AW-9-77-1E0.book 1 ページ ２０１０年３月１６日 火曜日 午後６時８分

EMU25052
Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.
6AW-9-77-1E0.book 1 ページ ２０１０年３月１６日 火曜日 午後６時８分

Important manual information
EMU25107
To the owner
Thank you for selecting a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding
of these simple instructions will help you ob-
tain maximum enjoyment from your new
Yamaha. If you have any question about the
operation or maintenance of your outboard
motor, please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is
used to alert you to potential personal injury
hazards. Obey all safety messages that fol-
low this symbol to avoid possible injury or
death.
WARNING
EWM00781
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00701
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manu-
al, please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
TIP:
The F300AET, FL300AET, F350AET,
FL350AET, F350AET1, FL350AET1 and the
standard accessories are used as a base for
the explanations and illustrations in this man-
ual. Therefore some items may not apply to
every model.
6AW-9-77-1E0.book 1 ページ ２０１０年３月１６日 火曜日 午後６時８分

Important manual information
EMU25121
F300A, FL300A, F350A, FL350A, F350A1,
FL350A1
OWNER’S MANUAL
©2010 by Yamaha Motor Co., Ltd.
1st Edition, March 2010
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan
6AW-9-77-1E0.book 2 ページ ２０１０年３月１６日 火曜日 午後６時８分

Table of contents
Safety information............................. 1
Outboard motor safety .....................1
Propeller............................................ 1
Rotating parts.................................... 1
Hot parts ........................................... 1
Electric shock.................................... 1
Power trim and tilt ............................. 1
Engine shut-off cord (lanyard)........... 1
Gasoline............................................ 1
Gasoline exposure and spills ............ 2
Carbon monoxide.............................. 2
Modifications ..................................... 2
Boating safety .................................. 2
Alcohol and drugs ............................. 2
Personal flotation devices ................. 2
People in the water ........................... 2
Passengers ....................................... 2
Overloading....................................... 2
Avoid collisions ................................. 3
Weather ............................................ 3
Passenger training ............................ 3
Boating safety publications ............... 3
Laws and regulations ........................ 3
General information .......................... 4

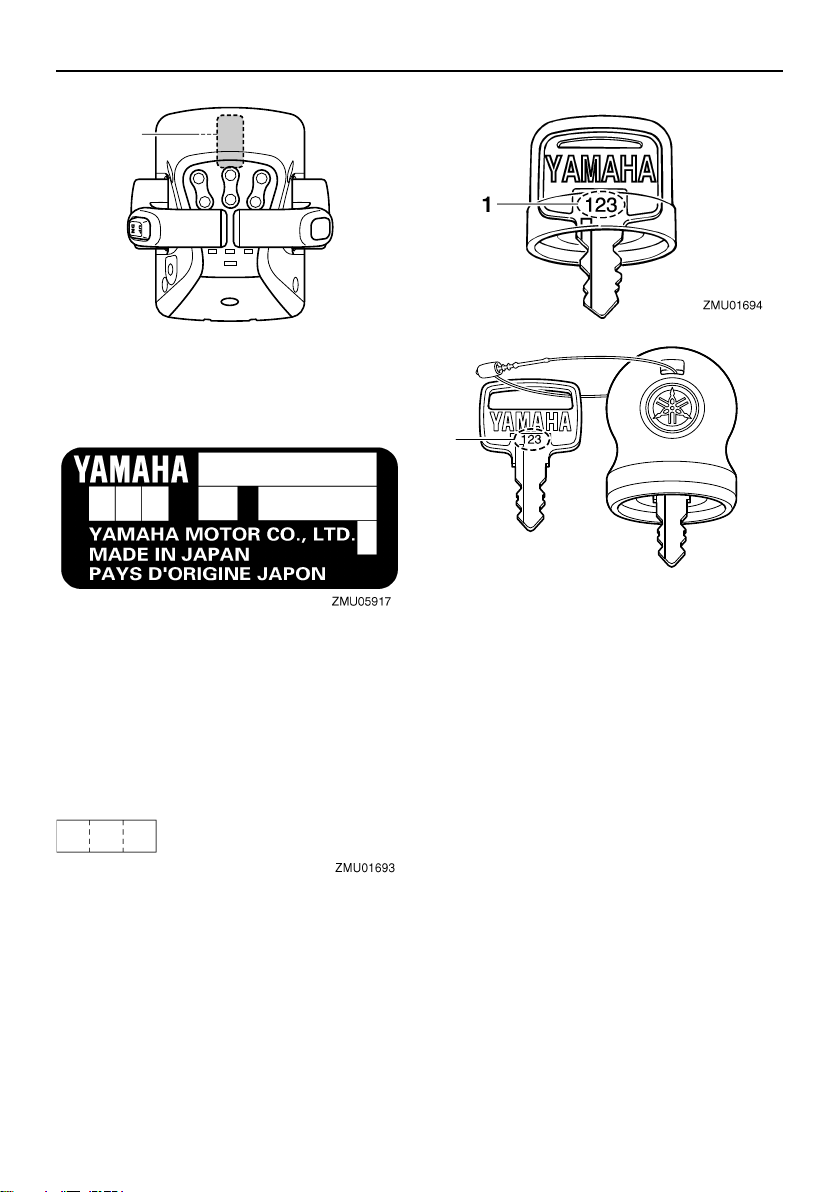

Identification numbers record...........4
Outboard motor serial number .......... 4
Digital electronic control serial
number............................................ 4
Key number....................................... 5
EC Declaration of Conformity
(DoC).............................................. 5

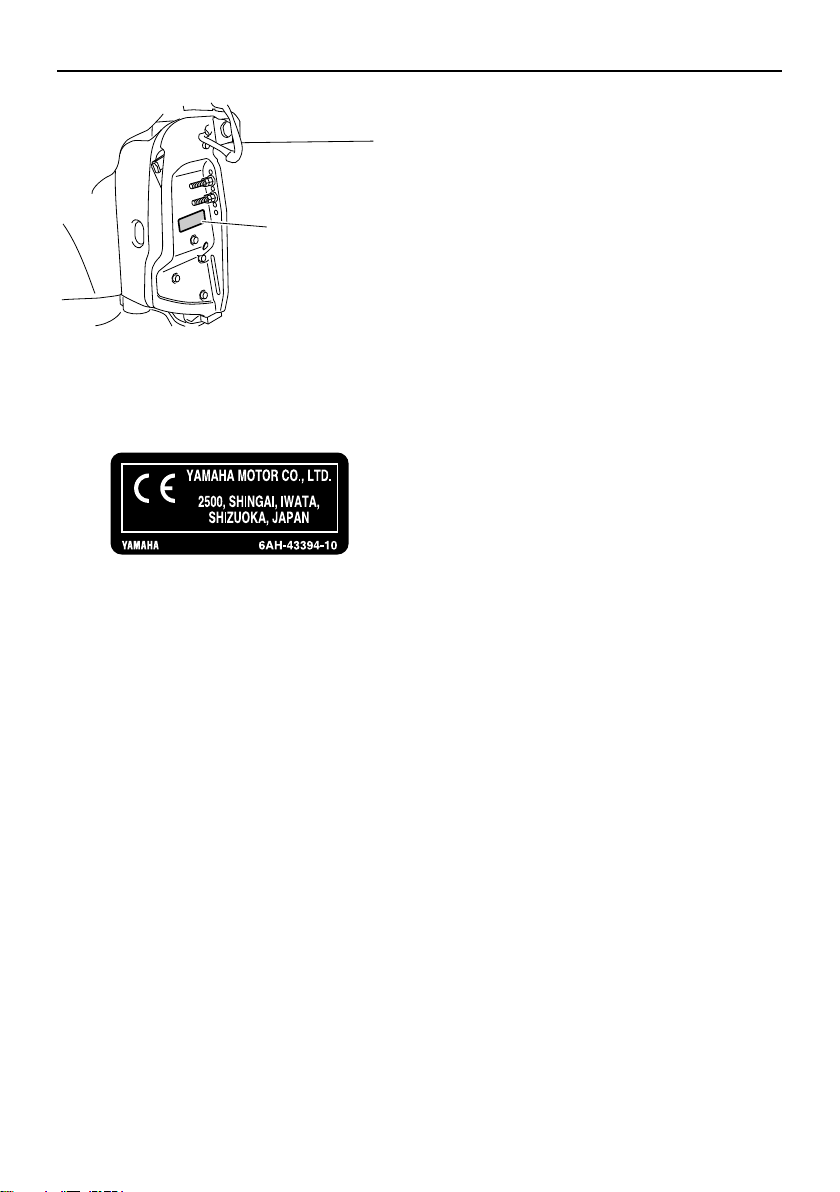

CE Marking ...................................... 5
Read manuals and labels................. 7

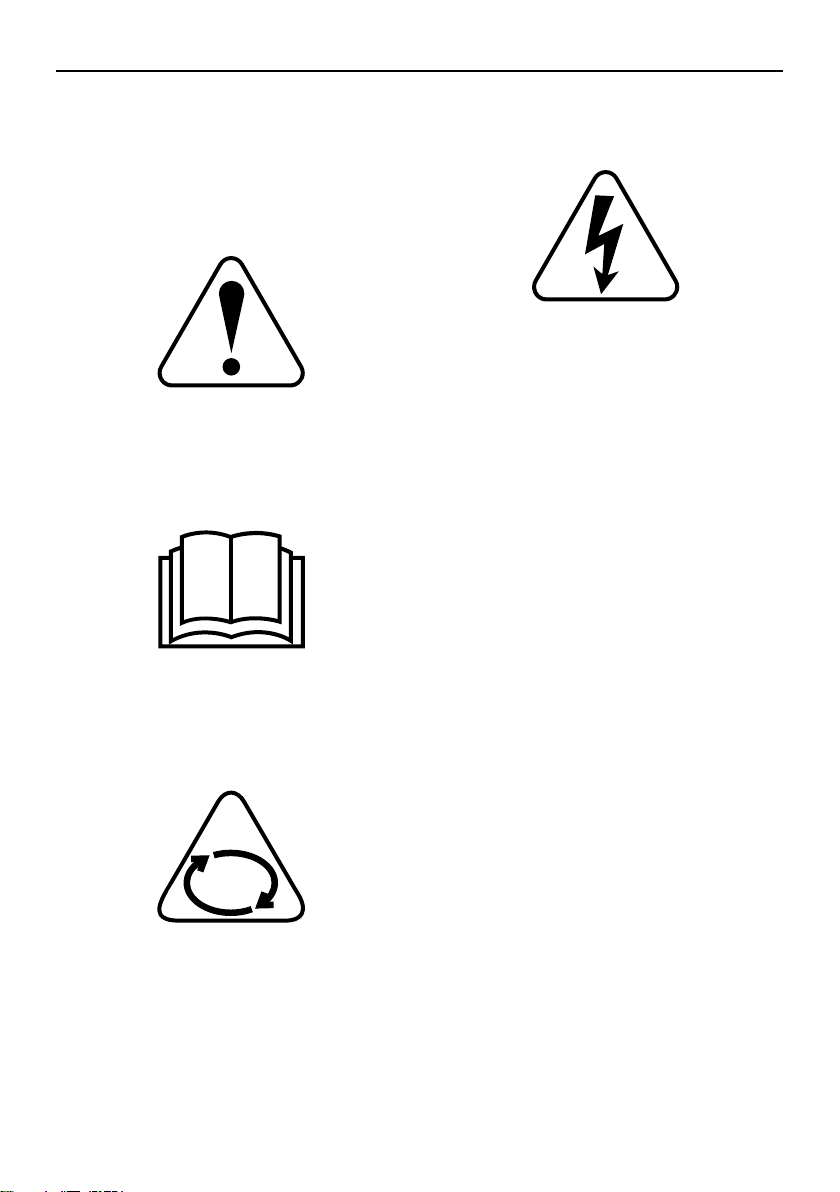

Warning labels ................................. 7
Specifications and
requirements.................................... 10
Specifications ................................. 10
Installation requirements ................ 11
Boat horsepower rating................... 11
Mounting motor ............................... 12
Yamaha Security System................ 12
Digital electronic control
requirements ................................ 12
Battery requirements...................... 13
Battery specifications ...................... 13
Mounting battery ............................. 13
Multiple batteries ............................. 13
Propeller selection ......................... 13
Counter rotation models.................. 13
Start-in-gear protection .................. 14
Engine oil requirements ................. 14
Fuel requirements.......................... 15
Gasoline .......................................... 15
Anti-fouling paint ............................ 15
Motor disposal requirements.......... 15
Emergency equipment................... 15
Emission control information.......... 15
North American models................... 15
Star labels ....................................... 16
Components .................................... 18
Components diagram..................... 18
Remote control transmitter.............. 23
Receiver .......................................... 24
Yamaha Security System lock and
unlock mode.................................. 24
Digital electronic control .................. 25
Digital electronic control-active
indicator ........................................ 26
Digital electronic control-alert
indicator ........................................ 26
Control lever.................................... 27
Neutral interlock trigger ................... 28
Free throttle switch.......................... 28
Throttle friction adjuster................... 29
Station selector switch .................... 30
Engine selector switch .................... 30
Engine shut-off cord (lanyard) and
clip................................................. 31
Main switch ..................................... 32
Start/Stop switch panel ................... 33
All Start/Stop switch panel .............. 34
Power trim and tilt switch on digital
electronic control........................... 34
Power trim and tilt switch on
bottom cowling .............................. 35
Power trim and tilt switches............. 35
Tilt limiter......................................... 36
Tilt support lever for power trim
and tilt model................................. 36
Cowling lock lever (turn type).......... 36
6AW-9-77-1E0.book 1 ページ ２０１０年３月１６日 火曜日 午後６時８分

Table of contents
Flushing device ............................... 37
Fuel filter ......................................... 37
Instruments and indicators ............ 38
6Y9 Multifunction Color Gauge ...... 38
YAMAHA SECURITY SYSTEM
indicator ........................................ 38
Engine warm-up indicator ............... 38
Engine synchronization indicator .... 38
Overheat alert ................................. 39
Low oil pressure-alert...................... 39
Water separator alert ...................... 40
Low battery voltage-alert................. 40
Engine trouble alert......................... 40
6Y8 Multifunction meters................ 41
6Y8 Multifunction tachometers....... 41
Yamaha Security System
information .................................... 42
Low oil pressure-alert...................... 42
Overheat alert ................................. 43
Water separator alert ...................... 43
Engine trouble alert......................... 43
Low battery voltage-alert................. 43
6Y8 Multifunction speed & fuel
meters .......................................... 44
6Y8 Multifunction speedometers.... 44
6Y8 Multifunction fuel
management meters .................... 45
Optional meters.............................. 46
Engine control system.................... 47
Alert system ................................... 47
Digital Electronic Control alert......... 47
Overheat alert ................................. 47
Low oil pressure alert...................... 48
Water separator alert ...................... 49
Installation ....................................... 50
Installation ...................................... 50
Mounting the outboard motor.......... 50
Operation ......................................... 52
First-time operation ........................ 52
Fill engine oil ................................... 52
Breaking in engine .......................... 52
Getting to know your boat ............... 52
Checks before starting engine .......52
Fuel level......................................... 52
Remove cowling.............................. 53
Fuel system..................................... 53
Controls........................................... 53
Engine shut-off cord (lanyard)......... 54
Engine oil ........................................ 54
Engine ............................................. 54
Flushing device ............................... 54
Install cowling.................................. 55
Checking power trim and tilt
system........................................... 55
Battery............................................. 56
Filling fuel....................................... 57
Operating engine ........................... 57
Sending fuel .................................... 57
Change of station ............................ 58
Starting engine ................................ 58
Checks after starting engine .......... 64
Cooling water .................................. 64
Warming up engine........................ 64
Electric start models........................ 64
Checks after engine warm up ........ 65
Shifting ............................................ 65
Stop switches .................................. 65
Selecting outboard motor (triple
engine)......................................... 65
Shifting........................................... 67
Stopping boat................................. 68
Operating the port / center /
starboard engine.......................... 68
Boat direction................................. 72
Trolling ........................................... 75
Adjusting trolling speed ................... 75
Stopping engine............................. 75
Procedure for single station and
dual station (main station)
models .......................................... 75
Procedure for dual station models
(sub station) .................................. 77
Trimming outboard motor............... 78
Adjusting trim angle (Power trim
and tilt) .......................................... 78
Adjusting boat trim .......................... 79
Tilting up and down........................ 80
Procedure for tilting up (power trim
and tilt models).............................. 80
Procedure for tilting down (power
6AW-9-77-1E0.book 2 ページ ２０１０年３月１６日 火曜日 午後６時８分

Table of contents
trim and tilt models) ...................... 82
Shallow water................................. 83
Power trim and tilt models............... 83
Operating in other conditions ......... 86
Maintenance..................................... 87
Transporting and storing outboard
motor ............................................ 87
Storing outboard motor ................... 87
Procedure ....................................... 88
Lubrication ...................................... 88
Flushing power unit......................... 88
Cleaning the outboard motor .......... 89
Checking painted surface of
outboard motor ............................. 89
Periodic maintenance..................... 89
Replacement parts.......................... 90
Severe operating conditions ........... 90
Maintenance chart 1 ....................... 91
Maintenance chart 2 ....................... 93
Greasing ......................................... 94
Cleaning and adjusting spark
plug ............................................... 95
Inspecting engine idle speed .......... 98
Changing engine oil ........................ 98
Inspecting wiring and connectors.... 98
Checking propeller .......................... 99
Removing propeller......................... 99
Installing propeller......................... 100
Changing gear oil.......................... 101
Inspecting and replacing
anode(s)...................................... 102
Checking battery (for electric start
models) ....................................... 103
Connecting the battery.................. 103
Disconnecting the battery ............. 105
Storing the battery......................... 106
Trouble Recovery.......................... 107
Troubleshooting ........................... 107
Temporary action in
emergency ................................. 110
Impact damage ............................. 110
Running in an emergency (twin
engines or triple engines) ........... 111
Replacing fuse .............................. 111
Power trim and tilt will not
operate........................................ 112
Water separator-alert indicator
blinks while cruising .................... 112
Treatment of submerged motor ... 114
6AW-9-77-1E0.book 3 ページ ２０１０年３月１６日 火曜日 午後６時８分

1
Safety information
EMU33622
Outboard motor safety
Observe these precautions at all times.
EMU36501
Propeller
People can be injured or killed if they come
in contact with the propeller. The propeller
can keep moving even when the motor is in
neutral, and sharp edges of the propeller can
cut even when stationary.
●Stop the engine when a person is in the
water near you.
●Keep people out of reach of the propeller,
even when the engine is off.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in
serious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions
in the manual. Keep hands, feet, hair, jewel-
ry, clothing, PFD straps, etc. away from any
exposed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33660
Power trim and tilt
Body parts can be crushed between the mo-
tor and the clamp bracket when the motor is
trimmed or tilted. Keep body parts out of this
area at all times. Be sure no one is in this
area before operating the power trim and tilt
mechanism.
The power trim and tilt switches operate
even when the main switch is off. Keep peo-
ple be away from the switches whenever
working around the motor.
Never get under the lower unit while it is tilt-
ed, even when the tilt support lever is locked.
Severe injury could occur if the outboard mo-
tor accidentally falls.
EMU33671
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard
or leaves the helm. This prevents the boat
from running away under power and leaving
people stranded, or running over people or
objects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel ac-
cording to the procedure on page 57 to
reduce the risk of fire and explosion.
6AW-9-77-1E0.book 1 ページ ２０１０年３月１６日 火曜日 午後６時８分

Safety information
2
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33900
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking
exhaust outlets.
EMU33780
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most com-
mon factors contributing to boating fatalities.
EMU33720
Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. Yamaha
recommends that you must wear a PFD
whenever boating. At a minimum, children
and non-swimmers should always wear
PFDs, and everyone should wear PFDs
when there are potentially hazardous boat-
ing conditions.
EMU33731

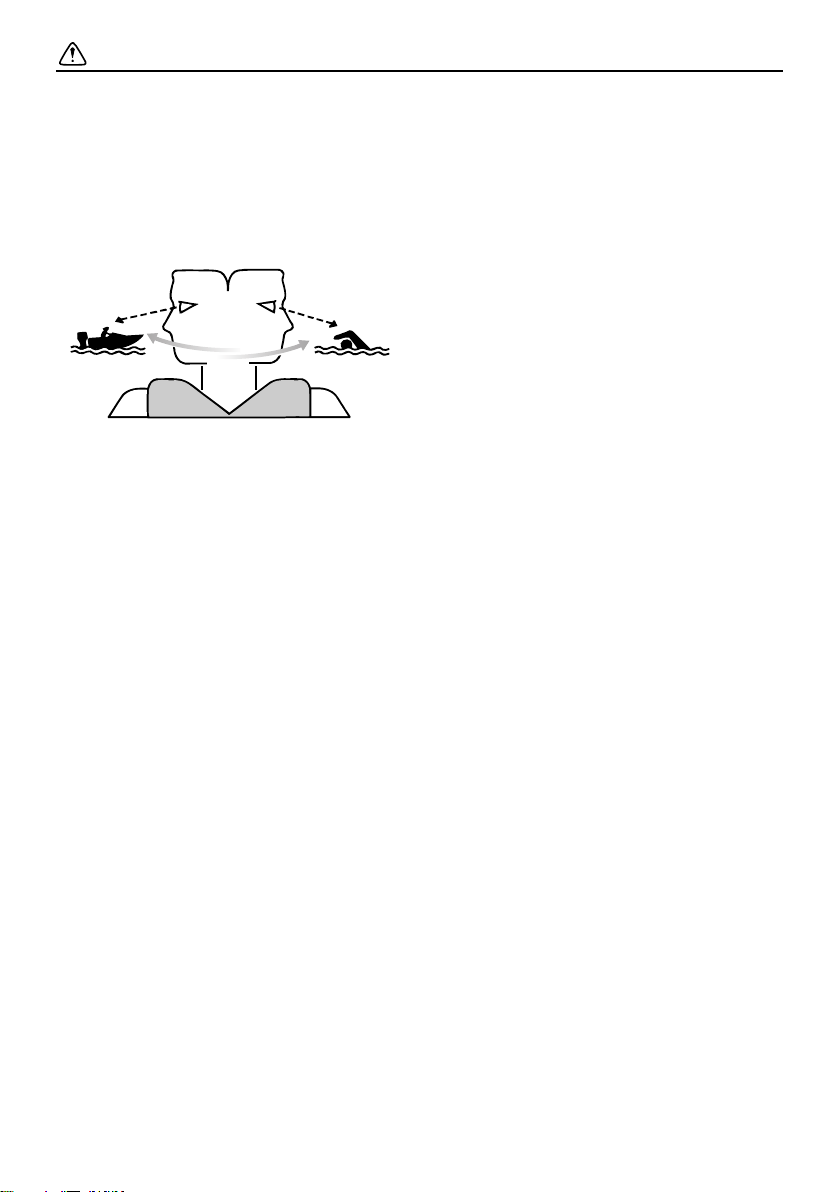

People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When
someone is in the water near the boat, shift
into neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33751
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all pas-
sengers are positioned properly before ac-
celerating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33760
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for max-
imum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturers instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
6AW-9-77-1E0.book 2 ページ ２０１０年３月１６日 火曜日 午後６時８分

Safety information
3
swamping.
EMU33772
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other boats.
●Do not follow directly behind other boats or
waterskiers.
●Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
●Avoid areas with submerged objects or
shallow water.
●Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss
of control, ejection, and collision.
●Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are
not sure that you can stop in time before
hitting an obstacle, apply throttle and turn
in another direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33600
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.
ZMU06025
6AW-9-77-1E0.book 3 ページ ２０１０年３月１６日 火曜日 午後６時８分

4
General information
EMU25171
Identification numbers record
EMU25183
Outboard motor serial number
The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU34943
Digital electronic control serial
number
The digital electronic control serial number is
stamped on the label attached to the digital
electronic control box.
Record your digital electronic control serial
number in the spaces provided to assist you
in newly connecting the digital electronic
control to the outboard motor.
TIP:
Consult your Yamaha dealer if you have any
questions concerning the digital electronic
control serial number.
1. Outboard motor serial number location
1
ZMU05814
ZMU06224
1
ZMU05885
1
ZMU05887
1
6AW-9-77-1E0.book 4 ページ ２０１０年３月１６日 火曜日 午後６時８分

General information
5
EMU25191
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration.
Record this number in the space provided for
reference in case you need a new key.
EMU37290
EC Declaration of Conformity
(DoC)
This outboard motor conforms to certain por-
tions of the European Parliament directive
relating to machinery.
Each conformed outboard motor accompa-
nied with EC DoC.EC DoC contains the fol-
lowing information;
●Name of Engine Manufacture
●Model name
●Product code of model (Approved model
code)
●Code of conformed directives
EMU25203
CE Marking
Outboard motors affixed with this “CE”mark-
ing conform with the directives of; 98/37/EC,
94/25/EC - 2003/44/EC and 2004/108/EC.
1. Digital electronic control serial number loca-
tion
ZMU05958
1
1. Key number
1
ZMU07133
6AW-9-77-1E0.book 5 ページ ２０１０年３月１６日 火曜日 午後６時８分

General information
6
1. CE marking location
ZMU05943
1
ZMU06040
6AW-9-77-1E0.book 6 ページ ２０１０年３月１６日 火曜日 午後６時８分

General information
7
EMU33522
Read manuals and labels
Before operating or working on this outboard motor:
●Read this manual.
●Read any manuals supplied with the boat.
●Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33832
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
F300A, FL300A, F350A, FL350A, F350A1, FL350A1
3
2
1
ZMU05950
6AW-9-77-1E0.book 7 ページ ２０１０年３月１６日 火曜日 午後６時８分

General information
8
EMU34651
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01681
●Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
●Do not touch or remove electrical parts
when starting or during operation.
2
WARNING
EWM01671
●Read Owner’s Manuals and labels.
●Wear an approved personal flotation
device (PFD).
●Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the
helm, which could prevent a runaway
boat.
EMU33850
Other labels
12
ZMU06191
3
ZMU05710
6AW-9-77-1E0.book 8 ページ ２０１０年３月１６日 火曜日 午後６時８分

General information
9
EMU35132
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666
6AW-9-77-1E0.book 9 ページ ２０１０年３月１６日 火曜日 午後６時８分

10
Specifications and requirements
EMU34520
Specifications
TIP:
“(AL)” stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
Likewise, “(SUS)” represents the value for
stainless steel propeller installed and “(PL)”
for plastic propeller installed.
TIP:
“*” means, select the engine oil referring to
the chart of engine oil paragraph. For further
information, see page 14.
EMU2821J
Dimension:
Overall length:
1029 mm (40.5 in)
Overall width:
633 mm (24.9 in)
Overall height X:
2006 mm (79.0 in)
Overall height U:
2133 mm (84.0 in)
Transom height X:
637 mm (25.1 in)
Transom height U:
764 mm (30.1 in)
Weight (SUS) X:
365.0 kg (805 lb)
Weight (SUS) U:
373.0 kg (822 lb)
Performance:
Full throttle operating range:
5000–6000 r/min
Maximum output:
F300AET 220.7 kW@5500 r/min
(300 HP@5500 r/min)
F350AET 257.4 kW@5500 r/min
(350 HP@5500 r/min)
F350AET1 257.4 kW@5500 r/min
(350 HP@5500 r/min)
FL300AET 220.7 kW@5500 r/min
(300 HP@5500 r/min)
FL350AET 257.4 kW@5500 r/min
(350 HP@5500 r/min)
FL350AET1 257.4 kW@5500 r/min
(350 HP@5500 r/min)
Idle speed (in neutral):
650 50 r/min
Engine:
Type:
4-stroke V
Displacement:
5330.0 cm3
Bore stroke:
94.0 96.0 mm (3.70 3.78 in)
Ignition system:
TCI
Spark plug (NGK):
LFR6A-11
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Control system:
Remote control
Starting system:
Electric starter
Starting carburetion system:
Electronic fuel injection
Valve clearance (cold engine) IN:
0.17–0.23 mm (0.0067–0.0091 in)
Valve clearance (cold engine) EX:
0.31–0.37 mm (0.0122–0.0146 in)
Min. cold cranking amps (CCA/EN):
670.0 A
Min. rated capacity (20HR/IEC):
100.0 Ah
Maximum generator output:
49 A
Drive unit:
Gear positions:
Forward-neutral-reverse
6AW-9-77-1E0.book 10 ページ ２０１０年３月１６日 火曜日 午後６時８分

Specifications and requirements
11
Gear ratio:
1.73(26/15)
Trim and tilt system:
Power trim and tilt
Propeller mark:
F300AET X
F350AET X
F350AET1 X
FL300AET XL
FL350AET XL
FL350AET1 XL
Fuel and oil:
Recommended fuel:
F300AET Regular unleaded gasoline
F350AET Premium unleaded gaso-
line
F350AET1 Premium unleaded gaso-
line
FL300AET Regular unleaded gaso-
line
FL350AET Premium unleaded gaso-
line
FL350AET1 Premium unleaded gas-
oline
Min. research octane:
F300AET 91
F350AET 94
F350AET1 94
FL300AET 91
FL350AET 94
FL350AET1 94
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil group 1*:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Recommended engine oil group 2*:
SAE 15W-40/20W-40/20W-50
API SH/SJ/SL
Total engine oil quantity (oil pan capacity):
7.8 L (8.24 US qt, 6.86 Imp.qt)
Lubrication:
Wet sump
Recommended gear oil:
Hypoid gear oil SAE 90 or 80W-90,
API GL-5
Gear oil quantity:
F300AET 1.520 L
(1.607 US qt, 1.338 Imp.qt)
F350AET 1.520 L
(1.607 US qt, 1.338 Imp.qt)
F350AET1 1.520 L
(1.607 US qt, 1.338 Imp.qt)
FL300AET 1.310 L
(1.385 US qt, 1.153 Imp.qt)
FL350AET 1.310 L
(1.385 US qt, 1.153 Imp.qt)
FL350AET1 1.310 L
(1.385 US qt, 1.153 Imp.qt)
Tightening torque for engine:
Spark plug:
28.0 Nm (2.86 kgf-m, 20.7 ft-lb)
Propeller nut:
55.0 Nm (5.61 kgf-m, 40.6 ft-lb)
Engine oil drain bolt:
28.0 Nm (2.86 kgf-m, 20.7 ft-lb)
Engine oil filter:
18.0 Nm (1.84 kgf-m, 13.3 ft-lb)
Noise and vibration level:
Operator sound pressure level
(ICOMIA 39/94 and 40/94):
79.1 dB(A)
EMU33554
Installation requirements
EMU33564
Boat horsepower rating
WARNING
EWM01560
Overpowering a boat can cause severe
instability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your out-
6AW-9-77-1E0.book 11 ページ ２０１０年３月１６日 火曜日 午後６時８分

Specifications and requirements
12
board motor(s) does not exceed the boats
maximum horsepower rating. See the boat’s
capacity plate or contact the manufacturer.
EMU33571
Mounting motor
WARNING
EWM01570
●Improper mounting of the outboard mo-
tor could result in hazardous condi-
tions such as poor handling, loss of
control, or fire hazards.
●Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
50.
EMU41591
Yamaha Security System
NOTICE
ECM02460
The Yamaha Security System is sold in
conformity with the relevant laws and
regulations regarding radio wave trans-
mission. Therefore, if this product is used
outside the country where it was sold, it
may violate the laws or regulations re-
garding radio wave transmission in the
country it is used in. For details, consult
your Yamaha dealer.
The outboard motor with this label is
equipped with the Yamaha Security System
to protect against theft, which consists of the
receiver and remote control transmitter. The
engine can not be started if the security sys-
tem is in the lock mode, and only be started
in the unlock mode. Consult your Yamaha
dealer for installation of the receiver.
EMU34952
Digital electronic control
requirements
The digital electronic control be equipped
with a start-in-gear protection device(s). This
device prevents the engine from starting un-
less it is in neutral.
WARNING
EWM01580
●If the engine starts in gear, the boat can
move suddenly and unexpectedly, pos-
sibly causing a collision or throwing
passengers overboard.
●If the engine ever starts in gear, the
start-in-gear protection device is not
working correctly and you should dis-
continue using the outboard. Contact
your Yamaha dealer.
This digital electronic control unit is only
available for the outboard motor which you
have purchased.
Prior to use of the digital electronic control
unit, set it in order to operate your outboard
motor only. Otherwise, it will not be possible
to operate the outboard motor.
Perform setting of the outboard motor and
the digital electronic control unit in the follow-
ing cases.
●If a used outboard motor is installed
●If the digital electronic control unit is re-
ZMU07305
6AW-9-77-1E0.book 12 ページ ２０１０年３月１６日 火曜日 午後６時８分

Specifications and requirements
13
placed
●If the ECM (Electronic control module) of
the used outboard motor is replaced
●If the ECM (Electronic control module) of
the digital electronic control unit is re-
placed
Consult your Yamaha dealer for setting.
EMU25694
Battery requirements
EMU25721
Battery specifications
The engine cannot be started if battery volt-
age is too low.
EMU36290
Mounting battery
Mount the battery holder securely in a dry,
well-ventilated, vibration-free location in the
boat. WARNING! Do not put flammable
items, or loose heavy or metal objects in
the same compartment as the battery.
Fire, explosion or sparks could result.
[EWM01820]
EMU36300
Multiple batteries
To connect multiple batteries, such as for
multiple engine configurations or for an ac-
cessory battery, consult your Yamaha dealer
about battery selection and correct wiring.
EMU41600
Propeller selection
Next to selecting an outboard motor, select-
ing the right propeller is one of the most im-
portant purchasing decisions a boater can
make. The type, size, and design of your pro-
peller have a direct impact on acceleration,
top speed, fuel economy, and even engine
life. Yamaha designs and manufactures pro-
pellers for every Yamaha outboard motor
and every application.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, select a larger pitch propel-
ler for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, select the propeller
that lets the engine run in the proper range
for your maximum load but remember that
you may need to reduce your throttle setting
to stay within the recommended engine
speed range when carrying lighter loads.
Yamaha recommends to use a propeller suit-
able for the “Shift Dampener System (SDS)”.
For further information, consult your Yamaha
dealer.
To check the propeller, see page 99.
EMU36310
Counter rotation models
Standard outboard motors rotate clockwise.
Counter rotation models rotate counterclock-
wise. Counter rotation models are typically
used in multiple motor setups and are
Minimum cold cranking amps (CCA/EN):
670.0 A
Minimum rated capacity (20HR/IEC):
100.0 Ah
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU05937
-
3
12
6AW-9-77-1E0.book 13 ページ ２０１０年３月１６日 火曜日 午後６時８分
