POWERED MULTIMEDIA SPEAKERS
YST-MS30/YST-MS35D
TO SERVICE PERSONNEL ........................................... 1
FRONT AND REAR PANELS..................................... 1~2
SPECIFICATIONS....................................................... 3~4
INTERNAL VIEW ............................................................ 4
DISASSEMBLY PROCEDURES .................................... 5
■CONTENTS
USB PORT OPERATION CHECK TEST ................. 6~13
BLOCK DIAGRAM .................................................. 14~15
PRINTED CIRCUIT BOARD ...................................16~17
SCHEMATIC DIAGRAM ............................................... 18
PARTS LIST ............................................................ 19~27
SERVICE MANUAL
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA
Products, are already known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destruction of expensive components, and failure of the
product to perform as specified. For these reasons, we advise all YAMAHA product
owners that any service required should be performed by an authorized YAMAHA
Retailer or the appointed service representative.
IMPORTANT:The presentation or sale of this manual to any individual of firm does not constitute
authorization, certification or recognition of any applicable technical capabilities,
or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research,
engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products.
Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation
to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity
your body may have accumulated by grounding yourself to the ground buss in the unit
(heavy gauge black wires connect to this buss).
IMPORTANT:Turn the unit OFF during disassembly and part replacement. Recheck all work before
you apply power to the unit.

1
YST-MS30/YST-MS35D YST-MS30 YST-MS35D
■TO SERVICE PERSONNEL
1. Critical Components information.
Components having special characteristics are marked and
must be replaced with parts having specifications equal to
those originally installed.
2. Leakage Current Measurement (For 120V Model only).
When service has been completed, it is imperative that you
verify that all exposed conductive surfaces are properly insu-
lated from supply circuits.
●Meter impedance should be equivalent to 1500 ohm shunted by
0.15µF.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both polarities.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes
to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WALL
OUTLET EQUIPMENT UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
■FRONT AND REAR PANELS
•Satellite Speakers
Left
YST-MS35D only
YST-MS35D only
RearFront
Top
RearFront
Top
Right

2
YST-MS30/YST-MS35D
YST-MS30 YST-MS35D
•Subwoofer
YST-MS35D
U and C models only
YST-MS35D
U and C models only
A model only B and G models only
Rear
Front Top
YST-MS35D only
YST-MS35D only

3
YST-MS30/YST-MS35D YST-MS30 YST-MS35D
Dimensions (W x H x D)
Satellite 65x75x119mm
(2.6"x3"x7-4.7")
Subwoofer 183x196x183mm
(7.2"x7.7"x7.2")
Weight
Satellite Left: 0.36kg (13 oz.)
Right: 0.45kg (1Ibs.)
Subwoofer 2.3kg (5Ibs. 1oz.)
Finish
YST-MS30
YST-MS30W Computer white color
YST-MS30B Black color
YST-MS35D
YST-MS35DW Computer white color
YST-MS35DB Black color
Accessories
YST-MS30 AC adapter (DC15V, 1.2A)x1
3.5mm stereo mini plug cable with black color(1.8m) x1
8 pcs of nonskid pads x1set
YST-MS35D AC adapter (DC15V, 1.2A)x1
3.5mm stereo mini plug cable with black color(1.8m) x1
USB cable (2m) x1
8 pcs of nonskid pads x1set
CD-ROM x1
System Requirements YST-MS35D
OS: Microsoft Windows 98
CPU: 200 MHz or faster Intel Pentium MMX processor or
equivalent
HDD: At least 10 MB available space
CD-ROM drive for driver installation
USB port compatible with USB standards ver 1.0
* Specifications subject to change without votice.
U ....... U. S. A. model B .......British model
C ....... Canadian model G .......European model
A ....... Australian model
Type Advanced Yamaha Active Servo Technology
(Advanced Y.S.T)
Output Power
Satellite 6W+6W (1kHz, 4 ohms at T.H.D.=10%)
Subwoofer 18W (100Hz, 4 ohms at T.H.D.=10%)
Input Sencitivity 200mV (1kHz, 4 ohms at 6W)
Input Impedance 20 kohms
Frequency Response
Satellite+Subwoofer 45Hz to 20kHz
Crossover Frequency
Satellite/Subwoofer fc=180Hz
Speaker Unit
Satellite : 5cm(2") cone (JA05U8),
Magnetic Shielding Type
Subwoofer: 12cm(5") cone (JA1286),
Magnetic Shielding Type
Input Sction
YST-MS30
Subwoofer 3.5mm stereo mini jack for audio-signal x2
YST-MS35D
Subwoofer 3.5mm stareo mini jack for audio-signal x2
Subwoofer USB digital x1
Output Sction
Subwoofer RCA pin jack connected to Left speaker
8 pin jack connected to Right speaker
Operating Section
Satellite (standby/on)Switch
Volume control
Subwoofer Bass control
Power Supply(AC adapter)
U, C models AC120V/60Hz
A models AC240V/50Hz
B, G models AC230V/50Hz
Intel and Pentium are registered trademarks and MMX is a
trademark of Intel Corporation.
Windows is a registered trademark of Microsoft Corporation
in the United States and/or other countries.
All other trademarks are property of their respective owners.
■SPECIFICATIONS

4
YST-MS30/YST-MS35D
YST-MS30 YST-MS35D

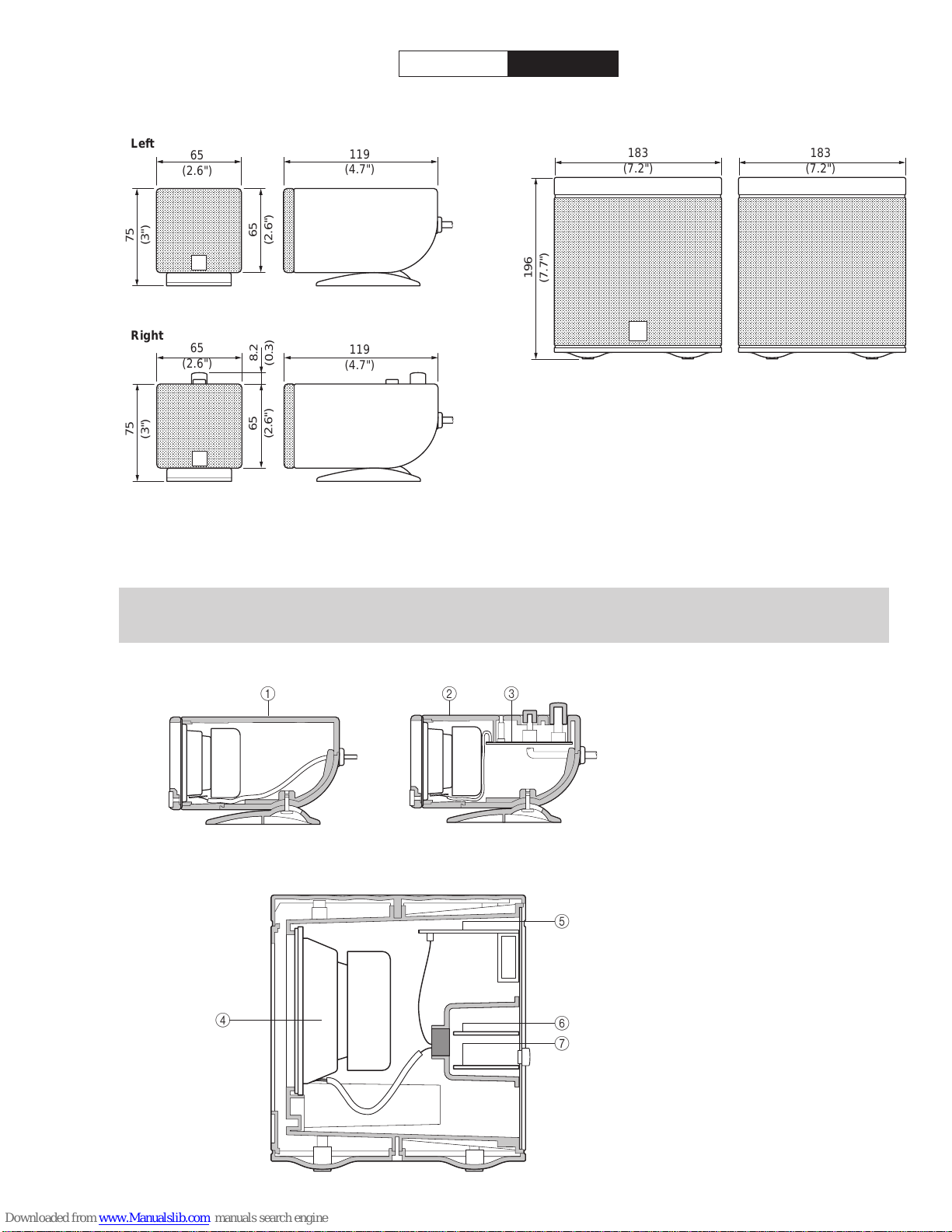

•DIMENSIONS
▼Satellite Speaker ▼Subwoofer
■INTERNAL VIEW
•Satellite Speakers
Notes: The Satellite Speakers are available by the speaker unit (Left or Right).
Individual parts of the Satellite Speakers are not available. (See page 23 and 24 of the PARTS LIST for YST-MS30,
page 25 and 26 of the PARTS LIST for YST-MS35D.)
▼Left ▼Right
1Satellite Speaker Unit L
2Satellite Speaker Unit R
3P. C. B. AMP (3)
•Subwoofer
4Speaker Unit
5P. C. B. AMP (1)
6P. C. B. AMP (4)
(YST-MS35D only)
7P. C. B. MAIN (2)
Units : mm (inch)
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
65
(2.6") 119
(4.7") 183
(7.2") 183 (7.2")
75
(3")
65
(2.6")
65
(2.6") 119
(4.7")
75
(3")
65
(2.6") 8.2
(0.3)
123
5
6
7
4
196
(7.7")
Left
Right

5
YST-MS30/YST-MS35D YST-MS30 YST-MS35D
■DISASSEMBLY PROCEDURES
(Remove parts in disassembly order as numbered.)
•Disassemble of the Subwoofer
1. Removal of the Rear Panel Ass'y.
a. Remove 1 knob from the rear panel ass'y in Fig. 1.
b. Remove 8 screws ( 1) in Fig. 1, and remove the rear
panel ass'y from the cabinet ass'y.
c. Disconnect the speaker cord in Fig. 1.
Fig. 2
Fig. 1
2. Removal of the Speaker Unit
a. Remove 4 screws ( 2) in Fig. 2, and remove the
speaker unit from the cabinet ass'y.
3. Removal of the P. C. B. Ass'y
a. Remove 2 screws (3) in Fig. 3, and remove the P. C. B.
AMP (1) from the rear panel ass'y.
b. Disconnect 2 connectors (CN1 and CN3) from the P. C.
B. AMP (1) in Fig. 3.
c. Remove 4 screws (4) in Fig. 3, and remove the mold
case from the rear panel ass'y.
d. Remove 3 screws (5) in Fig. 3, and remove the P. C. B.
AMP (2) from the rear panel ass'y.
YST-MS35D only
e. Remove 2 screws (6) in Fig. 3, and remove the P. C. B.
AMP (4) from the rear panel ass'y.
f. Disconnect 2 connectors (CN2 and CN5) from the P. C.
B. AMP (4) in Fig. 3.
Fig. 3
Cabinet Ass'y
Rear Panel Ass'y
Speaker Cord
Knob
Cabinet Ass'y
Speaker Unit
11
11
1
22
22
2
Rear Panel Ass'y
33
33
3
66
66
6
55
55
5
44
44
4
P.C.B. AMP (1)
Mold Case
CN1 CN3
P.C.B. AMP (4)
CN2
CN5
P.C.B. AMP (2)
CN3
CN1

YST-MS35D
■USB PORT OPERATION CHECK TEST
The YST-MS35D has a USB port. This USB port operation is checked be necessary whether or not normal state.
1. Installing and verifying the YST-MS35D speaker device drivers
Please follow these steps to install the Yamaha YST-MS35D speaker device drivers in your Windows 98 system using the
included CD-ROM, and verify that Windows 98 recognizes the installed device drivers and that CD audio, sound generated
while using software, and system sounds from the personal computer will be output via the USB port.
(1) Measuring instruments
• Personal Computer (Windows 98)
• CD-ROM (Accessory)
• USB Cable (Accessory)
• AC adapter (Accessory)
(2) System requirements
For digital audio streaming using a USB connection:
OS: Microsoft Windows 98
CPU: 200 MHz or faster Intel Pentium MMX processor or equivalent
HDD: At least 10 MB available space
CD-ROM drive for driver installation
USB port compatible with USB standards ver 1.0
(3) Installing the speaker device drivers
6
YST-MS30/YST-MS35D
1. Connect theYST-MS35D speakers and connect the AC adapter to the AC receptacle. At this time, do not
connect the subwoofer to the computer using the USB cable.
2. Turn on your PC and startWindows 98.
3. Insert theYAMAHAYST-MS35D CD-ROM into the CD-ROM or DVD-ROM drive.
If the Windows 98 Autorun feature is turned on, the installation start up screen appears automatically.
4. Continue with the installation as prompted.
If the Windows 98 Autorun feature is not turned on, you must start the installation manually, as explained below.
5. Double-click the My Computer icon.
The My Computer window opens.
6. Double-click the“Yamaha” CD-ROM icon.
The installation start up screen appears.
7. Continue with the installation as prompted.
8. After the installation is completed, connect the subwoofer to the computer using the USB cable.
Notes:
•Do not connect the PC and the subwoofer using the USB cable before installing theYST-MS35D device
drivers. If you accidentally connect them, refer to “(5) Re-installing the Device Driver”on page 8.
• Before starting, check “(2) System Requirements” section, above, to see that your PC supportsYST-MS35D.
• Make sure that no other CD-ROM is loaded in the CD-ROM drive and that you quit all application programs.
• Have your Windows 98 CD-ROM ready when you install theYamahaYST-MS35D speaker device drivers.You may
need it in some cases.
• The installation procedure may differ from the following instructions depending on the system environment. Follow
the instructions that appear in the dialog box.Please contact your computer’s manufacturer or dealer if you have any
questions.

7
YST-MS30/YST-MS35D YST-MS35D
(4)Verifying the installation of device drivers
After you have installed the device drivers as explained in the previous section, follow the steps below to verify that
Windows 98 recognizes these drivers.
1.Select“Start,” then select“Settings-->Control Panel” from the menu.
2.Double-click“System”in the control Panel to display the“System Properties”panel, select the“Device Manager”
tab, then select“View devices by type.”
3.Click the plus sign (+) for “Human Interface Devices,”“Sound, video and game controllers,”and “Universal Serial
Bus Controller” in the device list, and check to see if “Human Interface Devices,”“YAMAHA YST-MS35D USB
Audio,”and“YAMAHAYST-MS35D USB Composite Device” as shown below.
• The contents of the list on the display shown above may vary depending on the system environment.
Note: If an exclamation point (!), or a question mark (?) appears to the left of the USB device name,
check the ollowing:
1. Make sure that you have installed the drivers from the included CD-ROM.
2. Check to see if the USB cable is connected securely.
3.The AC adapter plug is connected to the AC receptacle.
Select "View devices by type".
"Human Interface Devices" is listed.
Select "View devices by type".
"AMAHAYST-MS35D USB Audio" is listed.
"YAMAHAYST-MS35D USB Composite Device" is listed.

8
YST-MS30/YST-MS35D
YST-MS35D
(5) Re-installing the Device Driver
If you connect the PC and theYST-MS35D via the USB ports using the USB cable before you install the included application
software, theYST-MS35D device driver will not recognize the devices correctly, and will display the following items in the
“System Properties” window:
• USB Audio Device in the list of “Sound, video and game controllers”
• USB Composite Device in the list of “Universal serial bus controller”
To recognize the devices correctly, re-install the driver following the steps below:
1.Make sure theYST-MS35D is connected to the PC via the USB cable.
2.Click the“+” symbol next to“Universal serial bus controller”to display the list.
3.Make sure that“USB Composite Device”appears in the list and click to select it.
4.Click [Remove].
The dialog shown below appears.Click [OK].
“USB Audio Device” will be deleted.
5.Make sure that“USB Composite Device”has been deleted from the list of“Universal serial bus controller.”
6.Disconnect the USB cable.
7.Insert the included CD-ROM into the CD-ROM drive and re-install the device driver.
8.Check the device driver. Refer to“(4) Verifying the installation of device drivers”on page 7.
"USB Composite Device" is listed.

(6) Ensuring the output of audio data from the USB port
Follow the steps below to ensure that the USB port on your computer is ready to output CD audio.
1.Select“Start,” then select“Settings-->Control Panel” from the menu.
2.Double-click“Multimedia”icon in the Control Panel to display the“Multimedia Properties” window, and under
“Playback” in the “Audio”tab, make sure that “YAMAHAYST-MS35D USB Audio”is selected as the “Preferred
device.”
(Depending on the computer, if multiple USB audio devices are connected, the number of devices may appears in paren-
theses.)
3.Select the “CD Music”tab, make sure that the text below the “CD Music Volume” is Active, and check“Enable
digital CD audio for this CD-ROM device.”
If the text below “CD Music Volume” appears in gray, you cannot check the “Enable digital CD audio for this CD-ROM
device” box. In this case, your CD-ROM drive may not be supported.Consult your computer manufacturer or dealer.
Now you are ready to enjoy yourYST-MS35D Speaker System!
"YAMAHAYST-MS35D USB Audio" selected as Preferred device
Enable digital CD audio for this CD-ROM device
• The contents of the list on the display shown at left may
vary depending on the system environment.
• The contents of the list on the display shown at left may
vary depending on the system environment.
9
YST-MS30/YST-MS35D YST-MS35D

2. STARTING THE USB PORT OPERATION CHECK TEST
The USB port operation check test is using the tool for check test "USB Check Version X.X".
(1) Downloading the tool for check test
Pease follow these steps to download the tool for check test in your PC from the homepage of "USB".
1.Access to the URL "http://www.usb.org/developers/index.html".
2."developers" of "USB" homepage will be displayed.
3.Click "Tools" from the menu of "developers".
4.Click "USBComp.exe" from the menu of "Tools".
5.After the file unzips and "USB Check" file, "Hidview" file, and all needed drivers appear.
6.Make sure that "USB Check" file appears and click to select it.
7.After the downloaded, running the tool for check test "USB Check Version X.X".
(2) Starting the check test
Downloading the tool for check test.
[refer to "(1) Downloading the tool for check test".].
↓
"PLUG IN DEVICE (S) TO TEST!" display.
↓
Connect the USB cable to the USB port of the personal computer.
↓
Plug in the USB cable from Personal Computer to "USB INPUT" on the rear panel
of the Subwoofer.
Plug in the
USB Cable from the
Personal Computer.
↓
Start the USB port operation check test.
Rear panel of the Subwoofer
USB
INPUT
10
YST-MS30/YST-MS35D
YST-MS35D

3. DETAIL OF USB PORT OPERATION CHECK TEST
There are 5 items in the USB port operation check test as shown below.
TEST 1 " 00Vid (0X0499) Pid (0X3002) "
"USB Compliance Tool, Version 2.6" display.
↓
Confirm the " 99 Vid (0X0499) Pid (0X3002)".
↓
Confirmation of USB EEPROM (IC201) opration is completed.
↓
Click the "Full Test" for next test.
Confirmed.
Click.
11
YST-MS30/YST-MS35D YST-MS35D

TEST 2 All is checked ("✔").
"USB Chapter 9 Test" display.
↓
Confirm that all is checked ("✔").
↓
Click the "Start Automated Testing" for next test.
Click.
Confirmed.
12
YST-MS30/YST-MS35D
YST-MS35D
TEST 3 " Error Count : 0 "
"Full Test Results" display.
↓
Confirm the " Error Count : 0 ".
Confirmed.
↓
Operation of between USB IC and USB port is normal state.
↓
Enter automated to next test.

TEST 4 " OK "
"USB Compliance Tool" display.
↓
Confirm the " OK ".
↓
Enter automated to next test.
TEST 5 " OK "
"DEVICE IS HID" display.
↓
Confirm the " OK ".
↓
Completed the USB port operation check test.
Confirmed.
Confirmed.
13
YST-MS30/YST-MS35D YST-MS35D

YST-MS30/YST-MS35D
YST-MS30 YST-MS35D
14 15
■BLOCK DIAGRAM
Q201
JK202 L202
WP SDA
SCL VOUTL
VOUTR
XTAL1
XTAL2
SDA
D–
D+
SCL
75
621 24
V
SS
14
15
7
66
7
31
30
V
DD
11 VDD 22 Rch
1IR
3OR
4IL
7OL
5 VCC
2E2
8 PWS
6 RSP+
9 RSPG
33 Lch
2
3
2
3
Regulator
YST-MS35D only
CN2 W202
+3.3V
USB
INPUT
XL201
48MHz
EEPROM
IC202
(MC24C02-W-BN6)
USB D/A Converter
IC201
(UDA1321PS/N101)
Power Amp
IC4
(TDA7370BV)
319
4
768
25
PWS
RSP+
OL
OR
RSPG
E2
IL
IR
3
7
VCC
2
8
JK1
INPUT 1
INPUT 2
JK2
IC6
GND
IN
LSPGRSPGP.G
OUT
Regulator
VR1
–6dB/oct 12dB/oct
L. P. F H. P. F
IC3 IC3
3268
BASS
–6dB/oct
L. P. F
IC6
IC2
IC2
78
32
Vcc
Vcc
BIAS
6dB/oct
H. P. F
6dB/oct
H. P. F
68
+
SATELLITE
Rch
SATELLITE
Lch
TO LEFT
SPEAKER
TO RIGHT
SPEAKER
SUBWOOFER
SP
SP
SW1
(Standby/ON)
VOLUME
Q2
VR2
Q1
Switch
Limitter
Q5
Q4
Q6
IC7
24
IC7
87
A. N. I. C
IC8
87
IC8
24
1
2
9
8
14
15
5
4
3
13
12
11
7
Q3
Mute
JK3
JK5
JK5 CN4
JK4
From
AC
adaptor
DC15V
W201 CN5
VCC
Vcc
Vcc
IC1
IC1
Vcc
Vcc +B
LSP+
LSPG
JK3
6IR
7OR
4IL
3OL
2VCC 5E2
1PWS
8RSP+
9RSPG
BIASVcc
+B Vcc
Vcc
INPUT4–
STAND-BY
OUT4
OUT3 LSP+
LSPG
S-GND
PW-GND
OUT1
OUT2
INPUT3
VCC
VCC
INPUT1
INPUT2–
Vcc Vcc Vcc Vcc BIAS
BIAS
BIAS
BIAS
•Subwoofer •Satellite Speaker Unit (Right)
•Satellite Speaker Unit (Left)
–
+
–
+
–

1
2
3
4
5
6
YST-MS30/YST-MS35D
ABCDEFGH
YST-MS30 YST-MS35D
16
■PRINTED CIRCUIT BOARD (Foil side)
17
OL
OR
SWI
VCC
E
BIAS
LSP+
RSP+
PSW1
OL OR SWI VCC E BIAS LSP+ RSP+ PSW1
+B
E
E Rch Lch E
E
Rch
Lch
E
E
VDD
VDD E
RE
RE
W202
RE
RE
W201
VOLUME
1
INPUT
USB
INPUT
TO RIGHT
SPEAKER TO LEFT SPEAKER BASS DC 15V
2
INPUT
JK5 JK3 JK4
To
Satellite
Speaker
Unit (Right)
To
Satellite
Speaker
Unit (Left)
From
Subwoofer
JK5
From
AC
adaptor
W6
WH
W6
WH
W7
W1
W2
RE
RE
W5
RE
W5
RE
+
–
SUBWOOFER
SATELLITE
Rch
W4
RE
W3
WH
PSW VCC OL IL E2 IR OR RSP+ RSPG
BL GR OR VI RE BR WH or YE BE
P.C.B. AMP(1)
P.C.B. AMP(4)
P.C.B. AMP(3)
P.C.B. AMP(2)
YST-MS35D
only
+
–
Satellite Speaker Unit (Right)
From
Subwoofer
JK3
SATELLITE
Lch
+
–
Satellite Speaker Unit (Left)
• Satellite Speakers• Subwoofer
R
L
1
4
2
3
1325 4678
9
IC7, 8 : uPC4570HA IC6 : uPC4570HA
UDA1321PS/N201
IC202 : M24C02-W-BN6
IC1, 3 : uPC4570HA
IC5 :
NJM78L06A
TDA7370BV
IC2 : uPC4570HA
●Semiconductor Location
Ref. No.
D2
D3
D4
D5
D6
D7
D201
IC1
IC2
IC3
IC4
IC5
IC6
IC7
IC8
IC201
IC202
Q1
Q2
Q3
Q4
Q5
Q6
Q201
Location
D5
C1
D2
C2
C2
C2
C3
C5
E1
C5
D2
D5
D2
C2
C2
C3
C3
G2
G2
D5
C1
D1
C1
C4

A
1
2
3
4
5
6
7
8
YST-MS30/YST-MS35D
BC D E F G H I J K
18
IC4 : TDA7370BV
Quad Power Amp
IC1~3, 6~8 : uPC4570HA
Dual OP-Amp
■SCHEMATIC DIAGRAM
PIN CONNECTION DIAGRAM OF DIODES, TRANSISTORS AND IC’s.
NJM78L06A
2SA733(P,Q)
2SC945A(Q,P)
2SC3792
1SS133
MTZJ3.9A
Anode
Cathode
2SK304(E)
1 2 3
–+
1+– 2
4 5 6 7 8 9
Vcc Vo1 –Vin1 +Vin1 V EE +Vin2 –Vin2 Vo2 Vcc
UPC4570HA TDA7370BV 2SD1200F(Q,R) M24C02-W-BN6 UDA1321PS/N101
DSG
321
1.COMMON
2.INPUT
3.OUTPUT
9
1
14
8
BCE
16
1
32
★ All voltages are measured with a 10M Ω /V DC electric volt meter.
★ Components having special characteristics are marked and
must be replaced with parts having specifications equal to those
originally installed.
★ Schematic diagram is subject to change without notice.
YST-MS30 YST-MS35D
USB
INPUT
DC15V
JK5 JK3
–
+
SATELLITE
Rch
VOLUME
–
+
SATELLITE
Lch
+
–
SUBWOOFER
AMP(3)
AMP(1)AMP(2)
AMP(4)
BASS
TO RIGHT
SPEAKER
1
INPUT
2
INPUT
From
AC
adapter
TO LEFT
SPEAKER
+B
OL
OR
SWI
VCC
E
VDD
E
BIAS
LSP+
RSP+
PSW1
E
Lch
Rch
Lch
E
E
VDD
LSPG
LSP+
Rch
E
Rch
E
Lch
E
YST-MS35D
only
•Subwoofer
•Satellite Speakers
Satellite Speaker Unit (Right)
Satellite Speaker Unit (Left)
IC201 UDA1321PS/N101
IC202
M24C02-W-BN6
TDA7370BV
A. N. I. C
LIMITTER
L. P. F
POWER AMPH. P. F
H. P. F
MUTE
REGULATOR
USB D/A
CONVERTER
EEPROM
REGULATOR
L. P. F
5.9
5.9
15.1
5.9
5.9
5.9
0
5.9
15.1
5.9
5.9
15.1
5.9
5.9
5.9
5.9
15.1
8. 2 8. 2
16. 7
0. 8 0. 8 0. 8
10. 4
0 0
0. 8 0. 8
16.7
8.2
8.2
5.9
6.0
5.9
5.9
5.9
6.0 5.9 5.9 5.9
5.9 5.9
0
5.9
15.1
5.9
5.9
5.9
15.1
5. 9
5.9
5.9
15.1
0
5.9
5.9
5.9 4.2
7.0 7.0
15.1 0
5.9
5.9 5.9
15.1
5.6
5.9
5.9
5.6
6.0 5.9
5.9
15.1
0
1.9 0
0
0
0
0
0
5.9
015.1
5.8
5.8
6.0
5.9
14.5
14.515.1
13.8
5.9
5.9
15.1
5.9
0
0
0
3.2
3.2
0
0
0
0
0
3.2 9.9
3.9
0
3.2
3.2
3.2
3.2
3.2
0
0
0
0
3.2
0
0
0
0
1.4
1.2
3.2
3.2
3.2
1.6
0
0
1.6
3.2
0
3.2
0
1.6
0
5.915.2
WH
RE
GP2/DO
GP3/WSO
GP4/BCKO
SHTCB
NC
D–
D+
V
DD I
VssI
VssE
V
DD E
NC
VssX
XTAL1
XTAL2
V
DD X
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GP1/DI
SDA
SCL
GP5/WSI
NC
GP0/BCKI
RTCB
TC
VOUTL
V
DD O
VssO
VOUTR
V
DD A
VssA
Vref
NC
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
TOPVIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
GP2/DO
GP3/WSO
GP4/BCKO
SHTCB
NC
D–
D+
V
DD I
VssI
VssE
V
DD E
NC
VssX
XTAL1
XTAL2
V
DD X
I/O
I/O
I/O
I
O
O
O
∗1
∗1
∗1
∗2
Unconnected
Negative
Positive
Power supply
Ground
Ground
Power supply
Unconnected
Ground
Input
Output
Power supply
Data line of the differential
data bus common to the
USB-standard.
(for digital core)
(for digital I/O)
(for Crystal oscillator)
(for OPE-AMP.)
(for analog)
∗1
Serial data (I
2
C-Bus)
Serial clock (I
2
C-Bus)
∗1
Unconnected
∗1
∗2
∗2
Lch Output voltage
Power supply
Ground
Rch output voltrage
Power supply
Ground
Reference Voltage
Unconnected
GP1/DI
SDA
SCL
GP5/WSI
NC
GP0/BCKI
RTCB
TC
VOUTL
V
DD O
VssO
VOUTR
V
DD A
VssA
Vref
NC
No. No.Name I/OI/O Function FunctionName
NOTE) ∗1 : Normally unconnected. ∗2 : Normally connected to ground.
18
Vref
3rd-ORDER
NOISE SHAPER
REFERENCE VOLTAGE
VARIABLE HOLD REGISTER
LEFT DAC
OSC TIMING
RIGHT DAC
FOR DIGITAL I/O
FOR DIGITAL CORE
FIFO REGISTERS
UP-SAMPLE FILTER
USB-PROCESSOR
ANALOG FRONT-END
AUDIO FEATURE
PROCESSING DSP
SAMPLE
FREQUENCY
GENERATOR
MICRO-
CONTROLLER
DIGITAL I/O
fs
fs
64fs
128fs
7 6
D+ D–
+
–+ –
29
27
32
1
2
3
16
15
14
13
24
V DD X
XTAL2
XTAL1
VssX
VOUTL
TEST
CONTROL
BLOCK
4
20
25
GP5/WSI
GP0/BCKI
GP1/DI
GP2/DO
GP3/WSO
GP4/BCKO
SHTCB
RTCB
TC
30
11
10
31
SCL
SDA
FOR ANALOG
20
19
V DD A
VssA
9
8
V DD E
VssE
VssI
V
DD I
FOR OPE-AMP
23
21
22
V DD O
VOUTR
VssO
only
A0
A1
A2
Vss
1
2
3
4
Vcc
WP
SCL
SDA
8
7
6
5
TOPVIEW
1
2
3
4
8
7
6
5
A0
A1
A2
Vss
O
I/O
∗1
∗1
∗1
Ground
Power supply
∗2
Serial clock (I
2
C-Bus)
Serial data (I
2
C-Bus)
Vcc
WP
SCL
SDA
No. No.Name I/OI/O Function FunctionName
NOTE) ∗1 : Normally connected to ground. ∗2 : Normally connected to power supply.
4 8 7
5 6
I/O
CONTROL
LOGIC
MEMORY
CONTROL
LOGIC XDEC EEPROM
ARRAY
PAGE LATCHES
HV GENERATOR
YDEC
SENSE AMP
R/W CONTROL
Vss Vcc
SDA SCL
WP
IC202: M24C02-W-BN6
2k 2.5V CMOS Serial
Electrically Erasable PROM
(EEPROM)
YST-MS35D
YST-MS35Donly
13
Vcc 3 Vcc
A1
A2 INV.
A3
A4 INV.
4INPUT1
STAND-BY
5INPUT2–
12INPUT3
11INPUT4–
6
SVR 8 PW-GND 9 S-GND
+
-
1 OUT1
2 OUT2
15 OUT3
14 OUT4
19 CLIP DET
+
-
+
-
+
-
7
1
215
IC201: UDA1321PS/N101
Universal Serial Bus (USB)
Digital-to-Analog Converter (DAC)

19
YST-MS30/YST-MS35D
PARTS LIST
■ELECTRICAL PARTS
ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS:
C. A. EL. CHP : CHIP ALUMI. ELECTROLYTIC CAP
C. CE : CERAMIC CAP
C. CE. ARRAY : CERAMIC CAP ARRAY
C. CE. CHP : CHIP CERAMIC CAP
C. CE. ML : MULTILAYER CERAMIC CAP
C. CE. M. CHP : CHIP MULTILAYER CERAMIC CAP
C. CE. SAFTY : RECOGNIZED CERAMIC CAP
C. CE. TUBLR : CERAMIC TUBULAR CAP
C. CE. SMI : SEMI CONDUCTIVE CERAMIC CAP
C. EL : ELECTROLYTIC CAP
C. MICA : MICA CAP
C. ML. FLM : MULTILAYER FILM CAP
C. MP : METALLIZED PAPER CAP
C. MYLAR : MYLAR FILM CAP
C. MYLAR. ML : MULTILAYER MYLAR FILM CAP
C. PAPER : PAPER CAPACITOR
C. PLS : POLYSTYRENE FILM CAP
C. POL : POLYESTER FILM CAP
C. POLY : POLYETHYLENE FILM CAP
C. PP : POLYPROPYLENE FILM CAP
C. TNTL : TANTALUM CAP
C. TNT. CHP : CHIP TANTALUM CAP
C. TRIM : TRIMMER CAP
CN : CONNECTOR
CN. BS. PIN : CONNECTOR, BASE PIN
CN. CANNON : CONNECTOR, CANNON
CN. DIN : CONNECTOR, DIN
CN. FLAT : CONNECTOR, FLAT CABLE
CN. POST : CONNECTOR, BASE POST
COIL. MX. AM : COIL, AM MIX
COIL. AT. FM : COIL, FM ANTENNA
COIL. DT. FM : COIL, FM DETECT
COIL. MX. FM : COIL, FM MIX
COIL. OUTPT : OUTPUT COIL
DIOD. ARRAY : DIODE ARRAY
DIODE. BRG : DIODE BRIDGE
DIODE. CHP : CHIP DIODE
DIODE. VAR : VARACTOR DIODE
DIOD. Z. CHP : CHIP ZENER DIODE
DIODE. ZENR : ZENER DIODE
DSCR. CE : CERAMIC DISCRIMINATOR
FER. BEAD : FERRITE BEADS
FER. CORE : FERRITE CORE
FET. CHP : CHIP FET
FL. DSPLY : FLUORESCENT DISPLAY
FLTR. CE : CERAMIC FILTER
FLTR. COMB : COMB FILTER MODULE
FLTR. LC. RF : LC FILTER, EMI
GND. MTL : GROUND PLATE
GND. TERM : GROUND TERMINAL
HOLDER. FUS : FUSE HOLDER
IC. PRTCT : IC PROTECTOR
JUMPER. CN : JUMPER CONNECTOR
JUMPER. TST : JUMPER, TEST POINT
L. DTCT : LIGHT DETECTING MODULE
L. EMIT : LIGHT EMITTING MODULE
LED. DSPLY : LED DISPLAY
LED. INFRD : LED, INFRARED
MODUL. RF : MODULATOR, RF
PHOT. CPL : PHOTO COUPLER
PHOT. INTR : PHOTO INTERRUPTER
PHOT. RFLCT : PHOTO REFLECTOR
PIN. TEST : PIN, TEST POINT
PLST. RIVET : PLASTIC RIVET
R. ARRAY : RESISTOR ARRAY
R. CAR : CARBON RESISTOR
R. CAR. CHP : CHIP RESISTOR
R. CAR.FP : FLAME PROOF CARBON RESISTOR
R. FUS : FUSABLE RESISTOR
R. MTL. CHP : CHIP METAL FILM RESISTOR
R. MTL. FILM : METAL FILM RESISTOR
R. MTL. OXD : METAL OXIDE FILM RESISTOR
R. MTL. PLAT : METAL PLATE RESISTOR
RSNR. CE : CERAMIC RESONATOR
RSNR. CRYS : CRYSTAL RESONATOR
R. TW. CEM : TWIN CEMENT FIXED RESISTOR
R. WW : WIRE WOUND RESISTOR
SCR. BND. HD : BIND HEAD B-TITE SCREW
SCR. BW. HD : BW HEAD TAPPING SCREW
SCR. CUP : CUP TITE SCREW
SCR. TERM : SCREW TERMINAL
SCR. TR : SCREW, TRANSISTOR
SUPRT. PCB : SUPPORT, P. C. B.
SURG. PRTCT : SURGE PROTECTOR
SW. TACT : TACT SWITCH
SW. LEAF : LEAF SWITCH
SW. LEVER : LEVER SWITCH
SW. MICRO : MICRO SWITCH
SW. PUSH : PUSH SWITCH
SW. RT. ENC : ROTARY ENCODER
SW. RT. MTR : ROTARY SWITCH WITH MOTOR
SW. RT : ROTARY SWITCH
SW. SLIDE : SLIDE SWITCH
TERM. SP : SPEAKER TERMINAL
TERM. WRAP : WRAPPING TERMINAL
THRMST. CHP : CHIP THERMISTOR
TR. CHP : CHIP TRANSISTOR
TR. DGT : DIGITAL TRANSISTOR
TR. DGT. CHP : CHIP DIGITAL TRANSISTOR
TRANS : TRANSFORMER
TRANS. PULS : PULSE TRANSFRMER
TRANS. PWR : POWER TRANSFORMER ASS'y
TUNER. AM : TUNER PACK, AM
TUNER. FM : TUNER PACK, FM
TUNER. PK : FRONT-END TUNER PACK
VR : ROTARY POTENTIOMETER
VR. MTR : POTENTIOMETER WITH MOTOR
VR. SW : POTENTIOMETER WITH ROTARY SW
VR. SLIDE : SLIDE POTENTIOMETER
VR. TRIM : TRIMMER POTENTIOMETER
Components having special characteristics are marked !and must be
replaced with parts having specifications equal to those originally installed.
●Carbon resistors (1/6W or 1/4W) are not included in the ELECTRICAL PARTS
List. For the parts Nos. of the carbon resistores,refer to the last page.
■WARNING

20
YST-MS30/YST-MS35D
Schm
Ref PART NO. Description
Remarks
✻New Parts
✻New Parts
Schm
Ref PART NO. Description
Remarks
AAX09900 P.C.B. AMP 057474
C1 AAX09500 C.CE 1000pF 50V 051720
C2 AAX09500 C.CE 1000pF 50V 051720
C3 VG287200 C.EL 10uF 50V 066833
C4 VG287200 C.EL 10uF 50V 066833
C7 VG287200 C.EL 10uF 50V 066833
C10 VG287200 C.EL 10uF 50V 066833
C11 FG644100 C.CE 0.01uF 50V 065452
C12 VG287200 C.EL 10uF 50V 066833
C13 AAX09710 C.POL 0.047uF 50V 064959
C14 AAX09710 C.POL 0.047uF 50V 064959
C15 UA655220 C.MYLAR 0.22uF 50V 065307
C16 VG287200 C.EL 10uF 50V 066833
C17 VG287200 C.EL 10uF 50V 066833
C20 UA655150 C.MYLAR 0.15uF 50V 065292
C21 UA655330 C.MYLAR 0.33uF 50V 044570
C22 AAX09260 C.FILM 0.082uF 50V 065365
C23 AAX09260 C.FILM 0.082uF 50V 065365
C24 AAX09890 C.EL 470uF 25V 066444
C25 FG644100 C.CE 0.01uF 50V 065452
C26 AAX09890 C.EL 470uF 25V 066444
C27 AAX09890 C.EL 470uF 25V 066444
C28 VG287500 C.EL 47uF 50V 066963
C29 VG287200 C.EL 10uF 50V 066833
C30 AAX09390 C.EL 0.47uF 50V 054182
C31 VG287200 C.EL 10uF 50V 066833
C32 UA655100 C.MYLAR 0.1uF 50V 065269
C33 AAX09250 C.FILM 0.027uF 50V 054331
C34 VG287200 C.EL 10uF 50V 066833
C35 VG287500 C.EL 47uF 50V 066963
C36 VG287500 C.EL 47uF 50V 066963
C37 VG287200 C.EL 10uF 50V 066833
C38 VG289300 C.EL 1000uF 25V 066161
C39 VG287500 C.EL 47uF 50V 066963
C40 VG289300 C.EL 1000uF 25V 066161
C41 UA655100 C.MYLAR 0.1uF 50V 065269
C42 VG287200 C.EL 10uF 50V 066833
C43 VG287600 C.EL 100uF 25V 066840
C44 VG287200 C.EL 10uF 50V 066833
C45 AAX09150 C.EL 4700uF 25V 066740
C46 VG287200 C.EL 10uF 50V 066833
C47 AAX09530 C.CE 100pF 50V 065382
C48 AAX09530 C.CE 100pF 50V 065382
C49 VG287500 C.EL 47uF 50V 066963
C50 AAX09530 C.CE 100pF 50V 065382
C51 AAX09530 C.CE 100pF 50V 065382
C52 AAX09530 C.CE 100pF 50V 065382
C53 VG287200 C.EL 10uF 50V 066833
C54 FG644100 C.CE 0.01uF 50V 065452
C55 FG644100 C.CE 0.01uF 50V 065452
C56 FG644100 C.CE 0.01uF 50V 065452
CN1 XX707300 CN
B09B-PH-K-S 081731
CN3 LB932020 CN.BS.PIN 2P 081661
CN4 XX707300 CN
B09B-PH-K-S 081731
D1 AAX09220 LED(gr) SLR-342MG 054160
D2 iF004600 DIODE 1SS133 069460
D3 iF004600 DIODE 1SS133 069460
D4 iF004600 DIODE 1SS133 069460
D5 iF004600 DIODE 1SS133 069460
D6 iF004600 DIODE 1SS133 069460
D7 iF004600 DIODE 1SS133 069460
IC1 XB247A00 IC uPC4570HA 070111
IC2 XB247A00 IC uPC4570HA 070111
IC3 XB247A00 IC uPC4570HA 070111
IC4 AAX09210 IC TDA7370BV 054128
IC5 iG130400 IC NJM78L06A 070429
IC6 XB247A00 IC uPC4570HA 070111
IC7 XB247A00 IC uPC4570HA 070111
IC8 XB247A00 IC uPC4570HA 070111
JK1 V4273000 JACK.MINI
MSJ-035-12D 053128
JK2 V4273000 JACK.MINI
MSJ-035-12D 053128
JK3 AAX09240 JACK.RCA 049691
JK4 V5095000 JACK.DC
LGP7031-0300 054126
JK5 AAX09170
SOCKET.DIN CMS5008-0101 084753
Q1 VZ229400 TR 2SC3792 068859
Q2 VZ229400 TR 2SC3792 068859
Q3 XX707330 TR 2SA733 PQ 073507
Q4 XX707340 TR 2SC945A
QP 073538
Q5 XX707330 TR 2SA733 PQ 073507
Q6 AAX09180 FET 2SK304 E 051061
R43 HV754390 R.CAR.FP 39Ω1/4W 067489
R44 AAX09880 R.CAR.FP 22Ω1/4W 054214
R54 Vi435900 R.MTL.OXD 0.1Ω1W 068134
R55 HV754220 R.CAR.FP 22Ω1/4W 067488
R56 HV754680 R.CAR.FP 68Ω1/4W 067490
R68 AAX09780 R.MTL.FLM 20KΩ1/4W 068187
R69 VP441400 R.MTL.FLM 10KΩ1/4W 068279
R70 VP441400 R.MTL.FLM 10KΩ1/4W 068279
R71 VP441400 R.MTL.FLM 10KΩ1/4W 068279
ST1 AAX09540 TERM M1698 084778
SW1 XX707260 SW.PUSH SPPH13W 072687
VR1 AAX09300 VR 15.5KA 048311
VR2 AAX09310 VR
20KAx2 LM1-20 054314
W7 AAX09400 CORD 9P MAIN 054159
EP600250 SCR.BND.HD 3x8 ZMC2-Y 075636
VT246400
HOLDER.LED 080338
AAX09650 HEAT.SINK 053466
YST-MS30
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻

21
YST-MS30/YST-MS35D
C203 AAX09490 C.CE 22pF 50V 051094
C204 FG644100 C.CE 0.01uF 50V 065452
C205 AAX09970 C.CE 0.01uF 50V 049191
C206 AAX09970 C.CE 0.01uF 50V 049191
C207 FG644100 C.CE 0.01uF 50V 065452
C208 AAX09510 C.CE 4.7pF 50V 055100
C209 FG644100 C.CE 0.01uF 50V 065452
C210 FG644100 C.CE 0.01uF 50V 065452
C211 FG644100 C.CE 0.01uF 50V 065452
C212 XX698870 C.POL 0.01uF 50V 065000
C213 AAX09520 C.CE 12pF 50V 055101
C214 FG644100 C.CE 0.01uF 50V 065452
C215 VG287500 C.EL 47uF 50V 066963
C216 VG287500 C.EL 47uF 50V 066963
C217 VG290800 C.EL 4.7uF 63V 045313
C218 VG287600 C.EL 100uF 25V 066840
C219 VG287500 C.EL 47uF 50V 066963
C220 FG644100 C.CE 0.01uF 50V 065452
C221 FG644100 C.CE 0.01uF 50V 065452
C222 FG644100 C.CE 0.01uF 50V 065452
C223 AAX09970 C.CE 0.01uF 50V 049191
CN1 XX707300 CN
B09B-PH-K-S 081731
CN2 AAX09440 CN
B04B-PH-K-S 081698
CN3 LB932020 CN.BS.PIN 2P 081661
CN4 XX707300 CN B09B-PH-K-S 081731
CN5 AAX09430 CN
B02B-PH-K-S 081678
D1 AAX09220 LED(gr) SLR-342MG 054160
D2 iF004600 DIODE 1SS133 069460
D3 iF004600 DIODE 1SS133 069460
D4 iF004600 DIODE 1SS133 069460
D5 iF004600 DIODE 1SS133 069460
D6 iF004600 DIODE 1SS133 069460
D7 iF004600 DIODE 1SS133 069460
D201 AAX09550
DIODE.ZENR MTZJ3.9A 050251
IC1 XB247A00 IC uPC4570HA 070111
IC2 XB247A00 IC uPC4570HA 070111
IC3 XB247A00 IC uPC4570HA 070111
IC4 AAX09210 IC TDA7370BV 054128
IC5 iG130400 IC NJM78L06A 070429
IC6 XB247A00 IC uPC4570HA 070111
IC7 XB247A00 IC uPC4570HA 070111
IC8 XB247A00 IC uPC4570HA 070111
IC201 XW001A00 IC
UDA1321PS/N101 050135
IC202 AAX09190 IC
M24C02-W-BN6 050134
JK1 V4273000 JACK.MINI
MSJ-035-12D 053128
JK2 V4273000 JACK.MINI
MSJ-035-12D 053128
JK3 AAX09240 JACK.RCA 049691
JK4 V5095000 JACK.DC LGP7031-0300 054126
JK5 AAX09170
SOCKET.DIN CMS5008-0101 084753
JK202 V4510300 CN.USB
UBBR-2004W-30S-T 053589
L201 AAX09410 COIL 051093
L202 V3979700 COIL
ZJY51R5-M4PA 052153
L203 V5117800 FER.CORE B-10 056199
AAX09920 P.C.B. AMP 057476
C1 AAX09500 C.CE 1000pF 50V 051720
C2 AAX09500 C.CE 1000pF 50V 051720
C3 VG287200 C.EL 10uF 50V 066833
C4 VG287200 C.EL 10uF 50V 066833
C7 VG287200 C.EL 10uF 50V 066833
C10 VG287200 C.EL 10uF 50V 066833
C11 FG644100 C.CE 0.01uF 50V 065452
C12 VG287200 C.EL 10uF 50V 066833
C13 AAX09710 C.POL 0.047uF 50V 064959
C14 AAX09710 C.POL 0.047uF 50V 064959
C15 UA655220 C.MYLAR 0.22uF 50V 065307
C16 VG287200 C.EL 10uF 50V 066833
C17 VG287200 C.EL 10uF 50V 066833
C20 UA655150 C.MYLAR 0.15uF 50V 065292
C21 UA655330 C.MYLAR 0.33uF 50V 044570
C22 AAX09260 C.FILM 0.082uF 50V 065365
C23 AAX09260 C.FILM 0.082uF 50V 065365
C24 AAX09890 C.EL 470uF 25V 066444
C25 FG644100 C.CE 0.01uF 50V 065452
C26 AAX09890 C.EL 470uF 25V 066444
C27 AAX09890 C.EL 470uF 25V 066444
C28 VG287500 C.EL 47uF 50V 066963
C29 VG287200 C.EL 10uF 50V 066833
C30 AAX09390 C.EL 0.47uF 50V 054182
C31 VG287200 C.EL 10uF 50V 066833
C32 UA655100 C.MYLAR 0.1uF 50V 065269
C33 AAX09250 C.FILM 0.027uF 50V 054331
C34 VG287200 C.EL 10uF 50V 066833
C35 VG287500 C.EL 47uF 50V 066963
C36 VG287500 C.EL 47uF 50V 066963
C37 VG287200 C.EL 10uF 50V 066833
C38 VG289300 C.EL 1000uF 25V 066161
C39 VG287500 C.EL 47uF 50V 066963
C40 VG289300 C.EL 1000uF 25V 066161
C41 UA655100 C.MYLAR 0.1uF 50V 065269
C42 VG287200 C.EL 10uF 50V 066833
C43 VG287600 C.EL 100uF 25V 066840
C44 VG287200 C.EL 10uF 50V 066833
C45 AAX09150 C.EL 4700uF 25V 066740
C46 VG287200 C.EL 10uF 50V 066833
C47 AAX09530 C.CE 100pF 50V 065382
C48 AAX09530 C.CE 100pF 50V 065382
C49 VG287500 C.EL 47uF 50V 066963
C50 AAX09530 C.CE 100pF 50V 065382
C51 AAX09530 C.CE 100pF 50V 065382
C52 AAX09530 C.CE 100pF 50V 065382
C53 VG287200 C.EL 10uF 50V 066833
C54 FG644100 C.CE 0.01uF 50V 065452
C55 FG644100 C.CE 0.01uF 50V 065452
C56 FG644100 C.CE 0.01uF 50V 065452
C201 FG644100 C.CE 0.01uF 50V 065452
C202 AAX09490 C.CE 22pF 50V 051094
✻New Parts
Schm
Ref PART NO. Description
Remarks
YST-MS35D
✻New Parts
Schm
Ref PART NO. Description
Remarks
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
