RMB/ENERGIE GmbH | 3
Document information
Manual neoTower®Power Storage | (02/2022)
1. Document information
i
1.1 Validity
Translation of the original operating manual. In this
manual the product is referred to as "system or "unit".
This manual is valid for the following products:
Battery storage system (BSS)
−BSS 7
−BSS 11
−BSS 21
Blackout start (BOS)
−BOS 18
−BOS 21
−BOS 36
−BOS 57
−BOS 114
This manual is protected by copyright. Reproduction,
reprinting and distribution is only permitted with the
consent of the manufacturer.
Subject to change without notice.
1.2 Supplementary information
The following supplementary information and
documents are available at www.rmbenergie.com:
Technical data
Product brochure
Registration documents for the energy supplier

4 | RMB/ENERGIE GmbH
Document information
Manual neoTower®Power Storage | (02/2022)
1.3 Safety information
⚠ DANGER!
Information highlighted with the word DANGER
indicates a hazardous situation that will result in death
or serious injury.
⚠ WARNING!
Information highlighted with the word WARNING
indicates a hazardous situation that can result in death
or serious injury.
⚠ CAUTION!
Information highlighted with the word CAUTION
indicates a situation that can cause slight or moderate
injury.
⚠ ATTENTION!
Information highlighted with the word ATTENTION
indicates a situation that can cause damage to property
or the environment.
1.4 Explanation of symbols
Texts
►Required action
−List
D Reference to other places in this document
Reference to other documents that must be
observed
→Web link
Illustrations
In this manual the neoTower®BOS 21 power storage
is shown as an example. Illustrations may differ from
other models. If you have any questions, please
contact the manufacturer.

RMB/ENERGIE GmbH | 5
Safety information
Manual neoTower®Power Storage | (02/2022)
2. Safety information
2.1 Intended use
The unit is a battery power storage system which can
boost coverage of the building’s power consumption.
With this system the surplus generated electricity is
stored in high-quality, modern batteries.
The system may only be used if it is in perfect
technical condition and has been commissioned by the
manufacturer or by a specialist partner authorised by
the manufacturer.
Intended use also includes reading and complying with
the instructions in this manual.
Any other use is considered to be contrary to the
intended use.
2.2 Authorised target groups
This manual is intended for different target groups that
are authorised for specific assignments.
2.2.1 Manufacturer
The manufacturer supplies the product and has the
following responsibilities:
−Training of technicians for assembly, maintenance,
disassembly and disposal.
−Commissioning of the system.
Only the manufacturer has access to the "Expert" area
in the "RMB/Control".
2.2.2 Operator
The operator is responsible for the building in which
the product is used. The operator has the following
responsibilities:
−Compliance with requirements by the energy
supplier (e.g. registration, licensing, remuneration).
−Compliance with the installation site requirements.
−Induction of users.
−Compliance with legal occupational safety
regulations.
−Compliance with applicable safety, accident
prevention and environmental protection
regulations.
−Provision and observance of documentation.
−Ensuring that the product is always in a technically
perfect condition.
−If necessary, storage of the system.
2.2.3 Technician
Technicians are responsible for the assembly,
maintenance, disassembly and disposal of the product.
The following points must be observed:
−Work may only be carried out by qualified personnel
who have been trained by the manufacturer and
are familiar with installation engineering, gas and
water installations as well as the applicable safety
regulations.
−Special work during installation (e.g. work involving
the building’s structure or the ventilation system)
may only be carried out by appropriately qualified
personnel from specialist companies.
−Electrical installations may only be carried out by
qualified electricians.
Only skilled personnel who have been trained by the
manufacturer have access to the "Technician" area in
the "RMB/Control".
2.2.4 User
Users are permitted to carry out certain operational and
cleaning tasks. User requirements:
−Users must be trained by the operator on the
product.
−They must be familiar with the instructions in this
manual.
Authorised users have access to the unprotected
areas in the "RMB/Control", but not to the "Expert" and
"Technician" areas.

6 | RMB/ENERGIE GmbH
Safety information
Manual neoTower®Power Storage | (02/2022)
2.3 General safety instructions
⚠ WARNING!
Danger resulting from non-compliance with these
instructions!
This manual contains important information for safe
handling of the system. Special attention is drawn to
possible hazards. Failure to comply with warnings may
result in death or serious injury.
►Read the instructions carefully.
►Follow the safety instructions in this manual.
►Observe the safety instructions on the system.
►Keep the instructions in an easily accessible place.
Use of the system is prohibited:
−If the system or individual components are
damaged.
−If unauthorised alterations or modifications have
been made to the system.
−If protective devices are non-functional or missing.
−During the construction phase of the building.
−After storage of the system for more than
6 months after delivery.
−After decommissioning of the system for more than
6 months.
−By children or persons who cannot assess hazards
when handling the system.
In the following cases the manufacturer does not
assume any liability or warranty in the event of
damage:
−If the instructions in this manual are not followed.
−In the event of improper use.
−In the event of improper handling.
−When used by unauthorised target groups.
−Failure to meet the installation site requirements.
−When using spare parts that are not approved by
the manufacturer.
−When bypassing the safety devices on the system.
−If seals and sealings on the system are removed.
−In the event of non-compliance with the
maintenance intervals.

RMB/ENERGIE GmbH | 7
Safety information
Manual neoTower®Power Storage | (02/2022)
2.4 Safety information
⚠ DANGER!
Life-threatening electric shock
Bridging the battery terminals causes a short circuit
which causes current to flow. Such a short circuit must
be avoided at all costs. Observe the following points:
►Use insulated tools and gloves.
►Never place any tools or metal parts on the battery
modules.
►Put down metallic objects before starting work.
►Never operate the system in potentially explosive
atmospheres or areas with possible fire hazards.
⚠ DANGER!
Fire hazard due to improper handling
Improper handling can cause lithium battery cells to
ignite. For this reason
always observe the following specifications for handling
lithium battery cells:
►Do not install or operate the battery modules in
potentially explosive atmospheres or in areas with
high humidity.
►Store the battery modules in a dry place and within
the temperature ranges specified on the data sheet
►Do not open, puncture or drop the battery modules.
►Do not expose the battery modules to high
temperatures.
►Do not throw the battery modules into a fire.
►Do not use defective or damaged battery modules.
⚠ DANGER!
Risk of death due to misuse
Any use of the battery storage system other than for its
intended purpose or any other use
can be extremely dangerous.
⚠ WARNING!
Moisture!
►The system must be installed in a dry place.
►The system and external cables must be protected
against exposure to water.
►Never clean the system with liquid cleaning agents.
2.5 Protective devices
⚠ WARNING!
The protective devices serve to ensure safety when
handling the system. Missing or defective protective
devices can result in hazardous situations.
►Make sure that protective devices are not removed.
►Observe the safety instructions on the individual
components of the system.
►
2.6 Handling the battery modules
⚠ WARNING!
The battery modules that are compatible with the
power storage system are protected by several safety
devices and are safe when used as intended. If the
batteries are not used as intended or in the event of a
fault, the battery cells inside the
battery modules can be damaged.
This can have the following consequences:
• Considerable heat generation on the surface of the
battery cells.
• Leakage of electrolytes, fumes and/or smoke.
• Ignition of the discharged electrolytes and a flash fire.
• Irritation of the skin, eyes and mucous membranes
caused by fumes or smoke from burning battery
modules.
To ensure compliance with the intended use of the unit:
►Do not open the battery modules.
►Do not mechanically damage (pierce, deform,
dismantle etc.) or otherwise modify the battery
modules
►Do not heat the battery modules, keep them away
from igniting sources and only operate them within
the permitted temperature range.
►Do not allow the battery modules to come into
contact with water (except to extinguish the power
storage system in the event of a fire).
►Do not short-circuit battery modules.
►Do not continue to use battery modules that have
been damaged in any way.
►Do not permit exhaustive discharge of the battery
modules or charge them with external chargers.
►Do not operate the battery modules outside the
storage system.

8 | RMB/ENERGIE GmbH
Product information
Manual neoTower®Power Storage | (02/2022)
3. Product information
3.1 Principle of operation
The use of a specially designed power storage
increases coverage of the building’s power
consumption. The excess electricity produced is stored
in high-quality batteries.
In addition, a blackout start system can secure the
power supply in the event of a blackout of the mains
supply network. In the event of a power failure, the
system supplies the connected consumers. The
system is switched over within milliseconds, ensuring
uninterrupted operation of the electronic devices. The
systems are of modular design and can be calculated
for the required storage capacity.
3.2 Registration with the energy supplier
The energy supplier must be notified when the system
is installed. Operator requirements:
►Inform yourself of any relevant requirements.
►Notify the energy supplier before installing the
system.
►Meet the energy supplier specifications (e.g.
registration, approval).
►Submit all the relevant system data to the energy
supplier.
Technical data
The technical data sheets can be downloaded from
the manufacturer's website.
3.3 Product versions
Battery storage system (BSS)
−BSS 7
−BSS 11
−BSS 21
Blackout start (BOS)
−BOS 18
−BOS 21
−BOS 36
−BOS 57
−BOS 114

RMB/ENERGIE GmbH | 9
Product information
Manual neoTower®Power Storage | (02/2022)
A
B
C
D
E
F
3.4 Scope of delivery
The scope of delivery may vary depending on the
system size.
Figure: neoTower®BOS 21 power storage
A Battery
B Battery connection set (RED/BLACK)
C Patch cable
D Grounding cable
E Inverter
F Documentation
3.5 Dimensions
Figure: System cabinet
System cabinet L (mm) W
(mm) H (mm)
BSS 7, 11, 21
BOS 18, 21, 36 600 600 2,000
BOS 57, 114 800 800 2,000
H
LB

10 | RMB/ENERGIE GmbH
Installation and commissioning
Manual neoTower®Power Storage | (02/2022)
4. Installation and commissioning
4.1 Installation site requirements
The system may only be installed in compliance with
the following building requirements:
Fire protection:
►The system must be installed in rooms with suitable
fire protection and without fire loads.
►It is not permitted to install the system in potentially
explosive atmospheres.
Floor specifications:
►The floor must have a firm surface
►It must be level and clean.
Distances:
The following distances must be maintained to ensure
proper ventilation:
►Distance behind the unit: 10 cm min.
►Distance at the top of the unit: 10 cm min.
►Distance at the side of the unit: 10 cm min.
►Distance below the unit: Determined by the unit
supports.
4.2 Placement
The battery storage system can be installed if the
requirements listed in 4.1 are met.
►Remove the packaging material.
►Check the system for the components listed in the
scope of delivery.
►Remove the Euro pallet and position the system at
the intended installation site.
4.3 Connection
The battery storage system can be installed if the
requirements listed in 4.1 and 4.2 are met.
►Connect the system on the mains side (left/yellow
frame) and on the building side (right/green frame).
►Please refer to the enclosed circuit diagram.
Circuit diagram.
►Connect the system to the modem of the CHP
with the patch cable (1), starting from the battery
manager (2). Use a free LAN port to connect to the
modem.
1
2

RMB/ENERGIE GmbH | 11
Installation and commissioning
Manual neoTower®Power Storage | (02/2022)
►Make the following settings (value table) for the BSS on the screen of the CHP unit:
neoTower®Min. SoC (unless there is a power failure) Power specifications, mains network supply
BSS 7 BSS 11 BSS 21 BSS 7 BSS 11 BSS 21
2.0
min. 10% / max. 100% As a rule "0W”
3.3
4.0
5.0
7.2

12 | RMB/ENERGIE GmbH
Installation and commissioning
Manual neoTower®Power Storage | (02/2022)
►Make the following settings (value table) for the BOS on the screen of the CHP unit:
neoTower®Min. SoC
(unless there is a power failure)
Max. SoC for release of the CHP
(standalone operation)
BOS 18 BOS 21 BOS 36 BOS 57 BOS
114
BOS
18
BOS
21
BOS
36
BOS
57
BOS
114
BOS
114
2.0
min. 10% / max. 100% min. 20% / max. 80%
3.3
4.0
5.0
7.2
9.5
11.0
12.5
16.0
20.0
25.0
30.0
50.0

RMB/ENERGIE GmbH | 13
Installation and commissioning
Manual neoTower®Power Storage | (02/2022)
neoTower®Max. power per phase to start the CHP (standalone
operation)
Power specifications, mains
network supply
BOS 18 BOS 21 BOS 36 BOS 57 BOS 114 BOS
18
BOS
21
BOS
36
BOS
57
BOS
114
2.0 <= 800 W n/a n/a n/a n/a
As a rule "0W”
3.3 max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
4.0
5.0 / /
n/a n/a n/a
7.2 / /
9.5 /
max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
11.0 / / / n/a n/a
12.5 / /
max.
inverter, as
starter
max.
inverter, as
starter
max.
inverter, as
starter
16.0 / / /
n/a n/a
20.0 / / /
25.0 / / / max.
inverter, as
starter max.
inverter, as
starter
30.0 / / /
50.0 / / / /

14 | RMB/ENERGIE GmbH
Display and operation
Manual neoTower®Power Storage | (02/2022)
5. Display and operation

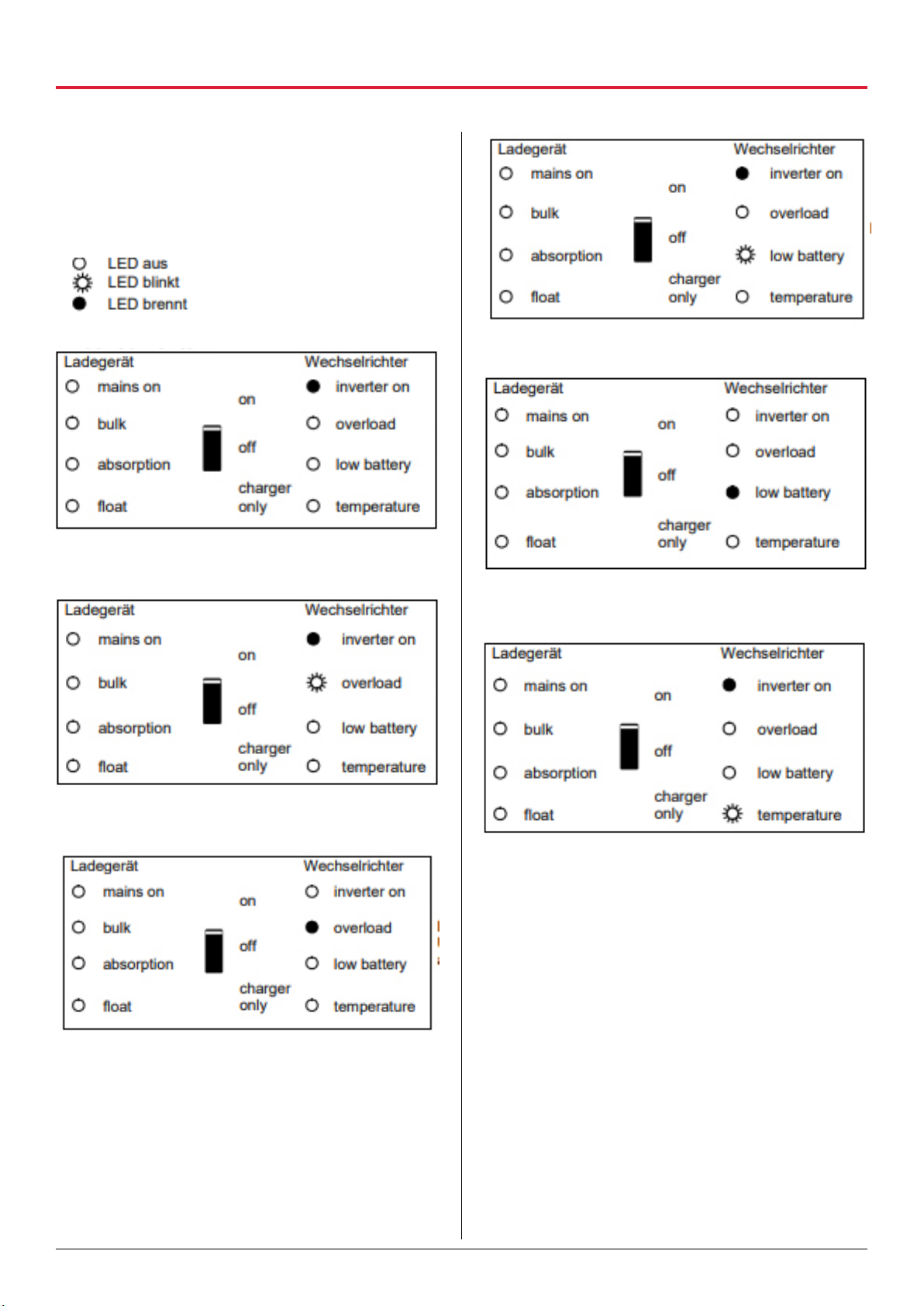

5.1 Inverter LED display
The inverter is in operation and current is flowing to the
consumers.
The rated power of the device has been exceeded. The
overload indicator is flashing.
The inverter is switched off due to overload or short
circuit.
The battery is almost empty.
The inverter is switched off as the battery voltage level
is too low.
The device temperature has reached a critical value.

RMB/ENERGIE GmbH | 15
Display and operation
Manual neoTower®Power Storage | (02/2022)
The inverter is switched off as the operating
temperature is too high.
Alternating flashing of the LEDs indicates that the
batteries are almost empty and at the same time
there is an overload.
If "overload" and "low battery" flash at the same
time, the ripple voltage on the battery connection
is too high.
The inverter is switched off as the ripple voltage on
the battery connection is too high.
The AC voltage at input AC-in-1 or AC-in-2 is
connected through and the charger is in constant
current mode ("bulk").
The AC voltage at input AC-in-1 or AC-in-2 is
connected through. The device is charging, but the
set absorption voltage has not yet been reached
(battery protection mode).
The AC voltage at input AC-in-1 or AC-in-2 is
connected through and the charger is in constant
voltage mode ("absorption").
5.2 Charger LED display

16 | RMB/ENERGIE GmbH
Display and operation
Manual neoTower®Power Storage | (02/2022)
The AC voltage at input AC-in-1 or AC-in-2 is
connected through. The load is higher than the
external network power. The inverter switches on
to supply the missing current.
The AC voltage at the input AC-in-1 or AC-in-2 is
connected through and the charger is in voltage
maintenance or storage mode (“float” or “storage”).
The AC voltage at the input AC-in-1 or AC-
in-2 is connected through and the charger is in
“equalisation” mode.
The AC voltage at input AC-in-1 or AC-in-2
is connected through. The input AC current
corresponds to the applied load. The charger is
regulated down to 0 amperes.

RMB/ENERGIE GmbH | 17
Display and operation
Manual neoTower®Power Storage | (02/2022)
5.3 Battery module operation
Power switch (A):
►For switching the battery on or off
SW button (B):
►Press and hold for approx. 1-2 seconds to start
the top master battery. The remaining batteries
automatically start in succession.
RUN LED (C):
►Illuminated LED indicates the battery is in operating
mode.
ALM LED (D):
►Flashing LED indicates a battery error message.
►An illuminated battery indicates that the protection
mechanism has tripped.
Status LEDs (E):
►6 status LEDs show the current charging status of
the battery.
A
B
CDE

18 | RMB/ENERGIE GmbH
Display and operation
Manual neoTower®Power Storage | (02/2022)
5.4 Explanation of terms
The parameters with the recessed display values
can be modified by a technician.
Values with a white background can only be read
off.
5.6 Explanation of the terms in the CHP panel
SoC:
State of charge
Battery SoC:
Display of the current state of charge of the
batteries in %.
Battery voltage:
Current voltage of the batteries in volts.
Battery current:
Available flowing current of the batteries in
amperes.
Battery power:
Current power of the batteries in watts.
Min. SoC (unless there is a power failure):
Minimum permissible state of charge of the
batteries during mains operation in % (set value).
In parallel mains operation the value does not
fall below this set limit. This ensures a necessary
minimum runtime that the BOS system can bridge.
Switch:
Currently set operating mode in plain text.
Status:
Status display of the inverters in plain text.
Temperature alarm:
Display alarm in the event of overtemperature.
Low battery alarm:
Alarm display when the batteries are too low.
Overload alarm:
Alarm display in the event of inverter overload.
Max. SoC for CHP release:
Maximum state of charge of the batteries for
enabling start-up of the CHP in standalone mode
(set value in %). If the current state of charge of
the batteries drops below the set value, the CHP
is enabled. If the state of charge is above the set
value, the CHP cannot be started.
Max. power per phase to start the CHP:
Maximum permissible power value per phase. This

RMB/ENERGIE GmbH | 19
Display and operation
Manual neoTower®Power Storage | (02/2022)
is necessary for some BOS constellations if the
CHP unit is not started by a starter. The starting
current would overload the system and the CHP
unit would not be able to start (set value in watts).
Standalone operation:
Display whether standalone operation is active
(mains failure).
Power per phase:
Release display indicating whether the power per
phase to start the CHP is OK.
Battery SoC OK:
Release display indicating whether the power per
phase to start the CHP is OK.
CHP start-up enabled:
Display for overall release for CHP start-up in
standalone mode (all the above releases must be
enabled).
Power specifications, mains network supply:
Specification of how many watts are to be
permanently supplied to the mains network or
taken from the mains network (set value in watts).
Power L1/L2/L3:
Display of the current power on the mains side in
watts.
Current L1/L2/L3:
Display of the present current on the mains side in
amperes.
Power L1/L2/L3:
Display of the current power on the building side in
watts.
Current L1/L2/L3:
Display of the present current on the building side
in amperes.
VE.Bus error:
Currently signalled error message of the BOS
system in plain text.
Technician password:
Entry of the technician password to enable
modification of the set values.

20 | RMB/ENERGIE GmbH
Maintenance
Manual neoTower®Power Storage | (02/2022)
6. Maintenance
6.1 Functional checks
To ensure trouble-free operation, operational safety,
reliability and
a long service life of the power storage system, carry
out regular functional checks and keep the system
clean.
Maintenance of the battery modules installed in the
power storage system is not necessary.
Every two weeks:
►Check the system to ensure that no errors are
signalled.
Every six months:
►Check for any changes to the state of charge.
6.2 Cleaning
⚠ ATTENTION!
Damage to the equipment caused by scratched
surfaces and/or internal damage due to ingress of
water!
►Do not use abrasive cloths, sponges or cleaning
agents.
►Do not use a water jet.
►Carefully clean the outside of the storage system
with a clean, soft cloth.
►Check the air filter for soiling. If necessary, replace
the filter.
