Yantrr VAYU2-3GUC20 Series User manual

VAYU2-3GUC20/4GEC25 Series
Quick Start Guide V1.0
© 2017 Yantrr Electronic Systems Pvt. Ltd.
New Delhi, 110091
INDIA

Board Layout:

Identifier
Description
U1
3G/4G Module
P1
Micro SIM Card Holder
P2
MAIN Antenna SMA Connector
P3
DIV Antenna SMA Connector
P4
GNSS Antenna SMA Connector
P5
Stacking connector with Beaglebone cape
P6
Stacking connector with Beaglebone cape
P7
MINI USB Device Port Connector
P8
Alternate USB-A Port Connector
J1
5V Power Jumper for cape
J5
RS232 Serial Port-2
J6
RS232 Serial Port-1
J7
RS232 Serial Port Enable/Disable Jumper
S2
Switch for Module Reset
S3
Switch for Module Power ON/OFF
S4
DIP switch for cape
Specifications:
Module:
UC20-G
UC20-E
UC20-A
EC25-E
UC20-G:
900/2100MHz
850/1900MHz
LTE FDD:
800/850/900/1900/
@UMTS
@UMTS, 3G Only
B1/B3/B5/B7/B8/B20
Bands
2100MHz @UMTS
850/900/1800/1900
LTE TDD: B38/B40/B41
850/900/1800/1900
MHz@GSM
WCDMA: B1/B5/B8
MHz @GSM
GSM: B3/B8
HSPA+: Max.14.4Mbps (DL)/Max.5.76Mbps (UL)
LTE:
UMTS: Max.384Kbps (DL)/Max.384Kbps (UL)
LTE FDD: Max 150Mbps
EDGE: Max.236.8Kbps (DL)/Max.236.8Kbps (UL)
(DL)/Max 50Mbps (UL)
GPRS: Max. 85.6Kbps(DL)/ Max. 85.6Kbps(UL)
LTE TDD: Max 130Mbps
CSD: 14.4Kbps
(DL)/Max 35Mbps (UL)
DC-HSPA+: Max 42Mbps
Data
(DL)/Max 5.76Mbps (UL)
UMTS: Max 384Kbps (DL)/Max
384Kbps (UL)
TD-SCDMA: Max 4.2Mbps
(DL)/Max 2.2Mbps (UL)
EDGE: Max 236.8Kbps
(DL)/Max 236.8Kbps (UL)

GPRS: Max 85.6Kbps
(DL)/Max 85.6Kbps (UL
Temperatur
e
-40°C ~ +85°C
Supply
Voltage
3.3V~4.3V, 3.8V Typ.
GNSS
Qualcomm gpsOne Gen8 with 16 GPS channels and 14
GLONASS channels with dedicated GNSS AT Commands
GNSS:
GPS/GLONASS/BeiDou/Galile
o/QZSS (Optional)
General
HSPA+: Release 5/6 (UL Category 6, DL CAtegory 10)
GPRS/EDGE: Multi-Slot Class 12 (10 by default)
WCDMA: Release 99
GSM: Release 99/4
3GPP TS27.007, 3GPP TS27.005 and Quectel Enhanced AT
Commands
3GPP E-UTRA Release 11
3GPP TS27.007 and
Enhanced AT Commands
Approval
RoHS Compliant
CE/GCF/Vodafone (Europe)
DoC (Russia)
FCC/PTCRB/AT&T (North America)
RCM (Australia)
ICASA (South Africa)
SRRC/NAL/OFCA (China)
JATE & TELEC (Japan)
NCC (Taiwan)
KC/SKT (Korea)
IC/Rogers (Canada)
Anatel (Brazil)
NBTC (Thailand)
RoHS Compliant
CE/GCF/Vodafone* (Europe)
FCC/PTCRB/AT&T*/Verizon*
(North America)
RCM/Telstra* (Australia)
JATE/TELEC/DOCOMO*/Softb
ank* (Japan)
NCC (Taiwan)
KC/SKT/KT*/LGU+* (Korea)
IC/Rogers (Canada)
NBTC (Thailand)
Anatel* (Brazil)
* Under Development
USB Ports:
Cape has two USB Connectors for the user to access.
● P7 (MINI USB Device Port Connector) is to connect the cape to the Beaglebone CPU
USB host port P3.
● P8 (Alternate USB-A Port Connector) is a Hi-Speed USB Port, Max 500 mA, Type-A.
For the USB ports enumeration of the module, please refer to the VAYU2 Wiki Page.
RS232 Ports:
2x RS232 serial ports.
● Pluggable 2 mm 3-pin Terminal Header
● ±25V tolerant I/O
● ESD Protection Level Upto ±15 kV HBM
● Operates up to 250 kbps

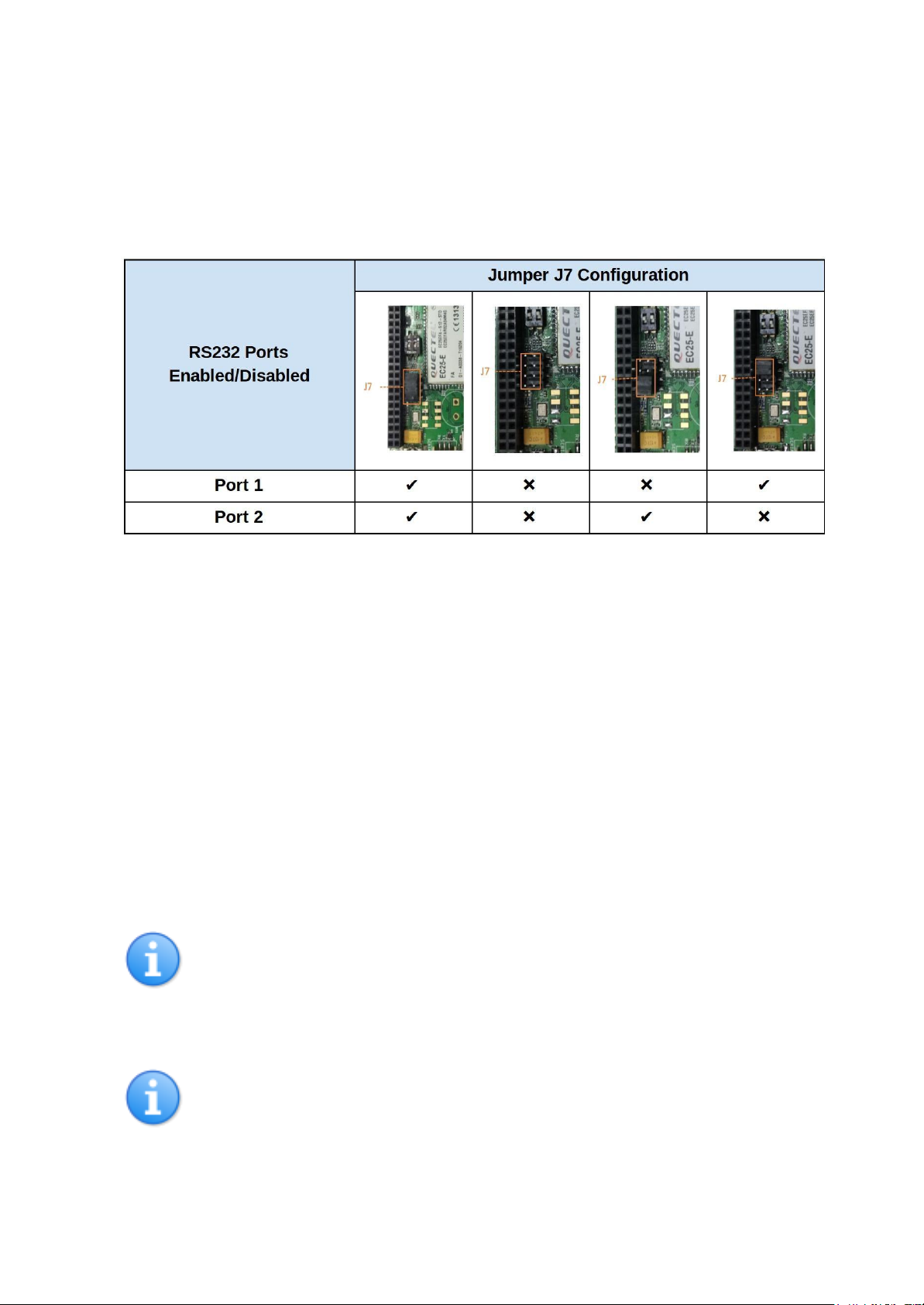

Jumper Settings:
The user can select the RS232 Communication ports Serial Port-1 or Serial Port-2 by using the
Jumper J7. Serial Port 1 is the UART1 of the Beaglebone CPU and Serial Port 2 is the UART2 of the
Beaglebone CPU.
Setting up the system:
1. Place a micro-SIM in the SIM card slot and connect the respective antennas to the SMA
connectors.
(P2&P3 are SMA connectors for connecting GSM antennas, P4 is for the GNSS antenna).
2. Mount the VAYU2 cape on Beaglebone Black.
3. Ensure the power jumper J1 with other jumpers according to your application.
4. Connect the USB-A to mini-B USB cable provided with the cape between Host port on
Beaglebone Black and mini USB device port P7 on Cape.
5. Now power up the full setup using a 5V DC adapter (min 2.5A) to the BeagleBone system’s
barrel jack. The D2 LED on the cape will glow along with LEDs on the Beaglebone black.
Note: Before powering up ensure correct software image is loaded in Beaglebone black or VIBE/VIBE2
Before proceeding further ensure the D2 LED is glowing properly. Make sure that the
adapter being used is of proper rating and has been connected properly.
When using the GNSS Section, ensure the GPS Antenna is faced to Open Sky for better
accuracy.

Do not try to power up using a USB cable alone. Always power up the system with a
DC adapter. Also while disconnecting power, the USB cable should be removed
before the DC adapter.
Before powering down the system, always ensure to Turn OFF the Modem using the
PWRKEY turn ON/OFF control pin or using the AT Command AT+QPOWD.
Useful Links :
http://www.yantrr.com/wiki/VAYU2
http://elinux.org/Beagleboard:BeagleBoneBlack_Debian
http://www.quectel.com/product/ec25.htm
http://www.quectel.com/product/uc20.htm
FCC Compliance Statement:
1. This product has not undergone tests to certify compliance with FCC Rule 15 Part B.
2. This product is provided to the buyers in the USA as an engineering sample only for
evaluation in the buyer’s facilities.
3. This product cannot be further sold in the USA or used for any other purpose other than
evaluation by the original buyer.
4. Yantrr Electronic Systems will not be responsible for loss or damage resulting from any
use of this product other than as an engineering sample for evaluation purposes.
Still Have Questions or Technical Issues?
Please post your queries in the online helpdesk portal at http://support.yantrr.com or email us at
[e-mail] for any question you might have providing following details:
1. Product model
2. Serial Number
3. Your address, email address and phone contact information
4. Full description of the issue you are facing
