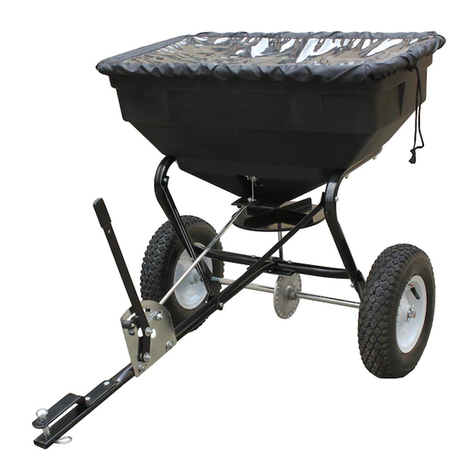

YARD Commander YTL31507 Assembly instructions

REV150120
80LB TOW-BEHIND
SPREADER
Instruction & Assembly
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

2
REMOVE AND IDENTIFY LOOSE PARTS FROM CARTON AND BAG
SAFETY RULES
READ THE DIRECTIONS BEFORE ASSEMBLY
Read the towing vehicle owners manual and towing vehicle safety rules. Know how to
operate your tractor before using the tow-behind spreader.
Read the chemical label instructions and cautions for handling and applying the chemicals
purchased for spreading.
Wear eye and hand protection when handling and when applying lawn or garden chemicals.
Never operate tractor and spreader attachment without wearing substantial footwear, and do
not allow anyone to ride or sit on spreader attachment frame.
Never allow children to operate the tractor or spreader attachment, and do not allow adults to
operate without proper instructions.
Always begin with the transmission in first (low) gear and with the engine at low speed, and
gradually increase speed as conditions permit.
When towing spreader do not drive too close to a creek or ditch and be alert for holes and
other hazards which could cause you to loose control of the spreader and tractor.
Before operating vehicle on any grade (hill) refer to the safety rules in the vehicle owner’s
Hex Bolt M6x55
2pcs
Hex Bolt M6x45
4pcs
Hex Bolt M6x40
2pcs Hex Bolt M6x35 6pcs

3
STEP1: Install Impeller onto the Gear Box & Axle Assembly. Insert Round Head Bolt M4x20 through impeller
then through Gear Box Axle.

4
STEP 2: Attach the Wheel Assembly Frame on each side of the Gear Box Axle and Fixing Connecting Rod,
insert two bolts M6x35 into the Fixing Connecting Rod through Wheel Assembly Frame. Make sure the hole on
Axle of Gear Box is to be on the right side when assembly as shown. Attach Wheel Assembly Frames and
Support Leg onto Hopper using bolts M6x45, lock nuts M6 and Big Flat Washers Ø6. Note: The bolts and nuts
needn't be tightened yet.
Hex Bolt M6x35
Hex Bolt M6x45

5
STEP 3: Install one end of the connecting plate on the wheel frame by Bolt M6x35 and Lock Nut M6. Then
install the connecting rod on the wheel frame by Bolt M6x55 and Lock Nut M6 and fixed the connecting plate
with connecting rod by Bolt M6x35. Note: The Bolt and Nuts needn’t be tightened.
Hex Bolt M6x55
Hex Bolt M6x55

6
STEP 4: Insert Inner Axle Bushing into Outer Axle Bushing and make sure they are tight neatly. Install right
Wheel Assembly to right Axle using inner hex bolt M5x45 and lock nut M5, and then install the Cap onto right
Axle using a wooden or rubber hammer. Now install left Wheel Assembly to left Axle, put a flat washer Ø16 and
install the Cap onto leftAxle using a wooden or rubber hammer.

7
STEP 5: Put the install tube assembly to hopper assembly using Bolt M6x40 and Lock Nut M6.NOW GO
BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP. DO NOT OVER TIGHTEN.

8
STEP 6: FINAL ADJUSTMENTS. When you finished all above steps, You don't need to do the following steps.
If they are not match neatly, you may need to do the following steps. To operate this spreader, push the handle
to the top position (upwards). You may move the position of Wing nut on Gauge & Lever to adjust the spacer of
three holes between hopper and adjustable plate as per your need when spreading.
(*) Push the adjustable handle on Gauge & Lever assembly to the proper setting while spreading.
(*) Push the adjustable handle on Gauge & Lever assembly to the lowest position when stop spreading.

9
GENERAL WARNINGS
Operator must read and understand all safety and warning information, operating instructions, maintenance
and storage instructions before operating this equipment. Failure to properly operate and maintain the lawn
roller could result in serious injury to the operator or bystanders.
Operation Warnings
Do not at any time carry passengers sitting or standing on the lawn roller.
Do not allow children to play on, stand upon or climb on the spreader.
Do not exceed rated capacity of 80lb
Replace or repair damaged or worn parts immediately.
To avoid personal injury and/or equipment damage DO NOT EXCEED 5 MPH.
Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs).
Always inspect the spreader before using to assure it is in good working condition.
Always keep hands and feet clear from moving parts while operating the equipment.
DO NOT use if the spreader is damaged or worn as this may cause injury to the operator or bystanders.
ALWAYS make sure the spreader is secure and locked to the hitch of the approved vehicle before
operating.
Never add material to the spreader unless it is attached to the tractor.
MAINTENANCE
After each use clean material out of hopper.
Rinse/dry inside and outside of the spreader after each use.
Before operating make sure the tires have the RECOMMENDED TIRE PRESSURE.
Periodically check all fasteners for tightness.
Annually clean and lightly lubricate parts.
Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces.
Never exceed load capacity rating of 80lbs it will damage the spreader.
IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts
that do not meet specifications may result in a safety hazard or poor operations.
STORAGE
Never allow material to remain in the hopper for extended periods of time.
Before storing make sure the spreader is clean and dry for years of trouble free service.
Store indoors or protected area during severe weather and winter months.
WARNING
ALWAYS maintain the proper tire pressure. DO NOT over or under inflate the tires as serious
injury may result. ALWAYS keep the tires at 25PSI.
Maintenance and Storage

10
PARTS DRAWING

11
PARTS LIST
Part # Description Qty Part # Description Qty
1 Carriage Bolt M6x25 1 28 R Pin Ø3 1
2 Tooth Washer Ø8 1 29 Lock Nut M6 18
3 Gauge & Lever Assembly 1 30 Screw M5X12 2
4 Adjust Handle Pole 1 31 Connect plate 2
5 Adjust Handle A 1 32 Bolt M6x55 2
6 Adjust Handle B 1 33 Wheel Frame Assembly (Right) 1
7 Screw M4x18 1 34 Pneumatic Wheel 2
8 Hopper Screen 1 35 Connect Rod 2
9 Spacer 1 36 Inner Hex Bolt M5x45 1
10 Wing Nut M6 1 37 Inner Axle Bushing 2
11 Hopper 1 38 Outer Axle Bushing 2
12 Center Cover 1 39 Gear Box & Axle Assembly 1
13 R Pin Ø2 1 40 Screw M4x20 1
14 Bolt M6x40 4 41 Big Flat Washer Ø6 5
15 Fixed Plate 1 42 Nylon Washer 1
16 Screw Ø5X12 4 43 Line Clamp Press Plate 2
17 Adjustable Plate 1 44 Control Rod 1
18 Wheel Frame Assembly (Left) 1 45 Rain Cover 1
19 Impeller 1 46 Thin Washer 1
20 Line Clamp Bottom Plate 1 47 Big End Cap 1
21 Lock Nut M5 5 48 Small End Cap 2
22 Tube End Cap 5 49 Axle End Cover 2
23 Bolt M6x35 9 50 Flat Washer Ø16 1
24 Round Head Bolt M5x10 2 51 Fixing Connecting Rod 1
25 Round Head Pin 1 52 Spring Washer Ø6 1
26 Tow Bar Connect Plate 2 53 Hex Bolt M6x45 4
27 Install Tube Assembly 1

12
Warranty
For one year from the date of purchase YTL International will replace for the original purchaser, or repair the
push spreader. The warranty will not apply to any unit which was not assembled correctly, misused,
overloaded or which has been used or operated contrary to our instructions, or which has been repaired or
altered by anyone other than an authorized representative.
Warranty Exclusions
This warranty does not cover cosmetic defects such as paint, decals or wear items such as tires. This
warranty will not cover failures or problems due to acts of God, or events or forces beyond the control of the
manufacturer.
Normal Wear Exclusion
The spreader needs periodic service to perform well. This warranty does not cover repair when normal use has
exhausted the life of a part or the equipment as a whole.
Installation, Use and Maintenance Exclusion
This warranty will not apply to parts and/or labor if the push spreader has been misused, neglected, involved in
an accident, abused, loaded beyond its limits, modified or assembled incorrectly. Normal maintenance is not
covered under this warranty.
Limits of Implied Warranty and Consequential Damage Exclusion
YTL International disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this push spreader. THIS WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR.
An exchange unit will be subject to the original warranty. The length of the warranty governing the exchanged
unit will have the date as the purchase date of the original unit. This warranty gives you certain legal rights
which may change from state to state. Your state may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
YTL International
17517 Fabrica Way, Suite H
Cerritos, CA 90703
Phone: [phone]
Phone: [phone]
Fax: [phone]
Limited Warranty
