Yard force SC600ECO Operation instructions

1
Model/ Modell SC600ECO
Hotline: [phone]
Fax : [phone]
Mail: yardfor[email protected]
www.yardforce.de
Merotec GmbH Service Center
Hanns-Martin-Schleyer-Str. 18a
47877 Willich
ROBOTIC MOWER
RASENROBOTER

2 1
Read this manual carefully prior to assembling and
operating the Mower. It is dangerous to operate this
Product without being familiar with these instructions.
Keep this manual in a safe place and have it ready for
future reference.
TABLE OF CONTENTS
Packaging Contents 2
Technical Data 3
Safety Instruction 4
Understanding The Robotic Mower 12
Installation Guide 18
Programming 33
Charging Information 38
Maintenance 39
Troubleshooting 44
Declaration Of Conformity 46
SC600ECO Original Instruction

2 3
PACKAGING CONTENTS TECHNICAL DATA
Robot Mower Charging Station Transformer Power Cord
Boundary Wire
Connector B
(blue)
Manual
Boundary Wire
Distance Ruler
Fixing Pegs Spare blades
Operating Manual
Cement resistor
1.2. Technical Data
Model Number SC600ECO
Max Cutting Area 600 m2
Electrical Power System
Battery Lithium-Ion Battery, 28 V/2.0 Ah
Power supply Input 100-240V AC, 50/60 Hz,
Output 32 VDC, CC1.5A, IP67
Typical mow time on one charge 40 min
Cutting System
Rated voltage 28 VDC
Rated power 50 W
No load cutting speed 3500 RPM
Cutting width 180 mm
Replacement cutting blade Part No 846210
Cutting height, min-max 20 mm-60 mm
Cutting height number 5 Settings
Blade number Three (Pivoting)
Charging System
Charging current 1.5 A
Charging time 60 min
Recommended Time Per Day (Hour) Note 1
300 m24 hours
600 m26 hours
General Data
Mower Protection IP 24
Charging Station Protection IP 24
Power Supply IP 67
Mower Weight 8.5 Kg
Charging Station Weight 2 Kg
Mower Size, L x W x H 570 X 390 X 260 mm
Package Size, L x W x H 780 X 510 X 330 mm (Ref.)
Gross Weight 18 kg
Noise
A Sound Pressure 46.6 dB
A Sound Power LWA= 67 dB (k=0.35 dB)
The recommended time per day stated in this specication is just for reference. It depends
on the condition of blades, the type of the grass being cut, the growth condition, humidity,
and whether lawn area is at. This Robotic Lawnmower could work for fewer hours per day
than stated if the garden is more complex with trees, ower beds, paths and slopes.
1. Packaging Contents and Technical Data
1.1. Packaging Contents
Installation-DVD

4 5
SAFETY INSTRUCTION SAFETY INSTRUCTION
2. Safety Instruction
IMPORTANT
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, re and /or serious injury.
Carefully read the instructions for the safe operation
of the machine. Save all warnings and instructions for
future reference.
The mower is to be used only for mowing the lawn
in yard. Any other use is deemed to be case of mis-
use.
2.1. Safe Operating Practice
2.1.1. Training
1. Read the instructions carefully, make sure you
understand them fully. Be familiar with the controls
and the proper use of the machine.
2. Never allow children, persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge or people unfamiliar
with these instructions to use the machine, local
regulations may restrict the age of the operator
3. Local regulations may restrict the age of the
operator.
4. The operator or user is responsible for accidents
or hazards occurring to other people or their
property.
2.1.2. Preparation
1. Ensure the correct installation of the perimeter
boundary system as instructed.
2. Periodically inspect the area where the machine
is to be used and remove all stones, sticks, wires,
and other debris which could cause damage to the
machine or be unsafe.
3. Periodically visually inspect to see that the blades,
blade bolts and cutter assembly are not worn or
damaged. Replace worn or damaged blades and
bolts in sets to preserve balance.
4. On multi-spindle machines, take care as rotating
one blade can cause other blades to rotate.
2.1.3. Operation
2.1.3.1. General
1. Never operate the machine with defective guards,
or without safety devices,for example deectors
and/or grass catchers ,in place.
2. Do not put hands or feet near or under rotating
parts.
3. Never pick up or carry a machine while the motor
is running.
4. Turn OFF / Powered OFF the machine
– before clearing any blockage.
– before checking, cleaning or maintaining the
machine.
5. Start Robotic Mower according to the instructions.
When the mains switch is in the ON position, make
sure you keep your hands and feet away from the
rotating blades.
6. Never lift the Robotic Mower or carry it around with
the mains switch is in the ON position.
7. Do not let persons who do not know how the
Robotic Mower works and behave use the mower.
8. Do not put anything on top of the Robotic Mower
or its charging station

6 7
9. Do not use the Robotic Mower with defective
blade disc, body, defective blades, screws ,nuts
etc.
10. Avoid operating the machine in wet grass, if
possible. (requires more cleaning).
2.1.3.2. Additionally
When the machine is operating automatically,do not
leave the machine to operate unattended if you know
that there are pets, children or people in the vicinity.
2.1.3.3. Maintenance and storage
1. Ensure all nuts, bolts and screws are tight to be sure
the machine is in safe working condition.
2. Replace worn or damaged parts for safety.
3. Ensure that only the recommended replacement
cutting blades are used.
4. Ensure that batteries are charged using the charger
supplied or recommended by the manufacturer.
Incorrect use may result in electric shock or
overheating.
5. Servicing of the machine should be carried out
according to manufacturer's instructions.
6. Keep the machine and wheels clean to avoid
unbalance and get better cutting performance.

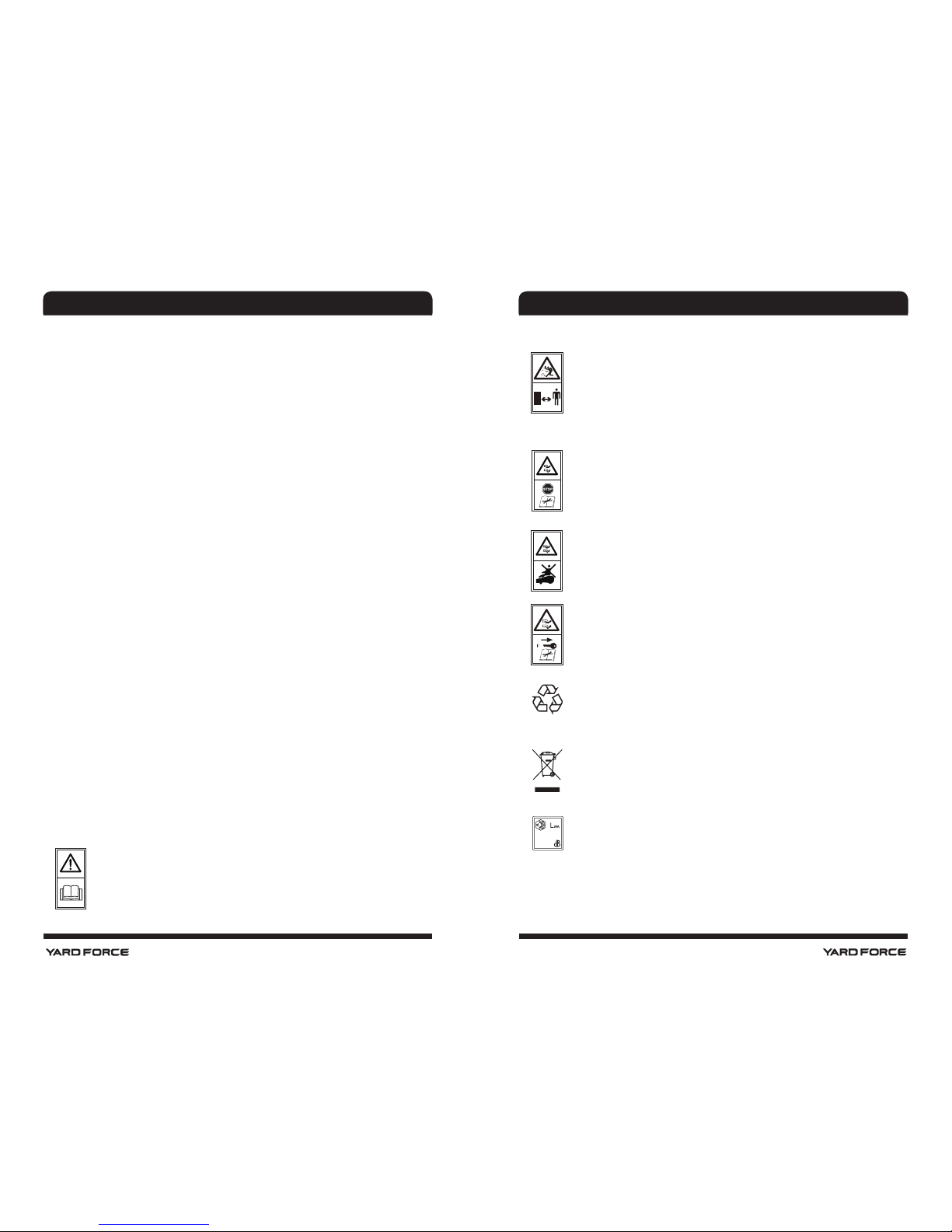

2.2.Safety Symbols
WARNING - Read user instructions before
operating the machine.
The supplied robotic lawn mower can be
dangerous if incorrectly used.
Read through the Operator’s manual carefully
and understand the content before use.
WARNING - Keep a safe distance from the
machine during operation.
Keep your hands and feet away from the
rotating blades. Never place your hands or feet
close to or under the body when Robotic Mower
is in operation.
WARNING – Operate the disabling device
before working on or lifting the machine.
Ensure this Switch button is in “OFF” position
before carrying out any Inspection and/or
maintenance.
WARNING - Do not ride on the machine.
CAUTION - Do not touch rotating blade.
WARNING – Remove the disabling device
before working on or lifting the machine
Return any discarded batteries to your local
dealer , collector or recycle point.
It is not permitted to dispose of this product as
Normal household waste when it has reached
the end of its useful life. Please recycle where
facilities exist. Check with your Local Authority
or retailer for recycling advice.
Guaranteed sound power level value in 67 dB
SAFETY INSTRUCTION SAFETY INSTRUCTION
67

8 9
Warning Symbols on the charger
Warning !
Before any use, refer to the corresponding
paragraph in the present manual.
Double insulation.
Pole orientation
CE conformity mark
Warning Symbols on the battery pack
Batteries contain Li-ion, waste batteries should
be sorted for eco-friendly. Do not dispose of
waste batteries as unsorted municipal waste.
Do not dispose of waste batteries as unsorted
municipal waste
Do not throw into water
Do not litter to re.
Do not subject the battery to strong sunlight
over long periods and do not leave it on a heater
(max.45OC).
Take batteries to an old battery collection point
where they will be recycled in an environmentally
friendly manner.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check your Local
Authority or retailer for recycling advice.
2.3. Additional safety instructions for YARD FORCE
Robotic Lawnmower
Do not store anything heavy on the top of Mower or
charging station either during storage or in use.
If the main Isolated switch is damaged or does not
operate, do not use the robotic lawnmower, never by
pass this main switch and always turn to “off” position
before storing or when mower is not in use.
It is recommended to re-use the original packaging
when transporting the Robotic lawnmower especially
for long distances.
If the Robotic Lawnmower ever needs to be moved
from or within the working area, rst press the large
button here to stop it.
SAFETY INSTRUCTION SAFETY INSTRUCTION

10 11
Secondly, ensure that the Main power Isolation switch
is selected to OFF position before you lift up your
Robotic Lawnmower.
Main Power
isolation switch
Engaged switch means power is “ON” and release
switch means Power is OFF.
Thirdly, close the top cover, and carry the robotic
lawnmower by the handle at the rear under the mower
keeping the blade disc away from your body as shown.
SAFETY INSTRUCTION SAFETY INSTRUCTION
2.4. Lightning Protection
In order to prevent lightning cause damage to the
machine, please don't place charging station under the
tall trees.
In order to prevent lightning causing damage to the
machine, please don't place extended cable around the
tall trees.
The handle
position

12 13
UNDERSTANDING THE ROBOTIC MOWERUNDERSTANDING THE ROBOTIC MOWER
3. Understanding the YARD FORCE Robotic Mower
Thank you for purchasing the YARD FORCE Robotic Lawnmower,. Over the next few
pages, the robotic lawn mower will be explained in further detail considering operation
procedure.
5
4
6
7
8
9
10
11
12
15 18
16
17
13 14
19
3.1. Parts List
1. Robotic Lawnmower 11. Main isolation switch
2. Stop button 12. Control panel
3. Display and keypad 13. Transformer
4. Charging contacts 14. Extend cable
5. Charge station 15. Fixing peg
6. Blade (3per) 16. Measurement ruler
7. Blade holder 17. Boundary wire connector
8. Front wheel 18. Boundary wire
9. Rear wheel 19. Cement resistance
10. Carrying Handle 20. Installation-DVD
3.2. YARD FORCE Robotic Mower Basic Operating Principles
The Robotic Lawnmower chooses its direction randomly, which means it will mow your
garden completely without leaving behind any uncut part within the area restricted by the
chosen boundary.
This boundary is chosen by you through installing supplied Boundary wire. Once the YARD
FORCE Robotic Lawnmower detect the boundary wire, it will stop, move backwards, and
turn away to cut within a different direction. It is important to ensure that the boundary is
complete. Any objects you wish to protect within the boundary, such as Garden Pond,
Tree, garden furniture or Flower bed can also be protected by the boundary wire. The
Boundary wire must form one complete circuit loop. If the Lawnmower during cutting
encounters an obstacle, such as a person, tree, pet or general garden obstacles it will
stop, move backwards and turn to mow in another direction.

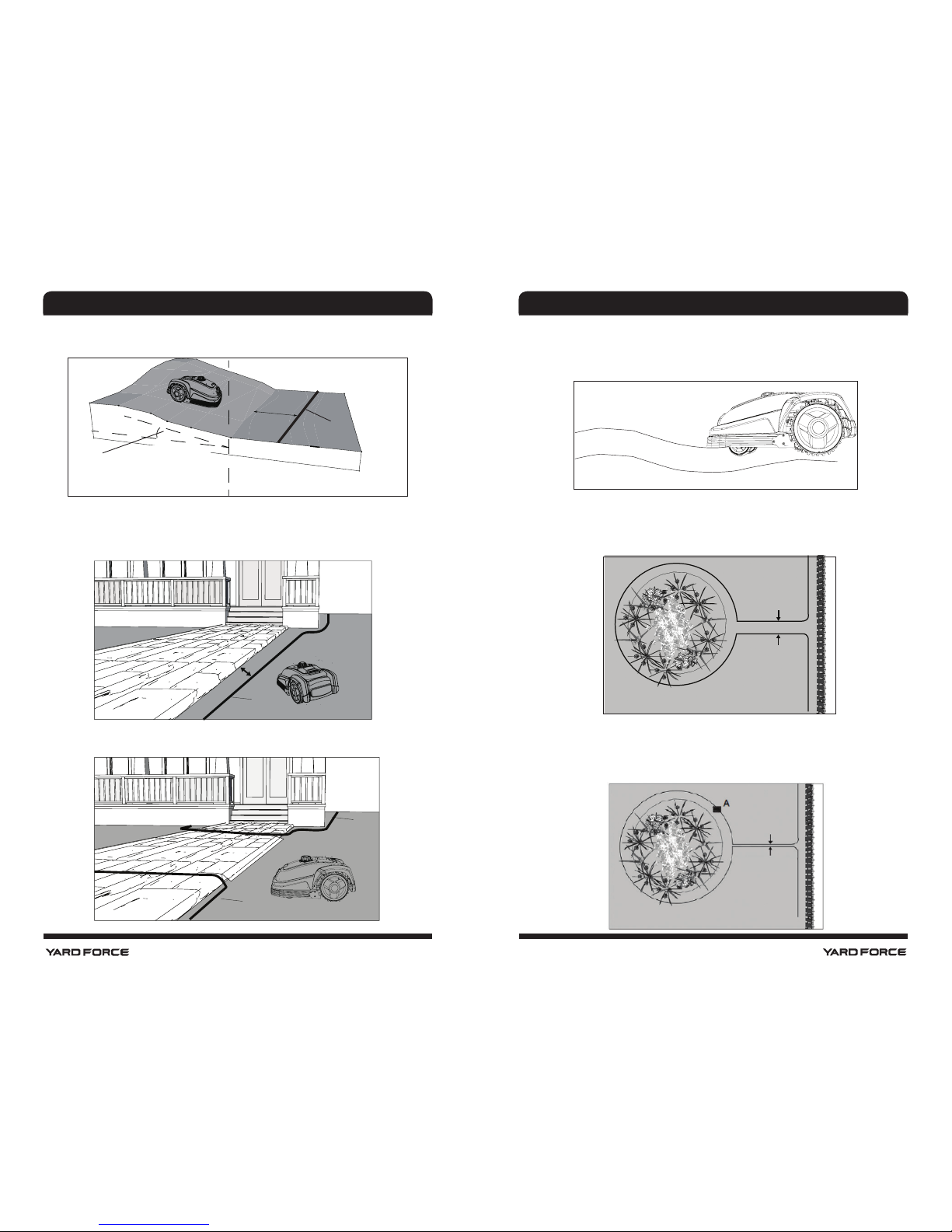

If you have a corridor inside your lawn boundary, the corridor should be at least 2 meters
wide and a max length of 8 m.
1
2
3
20

14 15
20-30 cm
UNDERSTANDING THE ROBOTIC MOWER
Note: If your YARD FORCE Robotic Lawnmower lifts while hitting an obstacle, the blade
disc stops immediately to avoid any potential damage.
3.2.1. Locating the charging station
After approximately 40 min cutting, when your lawnmower battery voltage is low
(depending on the kind of grass that is cut and garden complexity), YARD FORCE Robotic
Lawnmower will automatically return to the Charging station by locating the closest
boundary wire and follow it anticlockwise (without cutting) back to the charging station for
a full recharge and when completed robot will start again with next cutting sequence.
max. 8 m
min. 2 m
UNDERSTANDING THE ROBOTIC MOWER
3.2.2. Recognizing the boundary wire
When the YARD FORCE Robotic Mower approaches any boundary wire, the sensor
which are installed in front part of the cover will detect it, but before stopping and turning
around, the Lawnmower will overrun the boundary by approximately 10 to 20 cm, so
please use this information when you create the layout of your boundary (see later).
10-20 cm
3.2.3. Starting and stopping while mowing
If you want to stop the YARD FORCE Robotic Lawnmower at any time during cutting,
please press the STOP button. Once the STOP button is pressed, the Lawnmower will
open its keypad top cover, and wait for your further commands. The lawn mower will not
start to work until you have closed the top cover.
Start
Home
Set

16 17
UNDERSTANDING THE ROBOTIC MOWER UNDERSTANDING THE ROBOTIC MOWER
3.2.4. YARD FORCE Robotic Mower Mowing Limitations
The YARD FORCE robotic lawnmower is programmed by manufacturer to cut 4 hours.
from current time every day but as every garden will be different and if you want to change
these settings, it is easy to program this by yourself see instructions which listed at follow
chapter.

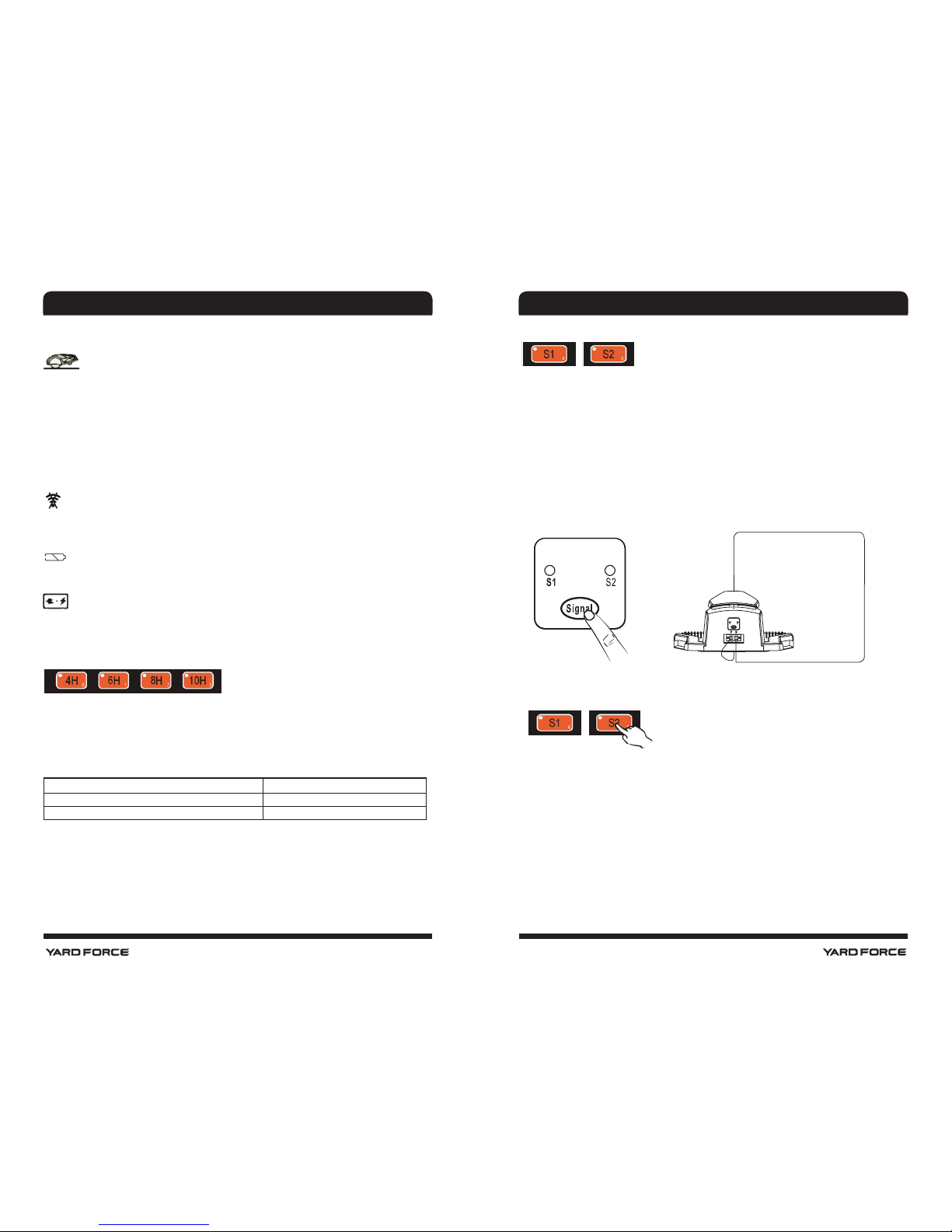

If your neighbor is using a YARD FORCE Robotic Lawnmower also, you need keep a 0.5 m
distance between your and neighbor’s boundary wires to eliminate interference. And you
need keep your charging station more than 10 m from your neighbor’s boundary wires, and
you have to set a different boundary signal from neighbor's as signal S1 or S2. Ref. 5.4.3
“Signal setting”.
Below is a table showing the signal distances for each of the Robot Mowers, please note
your model and use this information as your guide when designing the boundary layout.
Model Max eld Distance of receive the signal
L
SC600ECO 600 m212.5 m
NOTE ! When the working area is less than 100 m2or total boundary wire less than
40 m, please connect a 10 Ω / 20 W cement resistance to the boundary wire, or contact
the service.
3.2.5. YARD FORCE Robotic Mower Cutting Information
The YARD FORCE Robotic Lawnmower has 5 cut height settings between 20mm to 60mm.
If the grass height is higher than 60 cm, you need cut this grass down to at least 60mm,
otherwise the load on the unit will be too large and the cutting efciency will suffer. Use
a normal lawn mower or a grass trimmer. Once the installation is completed, the cut can
be adjusted to one of the 5 settings of your choice. Always start in a high cutting position
and work yourself down to the cutting height you want. This is carried out by lifting the lid
shown and adjusting the large rotating dial here. Note do not attempt to raise or lower the
cut height during cutting and always.
The YARD FORCE Robotic Lawnmower can cut wet grass but wet grass will accumulate
on the blade disc and wheels which means more frequent cleaning of unit.
Do not use the YARD FORCE Robotic Lawnmower during lightning or thunder storms
in case of damage to the electronic circuitry, it is recommended to unplug the charging
station, and disconnect the boundary wire also if possible.
The YARD FORCE Robotic Lawnmower cutting efciency relies on sharp blades, so please
keep them in good condition.
> 0,5 m
> 10 m
> 10 m
S1 S2
＜100 m2
Own land Neighbour
When the working area is less
than 100 m2or total boundary
wire less than 40m, please
connect a 10 Ω / 20 W cement
resistance to the boundary wire

18 19
INSTALLATION GUIDEINSTALLATION GUIDE
4. Installation Guide
This chapter explains how to install the YARD FORCE Robotic Lawnmower, please read
this completely before you start the installation.
4.1. Introduction
It is recommended that you make a draft of your lawn, including all obstacles and how
these should be protected. It makes it easier to nd a good position for charging station
and how to correctly place the boundary wire around your garden perimeter protecting
bushes, ower beds etc. You will also need some tools, like a hammer and wire cutters
pliers or scissors.
4.2. Cutting Limitations
For rigid and xed Obstacles higher than 100 mm, such as walls, fences garden furniture
etc. the crash sensors reacts immediately YARD FORCE Robotic Lawnmower will
STOP, reverse backwards and then turn around to cut in another direction but it is still
recommendable to protect the obstacle by creating a boundary around these.
< 400 mm
Trees
The YARD FORCE Robotic Lawnmower treats trees as common obstacles, but if some
roots of the tree are exposed in your garden and lower than 100mm, this area should be
protected in order to prevent tree root, cutting blades or rear wheels prole damage.
Stones
If there is rocks or stones situated within the cutting area, this is also an obstacle and
needs to be protected as the robotic mower could ride upwards on.
Slopes
The YARD FORCE Robotic Lawnmower is able to climb uphill and downhill up to a
maximum of 50 % incline or decline within the cutting area however it is advisable if
there is a decline directly towards a boundary wire then this slope should be less than 10
degrees to prevent the Mower from overrunning and pass the boundary wire due to robotic
mower downhill running speed, especially if raining or cutting in wet slippery conditions.
Slope should not
be steeper than 50 % (27o)
> 100 mm

20 21
Boundary wire crossing a slope should not exceed 10 degrees if downhill or a at area to
the boundary behind the sloop 2 meter.
INSTALLATION GUIDEINSTALLATION GUIDE
min. 2 m
Slope should not be
steeper than 10°
Boundary wire
Paths, Driveways and Roads
If the lawn boundary is close to a driveway is at a different level as your lawn, you should
avoid your robotic lawn mower to run over it to the other lawn. And you need a safety
distance of 40cm between the boundary wire and the driveway.
> 40 cm
boundary
If the driveway and lawn are at the same level, then you can let the robotic lawn mower run
into the other lawn by passing a corridor created by the boundary wire.
boundary
boundary
Uneven lawn surfaces
If the lawn area is very uneven then there is the possibility that blades could touch ground
when your YARD FORCE Robotic Lawnmower cuts. If this is possible ensure either to
remove this issue by leveling or exclude the area totally with boundary wire.
Flowerbeds
If the Lawn working area includes Flowerbeds, that need to be protected with the
boundary wire to be excluded from the working area. If you want the robot to follow the
boundary wire around the protected area, the distance between the two parallel boundary
wires is more than 10cm.
> 10 cm
Another way, if you want the robot to pass over the two parallel boundary wires. The
distance between the two parallel wires should be less than 5 mm. But you need put a
obstacle like a stone or a tube on position A .
Note: Position A must have a location of at area, do not set position at any slope. At the
side of inside boudary wire, there should be an area 1X1m at beside position A.
< 5 mm

22 23
INSTALLATION GUIDEINSTALLATION GUIDE

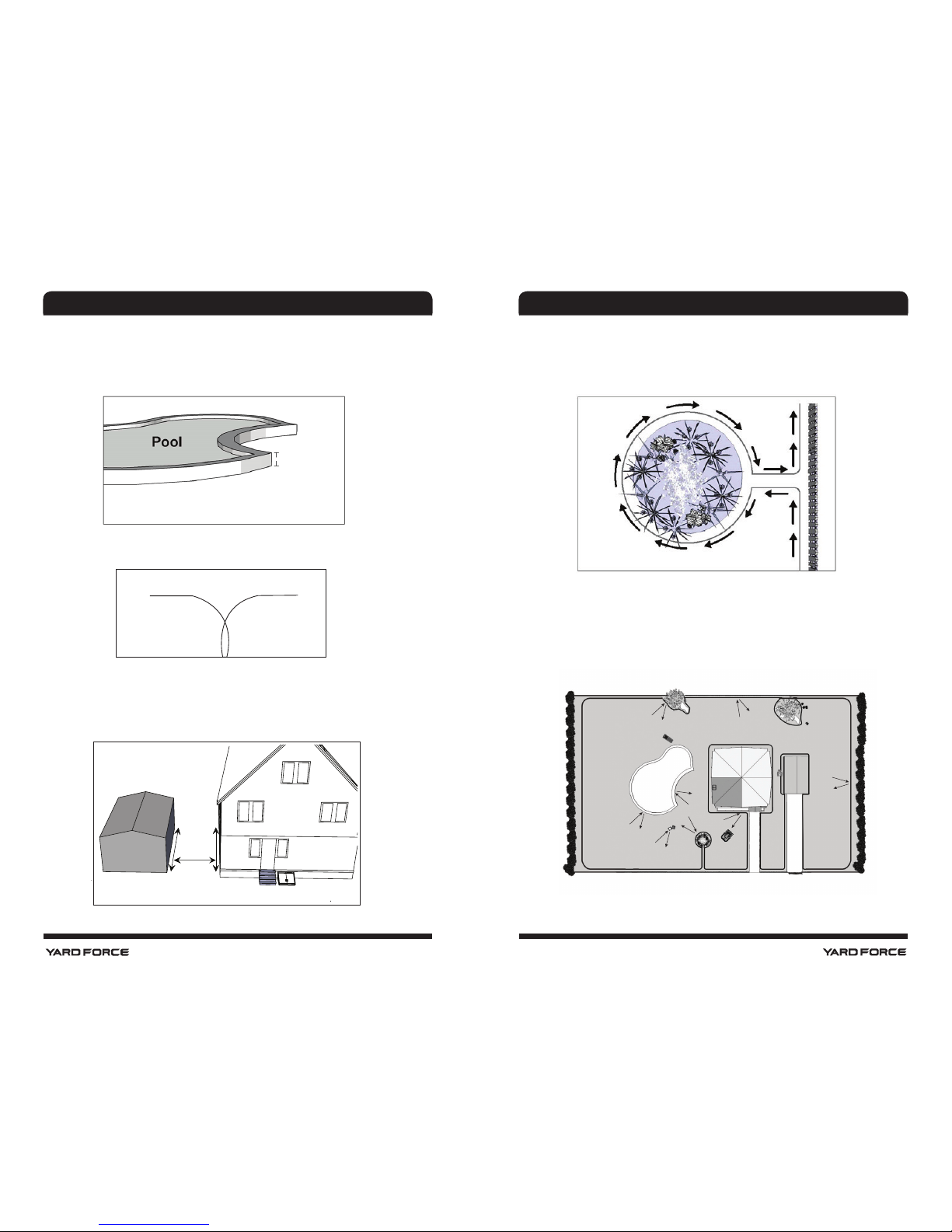

Ponds and Pools
If the YARD FORCE Robotic Lawnmower enters into a pond it would have a negative effect
to the robotic lawn mower lifetime, so please avoid any ponds by excluding them from the
working area by the boundary wire or by adding for additional safety such as a small fence
around the pool or pond.
> 10 cm
General Dos and Don’ts
Note ! Boundary wires cannot cross each other.
Ensure the boundary wires never cross each other.
Forbidden cross the boundary wire
If you have created a boundary corridor inside your working area, the corridor should be at
least 2 m wide and a max length of 8 m.
If your corridor is narrower than 2m or longer than 8m, you need to carry out your YARD
FORCE robotic lawnmower from the corridor. Otherwise you need eliminate this corridor
by boundary wire.
Max length of
the corridor
is 8 m
Minimum width of
the corridor is 2 m
Examples below show how to arrange the boundary around ower beds or other places
you do not want cut, please consider that your bushes and ower beds will change during
the different seasons from spring to autumn.
An excluded area that is close to the mowing boundary should be kept enough space
considering the variable in different seasons.
4.3. Marking out the Robotic Lawnmower’s working area
Now you have understood the basic principles of how the YARD FORCE Robotic
Lawnmower works, next step is to mark out the working area with boundary wire
by referring to your garden plan already created. This is a very important part of the
installation and therefore care must be taken, failure to mark this out correctly will result in
many issues later. This boundary wire must be one continuous loop without any break or
crossing, which will complete the circuit when connected to charging station.

24 25
INSTALLATION GUIDEINSTALLATION GUIDE

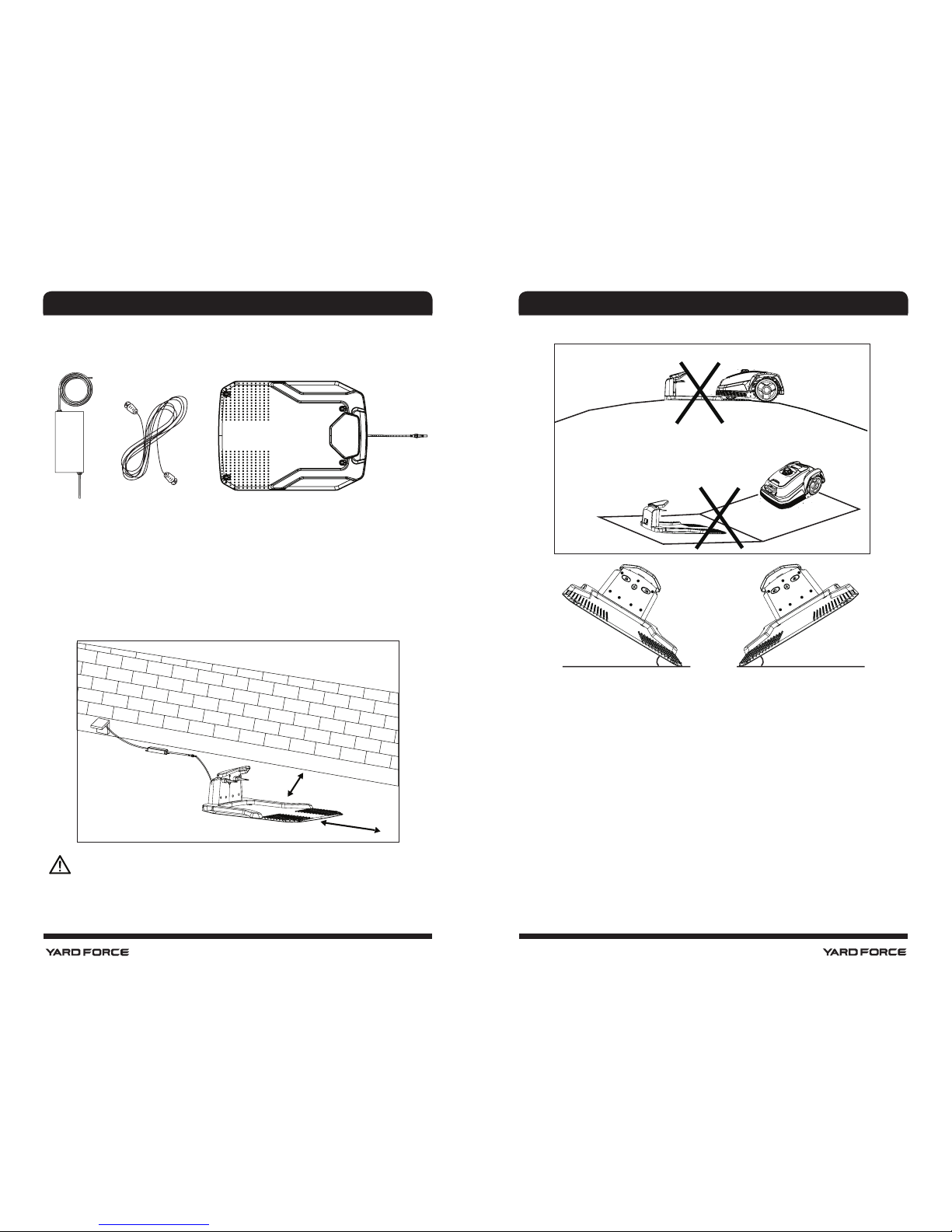

Firstly, locate the best position for your charging station, consider the nearest outdoor
electricity socket as this needs to be plugged in to mains at all times. Please note the
Cable length supplied is 9m.
The charging station item 5 must be placed on a at surface, at ground level and it can
be connected with boundary wire both from front and rear side, meanwhile we need 2m
wire straight from front side to make sure the lawnmower can return to charging station
smoothly. And also there must be 1m at space beside the charging station. This will allow
the Mower to enter the charging station correctly. If possible, locate your charging station
in the shade as the battery prefers to be recharged in a cool place.
Note: The charging station area should be at enough, the pond or footstep is not allowed
to exist beside the charging station.
> 1 m
> 2 m
Pay attention to protect cable!
The following positions are not allowed.
Charging base left and right slope should be no more than 5 degree angle.
We recommend to keep 2 meters straight wire ahead leading into the charging station. If
your lawn soil is soft and uneven, we suggest to use 0.5*1 m plastic net in front of charging
base to avoid the rear wheel digging into the soil ahead of.
Once the position of the Charging station is conrmed and mains electrical connection is
also can be reached, please do not connect to main power yet. First you need to nish all
boundary layout work, and then after that, you can connect to the main power.
5> <5

26 27
INSTALLATION GUIDEINSTALLATION GUIDE
Lightning protection
In order to prevent lightning cause damage to the machine, please don't place charging
station under the tall trees.
4.4. Pegging Out the Boundary Wire
Next step is to fix the boundary wire, so locate the boundary wire (item 19), unpack it
and locate the free end. Also locate the xing pegs (item 15) and lay each one on Lawn
at approximately the correct distance from lawn edges (40cm) and obstacles. There is a
gauge supplied for this (item 17) (Remember to ensure the lawn grass height is maximum
of 60mm tall, if not cut it before you start pegging). The boundary wire will be laid on top
of the grass there is absolutely no need to dig into the ground. The closer you can lay
this boundary wire to the ground level, the safer it will be with no risk of tripping or cutter
damage. In a very short time the wire will covered by grass and as the voltage in this wire
is only 32V. It is totally safe to human beings and pets.
The peg should be knocked into lawn
with wire location to boundary outside
like shown.
Cutting
area
40 cm
80 cm
It is recommended to place the pegs at a distance of 80 cm apart approximately, but these
can be closer where tight bends are required for accurate cutting, do not x your pegs
permanently when laying out for rst time, it is advisable to only partially knock in the pegs
with a hammer and ensure the wire location slots are all in same orientation to the outside
of boundary.
Once all are in correct position, then the boundary wire can be threaded into the slots on
pegs one by one around the working area edge. Please start from the charging station
and allow an additional 1m of spare wire before cutting off the wire in case a peg needs
moving later. When laying out the wire, and adding the pegs, be sure not to tighten the
boundary too hard to prevent wire get damaged. Also remember there should be a 2 to
4 meter straight length of wire in front of the charging station in order to allow the robot
successfully to dock into charging station. Please be careful also when installing this wire
to prevent kinks etc.
Note! If there are hard surfaces where these pegs cannot be used such as a
concrete or garden tiles etc. then a screw and plug may be required. If a screw is
used then there must be an insulation washer applied.
If the boundary wire needs to be joined for, only use the connectors provided by
manufacturer (Item18).
See below for some further sketches giving more distance guidelines.
The potential location of charging station
The end point of boundary
1 m extra wire
for potential
adjustment
The initial point of
boundary

28 29
INSTALLATION GUIDEINSTALLATION GUIDE
If the boundary wire is required to protect a ower bed or other obstacle within the Working
area then please follow this suggestion. The boundary wire should be laid from the main
Boundary in a straight line as shown then around the prole of the obstacle and then back
to the main boundary again, the gap between the two boundary wires shown should be
as close as possible without crossing. The same peg can be used to x them; the YARD
FORCE Robotic Lawnmower will mow freely over the double wire.
If you nd you do not have enough Boundary wire left to go around the whole area you
wish to protect exclude from cutting or if you need to make some changes later then
spare wire can be purchased and it is easy to connect with the provided Boundary wire
connectors ( Item 18).

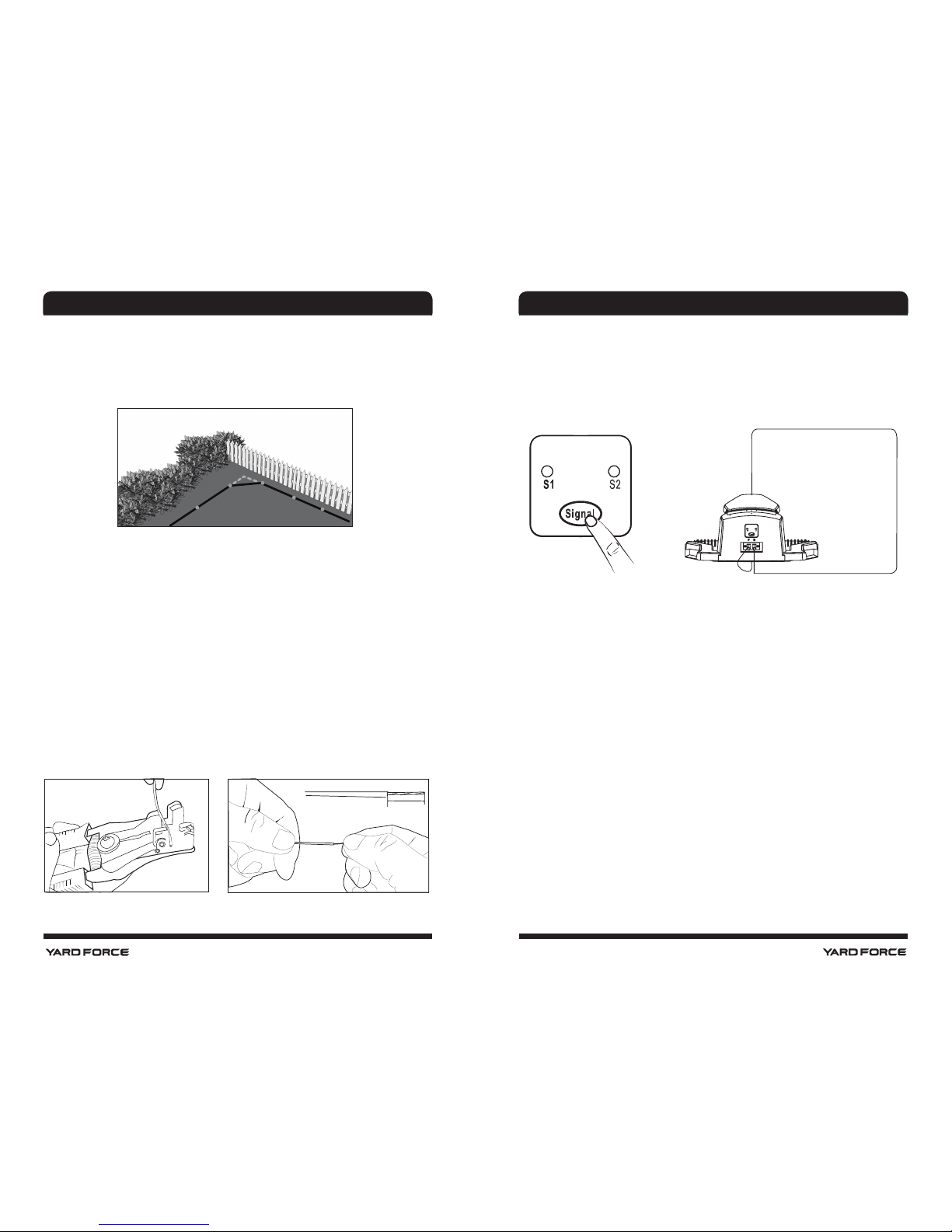

4.5. Prepare the boundary Wire For the Charging Station
After laying the boundary wire you need a decrustation pliers (See below left photo) or
scissor to clear the teon cover of the wire and explode the metal threads for connection
to the charging station. A length of 10 - 15 mm metal exploring metal threads are
recommended. You may twist the end of the metal threads with your ngers to make it
tight for connection.
Leaving about 1meter extra wire, peg the wire along the boundary from the rear side of the
charging station with a distance of the pegs of 80cm. When you nish the layout and back
to the charging station, leave another 1meter extra wire and then cut it.
Make sure if a square corner is uncounted in your working zone, please do not create
a 90deg sharp corner as below, the Mower will turn here anyway and cut this area as it
turns, so best leave a 45deg angle in each corner see below.
NO
OK
10 - 15 mm
4.6. Connect the Charging Station With the Boundary Wire
Onceconnectorshavebeenpreparedtoeachofthetwoboundarywireendsthenthese
canbe connectedtothechargingstationasshownbelow.Itisimportanttolaythewire
from thefrontof thechargingstationunderneaththebasetoprotectitbeforeconnecting
at the rear.Thisconnector shouldthenbeconnectedtotheLefthandtabmarked"F",and
the rearboundarywire connectorisconnectedtotheRighthandtabmarked"B".
IMPORTANT INFORMATION
Double check that the charger connections are as shown below. Even if it is blue light the
connectors are wrongly connected the machine will not work.
NOTE ! When the working area is less than 100 m2or total boundary wire less than
40 m, please connect a 10 Ω / 20 W cement resistance to the boundary wire, or contact
the service.
After connecting the “F” and "B" connectors to the charging station, the charging station
can be xed down with the boundary pegs(item 15). Please ensure before this is done that
the charging station is still situated on a at surface and mains connection is still can be
reached. Also ensure that 2m of straight boundary wire is in front and 1 m to rear of station
and any surplus boundary cable is tucked under the charging station base to protect it.
Once this is done, Connect the charger extension cable (Item 14) to Charging base,
meanwhile ensuring that the power supply is not connected to mains voltage just yet.
Once these connections are made, plug in power supply, there is a blue LED Light on
Connector F
Connector B

30 31
INSTALLATION GUIDEINSTALLATION GUIDE
charging station, see below and if all is ok, it should light up with constant blue. If no LED
is lit, check the power connections rstly, if LED is on but not constant blue refer to the
trouble shooting guide below.
LED Description
1 Blue light on Normal
2 Blue ash, Red off Charging station internal wire break, main Boundary is OK
3 Red ash, Blue off Boundary cut off or poor connect, charging station internal wire
is OK or the mower is charging, it's ok.
4 Red and Blue ash Boundary and charging station internal wire both short circuit or
cut off
4.7. Turn On and Test the Installation
LED
Once the LED light is constant blue, this means all is ok so now the Boundary wire pegs
can be knocked fully with hammer. Once this is done, double check the light is still blue
if yes then the boundary and charging station are all working as normal. Then place the
YARD FORCE Robotic Lawnmower in the working area, a few meters beside the charging
station.
Press the Mower Power isolated switch to “ON”. (Press again for OFF)
See later for further explanation.
Now press the large STOP button on top of Mower then the keypad top cover will open.
Power Isolation
switch status:
OFF (Released)
Power Isolation
switch status:
ON (Pressed)
Press the key Marked HOME (situated to left of display) and then manually press the top
cover to closed position. Once closed the Mower should start and will automatically return
to the Charging station by locating a Boundary wire and following it. The mower should
follow the wire in an anti-clockwise direction and when gets close to the Charging station
and dock into charging position. The mower will start to fully charge. If robot misses to
dock, you might have to adjust the charging station sideways until robot docks without any
problem.
The LED above the symbol will light, which means that the robot mower is charging
now.
Start
Home
Set

32 33
PROGRAMMINGINSTALLATION GUIDE
Once the lawnmower can work normally and the charging station has been found suitable
location, use hammer and knock the pegs fully home to secure the base. Remember any
tucked under wire must not be kinked or damaged, this is very important.
2m
Area to be cut
5. Programming
5.1. Control Panel
Once this Charging has completed the Mower programming can now be carried out.
To start programming the STOP button must be pressed again which will allow the display
window to open. Then the programming process can be followed.
The Mower has already been programmed in the factory to a set of standard settings but
these can be changed if you want. Even though factory settings will suit the majority of us-
ers it is worth familiarizing yourself with options available.
5.2. Control panel overview
1 m outside o f boundary area
need to be at
zone 1
zone 3
zone 2
zone 4
zone 5
The control panel is a combination of several functional area.
Zone 1: LED indicators for the machine status
Zone 2: Working time setting area
Zone 3: Signal setting
Zone 4: Locking button
Zone 5: Home & Start button.

34 35
PROGRAMMINGPROGRAMMING
5.3. Status indicator
5.3.1 Lift signal
Red LED above this symbol shining! When the robot mower is lifted.
Note! Lift signal could also be generated by a vibration on the robot.
After short time (< 1 second) be lifed, the robot mower will return to work normal. In case
the lift signal last more than 1 sencond and less than 8 seconds, robot will stop and later
restart automatically. In case the lift signal last more than 8 seconds, robot mower will
lock itself automatically for anti-theft and alarms.
5.3.2 Boundary wire signal
The boundary wire is generating a boundary signal, therefore the closer to the boundary
wire the stronger the robot mower will receive.
Red LED above this symbol shining! Means no signal. In this case robot mower stops
cutting.
5.3.3 Low Battery remain symbol.
Red LED above this symbol shining! Means battery remain capacity is very low.
5.3.4 Charging
LED above this symbol ashing! Means mover is charging on charging station. When
battery full charged, the LED will turn to solid
5.4 Setting
5.4.1 set working time
You can according to the "Zone 2" of picture oval within the four buttons to set your
working time. If you want to change the time setting, you can reset your working time by
pressing different buttons what you need (only one button will be bright). Please note that
working time will be implemented immediately after you set up. If you set your machine
at 10 a.m., it also means that your machine will start work from 10 o'clock in the morning
every day.
Recommended time per day(hour)
300m24hours
600m26hours
After the working time is selected, the corresponding LED will be lit up
LED ash means out of working time
5.4.2 set the Mode
You can select working mode S1 or S2 to your machine, if there’s another machine near
your working area, with the mode of S1, then you can select S2 to your machine to avoid
any signal interference.
After the working mode is selected, the corresponding LED will be lit up.
5.4.3 set signal of boundary
This Robot has two boundary wire signals, Signal 1(S1) and Signal 2(S2). When your
neighbor purchase the same robot, it is highly recommended that you set them on different
signals to prevent disturb to each other.
Firstly when you connect the boundary wire to the charging station, make sure you are
aware of which signal (S1 or S2) is generated from the charging station.
Press S1 or S2 on the control panel, make sure it same with charging stating wire
connection.
Anschluss F
Anschluss B

36 37
PROGRAMMINGPROGRAMMING
5.5. Cutting
Press button and close top cover, then the robot mower will start to work.
When LED above the symbol shining, means the battery remain capacity is very low,
at this time, robot mower will go back to charging stating to get charged.
5.6 Charging
After successfully dock into the charging station, the LED above the symbol will ash.
Note: In normal working status, if you press “STOP” button on top
of the robot mower and then press the button of “ ” on the keyboard, robot will go
back to charging station as well, no matter how much battery capacity remains.
5.7 Lock and Unlock
5.7.1 Lock
When you want to robot stop working for a certain time and keep the battery active, you
may lock the robot mower and put it back to charging station. When you press the
button, the robot will be locked and all the other button (except the button) will be
locked as well.
The LED on shining shows the robot is locked.
Note: Locked machine can be charged in the charging station!
5.7.2 Unlock
The factory default locking lift: press button 4 times within 6 seconds. LED light go
out, unlocked.
5.8 Change PIN code.
5.8.1 The analog keyboard
4H—0 6H—1 8H—2 10H—3 S1—4 S2—5
5.8.2 Activate the user Settings
Close the main power switch — press the and maintain—open the main power switch
— light ashing and the buzzer ring — analog keyboard lights ashing — loosen the
, then the user enter a new 4 digit PIN CODE in 6 seconds.
Note: Enter the PIN CODE from analog keyboard, by pressing the button to stop
flashing and buzzer ring 1 second, enter the 4 digit PIN CODE, buzzer nights for 2
seconds and mowing robot back to standby mode. If in 6 seconds does not enter 4
digit PIN CODE, returned to the standby mode, PIN CODE doesn’t change.
Note: If you do not remember your PIN code please call your service provider.
