Yard force EW U15 User manual

WARNING!
Protect yourself and others by observing all safety
information, warnings and cautions. Failure to comply
with instructions could result in personal injury and/or
damage to product or property.
Please retain instructions for future reference!
Model: EW U15
Hotline: [phone]
Monday/Friday: 9.00am to 4.30pm
Saturday: 9.00am to 3.00pm
Email: [email protected]
PRESSURE WASHER
Instruction Manual

2
Read this manual carefully prior to assembling and
operating the pressure washer. It is dangerous to operate
this product without being familiar with these instructions.
Keep this manual in a safe place and have it ready for
future reference.

3
Fig. 1
Fig. 2
8
9
1
2
34
5
6
7
10
11
12
13
14
15
16
17
I
J
K
L
A
B
C
D
E
F
H
G

4
<40OC
Fig. 3
Fig. 7
Fig. 9
Fig. 4
Fig. 6
Fig. 8
Fig. 10
Fig. 5

5
Fig. 17
Fig. 15
Fig. 13
Fig. 11
Fig. 18
Fig. 16
Fig. 14
Fig. 12

6
Fig. 19
Fig. 21
Fig. 20

7
EW U15 Instruction Manual
CONTENTS
Intended use 8
Parts description 8
Package contents 9
Symbols 10
Safety warnings 12
Assembly and preparation 17
Operation 18
Cleaning, maintenance & storage 21
Troubleshooting 22
Technical data 23
Warranty 24

8
Parts description (Fig. 1)
1. Main handle.
2. Hose wheel.
3. Gun holder.
4. High pressure outlet spigot.
5. ON/OFF switch.
6. Water inlet spigot.
7. Nozzle pin.
8. Detergent tank.
9. Accessory storage
10. Wheel.
11. Turbo lance.
12. Adjustable lance.
13. Spray gun.
14. Trigger lock.
15. Gun trigger
16. Patio cleaner.
17. Extension Lance
INTENDED USE
PARTS DESCRIPTION
The pressure washer is designed only for cleaning façades, patios, walkways, garden tools,
vehicles, etc. It is only intended for private use and is not suitable for commercial use.
Use the pressure washer only as described in this user manual. Any other use is deemed
improper and may result in damage to property or even personal injury. The pressure washer
is not a children’s toy. The manufacturer or vendor accepts no liability for damage caused by
improper or incorrect use.
WARNING: Read instruction manual carefully before using this pressure washer.
Failure to follow the instructions may result in severe injury or damage to the
pressure washer. Keep the instruction manual for future use. If you give the pressure
washer to others, please ensure that the instruction manual is included.
WARNING: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

9
PACKAGE CONTENTS
Parts description (Fig. 2)
A. 1 x Patio cleaner.
B. 1 x Extension lance
C. 1 x Turbo lance.
D. 1 x Adjustable lance.
E. 1 x Spray gun.
F. 1 x Water inlet adapter.
G. 1 x Nozzle cleaning pin.
H. 1 x Instruction manual.
I. 1 x Detergent bottle.
J. 1 x Hose wheel handle.
K. 1 x Gun holder.
L. 1 x Pressure washer.
• Remove all packing material.
• Check the completeness of the package content.
• Check the pressure washer and its accessories for transportation damages.
WARNING: Danger of suffocating! Packing materials are not toys!
Children must not play with plastic bags!
WARNING: If any parts are damaged or missing, do not operate this pressure
washer until the missing parts are replaced.
If any parts are missing or damaged, please contact Action Spares 1300 777 137.
Recycle/dispose of packaging materials in accordance to the regulations and
requirements of your local council.

10
Symbols are used in this manual and/or on the product
to attract your attention to possible risks. These symbols
and the explanations that accompany them must be
understood.
WARNING! OR CAUTION!
READ the user manual before using the
pressure washer.
Disconnect the mains plug immediately if the
mains cable is damaged, has been badly twisted
or is completely cut through and when the
pressure washer is left unattended.
WARNING! Never direct the discharge
stream at persons, animals, the pressure
washer itself or electric components.
WARNING! Always wear ear and eye protection.
WARNING! Always wear protective footwear.
SYMBOLS

11
SYMBOLS
Do not connect to potable water without the use
of a check valve.
96
Rated sound power level.
Double insulation, Class II pressure washer.
Australian Regulatory Compliance Mark.

12
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or
serious injury.
1. This pressure washer is not intended for use by
persons (including children) with reduced physical,
sensory or mental capabilities, lack of experience and
knowledge.
2. The electric supply connection shall be made by a
qualied electrician and comply with AS 3000.
3. For additional electrical protection. It is recommended
that this pressure washer be used in conjunction with
a residual current device (RCD) with a rated residual
current of 30mA or less.
4. High pressure jets can be dangerous if subject to
misuse. The jet must not be directed at persons, live
electrical equipment or the pressure washer itself.
5. Keep operating area clear of all persons. Do not use
the pressure washer within range of persons.
6. Do not direct the jet against yourself or others in order
to clean clothes or footwear.
7. Risk of explosion. Do not spray ammable liquids.
8. High pressure cleaners shall not be used by children
or untrained personnel.
9. High pressure hoses, ttings and couplings are
important for the safety of the pressure washer. Use
only hoses, ttings and couplings recommended by
the manufacturer.
SAFETY WARNINGS

13
SAFETY WARNINGS
10.To ensure pressure washer safety, use only original
spare parts from the manufacturer or approved by the
manufacturer.
11. The pressure washer shall be disconnected from its
power source during cleaning or maintenance and
when replacing parts or converting the pressure
washer to another function. For mains operated
pressure washers, by removing the mains plug from
the socket outlet.
12.Do not use the pressure washer if a supply cord or
important parts of the pressure washer are damaged,
e.g. safety devices, high pressure hoses, gun trigger.
13.Inadequate extension cords can be dangerous. If an
extension cord is used, it shall be suitable for outdoor
use, and the connection has to be kept dry and off the
ground. It is recommended that this is accomplished
by means of a cord reel which keeps the socket at
least 60 mm above the ground.
14.Always switch off the mains disconnecting switch
when leaving the pressure washer unattended.
15.To reduce the risk of injury, close supervision is
necessary when a pressure washer is used near
children.
16.Know how to stop the pressure washer and bleed
pressure quickly, be thoroughly familiar with the
controls.
17.Stay alert! Watch what you are doing.
18.Do not operate the pressure washer when fatigued or
under the inuence of alcohol or drugs.

14
SAFETY WARNINGS
19.Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
20.Follow the maintenance instructions specied in the
instruction manual.
21.Always wear protective clothing and safety glasses.
Loose particles and other debris are propelled at high
speed by the water jet.
22.Always wear ear protection.
23.Never use the pressure washer in bare feet or open
toe shoes. Always wear protective footwear.
24.When connecting the water inlet to the water supply
mains, local regulations must be observed. In some
areas, the pressure washer must not be connected
directly to drinking water supply without a back ow
preventers. Water that has owed through back ow
preventers is considered to be non-potable.
25.Children should be supervised to ensure that they do
not play with the pressure washer.
26.If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
27. Always ensure that a pressure washer is switched off
when not in use to avoid unintentionally starting.
28.Do not retrot or make any unauthorised changes to
the pressure washer, or use unapproved parts.
29.Use only hoses, ttings and couplings supplied and
recommended by the manufacturer.
30.Never carry the pressure washer by the cable or
hoses.

15
SAFETY WARNINGS
31.Do not carry the pressure washer with your nger on
the ON/OFF switch when it is connected to the mains.
32.Remove the main plug from the plug socket if you are
not using the pressure washer, when transporting it or
when it is left unattended, when checking the pressure
washer, cleaning it or removing blockages, when
undertaking cleaning or maintenance work or
changing accessories, if the power or extension cable
is damaged, after contact with foreign bodies, or in
the event of abnormal vibration.
33.Do not attempt to repair the pressure washer yourself.
All work not indicated in these instructions is to be
carried out only by service stations authorised by the
manufacturer.
34.Do not use the pressure washer near ammable
liquids or gases. There is a risk of re or explosion.
35.Do not use the pressure washer if a supply cord,
safety devices, hoses, switch or the gun trigger is
damaged.
36.If an extension cord is used, the plug and socket must
be of watertight construction. Inadequate extension
cords can be dangerous.
37.The operator or user is responsible for accidents or
damages to other people or their property.
38.Store the pressure washer in a dry location and out of
the reach of children.
39.Handle the pressure washer with care. Keep the
pressure washer clean for safer and more efcient
working.

16
SAFETY WARNINGS
40.Ensure that the mains voltage matches the information
of the label.
41.Before each use, check the pressure washer, power
cable and plug for damage.
42.Damaged cables, coupling and plugs or connecting
leads not to be used. Remove the mains plug from the
plug socket immediately if the mains cable is damaged
or cut.
43.Do not use the pressure washer if the switching action
of the ON/OFF switch is impaired. Have the damaged
switch replaced by a service centre.
44.Do not use the pressure washer for purposes other
than those specied.
45.Use only detergents designed for use in pressure
washers.
46.Do not use the pressure washer in the horizontal
position.

17
ASSEMBLY AND PREPARATION
WARNING: Unplug the power cord before assembly.
NOTE: A Phillips type screw driver will be required for assembly of the pressure washer.
Follow these steps in conjunction with Fig. 1 & 2.
1. Insert the hose wheel handle (J) into the installation hole at the side of the hose wheel
and press in rmly until the handle lock into position. Fig. 3.
2. Insert the gun holder (K) into the slots in the side of the main body of the pressure
washer (L) and press down rmly until the brackets lock into position. Fig. 4.
3. Place a small amount of grease of or vasoline on the thread of the spray gun (E).
4. Screw the high pressure outlet hose (Fig. 5) to the spray gun (E) and secure. Fig. 5.
5. To use the lance, push the lance (C) or (D) into the spray gun (Fig. 13) and twist it to lock
into the position. Fig. 6.
6. To use the patio cleaner, push the patio cleaner (A) into the extension lance (B) and twist
it to lock into the position. Then push the extension lance (B) into the spray gun (Fig. 13)
and twist it to lock into the position. Fig. 7.
7. Screw the water inlet adapter (F) to the pressure washer. Fig. 8.
8. Attach your garden hose (not supplied) to the water inlet adaptor (F). Fig. 9.
Connect your garden hose to a COLD water tap and turn the water supply ON. Fig. 10.
Note：If the tap is not open sufciently or your mains water ow is too low then the
pressure washer will not work correctly.
CAUTION! Only connect the pressure washer to COLD water. Hot water will damage
the pressure washer.
9. Check that the ON/OFF switch is in the OFF position.

18
OPERATION
WARNING! Before switching on the pressure washer, make sure that the pressure
washer is completely assembled and all the hoses are properly connected.
WARNING! Make sure the pressure washer stands on at ground in a secure and
stable position.
WARNING! Hold the spray gun and the lance with both hands when using.
Be aware of the recoil.
WARNING! Always wear hearing protection, safety glasses and protective footwear
when operating the pressure washer.
WARNING! To prevent an accidental spraying operation, keep the trigger lock
engaged when not actually spraying, moving the pressure washer or adjusting the
lance.
CAUTION! Never operate the pressure washer without water as dry running may
damage the pump. Use a water lter if the water is contaminated.
NOTE: Before switching ON the pressure washer, prime the pump and high pressure hose
rst by squeezing the gun trigger for around 5 seconds with the water supply turned on.
PRIMING (FIG. 12)
- Check that the water supply is turned on.
- Squeeze the gun trigger for 5 seconds or until water squirts from the end of the lance.
This is required to prime the pressure washers pump and the high pressure hose before
starting the pressure washer.
DETERGENT (FIG. 13)
CAUTION! Use only detergents designed for use in pressure washers only.
If you would like to use detergent for the job at hand.
- Remove detergent bottle from the rear of the pressure washer.
- Fill detergent bottle with a good quality pressure washer detergent.
NOTE: Detergent can only be dispensed with the adjustable lance that is set to low pressure
mode. See LANCE OPERATION

19
OPERATION
STARTING THE PRESSURE WASHER (FIG. 14 & 15)
- Check that the water supply is turned on.
- Check that the pressure washer and high pressure hose have been primed.
- Engage the trigger lock on the spray gun to stop accidental operation.
- Plug the pressure washer into the mains power outlet.
- Set the ON/OFF switch to the ON position.
The pressure washer’s motor will now run until the unit reaches maximum pressure. The
motor will then stop. When the gun trigger on the spray gun is depressed, water will spray
from the lance and the motor will restart.
- To start spraying release the trigger lock and then squeeze gun trigger.
- To stop spraying release the gun trigger.
- Engage the trigger lock on the spray gun to stop accidental operation.
THE TURBO LANCE (FIG. 16)
A turbo lance, sometimes referred to as a rotary lance, is a very effective tool that can
signicantly reduce cleaning time.
The turbo nozzle combines the power of a narrow stream and the efciency of 25 degree fan
pattern. This swirls the stream into a cone shape that cleans a larger area.
CAUTION! Since a turbo lance uses a narrow stream, only use it in applications where the
cleaning surface cannot be damaged by a narrow high impact spray. Always test on an
inconspicuous area st to ensure you do not anage the surface.
WARNING! Do not adjust the adjustable lance while spraying. Engage the
trigger lock on the spray gun to stop accidental operation.

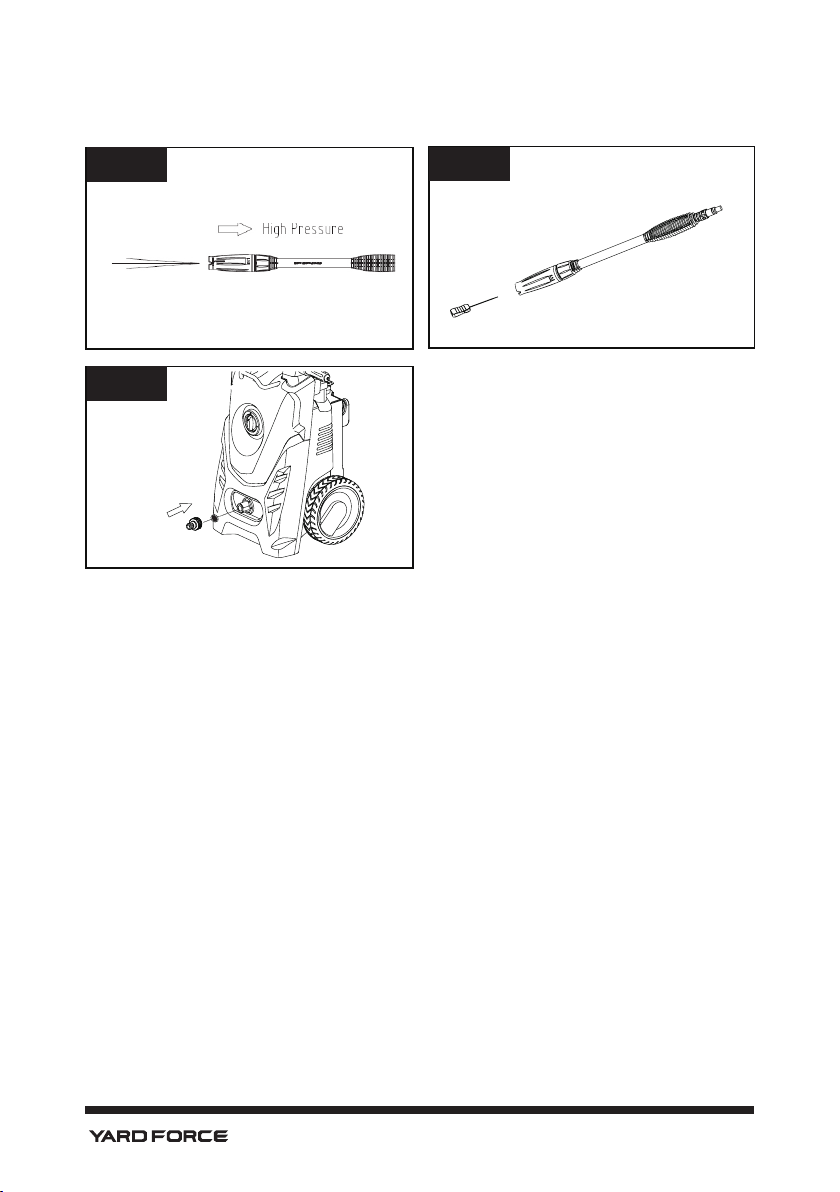

THE ADJUSTABLE LANCE (FIG. 17)
Pencil or fan water spray patterns can be achieved by turning the tip of the lance clockwise
or anti-clockwise. The fan spray pattern is the most commonly used for general cleaning
operations. The pencil spray pattern is used to remove localized stubborn contamination
such as oil stains.
HOW TO USE DETERGENT (FIG. 18 & 19)
The adjustable lance has an additional function to allow the use of the detergent from the
detergent bottle.
- If the end of the lance is pulled out to the low pressure position, the contents of the
detergent bottle will automatically be dispensed with the low pressure stream.
- To stop the detergent ow, return the lance to the high pressure mode.

20
NOTE: The pressure washer cannot dispense detergent in high pressure mode.
CAUTION! Before using the pressure washer to clean patio paving slabs it is
advisable to test a small area rst, the use of a pressure washer could damage the
surface.
AFTER USE
- Set the ON/OFF switch to OFF position.
- Turn off the water supply.
- Disengage the trigger lock.
- Squeeze the gun trigger and discharge the residual pressure inside the hoses.
- Engage the trigger lock.
- Disconnect you garden hose.
NOTE: If the residual pressure in the lance and pressure hose are not fully released, the high
pressure hose will NOT be able to be unscrewed from the main unit or the spray gun.
OPERATION
