Yard Works 60-3014-6 User manual

ELECTRIC HEDGE TRIMMER
Owner's Manual
TOLL-FREE HELPLINE: 1 866 523-5218
IMPORTANT:
Read all safety rules and instructions carefully before using this product.
60-3014-6

Input..................................................................................................................................3.5 A
Speed........................................................................................................3200 SPM (no load)
Blade length.........................................................................................................18" (45.7 cm)
Cutting capacity................................................................................................ 9/16" (14 mm)
Weight....................................................................................................................6 lb (2.7 kg)
………………………………………………………………………… 3
…....................……………………………………………………………… 2
SPECIFICATIONS
SAFETY INFORMATION
…………………………………………………………………… 6
SPECIFIC SAFETY RULES
…...........………………………………………………… 7
KNOW YOUR HEDGE TRIMMER
ASSEMBLY INSTRUCTIONS ………………………………………………………………… 8
WARRANTY …….....................................………………………………………………………13
14
MAINTENANCE
……………………………………………………………………………………12
OPERATING INSTRUCTIONS………………………………………………………………… 9

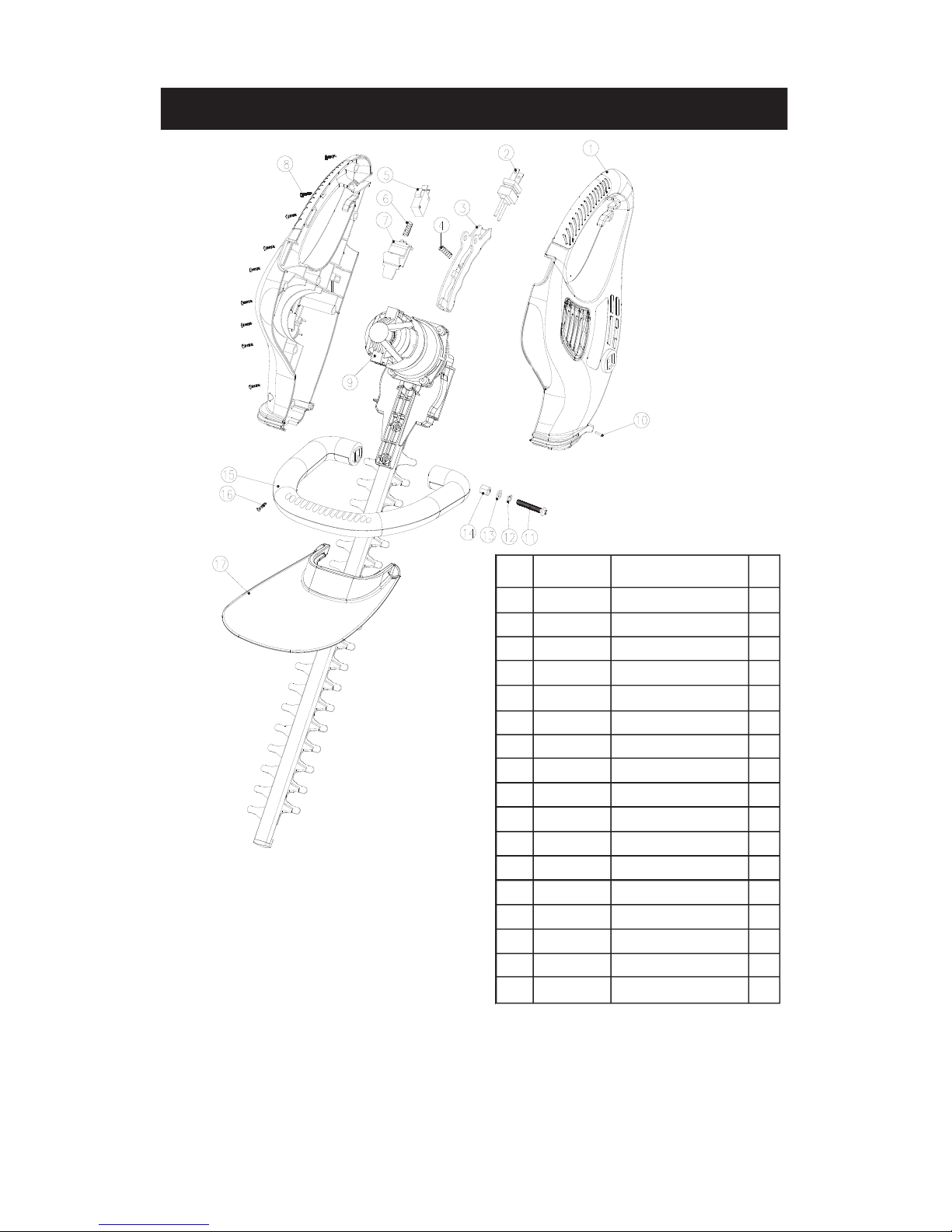

PARTS LIST ………………………………………………………………………………………
Motor..............................................................................................................120 V AC, 60 Hz
TABLE OF CONTENTS
SPECIFICATIONS
2

Safety is a combination of common sense, staying alert, and knowing how to
use your hedge trimmer.
1. READ and become familiar with this entire instruction manual. LEARN the
tool’s applications, limitations, and possible hazards.
2. AVOID DANGEROUS CONDITIONS. DO NOT use in wet or damp areas
or expose to rain.
3. DO NOT use in the presence of flammable liquids or gases.
4. KEEP BYSTANDERS AT A SAFE DISTANCE. NEVER allow children near
the tool.
5. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or
jewellery (rings, watches) when operating tool. They can get caught and
draw you into moving parts.
6. ALWAYS WEAR EYE PROTECTION.
7. ALWAYS remove the power cord plug from the electric outlet when making
adjustments, changing parts or cleaning.
8. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the
OFF position before plugging in the power cord.
9. DO NOT abuse the power cord. Do not use it to carry the tool. Keep cord
away from heat, oil, sharp edges, or moving parts. Replace damaged cords
immediately; they may create a shock or fire hazard.
10. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch
to OFF. Do not leave the tool until it has come to a complete stop.
11. DO NOT OVERREACH. Keep proper footing and balance at all times.
⁄TO AVOID MISTAKES THAT COULD CAUSE SERIOUS
INJURY, DO NOT PLUG IN THE HEDGE TRIMMER UNTIL THE
FOLLOWING STEPS HAVE BEEN READ AND UNDERSTOOD.
12. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good
working order.
13. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts,
binding, breakage, or any other conditions that may affect the tool’s
operation. Any part that is damaged should be properly repaired or
replaced before use.
14. KEEP THE HANDLE DRY, CLEAN, AND FREE OF OIL AND GREASE.
Always use a clean cloth when cleaning. Do not use solvents, brake fluids,
gasoline, or other petroleum products to clean the tool. They may damage
plastic parts.
ALWAYS WEAR EYE PROTECTION.
A hedge trimmer can throw foreign objects into your eyes,
which could cause permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary
eyeglasses have only impact-resistant lenses...they are NOT
safety goggles.
SAFETY INFORMATION
WARNING:
3

SAFETY INFORMATION
DOUBLE INSULATED
This hedge trimmer has a plug that looks like the one shown in Fig. A.
The hedge trimmer is double insulated to
provide a double thickness of insulation
between you and the tool’s electrical
system. All exposed metal parts are
isolated from the internal metal motor
components with protective insulation.
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides
the path of least resistance for electric current, and reduces the risk of electric
shock.
TO AVOID ELECTROCUTION:
1. Use only identical replacement parts when servicing a tool with double
insulation. Servicing should be performed by a qualified technician.
2. Do not use in wet or damp areas or expose to rain.
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF
NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS TOOL.
TO AVOID INJURY, WHEN SERVICING THE HEDGE
TRIMMER, USE ONLY IDENTICAL REPLACEMENT PARTS.
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR
DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR
HEDGE TRIMMER IS WIRED A
TTHE FACTORYFOR 120 V OPERA
TION.
CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 A TIME-DELAYED
FUSE OR CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE WHEN THE
EXTENSION
CORD IS WORN, CUT, OR DAMAGED IN ANYWA
Y
, REPLACE
IT IMMEDIATEL
Y.
Fig. A
1) 2-pronged plug
2) Properly grounded
extension cord
WARNING:
WARNING:
WARNING:
WARNING:
4
This tool is equipped with a POLARIZED plug. The plug MUST be plugged
into a matching grounded extension cord in accordance with ALL local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the properly grounded
extension cord, have the proper outlet installed by a qualified electrician.

CAUTION: IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN
QUESTION IS PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A
CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in
good condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An undersized cord will cause
overheating. The table below shows the correct size to use depending on cord
length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
person before using it. Keep your extension cords away from sharp objects,
excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should not be less than
#12 wire and should be protected with a 15 A time-delayed fuse. Before
connecting the motor to the power line, make sure the switch is in the OFF
position and the electric current is rated the same as the current stamped on the
motor nameplate. Running at a lower voltage will damage the motor.
Ampere Rating Total Length of Cord in Feet (meters)
More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
THIS HEDGE TRIMMER IS FOR OUTDOOR USE ONLY.
DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
ALTHOUGH THIS TOOL IS DOUBLE INSULATED, THE
EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED
WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.
SAFETY INFORMATION
WARNING:
WARNING:
5

6
1. IF YOU ARE NOT thoroughly familiar with the operation of the hedge
trimmer, obtain advice from a qualified person.
2. MAKE SURE wiring codes and recommended electrical connections are
followed. The hedge trimmer is double insulated. When servicing, use only
identical replacement parts.
3. AVOID UNINTENTIONAL STARTING. Don’t carry plugged-in trimmer with
finger on switch. Make sure switch is in the OFF position when plugging in.
4. DO NOT operate the hedge trimmer when you are tired or your visibility is
limited. Do not use the hedge trimmer at night or in reduced light.
5. DO NOT grasp the exposed cutting blade when picking up or holding the
hedge trimmer. Keep cutting edge sharp and clean for best performance
and to reduce the risk of injury.
6. Make sure the hedge trimmer switch is in the OFF position when clearing
jammed material from blade.
7. MAKE all adjustments with the switch in the OFF position and the hedge
trimmer disconnected from the power source.
8. DO NOT FORCE THE HEDGE TRIMMER. It will do the job better and with
less likelihood of a risk of injury when used at the rate for which it was designed.
9. DO NOT OVERREACH. Keep proper footing and balance at all times.
10. ALWAYS use accessories provided or recommended by the manufacturer
of the hedge trimmer. Do not substitute.
11. KEEP guards in place and in working order. Keep blades sharp. Keep
hands and feet away from cutting area.
12. KEEP VENTILATION OPENINGS clear of debris.
13. Before using the hedge trimmer, remove any sticks, debris or objects that
could become entangled or thrown by the hedge trimmer.
14
15. When using this tool, make sure that there are no other persons or animals within
a 30' (9.1 m) radius.
16. ALWAYS wear hearing protection.
. STORE the hedge trimmer indoors in dry, high, or a locked-up place, out of
the reach of children.
IF THE HEDGE TRIMMER BLADE JAMS OR GETS
CAUGHT ON ANY ELECTRICAL CORD OR WIRES, DO NOT TOUCH THE
BLADE FOR ANY REASON! IT CAN BE ELECTRICALLY LIVE AND CAUSE
SERIOUS OR FATAL INJURY!
Release or drop the hedge trimmer in the quickest, safest way. If possible,
disconnect the damaged electrical cord from its power source. If not possible,
call an electrician, electrical contractor, or the power company for assistance.
Failure to heed this danger will cause serious personal injury and possible
death.
AVOID SERIOUS INJURY. THE BLADES COAST AFTER
TURNING OFF. ALWAYS KEEP BOTH HANDS ON THE TWO HANDLES TO
PREVENT YOUR HAND FROM TOUCHING THE BLADES.
SPECIFIC SAFETY RULES
WARNING:
DANGER

Blade
Blade
support rod
Guard
Auxiliary handle
Trigger switch
KNOW YOUR HEDGE TRIMMER
Lock out button
7

UNPACKING (Fig. 1)
Remove the hedge trimmer (1) from the carton and examine carefully.
NOTE: Do not discard box or any packing material until all parts are examined.
Fig. 1
1. Hedge trimmer
IF ANY PART OF THE HEDGE TRIMMER IS MISSING
OR DAMAGED, DO NOT PLUG THE HEDGE TRIMMER IN UNTIL THE
DAMAGED PART IS REPAIRED OR REPLACED.
1
ASSEMBLY INSTRUCTIONS
8
WARNING:

ON/OF
Attaching Extension Cord To Hedger
F SWITCH
(Fig. 2)
OPERATING INSTRUCTIONS
Fig. 2 Fig. 3
9
BEFORE CONNECTING YOUR HEDGE TRIMMER TO THE POWER
OUTLET, ALWAYS TURN THE SWITCH TO THE OFF POSITION. FAILURE TO CHECK
COULD RESULT IN ACCIDENTAL START–UP CAUSING SERIOUS INJURY.
Turning on the hedge trimmer (Fig. 3)
1. Plug into a matching grounded extension cord.
2. Place one hand on the trigger handle (1) . Place the other hand on the auxiliary
handle (2).
3. Press the lock out button (4), and then squeeze the trigger switch (3) to turn ON the
hedge trimmer. The trimmer will stay on as long
as the trigger switch is squeezed.
Turning off the hedge trimmer (Fig. 3)
1. Release the trigger switch (3).
2. Allow at least 5 seconds for the cutting blade to stop moving.
2
41
3
WARNING:
Use the cord retainer as shown in the picture.

Hedging Tips
Before Hedging
•IMPORTANT! Lubricate the blade with light machine oil. Ignoring this step will
decrease blade life and cause difficult operation.
During Hedging
• Before starting the hedge trimmer, hold the handles with both hands.
• Keep the blade facing away from you.
• Wear gloves when trimming thorny or prickly growth.
• When trimming new growth, swing the hedge trimmer in a wide sweeping action.
• Move the hedge trimmer to feed the branches directly into the blade's cutting
edges.
• When trimming thicker, older stems and branches, cut with a sawing action.
• If stems are thicker than 9/16" (14 mm), use a handsaw or pruning saw.
• Do not try to cut stems that are too large.
To help keep the hedge level (Fig. 4)
• Measure the height you want the hedge.
• Stretch a string along the hedge at that height.
• Trim the hedge just above the string guideline.
TO AVOID INJURY, DO NOT CARRY THE HEDGE
TRIMMER WITH YOUR FINGER ON THE SWITCH. AVOID
UNINTENTIONAL STARTING.
Fig. 4 String
OPERATING INSTRUCTIONS
WARNING:
10

To help keep the hedge uniform and healthy (Fig. 5)
• Always trim the hedge so the branches are exposed to the air, sun, and
adequate moisture.
• Trim the top slightly narrower than the bottom, or trim the sides straight
up.
• Do not trim the hedge wider at the top than the bottom.
Do not use the hedge trimmer in rain or in wet locations, or
to cut wet hedges or shrubbery. Do not use the hedge trimmer if the blades
are bent. Wear non-slip footwear while operating the hedge trimmer.
Fig. 5
Do not place your hands near the front or near the blade
until the hedge trimmer has come to a complete stop. Always allow several
seconds for the blade to stop its reciprocating motion after turning the hedge
OPERATING INSTRUCTIONS
WARNING:
WARNING:
11
trimmer OFF.

GENERAL MAINTENANCE
Keep your hedge trimmer clean and in good repair for maximum performance
and machine longevity.
Before each use:
• Inspect the switch and extension cord for damage.
• Check for damaged, missing, or worn parts.
• Check for loose screws, misalignment, moving parts that are jammed, or any
other conditions that may affect the operation.
During use:
• If abnormal vibration or noise occurs, turn off the tool immediately and have
the problem corrected before further use. Do not use the hedge trimmer until it
is properly repaired or replaced.
CLEANING
• Wipe the outside of the hedge trimmer with a dry soft cloth. Do not hose down
or wash the hedge trimmer with water.
• Remove dried clippings and mud. Brush or blow dust, debris, and grass
clippings out of the air vents. Keep the vents free of obstruction.
TO AVOID INJURY, ELECTRIC SHOCK, OR DAMAGE TO
THE HEDGE TRIMMER, NEVER IMMERSE THE HEDGE TRIMMER IN
LIQUID OR ALLOW LIQUID TO FLOW INSIDE THE TOOL.
ALWAYS TURN OFF THE TOOL AND UNPLUG THE
EXTENSION CORD FROM THE OUTLET BEFORE MAINTAINING THE HEDGE
TRIMMER.
TO AVOID DAMAGE OR ELECTRIC SHOCK, DO NOT
USE STRONG SOLVENTS OR DETERGENTS ON THE PLASTIC
HOUSING OR PLASTIC COMPONENTS. CERTAIN HOUSEHOLD
CLEANERS MAY DAMAGE PLASTIC COMPONENTS, AND MAY
ALSO CAUSE A SHOCK HAZARD.
12
MAINTENANCE
WARNING:
WARNING:
WARNING:

WARRANTY
For TWO YEARS from the date of purchase within Canada,YARDWORKS CANADA will,
at its option, repair or replace for the original purchaser, free of charge, any part or parts
found to be defective in material or workmanship.
This warranty does not cover:
1. Any part which has become inoperative due to misuse, commercial use, abuse,
neglect, accident, improper maintenance or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3.Normal wear, except as noted below;
4.Routine maintenance items such as lubricants, blade sharpening;
5.Normal deterioration of the exterior finish due to use or exposure.
Full One Hundred Twenty Days Warranty on Normal Wear Parts: Normal wear parts are
defined as blade adaptors, blades, grass bags and tires. These parts are warranted to the
original purchaser to be free from defects in material and workmanship for a period of one
hundred twenty (120) days from the date of retail purchase.
How to Obtain Service: Warranty service is available, with proof of purchase, through your
local authorized service dealer or distributor. If you do not know the dealer or distributor in
your area, please call toll free 1 866 523-5218. YARDWORKS will not accept the return
of a complete unit unless prior written permission has been extended by
YARDWORKS CANADA.
Transportation Charges: Transportation charges for the movement of any power equip-
ment unit or attachment are the responsibility of the purchaser. The purchaser must pay
transportation charges for any part submitted for replacement under this warranty unless
such return is requested in writing by YARDWORKS CANADA.
Other Warranties: All other warranties, express or implied, including any implied warranty
of merchantability, is limited in its duration to that set forth in this express limited warranty.
The provisions as set forth in this warranty provide the sole and exclusive remedy of
YARDWORKS CANADA with respect to obligations arising from the sale of its products.
YARDWORKS CANADA will not be liable for incidental or consequential loss or damage.
13

PARTS LIST
14
920001 Housing assembly
3640186 Inner plug
3411386-1 Switch trigger
3340187 Spring
3630129 Switch
3340287 Spring
3410787-1 Lock button
3220313 Screw
920002 Motor&Blade assembly
3220187 Trigonal screw
3220186 Bottom cover
3290675 Spring washer
3290186 Washer
3250186 Spacer
34101165 Auxiliary handle
3220905 Crossed screw
3410711 Guard
1 1
2 1
3 1
4 1
51
61
7 1
8 9
9 1
10 2
11 2
12 2
13 2
14 2
15 1
16 6
17 1
Item No.
Qty
Description
