Yealink RT30 User manual

DECT Repeater
RT30
www.yealink.com
User Guide(V1.0)

1DECT Repeater RT30 User Guide
The following items are included in your package:
Appearance Instructions
LED Status
The DECT repeater has three LED indicators describing the repeater statuses.
The following table provides instructions on repeater statuses and LED
indications.
Status POWER DECT RELAY
Not registered, auto search for base
station (do not know which base station to
register)
Green Flashing red Off
Search for base station (known which base
station to register)
Green Flashing yellow Off
Registered to base station, ready for use Green Green/yellow Off
Registered to base station, a handset is
communicating with base station
Green Green/yellow Green
Registered to base station, 2 handsets are
communicating with base station
Green Green/yellow Red
Error: ID duplication Green Alternately flashing
red and green
Alternately flashing
red and green
Check the repeater ID Green Green/yellow Flashing green
Modify the repeater ID Red Green/yellow Flashing red
Auto cascade registration Yellow Flashing green Off
Manual cascade registration Yellow Green Flashing red
De-register the repeater Red Red Red
Packaging Contents
RT30

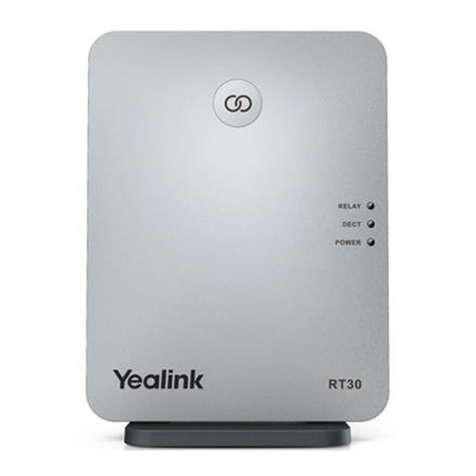

Overview
Base Stand Power Adapter User Guide
Program Key
RELAY LED
DECT LED
POWER LED USB Port

www.yealink.com 2
The DECT LED can indicate the DECT link quality. RT30 must be operated
with this LED in green status. The following table provides instructions on
DECT link quality and LED color.
DECT link Color
Excellent to good Green
Poor Yellow
Connect the power for the repeater:
1.Connect RT30 to a power outlet using the included cable and USB power
adapter.
Wall mounting:
Installation
59mm
59mm
59mm

3DECT Repeater RT30 User Guide
Attach the base stand:
1.Align the snap-fits with the corresponding holes and push forward,
snapping them into the holes.
Yealink DECT repeater RT30 is designed in accordance with Digital Enhanced
Cordless Telecommunication (DECT) standard. It can be deployed to extend
the range of the Yealink IP DECT phone (for example, W52P, W60B) to cover
areas where reception was previously not available. All the usual handset
functions are supported by the base station in the extended radio range.
The repeater, base station and cordless handset employ wireless connection.
Signals are exchanged without acoustical and visual differences.
If the DECT link quality of RT30 is in excellent-to-good condition, up to 2
handsets can communicate with the base station.
The repeater can be used to extend the coverage range in all directions or
in a single direction. The automatic handover process is seamless. If the
repeater is placed correctly (overlapping the coverage area of the base
station), the handsets can move freely within the total coverage area while
on a call.
Cascade setup:
RT30 supports a sequential or "daisy chain" layout to extend coverage in a
single direction. Up to 2 repeaters can be installed in sequence.
Introduction
Multiple Repeaters
50m/300m
W60B RT30 RT30

www.yealink.com 4
Star setup:
Up to 6 repeater can be registered to one base station to extend available
reception range for all registered handsets. All repeaters must be installed
within the base station coverage area (up to 300m in unobstructed outdoor
areas and up to 50m inside buildings), as shown in the figure below.
Registration: You can register the repeater to a base station to extend
available reception range.
Cascade Registration: If you want to cascade setup 2 repeaters, you need
to register the repeaters first and then perform cascade registration on the
second repeater.
Modify the ID: After registering to the base station, every repeater has their
own ID, they use ID to distinguish each other. If the IDs of two repeaters are
duplicated, you need to modify the ID manually.
De-registration: Registration cannot be performed if the repeater is already
registered to one base station. In this case, de-register the repeater before
attempting registration.
Registration
If you want to register more than one repeater, we recommend that you put
the base station and repeaters together and register the repeaters one by
one, to prevent the ID duplication.
1.Plug the repeater into a AC outlet.
POWER LED is green and DECT LED is flashing red.
Registering the Repeater
50m/300m
RT30
RT30
RT30 RT30
RT30
RT30
W60B

5DECT Repeater RT30 User Guide
2.Set the handset in RT30 repeater mode at the path: Settings->System
Settings->Repeater Mode.
3.Set base station in registration mode (Long press paging key on the base
station till the first LED flashes).
If base station is found, DECT LED will flash yellow.
When DECT LED is green/yellow, registration to base station is successful.
Cascade Registration
Up to 2 repeaters can be registered to the base station in a cascade setup.
Before performing the cascade registration, you should register the 2
repeaters first.
When performing cascade registration, we recommend you that put the
repeaters together and make the repeaters stay away from the base station.
The repeater supports automatic or manually cascade registration.
Auto Cascade Registration
1.Long press the program key on second repeater about 3 seconds.
The second repeater starts searching for the first repeater, POWER LED is
yellow and DECT LED is flashing green.
When POWER LED is green and DECT LED is green/yellow, auto cascade
registration is successful.
Manually Cascade Registration
1.On first repeater:
a.Check the ID: Press the program key. And the ID is indicated by the
number of times the RELAY LED flashes green.
2.On second repeater:
a.Long press the program key about 3 seconds.
POWER LED is yellow and DECT LED is flashing green.
b.Enter the first repeater's ID by pressing the program key. The ID will
increase by one each time the program key is pressed.
POWER LED is yellow and DECT LED is green. And the number of times
the RELAY LED flashes indicates the entered ID.
c.Press the program key about 3 seconds to confirm the ID.
The second repeater starts searching for the first repeater, POWER LED
is green and DECT LED is flashing yellow.
When POWER LED is green and DECT LED is green/yellow, manually cascade
registration is successful.
Modify the ID
1.Press the program key to check the ID.
2.Long press the program key about 3 seconds to enter the ID modifying
mode.
POWER LED is red and DECT LED is green/yellow.
3.Enter the first repeater's ID by pressing the program key. The ID will
increase by one each time the program key is pressed.
The number of times the RELAY LED flashes indicates the entered ID.
4.Long press the program key about 3 seconds to confirm the ID.
The repeater will re-register to the base station/repeater.

www.yealink.com 6
De-registration
1.Long press the program key and reconnect the power adapter.
2.Hold the program key until the three LEDs is red.
De-registration is successful, and the repeater will start to search the base
To achieve optimum performance for the repeater, it is important to find a
good location.
1.Hold the handset and stand near the base.
2.Make a call, and carry the handset away from the base.
3.Make a note where you start to hear noise on the line, which indicates the
signal is getting weaker.
The optimum location for the repeater is as far from the base as possible
while still maintaining a good signal, or just inside the location where the
noise became noticeable.
Here are a few tips for placing repeaters:
•Choose a raised position for both the base station and repeater wherever
possible.
•When positioning the repeater, avoid obstacles that can interfere with
radio transmission such as thick wall and metal structures that may be in
the coverage area between the base station and repeater.
•Avoid interference from other electrical appliances such as micro-wave
ovens, Hi-Fi equipment, computers etc.
•Keep a minimum of 10 meters between multiple repeaters to avoid
coverage area overlapping.
Placement
Register the RT30 to base
station within the “good”
signal range.
Make a call, then
walk away from the
base to determine
the signal range.
Strong signal
range
Good signal
range
Week signal
range
RT30
W60B
