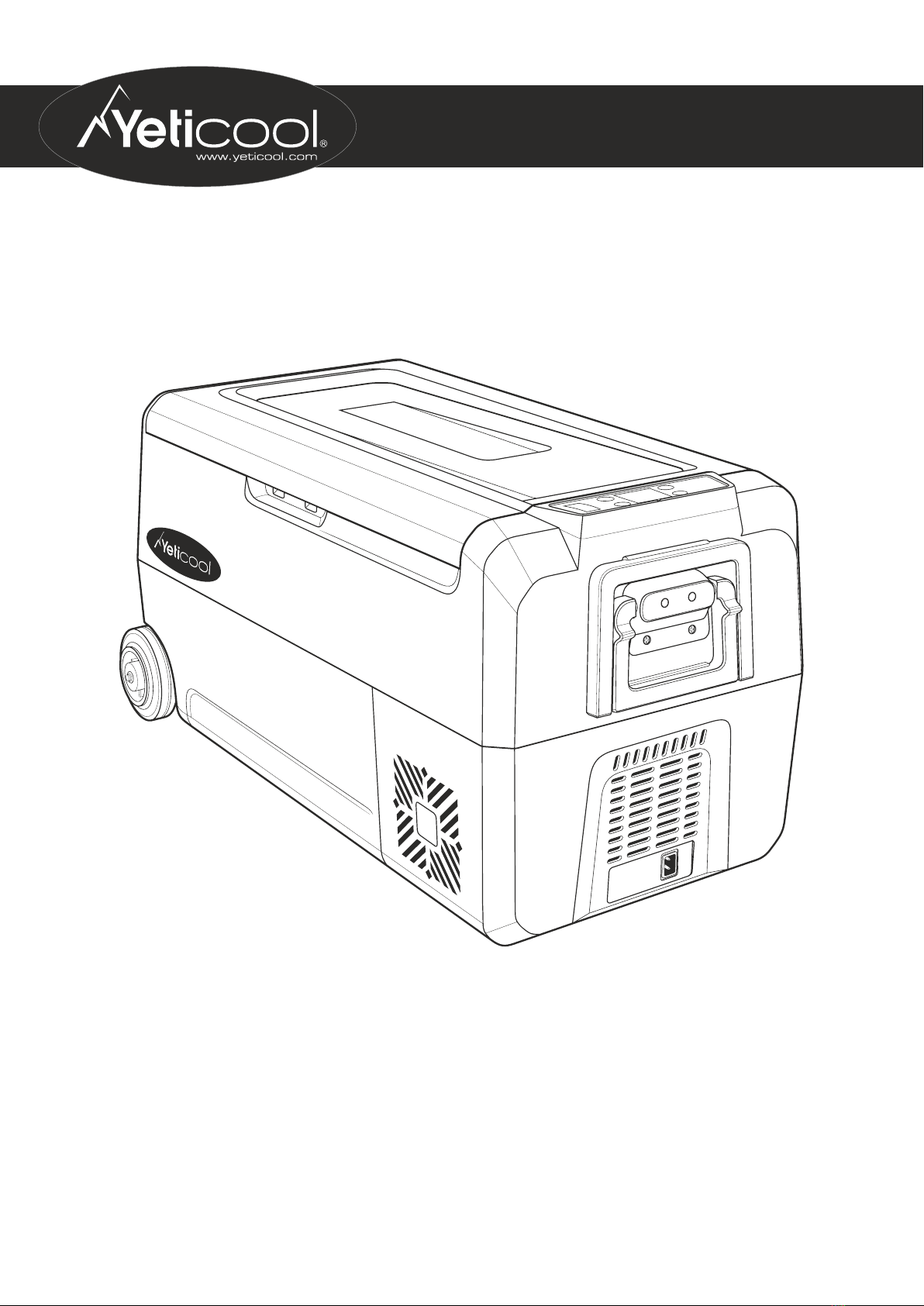

Yeticool TX36 User manual

USER MANUAL
TX36
PORTABLE FRIDGE WITH COMPRESSOR

DANGER!
Safety note: Non-observance can result in death or serious injury.
CAREFULLY!
Safety note: Failure to comply can result in injury.
ATTENTION!
Non-observance can lead to material damage or interference with the product.
TIP
Supplementary information on product handling.
1. Explanation of symbols.
Please read this manual carefully before starting the device. Keep these instructions. The manufacturer
is not liable for damages resulting from improper use or incorrect operation.
2. Safety information
• The device and / or its power cord may not be used if they show any signs of damage.
• The device should be connected to a power source that complies with the data included in the technical specification, only with the supplied power cords. 100-
240V power supply requires cable connection via the AC / DC adapter.
•The device must be disconnected from the mains after each use and before cleaning / maintenance. The battery should be turned off.
• If the device requires repair, contact the manufacturer's service. Contact details can be found at www.arkas.pl.
• Repairs may only be carried out by qualified persons. Self-repair can cause serious health or life hazards.
• The device should not be operated by children, persons with limited physical, sensory or mental capabilities and / or persons who do not have appropriate
knowledge and experience.
• The device should be stored out of the reach of children.
• Do not store caustic substances, containing solvents, which are known to be explosive or compressed flammable gases in the device.
• Foodstuffs should be stored in their original packaging or appropriate containers.
• Too low or too high temperature may adversely affect the stored food. The temperature inside the refrigerator should be adjusted to the temperature recommended
by the food manufacturer. Optimum storage temperature for fresh food: 0 ° C - + 4 ° C.
• This refrigeration appliance is not intended to be used as a built-in appliance.
• This refrigeration appliance is not suitable for the freezing of foodstuffs.
• The refrigeration appliance is intended for use in an ambient temperature ranging from 10 ° C to 32 ° C, or 16 ° C to 32 ° C, or 16 ° C to 38 ° C, or 16 ° C to 43 ° C.
Detailed information can be found in the "technical data" section of this manual.
• Protect the device against adverse weather conditions such as rain. The device is not waterproof.
• The device must be turned off or disconnected from the power source when the engine is switched off or the battery charging (12 / 24V) is switched on in motor
vehicles. Otherwise the battery may discharge.
• The device insulation contains cyclopentane. The device, which is not suitable for further operation, should be delivered to a specialized rendering plant.
• The manufacturer's warranty period - 24 months from the date of purchase.
• The minimum period for which spare parts necessary to repair are available is 7 or 10 years, depending on the type and purpose of the spare part, and is in line with
Commission Regulation (EU) 2019/2019. The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or authorized
representative.
More information about the product can be found in the EU Product Database EPREL at https://eprel.ec.europa.eu. Information can be obtained by scanning the QR
code on the energy label or by entering the product model from the energy label in the EPREL search engine https://eprel.ec.europa.eu.

3. Description of operation and basic functions
• The tourist fridge is used to cool food.
• Thanks to high-class insulation and an efficient compressor, the cooling process is extremely fast.
• The device has two cold rooms equipped with separate Dual-Zone temperature control.
• The fridge volume can be increased by removing the movable partition wall of the chambers.
• The fridge can be DC (100-240V) or AC (12 / 24V).
• The device has multi-level protection of the vehicle battery against discharge and overvoltage protection to protect against
sudden voltage surges in the electrical network.
• The control panel with a clear LCD screen enables intuitive control of the device.
• The fridge is equipped with a Bluetooth 5.0 transmitter. This allows you to control it using an application designed for mobile
devices (Android / iOS).
• Built-in USB socket allows you to charge external devices such as a smartphone or tablet.
• Ergonomic handles and wheels enable comfortable movement of the device.
• Internal food baskets make it easy to remove and manage the contents of the refrigerator.
• Possibility of connecting an external power supply battery, allowing the temperature inside the device to be maintained for up to
22 hours (5°C / 41°F at an ambient temperature of 25°C / 77°F). Battery sold separately.
4. Contents of the package
• Portable fridge with compressor
• Inner baskets
• 12/24V power cord (length: 3.5m/11,4ft)
• AC/DC adapter with 100-240V power cord (EU/UK)
• User manual
5. Directions for use
• Before first use, remove the device from the packaging, clean the inside of the device with a damp cloth and wait 6 hours.
• During operation, the device should be located in a well-ventilated room, away from heat sources and direct sunlight.
• Ensure adequate space between the device and other equipment (≥200mm on the back of the device, ≥100mm on the sides of
the device).
• The device should be in a horizontal position during operation. The maximum angle of inclination of the device relative to the
ground should not be more than 5 °.
• Do not open the appliance door more often than necessary. This may change the temperature inside the device.
• If the device is used with the ignition off of a motor vehicle (when using a 12 / 24V power source), it switches itself off when the
voltage drops below the set battery protection value. The device will turn on again when the required voltage is obtained by
charging the battery.
• If the refrigerator partition wall is removed, the control is done using the left ventricle control panel. The right chamber control will
be automatically deactivated.
• The left chamber temperature should not be set lower than the right chamber temperature. This forces the compressor to work
continuously, and thus shortens its lifetime.

6. Operating
Operating the device
from control panel
Device on/off button
Settings button
Right chamber temperature reduction button
Left ventricular lowering button
Right chamber temperature increase button
Current temperature inside the right chamber
Current temperature insdie the left ventricle
Left ventricular temperature increase button
Left ventricular display
Right ventricular display
USB port for charging external devices
such as smartphone/tablet
Temperature scale °C/°F
Battery protection mode (H/M/L)
The Voltage
at the current reaching
the device
Battery protection mode
Switch-off voltage with 12V supply
Restart voltage with 12V power supply
Switch-off voltage with 24V supply
Restart voltage with 24V supply
Low (L)
9.6V
10.9V
21.3V
22.7V
Medium (M)
10.1V
11.4V
22.3V
23.7V
High (H)
11.1V
12.4V
24.3V
25.7V
Cooling mode
( Max/Eco)
Device on / off button
Button Function
Pressing once will turn on/off the device
Buttons responsible for setting the temperature inside the device.
A single press increases the temperature
A single press lowers temperature
Pressing it once will change the cooling mode from ECO (energy saving) to MAX (fast cooling).
Default setting for fast cooling (MAX)
Press and hold to change between battery protection modes (when powered from a 12 / 24V socket in
motor vehicles): H (high protection) / M (medium protection) / L (low protection).
Default set to high protection (H).
When connecting the device to the application via Bluetooth:
Pressing once, when the "AP" message appears on the device control panel, will enable its connection
with the application on the external device.
Temperature reduction
button
Temperature increase
button
Settings button
Changing the temperature scale on the control panel (°C/°F)
With the device turned off, press and hold the button until the message E1 appears Then press the button several times
until the content of the message changes to E5. Use the button or to switch between the ° C and ° F temperature scales. Turn
off the device using the button to save the setting.
Operating the device from the application level (Android / iOS)
The application Yeticool can be downloaded from the GooglePlay store (for Android devices) or AppStore (for iOS devices). For
the proper operation of the application, it is required to turn on the Bluetooth function and the location function on the external
device.
To connect to the application, launch it on an external device (smartphone / tablet), search for and select the fridge from the list of
available devices. The refrigeration appliance control panel will display "AP", which must be confirmed by pressing the button .
The device should be ready for receiving commands from the application.

Device on/off button
Current temperature inside the left chamber
Current temperature inside the right chamber
The voltage at the current reaching the device
Temperature scale change button°C/°F
Settings change button
Slider for changing the target temperature inside the left ventricle
Slider for changing the target temperature inside the right ventricle
Cooling mode change buttons (MAX / ECO)
Control panel lock button on the device
Battery protection mode change buttons (H/M/L)
Setting the min temperature
Setting the max temperature
Setting the compressor start delay after starting the device (in minutes)
Left ventricular hysteresis setting - the compressor will start after exceeding the sum of the
set device temperature and hysteresis temperature.(example - cooling temperature set
on the device: -20°C, hysteresis temperature: +2°C, compressor restart temperature: -18°C)
Settings enabling leveling of differences between the real temperature of the inside of the left
ventricle of the device and the temperature set on the control panel (example - cooling
temperature of the left ventricle of the device: 0°C, actual temperature inside the ventricle:
-5°C, temperature to be set to level the differences +5°C)
Setting delaying / accelerating the compressor off after reaching the temperature set on the
left ventricle control panel
Change the application theme
Changing the application language
Restoring the default settings of the application
Disconnecting the Bluetooth connection
Right ventricular hysteresis setting - the compressor will start after exceeding the sum of the
set device temperature and hysteresis temperature. (example - cooling temperature set on the
device: -20°C, hysteresis temperature: +2°C, compressor restart temperature: -18°C)
Settings enabling leveling of differences between the actual temperature of the inside of the
right chamber of the device and the temperature set on the control panel (example - cooling
temperature of the right chamber set on the device: 0°C, actual temperature insidethe
chamber: -5°C, temperature to be set to level the differences +5°C)
Setting delaying / accelerating the compressor off after reaching the temperature set on the
right ventricle control panel
-4°C

7.Cleaning and maintenance
• Turn off the device and disconnect it from the external power supply before each cleaning.
• The device must not be cleaned under running water.
• Do not use aggressive cleaning agents for cleaning.
• Clean the outside and inside of the device with a damp cloth, bypassing the control panel, power section and ventilation
openings.
8. Troubleshooting the most common faults
Foodstuffs have been frozen:
• Change the cooling temperature to higher, the set temperature is too low.
The device makes a sound of flowing liquid:
• This sound is normal.
Droplets of liquid appear around the fridge door:
• Liquid droplets appear due to the temperature difference between the device and its surroundings, and are normal.
When starting the device, the compressor makes a loud noise:
• It is normal for the compressor to work loudly at start-up.
The device does not work:
• Check if the device has been switched on with the button .
• Check that the device is correctly connected to the power source.
• Check whether the power supply is functional.
• Check if the fuse has blown.
The device displays the F1 code:
• Code informing about 12 / 24V supply voltage drop. Change the protection setting to lower from H (high) to M (medium) or from
M (medium) to L (low).
The device displays the F2 code:
• Code informing about fan overload. Switch the device off and on again after 30 minutes.
The device displays the F3 code:
• Code informing about activation of protection against too frequent compressor operation. Switch the device off and on again
after 30 minutes.
The device displays the F4 code:
• Code informing about compressor overload. Switch the device off and on again after 30 minutes.
The device displays the F5 code:
• Code informing about compressor module overheating. Switch the device off and on again after 30 minutes.
The device displays the code F6:
• Code informing about the inability to read parameters by the device controller. Restart the device. If the problem persists, please
contact your dealer.
The device displays the code F7 or F8:
• Code informing about temperature sensor error. Please contact the seller.

9. Technical data
Model number:
Supply voltage:
Rated current:
USB socket:
Number of cooling chambers:
Cooling temperature range:
Average energy consumption:
Usable capacity:
Climate class:
Ambient temperature
Noise level:
Communication Type:
Dimensions (W x H x D) in mm:
Net weight:
TX36
12/24V DC
100-240V AC, 50/60Hz
12V/6A
24V/3A
100V/1.5A
240V/0.7A
5V/1A
2
from +20°C to -20°C (from 68°F to -4°F)
45-60W (depending on the ambient temperature)
36 liters/9,5gal
N, T, SN, ST
from +10°C to +43°C (from 50°F to 109°F)
38dB
Bluetooth 5.0 (working range - up to 10m/32,8ft)
723 x 368 x 403 (inches: 28,4"x14,4"x15,8")
16kg(35Ib)
MANUFACTURER'S DECLARATION
Arkas Sp. z o.o. declares that the TX36 Portable Refrigerator complies with the European Parliament and Council Directives 2009/125 / EC and 2014/53 / EU of
April 16, 2014. on the harmonization of the laws of the Member States concerning the making available on the market of radio equipment and repealing Directive
1999/5 / EC. The full text of the EU declaration of conformity is published at www.arkas.pl
The crossed out wheeled bin symbol means that this product should not be disposed of with other household waste. Waste electrical and electronic equipment
should be sent for recycling and recycling with environmental protection regulations in force in a given country regarding waste management. Selective waste
collection contributes to reducing their potential negative impact on human health and the resulting environment from the presence in the equipment of
dangerous substances, mixtures and components.
Manufacturer:
Foshan Great Power Co,.Ltd
Commercial registration number:
91440606663372921C
Adress:
3/F Block, 16th, Street#3, Fengxin
Road, Fengxing Industrial Zone, Shunde
District, Foshan City, Guangdong
Province, Chiny
Model identifier:
GRT90-145600
Input voltage:
100-240V
Input AC frequency:
50/60Hz
Output voltage:
14,5V
Output current:
6,0A
Output power:
87W
Average active efficiency:
90%
Efficiency at low load (10%):
89%
No-load power consumption:
0.19W
POWER SUPPLY SPECIFICATION
Manufacturer:
ARKAS Sp. z o.o.
ul. Kuziennicza 4,
59-400 Jawor, Polska
www.arkas.pl
www.yeticool.com
19/BQP/20
Instructions for use
in other languages
are available at
www.yeticool.com
