1.1 Overview / 1.2 Connections / 1.3 Specifications of Remote Control Functions
IM810518803-17E 1-1
51
Functional Description
Chapter 1 Functional Description
1.1 Overview
This remote control function remotely controls the AQ2200-series Frame Controller using an
external controller, such as personal computer through the GP-IB or Ethernet interface.
This user’s manual describes the remote control functions of “AQ2200-631 10Gbit/s Optical
Receiver”.
1.2 Connections
For details about connections, see the Remote Command Reference for AQ2201/AQ2202
Frame Controller.
1.3 Specifications of Remote Control Functions
The following shows the specifications of the GP-IB and Ethernet remote control functions.
Specifications of GP-IB remote control function
Item Specifications
GP-IB address 0 to 30 (Default value: 20)
Delimiter code “EOI” is put at the end of the data.
Specifications of Ethernet remote control function
Item Specifications
IP Address ∗.∗.∗.∗(“∗” shows a numeric value ranging from “0” to “255”.)
Factory default setting:192.168.1.1
SubNetmask
∗.∗.∗.∗(“∗” shows a numeric value ranging from “0” to “255”.)
Factory default setting: 255.255.255.254
Gateway
∗.∗.∗.∗(“∗” shows a numeric value ranging from “0” to “255”.)
Factory default setting: No default setting
Port No. 0 to 65535
Factory default setting: 50000
Communication protocol TCP/IP
With Client Server Model, Frame Controller functions as Server.
Delimiter CR LF (2 bytes)

1.4 Command Format
1-2 IM810518803-17E
1.4 Command Format
(1) When the frame No., slot No., and device No. are specified, this manual describes each No. as shown
below.
Frame: m
Frame controller →0
Slot No.: n
AQ2201 →1 to 3
AQ2202 →1 to 9
(2) The command in the portion enclosed by [ ] can be omitted.
When the frame No. [m] is omitted, the frame No. becomes “0”.
When the slot No. [n] is omitted, the slot No. becomes “1”.
Example) :SLOT[n]:IDN?, :STATUS[n]?, etc.
(3) When describing a command, the lower case character portion can be omitted.
Example) SYSTem
•Correct description
SYSTem, SyStEm, SYST, sysTEM, syst, SYSTEm, SYSTeM, System, sYSTEM, syST, etc.
•Incorrect description
SYSTe, SYS, SYSTemm, syste, etc.
(4) Items described in < > in the syntax and response of the command show parameters. Parameter name is
described in < >.
Example) syntax :SENSe[n]:THReshold:DATA <threshold>
parameters <state>
response <status>
(5) If there are multiple parameters, they are separated by a comma (,).
Example) response <Manufacturer>, <Model>, <Serial Numbers>, <Firmware Revision>
There are also commands, which do not have any parameters.
Example) :SLOT[n]:IDN?
(6) Items that “I” is described in Range of the parameter show that one element is selected from those listed.
(A | B = Either A or B is selected.)
Example) Range: OFF | ON
For details, see the Remote Command Reference for AQ2201/AQ2202 Frame Controller.

2.1 Connecting through GP-IB
IM810518803-17E 2-1
2
Preparations for Connection
Chapter 2 Preparations for Connection
2.1 Connecting through GP-IB
When connecting multiple units, a different address needs to be set for the GP-IB address.
Follow the steps below to set the GP-IB address.
1. Press the [SYSTEM] key to display the SYSTEM screen.
2. With the [S] or [T] key, move the cursor to "GP-IB Address" and press the <Edit> or
[ENTER] key.
3. With the ten-key pad or the [S] or [T] key, change the address.
4. After the input has been completed, press the <OK> or [ENTER] key.
GP-IB Address Display Screen
Note
In this Chapter, keys are indicated as described below.
•Hard key: [ ]
•Parameter item: " "
•Function key: < >

2.2 Connecting through Ethernet
2-2 IM810518803-17E
2.2 Connecting through Ethernet
A different address needs to be set for the network address of each unit in order to identify the
unit to be connected to the network.
Follow the steps below to set the network address.
1. Press the [SYSTEM] key to display the system screen.
2. With the [S] or [T] key, move the cursor to "Network Set" and press the <Edit> or
[ENTER] key.
3. With the [S] or [T] key, move the cursor to "IP Address", "SubNetmask", or "Gateway",
and press the <Edit> or [ENTER] key to select it.
4. With the ten-key pad or the [S] or [T] key, change the numeric value and press the <OK>
or [ENTER] key.
5. Repeat steps 3 and 4 to input all parameters, "IP Address", "SubNetmask", and
"Gateway".
6. After all parameters have been input, press the <Close> or [CANCEL] key.
7. To make the set numeric values valid, turn OFF the power and turn it ON again.

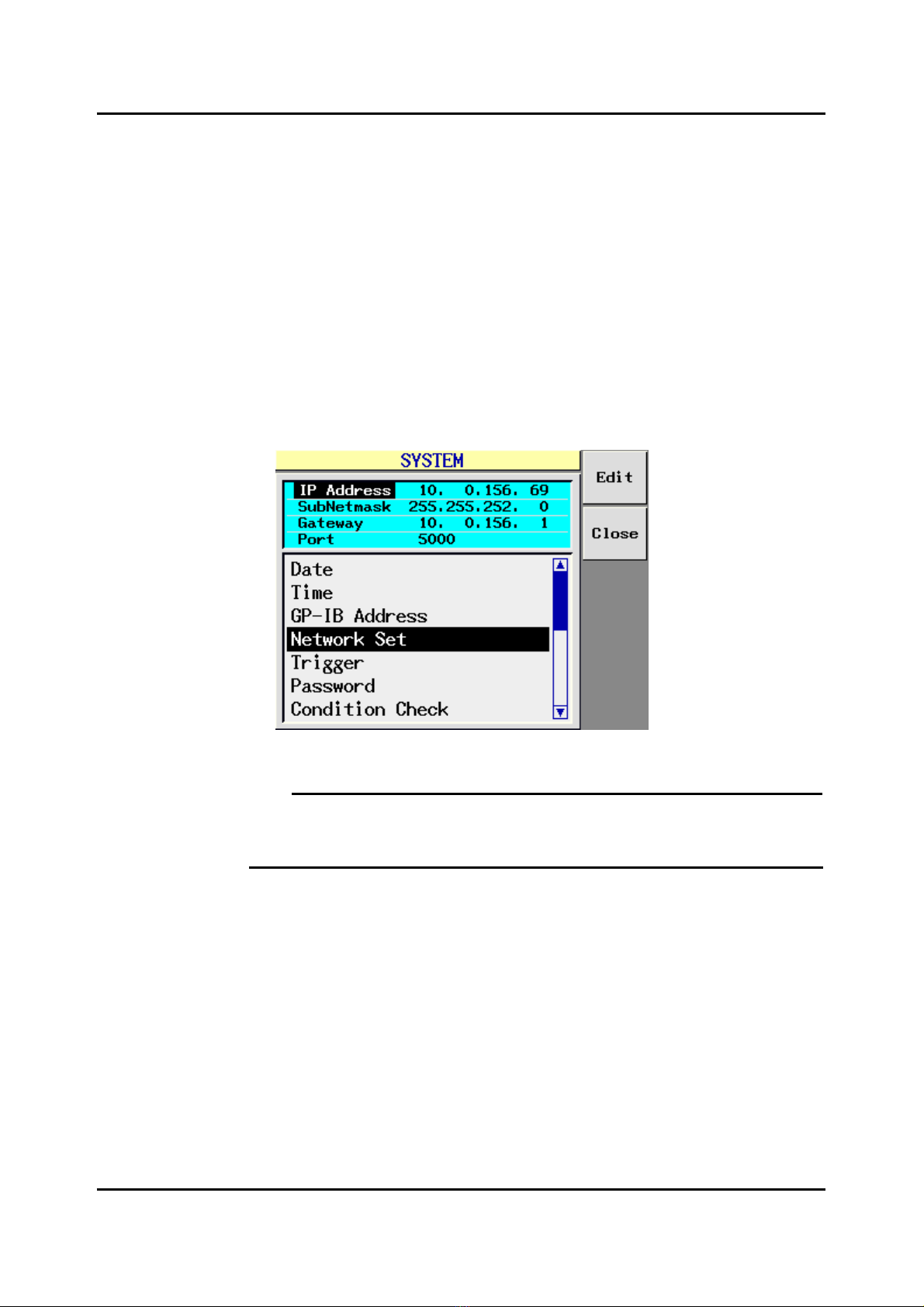

Network Address Display Screen
Note
For "IP Address", "SubNetmask", and "Gateway” of Network Set items, the numeric
values you have input become valid after the power has been turned OFF and it has
been turned ON again (Power OFF →ON). The previous status is retained unless
the power is turned OFF and it is turned ON again.

3.1 Common Commands
IM810518803-17E 3-1
3
Common Commands
3
Chapter 3 Common Commands
3.1 Common Commands
This Chapter describes the commands common to all modules.
:SLOT[n]:IDN?
description Obtains the module information.
response <Manufacturer>,<Model>,<Serial Numbers>,<Firmware Revision>
example :SLOT:IDN?
→YOKOGAWA,AQ2200-631,813D00051,01.00
:SLOT[n]:OPC?
description Obtains the command process status.
response <status>
Type: integer
Range: 0 | 1
0: Process is in progress.
1: Process is completed.
:SLOT[n]:OPTions?
description Obtains the module information.
response <option>
Type: integer
Bit Item Name Value
2 – 0 Wavelength 011: 1.3µm / 1.5µm
3 PD Type 0: PIN-PD
4 Not used. 0
5 Option2 1: Limiting Amp
6 Bitrate 0: 10Gbit/s
7 Logic 0: Normal
example :SLOT:OPT? →3
:SLOT[n]:PRESet
description Returns the setting information to the factory default setting status.
234567 1 0
Bit

3.1 Common Commands
3-2 IM810518803-17E
:SLOT[n]:TST?
description Obtains the self-test results.
response <result>
Type: integer
Range: 0: Correct
Value other than “0”: Faulty
If the value is not “0”, the bit value corresponding to the fault item becomes “1”.
Bit Item Name
0 Upgrade Memory error
1 ID Information Memory error
2 Temperature alarm
6-3 Not used.
7 A/D error
7 6 5 1 0
Bit 4 3 2

4.1 Unit Specific Commands
IM810518803-17E 4-1
2
4
Unit Specific Commands
Chapter 4 Unit Specific Commands
4.1 Unit Specific Commands
This Chapter describes the function commands of the AQ2200-631.
:STATUS[n]?
description Obtains the alarm information.
response <alarm>
Type: integer
Bit Item Name Obtained Value
1 – 0 Temperature alarm 00: Correct status
01: The temperature exceeds the upper
limit of the operating temperature.
This may cause an operational fault.
2 LOS alarm 0: Correct
1: Faulty
3 OVERLOAD alarm 0: Correct
1: Faulty
:SENSe[n]: THReshold:DATA
syntax :SENSe[n]: THReshold:DATA <threshold>
description Sets a data threshold value level.
parameters <threshold>
Type: integer
Range: -364 to 273 (1 Step)
Default: 0
example :SENS:THR:DATA 150
:SENSe[n]:THReshold:DATA?
description Obtains the set value of the data threshold level.
response <threshold>
Type: integer
Range: -364 to 273 (1 Step)
1 023
Bit

4.1 Unit Specific Commands
4-2 IM810518803-17E
:OUTPut[n]:STATe
syntax :OUTPut[n]:STATe <state>
description Sets the data output to ON or OFF.
parameters <state>
Type: discrete
Range: OFF | ON
OFF: Data output is OFF.
ON: Data output is ON.
Default: ON
example :OUTP:STAT ON
:OUTPut[n]:STATe?
description Obtains the data output status.
response <state>
Type: discrete
Range: OFF | ON
: INPut[n]:POWer?
description Obtains the average optical input power value.
response <power>
Type: decimal
:SENSe[n]:OVER[:LEVel]
syntax :SENSe[n]:OVLD[:LEVel] <overload>
description Sets an OVERLOAD detection level.
parameters <overload>
Type: decimal
Range: -19.0 to 2.0 (0.1dBm Step)
Default: -1.0
example :SENS:OVLD -10.0
:SENSe[n]:OVER[:LEVel]?
description Obtains the set value of the OVERLOAD detection level.
response <overload>
Type: decimal
Range: -19.0 to 2.0 (0.1dBm Step)

4.1 Unit Specific Commands
IM810518803-17E 4-3
2
4
Unit Specific Commands
:SENSe[n]:LOS[:LEVel]
syntax :SENSe[n]:LOS[:LEVel] <los>
description Sets a LOS detection level.
parameters <los>
Type: decimal
Range: -19.0 to 2.0 (0.1dBm Step)
Default: -16.0 (Wavelength is 1500nm.)
-15.0 (Wavelength is 1300nm.)
example :SENS:LOS -10.0
:SENSe[n]:LOS[:LEVel]?
description Obtains the set value of the LOS detection level.
response <los>
Type: decimal
Range: -19.0 to 2.0 (0.1dBm Step)
:INPut[n]:WAVelength
syntax :INPut[n]:WAVelength <length>
description Sets a wavelength band of the receive light signal.
parameters <length>
Type: discrete
Range: 1500NM | 1300NM
1500NM: 1500nm
1300NM: 1300nm
Default: 1500NM
example :INPut:WAV 1500NM
:INPut[n]: WAVelength?
description Obtains the wavelength band setting status of the receive light signal.
response <length>
Type: discrete
Range: 1500NM | 1300NM

5.1 Remote Command Errors
IM810518803-17E 5-1
Remote Command Errors
5
Chapter 5 Remote Command Errors
5.1 Remote Command Errors
This Chapter describes errors that occur when using the remote command.
The following shows the error messages caused by the remote command.
For details about other errors, see the list of error codes stated in the Operation Manual for AQ2200
multi-application system.
Additionally, the flag set information on standard, status, and register is described in Type.
CME: Command error
EXE: Execution error
DDE: Device error
QYE: Query error
Remote Command Errors (1/2)
Code Item Description
1030 Message
Contents
Remedy
Type
Command Error
Command error
Check the command and send it again.
CME
1031 Message
Contents
Remedy
Type
Syntax Error
Syntax error
Check the command syntax and send the command again.
CME
1032 Message
Contents
Remedy
Type
Parameter Error
Parameter error
Check the command parameter and send the command again.
CME
1033 Message
Contents
Remedy
Type
Execution Error
Execution error
Check the command and send it again.
EXE
1034 Message
Contents
Remedy
Type
Data out of range
Data is beyond the setting range.
Check the setting range and send the command again.
EXE
1036 Message
Contents
Remedy
Type
Queue Overflow
Error queue overflow
Read out the error or clear the error queue.
DDE
1037 Message
Contents
Remedy
Type
Query Error
Query error
Check the command and send it again.
CME

5.1 Remote Command Errors
5-2 IM810518803-17E
Remote Command Errors (2/2)
Code Item Description
2031 Message
Contents
Remedy
Type
Invalid update memory
Update Memory of the Firmware is faulty.
Update the firmware again.
DDE
2032 Message
Contents
Remedy
Type
Invalid ID information memory
Update Memory of the Firmware is faulty.
Hardware is faulty.
DDE
2033 Message
Contents
Remedy
Type
Temperature limit error
Temperature error is detected.
Check whether or not the temperature of the installation place is too high.
DDE
2036 Message
Contents
Remedy
Type
A/D timeout error
A/D conversion is failed.
Hardware is faulty.
DDE

6.1 Troubleshooting
IM810518803-17E 6-1
Troubleshooting
6
Chapter 6 Troubleshooting
6.1 Troubleshooting
(1) The setting does not become valid even though the setting command is sent.
Send ":SYST:ERR?" command to check the error contents. After that, send the correct command.
(Example) Parameter value beyond the setting range is specified.
(2) Command process time
According to the command, it takes a long time to make the setting, causing "Timeout Error" to occur.
If this occurs, wait for enough time after the command has been sent and send the next command or send
the next command after the command has been completed by the OPC command.
(Example) The completion of the command is checked with :SLOT:OPC command.
zThe following shows the response of :SLOT:OPC? command.
0: Command is being processed.
1: Command process is completed.
> :SENS3:LOS:LEV -20.0 (Parameter value beyond the range is set.)
> :SYST:ERR?
< +1034, “Data out of range”
> :SENS3:LOS:LEV -10.0 (Parameter value within the range is set.)
> :SYST:ERR?
< +0, “No Error””
> :SENS3:LOS:LEV -15.0
> :SLOT3:OPC?
< 0
.
.
> :SLOT3:OPC?
< 1
> :SENS3:LOS:LEV -15.5

Appendix 1 List of Commands
IM810518803-17E Appendix-1
Appendix
App
Appendix
Appendix 1 List of Commands
Common Commands
Command Description Page
:SLOT[n]:IDN? Obtains the module information. 3-1
:SLOT[n]:OPC? Obtains the command processing status. 3-1
:SLOT[n]:OPTions? Obtains the module information. 3-1
:SLOT[n]:PRESet Returns the set information to its factory default setting. 3-1
:SLOT[n]:TST? Obtains the self-test results. 3-2
Unit Specific Commands
Command Description Page
:STATUS[n]? Obtains the alarm information. 4-1
:SENSe[n] THReshold:DATA Sets a data threshold value level. 4-1
:SENSe[n]:THReshold:DATA? Obtains the data threshold value level. 4-1
: OUTPut[n]:STATe Sets the data output to ON or OFF. 4-2
: OUTPut[n]:STATe? Obtains the status of the data output. 4-2
: INPut[n]:POWer? Obtains the average optical input power value. 4-2
:SENSe[n]:OVER[:LEVel] Sets an OVERLOAD detection level. 4-2
:SENSe[n]:OVER[:LEVel]? Obtains the set value of the OVERLOAD detection level. 4-2
:SENSe[n]:LOS[:LEVel] Sets a LOS detection level. 4-3
:SENSe[n]:LOS[:LEVel]? Obtains the set value of the LOS detection level. 4-3
:INPut[n]:WAVelength Sets a wavelength band of the receive light signal. 4-3
:INPut[n]:WAVelength? Obtains the wavelength band setting of the receive light signal. 4-3
