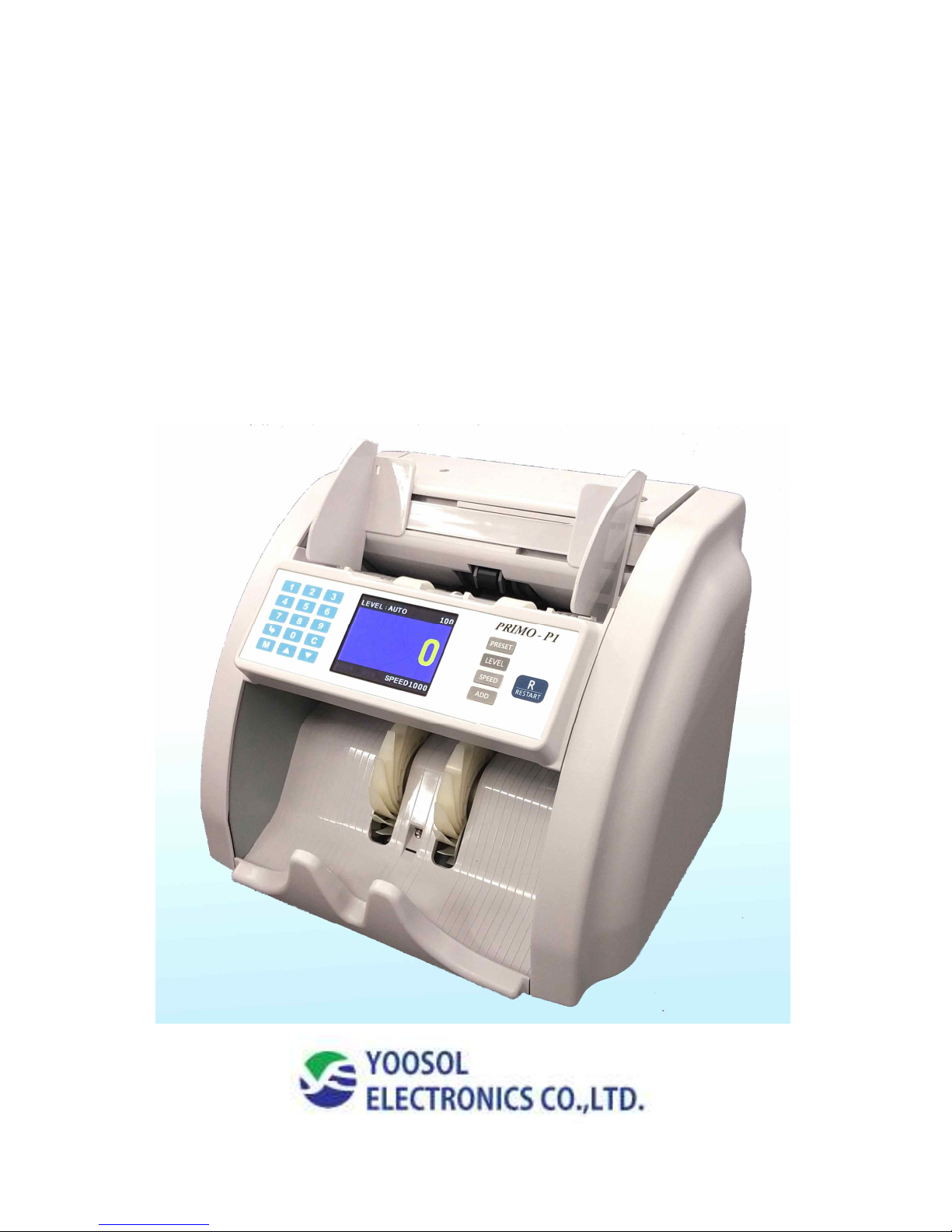

Yoosol Electronics PRIMO-P1 User manual

PRIMO- P1/p1u
Operation Manual
Rev 2.5

- 2 -
CONTENTS
1. Specifications
2. Appearance
3. Display / Operation
3-1. Operation/ Preset (Batch) mode
3-2. Operation/ Density Setting (Adjustable 5 levels)
3-3. Operation/ Change Speed
3-4. Operation/ Add mode/ Height detection mode
3-5. Operation/ UV Setting (P1U only)
3-6. Operation/ Alarm message
4. Error code / Trouble shooting
5. Configuration (User mode)
6. Accessories / Safety

- 3 -
1. Specifications
P1/ P1U (Common)
Speed
(4 Selectable speeds)
1,000 notes/min (Standard)
(800 / 1,000 / 1,250 / 1,500 notes/min)
Display
2. 8 inch Color LCD (320 x 240 Pixels)
Dimension(mm)
292(W) x 251(D) x 244(H)
Weight
Approx. 5.5Kg
Hopper/ Stacker capacity
Max. 300 notes
Feed system
Roller friction system
Sensor
IR count sensor for detecting double/chain/half notes
Interface
Serial Port
Power supply
INPUT : 100 - 240V, 50/60Hz, 0.4A
Power consumption
41 Watts
Temperature Limits
0℃ ~ +40℃
P1U (With UV detection)
Sensor
IR count sensor + UV(ultraviolet) detection (On/Off)

- 4 -

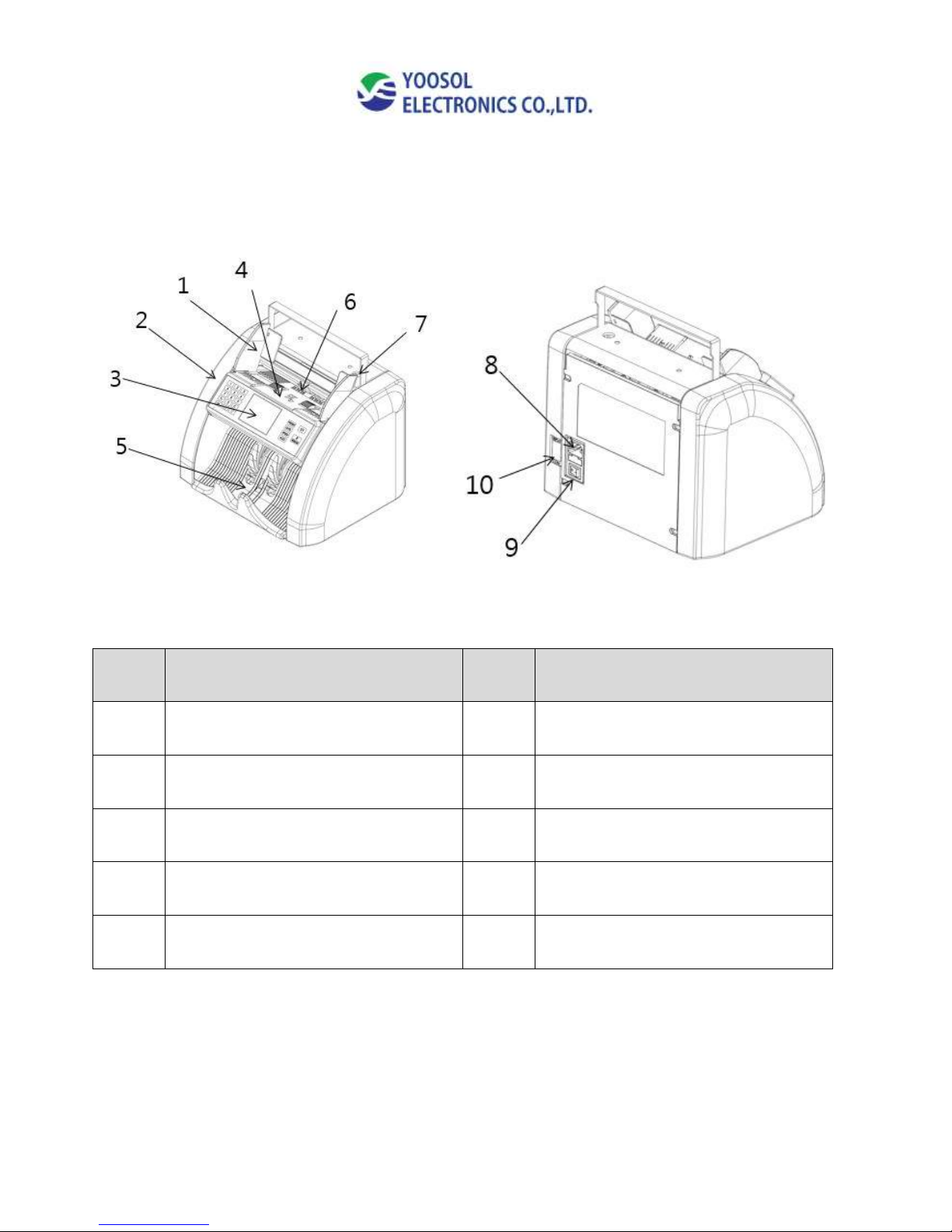

2. Appearance
No
Name
No
Name
1
Hopper Guide
6
Kicker roller
2
Side Cover
7
Gate adjustment screw
3
Display
8
Power connector
4
Hopper
9
Power Switch
5
Stacker
10
RS232 – Connect External Display(Option)

- 5 -
3. Display
Key Function Key Function
Enter PRESET Preset count
0~9 LEVEL Set notes density
Up/Down SPEED Set count speed
Mode ADD Add total count
Clear(Reset ) Restart / Back
3-1. Operation/ Preset (Batch) mode
Press “PRESET” Key

- 6 -
Select Batch number 10, 50, 100, 150, 200, 250 ~ unlimited) By PRISET Key.
Also select certain count number by Up/Down key.
Default set: 200/notes

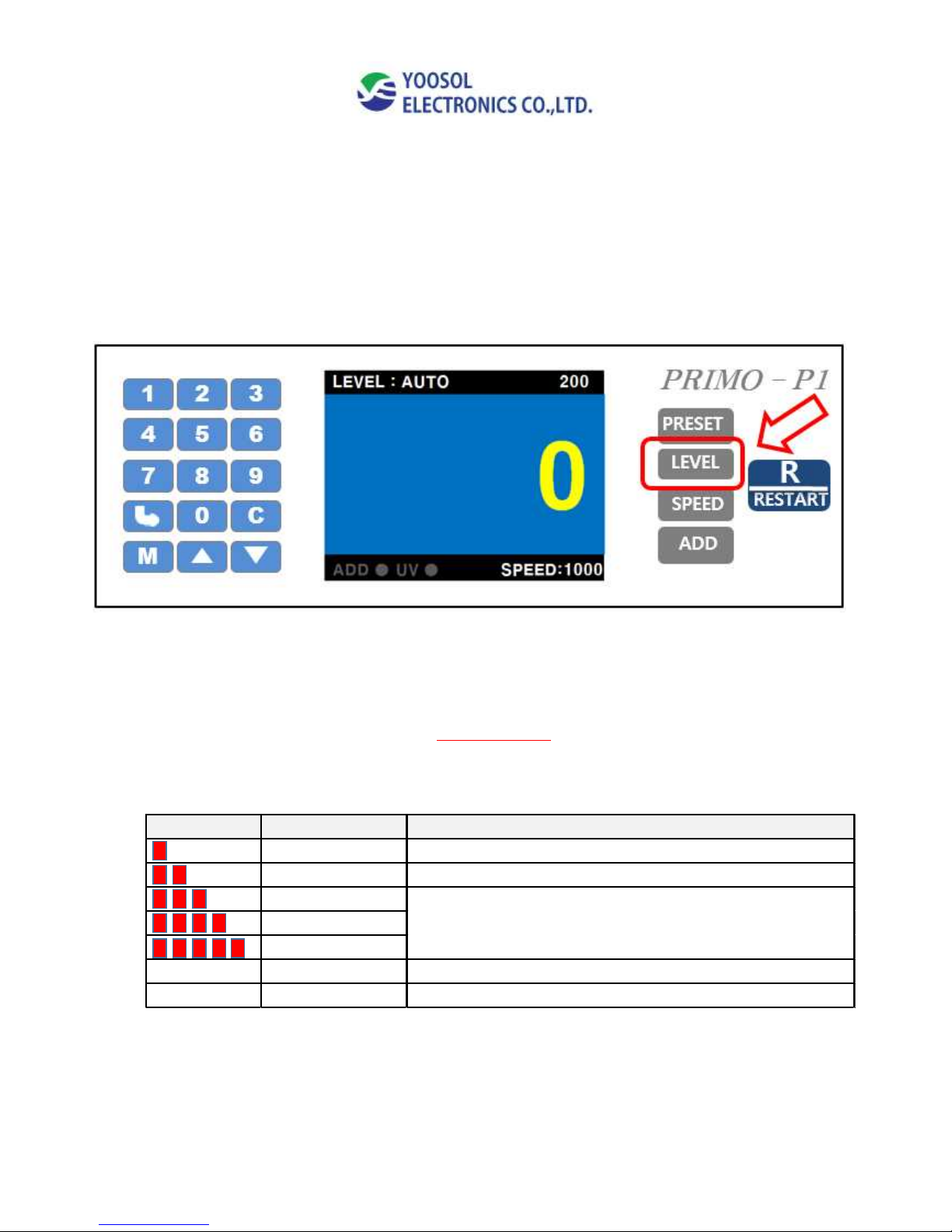

3-2. Operation/ Density Setting (Adjustable 5 levels)
Press LEVEL Key
Default set: AUTO
- If machine count notes & show “Double error” many time, you can adjust
notes density manually by Level Key.
Density Level Double detection Description
Very low It's for high density level(dark) & thick notes
low When count middle density value notes(Level 1~2)
Middle
High
Very high
OFF Off detection Ignore the any double notes
AUTO AUTO Automatically set density Level base on first note count
When count thin & bright notes

- 7 -

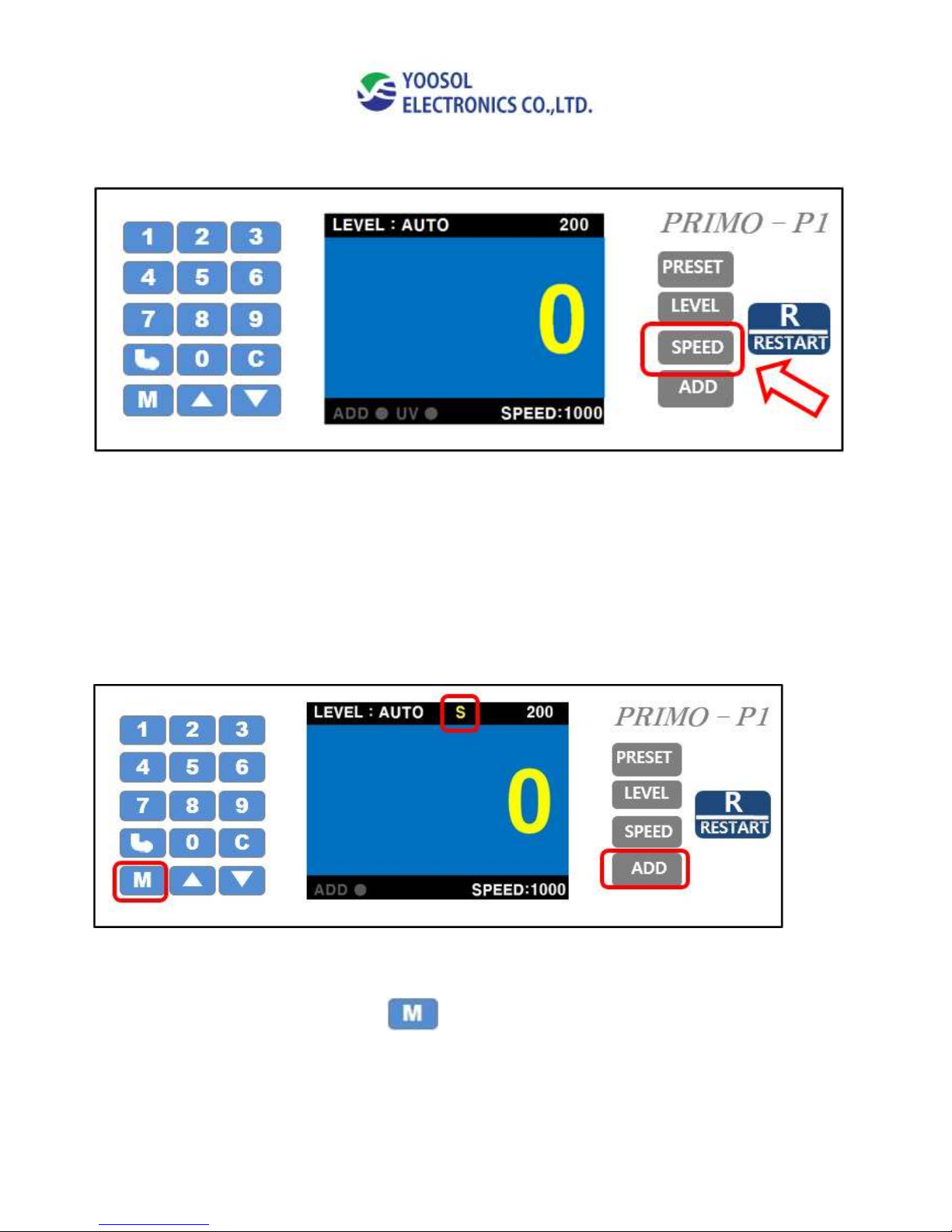

3-3. Operation/ Change Speed
Adjust Speed
- Default speed : 1,000 / min
- Change speed 800/1000/1250/1500 notes / min
3-4. Operation/ Add mode
Add mode: Accumulative total of all counted bills
Height detection (S/M): Press to activate Height detection
S (single) Mode: Detect different height notes
M (Mix) Mode: Ignore different height notes

- 8 -
3-5. Operation/ UV mode – (available for P1U only)
UV detection On/ Off
- Press “CF” key to activate the UV detection (On/ Off)
3-6. Operation/ Alarm message
Alarm message
- When sound Alarm, there is Error message show up in red,

- 9 -
then machine stop the counting until clear Alarm message.
Please press “C” key to clear and counting again.
* If machine in add mode, added count value also will be clear when you press “C”
key.
4. Error code / Trouble shooting
Error code
Symptoms
Trouble shooting
Over count
Over counting
Remove notes from Hopper & Stacker
Height
Height detect
Remove notes from Stacker & Restart
Double
Double
Remove notes from Hopper & Stacker
Chain
Chain notes
Check the condition of notes as Chain
Using adjust cap to adjust thickness
Skew
Skew notes
Remove notes from Hopper and restart.
Hopper
machine
Check the hopper sensor
Check external light interference near the machine
JAM(L/R)
Note is jammed
Remove notes from Hopper& Stacker then Press Restart
Half
half note
Check the note condition as Half
UV
UV Error
Remove Suspect note, count again

- 10 -

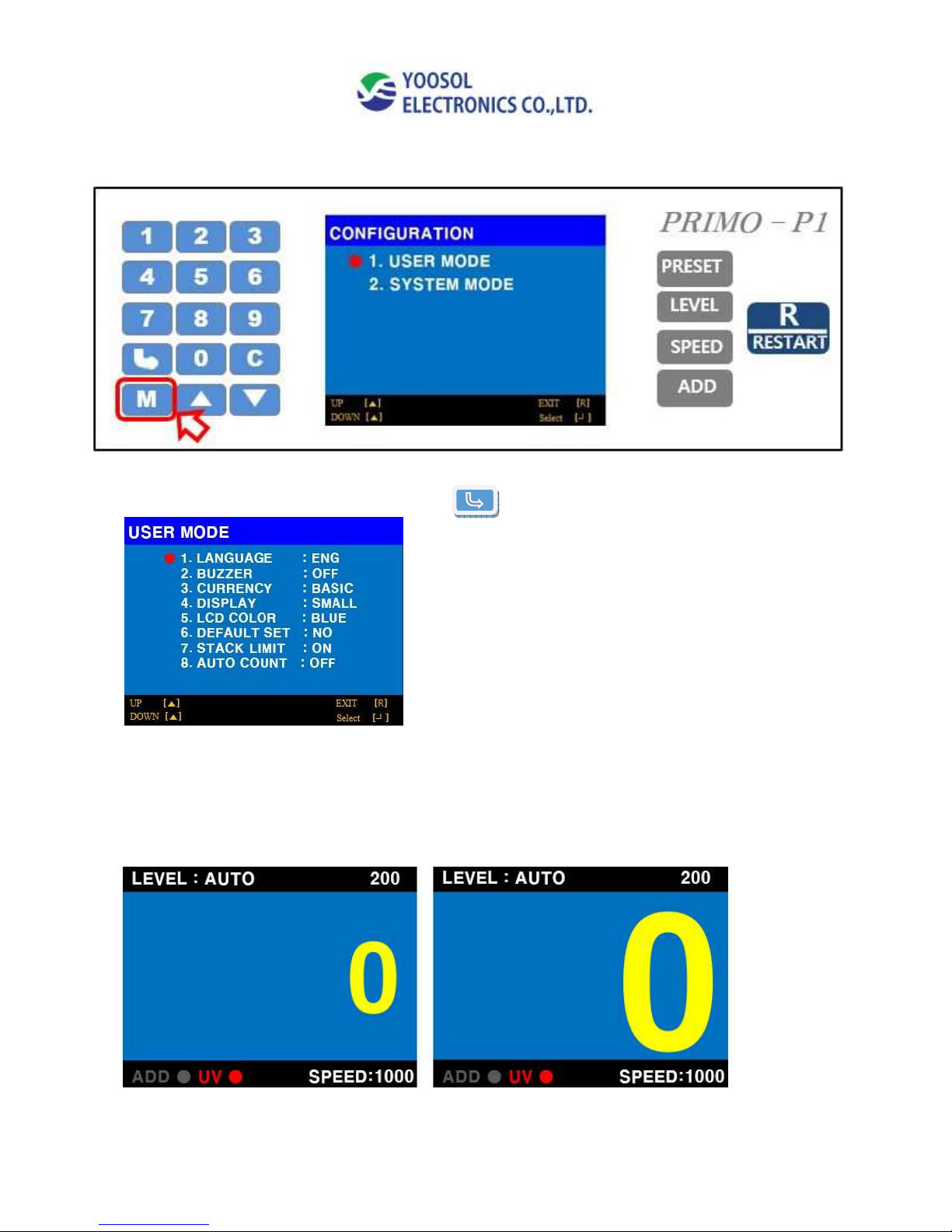

5. Configuration (User mode)
- Press “M” key for 2~3 sec,
Select 1. User mode and Press Enter
1. LANGUAGE: Change the Country Language.
2. BUZZER: On/ Off
3. CURRENCY: Select country currency
* Programed density & depth (width) value by each country currency
4. DISPLAY: Switch Font size BIG / SMALL

- 11 -

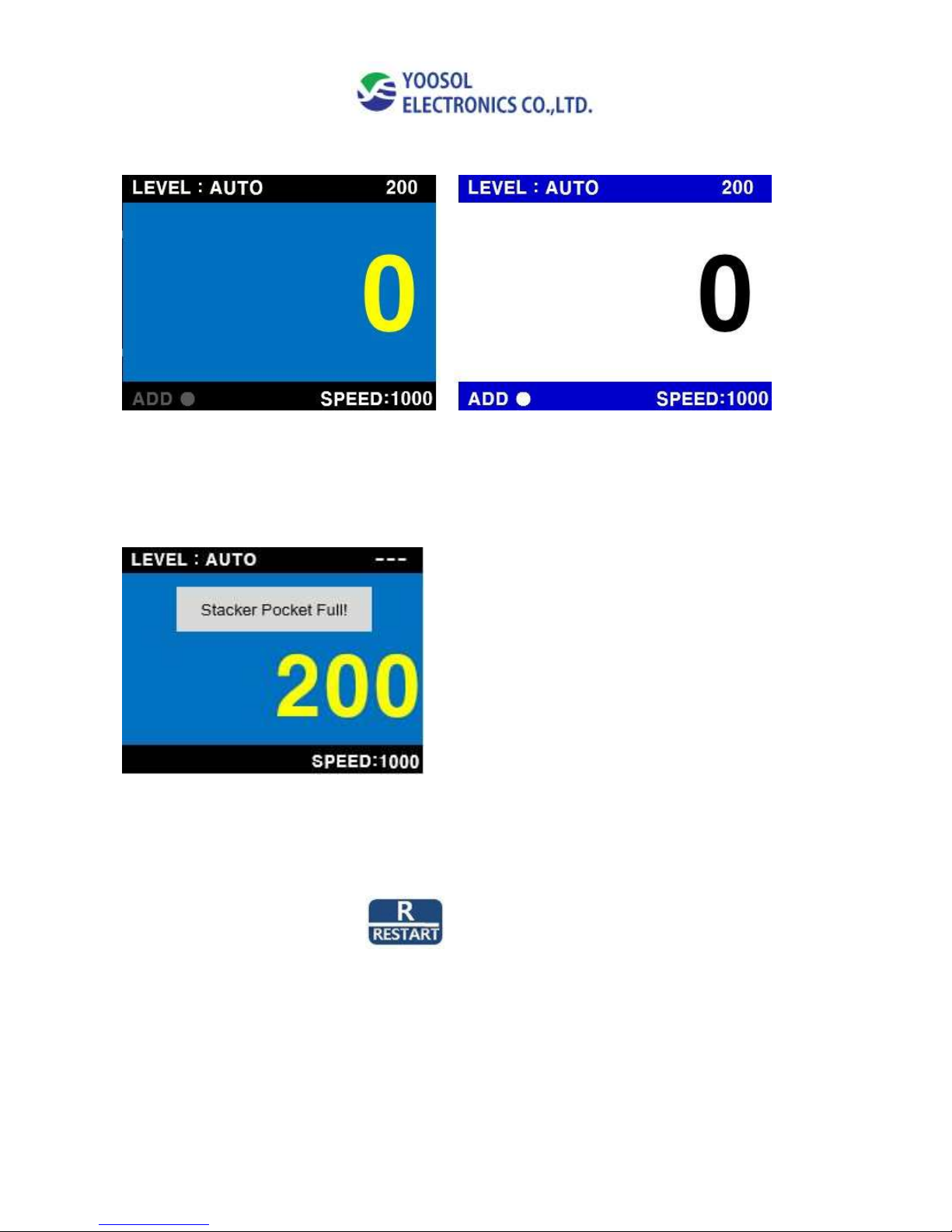

5. LCD COLOR: Switch Display Background color BLUE / WHITE
6. DEFAULT SET: Restore to the factory setting condition “Yes/No”
(IR count/ UV Sensor value, Preset, etc)
7. STACK LIMIT (Stacker pocket full)
Stacker will auto stop after count Max 200 notes (ON/ OFF)
8. AUTO COUNT: (ON/OFF)
Count banknote AUTO or manual
OFF(Manual) mode – Press to count

- 12 -
6. Accessories / Safety
NO
NAME
1
Power cord
2
External Customer Display (Remote display)
3
Operation Manual

- 13 -
- Safety Instructions -
WARNING
Do not touch the machine and power cable with moist hands
If you smell anything burning, immediately disconnect power.
And contact to your local agency for a checkup.
Never disassemble the machine without trained personnel.
Keep your work area dry.
Turn off the power when cleaning machine,
Do not use flammable gas spray for cleaning.
1. Do not wear loose clothing or jewelry while operation the currency counter.
2. Do not touch currency that has been placed in the stacker while the motor is running.
3. Make sure that your hair does not touch the currency counter.
4. Turn off the power before performing any maintenance or error corrections that require you
to put your hands into the machine.
5. When replacing fuses, use only the same type and rating. A fire hazard can be created by
using a higher rate fuse.
6. Do not operate the currency counter if it is wet. Also, do not touch the machine if you are
wet. Operating the currency counter around water creates an electrical shook hazard,
which might result in serious injury.

- 14 -
Yoosol Electronics Co., Ltd.
#1004, ACE High End Tower 6,
Gasan-dong 234, Beotkkot-ro, Geumcheon-gu, Seoul Korea
Tel: [phone] Fax: [phone]
Website: http://www.i-primo.co.kr/
E-mail: [e-mail]
