TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
HEAT PUMPS
14 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: YHE18 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-Years limited parts warranty requires
online registration within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®
5455359-YTG-A-1217
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The YHE models are the newest offering in our successful LX
Series split system heat pump lineup. These outdoor units are
optimized for the new 14 SEER / 8.2 HSPF Minimum Efficiency
in all US Regions, and are specifically designed to be matched
with York indoor coils, furnaces, and air handlers to provide a
complete system solution.
FEATURES
•Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. Options are provided for
indoor piston or TXV. The factory installed filter-drier and fac-
tory charge for a 15-Ft lineset means less time spent brazing
and charging the system. The small base dimension and
reduced unit size make for easier retrofits.
•Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
•Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Champagne colored powdercoat paint further protects
external panels.
•Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven stamped steel coil guard design.
•Quality Coils - Enhanced aluminum fins are mechanically
bonded to copper tubing.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. The liquid line filter-drier is factory installed to pro-
tect the compressor against moisture and debris.
•Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures. Factory installed
accumulator ensures proper functioning across a wide range
of conditions.
•Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
•Top Discharge - Air is blown up, away from the structure
and any landscaping and allows compact location on multi-
unit applications.
•Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance of 75 dBA or lower. Compatible accessories for
further sound reduction are also available.
•Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, full corner access, and removable fan guard
allow easy access for unit maintenance.
•Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.

5455359-YTG-A-1217
2 Johnson Controls Unitary Products
LIST OF SECTIONS
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4
SYSTEM CAPACITY - Single Piece and Modular Air Handlers . . 5
SYSTEM CAPACITY - Upflow, Downflow &
Horizontal Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . 9
SYSTEM CAPACITY - With High Efficiency Motor Furnaces . . . 10
APPLICATION & ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . 31
SOUND POWER RATINGS - COOLING . . . . . . . . . . . . . . . . . . . . . 31
SOUND POWER RATINGS - HEATING . . . . . . . . . . . . . . . . . . . . . 32
MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 32
TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ALTERNATIVE INSTALLATION CLEARANCES . . . . . . . . . . . . . . 34
PERFORMANCE DATA - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 35
PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 39
PERFORMANCE DATA - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 44
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 50
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 55
PERFORMANCE DATA - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 59
PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 65
PERFORMANCE DATA - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 69
NOMENCLATURE
BRAND YY= York
PRODUCT TYPE HH= Heat Pump
NOMINAL
SERIES EFFICIENCY
AND STAGING EE= 14 SEER / 1-Stage
NOMINAL
UNIT CAPACITY
(MBH) 36
18 = 1.5 Ton 36 = 3 Ton
24 = 2 Ton 42 = 3.5 Ton
30 = 2.5 Ton 48 = 4 Ton
35 = 3 Ton 60 = 5 Ton
REFRIGERANT BB= R-410A
VOLTAGE
(Voltage-Phase-Hertz) 22= 208/230-1-60
GENERATION
(MAJOR REVISION) 11= 1st Gen
2= 2nd Gen
etc
FACTORY OPTION SS= Standard (No Options)
H= Hard Start Kit
STYLE LETTER
(MINOR REVISION)
NOT USED
FOR ORDERING
AA= Style A
B= Style B
etc

5455359-YTG-A-1217
Johnson Controls Unitary Products 3
‡ Adapter fitting must be field installed for the required 1-1/8” line set.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

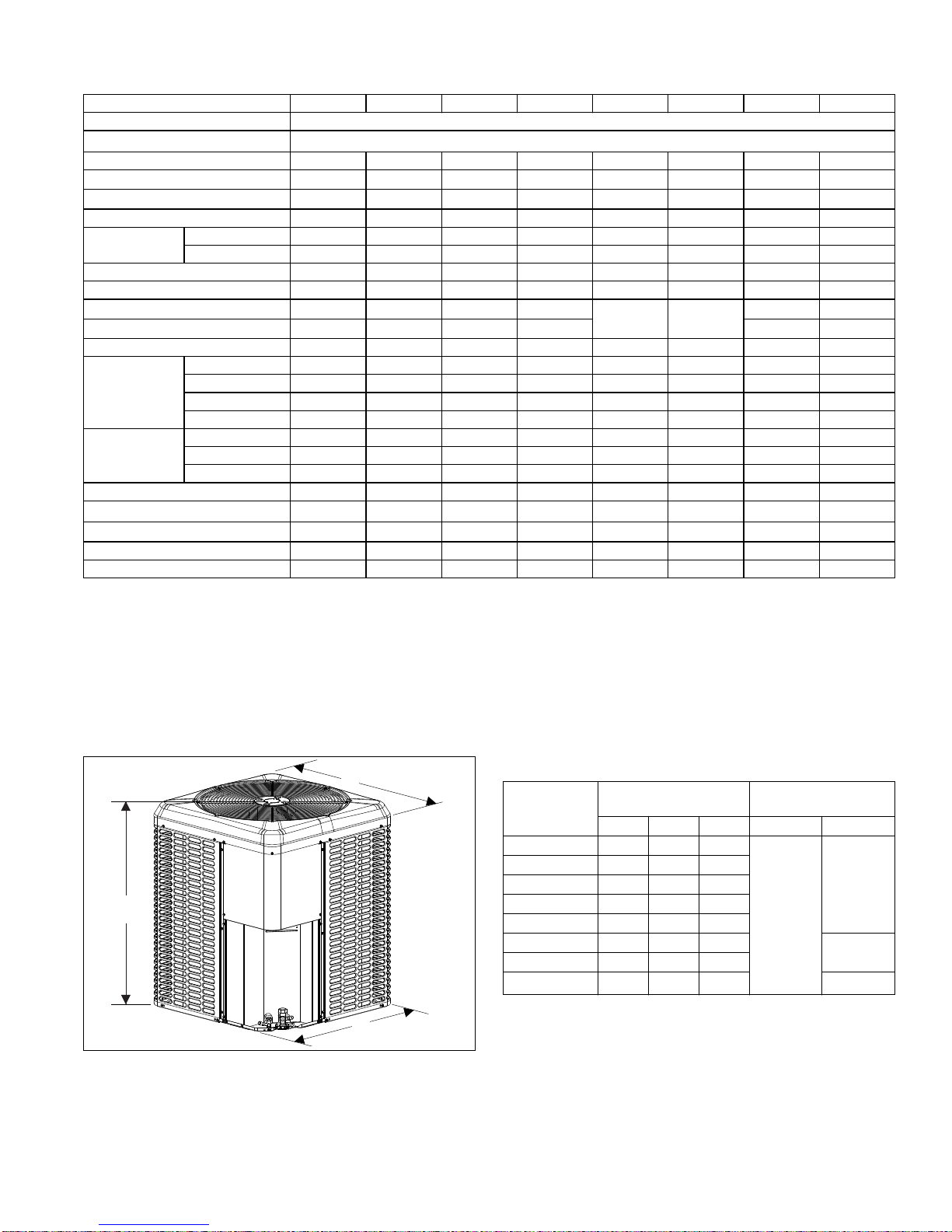

PHYSICAL AND ELECTRICAL DATA
MODEL YHE18B21S YHE24B21S YHE30B21S YHE35B21S YHE36B21H YHE42B21H YHE48B22S YHE60B22S
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252
Minimum Circuit Ampacity 12.0 15.4 18.1 20.5 19.7 25.5 30.8 31.7
Max. Overcurrent Device Amps 2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
20 25 30 35 30 40 50 50
Min. Overcurrent Device Amps 3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
15 20 20 25 20 30 35 35
Compressor Type Scroll Scroll Scroll Scroll Recip Recip Scroll Scroll
Compressor
Amps
Rated Load 9.0 11.7 13.4 15.4 14.7 19.4 23.6 24.3
Locked Rotor 56.3 61.6 72.5 83.9 78.0 88.0 130.0 144.2
Crankcase Heater No No No No Yes Yes No No
Factory External Discharge Muffler Yes Yes Yes Yes Yes Yes Yes Yes
HS Kit Required with TXV4
4. Use S1-2SA067***** series kit. See Hard Start Kit Accessory Installation Manual.
No No No No Factory
Installed
Factory
Installed
No No
Optional Start Kit: PN S1-2SA067421806 10106 10106 10106 10106 10106
Fan Diameter Inches 22 22 24 24 24 24 26 26
Fan Motor
Rated HP 1/8 1/8 1/4 1/4 1/4 1/4 1/4 1/4
Rated Load Amps 0.80 0.80 1.30 1.30 1.30 1.30 1.30 1.30
Nominal RPM 1075 1075 850 850 850 850 850 850
Nominal CFM 2850 2850 2995 2995 3715 3715 4000 4100
Coil
Face Area Sq. Ft. 16.15 17.94 23.82 23.82 23.82 23.82 26.40 28.80
Rows Deep 11112222
Fins / Inch 22 22 22 22 18 18 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed)5
5. For applications with non-standard vapor line sizes, see the “Applications & Accessories” section of this Technical Guide.
3/4 3/4 3/4 3/4 3/4 7/8 7/8 1-1/8‡
Unit Charge (Lbs. - Oz.) 6
6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lineset length (not the equivalent length) multiplied by the per foot value.
5 - 11 6 - 7 7 - 15 8 - 1 12 - 4 12 - 7 15 - 4 14 - 10
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 120 131 176 176 230 230 235 256
* Models with “H” on the end of the model number are shipped with a Hard Start Kit installed at the factory.
&
%
$
$
DIMENSIONS
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
YHE18B21S 33-1/4 29-1/4 29-1/4
3/8
3/4
YHE24B21S 36-1/4 29-1/4 29-1/4
YHE30B21S 39-1/2 35-1/4 31-3/4
YHE35B21S 39-1/2 35-1/4 31-3/4
YHE36B21H 39-1/2 35-1/4 31-3/4
YHE42B21H 39-1/2 35-1/4 31-3/4 7/8
YHE48B22S 39-1/2 38 34-1/4
YHE60B22S 42-3/4 38 34-1/4 7/8‡

5455359-YTG-A-1217
4 Johnson Controls Unitary Products
CHARGING PROCEDURES:
1. Check the Factory Unit Charge listed on the unit nameplate to verify the refrigerant charge for the outdoor unit, the smallest matched indoor unit, and the 15 feet of
interconnecting lineset.
2. Verify the indoor metering device and additional charge required for the specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting lineset greater than 15 feet at the rate specified in the Physical and Electrical Table.
4. For installations requiring additional charge, weigh in refrigerant for the specific matching indoor unit and actual lineset length.
5. Once the charge adders for matched indoor unit and for lineset have been weighed in, verify the system operation against the temperatures and pressures in the
Charging Chart for the outdoor unit. Locate Charging Charts on the outdoor unit and also in the Service Data Application Guide on www.upgnet.com. Follow the
Subcool or the Superheat charging procedure in the Installation Manual according to the type of indoor metering device in the system, and allow ten minutes after
each charge adjustment for the system operation to stabilize. Record the charge adjustment made to match the Charging Chart.
6. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +
chargeadderforactuallinesetlength+/-adjustmentstomatchthechargingchart.
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS
Outdoor Unit YHE18B21S YHE24B21S YHE30B21S YHE35B21S YHE36B21H YHE42B21H YHE48B22S YHE60B22S
Required TXV 1,2
1. For applications requiring a TXV, use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
BA1 BA1 BB1 or BE1 BE1 BF1 BF1 BC1 BG1
Defrost Jumper Pin Setting 22233242
Indoor Unit 3,4,5
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. CF coils cannot be used in horizontal applications.
5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for specified
system matches. Obtain certified system ratings from www.ahridirectory.org.
Additional Charge, oz
AP18B 0 – – –––––
AP24B 7 0 – –––––
AP30B – 9 0 –––––
AP36B – – 0 –––––
AP36C – – – –––––
AP37C – – – –8–––
AP42C – – – –––––
AP48(C,D) – – – –––––
AP60(C,D) – – – –––––
AE18B 0 – – –––––
AE24B 7 0 – –––––
AE30B – 9 0 –––––
AE36(B,C) – – 0 0––––
AE42C – – 3 780––
AE48(C,D) – – – –800–
AE60C – – – ––18–
AE60D – – – ––––2
AVC18B 0 – – –––––
AVC24B 7 0 – –––––
AVC30B – 9 0 –––––
AVC36(B,C) – – 0 0––––
AVC42C – – 3 780––
AVC48(C,D) – – – –800–
AVC60C – – – ––18–
AVC60D – – – ––––2
CF/CM/CU18(A,B) 0 – – –––––
CF/CM/CU24(A,B) 7 0 – –––––
CF/CM/CU30(A,B,C) – 9 – –––––
CF/CM/CU36(A,B,C) – – 0 0––––
CF/CM/CU42(B,C,D) – – 3 8––––
CF/CM/CU48(C,D) – – – 7800–
CF/CM/CU60(C,D) – – – ––18–
CF/CM64D – – – ––––2
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:

5455359-YTG-A-1217
Johnson Controls Unitary Products 5
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
YHE18B21S AE18BX21 17.5 – 600 18.0 12.8 15.25 12.75 17.6 11.7 8.75 7.61 3.78 2.56
YHE18B21S AE24BX21 17.5 – 600 18.0 12.9 15.25 12.75 17.5 11.7 9.00 7.83 3.82 2.58
YHE18B21S AP18BX21 17.5 – 600 17.8 12.0 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S AP24BX21 17.5 – 600 17.8 12.0 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S AVC18BX21 17.5 – 600 18.0 12.8 15.25 12.75 17.3 11.7 8.75 7.61 3.78 2.54
YHE18B21S AVC24BX21 17.5 – 600 18.0 12.9 15.25 12.75 17.5 11.7 9.00 7.83 3.82 2.58
YHE18B21S ME08BN21 17.5 CF/CM18B 600 18.0 12.8 15.00 12.75 17.3 11.7 9.00 7.83 3.80 2.56
YHE18B21S ME08BN21 17.5 CF/CM24B 600 18.0 12.8 15.25 12.75 17.5 11.7 9.00 7.83 3.84 2.60
YHE18B21S ME12BN21 17.5 CF/CM18B 600 17.8 12.8 14.00 12.00 17.5 12.0 8.55 7.43 3.56 2.40
YHE18B21S ME12BN21 17.5 CF/CM24B 600 17.8 12.6 14.00 12.00 17.5 12.0 8.55 7.43 3.60 2.44
YHE18B21S MVC08BN21 17.5 CF/CM18B 550 17.8 12.8 15.00 12.75 17.3 11.7 8.75 7.61 3.72 2.54
YHE18B21S MVC08BN21 17.5 CF/CM24B 575 18.0 12.9 15.25 12.75 17.5 11.6 9.00 7.83 3.86 2.60
YHE24B21S AE24BX21 17.5 – 800 24.0 17.3 15.50 12.75 23.4 14.9 8.55 7.43 3.72 2.46
YHE24B21S AE30BX21 17.5 – 800 24.0 17.6 16.00 13.00 24.0 15.4 8.55 7.43 3.96 2.66
YHE24B21S AP24BX21 17.5 – 800 23.8 17.1 14.00 11.75 24.0 15.4 8.55 7.43 3.50 2.32
YHE24B21S AP30BX21 17.5 – 800 24.0 17.3 15.25 12.25 24.0 15.6 8.55 7.43 3.80 2.54
YHE24B21S AVC24BX21 17.5 – 750 24.0 16.8 15.25 12.75 23.4 15.0 8.55 7.43 3.64 2.44
YHE24B21S AVC30BX21 17.5 – 775 24.0 17.3 16.00 13.00 23.8 15.3 8.55 7.43 3.94 2.66
YHE24B21S ME08BN21 17.5 CF/CM24B 800 24.0 17.2 15.50 12.75 23.4 14.9 8.55 7.43 3.72 2.46
YHE24B21S ME08BN21 17.5 CF/CM30B 800 24.0 17.3 16.00 13.00 23.8 15.3 8.55 7.43 3.98 2.68
YHE24B21S ME12BN21 17.5 CF/CM24B 800 24.0 17.2 15.50 12.75 23.4 14.9 8.55 7.43 3.70 2.44
YHE24B21S ME12BN21 17.5 CF/CM30B 800 24.0 17.4 16.00 13.00 24.0 15.4 8.55 7.43 3.96 2.66
YHE24B21S ME14DN21 24.5 CF/CM30D 800 24.0 17.4 15.75 12.75 24.0 15.5 8.55 7.43 3.88 2.60
YHE24B21S ME16CN21 21.0 CF/CM24C 875 24.0 17.9 14.25 12.00 24.0 15.3 8.55 7.43 3.62 2.36
YHE24B21S MVC08BN21 17.5 CF/CM24B 800 24.0 16.8 15.50 12.75 23.4 14.9 8.55 7.43 3.72 2.46
YHE24B21S MVC08BN21 17.5 CF/CM30B 700 24.0 17.0 16.00 13.00 23.6 15.2 8.55 7.43 3.84 2.64
YHE24B21S MVC12BN21 17.5 CF/CM24B 800 24.0 16.8 15.25 12.75 23.4 14.9 8.55 7.43 3.70 2.44
YHE24B21S MVC12BN21 17.5 CF/CM30B 690 24.0 17.0 16.00 13.00 23.6 15.2 8.55 7.43 3.84 2.64
YHE24B21S MVC14DN21 21.0 CF/CM30D 800 24.0 17.0 16.00 13.00 23.8 15.2 8.75 7.61 4.04 2.70
YHE30B21S AE30BX21 17.5 – 1000 28.4 21.1 14.00 12.00 28.0 19.2 8.20 7.13 3.36 2.40
YHE30B21S AE36BX21 17.5 – 1000 29.4 21.8 15.50 13.00 29.0 19.5 8.55 7.43 3.96 2.76
YHE30B21S AE36CX21 21.0 – 1000 29.4 22.0 15.75 13.00 29.0 19.4 8.55 7.43 4.00 2.80
YHE30B21S AE42CX21 21.0 – 1000 29.6 22.2 16.00 13.00 28.6 19.4 8.55 7.43 4.06 2.84
YHE30B21S AP30BX21 17.5 – 1000 28.8 21.2 14.00 12.00 29.6 20.0 8.55 7.43 3.74 2.62
YHE30B21S AP36BX21 17.5 – 1000 28.8 21.4 14.00 12.00 29.6 20.0 8.55 7.43 3.76 2.64
Continued on next page.

5455359-YTG-A-1217
6 Johnson Controls Unitary Products
YHE30B21S AVC30BX21 17.5 – 1000 28.4 21.1 14.00 12.00 28.0 19.2 8.20 7.13 3.36 2.40
YHE30B21S AVC36BX21 17.5 – 975 29.4 21.8 15.50 13.00 29.0 19.4 8.55 7.43 3.98 2.78
YHE30B21S AVC36CX21 21.0 – 975 29.6 21.8 16.00 13.00 28.8 19.3 8.55 7.43 4.04 2.82
YHE30B21S AVC42CX21 21.0 – 975 29.2 21.8 15.75 13.00 28.6 19.3 8.55 7.43 4.04 2.84
YHE30B21S ME12BN21 17.5 CF/CM36B 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S ME12BN21 17.5 CF42B 975 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S ME14DN21 24.5 CF/CM36D 1000 29.4 22.0 16.00 13.00 29.0 19.3 8.55 7.43 4.02 2.80
YHE30B21S ME14DN21 24.5 CF/CM42D 1000 29.8 22.2 16.00 13.00 28.4 18.9 8.55 7.43 4.04 2.78
YHE30B21S ME16CN21 21.0 CF/CM36C 1000 29.2 21.6 14.75 12.25 29.2 19.7 8.55 7.43 3.86 2.70
YHE30B21S ME16CN21 21.0 CF/CM42C 1000 29.4 21.8 15.00 12.50 28.8 19.2 8.55 7.43 3.88 2.68
YHE30B21S MVC08BN21 17.5 CF42B 975 29.4 22.0 15.25 12.75 28.8 19.2 8.75 7.61 3.92 2.70
YHE30B21S MVC12BN21 17.5 CF/CM36B 1000 29.2 17.3 15.00 12.50 29.2 19.6 8.75 7.61 3.90 2.72
YHE30B21S MVC12BN21 17.5 CF42B 975 29.6 22.0 15.50 12.75 28.8 19.1 9.00 7.83 3.94 2.72
YHE30B21S MVC14DN21 24.5 CF/CM36D 975 29.4 21.8 16.00 13.00 28.8 19.3 9.00 7.83 4.02 2.82
YHE30B21S MVC14DN21 24.5 CF/CM42D 1000 29.8 22.0 16.00 13.00 28.4 18.9 9.00 7.83 4.04 2.78
YHE30B21S MVC16CN21 21.0 CF/CM36C 1025 29.4 21.8 16.00 13.00 29.0 19.3 9.00 7.83 4.04 2.82
YHE30B21S MVC16CN21 21.0 CF/CM42C 900 29.8 22.0 16.00 13.00 28.2 18.8 9.00 7.83 3.96 2.76
YHE35B21S AE36BX21 17.5 – 1000 34.4 23.6 14.25 12.00 33.4 21.4 8.55 7.43 3.46 2.42
YHE35B21S AE36CX21 21.0 – 1230 35.2 26.2 14.50 12.00 34.0 21.6 8.55 7.43 3.64 2.48
YHE35B21S AE42CX21 21.0 – 1200 35.6 26.8 14.50 12.25 33.8 20.4 8.55 7.43 3.74 2.42
YHE35B21S AVC36CX21 21.0 – 1125 34.8 25.2 14.25 12.00 33.6 21.6 8.55 7.43 3.58 2.46
YHE35B21S AVC42CX21 21.0 – 1100 35.4 25.6 14.25 12.25 33.6 18.6 8.55 7.43 3.72 2.24
YHE35B21S ME12BN21 17.5 CF42B 1150 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.44
YHE35B21S ME14DN21 24.5 CF/CM36D 1225 35.2 25.6 14.25 12.25 33.6 21.6 8.55 7.43 3.62 2.48
YHE35B21S ME14DN21 24.5 CF/CM42D 1200 35.4 26.0 14.75 12.25 33.6 21.2 8.55 7.43 3.72 2.50
YHE35B21S ME16CN21 21.0 CF/CM36C 1225 35.2 25.6 14.25 12.00 33.6 21.6 8.55 7.43 3.60 2.48
YHE35B21S ME16CN21 21.0 CF/CM42C 1225 35.8 27.0 14.50 12.50 33.6 21.4 8.55 7.43 3.76 2.52
YHE35B21S MVC12BN21 17.5 CF42B 1100 35.0 25.6 14.00 11.75 33.8 21.6 8.55 7.43 3.62 2.44
YHE35B21S MVC14DN21 24.5 CF/CM42D 1200 35.4 25.6 14.75 12.25 33.6 21.2 8.75 7.61 3.72 2.50
YHE35B21S MVC20DN21 24.5 CF/CM36D 1120 35.4 25.2 14.50 12.25 33.6 21.6 8.75 7.61 3.64 2.50
YHE35B21S MVC20DN21 24.5 CF/CM42D 1200 35.2 25.6 14.25 12.00 33.8 21.4 8.75 7.61 3.68 2.48
YHE36B21H AE42CX21 21.0 – 1175 34.2 24.4 15.25 12.50 33.4 19.5 8.55 7.43 3.66 2.62
YHE36B21H AE48CX21 21.0 – 1175 34.2 24.4 15.25 12.50 33.4 19.5 8.55 7.43 3.66 2.62
YHE36B21H AE48DX21 24.5 – 1175 34.4 24.4 15.50 12.75 33.4 19.4 8.55 7.43 3.68 2.64
YHE36B21H AP37CX21 21.0 – 1170 34.0 24.0 14.00 11.75 34.0 20.0 8.55 7.43 3.48 2.48
Continued on next page.
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 7
YHE36B21H AVC42CX21 21.0 – 1150 34.4 24.2 15.50 12.75 33.4 19.4 8.55 7.43 3.66 2.64
YHE36B21H AVC48CX21 21.0 – 1150 34.4 24.2 15.50 12.75 33.4 19.4 8.55 7.43 3.66 2.64
YHE36B21H AVC48DX21 24.5 – 1150 34.6 24.4 16.00 13.00 33.2 19.3 8.55 7.43 3.72 2.68
YHE36B21H ME14DN21 24.5 CF/CM48D 1175 34.4 24.4 15.50 12.75 33.4 19.4 8.55 7.43 3.70 2.64
YHE36B21H ME16CN21 21.0 CF/CM48C 1175 34.4 24.4 15.50 12.75 33.4 19.4 8.55 7.43 3.68 2.64
YHE36B21H MVC14DN21 24.5 CF/CM48D 1150 34.4 24.4 16.00 13.00 33.2 19.3 8.75 7.61 3.72 2.68
YHE36B21H MVC16CN21 21.0 CF/CM48C 1200 34.4 24.4 15.50 12.75 33.4 19.4 8.55 7.43 3.70 2.64
YHE36B21H MVC20DN21 24.5 CF/CM48D 1175 34.4 24.4 15.75 13.00 33.4 19.3 8.55 7.43 3.70 2.64
YHE42B21H AE42CX21 21.0 – 1275 41.5 28.4 14.00 12.00 40.5 24.0 8.55 7.43 3.62 2.68
YHE42B21H AE48CX21 21.0 – 1225 42.0 28.0 14.75 12.50 40.0 24.2 8.55 7.43 3.64 2.70
YHE42B21H AE48DX21 24.5 – 1225 42.0 28.0 15.00 12.75 40.0 24.0 8.55 7.43 3.66 2.72
YHE42B21H AE60CX21 21.0 – 1275 42.0 27.8 14.25 12.25 41.0 24.6 8.55 7.43 3.56 2.62
YHE42B21H AVC42CX21 21.0 – 1250 42.0 27.8 14.50 12.25 40.5 24.4 8.55 7.43 3.60 2.68
YHE42B21H AVC48CX21 21.0 – 1275 42.0 28.4 14.50 12.50 40.5 24.4 8.55 7.43 3.64 2.68
YHE42B21H AVC48DX21 24.5 – 1300 42.0 28.6 14.75 12.75 40.5 24.2 9.00 7.83 3.68 2.72
YHE42B21H AVC60CX21 21.0 – 1275 42.0 27.8 15.00 13.00 40.5 24.2 9.00 7.83 3.68 2.70
YHE42B21H ME14DN21 24.5 CF/CM48D 1175 42.0 27.8 14.75 12.75 40.0 24.0 8.75 7.61 3.64 2.72
YHE42B21H ME14DN21 24.5 CF/CM60D 1225 42.0 28.0 15.00 13.00 40.0 24.0 9.00 7.83 3.70 2.74
YHE42B21H ME16CN21 21.0 CF/CM48C 1225 42.0 28.6 15.00 12.75 40.5 24.2 9.00 7.83 3.70 2.74
YHE42B21H ME16CN21 21.0 CF/CM60C 1225 42.0 28.0 15.00 13.00 40.0 24.2 9.00 7.83 3.68 2.72
YHE42B21H ME20DN21 24.5 CF/CM48D 1425 42.0 29.8 14.75 12.50 41.0 24.6 8.75 7.61 3.72 2.70
YHE42B21H ME20DN21 24.5 CF/CM60D 1450 42.0 29.6 15.00 12.75 41.0 24.6 8.75 7.61 3.72 2.70
YHE42B21H MVC14DN21 24.5 CF/CM48D 1325 42.0 28.0 14.75 12.50 40.5 24.4 8.75 7.61 3.66 2.70
YHE42B21H MVC14DN21 24.5 CF/CM60D 1225 42.0 27.8 15.00 12.75 40.5 24.2 8.75 7.61 3.66 2.70
YHE42B21H MVC16CN21 21.0 CF/CM48C 1275 42.0 28.0 14.75 12.75 40.5 24.4 8.75 7.61 3.68 2.72
YHE42B21H MVC20DN21 24.5 CF/CM48D 1300 42.0 28.0 14.75 12.50 40.5 24.4 8.75 7.61 3.66 2.70
YHE42B21H MVC20DN21 24.5 CF/CM60D 1250 42.0 27.8 15.00 13.00 40.0 24.0 9.00 7.83 3.70 2.72
YHE48B22S AE48CX21 21.0 – 1,400 46.0 31.8 14.25 12.00 47.5 31.4 9.00 7.83 3.58 2.64
YHE48B22S AE48DX21 24.5 – 1,400 46.5 32.0 14.50 12.25 47.5 31.4 9.00 7.83 3.62 2.66
YHE48B22S AE60CX21 21.0 – 1,520 47.0 33.3 15.00 12.50 47.5 31.4 9.00 7.83 3.66 2.66
YHE48B22S AVC48CX21 21.0 – 1,375 46.0 31.6 14.25 12.00 47.5 31.4 9.00 7.83 3.56 2.62
YHE48B22S AVC48DX21 24.5 – 1,400 46.5 31.6 14.75 12.25 47.5 31.2 9.00 7.83 3.60 2.66
YHE48B22S AVC60CX21 21.0 – 1,350 46.5 31.6 15.00 12.50 47.5 31.2 9.00 7.83 3.56 2.62
YHE48B22S ME14DN21 24.5 CF/CM48D 1,400 46.5 32.0 14.50 12.25 47.5 31.4 9.00 7.83 3.60 2.66
YHE48B22S ME14DN21 24.5 CF/CM60D 1,400 46.5 32.0 14.25 12.00 48.0 31.4 9.00 7.83 3.54 2.60
Continued on next page.
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
8 Johnson Controls Unitary Products
— = Not applicable.
* Notates “Hot Heat Pump” performance. These ratings are not AHRI listed.
MP Modular Air Handlers use Coil Only Ratings.
3. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.
YHE48B22S ME16CN21 21.0 CF/CM48C 1,400 46.0 31.8 14.50 12.00 47.5 31.4 9.00 7.83 3.58 2.64
YHE48B22S ME16CN21 21.0 CF/CM60C 1,400 47.0 32.2 14.50 12.25 47.5 31.2 9.00 7.83 3.58 2.62
YHE48B22S ME20DN21 24.5 CF/CM48D 1,400 46.5 31.8 14.50 12.00 47.5 31.4 9.00 7.83 3.60 2.66
YHE48B22S ME20DN21 24.5 CF/CM60D 1,400 47.0 32.2 14.75 12.25 47.5 31.2 9.00 7.83 3.58 2.64
YHE48B22S MVC16CN21 21.0 CF/CM48C 1425 46.0 31.6 14.50 12.00 47.5 31.4 9.00 7.83 3.60 2.64
YHE48B22S MVC20DN21 24.5 CF/CM48D 1350 46.5 31.6 14.50 12.25 47.5 31.2 9.00 7.83 3.62 2.68
YHE48B22S MVC20DN21 24.5 CF/CM60D 1475 47.5 31.6 15.00 12.50 47.5 31.4 9.00 7.83 3.64 2.66
YHE60B22S AE60DX21 24.5 – 1640 55.5 38.5 14.25 12.00 57.0 37.8 9.00 7.83 3.88 2.82
YHE60B22S AVC60DX21 24.5 – 1550 55.5 38.5 14.25 12.00 57.0 37.8 9.00 7.83 3.88 2.82
YHE60B22S ME20DN21 24.5 CF/CM64D 1600 55.0 38.0 14.25 12.00 57.0 37.6 9.25 8.04 3.88 2.82
YHE60B22S MVC20DN21 24.5 CF/CM64D 1600 55.5 38.5 14.25 12.00 57.0 37.6 9.25 8.04 3.90 2.82
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
1. Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.
2. Heating MBH based on AHRI standards of 70°F DB (Dry Bulb) entering indoor air, 72% RH (Relative Humidity) outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.
COP (Coefficient of Performance) equals Heating MBH output divided by (total KW input x 3.412).
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 9
— = Not Applicable.
MP Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
SYSTEM CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL COIL CFM RANGE
(MIN.-MAX.)
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER 1EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
YHE18B21S CF/CM/CU18A 14.5 450 - 750 600 17.8 12.7 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S CF/CM/CU18B 17.5 450 - 750 600 17.8 12.7 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S CF/CM/CU24A 21.0 450 - 750 600 17.8 12.7 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S CF/CM/CU24B 14.5 450 - 750 600 17.8 12.7 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE18B21S CF/CM/CU24C 17.5 450 - 750 600 17.8 12.7 14.00 12.00 17.5 12.1 8.55 7.43 3.52 2.38
YHE24B21S CF/CM/CU24A 14.5 600 - 1000 800 23.6 16.9 14.00 11.50 24.0 15.4 8.55 7.43 3.50 2.32
YHE24B21S CF/CM/CU24B 17.5 600 - 1000 800 23.6 16.9 14.00 11.50 24.0 15.4 8.55 7.43 3.50 2.32
YHE24B21S CF/CM/CU24C 21.0 600 - 1000 800 23.6 16.9 14.00 11.50 24.0 15.4 8.55 7.43 3.50 2.32
YHE24B21S CF/CM/CU30B 17.5 600 - 1000 800 24.0 17.4 14.50 12.00 24.0 15.9 8.55 7.43 3.70 2.50
YHE24B21S CF/CM/CU30C 21.0 600 - 1000 800 24.0 17.4 14.50 12.00 24.0 15.9 8.55 7.43 3.70 2.50
YHE24B21S CF/CM/CU30D 24.5 600 - 1000 800 24.0 17.4 14.50 12.00 24.0 15.9 8.55 7.43 3.70 2.50
YHE30B21S CF/CM/CU36B 17.5 800 - 1200 1000 28.8 21.2 14.00 12.00 29.6 20.0 8.55 7.43 3.74 2.62
YHE30B21S CF/CM/CU36C 21.0 800 - 1200 1000 28.8 21.2 14.00 12.00 29.6 20.0 8.55 7.43 3.74 2.62
YHE30B21S CF/CM/CU36D 24.5 800 - 1200 1000 28.8 21.2 14.00 12.00 29.6 20.0 8.55 7.43 3.74 2.62
YHE30B21S CF/CM/CU42C 21.0 800 - 1200 1000 29.2 21.6 14.00 12.00 29.2 19.6 8.55 7.43 3.74 2.60
YHE30B21S CF/CM/CU42D 24.5 800 - 1200 1000 29.2 21.6 14.00 12.00 29.2 19.6 8.55 7.43 3.74 2.60
YHE30B21S CF/CM36A 14.5 800 - 1200 900 28.4 20.2 14.00 12.00 29.4 20.0 8.55 7.43 3.68 2.62
YHE36B21H CF/CM/CU48C 21.0 1000 - 1400 1175 33.6 23.8 14.00 11.75 34.0 20.0 8.20 7.13 3.48 2.48
YHE36B21H CF/CM/CU48D 24.5 1000 - 1400 1175 33.6 23.8 14.00 11.75 34.0 20.0 8.20 7.13 3.48 2.48
YHE48B22S CF/CM/CU60C 21.0 1400 - 1600 1,600 47.0 33.8 14.00 11.75 47.5 32.0 8.20 7.13 3.54 2.50
YHE48B22S CF/CM/CU60D 24.5 1400 - 1600 1,600 47.0 33.8 14.00 11.75 47.5 32.0 8.20 7.13 3.54 2.50
For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

5455359-YTG-A-1217
10 Johnson Controls Unitary Products
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
YHE18B21S TM8V060A12MP11 14.5 CF/CM/CU18A 525 17.6 12.0 14.25 12.25 17.3 11.8 8.55 7.43 3.56 2.46
YHE18B21S TM8V080B12MP11 17.5 CF/CM/CU24B 675 18.0 13.5 14.75 12.50 17.5 11.8 8.55 7.43 3.82 2.54
YHE18B21S TM8X060A12MP11 14.5 CF/CM/CU18A 600 17.9 12.8 14.25 12.25 17.5 11.9 8.55 7.43 3.64 2.46
YHE18B21S TM8X060A12MP11 14.5 CF/CM/CU24A 600 17.9 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TM8X080B12MP11 17.5 CF/CM/CU18B 600 17.9 12.8 14.50 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM8X080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TM8X080C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM8X100C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM8Y060A12MP11 14.5 CF/CM/CU18A 600 17.9 12.8 14.25 12.25 17.5 11.9 8.55 7.43 3.64 2.46
YHE18B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 600 17.9 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TM8Y080B12MP11 17.5 CF/CM/CU18B 600 17.9 12.8 14.50 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM9E040A10MP11 14.5 CF/CM/CU18A 600 17.9 12.8 14.50 12.50 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM9E040A10MP11 14.5 CF/CM/CU24A 575 18.0 12.8 14.50 12.50 17.5 11.8 8.55 7.43 3.72 2.52
YHE18B21S TM9E060B12MP11 17.5 CF/CM/CU24B 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM9E080B12MP11 17.5 CF/CM/CU24B 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM9E080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.8 14.75 12.50 17.5 11.8 8.55 7.43 3.76 2.54
YHE18B21S TM9E100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.8 14.75 12.50 17.5 11.8 8.55 7.43 3.76 2.54
YHE18B21S TM9V060B12MP11 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
YHE18B21S TM9V080B12MP11 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
YHE18B21S TM9Y040A10MP11 14.5 CF/CM/CU18A 600 17.9 12.8 14.50 12.50 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 575 18.0 12.8 14.50 12.50 17.5 11.8 8.55 7.43 3.72 2.52
YHE18B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.8 14.75 12.50 17.5 11.8 8.55 7.43 3.76 2.54
YHE18B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.8 14.75 12.50 17.5 11.8 8.55 7.43 3.76 2.54
YHE18B21S TMLV060A12MP11 14.5 CF/CM/CU18A 525 17.6 12.0 14.25 12.25 17.3 11.8 8.55 7.43 3.56 2.46
YHE18B21S TMLV080B12MP11 17.5 CF/CM/CU24B 675 18.0 13.5 14.75 12.50 17.5 11.8 8.55 7.43 3.82 2.54
YHE18B21S TMLX060A12MP11 14.5 CF/CM/CU18A 600 17.9 12.8 14.25 12.25 17.5 11.9 8.55 7.43 3.64 2.46
YHE18B21S TMLX060A12MP11 14.5 CF/CM/CU24A 600 17.9 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TMLX080B12MP11 17.5 CF/CM/CU18B 600 17.9 12.8 14.50 12.25 17.5 11.9 8.55 7.43 3.66 2.48
YHE18B21S TMLX080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.7 14.50 12.25 17.5 11.8 8.55 7.43 3.70 2.50
YHE18B21S TMLX080C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TMLX100C16MP11 21.0 CF/CM/CU24C 600 17.9 12.7 14.25 12.25 17.5 11.9 8.55 7.43 3.68 2.48
YHE18B21S TP9C060B12MP12 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
Continued on next page.

5455359-YTG-A-1217
Johnson Controls Unitary Products 11
YHE18B21S TP9C080B12MP12 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
YHE18B21S TPLC060A12MP12 14.5 CF/CM/CU18A 525 17.6 12.0 14.25 12.25 17.3 11.8 8.55 7.43 3.56 2.46
YHE18B21S TPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 13.5 14.75 12.50 17.5 11.8 8.55 7.43 3.82 2.54
YHE18B21S YP9C060B12MP12 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
YHE18B21S YP9C080B12MP12 17.5 CF/CM/CU24B 575 18.0 12.7 15.00 12.75 17.5 11.7 8.55 7.43 3.80 2.56
YHE18B21S YPLC060A12MP12 14.5 CF/CM/CU18A 525 17.6 12.0 14.25 12.25 17.3 11.8 8.55 7.43 3.56 2.46
YHE18B21S YPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 13.5 14.75 12.50 17.5 11.8 8.55 7.43 3.82 2.54
YHE24B21S TM8V060A12MP11 14.5 CF/CM/CU24A 725 23.6 16.4 14.75 12.25 23.4 15.1 8.55 7.43 3.54 2.40
YHE24B21S TM8V060A12MP11 14.5 CF/CM/CU30A 725 24.0 16.9 15.75 12.75 23.8 15.5 8.55 7.43 3.78 2.58
YHE24B21S TM8V080B12MP11 17.5 CF/CM/CU24B 675 23.6 15.9 15.00 12.50 23.2 15.0 8.55 7.43 3.52 2.40
YHE24B21S TM8V080B12MP11 17.5 CF/CM/CU30B 800 24.0 17.4 15.75 13.00 24.0 15.5 8.55 7.43 3.88 2.60
YHE24B21S TM8X060A12MP11 14.5 CF/CM/CU24A 800 24.0 17.1 15.25 12.75 23.6 15.0 8.55 7.43 3.70 2.44
YHE24B21S TM8X060A12MP11 14.5 CF/CM/CU30A 700 24.0 16.6 16.00 13.00 23.6 15.3 8.55 7.43 3.82 2.62
YHE24B21S TM8X080B12MP11 17.5 CF/CM/CU24B 725 23.6 16.5 15.50 12.75 23.2 14.9 8.55 7.43 3.62 2.46
YHE24B21S TM8X080B12MP11 17.5 CF/CM/CU30B 725 24.0 16.9 16.00 13.00 23.6 15.3 8.55 7.43 3.88 2.64
YHE24B21S TM8X080C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TM8X080C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8X080C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8X100C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TM8X100C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8X100C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8X100C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8X100C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8X120C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8X120C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 800 24.0 17.1 15.25 12.75 23.6 15.0 8.55 7.43 3.70 2.44
YHE24B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 700 24.0 16.6 16.00 13.00 23.6 15.3 8.55 7.43 3.82 2.62
YHE24B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 725 23.6 16.5 15.50 12.75 23.2 14.9 8.55 7.43 3.62 2.46
YHE24B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 725 24.0 16.9 16.00 13.00 23.6 15.3 8.55 7.43 3.88 2.64
YHE24B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TM8Y100C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8Y100C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
12 Johnson Controls Unitary Products
YHE24B21S TM8Y120C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM8Y120C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TM9E040A10MP11 14.5 CF/CM/CU24A 750 23.8 16.6 14.50 12.00 23.6 15.2 8.55 7.43 3.54 2.40
YHE24B21S TM9E040A10MP11 14.5 CF/CM/CU30A 775 24.0 17.3 15.75 12.75 24.0 15.6 8.55 7.43 3.84 2.58
YHE24B21S TM9E060B12MP11 17.5 CF/CM/CU24B 750 24.0 16.8 15.50 12.75 23.4 15.0 8.55 7.43 3.66 2.46
YHE24B21S TM9E060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.1 16.00 13.00 23.8 15.3 8.55 7.43 3.90 2.64
YHE24B21S TM9E080B12MP11 17.5 CF/CM/CU24B 750 24.0 16.8 15.50 12.75 23.4 15.0 8.55 7.43 3.66 2.46
YHE24B21S TM9E080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.1 16.00 13.00 23.8 15.3 8.55 7.43 3.90 2.64
YHE24B21S TM9E080C16MP11 21.0 CF/CM/CU24C 750 24.0 16.9 15.50 12.75 23.4 14.9 8.55 7.43 3.68 2.48
YHE24B21S TM9E080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.2 16.00 13.00 23.8 15.3 8.55 7.43 3.94 2.66
YHE24B21S TM9E100C16MP11 21.0 CF/CM/CU24C 750 24.0 16.9 15.50 12.75 23.4 14.9 8.55 7.43 3.68 2.48
YHE24B21S TM9E100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.2 16.00 13.00 23.8 15.3 8.55 7.43 3.94 2.66
YHE24B21S TM9E100C20MP11 21.0 CF/CM/CU24C 800 24.0 17.1 15.00 12.25 23.6 15.1 8.55 7.43 3.64 2.40
YHE24B21S TM9E100C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.75 12.75 24.0 15.5 8.55 7.43 3.86 2.60
YHE24B21S TM9E100C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.75 12.75 24.0 15.5 8.55 7.43 3.86 2.60
YHE24B21S TM9E120D20MP11 24.5 CF/CM/CU30D 800 24.0 17.3 16.00 13.00 24.0 15.5 8.55 7.43 3.90 2.62
YHE24B21S TM9V040A10MP11 14.5 CF/CM/CU24A 675 23.2 15.6 14.00 11.75 23.6 15.3 8.55 7.43 3.42 2.34
YHE24B21S TM9V040A10MP11 14.5 CF/CM/CU30A 700 24.0 16.6 15.00 12.25 24.0 15.6 8.55 7.43 3.68 2.52
YHE24B21S TM9V060B12MP11 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S TM9V060B12MP11 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S TM9V080B12MP11 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S TM9V080B12MP11 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 750 23.8 16.6 14.50 12.00 23.6 15.2 8.55 7.43 3.54 2.40
YHE24B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 775 24.0 17.3 15.75 12.75 24.0 15.6 8.55 7.43 3.84 2.58
YHE24B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 750 24.0 16.8 15.50 12.75 23.4 15.0 8.55 7.43 3.66 2.46
YHE24B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.1 16.00 13.00 23.8 15.3 8.55 7.43 3.90 2.64
YHE24B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 750 24.0 16.8 15.50 12.75 23.4 15.0 8.55 7.43 3.66 2.46
YHE24B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.1 16.00 13.00 23.8 15.3 8.55 7.43 3.90 2.64
YHE24B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 750 24.0 16.9 15.50 12.75 23.4 14.9 8.55 7.43 3.68 2.48
YHE24B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.2 16.00 13.00 23.8 15.3 8.55 7.43 3.94 2.66
YHE24B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 750 24.0 16.9 15.50 12.75 23.4 14.9 8.55 7.43 3.68 2.48
YHE24B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.2 16.00 13.00 23.8 15.3 8.55 7.43 3.94 2.66
YHE24B21S TM9Y100C20MP11 21.0 CF/CM/CU24C 800 24.0 17.1 15.00 12.25 23.6 15.1 8.55 7.43 3.64 2.40
YHE24B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.75 12.75 24.0 15.5 8.55 7.43 3.86 2.60
YHE24B21S TM9Y100C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.75 12.75 24.0 15.5 8.55 7.43 3.86 2.60
YHE24B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 800 24.0 17.3 16.00 13.00 24.0 15.5 8.55 7.43 3.90 2.62
YHE24B21S TMLV060A12MP11 14.5 CF/CM/CU24A 725 23.6 16.4 14.75 12.25 23.4 15.1 8.55 7.43 3.54 2.40
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 13
YHE24B21S TMLV060A12MP11 14.5 CF/CM/CU30A 725 24.0 16.9 15.75 12.75 23.8 15.5 8.55 7.43 3.78 2.58
YHE24B21S TMLV080B12MP11 17.5 CF/CM/CU24B 675 23.6 15.9 15.00 12.50 23.2 15.0 8.55 7.43 3.52 2.40
YHE24B21S TMLV080B12MP11 17.5 CF/CM/CU30B 800 24.0 17.4 15.75 13.00 24.0 15.5 8.55 7.43 3.88 2.60
YHE24B21S TMLX060A12MP11 14.5 CF/CM/CU24A 800 24.0 17.1 15.25 12.75 23.6 15.0 8.55 7.43 3.70 2.44
YHE24B21S TMLX060A12MP11 14.5 CF/CM/CU30A 700 24.0 16.6 16.00 13.00 23.6 15.3 8.55 7.43 3.82 2.62
YHE24B21S TMLX080B12MP11 17.5 CF/CM/CU24B 725 23.6 16.5 15.50 12.75 23.2 14.9 8.55 7.43 3.62 2.46
YHE24B21S TMLX080B12MP11 17.5 CF/CM/CU30B 725 24.0 16.9 16.00 13.00 23.6 15.3 8.55 7.43 3.88 2.64
YHE24B21S TMLX080C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TMLX080C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TMLX080C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TMLX100C16MP11 21.0 CF/CM/CU24C 800 24.0 17.2 15.75 13.00 23.4 14.9 8.55 7.43 3.74 2.46
YHE24B21S TMLX100C16MP11 21.0 CF/CM/CU30C 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TMLX100C16MP11 21.0 CF/CM/CU30D 800 24.0 17.4 16.00 13.00 23.8 15.3 8.55 7.43 4.00 2.68
YHE24B21S TMLX100C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TMLX100C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TMLX120C20MP11 21.0 CF/CM/CU30C 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TMLX120C20MP11 21.0 CF/CM/CU30D 800 24.0 17.3 15.25 12.50 24.0 15.7 8.55 7.43 3.80 2.56
YHE24B21S TP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S TP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S TP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S TP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S TPLC060A12MP12 14.5 CF/CM/CU24A 725 23.6 16.4 14.75 12.25 23.4 15.1 8.55 7.43 3.54 2.40
YHE24B21S TPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 16.9 15.75 12.75 23.8 15.5 8.55 7.43 3.78 2.58
YHE24B21S TPLC080B12MP12 17.5 CF/CM/CU24B 675 23.6 15.9 15.00 12.50 23.2 15.0 8.55 7.43 3.52 2.40
YHE24B21S TPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 17.4 15.75 13.00 24.0 15.5 8.55 7.43 3.88 2.60
YHE24B21S YP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S YP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S YP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 17.2 15.75 13.00 23.4 14.8 8.55 7.43 3.76 2.48
YHE24B21S YP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 16.2 15.75 13.00 23.6 15.3 8.55 7.43 3.70 2.56
YHE24B21S YPLC060A12MP12 14.5 CF/CM/CU24A 725 23.6 16.4 14.75 12.25 23.4 15.1 8.55 7.43 3.54 2.40
YHE24B21S YPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 16.9 15.75 12.75 23.8 15.5 8.55 7.43 3.78 2.58
YHE24B21S YPLC080B12MP12 17.5 CF/CM/CU24B 675 23.6 15.9 15.00 12.50 23.2 15.0 8.55 7.43 3.52 2.40
YHE24B21S YPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 17.4 15.75 13.00 24.0 15.5 8.55 7.43 3.88 2.60
YHE30B21S TM8V060A12MP11 14.5 CF/CM36A 975 28.8 21.2 14.25 12.00 29.4 19.8 8.55 7.43 3.80 2.66
YHE30B21S TM8V080B12MP11 17.5 CF/CM/CU36B 1025 29.2 21.8 14.75 12.50 29.4 19.7 8.55 7.43 3.86 2.70
YHE30B21S TM8V080B12MP11 17.5 CF42B 1000 29.4 21.8 15.00 12.50 29.0 19.3 8.55 7.43 3.86 2.66
YHE30B21S TM8V080C16MP11 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
14 Johnson Controls Unitary Products
YHE30B21S TM8V080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S TM8V100C16MP11 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S TM8V100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S TM8X060A12MP11 14.5 CF/CM36A 975 29.0 21.2 15.00 12.50 29.2 19.6 8.55 7.43 3.86 2.72
YHE30B21S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 29.2 21.8 15.25 12.75 29.2 19.6 8.55 7.43 3.92 2.74
YHE30B21S TM8X080B12MP11 17.5 CF42B 1000 29.4 22.0 15.25 12.50 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8Y060A12MP11 14.5 CF/CM36A 975 29.0 21.2 15.00 12.50 29.2 19.6 8.55 7.43 3.86 2.72
YHE30B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 29.2 21.8 15.25 12.75 29.2 19.6 8.55 7.43 3.92 2.74
YHE30B21S TM8Y080B12MP11 17.5 CF42B 1000 29.4 22.0 15.25 12.50 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 15
YHE30B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TM9E040A10MP11 14.5 CF/CM36A 875 28.6 20.2 14.50 12.00 29.2 19.8 8.55 7.43 3.74 2.66
YHE30B21S TM9E060B12MP11 17.5 CF/CM/CU36B 900 28.8 20.4 15.25 12.50 29.0 19.5 8.55 7.43 3.86 2.74
YHE30B21S TM9E060B12MP11 17.5 CF42B 900 29.6 21.0 15.50 13.00 28.4 19.0 8.55 7.43 3.86 2.70
YHE30B21S TM9E080B12MP11 17.5 CF/CM/CU36B 900 28.8 20.4 15.25 12.50 29.0 19.5 8.55 7.43 3.86 2.74
YHE30B21S TM9E080B12MP11 17.5 CF42B 900 29.6 21.0 15.50 13.00 28.4 19.0 8.55 7.43 3.86 2.70
YHE30B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.6 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.72
YHE30B21S TM9E080C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.74
YHE30B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1000 29.4 22.0 15.25 12.50 28.8 19.2 8.55 7.43 3.90 2.70
YHE30B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1000 29.4 22.0 15.25 12.75 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.6 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.72
YHE30B21S TM9E100C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.74
YHE30B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1000 29.4 22.0 15.25 12.50 28.8 19.2 8.55 7.43 3.90 2.70
YHE30B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1000 29.4 22.0 15.25 12.75 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM9E100C20MP11 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 12.75 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TM9E100C20MP11 21.0 CF/CM/CU36D 975 29.2 21.6 15.75 13.00 29.0 19.4 8.55 7.43 3.98 2.78
YHE30B21S TM9E100C20MP11 21.0 CF/CM/CU42C 975 29.6 22.2 16.00 13.00 28.6 18.9 8.55 7.43 4.00 2.76
YHE30B21S TM9E100C20MP11 21.0 CF/CM/CU42D 975 29.6 22.2 16.00 13.00 28.6 18.9 8.55 7.43 4.02 2.76
YHE30B21S TM9E120D20MP11 24.5 CF/CM/CU36D 975 29.2 21.6 16.00 13.00 28.8 19.3 8.55 7.43 4.00 2.80
YHE30B21S TM9E120D20MP11 24.5 CF/CM/CU42D 975 29.8 22.2 16.00 13.00 28.4 18.9 8.55 7.43 4.04 2.78
YHE30B21S TM9V060B12MP11 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S TM9V060B12MP11 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S TM9V080B12MP11 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S TM9V080B12MP11 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S TM9V080C16MP11 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TM9V080C16MP11 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S TM9V100C16MP11 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TM9V100C16MP11 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 29.0 22.4 15.00 12.50 29.2 19.6 8.55 7.43 3.96 2.74
YHE30B21S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 29.8 23.2 16.00 13.00 29.0 19.3 8.55 7.43 4.12 2.84
YHE30B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 29.8 23.2 15.50 13.00 29.0 19.7 8.55 7.43 4.04 2.80
YHE30B21S TM9Y040A10MP11 14.5 CF/CM36A 875 28.6 20.2 14.50 12.00 29.2 19.8 8.55 7.43 3.74 2.66
YHE30B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 900 28.8 20.4 15.25 12.50 29.0 19.5 8.55 7.43 3.86 2.74
YHE30B21S TM9Y060B12MP11 17.5 CF42B 900 29.6 21.0 15.50 13.00 28.4 19.0 8.55 7.43 3.86 2.70
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
16 Johnson Controls Unitary Products
YHE30B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 900 28.8 20.4 15.25 12.50 29.0 19.5 8.55 7.43 3.86 2.74
YHE30B21S TM9Y080B12MP11 17.5 CF42B 900 29.6 21.0 15.50 13.00 28.4 19.0 8.55 7.43 3.86 2.70
YHE30B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.6 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.72
YHE30B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.74
YHE30B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1000 29.4 22.0 15.25 12.50 28.8 19.2 8.55 7.43 3.90 2.70
YHE30B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1000 29.4 22.0 15.25 12.75 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.6 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.72
YHE30B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.00 12.50 29.2 19.6 8.55 7.43 3.90 2.74
YHE30B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1000 29.4 22.0 15.25 12.50 28.8 19.2 8.55 7.43 3.90 2.70
YHE30B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1000 29.4 22.0 15.25 12.75 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 12.75 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 975 29.2 21.6 15.75 13.00 29.0 19.4 8.55 7.43 3.98 2.78
YHE30B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 975 29.6 22.2 16.00 13.00 28.6 18.9 8.55 7.43 4.00 2.76
YHE30B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 975 29.6 22.2 16.00 13.00 28.6 18.9 8.55 7.43 4.02 2.76
YHE30B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 975 29.2 21.6 16.00 13.00 28.8 19.3 8.55 7.43 4.00 2.80
YHE30B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 975 29.8 22.2 16.00 13.00 28.4 18.9 8.55 7.43 4.04 2.78
YHE30B21S TMLV060A12MP11 14.5 CF/CM36A 975 28.8 21.2 14.25 12.00 29.4 19.8 8.55 7.43 3.80 2.66
YHE30B21S TMLV080B12MP11 17.5 CF/CM/CU36B 1025 29.2 21.8 14.75 12.50 29.4 19.7 8.55 7.43 3.86 2.70
YHE30B21S TMLV080B12MP11 17.5 CF42B 1000 29.4 21.8 15.00 12.50 29.0 19.3 8.55 7.43 3.86 2.66
YHE30B21S TMLV080C16MP11 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S TMLV080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S TMLV100C16MP11 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S TMLV100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S TMLX060A12MP11 14.5 CF/CM36A 975 29.0 21.2 15.00 12.50 29.2 19.6 8.55 7.43 3.86 2.72
YHE30B21S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 29.2 21.8 15.25 12.75 29.2 19.6 8.55 7.43 3.92 2.74
YHE30B21S TMLX080B12MP11 17.5 CF42B 1000 29.4 22.0 15.25 12.50 28.8 19.1 8.55 7.43 3.92 2.70
YHE30B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 17
YHE30B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1000 29.2 21.8 15.25 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1000 29.2 21.8 15.50 12.75 29.0 19.5 8.55 7.43 3.94 2.76
YHE30B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1000 29.6 22.0 15.50 13.00 28.6 19.1 8.55 7.43 3.96 2.72
YHE30B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1000 29.6 22.0 15.50 12.75 28.6 19.0 8.55 7.43 3.96 2.74
YHE30B21S TP9C060B12MP12 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S TP9C060B12MP12 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S TP9C080B12MP12 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S TP9C080B12MP12 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S TP9C080C16MP12 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TP9C080C16MP12 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S TP9C100C16MP12 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S TP9C100C16MP12 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S TP9C100C20MP12 21.0 CF/CM/CU36C 1075 29.0 22.4 15.00 12.50 29.2 19.6 8.55 7.43 3.96 2.74
YHE30B21S TP9C120D20MP12 24.5 CF/CM/CU36D 1125 29.8 23.2 16.00 13.00 29.0 19.3 8.55 7.43 4.12 2.84
YHE30B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1125 29.8 23.2 15.50 13.00 29.0 19.7 8.55 7.43 4.04 2.80
YHE30B21S TPLC060A12MP12 14.5 CF/CM36A 975 28.8 21.2 14.25 12.00 29.4 19.8 8.55 7.43 3.80 2.66
YHE30B21S TPLC080B12MP12 17.5 CF/CM/CU36B 1025 29.2 21.8 14.75 12.50 29.4 19.7 8.55 7.43 3.86 2.70
YHE30B21S TPLC080B12MP12 17.5 CF42B 1000 29.4 21.8 15.00 12.50 29.0 19.3 8.55 7.43 3.86 2.66
YHE30B21S TPLC080C16MP12 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S TPLC080C16MP12 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S TPLC100C16MP12 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S TPLC100C16MP12 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S YP9C060B12MP12 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S YP9C060B12MP12 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S YP9C080B12MP12 17.5 CF/CM/CU36B 950 29.0 21.2 15.00 12.50 29.0 19.6 8.55 7.43 3.88 2.72
YHE30B21S YP9C080B12MP12 17.5 CF42B 925 29.8 21.4 15.50 13.00 28.6 19.0 8.55 7.43 3.90 2.70
YHE30B21S YP9C080C16MP12 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S YP9C080C16MP12 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S YP9C100C16MP12 21.0 CF/CM/CU36C 975 29.2 21.6 15.50 13.00 29.0 19.4 8.55 7.43 3.96 2.78
YHE30B21S YP9C100C16MP12 21.0 CF/CM/CU42C 975 29.6 22.0 15.75 13.00 28.6 19.0 8.55 7.43 3.98 2.74
YHE30B21S YP9C100C20MP12 21.0 CF/CM/CU36C 1075 29.0 22.4 15.00 12.50 29.2 19.6 8.55 7.43 3.96 2.74
YHE30B21S YP9C120D20MP12 24.5 CF/CM/CU36D 1125 29.8 23.2 16.00 13.00 29.0 19.3 8.55 7.43 4.12 2.84
YHE30B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1125 29.8 23.2 15.50 13.00 29.0 19.7 8.55 7.43 4.04 2.80
YHE30B21S YPLC060A12MP12 14.5 CF/CM36A 975 28.8 21.2 14.25 12.00 29.4 19.8 8.55 7.43 3.80 2.66
YHE30B21S YPLC080B12MP12 17.5 CF/CM/CU36B 1025 29.2 21.8 14.75 12.50 29.4 19.7 8.55 7.43 3.86 2.70
YHE30B21S YPLC080B12MP12 17.5 CF42B 1000 29.4 21.8 15.00 12.50 29.0 19.3 8.55 7.43 3.86 2.66
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
18 Johnson Controls Unitary Products
YHE30B21S YPLC080C16MP12 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S YPLC080C16MP12 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE30B21S YPLC100C16MP12 21.0 CF/CM/CU36C 925 28.8 20.6 15.25 12.75 28.8 19.5 8.55 7.43 3.88 2.76
YHE30B21S YPLC100C16MP12 21.0 CF/CM/CU42C 925 29.8 21.4 15.75 13.00 28.4 19.0 8.55 7.43 3.92 2.72
YHE35B21S TM8V080B12MP11 17.5 CF42B 1000 34.4 24.0 14.00 11.75 33.6 21.4 8.55 7.43 3.50 2.40
YHE35B21S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 12.00 33.6 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8V080C16MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.68 2.48
YHE35B21S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 12.00 33.6 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8V100C16MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.68 2.48
YHE35B21S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 11.75 33.6 21.8 8.55 7.43 3.50 2.42
YHE35B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.66 2.46
YHE35B21S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 11.75 33.6 21.8 8.55 7.43 3.50 2.42
YHE35B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.66 2.46
YHE35B21S TM8X080B12MP11 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
YHE35B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
YHE35B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TM8Y080B12MP11 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
YHE35B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
Johnson Controls Unitary Products 19
YHE35B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.00 12.00 33.6 21.6 8.55 7.43 3.50 2.42
YHE35B21S TM9E080C16MP11 21.0 CF/CM/CU36D 1075 34.6 24.4 14.25 12.00 33.6 21.6 8.55 7.43 3.52 2.44
YHE35B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1225 35.4 26.6 14.00 12.00 34.0 21.6 8.55 7.43 3.66 2.46
YHE35B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1075 35.0 25.2 14.25 12.25 33.6 21.2 8.55 7.43 3.64 2.46
YHE35B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.00 12.00 33.6 21.6 8.55 7.43 3.50 2.42
YHE35B21S TM9E100C16MP11 21.0 CF/CM/CU36D 1075 34.6 24.4 14.25 12.00 33.6 21.6 8.55 7.43 3.52 2.44
YHE35B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1225 35.4 26.6 14.00 12.00 34.0 21.6 8.55 7.43 3.66 2.46
YHE35B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1075 35.0 25.2 14.25 12.25 33.6 21.2 8.55 7.43 3.64 2.46
YHE35B21S TM9E100C20MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.54 2.42
YHE35B21S TM9E100C20MP11 21.0 CF/CM/CU36D 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.54 2.42
YHE35B21S TM9E100C20MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 34.0 21.6 8.55 7.43 3.68 2.46
YHE35B21S TM9E100C20MP11 21.0 CF/CM/CU42D 1200 35.0 25.8 14.00 11.75 33.8 21.6 8.55 7.43 3.62 2.44
YHE35B21S TM9E120D20MP11 24.5 CF/CM/CU36D 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM9E120D20MP11 24.5 CF/CM/CU42D 1200 35.2 25.8 14.25 12.00 33.8 21.4 8.55 7.43 3.64 2.46
YHE35B21S TM9V060B12MP11 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TM9V080B12MP11 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TM9V080C16MP11 21.0 CF/CM/CU42C 1275 35.4 27.0 14.00 11.75 34.2 21.6 8.55 7.43 3.68 2.46
YHE35B21S TM9V100C16MP11 21.0 CF/CM/CU42C 1275 35.4 27.0 14.00 11.75 34.2 21.6 8.55 7.43 3.68 2.46
YHE35B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.00 11.75 33.6 21.6 8.55 7.43 3.48 2.42
YHE35B21S TM9V100C20MP11 21.0 CF/CM/CU42C 1275 35.4 27.0 14.00 11.75 34.2 21.8 8.55 7.43 3.66 2.44
YHE35B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 35.2 26.0 14.50 12.00 33.6 21.4 8.55 7.43 3.68 2.48
YHE35B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.00 12.00 33.6 21.6 8.55 7.43 3.50 2.42
YHE35B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 1075 34.6 24.4 14.25 12.00 33.6 21.6 8.55 7.43 3.52 2.44
YHE35B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1225 35.4 26.6 14.00 12.00 34.0 21.6 8.55 7.43 3.66 2.46
YHE35B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1075 35.0 25.2 14.25 12.25 33.6 21.2 8.55 7.43 3.64 2.46
YHE35B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.00 12.00 33.6 21.6 8.55 7.43 3.50 2.42
YHE35B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 1075 34.6 24.4 14.25 12.00 33.6 21.6 8.55 7.43 3.52 2.44
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5455359-YTG-A-1217
20 Johnson Controls Unitary Products
YHE35B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1225 35.4 26.6 14.00 12.00 34.0 21.6 8.55 7.43 3.66 2.46
YHE35B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1075 35.0 25.2 14.25 12.25 33.6 21.2 8.55 7.43 3.64 2.46
YHE35B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.54 2.42
YHE35B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.54 2.42
YHE35B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 34.0 21.6 8.55 7.43 3.68 2.46
YHE35B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 1200 35.0 25.8 14.00 11.75 33.8 21.6 8.55 7.43 3.62 2.44
YHE35B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 1200 35.2 25.8 14.25 12.00 33.8 21.4 8.55 7.43 3.64 2.46
YHE35B21S TMLV080B12MP11 17.5 CF42B 1000 34.4 24.0 14.00 11.75 33.6 21.4 8.55 7.43 3.50 2.40
YHE35B21S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 12.00 33.6 21.6 8.55 7.43 3.54 2.44
YHE35B21S TMLV080C16MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.68 2.48
YHE35B21S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 12.00 33.6 21.6 8.55 7.43 3.54 2.44
YHE35B21S TMLV100C16MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.68 2.48
YHE35B21S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 11.75 33.6 21.8 8.55 7.43 3.50 2.42
YHE35B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.66 2.46
YHE35B21S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 34.6 24.6 14.00 11.75 33.6 21.8 8.55 7.43 3.50 2.42
YHE35B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 35.2 26.0 14.25 12.00 33.8 21.4 8.55 7.43 3.66 2.46
YHE35B21S TMLX080B12MP11 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
YHE35B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1225 35.0 25.4 14.00 11.75 33.8 21.8 8.55 7.43 3.56 2.44
YHE35B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 34.8 24.6 14.50 12.00 33.4 21.6 8.55 7.43 3.54 2.46
YHE35B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1225 35.6 26.8 14.00 12.00 33.8 21.4 8.55 7.43 3.70 2.48
YHE35B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1075 34.6 24.4 14.25 12.00 33.4 21.6 8.55 7.43 3.54 2.44
YHE35B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1100 34.8 24.8 14.25 12.25 33.4 21.6 8.55 7.43 3.56 2.46
YHE35B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1075 35.2 25.2 14.50 12.25 33.4 21.2 8.55 7.43 3.66 2.48
YHE35B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1100 35.4 26.0 14.75 12.50 33.6 21.2 8.55 7.43 3.74 2.52
YHE35B21S TP9C060B12MP12 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TP9C080B12MP12 17.5 CF42B 1175 35.0 25.8 14.00 11.75 34.0 21.6 8.55 7.43 3.60 2.42
YHE35B21S TP9C080C16MP12 21.0 CF/CM/CU42C 1275 35.4 27.0 14.00 11.75 34.2 21.6 8.55 7.43 3.68 2.46
Continued on next page.
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
