TECHNICAL GUIDE
LX SERIES
SPLIT-SYSTEM HEAT PUMPS
14.5 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: YHJF18 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-Years limited compressor warranty.
Extended 10-Years limited parts warranty requires online
registration within 90 days of purchase for replacement or
closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
®
561923-YTG-E-0613
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The 14.5 SEER Series unit is the outdoor part of a versatile cli-
mate system. It is designed with a matching indoor coil compo-
nent from Johnson Controls Unitary Products. Available for
typical applications this climate system is supported with acces-
sories and documents to serve specific functions.
FEATURES
•Small Footprint - The compact footprint is a perfect fit for
any application.
•Quality Condenser Coils - The coil is constructed of copper
tubing and enhanced aluminum fins for increased perfor-
mance.
•Coil Protection - Coils are protected from damage by a slot-
ted, stamped steel coil guard.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. A factory installed liquid line filter-drier further pro-
tects the compressor against moisture and debris. The 5-ton
system utilizes a two-stage compressor.
•Environmentally Friendly Refrigerant - The next genera-
tion refrigerant R-410A delivers environmentally friendly per-
formance with zero ozone depletion.
•Durable Finish - The cabinet is made of G90-equivalent pre-
painted steel, with special primer formulas and matte cham-
pagne texture to insure less fading when exposed to sun-
light. The coated steel wire fan guard and pre-treated,
galvanized steel chassis components resist corrosion and
rust creep.
•Lower Installed Cost - Installation time and costs are
reduced by easy power and control wiring connections. The
unit is factory charged for a 15-foot lineset. The small base
dimension means less space is required on the ground or
roof.
•Top Discharge - Warm air from the top mounted fan is blown
up, away from the structure and any landscaping. This allows
compact location on multi-unit applications.
•Quiet Operation - The compressor sound blanket and the
swept wing fan blade keep sound to a minimum. The upward
air flow carries the normal operating noise away from the liv-
ing area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the condenser coil
muffle the normal fan motor and compressor operating
sounds.
•Low Maintenance - Long life, permanently lubricated motor-
bearings need no annual servicing.
•Easy Service Access - Fully exposed refrigerant connec-
tions and a single panel covering the electrical controls make
for easy servicing of the unit.
•Secured Service Valves - Secured, re-usable service
valves are provided on both the liquid and vapor sweat con-
nections for ease of evacuating and charging.
•Advanced System Control - These heat pumps feature a
demand-defrost control system to provide optimal comfort
and reliable operation over a wide range of conditions.
•Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.

561923-YTG-E-0613
2Johnson Controls Unitary Products
* Adapter Fitting Required for 1-1/8" Lilneset.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

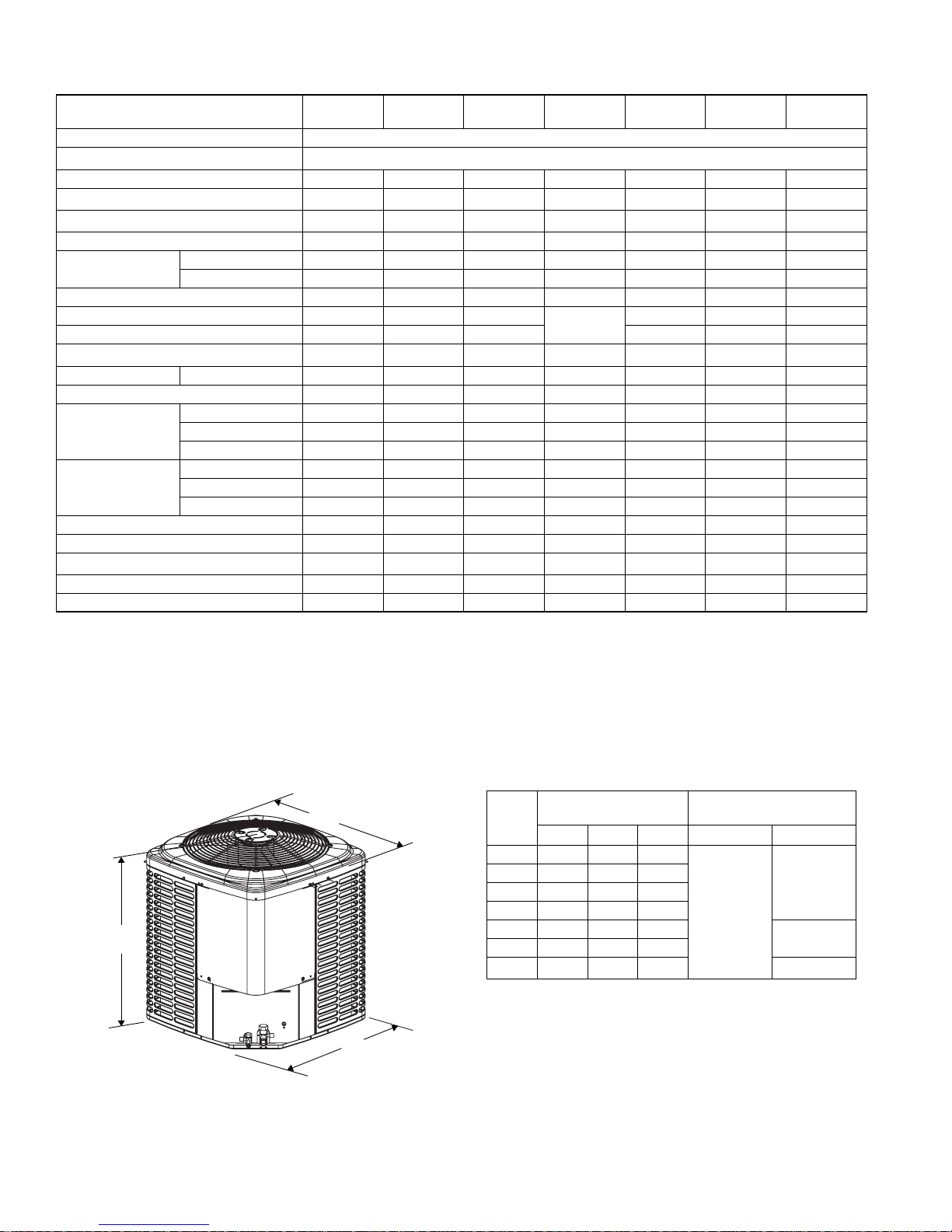

Physical and Electrical Data
MODEL YHJF18
S41S1 YHJF24 S41S1 YHJF30 S41S1 YHJF36 S41S4 YHJF42 S41S2 YHJF48 S41S1 YHJF60 S41S1
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 11.9 17.6 17.3 19.7 26.1 28.8 35.3
Max. Overcurrent Device Amps 220 30 30 30 45 50 60
Min. Overcurrent Device Amps 315 20 20 20 30 30 40
Compressor Type Scroll Scroll Scroll Recip Scroll Scroll 2-Stage Scroll
Compressor
Amps Rated Load 9.0 13.4 12.8 14.7 19.8 28.8 35.3
Locked Rotor 48.0 58.3 64.0 74.0 115.0 115.0 118.0
Crankcase Heater No No No Yes No No No
Factory External Discharge Muffler Yes Yes Yes Combined
DM/CV Yes Yes Yes
Factory External Check Valve No No No No No No
HS Kit Required with TXV 4No No No Yes No No No
Fan Motor Amps Rated Load 0.7 0.8 1.3 1.3 1.3 1.3 1.3
Fan Diameter Inches 24 22 24 24 24 24 24
Fan Motor Rated HP 1/10 1/8 1/4 1/4 1/4 1/4 1/4
Nominal RPM 825 1075 850 850 850 850 850
Nominal CFM 2000 2000 3900 3800 3900 3800 3800
Coil Face Area Sq. Ft. 15.72 19.17 23.58 23.58 23.58 23.58 23.58
Rows Deep 1111122
Fins / Inch 22 22 22 22 22 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.) 56 - 15 7 - 14 9 - 14 10 - 6 10 - 14 14 - 2 14 - 2
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 145 145 176 193 198 248 290
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or sub-
tract the amount of refrigerant, using the difference in length multiplied by the per foot value.
B
C
A
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
18 28-1/4 34 34
3/8
3/4
24 40-1/4 29-1/2 29-1/2
30 40-1/4 34 34
36 40-1/4 34 34
42 40-1/4 34 34 7/8
48 40-1/4 34 34
60 40-1/4 34 34 7/8 *

561923-YTG-E-0613
Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.
2. Verify the TXV or orifice and additional charge required for specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For indoor matches requiring additional charge, the refrigerant needs to be weighed in for specific matched indoor unit and lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +
charge adder for line set.
System Charge for Various Matched Systems
Outdoor Unit YHJF18S41S1 YHJF24S41S1 YHJF30S41S1 YHJF36S41S4 YHJF42S41S2 YHJF48S41S1 YHJF60S41S1
Required Orifice or TXV 1,2 .051/4F1 .059/4G1 .063/4G1 .071/4H1 .073, .075/4J1 4K1 4K1
Indoor Unit 3,4,5 Additional Charge, Oz
AHE24B .051 / TXV + 0 .059 / TXV + 0 –––––
AHE30B .051 / TXV + 0 .059 / TXV + 0 –––––
AHE36C – – .063 / TXV + 0 .071 / TXV + 0 – – –
AHE42D –––.071 / TXV + 5 .073 / TXV - 10 – –
AHE48D –––.071 / TXV + 25 .073 / TXV - 6 – –
AHE60D ––––.075 / TXV + 0 TXV + 0 TXV + 0
AHR24B .051 / TXV + 0 .059 / TXV + 0 –––––
AHR36B – – .063 / TXV + 0 .071 / TXV + 0 – – –
AHR42C –––.071 / TXV + 5 .073 / TXV - 10 – –
AHR48D ––––.073 / TXV - 6 – –
AHR60D ––––.075 / TXV + 0 TXV + 0 –
AHV24B .051 / TXV + 0 .059 / TXV + 0 –––––
AHV30B .051 / TXV + 0 .059 / TXV + 0 –––––
AHV36C .051 / TXV + 13 .059 / TXV + 12 .063 / TXV + 0 .071 / TXV + 0 – – –
AHV42D –––.071 / TXV + 11 – – –
AHV48D –––.071 / TXV + 31 .073 / TXV - 6 – –
AHV60D ––––.075 / TXV + 0 TXV + 0 TXV + 0
AV*36 .051 / TXV + 13 .059 / TXV + 12 .063 / TXV + 0 .071 / TXV + 0 – – –
AV*48 –––.071 / TXV + 25 – – –
FC/MC/PC32 .051 / TXV + 0 .059 / TXV + 0 –––––
FC/MC/PC35 .051 / TXV + 0 .059 / TXV + 0 –––––
FC/MC/PC37 .051 / TXV + 13 .059 / TXV + 12 .063 / TXV + 0 .071 / TXV + 0 – – –
FC/MC/PC43 .051 / TXV + 13 .059 / TXV + 12 .063 / TXV + 0 .071 / TXV + 0 – – –
FC/MC/PC48 –––.071 / TXV + 5 .073 / TXV - 10 – –
FC/MC/PC60 –––.071 / TXV + 25 .073 / TXV - 6 – –
FC/MC62 ––––.075 / TXV + 0 TXV + 0 TXV + 0
FC64 –––––TXV + 8 TXV + 8
UC48 –––.071 / TXV + 23 – – –
UC60 –––.071 / TXV + 38 – – –
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:
1. For applications requiring a TXV use S1-1TVM*** series kit.
2. Approved orifice(s) shipped with outdoor unit.
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
5. Refer to Cooling and Heating Performance Data tables for actual performance for specified system matches.

561923-YTG-E-0613
4Johnson Controls Unitary Products
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL 1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH AIR HANDLERS
YHJF18S41S1
AHE24B 17.5 – 585 18.0 13.3 14.50 12.00
AHE30B 17.5 – 660 18.0 13.1 15.00 12.50
AHR24B 17.5 – 675 18.0 13.1 13.00 11.00
AHV24B 17.5 – 580 18.0 13.4 14.50 12.50
AHV30B 17.5 – 700 18.0 14.6 14.50 12.50
AHV36C 21.0 – 670 18.0 14.5 15.00 12.50
AV*36 21.0 – 630 18.0 13.3 15.00 12.50
MV12B 17.5 FC/MC35B 600 18.0 13.0 15.00 12.50
MV12B 17.5 FC/MC43B 600 18.0 13.3 15.00 12.50
MX12B 17.5 FC/MC35B 660 18.0 13.8 15.00 12.50
MX12B 17.5 FC/MC43B 620 18.0 13.6 15.00 12.50
YHJF24S41S1
AHE24B 17.5 – 825 23.0 17.4 15.00 12.50
AHE30B 17.5 – 800 23.0 17.4 15.00 12.50
AHR24B 17.5 – 740 22.2 16.0 13.25 11.35
AHV24B 17.5 – 710 22.6 16.5 14.50 12.50
AHV30B 17.5 – 775 22.8 17.1 14.50 12.50
AHV36C 21.0 – 760 23.2 17.3 15.00 12.50
AV*36 21.0 – 725 22.8 16.8 15.00 12.50
MV12B 17.5 FC/MC35B 800 22.8 17.2 15.00 12.50
MV12B 17.5 FC/MC43B 800 23.4 18.0 15.00 12.50
MX12B 17.5 FC/MC35B 815 23.2 17.5 15.00 12.50
MX12B 17.5 FC/MC43B 735 23.0 16.9 15.00 12.50
YHJF30S41S1
AHE36C 21.0 – 1000 30.0 21.7 15.00 12.50
AHR36B 17.5 – 1060 28.8 22.0 13.25 11.35
AHV36C 21.0 – 895 28.6 26.2 15.00 12.50
AV*36 21.0 – 960 29.2 21.8 15.00 12.50
MV12B 17.5 FC/MC43B 1000 29.0 21.6 15.00 12.50
MV16C 21.0 FC/MC43C 1000 29.0 21.6 15.00 12.50
MX12B 17.5 FC/MC43B 1095 30.0 22.3 15.00 12.50
MX16C 21.0 FC/MC43C 970 30.0 21.5 15.00 12.50
YHJF36S41S4
AHE36C 21.0 – 1275 36.0 27.4 14.50 12.00
AHE42D 24.5 – 1275 36.0 26.4 15.00 12.50
AHE48D 24.5 – 1195 35.8 26.6 14.50 12.00
AHR36B 17.5 – 1245 35.4 26.2 13.00 11.00
AHR42C 21.0 – 1230 35.6 26.4 13.35 11.45
AHV36C 21.0 – 1215 36.0 27.6 14.00 12.00
AHV42D 24.5 – 1180 36.0 27.8 15.00 12.50
AHV48D 24.5 – 1155 36.0 27.2 15.00 12.50
AV*36 21.0 – 1190 35.6 26.2 14.50 12.00
AV*48 24.5 – 1220 36.0 27.4 14.50 12.00
MV12B 17.5 FC/MC43B 1225 35.6 26.2 14.00 12.00
MV12D 24.5 FC/MC48D 1160 36.0 26.6 15.00 12.50
MV12D 24.5 FC/MC60D 1135 36.0 26.2 14.50 12.00
MV16C 21.0 FC/MC43C 1200 35.8 26.2 14.50 12.00
MV16C 21.0 FC/MC48C 1200 36.0 26.4 14.50 12.00
MV16C 21.0 FC60C 1200 36.0 27.0 15.00 12.50
MX12B 17.5 FC/MC43B 1220 35.6 26.0 14.00 12.00
MX12D 24.5 FC/MC48D 1225 36.0 26.4 14.50 12.00
MX12D 24.5 FC/MC60D 1275 36.0 27.8 15.00 12.50
MX16C 21.0 FC/MC43C 1140 35.4 25.8 14.50 12.00
MX16C 21.0 FC/MC48C 1150 36.0 26.6 15.00 12.50
MX16C 21.0 FC60C 1150 36.0 26.8 15.00 12.50
For notes, see Page 5.

561923-YTG-E-0613
Johnson Controls Unitary Products 5
— = Not applicable.
MA Modular Air Handlers use Coil Only Ratings.
— = Not applicable.
MA Modular Air Handlers use Coil Only Ratings.
YHJF42S41S2
AHE42D 24.5 – 1385 40.5 30.2 15.00 12.50
AHE48D 24.5 – 1385 40.5 30.0 15.00 12.50
AHE60D 24.5 – 1390 40.0 30.8 15.00 12.50
AHR42C 21.0 – 1485 40.0 30.4 13.25 11.35
AHR48D 24.5 – 1320 39.0 28.4 13.25 11.35
AHR60D 24.5 – 1350 39.5 29.6 13.25 11.35
AHV48D 24.5 – 1155 39.5 29.2 14.50 12.50
AHV60D 24.5 – 1340 40.5 31.6 14.50 12.00
MV16C 21.0 FC/MC48C 1400 40.5 30.0 14.50 12.00
MV16C 21.0 FC60C 1400 40.5 30.2 14.50 12.00
MV20D 24.5 FC/MC48D 1470 41.0 31.0 15.00 12.50
MV20D 24.5 FC/MC60D 1400 40.5 30.2 15.00 12.50
MV20D 24.5 FC/MC62D 1400 40.5 31.2 15.00 12.50
MX16C 21.0 FC/MC48C 1390 40.5 30.2 15.00 12.50
MX16C 21.0 FC60C 1420 40.5 30.4 15.00 12.50
MX20D 24.5 FC/MC48D 1415 40.5 30.0 15.00 12.50
MX20D 24.5 FC/MC60D 1470 41.0 31.4 15.00 12.50
MX20D 24.5 FC/MC62D 1470 40.5 31.8 15.00 12.50
YHJF48S41S1
AHE60D 24.5 – 1565 47.0 35.4 15.00 12.50
AHR60D 24.5 – 1620 47.5 35.6 13.25 11.35
AHV60D 24.5 – 1570 47.5 34.8 14.50 12.50
MV20D 24.5 FC/MC62D 1630 48.0 36.2 15.00 12.50
MV20D 24.5 FC64D 1630 48.0 36.2 15.00 12.50
MX20D 24.5 FC/MC62D 1605 47.0 35.1 15.00 12.50
MX20D 24.5 FC64D 1605 47.0 35.7 15.00 12.50
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
Cooling MBH based on 80 °F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95 °F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
STAGE COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH AIR HANDLERS
YHJF60S41S1
AHE60D 24.5 –11160 46.0 29.8 15.00 12.20
21835 57.0 41.0
AHV60D 24.5 –11090 46.5 30.8 15.00 11.75
21635 57.0 40.5
MV20D 24.5 FC/MC62D 11160 48.0 31.0 15.00 12.00
21855 57.0 40.5
MV20D 24.5 FC64D 11160 50.0 32.6 15.00 12.50
21855 59.0 42.5
MX20D 24.5 FC/MC62D 11390 48.0 32.4 15.00 12.50
21795 57.5 41.0
MX20D 24.5 FC64D 11390 49.5 33.8 15.00 12.50
21795 58.0 42.0
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
Cooling MBH based on 80 °F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95 °F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL 1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH AIR HANDLERS

561923-YTG-E-0613
6Johnson Controls Unitary Products
MA Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS ,TG9S, use Coil Only Ratings.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
COIL CFM RANGE
(Min.-max.) STAGE
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER1EER
TOTAL SENS.
14.5 SEER HP COIL ONLY RATINGS
YHJF18S41S1
FC/MC/PC32 14.5 450 - 750 – 600 18.0 12.6 13.25 11.35
FC/MC/PC35 17.5,21.0 450 - 750 – 600 18.0 12.6 13.20 11.35
FC/MC/PC37 14.5 450 - 750 – 600 18.0 13.2 13.25 11.35
FC/MC/PC43 17.5,21.0 450 - 750 – 600 18.0 13.2 13.25 11.35
YHJF24S41S1
FC/MC/PC32 14.5 600 - 1000 – 800 22.2 16.3 13.25 11.35
FC/MC/PC35 17.5,21.0 600 - 1000 – 800 22.4 16.3 13.20 11.35
FC/MC/PC37 14.5 600 - 1000 – 800 22.4 16.6 13.25 11.35
FC/MC/PC43 17.5,21.0 600 - 1000 – 800 22.4 16.6 13.25 11.35
YHJF30S41S1 FC/MC/PC37 14.5 800 - 1200 – 1000 28.6 21.6 13.25 11.35
FC/MC/PC43 17.5,21.0 800 - 1200 –1000 28.4 21.6 13.50 11.35
YHJF36S41S4
FC/MC/PC37 14.5 1000 - 1400 – 1200 35.0 25.6 13.00 11.00
FC/MC/PC43 17.5,21.0 1000 - 1400 – 1200 35.0 25.8 13.00 11.00
FC/MC/PC48 21.0,24.5 1000 - 1400 – 1200 35.2 25.8 13.35 11.45
FC/MC/PC60 21.0,24.5 1000 - 1400 – 1200 35.6 26.0 13.35 11.45
UC48 21.0,24.5 1000 - 1400 – 1200 35.0 26.0 13.25 11.35
UC60 21.0,24.5 1000 - 1400 – 1200 35.0 25.6 13.25 11.35
YHJF42S41S2 FC/MC/PC48 21.0,24.5 1200 - 1600 – 1400 39.5 29.4 13.30 11.40
FC/MC/PC60 –1200 - 1600 –1400 40.0 29.6 13.30 11.40
FC/MC62 24.5 1200 - 1600 –1400 37.2 30.0 13.30 11.35
YHJF48S41S1 FC/MC62 24.5 1400 - 1800 – 1600 47.0 35.4 13.50 11.35
YHJF60S41S1 FC/MC62 24.5 1150 - 1550 1 1350 48.0 31.8 13.30 11.35
FC/MC62 24.5 1600 - 2000 2 1800 56.5 39.5 13.30 11.35
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
COOLING CAPACITY - With High Efficiency Motor Furnaces
UNIT
MODEL
FURNACE COIL1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2
YHJF18S41S1
T*(8,L)V*A12 14.5 FC/MC/PC32A 590 18.0 13.0 15.00 12.50
T*(8,L)V*A12 14.5 FC/MC/PC37A 625 18.0 13.3 15.00 12.50
T*(8,L)V*B12 17.5 FC/MC/PC35B 650 18.0 13.4 15.00 12.50
T*(8,L)V*B12 17.5 FC/MC/PC43B 560 18.0 12.8 15.00 12.50
T*(8,L)V*C16 21.0 FC/MC/PC35C 600 18.0 13.0 15.00 12.50
T*(8,L)X*A12 14.5 FC/MC/PC32A 590 18.0 13.0 15.00 12.50
T*9V*A10 14.5 FC/MC/PC32A 580 17.5 13.3 14.00 11.95
T*9V*A10 14.5 FC/MC/PC37A 570 17.5 13.2 14.00 11.95
T*9(C,V)*B12 17.5 FC/MC/PC35B 570 18.0 13.0 15.00 12.50
T*9(C,V)*C16 21.0 FC/MC/PC35C 645 18.0 13.4 15.00 12.50
T*9X*A10 14.5 FC/MC/PC32A 585 17.5 13.3 14.00 12.00
T*9X*A10 14.5 FC/MC/PC37A 580 17.5 13.5 14.50 12.00
Y*(8,L)C*A12 14.5 FC/MC/PC32A 590 18.0 13.0 15.00 12.50
Y*(8,L)C*A12 14.5 FC/MC/PC37A 625 18.0 13.3 15.00 12.50
Y*(8,L)C*B12 17.5 FC/MC/PC35B 650 18.0 13.4 15.00 12.50
Y*(8,L)C*B12 17.5 FC/MC/PC43B 560 18.0 12.8 15.00 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC35C 600 18.0 13.0 15.00 12.50
Y*9C*B12 17.5 FC/MC/PC35B 570 18.0 13.0 15.00 12.50
Y*9C*C16 21.0 FC/MC/PC35C 645 18.0 13.4 15.00 12.50
For notes, see Page 10.

561923-YTG-E-0613
Johnson Controls Unitary Products 7
YHJF24S41S1
T*(8,L)V*A12 14.5 FC/MC/PC32A 775 22.8 17.1 14.50 12.00
T*(8,L)V*A12 14.5 FC/MC/PC37A 805 23.2 17.9 15.00 12.50
T*(8,L)V*B12 17.5 FC/MC/PC35B 760 22.6 16.7 15.00 12.50
T*(8,L)V*B12 17.5 FC/MC/PC43B 760 22.8 17.0 15.00 12.50
T*(8,L)V*C16 21.0 FC/MC/PC35C 855 23.0 17.7 15.00 12.50
T*(8,L)V*C16 21.0 FC/MC/PC43C 875 23.4 18.5 15.00 12.50
T*(8,L)V*C20 21.0 FC/MC/PC35C 740 22.6 16.6 15.00 12.50
T*(8,L)V*C20 21.0 FC/MC/PC43C 760 23.0 17.1 15.00 12.50
T*(8,L)X*A12 14.5 FC/MC/PC32A 800 23.0 17.3 15.00 12.50
T*(8,L)X*A12 14.5 FC/MC/PC37A 840 23.4 18.0 15.00 12.50
T*(8,L)X*B12 17.5 FC/MC/PC35B 850 23.0 17.8 15.00 12.50
T*(8,L)X*B12 17.5 FC/MC/PC43B 865 23.4 18.1 15.00 12.50
T*(8,L)X*C16 21.0 FC/MC/PC35C 865 23.2 18.0 15.00 12.50
T*(8,L)X*C16 21.0 FC/MC/PC43C 855 23.4 18.1 15.00 12.50
T*(8,L)X*C20 21.0 FC/MC/PC35C 865 23.2 18.1 15.00 12.50
T*9V*A10 14.5 FC/MC/PC32A 785 22.2 16.5 13.60 11.70
T*9V*A10 14.5 FC/MC/PC37A 790 22.4 16.8 13.65 11.75
T*9(C,V)*B12 17.5 FC/MC/PC35B 815 22.8 17.1 14.50 12.00
T*9(C,V)*B12 17.5 FC/MC/PC43B 800 23.2 17.9 15.00 12.50
T*9(C,V)*C16 21.0 FC/MC/PC35C 865 23.2 18.2 15.00 12.50
T*9(C,V)*C16 21.0 FC/MC/PC43C 810 23.4 18.0 15.00 12.50
T*9(C,V)*C20 21.0 FC/MC/PC35C 755 22.6 16.7 15.00 12.50
T*9(C,V)*C20 21.0 FC/MC/PC43C 875 23.4 18.4 15.00 12.50
T*9X*A10 14.5 FC/MC/PC32A 745 22.4 16.2 13.80 12.00
T*9X*A10 14.5 FC/MC/PC37A 740 22.4 16.3 13.95 12.00
T*9X*B12 17.5 FC/MC/PC35B 785 23.0 17.3 15.00 12.50
T*9X*B12 17.5 FC/MC/PC43B 800 23.4 18.0 15.00 12.50
T*9X*C16 21.0 FC/MC/PC35C 765 23.0 17.3 15.00 12.50
T*9X*C16 21.0 FC/MC/PC43C 785 23.2 17.5 15.00 12.50
T*9X*C20 21.0 FC/MC/PC35C 825 23.0 17.2 15.00 12.50
T*9X*C20 21.0 FC/MC/PC43C 790 23.2 17.4 15.00 12.50
Y*(8,L)C*A12 14.5 FC/MC/PC32A 775 22.8 17.1 14.50 12.00
Y*(8,L)C*A12 14.5 FC/MC/PC37A 805 23.2 17.9 15.00 12.50
Y*(8,L)C*B12 17.5 FC/MC/PC35B 760 22.6 16.7 15.00 12.50
Y*(8,L)C*B12 17.5 FC/MC/PC43B 760 22.8 17.0 15.00 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC35C 855 23.0 17.7 15.00 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC43C 875 23.4 18.5 15.00 12.50
Y*(8,L)C*C20 21.0 FC/MC/PC35C 740 22.6 16.6 15.00 12.50
Y*(8,L)C*C20 21.0 FC/MC/PC43C 760 23.0 17.1 15.00 12.50
Y*9C*B12 17.5 FC/MC/PC35B 815 22.8 17.1 14.50 12.00
Y*9C*B12 17.5 FC/MC/PC43B 800 23.2 17.9 15.00 12.50
Y*9C*C16 21.0 FC/MC/PC35C 865 23.2 18.2 15.00 12.50
Y*9C*C16 21.0 FC/MC/PC43C 810 23.4 18.0 15.00 12.50
Y*9C*C20 21.0 FC/MC/PC35C 755 22.6 16.7 15.00 12.50
Y*9C*C20 21.0 FC/MC/PC43C 875 23.4 18.4 15.00 12.50
YHJF30S41S1
T*(8,L)V*A12 14.5 FC/MC/PC37A 980 28.6 21.4 14.50 12.00
T*(8,L)V*B12 17.5 FC/MC/PC43B 990 28.8 21.4 15.00 12.50
T*(8,L)V*C16 21.0 FC/MC/PC43C 990 29.0 21.6 15.00 12.50
T*(8,L)V*C20 21.0 FC/MC/PC43C 1000 29.0 21.6 15.00 12.50
T*(8,L)X*A12 14.5 FC/MC/PC37A 1095 29.4 23.0 15.00 12.50
T*(8,L)X*B12 17.5 FC/MC/PC43B 1105 29.6 23.2 15.00 12.50
For notes, see Page 10.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

561923-YTG-E-0613
8Johnson Controls Unitary Products
YHJF30S41S1
T*(8,L)X*C16 21.0 FC/MC/PC43C 955 29.2 21.6 15.00 12.50
T*9(C,V)*B12 17.5 FC/MC/PC43B 1035 29.0 22.0 14.50 12.00
T*9(C,V)*C16 21.0 FC/MC/PC43C 1030 29.2 22.2 15.00 12.50
T*9(C,V)*C20 21.0 FC/MC/PC43C 995 29.0 21.6 15.00 12.50
T*9X*B12 17.5 FC/MC/PC43B 1095 29.4 23.0 15.00 12.50
T*9X*C16 21.0 FC/MC/PC43C 1055 29.4 22.6 15.00 12.50
Y*(8,L)C*A12 14.5 FC/MC/PC37A 980 28.6 21.4 14.50 12.00
Y*(8,L)C*B12 17.5 FC/MC/PC43B 990 28.8 21.4 15.00 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC43C 990 29.0 21.6 15.00 12.50
Y*(8,L)C*C20 21.0 FC/MC/PC43C 1000 29.0 21.6 15.00 12.50
Y*9C*B12 17.5 FC/MC/PC43B 1035 29.0 22.0 14.50 12.00
Y*9C*C16 21.0 FC/MC/PC43C 1030 29.2 22.2 15.00 12.50
Y*9C*C20 21.0 FC/MC/PC43C 995 29.0 21.6 15.00 12.50
YHJF36S41S4
T*(8,L)V*B12 17.5 FC/MC/PC43B 1275 35.6 26.6 13.25 11.50
T*(8,L)V*C16 21.0 FC/MC/PC43C 1190 35.6 26.2 14.00 12.00
T*(8,L)V*C16 21.0 FC/MC/PC48C 1195 36.0 26.4 14.50 12.00
T*(8,L)V*C16 21.0 FC/PC60C 1185 36.0 26.8 14.50 12.00
T*(8,L)V*C16 21.0 UC48C 1210 36.0 26.6 15.00 12.50
T*(8,L)V*C16 21.0 UC60C 1195 36.0 26.2 15.00 12.50
T*(8,L)V*C20 21.0 FC/MC/PC43C 1190 35.6 26.2 14.00 12.00
T*(8,L)V*C20 21.0 FC/MC/PC48C 1150 36.0 26.4 14.50 12.00
T*(8,L)V*C20 21.0 FC/PC60C 1215 36.0 26.8 14.50 12.00
T*(8,L)V*C20 21.0 UC48C 1155 36.0 26.6 15.00 12.50
T*(8,L)V*C20 21.0 UC60C 1215 36.0 26.2 15.00 12.50
T*9(C,V)*B12 17.5 FC/MC/PC43B 1200 35.2 25.8 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC43C 1240 35.4 26.0 13.75 11.75
T*9(C,V)*C16 21.0 FC/MC/PC48C 1195 35.8 26.4 14.00 12.00
T*9(C,V)*C16 21.0 FC/PC60C 1235 36.0 26.6 14.00 12.00
T*9(C,V)*C16 21.0 UC48C 1195 36.0 26.4 14.50 12.00
T*9(C,V)*C16 21.0 UC60C 1235 36.0 26.0 14.00 12.00
T*9(C,V)*C20 21.0 FC/MC/PC43C 1200 35.6 26.2 14.00 12.00
T*9(C,V)*C20 21.0 FC/MC/PC48C 1330 36.0 27.8 14.00 12.00
T*9(C,V)*C20 21.0 FC/PC60C 1330 36.0 28.0 14.00 12.00
T*9(C,V)*C20 21.0 UC48C 1330 36.0 28.0 14.50 12.00
T*9(C,V)*C20 21.0 UC60C 1330 36.0 27.6 14.50 12.00
T*9(C,V)*D20 24.5 FC/MC/PC48D 1240 35.8 26.4 14.00 12.00
T*9(C,V)*D20 24.5 FC/MC/PC60D 1225 36.0 26.6 14.00 12.00
T*9(C,V)*D20 24.5 UC48D 1240 36.0 26.6 15.00 12.50
T*9(C,V)*D20 24.5 UC60D 1225 36.0 26.2 14.50 12.00
Y*(8,L)C*A12 14.5 FC/MC/PC37A 1150 35.2 25.8 13.50 11.50
Y*(8,L)C*B12 14.5 FC/MC/PC43B 1275 35.6 26.6 13.25 11.50
Y*(8,L)C*C16 21.0 FC/MC/PC43C 1190 35.6 26.2 14.00 12.00
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1195 36.0 26.4 14.50 12.00
Y*(8,L)C*C16 21.0 FC/PC60C 1185 36.0 26.8 14.50 12.00
Y*(8,L)C*C16 21.0 UC48C 1210 36.0 26.6 15.00 12.50
Y*(8,L)C*C16 21.0 UC60C 1195 36.0 26.2 15.00 12.50
Y*(8,L)C*C20 21.0 FC/MC/PC43C 1190 35.6 26.2 14.00 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1150 36.0 26.4 14.50 12.00
Y*(8,L)C*C20 21.0 FC/PC60C 1215 36.0 26.8 14.50 12.00
Y*(8,L)C*C20 21.0 UC48C 1155 36.0 26.6 15.00 12.50
Y*(8,L)C*C20 21.0 UC60C 1215 36.0 26.2 15.00 12.50
For notes, see Page 10.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

561923-YTG-E-0613
Johnson Controls Unitary Products 9
YHJF36S41S4
Y*9C*B12 17.5 FC/MC/PC43B 1200 35.2 25.8 13.50 11.50
Y*9C*C16 21.0 FC/MC/PC43C 1240 35.4 26.0 13.75 11.75
Y*9C*C16 21.0 FC/MC/PC48C 1195 35.8 26.4 14.00 12.00
Y*9C*C16 21.0 FC/PC60C 1235 36.0 26.6 14.00 12.00
Y*9C*C16 21.0 UC48C 1195 36.0 26.4 14.50 12.00
Y*9C*C16 21.0 UC60C 1235 36.0 26.0 14.00 12.00
Y*9C*C20 21.0 FC/MC/PC43C 1200 35.6 26.2 14.00 12.00
Y*9C*C20 21.0 FC/MC/PC48C 1330 36.0 27.8 14.00 12.00
Y*9C*C20 21.0 FC/PC60C 1330 36.0 28.0 14.00 12.00
Y*9C*C20 21.0 UC48C 1330 36.0 28.0 14.50 12.00
Y*9C*C20 21.0 UC60C 1330 36.0 27.6 14.50 12.00
Y*9C*D20 24.5 FC/MC/PC48D 1240 35.8 26.4 14.00 12.00
Y*9C*D20 24.5 FC/MC/PC60D 1225 36.0 26.6 14.00 12.00
Y*9C*D20 24.5 UC48D 1240 36.0 26.6 15.00 12.50
Y*9C*D20 24.5 UC60D 1225 36.0 26.2 14.50 12.00
YHJF42S41S2
T*(8,L)V*C16 21.0 FC/MC/PC48C 1330 39.5 29.2 14.50 12.00
T*(8,L)V*C16 21.0 FC/MC62D 1420 40.5 31.0 14.50 12.00
T*(8,L)V*C16 21.0 FC/PC60C 1420 40.0 30.0 14.50 12.00
T*(8,L)V*C20 21.0 FC/MC/PC48C 1410 40.0 29.8 14.50 12.00
T*(8,L)V*C20 21.0 FC/MC62D 1410 40.5 31.2 15.00 12.50
T*(8,L)V*C20 21.0 FC/PC60C 1340 40.5 30.2 14.50 12.00
T*(8,L)X*C16 21.0 FC/MC/PC48C 1360 40.5 30.2 15.00 12.50
T*(8,L)X*C16 21.0 FC/MC62D 1360 41.0 31.2 15.00 12.50
T*(8,L)X*C16 21.0 FC/PC60C 1360 40.5 30.4 15.00 12.50
T*(8,L)X*C20 21.0 FC/MC/PC48C 1475 41.0 31.0 15.00 12.50
T*(8,L)X*C20 21.0 FC/MC62D 1485 41.0 32.2 15.00 12.50
T*(8,L)X*C20 21.0 FC/PC60C 1485 41.0 31.4 15.00 12.50
T*9(C,V)*C16 21.0 FC/MC/PC48C 1395 40.0 29.8 14.50 12.00
T*9(C,V)*C16 21.0 FC/MC62D 1445 40.0 30.8 14.00 11.50
T*9(C,V)*C16 21.0 FC/PC60C 1445 40.0 29.8 14.00 11.75
T*9(C,V)*C20 21.0 FC/MC/PC48C 1430 40.0 29.6 14.00 11.75
T*9(C,V)*C20 21.0 FC/MC62D 1445 40.5 30.8 14.50 12.00
T*9(C,V)*C20 21.0 FC/PC60C 1445 40.0 30.0 14.00 12.00
T*9(C,V)*D20 24.5 FC/MC/PC48D 1450 40.0 29.8 14.50 12.00
T*9(C,V)*D20 24.5 FC/MC/PC60D 1445 40.0 30.0 14.50 12.00
T*9(C,V)*D20 24.5 FC/MC62D 1455 40.5 31.0 14.50 12.00
T*9X*C16 21.0 FC/MC/PC48C 1425 40.5 29.8 14.50 12.00
T*9X*C16 21.0 FC/MC62D 1460 40.5 31.0 14.50 12.00
T*9X*C16 21.0 FC/PC60C 1460 40.5 30.2 14.50 12.00
T*9X*C20 21.0 FC/MC/PC48C 1420 40.5 30.0 15.00 12.50
T*9X*C20 21.0 FC/MC62D 1460 40.5 31.2 15.00 12.50
T*9X*C20 21.0 FC/PC60C 1460 40.5 30.2 15.00 12.50
T*9X*D20 24.5 FC/MC/PC48D 1435 40.5 30.0 15.00 12.50
T*9X*D20 24.5 FC/MC/PC60D 1515 41.5 31.8 15.00 12.50
T*9X*D20 24.5 FC/MC62D 1425 40.5 31.2 15.00 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1330 39.5 29.2 14.50 12.00
Y*(8,L)C*C16 21.0 FC/MC62D 1420 40.5 31.0 14.50 12.00
Y*(8,L)C*C16 21.0 FC/PC60C 1420 40.0 30.0 14.50 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1410 40.0 29.8 14.50 12.00
Y*(8,L)C*C20 21.0 FC/MC62D 1410 40.5 31.2 15.00 12.50
Y*(8,L)C*C20 21.0 FC/PC60C 1340 40.5 30.2 14.50 12.00
For notes, see Page 10.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2

561923-YTG-E-0613
10 Johnson Controls Unitary Products
PSC furnaces, such as the TG8S, TGLS ,TG9S, use Coil Only Ratings.
YHJF42S41S2
Y*9C*C16 21.0 FC/MC/PC48C 1395 40.0 29.8 14.50 12.00
Y*9C*C16 21.0 FC/MC62D 1445 40.0 30.8 14.00 11.50
Y*9C*C16 21.0 FC/PC60C 1445 40.0 29.8 14.00 11.75
Y*9C*C20 21.0 FC/MC/PC48C 1430 40.0 29.6 14.00 11.75
Y*9C*C20 21.0 FC/MC62D 1445 40.5 30.8 14.50 12.00
Y*9C*C20 21.0 FC/PC60C 1445 40.0 30.0 14.00 12.00
Y*9C*D20 24.5 FC/MC/PC48D 1450 40.0 29.8 14.50 12.00
Y*9C*D20 24.5 FC/MC/PC60D 1445 40.0 30.0 14.50 12.00
Y*9C*D20 24.5 FC/MC62D 1455 40.5 31.0 14.50 12.00
YHJF48S41S1
T*(8,L)V*C16 21.0 FC/MC62D 1635 48.0 36.0 14.50 12.00
T*(8,L)V*C16 21.0 FC64D 1635 48.0 36.2 14.50 12.00
T*(8,L)V*C20 21.0 FC/MC62D 1615 48.0 36.0 14.50 12.00
T*(8,L)V*C20 21.0 FC64D 1615 48.0 36.2 14.50 12.00
T*(8,L)X*C16 21.0 FC/MC62D 1610 48.0 36.2 14.50 12.00
T*(8,L)X*C16 21.0 FC64D 1610 48.0 36.2 15.00 12.50
T*(8,L)X*C20 21.0 FC/MC62D 1665 48.0 36.2 14.50 12.00
T*(8,L)X*C20 21.0 FC64D 1665 48.0 36.2 15.00 12.50
T*9(C,V)*C16 21.0 FC/MC62D 1590 47.5 36.0 14.35 12.00
T*9(C,V)*C16 21.0 FC64D 1590 48.0 36.2 14.50 12.00
T*9(C,V)*C20 21.0 FC/MC62D 1655 47.5 35.8 14.05 12.00
T*9(C,V)*C20 21.0 FC64D 1655 48.0 36.2 14.25 12.00
T*9(C,V)*D20 24.5 FC/MC62D 1630 47.5 35.8 14.25 12.00
T*9(C,V)*D20 24.5 FC64D 1630 48.0 36.2 14.50 12.00
T*9X*C16 21.0 FC/MC62D 1550 48.0 36.0 14.50 12.00
T*9X*C16 21.0 FC64D 1550 48.0 36.2 15.00 12.50
T*9X*C20 21.0 FC/MC62D 1595 48.0 36.2 14.50 12.00
T*9X*C20 21.0 FC64D 1595 48.0 36.2 15.00 12.50
T*9X*D20 24.5 FC/MC62D 1610 48.0 36.0 14.50 12.00
T*9X*D20 24.5 FC64D 1610 48.0 36.2 14.50 12.00
Y*(8,L)C*C16 21.0 FC/MC62D 1635 48.0 36.0 14.50 12.00
Y*(8,L)C*C16 21.0 FC64D 1635 48.0 36.2 14.50 12.00
Y*(8,L)C*C20 21.0 FC/MC62D 1615 48.0 36.0 14.50 12.00
Y*(8,L)C*C20 21.0 FC64D 1615 48.0 36.2 14.50 12.00
Y*9C*C16 21.0 FC/MC62D 1590 47.5 36.0 14.35 12.00
Y*9C*C16 21.0 FC64D 1590 48.0 36.2 14.50 12.00
Y*9C*C20 21.0 FC/MC62D 1655 47.5 35.8 14.05 12.00
Y*9C*C20 21.0 FC64D 1655 48.0 36.2 14.25 12.00
Y*9C*D20 24.5 FC/MC62D 1630 47.5 35.8 14.25 12.00
Y*9C*D20 24.5 FC64D 1630 48.0 36.2 14.50 12.00
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. High Efficiency Motor Furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL1
MODEL
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
14.5 SEER HP WITH HIGH EFFICIENCY MOTOR FURNACES2
