Yosemite Home Decor DF-EFP256 User manual

Electric Fireplace
Instruction Manual
www.YosemiteHomeDecor.com
Electric Fireplace
Instruction Manual
Yosemite Home Décor
1-800-305-9872
www.YosemiteHomeDecor.com
1 | P a g e

2 | P a g e
Quick Reference Guide
I. Prior to installation, please ens re:
1. The rated voltage of yo r fireplace fits the o tp t voltage of yo r o tlet;
2. The light b lbs in yo r fireplace are in good condition. To check this, please follow
the instr ctions for replacing the light b lbs on section MAINTENANCE.
II. The heater on yo r electric fireplace may emit a slight, harmless odor when first sed. This
odor is a normal condition ca sed by the initial heating of internal heater parts and will not
occ r again.
III. If yo r heater does not emit heat, please ens re the Heater Switch is on. For f rther
information, please cons lt section Operation of the Practical User's G ide.
Marks
NOTE
Proced res and techniq es that are considered important eno gh to emphasize.
CAUTION
Proced res, which if not caref lly followed, will res lt in damage to the eq ipment.
WARNING
Proced res, which if not caref lly followed, will expose the ser to the risk of serio s inj ry,
illness or death.

3 | P a g e
IMPORTANT INSTRUCTIONS
WARNING
Yo sho ld read and always follow the important instr ctions below to red ce the risk of
fire, electric shock, and inj ry to persons.
1. Read all instr ctions before sing this fireplace.
2. This fireplace is hot when in se. To avoid b rns, do not let bare skin to ch hot s rfaces,
s ch as s rfaces near the heater o tlet or light b lbs. The grill directly in front of the
fireplace o tlet becomes hot d ring heater operation. If provided, se handles when moving
this fireplace. Keep comb stible materials, s ch as clothes, pillows, f rnit re, bedding,
papers and c rtains at least 3 feet from the front of this appliance.
3. CAUTION: Whenever the fireplace is left operating and nattended, extreme ca tion is
necessary if children or invalids are nearby.
4. Do not install the fireplace directly on carpet or a similar s rface, which may restrict air
circ lation beneath the nit.
5. Always npl g fireplace when not in se.
6. To disconnect fireplace, t rn controls to off then remove pl g from o tlet.
7. Do not se o tdoors.
8. This fireplace is not intended for se in wet locations, s ch as bathrooms, la ndry areas and
similar indoor locations. Never locate fireplace where it may fall into a batht b or other
water container.
9. Do not operate any fireplace with a damaged cord or pl g, or if the fireplace has
malf nctioned, or if the fireplace has been dropped or damaged in any manner. Ret rn
fireplace to a thorized service for examination, adj stment or repair.
10. Do not r n cord nder carpeting. Do not cover cord with throw r gs and r nners. Arrange
cord away from traffic area and where it will not be tripped over. Do not ro te cord nder
f rnit re or appliances
11. Do not insert or allow foreign objects to enter any ventilation or exha st opening as this
may ca se an electric shock or fire, or may damage the fireplace.
12. To prevent a possible fire, do not block fireplace o tlet or any ventilation or exha st in any
manner. Do not se on soft s rfaces, like a bed, where openings may become blocked.
Front view pper view
A
ir outlet
50mmm
250mm
A
ir inlet
175mm
360mm

4 | P a g e
13. All electrical fireplaces have hot and arcing or sparking parts inside. Do not se it in areas
where gasoline, paint, or flammable liq ids are sed or stored or where the nit will be
exposed to flammable vapo rs.
14. Do not modify this fireplace. Use it only as described in this man al. Any other se not
recommended by the man fact rer may ca se fire, electric shock or inj ry to persons.
15. Always pl g fireplaces directly into a wall o tlet/receptacle. Never se with an extension
cord or relocatable power tap (o tlet/power strip).
16. Do not b rn wood or other materials in this fireplace.
17. Do not strike fireplace glass.
18. Always se a certified electrician sho ld new circ its or o tlets be req ired.
19. Always se properly gro nded, f sed and polarized o tlets.
20. Always se gro nd fa lt protection where req ired by electrical code.
21. Always disconnect power before performing any cleaning, maintenance or relocation of the
fireplace.
22. When transporting or storing the fireplace and cord, keep in a dry place and free from
excessive vibration.
23. The fireplace m st not be located immediately below a socket-o tlet.
24. This appliance is not intended for se by persons (incl ding children) with red ced
physical, sensory or mental capabilities, or lack of experience and knowledge, nless they
have been given s pervision or instr ction concerning se of the appliance by a person
responsible for their safety.
25. Children sho ld be s pervised to ens re that they do not play with the appliance.
26. Fireplace is for ho sehold se only.

5 | P a g e

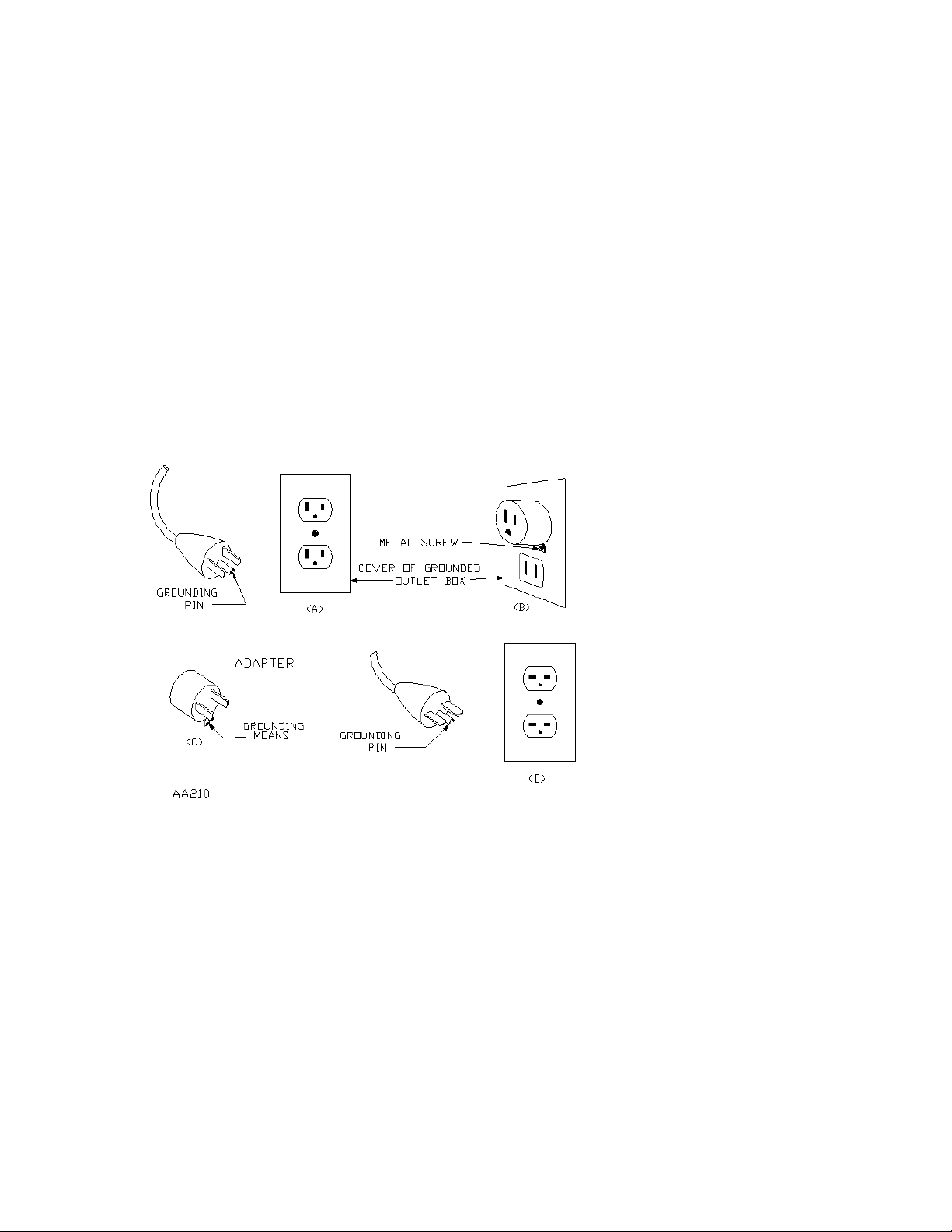

GROUN ING INSTRUCTIONS
This fireplace is for se on 120 volts. The cord has a pl g as shown at A in Fig re. An adapter as
shown at C is available for connecting three-blade gro nding-type pl gs to two-slot receptacles.
The green gro nding l g extending from the adapter m st be connected to a permanent gro nd
s ch as a properly gro nded o tlet box. The adapter sho ld not be sed if a three-slot gro nded
receptacle is available.
Fig re

6 | P a g e
INSTALLATION
This section provides step-by-step instr ctions of yo r fireplace.
WARNING
The o tlet m st be 15A/120V.
CAUTION
Do not remove the fo r r bber feet at the bottom of the fireplace or install the fireplace
directly on soft s rfaces, which may restrict air circ lation. Otherwise, it may ca se a risk of
fire or damage.
1. Select a s itable location which is not s sceptible to moist re, safe, d st free, away from high
traffic and away from things that may catch fire or block openings s ch as drapes, f rnit re, etc.
NOTE
It is a good idea to place yo r fireplace near an existing o tlet; for ease of electrical hook p.
2. Place the Electric fireplace nit in the desired location to see how it will look in the room.
3. If there is no 15A/120V o tlet near the desired location, install a new one.
WARNING
Do not attempt to wire yo own new o tlets or circ its. To red ce the risk of fire, electric
shock or inj ry to persons, always se a licensed electrician.
4. Make s re the fireplace is switched off (refer to operation instr ction section).
5. Pl g the fireplace into a 15A/120V o tlet. Wiring the cord along the corner of wall.
Pl g m st be accessible after installation.

7 | P a g e

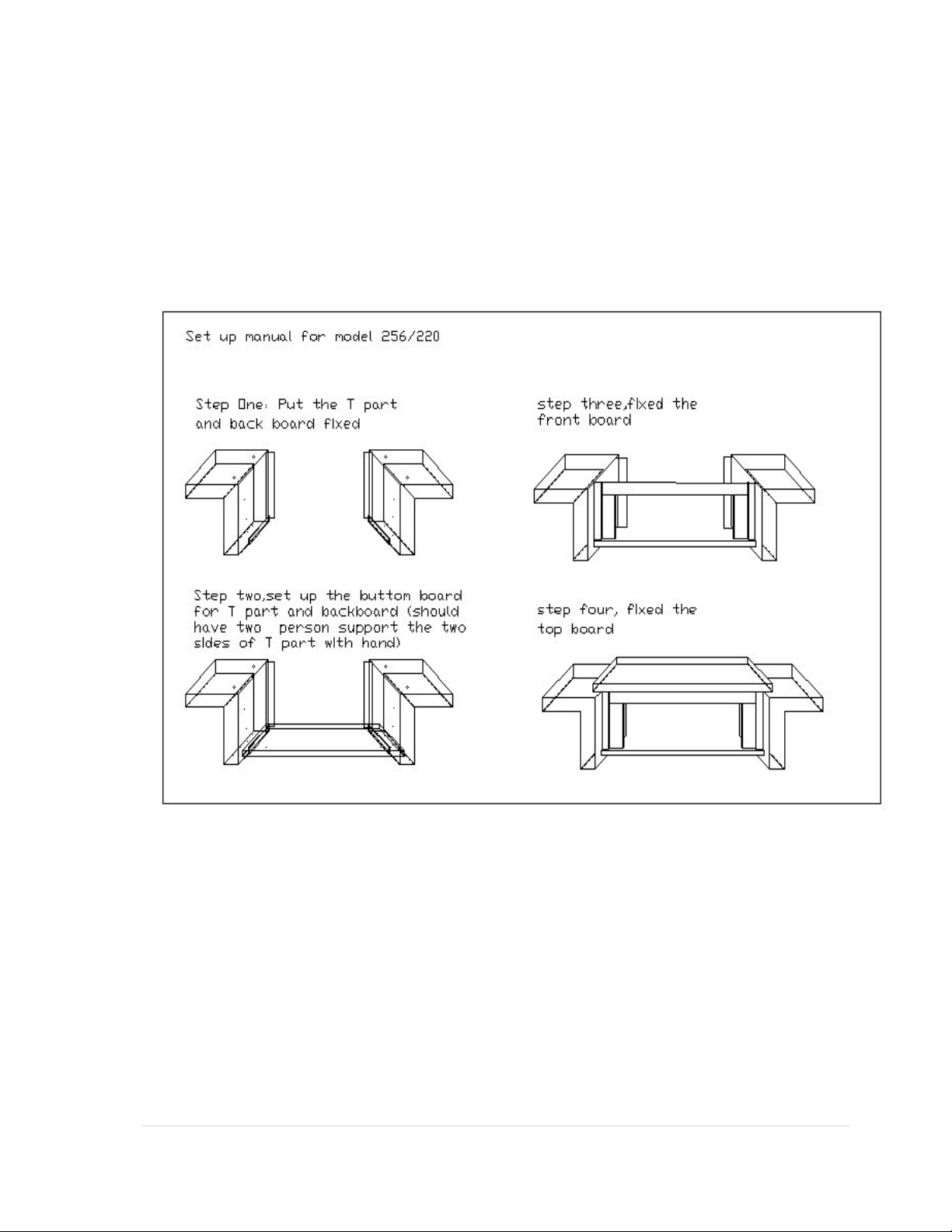

SET-UP INSTRUCTIONS
Most Freestanding fireplace comes completely assembled and wired. Yet, some tools may still be
req ired to prepare the site and assemble some models.
DF-EFP256 & DF-EFP220

OPERATION
This section will explain the f nction of
NOTE
The fireplace
may emit a slight, harmless odor when first sed. This odor is a normal
condition ca sed by initial heating of internal
• Control Panel Operation
A. Buttons and indicators
The
re are fo r b ttons on the remote controller, and fo r on the control panel of the
pair of b ttons with the same label perform the same f nction, the back of it is man al switch near
the power cord:
<ON/OFF> b tton is power switch of the
<DIMMER> b tton is sed to adj st the brightness of sim lated flame and logs;
<LOW> b tton t rns the
fireplace
already working at low
<HIGH> b tton t rns the
already working at high
There are fo r indicators on the control panel:
is the power ind
icator, it light p when the
the fireplace
is t rned off;
indicates the stat s of the sim lated flame and logs.
indicates the
fireplace
indicates the
fireplace
The red window on the control panel of
This section will explain the f nction of
each convenient control.
may emit a slight, harmless odor when first sed. This odor is a normal
condition ca sed by initial heating of internal
heater
parts and will not occ r again.
re are fo r b ttons on the remote controller, and fo r on the control panel of the
pair of b ttons with the same label perform the same f nction, the back of it is man al switch near
<ON/OFF> b tton is power switch of the
fireplace;
<DIMMER> b tton is sed to adj st the brightness of sim lated flame and logs;
fireplace
on and switches it to low-
power stat s.
already working at low
-
power stat s, to p sh this b tton will t rn the
<HIGH> b tton t rns the
fireplace on and switches it to high-
power stat s.
already working at high
-
power stat s, to p sh this b tton will t rn the
There are fo r indicators on the control panel:
icator, it light p when the
fireplace
is working, and t rned o t when
is t rned off;
indicates the stat s of the sim lated flame and logs.
fireplace
is working in low-power stat s;
fireplace
is working in high-power stat s.
The red window on the control panel of
fireplace
is the eye of receiver, do not cover.
8 | P a g e
may emit a slight, harmless odor when first sed. This odor is a normal
parts and will not occ r again.
re are fo r b ttons on the remote controller, and fo r on the control panel of the
fireplace, each
pair of b ttons with the same label perform the same f nction, the back of it is man al switch near
<DIMMER> b tton is sed to adj st the brightness of sim lated flame and logs;
power stat s.
If the fireplace
power stat s, to p sh this b tton will t rn the
fireplace off.
power stat s.
If the fireplace
power stat s, to p sh this b tton will t rn the
fireplace off;
is working, and t rned o t when
is the eye of receiver, do not cover.

9 | P a g e
B. Operation
On the first se of remote controller, install the batteries first: open the battery box by sliding its
cover along the arrow, install two AAA batteries according to the marks in the box, and slide the
cover to its original position. If no batteries installed or the batteries are not working, the
remote controller will be n sable.
To se the remote controller effectively, point it to the electric fireplace and keep a distance of
1-5 meters.
There are fo r b ttons marked the same as b ttons on the remote controller, each pair of them
perform the same f nction, choose as yo favor.
1. On/Off Switch . Press on/off switch to t rn fire on. The indicator lamp will brighten
p in the control panel. Press the <ON/OFF> b tton again; the fireplace will be
powered off.
2. Flame Effect immer . Adj st the brightness of sim lated flame and logs. When the
fireplace is powered on, flame is t rned on a tomatically. Press <DIMMER> b tton to
adj st the brightness, the lamp will be flashing. D ring the dimming cycle the fire
will slowly dime then brighten allowing ser to choose s itable level. Press a second
time to stop cycle when the desired brightness level is obtained.
3. Fireplace Low Heat (750 W). Press <LOW> b tton once to switch the fireplace to low-
power stat s. The indicator lamp will brighten p. Press again the <LOW> b tton to
t rn it off.
4. Fireplace High Heat (1500 W). Press <HIGH> b tton once to switch the fireplace to
high-power stat s. The indicator lamp will brighten p. Press again the <HIGH>
b tton will t rn it off.
NOTE
Before the fireplace emits heat or after it stops prod cing heat, the hot air o tlet may o tp t
air for 10 seconds. This is designed to protect the circ it.
6. Switch off the fireplace when yo leave it for a long time.
7. Remove the two alkaline batteries from the appliance before it is scrapped.
8. The alkaline batteries need to be disposed of safely.
9. Roll p the power cord in the s pports when the fireplace is not in se. If yo select to
store yo r fireplace f lly assembled, be s re to cover it, to protect it from acc m lating d st.
10. Temperat re Limiting control will a tomatically t rn the nit off if it reaches a certain
temperat re. Unpl g the nit. When the temperat re falls, the thermostat will be
restored. Connect the pl g to power and fireplace will work.

10 | P a g e
MAINTENANCE
WARNING
Disconnect power before attempting any maintenance or cleaning to red ce the risk of fire,
electric shock to persons or damage.
Light Bulb Replacement
Light b lbs need to be replaced when yo notice a dark section of the flame or when the clarity and
detail of the log exterior disappears.
WARNING
Allow at least 5 min tes for light b lbs to cool off before to ching b lbs to avoid b rning of
skin. Except the light b lb replacement, any other servicing sho ld be performed by an
a thorized service representative.
I. B lb Req irements
Q antity of 2 or 3 Incandescent candelabra b lbs with an E-12 small socket base, rating
voltage 120 volts, rating power 40 watts.
CAUTION
Do not exceed 40 watts per b lb
II. Operation
1. Open the light b lb area:
The light b lb area is on the back of electric fireplace, see “E”. There are 6 screws on it.
Loosen the screw by some tool, and then yo can open it. (Right fig re)
2. Examine the b lbs to determine which b lbs req ire replacement.
3. Remove old b lb and replace a new one. Hold the socket while nscrewing or screwing
b lbs. (Right fig re)
4. Replace the cover of light b lbs.
5. Done.

11 | P a g e
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
