Yosemite Home Decor DF-EFP700 Technical specifications

Electric Fireplace
CARE & USE GUIDE
www.YosemiteHomeDecor.com
Electric Fireplace
CARE & USE GUIDE
Yosemite Home Décor
1-800-305-9872
www.YosemiteHomeDecor.com

2 | P a e
____________________________TABLE OF CONTENTS_______________________________
Pa e
LIGHT BULB REPLACEMENT ………………………………………………………………………………………………... 3
LIGHT BULB REPLACEMENT (DF-EFP1000) …………………………………………………………………... 5
LIGHT BULB REPLACEMENT (Freestandin ) …………………………………………………………………... 8
ROD REPLACEMENT …………………………………………………………………...…………………………………………… 9
MOTOR REPLACEMENT ………………………………………………………………………………………………...……… 11
BLOWER REPLACEMENT ………………………………………………………………………………………………...…… 14
PRINTED CIRCUIT BOARD REPLACEMENT …………………………………………………………………… 16
DF-EFP700 SPEAKER/USB PORT REPLACEMENT ………………………………………………………… 18
ELECTRIC FIREPLACE TROUBLESHOOTING GUIDE ………………………………………………… 19

3 | P a e
LIGHT BULB REPLACEMENT_____________________________________________________
Yosemite Home Décor’s Electric fireplaces use Incandescent candelabra bulbs, ratin volta e 120
volts, 40 Watt, E-12 small socket base li ht bulbs.
Changing Light Bulbs
Disconnect ower su ly before beginning any maintenance.
1. Li ht bulbs need to be replaced when you notice a dark section of the flame or when
clarity and detail of the coal effect disappears.
2. Unscrew the lockin nut on the side of the brackets and then remove the face. This is
done by liftin the face up and swin in the face clear of the fire. Care should be taken
not to dama e the face. Removal of the face may require two people.
3. On the base of the fire there are screws on both sides. These need to be removed to allow
the cover to slide down.

4 | P a e
4. Turn sprin to loosen li ht bulb
5. Unscrew li ht bulb from socket
6. Replace with new li ht bulb
7. Place sprin over new li ht bulb
8. Re-attach cover with screws
The replacement of the li ht bulb is complete.
WARNING
•Allow at least five minutes for the li ht bulbs to cool before touchin the bulbs to avoid
burnin . Make sure power supply is disconnected.
•Examine the bulbs to determine which one needs replacin . Remove the non workin
bulb and replace with a new lon life bulb. Hold the socket while unscrewin the old
bulb and while screwin in the replacement bulb.
•The 40 watt Incandescent candelabra bulbs are available at most hardware or Do it Your
Self or Li htin stores.
•Once the bulb has been replaced, replace the cover, screws and face.

5 | P a e
LIGHT BULB REPLACEMENT for DF-EFP1000__________________________________
1. Unscrew top cover from firebox. (Screws must be taken off from side and back of
firebox).
(view of the side of the firebox)
(view from the back of the firebox)
2. Locate screws that hold brown plastic back round in place, unscrew and remove
backin .

6 | P a e
3. Remove the black trimmin from the inside of the firebox.
4. Remove screws and then slide out the lowin embers
5. With the embers taken out it is possible to chan e the li ht bulb by twistin the sprin
and unscrewin the li ht bulb however, the followin two instructions will help for
easier access.
(view from the top of the firebox down throu h
the unit)

7 | P a e
6. On the bottom of the firebox locate and remove the two screws that hold the li ht bulb
bracket in place.
7. The li ht bulb bracket will be loose and have some play. With this looseness it will
provide much easier access to chan e the li ht bulb.
8. Once new li ht bulb has been screwed into socket, reattach the bracket to the firebox.
9. Replace the embers by screwin the piece back into place.
10. Place brown plastic backin back into correct position and screw in fasteners to secure.
11. Secure black trimmin s back into place.
12. Reattach cover by ti htenin fasteners. The li ht bulb replacement process is complete.

8 | P a e
LIGHT BULB REPLACEMENT_____________________________________________________
1. Open the li ht bulb area:
The li ht bulb area is at the back of electric fireplace, see “E”. There are 6 screws on it.
Loosen the screw and then you can open it.
2. Examine the bulbs to determine which bulbs require replacement.
3. Remove the old bulb and replace a new one. Hold the socket while unscrewin or
screwin bulbs.
4. Re-place the access cover of the unit.
Bulb Requirement:
Li ht bulbs are 40 watts, 120 volts Candelabra with an E-12 small socket base.
There are quantity 2 or 3 bulbs required depends on the Electric fireplace you purchased.
Warning:
•Disconnect power before attemptin any maintenance or cleanin to reduce the risk of
fire, dama e or electric shock to persons.
•Allow at least 5 minutes for li ht bulbs to cool off before touchin bulbs to avoid burnin
of skin.

9 | P a e
ROD REPLACEMENT______________________________________________________________
Disconnect ower su ly before beginning any maintenance.
Place the Front glass in safe osition.
1. Unscrew top cover from firebox.
2. Unscrew side screws that will allow for lass to slide off.
3. Locate screws that hold brown plastic back round in place, unscrew and remove
backin .

10 | P a e
4. Remove the black trimmin from the inside of the firebox.
5. Remove screws and then slide out the lowin embers.
6. The rod is secured by a pin alon with a bracket on either side of the firebox. Loosen the
bracket that doesn’t contain the motor by unscrewin the fasteners
7. Detach the pin from the unit.
8. Remove rod.
9. With new rod measure to the correct dimension, cut and place where ori inal rod was
located.
10. Place brown plastic backin back into correct position and screw in fasteners to secure.
11. Secure black trimmin s back into place.
12. Slide lass back into place.
13. Ti hten fasteners and cover back into position. The rod replacement process is complete.

11 | P a e
MOTOR REPLACEMENT__________________________________________________________
1. Unscrew top cover from firebox.
2. Unscrew side screws that will allow for lass to slide off.
3. Locate screws that hold brown plastic back round in place, unscrew and remove
backin .

12 | P a e
4. Remove the black trimmin s from the inside border of the firebox.
5. Remove screws and then slide out the lowin embers.
6. The rod is secured by a bracket on either side of the firebox. Loosen the bracket and
remove the rod.

13 | P a e
7. With rod removed loosen the bracket which holds the motor into place.
8. The motor has a wire attached to the motherboard.
9. Undo the plastic ties which hold the wires in place. Remove the motor wire which is
attached to the motherboard.
10. Place new motor into correct position and attach the wire to the motherboard.
11. Once motor is in correct position reattach motor to bracket
12. Reattach the bracket to the side of the firebox.
13. Reattach rod to bracket
14. Reattach bracket to the firebox.
15. Place brown plastic backin back into correct position and screw in fasteners to secure.
16. Secure black trimmin s on the inside of the firebox.
17. Slide lass back into place.
18. Ti hten fasteners and cover back into position. The motor replacement process is
complete.

14 | P a e

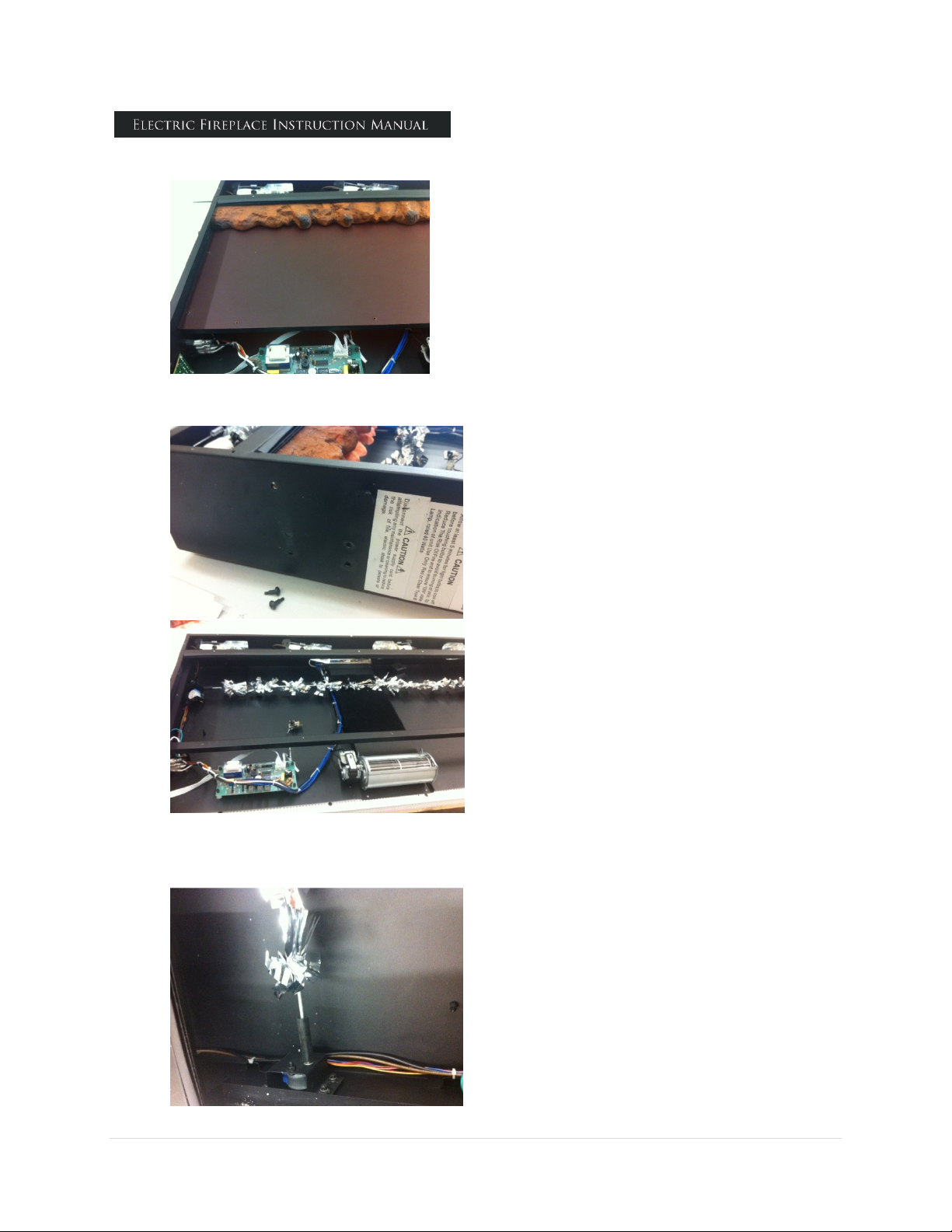

BLOWER REPLACEMENT_________________________________________________________
1. Remove front covers off the top and bottom of the firebox.
(Side view of cover being taken off)
(View from the top of the firebox with cover taken off)
2. Remove fasteners that secure blower.

15 | P a e
3. Follow the wires from the fan down to the heater. In many of our fireplaces they connect
below the li ht bulb. If this is the case, turn the sprin that holds the li ht bulb into
place, and then unscrew the li ht bulb.
4. Unscrew the socket bracket that holds the li ht bulb in place.
5. Remove the fan wires that are connected to the heater. Replace with new fan and wires.
Run wires and fan to the location of where the fan was ori inally positioned.
6. Put socket bracket for li ht bulb back on.
7. Place li ht bulb back in socket. Close bottom cover of the firebox.
8. Once the new fan is in its proper position, screw the fasteners into their correct location
and fan will be securely stationed.
9. Replace screws to the top cover of the firebox and blower replacement is complete.

16 | P a e
PRINTED CIRCUIT BOARD (motherboard) REPLACEMENT_________________
1. Remove screws from the top of the firebox and the upper part of the backside of the
firebox.
(view from the top of the firebox)
2. Once motherboard is visible you will notice nuts securin the motherboard and with
plu s attached to the existin motherboard.
3. Remove the nuts from the existin motherboard (unit will be loose and only attached by
the plu s)
(top right corner of firebox with cover removed)
4. The plu s will have some play and will be easily transferred over to the new
motherboard. Cuttin the ties that hold the plu s to ether is not necessary.

17 | P a e
5. Line up the new motherboard with the existin motherboard, detach the plu s and place
plu s into correct location on new motherboard until all plu s are in their correct
position.
6. Once the new motherboard is attached, screw the nuts into their correct location and
motherboard will be securely stationed.
7. Replace screws to the cover of the firebox and motherboard replacement is complete.

18 | P a e
SPEAKER/USB PORT on DF-EFP700 REPLACEMENT_________________________
5. Unlatch the cover faceplate from the firebox.
6. Loosen screws that attach the speakers from the firebox.
7. Untie the ties from the faceplate.
8. Unplu wires at the connectin point.
9. Place new speakers into correct location and plu in wires at connectin point.
10. Retie ties to the faceplate.
11. Attach speakers back to firebox with by ti htenin appropriate screws.
12. Reattach faceplate

19 | P a e
ELECTRIC FIREPLACE TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Problem: No Power
•Check unit is plugged into a standard 20V outlet.
•Check that Main Power Switch is in “ON” position.
Problem: There is a dark s ot at the base of the fire lace.
•Check the bulb most likely a bulb needs to be replaced. The Electric
fireplaces take 40 watt candelabra base bulbs and can hold anywhere from
2-6 bulbs in the fireplace.
Problem: Fire lace doesn’t turn on when turned on by remote or switch; you
can hear a click but no image.
•Check the bulbs. It is rare that all of the bulbs will burn out at the same
time, replacing the bulbs should fix the problem, but if all of the bulbs burn
out at the same time again it is possible the fireplace may need a new
control board. The fireplaces take 40 watt candelabra base bulbs and can
hold anywhere from 2-6 bulbs in the fireplace.
Problem: Fire lace makes a grinding/rattling noise when running
•The Rod that spins the flame may need to be greased.
Problem: When the fire lace is turned off by remote and the image freezes.
• The control board needs to be replaced

20 | P a e
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fireplace does not turn on Power cord was not
plu ed properly.
1. Check that unit is plu ed into a
standard 120V outlet.
2. Check that Main Power switch is in
“ON” position.
Flame ima es freezes Spinner motor does
not work.
1. Open the access panel and check if the
spinner motor is runnin properly.
2. If problem persists, unplu unit and
contact YHD customer service
Flame not bri ht or not
visible Burned out li ht bulbs Replace li ht bulbs
Lo set dim or not lowin Burned out li ht bulbs Replace li ht bulbs
Heater is not turnin ON Improper operation
1. Refer to instruction manual
2. If problem persists, unplu unit and
contact YHD customer service.
Heater emits an odor Normal operation
This odor is normal condition caused by
the initial heatin of internal parts and
will not occur a ain.
Heater does not blow warm
air
Heater or blower does
not work properly.
Try turnin On/Off button in the control
panel several times to make sure it is at
ON position and the indicator li ht
should li ht up at the same time.
Fireplace makes a
rindin /rattlin noise Loose rod The rod that spins the flame may need to be reased.
