Youin MA1018 User manual

Portable Electric
Air Compressor
Compact.
Useful.
MA1018
Compresor de aire eléctrico portátil
Compresseur d’air électrique portable
Compressore d’aria elettrico portatile
Compressor de ar elétrico portátil

2
Thanks for choosing our product.
Have fun.
YOUmove
YOUup
YOUdown
YOUfold
YOUtravel
YOUrule

3
ENGLISH
Notice
This product was developed for emergency pumping
of high-pressure tyres for racing bicycles. It is
also suitable for inflating ordinary bicycles, cars,
motorcycle wheels and balls, among others.
For your safety and the safety of others, use the
pump and its accessories in accordance with the
instructions provided by the manufacturer.
Using methods that are not mentioned in this manual
may cause danger.

4
Instructions for use
1. The first normal charging time is 4 hours.
2. Press the power button until the LCD display
starts to show. Short press the setting key
to switch between PSI, BAR, KAP, KG/CM² air
pressure units. When the air pressure value
stops flashing, you can start inflation by short
pressing the power button.
3. The dierent inflation modes are selected
using the setting key; they are programmed
with standard parameters for optimal use:
4. Define and set the air pressure value yourself.
You can short or long press ‘+’ or ‘–’ to adjust
the preset pressure value more precisely and/
or quickly.
5. Press the power button to start inflation.
When the inflation pressure reaches the set
value, the compressor will stop the process
automatically.
- Default Motorcycle Mode: 28 PSI
- Default Bicycle Mode: 120 PSI
- Default Car Mode: 36 PSI
- Default Ball Mode: 8 PSI

5
ENGLISH
6. When the air pump starts to detect no air
pressure, it will automatically stop running for
about 40 to 50 seconds.
7. When inflation is complete, unscrew the air
tube from the inlet port of the object. There
will be a small air leak when removing the
connector, which is normal.
8. If the tyre pressure is deemed to be too high,
you can use the tyre inflation connector to
screw it into position on the valve core to
deflate and reduce the pressure.
9. When you have finished using it, unscrew the
tyre inflation connector from the main motor.
Store the compressor in its original packaging
in a dry, ventilated and safe place.

6
Buttons and their
functions
Short press the setting key to change the
pressure unit PSI, BAR, KPA, KG/CM², long press
the setting key to change the default values for
car, bicycle, motorcycle and/or ball mode.
Long press for three seconds to turn on and
slightly to start the inflation motor.
Long press to turn on the light. Short press for
slow flashing, while short pressing again will
enable fast flashing.
Air pressure setting. Long press to increase
quickly.
Air pressure setting. Long press to reduce
quickly.
C-type charging port.

7
ENGLISH
Technical parameters
• Measuring range: 3~150 PSI
• Temperature range: –10 to 80ºC
• Operating voltage: 7.4 V
• Input voltage: 5 V/1~2 A
• Maximum current: ≤5 A
• C-type charging, charging time ~ 4 hours
• Unit selection: Press to change unit, PSI, BAR,
KPA, KG/CM²
• Three sets of air pressure modes are preset:
basketball 8 PSI, motorcycle 28 PSI, car 35 PSI
• Control accuracy: ±1.5 PSI
• Work light + SOS police light
• When the preset air pressure is complete, it
automatically stops
• With current operating temperature display
value

8

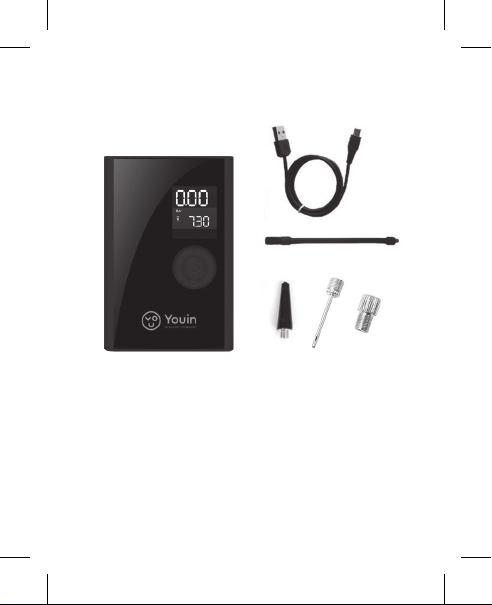

Package content
1. Air compressor
2. Inflatable tube
3. Inflatable accessory connector
- Inflatable conical nozzle
- Ball pump needle
- DV/SV valve adapter
4. USB charging cable
1. 4.
2.
3.

9
ENGLISH
• It is forbidden for children to use the inflator;
always keep it out of their reach.
• It is forbidden to use this gas cylinder near
flammable and explosive liquids and gases!
• People must not walk away during the inflation
process, and the machine should stand still for
10 minutes after continuous use.
• When there is abnormal noise or the
temperature is too high during inflation, please
turn o the machine immediately and let it
cool down for at least 15 minutes. Be careful
when removing the connector from the inlet
port.
• The product is resistant to rain, water and
impact.
• If the compressor should be stored in a dry and
closed place. If it is stored for a long period
of time, it is recommended to charge it for 4
hours once every three months.
• During the charging process, the battery
display and the bar will flash; once the
charging is complete these elements will
remain set.
Preventive tips
