Youshiko YC9360 User manual

~ 1 ~
Youshiko YC9360 Weather Station User Manual
Please read the operating instructions carefully to familiarize
yourself with the features and modes of operation before using the
instrument.Keep the manual for future reference and pass it on with
the device, if you pass on the device to other users.
General safety
This unit can be used by children of 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they are supervised or have been
instructed concerning the safe use of the device and understand the
resulting risks. Do not let children play with the device. Cleaning and
user maintenance must not be carried out by children without
supervision.

~ 2 ~
Battery instructions
Never recharge normal batteries! Risk of explosion!
Keep batteries away from children, do not throw into fire, short-
circuit or disassemble them.
Always insert batteries according to the polarity regulations.
Clean the battery and device contacts before inserting, if
necessary.
Remove exhausted batteries immediately from the device!
Increased risk of leakage!
Remove the batteries from the device, if you intent on not using
them for a while.
Never subject batteries to extreme conditions such as on radiators,
direct sunlight! Increased risk of leakage
Avoid contact of the battery fluid with skin, eyes and mucous
membranes. In case of contact, rinse the affected area instantly
with clean water and consult a doctor immediately.
Always replace all batteries at the same time.
Only use batteries of the same type, do not use different types or
new and used batteries together.
Disposal
Packaging:
The product packaging is made of recyclable materials. Dispose of it
in an environmentally friendly manner.

~ 3 ~
Products and batteries:
Products and batteries should not be disposed of with normal
household waste.
According to Directive 2012/19/EU, the device is to be supplied
at the end of its useful life to a proper disposal. The valuable
materials contained in the device are supplied to recycling and
avoid the burden of the environment. Enter the old device to a
collection point for electronic waste or a recycling center.
Remove the batteries from the unit before disposing of it and dispose
of them separately. Every
Consumer is legally obliged to dispose of used batteries at a
collection point for used batteries,
at a local recycling center or in the battery point of sale. For further
information, contact your
local waste disposal company or local government.
Technical Details
Six keys: MODE, +, - , HISTORY, CHANNEL, SNOOZE/ LIGHT.
Radio controlled clock ( MSF , UK Version )
Automatic receiving of time signal MSF to display exactest time
Automatically switches to/from daylight saving time
(summer/winter time)
Time display in 12/24 format
Continuous perpetual calendar up to 2099
Display of Date, Month and Day of week
Day of week display in English
Calendar week display
2 alarms with snooze function ( 1x for week days / Mon - Fri; 1 x
for week end / Sat – Sun )

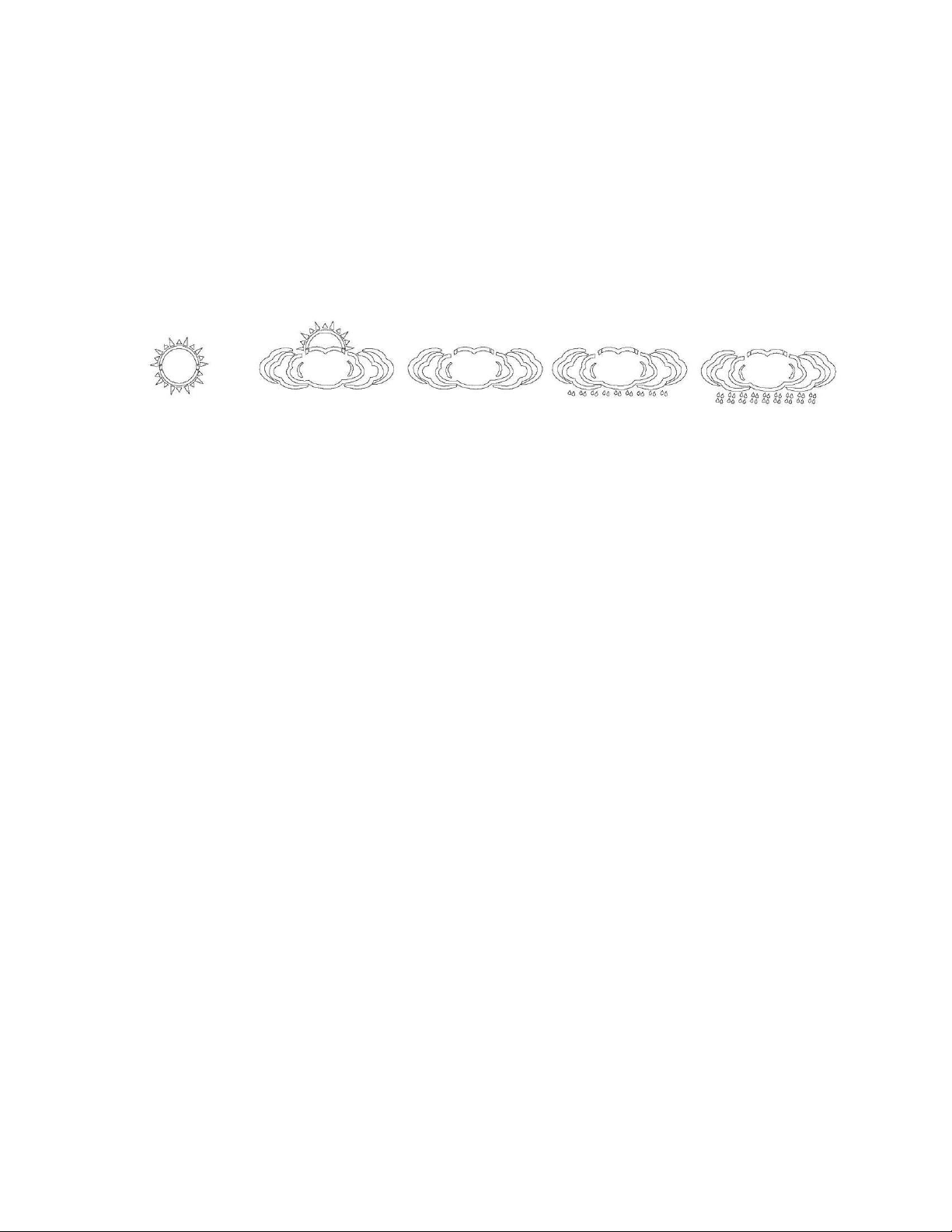

5 weather forecast: sunny, partly sunny, cloudy, rainy, stormy
(Weather icons can be selected manually for the start setting).
Barometer and bar and data of 12 hours history for air pressure

~ 4 ~
Altitude-setting for calculation of relative air pressure
Indoor /outdoor temperature and humidity with trend
Max / Min of temperature and humidity
Temperature display in °C or °F
Temperature alert

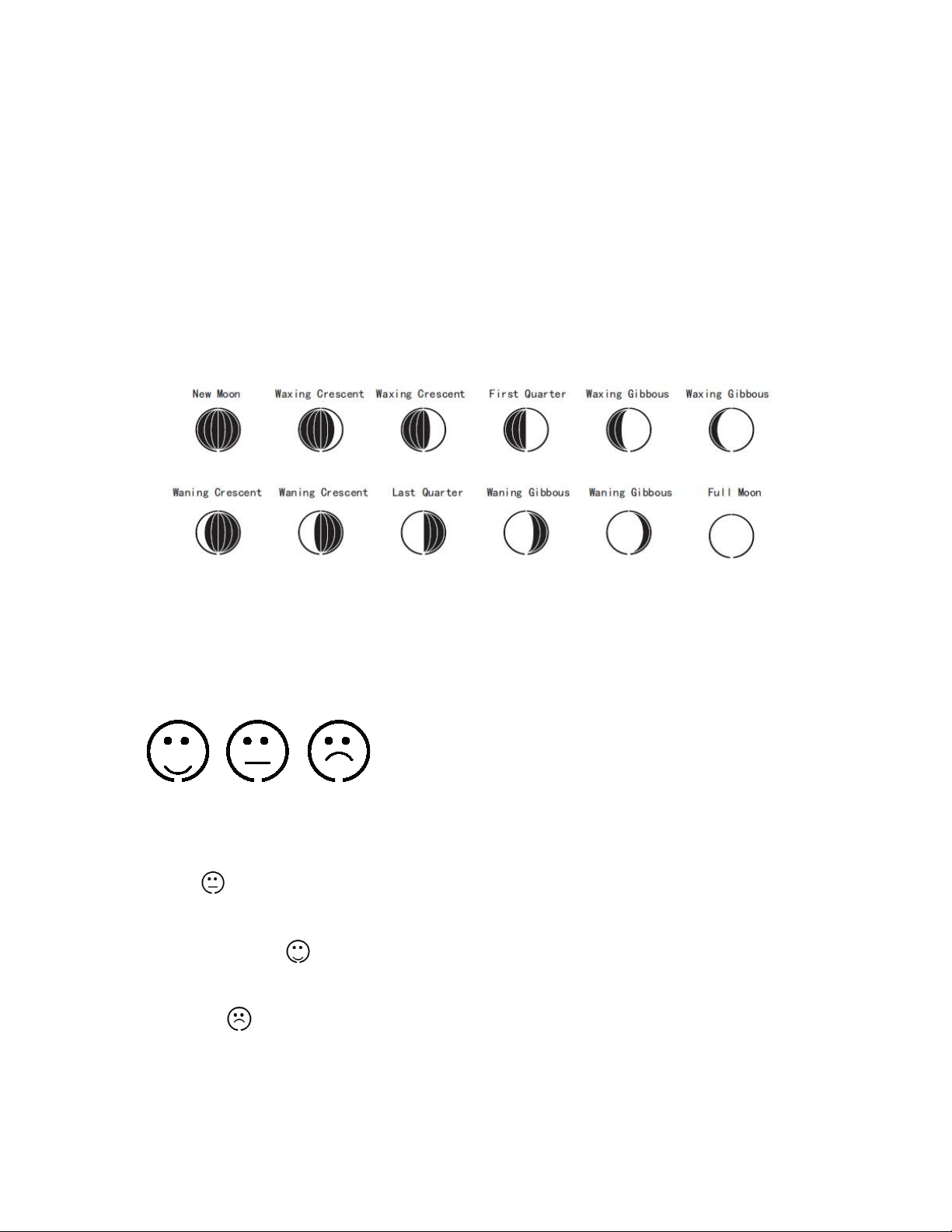

Moon phase
Sun rise and sun set / moon rise and moon set for over 100 cities.
Frost indicator (displayed below +3°C indoor temperature)
Low battery indicator
Blue background light LED
Power:
( 2 x AA batteries / LR06/AA/Mignon, 1,5 V )
Thermometer measuring range inside: 0°C to 50 °C
Thermometer measuring range outside: -20°C to ~60 °C
Outdoor Humidity Range: 20%-95%
Indoor Humidity Range: 20%-95%
Temperature Tolerance: +/- 1 C in 0~40C
Humidity Tolerance: +/- 5 % in 30~80%
Outdoor sensor:
Frequency: 433 MHz
Power: :
3 V , 10 mA (2 x AAA Batteries /
LR03/AAA/Micro, 1,5 V)
Transmission range: up to 50m in open area

~ 5 ~

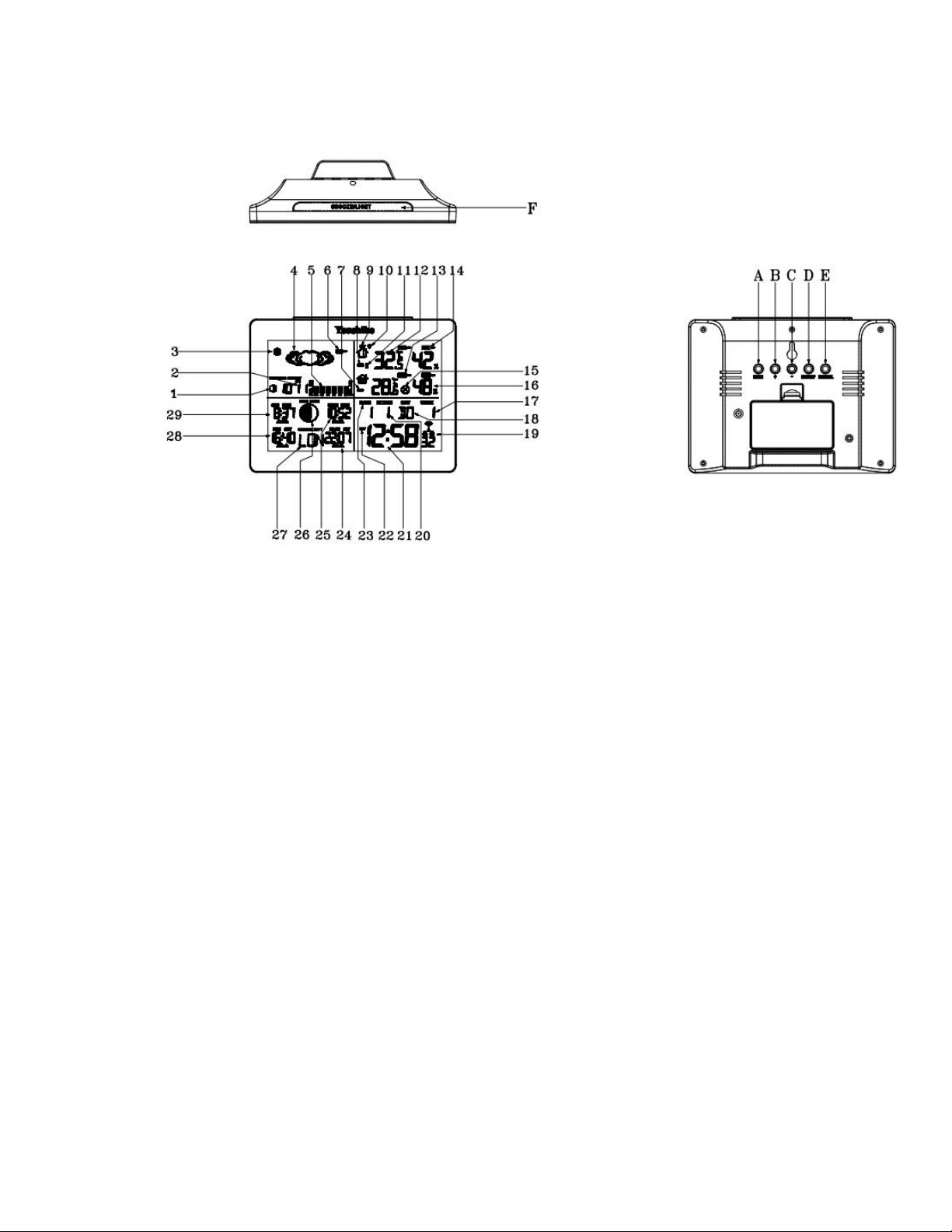

Structure: weather station

~ 6 ~
1. History of air pressure (selectable by pressing the "HISTORY",
displayed between 0 to -12 hours)
2. Air pressure
3. Frost indicator (displayed below +3°C indoor temperature)
4. Weather Forecast symbol
5. Bar graph for air pressure (Display updated continuously from
right to left)
6. Air pressure trend
7. Low battery indicator indoor
8. Low battery indicator outdoor
9. Outdoor sensor channel
10.RF symbol
11.Temperature alert symbol
12.Outdoor temperature and outdoor temperature trend
13. Indoor temperature and indoor temperature trend
14. Outdoor humidity and outdoor humidity trend
15. Comfort indicator
16. indoor humidity and indoor humidity trend
17. Calendar week
18. Day of week
19. Alarm symbol
20. Month
21. Time
22. Day light savings time indicator (DST)
23. Date
24. Moonset time
25. Moonrise time
26. Moon phase
27. City abbreviation
28. Sunset time
29. Sunrise time
A "MODE" button
Press the button for 3 seconds to enter the manual setting, to
advance and to select the following settings: date (year, month,
day), 12/24h display, time setting (hour, minute) city setting

~ 7 ~
change to the alarm setting for Alarm 1 (A1) or Alarm 2 (A2)
Press the button for about 2 seconds to enter the alarm setting
while alarm 1 (A1) or alarm (A2) is displayed
To stop the alarm
B "+" button
Increase, change the values in manual setting mode, the height
setting mode, weather icon selection
Switch between display the current, minimum, maximum indoor,
outdoor temperature and indoor, outdoor humidity
Press the button for about 3 seconds to reset the MIN / MAX
values
To stop the alarm
C "-" button
reduction, of values in the manual setting mode, the height setting
mode, weather icon selection
Switching between temperature display in ° C or ° F
Press the button for 3 seconds to enter the temperature alert
setting mode
To stop the alarm
D "HISTORY" button
Press the button for 3 seconds to enter the altitude setting mode,
to advance and to select the following settings: height adjustment,
weather forecast icon, choose between air pressure unit hPa or
inHg
To stop the alarm
E "CHANNEL" button
Press the button for about 3 seconds to search for an external
transmitter on channel 1,2 or 3
change of external temperature channels and continuous
switching display of the outside temperature channels
To stop the alarm

~ 8 ~
F "SNOOZE / LIGHT" button
Press to activate the snooze function while wake up alarm rings
activation of the backlight
Structure: outdoor sensor
1. RF radiation
2. selected channel
3. temperature
4. humidity
A. channel choose switch
B. temperature unit selection
Please note: If you wish to add more than one sensors to weather station , then change
and choose , your choice of channel 2 or 3 from A button ( shown above ) on the
sensor no: 2 or 3 .

~ 9 ~
Mounting options
The weather station is intended to be located on flat surfaces, such
as on tables or in cabinets. Through the loop on the rear of the
transmitter, the transmitter is suitable for mounting on walls.
Please mount the sensor outside in a sheltered place to avoid
direct heavy rain and direct sunshine for best results & readings.
Operating conditions
Set the weather station on in a dry interior and away from sources of
interference, such as televisions or metal plates. The transmitter
should be mounted protected from rain and direct sunlight.
Before putting in the batteries:
First of all, find your location altitude, this will be needed as you
set up this weather station’s barometer correctly, the easiest
way to get this is to put your postcode into the following site:
https://www.daftlogic.com/sandbox-google-maps-find-
altitude.htm
and / or search on Google for "daftlogic altitude" or any
other site on where you feel fit to find the correct altitude for
location, Make a note of your altitude in to round up or down to
the nearest 10 meters. Now using the table in the back of this
instruction book, find your nearest city and make a note of the 3
digit code to enter later. And after this follow the next Initial
operation setup.

~ 10 ~
Initial Operation Set Up:
Open the battery compartment located on the rear side of the
outdoor sensor and weather station. Place the batteries in the
battery compartment of sensor first, then in weather station, please
pay attention to the polarity;
As soon as weather station main display unit have power, The
altitude flashes ( for 20 seconds ) with in these 20 seconds ,
please use “+“, “-“ buttons to set the altitude of your position (in
meters).
Using “+“, “-“ button and go to 0 ( Zero ) first and then by
pressing “+“, “-“ button , choose. Your location altitude,
then press “HISTORY”, button.
After pressing history button , weather symbol flashes, press the
"+", "-" button to select the weather symbol that fits the current
weather , then press “HISTORY”, button , after that hPa flashes,
then please use “+“,“-“ button to select between the air pressure
units hPa and inHG and then press “HISTORY”.
Now leave the weather station and don’t do any thing.
(Please note: If cannot enter altitude within 20 seconds, No
worries, then remove batteries and then start again fresh) .
Weather station now will start connecting to the outdoor sensor.
This process takes about 3 minutes. Then the display shows the
outdoor temperature and humidity, in case of failure of reception

~ 11 ~
please press and hold “CHANNEL“ button for more than 3
seconds to restart the search process again.
Then the automatic reception of the MSF radio signal starts after 3
minutes of outdoor reception.
While the RCC reception process is going on, the flashing symbol
“radio tower “appears in the time display area, ( Weather station
may require for 5 to 20 minutes for it to pick up the radio control
signal, it may fail, if it is near a computer or TV or WiFi hub or
moblie phones or similar electrical equipment etc , due to
interference, so keep it away from those sorts of things. Also
please note in some areas, it can take longer , from few
mintues to few hours or max by 1am to 5 am
Once radio signal reception was successful, the display shows a
static “radio tower“ symbol with correct time and date. After this
only thing you would need to change is correct display of your
nearest city and for this Hold Mode button for 3 seconds, then you
will see year flashing, after this keep pressing the Mode button
until the country/city is flashing, now cycle through this with the
plus or minus key until you find your required, the city code , This
will or can take a good few clicks. Once you see your required
city code then press mode button one more time, after this you all
set. This will setup the sunset and sunrise times, these are
approximate based on the nearest city, the moon rise/set times will
also be set. The rise/set times may take several minutes before
they update, and it isn't unusual to see the moon rise or set time
as ----- ---- ----- ---- , this just means it will show with next few
mintues to next 24H.
If, due to bad reception, or no RCC automatic time reception is
possible, follow the steps below for manual time setting, as described
in the section "Manual Settings".

~ 12 ~
MSF Reception of radio controlled Information:
Automatic time change for Spring & Autumn and automatic
time checks, accurate to 1 second in 10 million years, have
automatic set up for time and calendar (where applicable),
The National Physical Laboratory (NPL) which is the UK's
home of measurement and the nation's timekeeping. NPL is
responsible for operating the national time system and
making accurate time available across the UK. This clock
keep accurate time by picking up the NPL's radio signal,
called MSF, which is transmitted on 60KHz from Cumbria.
This transmission carries a date and time code that the radio
controlled products use to set themselves to the correct time
and date. The signal is controlled by atomic clocks at the
radio station and are adjusted to keep in step with the
national time maintained at NPL laboratory in London.
Reception of radio controlled signal Information:
MSF radio signal search starts automatically about 3 minutes after
battery exchange. The “radio tower” signal is flashing.
Press“+“ and “-“ together for more than 3 seconds to enter or quit
the radio controlled signal reception
The clock synchronizes with the MSF radio signal automatically
and daily from AM 1:00 am to 3:00 am to correct time deviations
each hour. If the synchronization is unsuccessful (“radio
tower“ symbol disappears), a further synchronization attempt is
made from 4:00am and
5:00 am until success. This process is repeated up until 5:00 AM.
If still not successful, the daily reception stops.
Flashing “radio tower” symbol is displayed, while MSF radio signal
reception is running.

~ 13 ~
A static “radio tower” symbol is displayed after the MSF radio
signal reception was successful.
Please keep a minimal distance of 2.5m to sources of interference
such as televisions or computer screens.
The radio signal reception is weaker in rooms with concrete walls
(e.g. in the basement) and in office buildings. For extreme cases,
please put the clock near a window.
There are less atmospheric disturbances at night. A radio time
signal reception is usually possible at that time. One
synchronisation per day is sufficient to keep the time display
accuracy at 1 second.
Tip:
You can adjust the time manually in case the clock cannot receive the
MSF radio signal (due to interferences, large distance to the sender,
obstructions like mountains, etc.) As soon as the radio signal can be
received, the clock will be adjusted automatically. Radio signal
sender coverage up to 1500km distance to from signal is transmitted
from Anthorn Radio Station in Cumbria.
Manual time set-up (the most important is to quit the
reception of radio controlled signal by holding together
“+ “and“-”for 3 seconds in case of the “radio tower”
symbol flashing before set-up )
Press and hold key “MODE“ for 3 seconds.
The display for the year is flashing. Use “+“ and “-“ to select the
year.
Press “MODE “ to confirm.
The display for the month is flashing. Use “+“ and “-“ to select the
month.
Press “MODE “ to confirm.
The display for the date is flashing. Use “+“ and “-“ to select the
date.
Press “MODE “ to confirm.

~ 14 ~
The 12/24 hour flashing. Use “+“ and “-“ to select
Press “MODE “ to confirm
The display for the hour is flashing. Use “+“ and “-“ to select the
hour.
Press “MODE “ to confirm.
The display for the minutes is flashing. Use “+“ and “-“ to select
the minutes.
Press “MODE “ to confirm.
The country /city flashing. Use “+“ and “-“ to select the city of
Sunrise/Sunset and Moonrise /Moonset. You can find a list of all
cities and their abbreviations at the end of this manual.
Press “MODE “ to confirm.
Information:
While the Sunrise / sunset or the moon rise / sunset times be
sought (Displaying dashes --- --- -- ---- ---- ), the station does
not respond to keystrokes. Please wait for about 1 minute.
The clock automatically changes from set-up mode to time display
mode if no keys are pressed for 20 seconds.
Daily alarm set-up
Press “MODE” to switch from time display to A1 display
Press and hold the key “MODE” for 3 seconds ,the flashing alarm
time is shown
The hour display of the alarm time is flashing. Use “+“ and “-“ to
select the hour.
Press “MODE” to confirm.
The minute display of the alarm time is flashing. Use “+“ and “-“ to
select the minute.
Press “MODE” to confirm.
Then press “MODE” to switch from A1 display to A2 display
The setting sequence for A2 is the same as for A1.

~ 15 ~
Daily alarm on/off
Press “MODE” to switch from time display to A1 display
When showing A1 alarm time, press “-“ to activate the alarm 1 with
alarm symbol showing.
Press “MODE” again cancel the alarm
When showing A2 alarm time, press “-“ to activate the alarm 2 with
alarm symbol showing.
Press “MODE” again to cancel the alarm
A1 for alarm from Monday to Friday, A2 for alarm from Saturday to
Sunday.
Information:
The clock automatically changes from set-up mode to time mode if
no keys are pressed for 20 seconds.
The alarm sounds for 2 minutes if no key is pressed to stop it.
Snooze function
To activate the snooze function, follow the steps below
Press the key “SNOOZE/LIGHT“, while the alarm sounds, to
activate the snooze function.
If the snooze function is activated, alarm symbol is flashing.
The alarm repeat after 5 minutes.
The snooze function can be stopped by pressing any other key.
12/24 hours mode
The time can be displayed in 12（AM/PM）or 24 hours mode.
The switchover is described in the section "Manual Settings".
°C/°F temperature display
The temperature can be displayed in °C or °F. Press the key “-
“to switch between °C and °F.

~ 16 ~
Max./ Min. for the indoor/outdoor temperature and
humidity
Press “+” for displaying of indoor/outdoor max./min. of
temperature and humidity.
Temperature alert set-up
Press “Channel” to select the channel (CH1, CH2, CH3) if more
than one outdoor sensor is used
Press and hold the key “-” then select between ON/OFF.
Press “MODE” , the upper limit temperature is flashing, use “+” , “-
“ to set the maximum alert temperature.
Press “MODE “, the lower limit temperature is flashing, use “+” , “-
“ to set the minimum alert temperature.
When the alert is activated, the alert symbol will be shown on the
left of the outdoor temperature display
Temperature alert on/off
Press and hold the key “-“ to set the temperature alert on or off.
Alert on: Temperature alert symbol shown in display
Alert off: Temperature alert symbol is not displayed
Information
A temperature alert can be set-up for each channel.
The set-up process cannot be completed if the maximum
temperature selected is lower than the minimum selected
temperature.
The minimum temperature selected must at least be 1°C below
the maximum selected temperature.
An alarm sounds and the temperature display flashes, when the
temperature from the signal of the transmitter exceeds the set
limits.
Sunrise /Sunset and Moonrise /Moonset

~ 17 ~
A nearby city of your location must be set to correctly display the time
of your area.
150 cities are selectable for Sunrise /Sunset and Moonrise
/Moonset times, a list of cities can be found in the end of the
manual
5 Weather forecast symbols
Sunny Slightly cloudy Cloudy Rainy Storm
Remarks：The weather forecast is determined by
temperature, humidity and air pressure. The forecast
symbol may not match with the current weather
sometime and symbol will be showing the forecast for
next 12 + hour forecast.
Barometer and bar and data of history for the past 12
hour of air pressure
Air pressure history can be displayed in hPa and inHg , for the past
12 hours, press the history button repeatedly to change between -1,-
2,-3…
The bar graph indicates the air pressure history trend over the last 12
hours in 6 intervals: 0h, -1h, -2h, -3h, -6h, and -12h. The “0h”
represents the current full hour air pressure recording. The columns
represent the “hPa” (0, ±2, ±4, ±6) or inHg (0, ±0,06, ±0,12, ±0,18) at
specific time. The “0” in the middle of this scale is equal to the current
pressure and each change (±2, ±4, ±6 or ±0,06, ±0,12, ±0,18)
represents how high or low in “hPa“ or “inHg” the past pressure was
compared to the current pressure.
For accurate barometric pressure trends, the weather station should
operate at the same altitude for recordings (i.e. it should not be
moved from the ground to the second floor of the house). When the

~ 18 ~
unit is moved to a new location, discard readings for the next 12
hours and correct the height adjustment (see "Start-up") if needed.
Backlight
Press the key “SNOOZE/LIGHT“ to activate the display illumination
for 5 seconds.
Moon phase display
Living space humidity
The weather station uses saved data to determine the humidity in the
living space and shows the respective symbols.
Comfortable, dry, humid
1. Dry : when the indoor temperature in any value, indoor humidity
is less than 40%
2. Comfortable :when the indoor temperature in 20 to 28 ℃, indoor
humidity 40-70%
3. humid : indoor temperature at any value, when indoor humidity
is more than 70%

~ 19 ~
4. No display: when the indoor temperature is not in the 20 to 28 ℃,
indoor humidity 40-70%, no comfort indicator
Low battery condition display
The weather station displays the low battery condition symbol to
remind the batteries of the weather station or the outdoor sensor
need to be exchanged.
Weather station low battery condition display: within indoor area of
the display
Outdoor sensor low battery condition display: in the outdoor area
of the display
Wireless connection to the outdoor sensor
Press the key “CHANNEL“to select a channel. You can read the
data of up to 3 sensors at one weather station.
Press and hold the key “CHANNEL“for 3 seconds to search for
outdoor sensor.
Informations
The channel of a transmitter can be changed with the channel
selection switch on the back of the transmitter, eg to avoid that two
outdoor transmitters occupy the same channel and block each
other.
Outdoor transmitters must be distributed to different channels.
Trouble shooting
The weather station obtains the accurate time with wireless
technology. Same as all wireless devices, the reception is maybe
affected by the following circumstances:
• Long transmitting distance
• Nearby mountains and valleys
• Among tall buildings
• Near freeway, railway, airports, high voltage cable etc.
• Near construction site

~ 20 ~
• Inside concrete buildings
• Near electrical appliances (computers, TV’s, etc)
• Inside moving vehicles
• Near metallic structures
Place the station at a location with optimal signal, i.e. close to a
window and away from metal surfaces or electrical appliances.
Keep in mind that the outdoor transmitter only has the optimal
transmission range in open area with no obstructions. Each
obstruction between the transmitter and the station (roof, walls, floors,
ceilings, thick trees, etc.) will effectively cut the transmission range in
half.
Protection and care of this item
• Do not expose the unit to extreme temperature, water or direct
sunlight.
• Avoid contact with any corrosive materials.
• Do not subject the unit to excessive force, dust or humidity.
• Do not open the inner back case or tamper with any components of
this unit.
Consideration of duty according to the battery law
Old batteries do not belong to domestic waste because
they could cause damages of health and environment.
You can return used batteries free of charge to your
dealer and collection points. As end-user you are
committed by law to bring back needed batteries to
distributors and other collecting points!
Declaration of Conformity:
Hereby, Youshiko Ltd declares, that this weather station is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
12: LIABILITY DISCLAIMER:
