Youshiko YC9386 User manual

1
PROFESSIONAL WEATHER STATION
WITH WIRELESS 5-IN-1 SENSOR
Model: YC9386
USER MANUAL

2
CONTENTS
INTRODUCTION…………………………………………………………………………………………….3
OVERVIEW…………………………………………………………………………………………….........4
LCD DISPLAY...................................................................................................................................6
INSTALLATION................................................................................................................................7
DISPLAY MAIN UNIT........................................................................................................................8
WEATHER FORECAST..................................................................................................................11
BAROMETRIC/ATMOSPHERIC PRESSURE................................................................................11
RAINFALL.......................................................................................................................................11
WIND SPEED/WIND DIRECTION..................................................................................................12
WIND CHILL/HEAT INDEX/DEW-POINT........................................................................................13
HISTORY DATA (ALL RECORDS IN THE PAST 24 HOURS).......................................................13
MAX/MIN MEMORY FUNCTION....................................................................................................13
HI/LO ALERT..................................................................................................................................14
WIRELESS SIGNAL RECEPTION.................................................................................................14
TEMPERATURE & HUMIDITY........................................................................................................15
DATA CLEARING...........................................................................................................................15
POINTING 5-IN-1 SENSOR TO THE SOUTH................................................................................15
COLOURFUL BACKLIGHT DISPLAY............................................................................................15

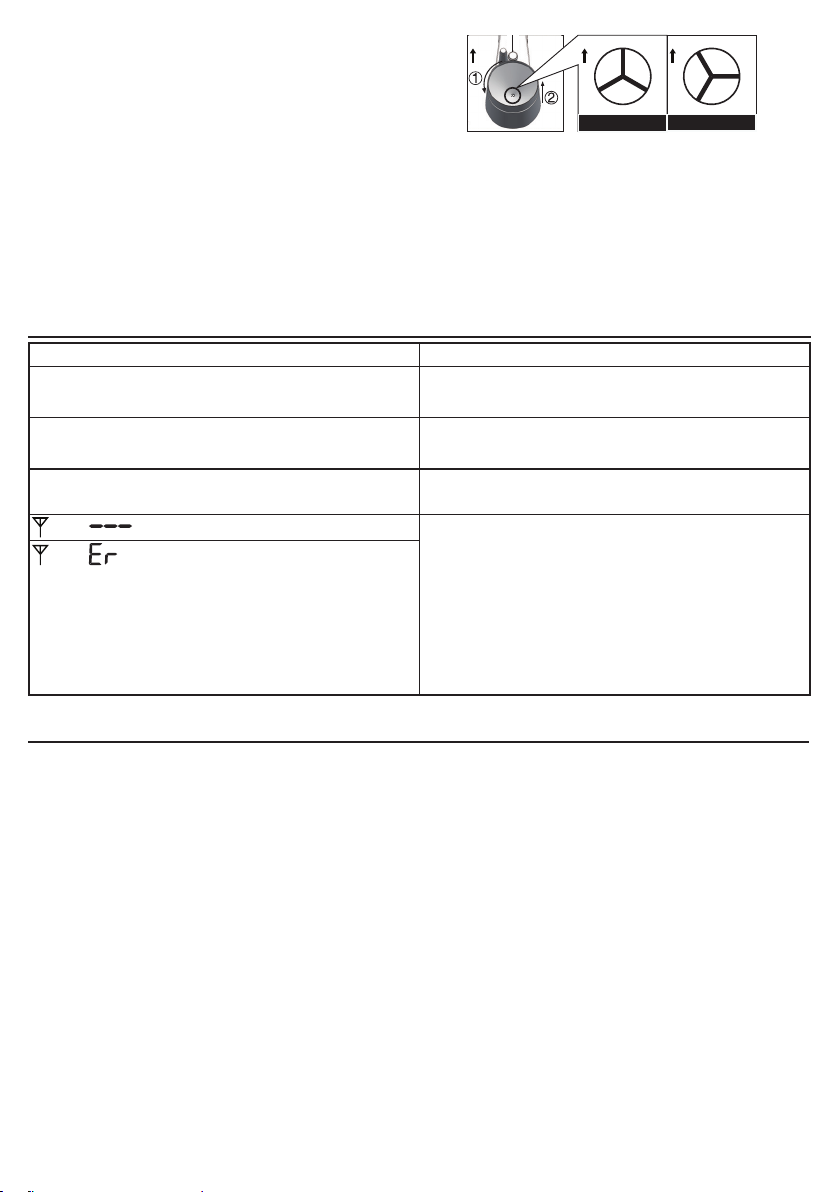

MAINTENANCE.............................................................................................................................16
TROUBLESHOOTING...................................................................................................................16
PRECAUTIONS..............................................................................................................................17
SPECIFICATIONS..........................................................................................................................18
EASY INSTALLATION FOR SENSOR...........................................................................................20
THE PACKING ..............................................................................................................................22

3
INTRODUCTION
Thank you for your purchase of this delicate Professional Weather Station With Wireless 5-IN-1
Sensor.
The wireless 5-IN-1 sensor contains a self-emptying rain collector for measuring rainfall,
anemometer, and wind vane, temperature and humidity sensors. It is fully assembled and
calibrated for your easy installation. It sends data by a low power radio frequency to the Display
Main Unit up to 150m away (line of sight).
The display Main Unit displays all the weather data received from the 5-IN-1 sensor outside. It
remembers the data for a time range for you to monitor and analyze the weather status for past 24
hours. It has advance feature such as the HI/LO Alert alarm which will alert the user when the set
high or low weather criteria are met. The barometric pressure records are computed to give users
forthcoming weather forecast and stormy warning. Day and date stamps are also provided to the
corresponding maximum and minimum records for each weather details.
The system also analyzes the records for your convenient viewing, such as the display of rainfall
in terms of rain rate, daily, weekly and monthly records, whereas wind-speed in different levels.
Different useful readings such as Wind-chill, Heat Index, Dew-point, Comfort level are also
provided.
With Radio-controlled / Atomic clock feature built-in, the system is truly a remarkable personal
Professional Weather Station for your own backyard.
Note: This instruction manual contains useful information on the proper use and care of this
product. Please read this manual through to fully understand and enjoy its features, and keep it
handy for future use.

4
OVERVIEW
LCD DISPLAY
1
2
3 4 5 6 7 8 9 10 11
12 13 14 15 16 17
18 2019 21 22 23 24 25 26
1. Table stand 14. Wall-mounting hole
2. [ SNOOZE / LIGHT ] button 15. [ ALERT ] button
3. LCD display 16. []button
4. [ LOOP ] button 17. [ ]button
5. [ RAINBOW ] button 18. power jack / temperature & humidity sensor
6. [ OUTDOOR TEMP ] button 19. [ HISTORY ] button
7. Alert LED indicator 20. [ °C/°F ] slide switch
8. [ RAINFALL ] button 21. [ MAX/MIN ]button
9. [ BARO ] button 22. Battery compartment
10. [ WIND] button 23. [ RCC ] button
11. [ INDEX ] button 24. [ SCAN ] button
12. [ CLOCK ] button 25. [ OFF / LO / HI ] slide switch
13. [ ALARM ] button 26. [ RESET ] button

5
WIRELESS 5-IN-1 SENSOR
1. Rain collector
2. Balance indicator
3. Antenna
4. Wind cups
5. Mounting pole
6. Radiation shield
7. Wind vane
8. Mounting base
9. Mounting claim
10. Red LED indicator
11. [ RESET ] button
12. Battery door
13. Screws
1
2
3
5
8
9
4
7
6
12
10
11
13
RAIN GAUGE
1. Rain collector
2. Tipping bucket
3. Rain sensor
4. Drain holes
1 2 3 4
TEMPERATURE AND HUMIDITY SENSOR
1. Radiation shield Sensor casing
2. Temperature and humidity sensor
12
WIND SENSOR
