YUAN High-Tech SDI User manual

SDI Repeater
BOX
User Manual
Rev1.1

Index
Feature ...................................................................................3
Package Contents .......................................................................4
Install Diagram ..........................................................................4
Front Panel...............................................................................5
Rear Panel................................................................................5
Specifications............................................................................6
Update List...............................................................................7

Feature
The SDI Splitter is a SD/HD and 3G SDI repeater for transmission distance extension. The
Transmission distance is easily extended 300ft.
Lock LED indication
Pass all ancillary data.
Easy installation

Package Contents
The SDI Reapter package contains the following items:
User Manual x 1
DC Adapter x 1

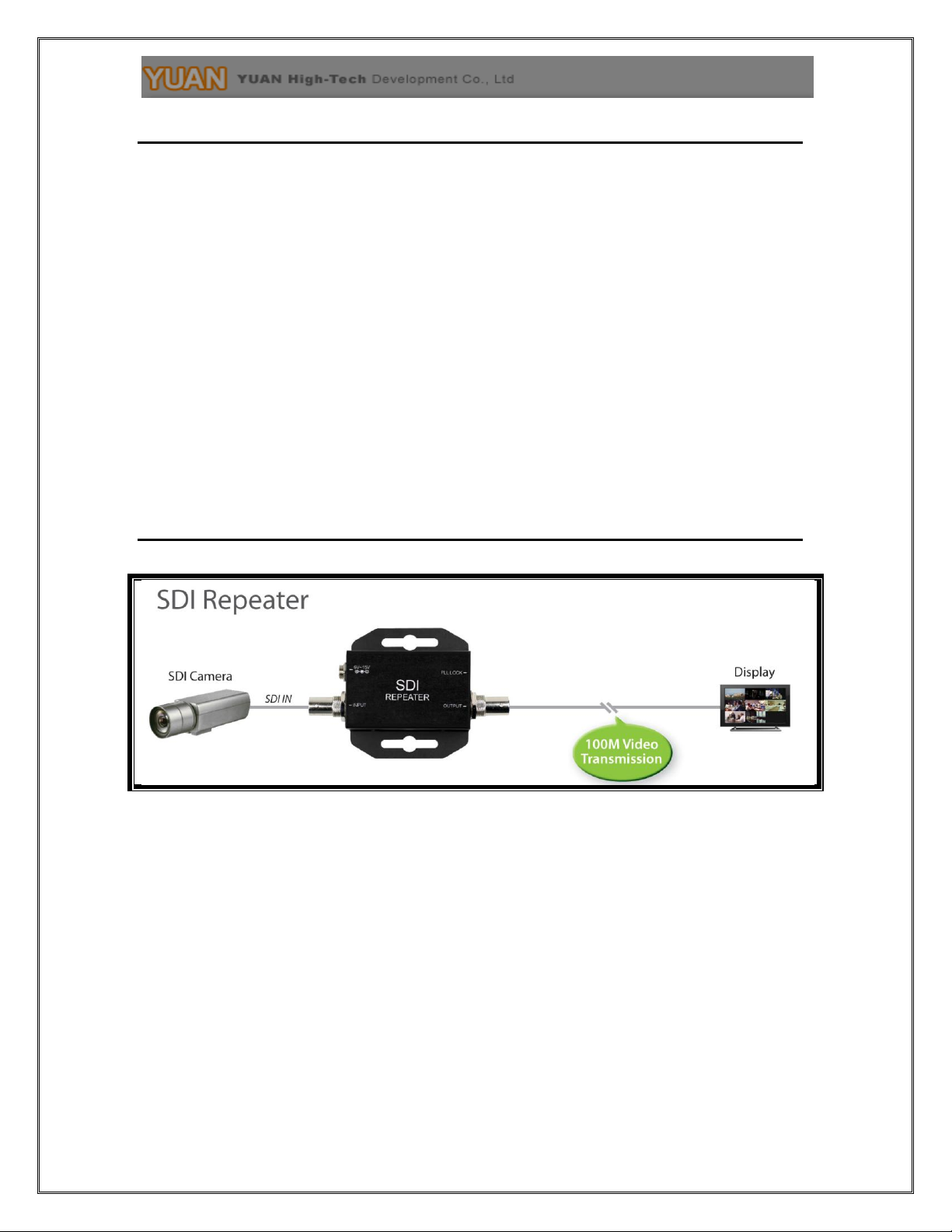

Install Diagram
Typically, SDI Repeater installation consists of the following:
1. Disconnect DC power from SDI Repeater.
2. Connect the Video source/equipment to the SDI Repeater BNCs.
3. Connect the DC power to SDI Repeater

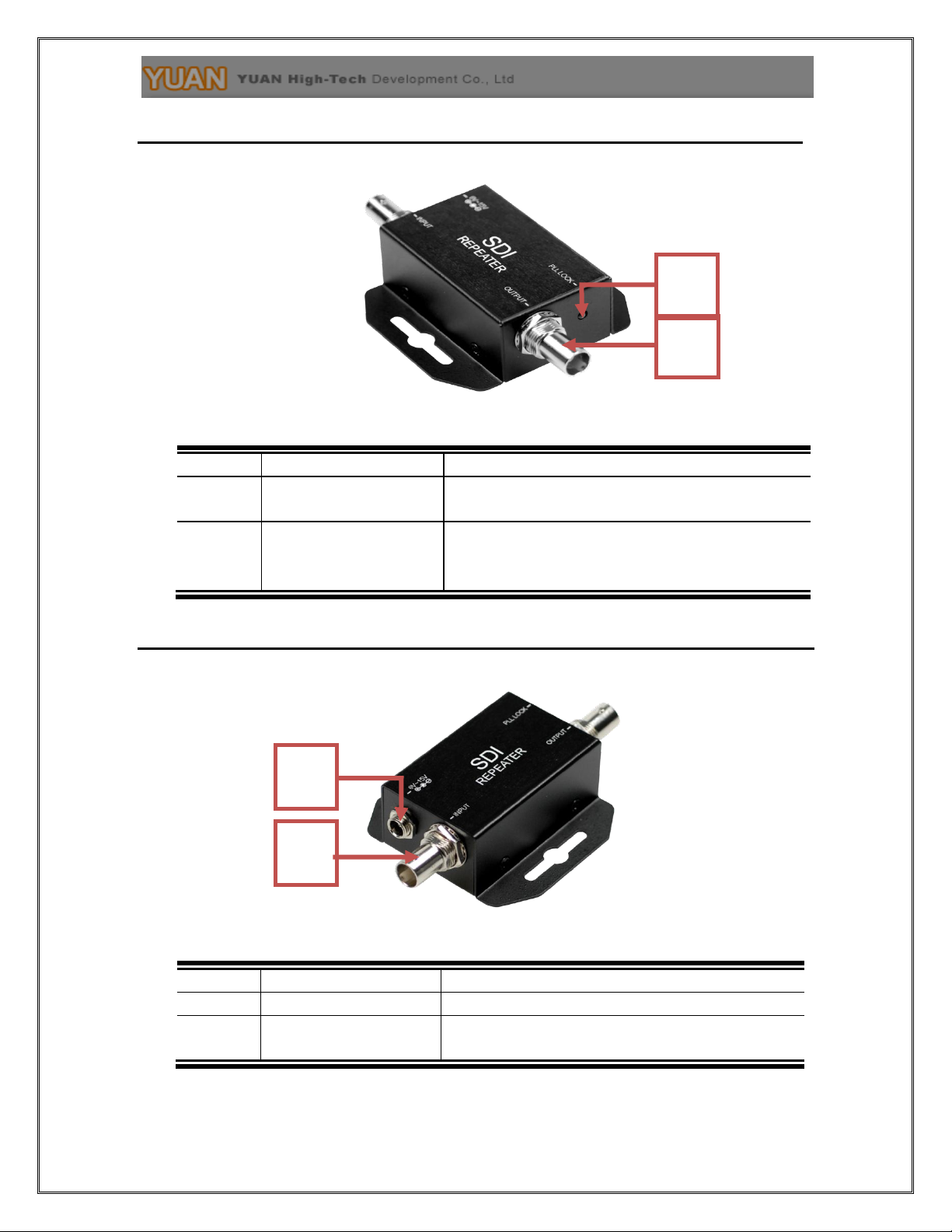

Front Panel
NO
Component
Function
1
SDI Output Port x 1
From your SDI Display Device plug into
these ports
2
Status LEDs
The LEDs is indicate input/output format
and Output Port(Green: Signal Lock
Red : Un-Locked)
Rear Panel
NO
Component
Function
1
Power Jack
The Power adapter plug into here.
2
SDI Input Port x 1
From your SDI Source plug into these
ports
1
2
2
1

Specifications
DESCRIPTION
Support Video Resolution
SD –720 x 480 i / 720 x 576 i
HD–1280 x 720 p 50p/60p
1920 x 1080 50i/60i
1920 x 1080 24p/25p/30p
3G–1920 x 1080 50p/60p
2K–2048 x 1080 24p/30p
SDI format
SD-SDI(SMPTE 259M)
HD-SDI(SMPTE 292M)
3G-SDI (SMPTE 424M / SMPTE 425M)
Audio Support
7.1ch/5.1ch/Stereo
Re-clock Function
Yes (Default Enable)
Coaxial Cable Type
RG6/RG59(75Ω)
Cable Equalization
3G: 100m of RG6/ 86m of RG59
HD: 170m of RG6/ 120m of RG59
SD: 400m of RG6/ 280m of RG59
*1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable
*2 Cable Length Performance: Depending on SDI Signal and
Cable Quality
Input
1 x BNC [SDI]
Output
1 x BNC [SDI]
BNC Connector
3G 75 Ωinter-locked socket
Housing
SECC
Dimension
L:63.6mm x W:70mm xH:26mm
Power Source
Power Adapter: AC 100 ~ 240 V/DC (+6 ~ 15 V)
Operation Temperature
0~50°C [32~114°F]
Storage Temperature
-20~+60°C

Update List
Data
Version
Command
2013.03.14
V1.1
1. Modify Cable Equalization
