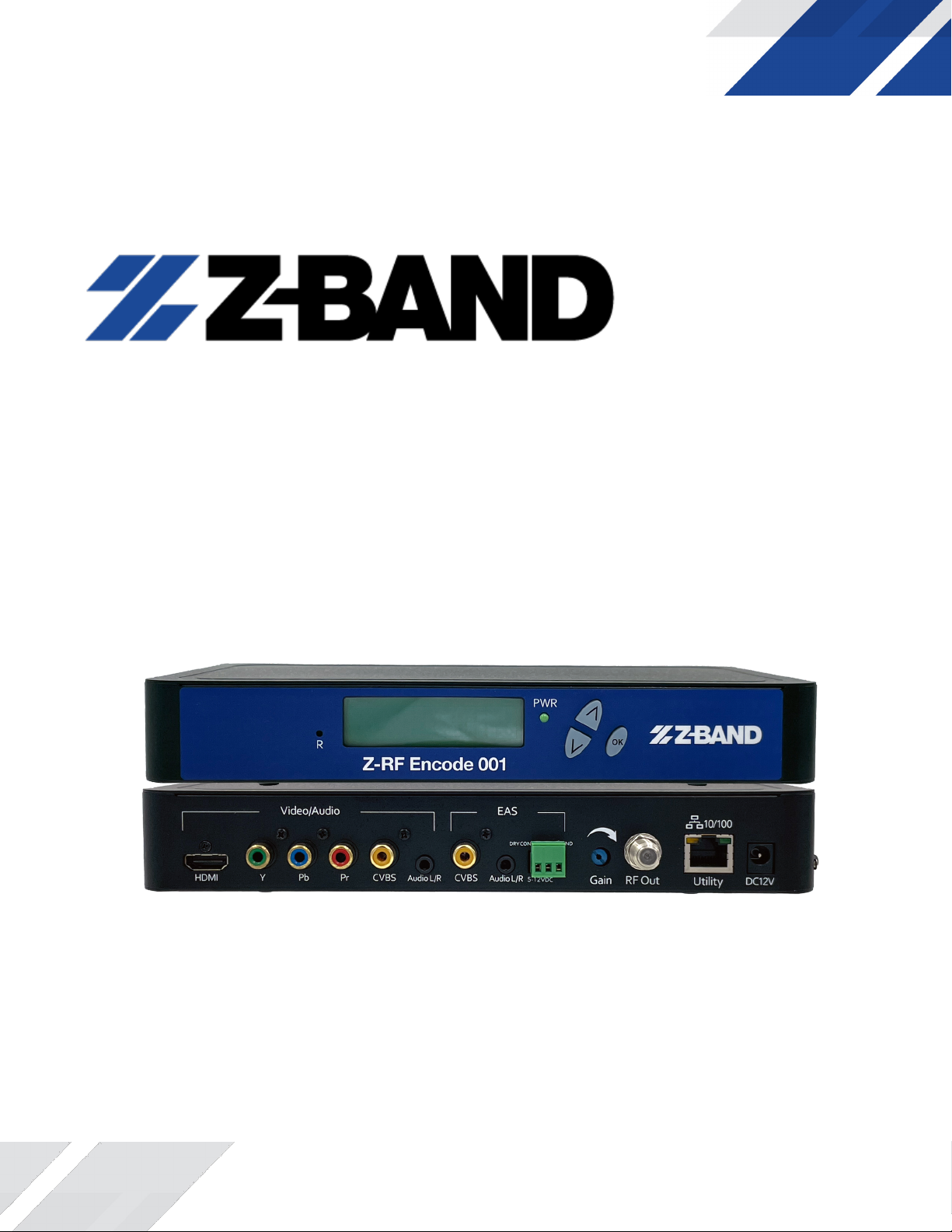

Z-Band Z-RF Encode 001 Instruction Manual

Z-RF Encode 001 Manual V.1
Rev 5.4.21
1
Z-RF Encode 001
User Guide and Installation
Manual

Z-RF Encode 001 Manual V.1
Rev 5.4.21
2
Table of Contents
SAFETY PRECAUTIONS 3
PACKAGE CONTENTS 3
SECTION 1: INTRODUCTION 4
Introduction 4
Specifications 5
Installation 6
Hardware Installations and Connections 6
Device Programming and Setup: 6
Connecting to the GUI Interface: 6
Factory Default IP: 10.1.10.200 6
Encoder Programming and Setup via GUI Interface: 7
SECTION 2: OVERVIEW 7
GUI Login Password: 8
SECTION 3: ENCODER SETUP 9
QAM Encoder Setup 9
Closed Caption: Enable /Disable 11
SECTION 4: RF OUTPUT SETUP 13
SECTION 5: NETWORK CONFIGURATION 14
SECTION 6: ADMINISTRATION 14
Reboot: 15
Reset to Default: 15
Backup: 155
Restore/Upload saved file configurations: 155
Change Password: 16
EAS SUPPORT 17
FRONT PANEL CONTROL 18
LCD PASSWORD 188

3
Z-RF Encode 001 Manual V.1
Rev 5.4.21
Safety Precautions
The presence of this symbol is to alert the installer and user to the presence of uninsulated
dangerous voltages within the product’s enclosure that may be of sufficient magnitude to produce a
risk of electric shock.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE TO RAIN OR
MOISTURE. DO NOT OPEN THE UNIT. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
DO NOT
apply power to the unit until all connections have been made, all components have been
installed and all wiring has been properly terminated.
DO NOT
terminate, change or uninstall any wiring without first disconnecting the unit’s power adapter
from the device.
This device
is supplied with the appropriately rated power supply. The use of any other power supply
could cause damage and invalidate the manufacturer’s warranty.
DO NOT
connect the power cord to the device if the power cord is damaged.
DO NOT cut
the power cord.
DO NOT
plug the power cord into an AC outlet until all cables and connections to the device have
been properly connected.
The device
should be installed in an environment consistent with its operating temperature
specifications. Placement next to heating devices and ducts is to be avoided as doing so
may cause damage. The device should not be placed in areas of high humidity.
DO NOT
cover any of the device’s ventilation openings.
DO NOT
cover or obstruct the device’s fan or fan openings.
If the device has been in a cold environment allow it to warm to room temperature for at least
2 hours before connecting to an AC outlet.
Package Contents
This package contains:
Z-RF ENCODE 001 Encoder / Modulator
Power Adapter

Z-RF Encode 001 Manual V.1
Rev 5.4.21
4
Inspect the package before starting installation to ensure there is no damage and all supplied contents are present.
Section 1: Introduction
Introduction
The Z-RF Encode 001 is a cost-effective, single input encoder/modulator that provides a QAM output,
making it ideal for any residential or commercial RF system in a variety of countries.The high-quality HD
design allows for watching action packed movies and sports channels on any HDTV. The Z-RF Encode 001
Encoder/Modulator is a feature-rich, digital encoding platform that can be deployed in a variety of
installations.
QAM 64 /256
High Resolution up to 1080i/1080p
3 VCN Modes
GUI for easy setup and control
HDMI, Component, Composite input
MPEG-2 Output
Supports Closed Captioning*
EAS Supported*
> +40dB MER

Z-RF Encode 001 Manual V.1
Rev 5.4.21
5

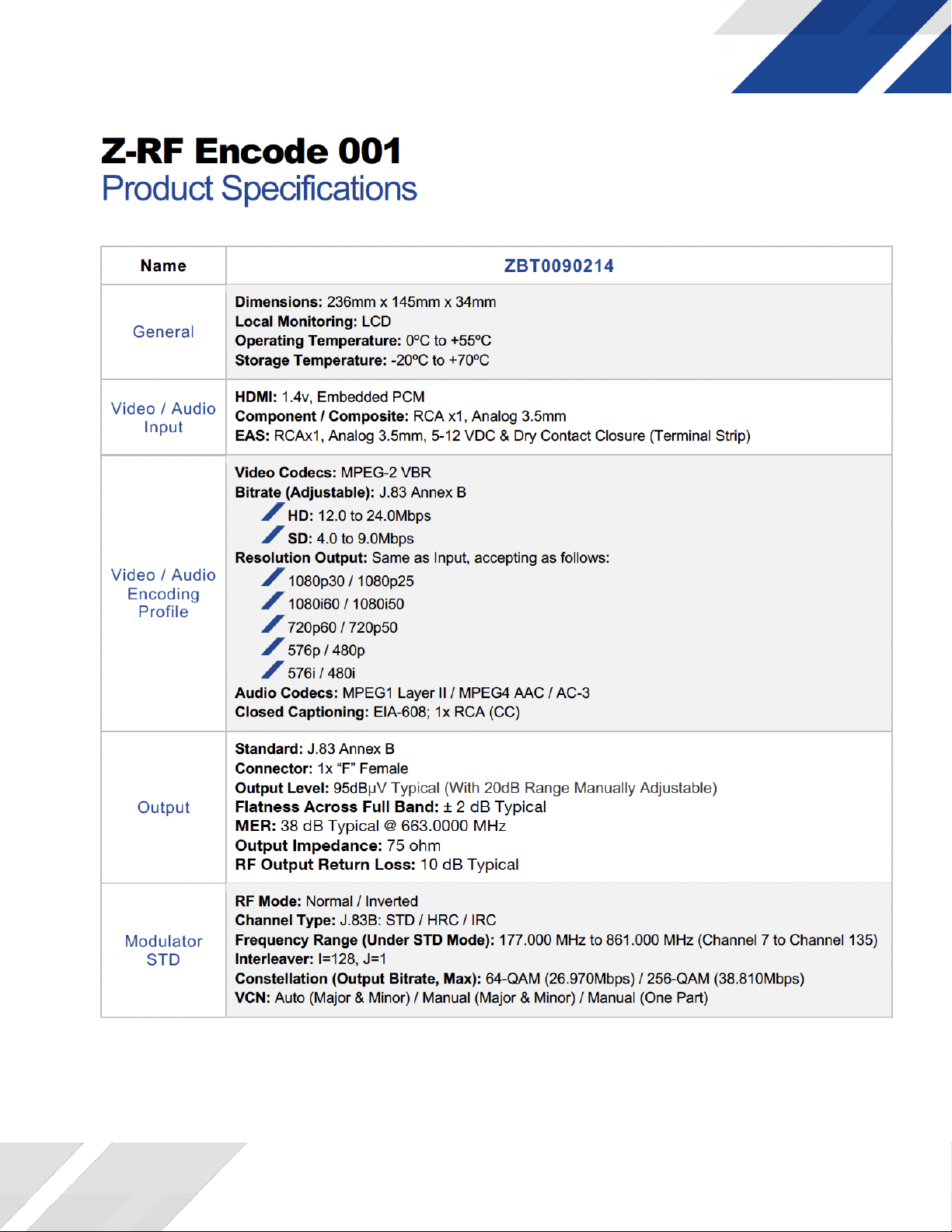

Specifications
* Specifications subject to change without notification

Z-RF Encode 001 Manual V.1
Rev 5.4.21
6
Installation
System Installer must adhere to Article 820-40 of the NEC that provides guidelines for proper grounding and
specifies that the cable ground shall be connected to the grounding system of the building, as close to the point
of cable entry as possible.
Unpacking and Inspection
Each unit is shipped factory tested. Ensure all items are removed from the container prior to discarding any packing
material.
Thoroughly inspect the unit for shipping damage with particular attention to connectors and controls. If there is
any sign of damage to the unit or damaged or loose connectors contact your distributor immediately. Do not put
the equipment into service if there is any indication of defect or damage.
Hardware Installations and Connections
It is highly recommended that quality cables and connectors be used for all video and audio source
connections.
1. The unit comes with HDMI, Component & Composite inputs. Connect the desired cable, not included.
2. Use a quality 75Ωcoaxial cable with “F” connectors from the unit’s RF Output.
3. Connect the included power adapter to the unit’s POWER plug.
4. Connect the power cord to an appropriately rated AC power outlet.
Device Programming and Setup:
Connecting to the GUI Interface:
Factory Default IP: 10.1.10.200
1. Connect an Ethernet cable to the Remote Setup Port of the ZPro-B2 and to your PC/Laptop.
2. Modify your PC/Laptop’s IP address to 192.168.1.100.
3. Enter ‘10.1.10.200’ into your web browser.
4. Make all required parameter changes.
5. Save all changes.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
7
Section 2: Overview
Encoder Programming and Setup via GUI Interface:
After connecting the device to the Remote Setup port located on the rear of the device and connecting to a PC /
Laptop.
Step 1: Enter Device's IP address in web browser.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
8
Step 2: Enter User Name/Password
Select Encoder Setup
After selecting the Encoder Setup Tab, the user will be prompted to enter the user name and password for
device.
GUI Login Password:
Default User Name: admin
Default Password: Admin123
Note: To change the Password for the GUI, go to the Administration Tab.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
9
Section 3: Encoder Setup
Step 3: Encoder Setup
QAM Encoder Setup
Encoder Setup page allows the integrator to select and set:
Select and set the specific parameters settings as required for your application.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
10
VCN (Channel Number):
Enter VCN CHANNEL NUMBER: Enter the VCN Channel Number as required.
Factory Default: 102.1
The Z-RF ENCODE 001 offers 3 VCN (Virtual Channel Number) Modes.
1- Select and set VCN Mode.

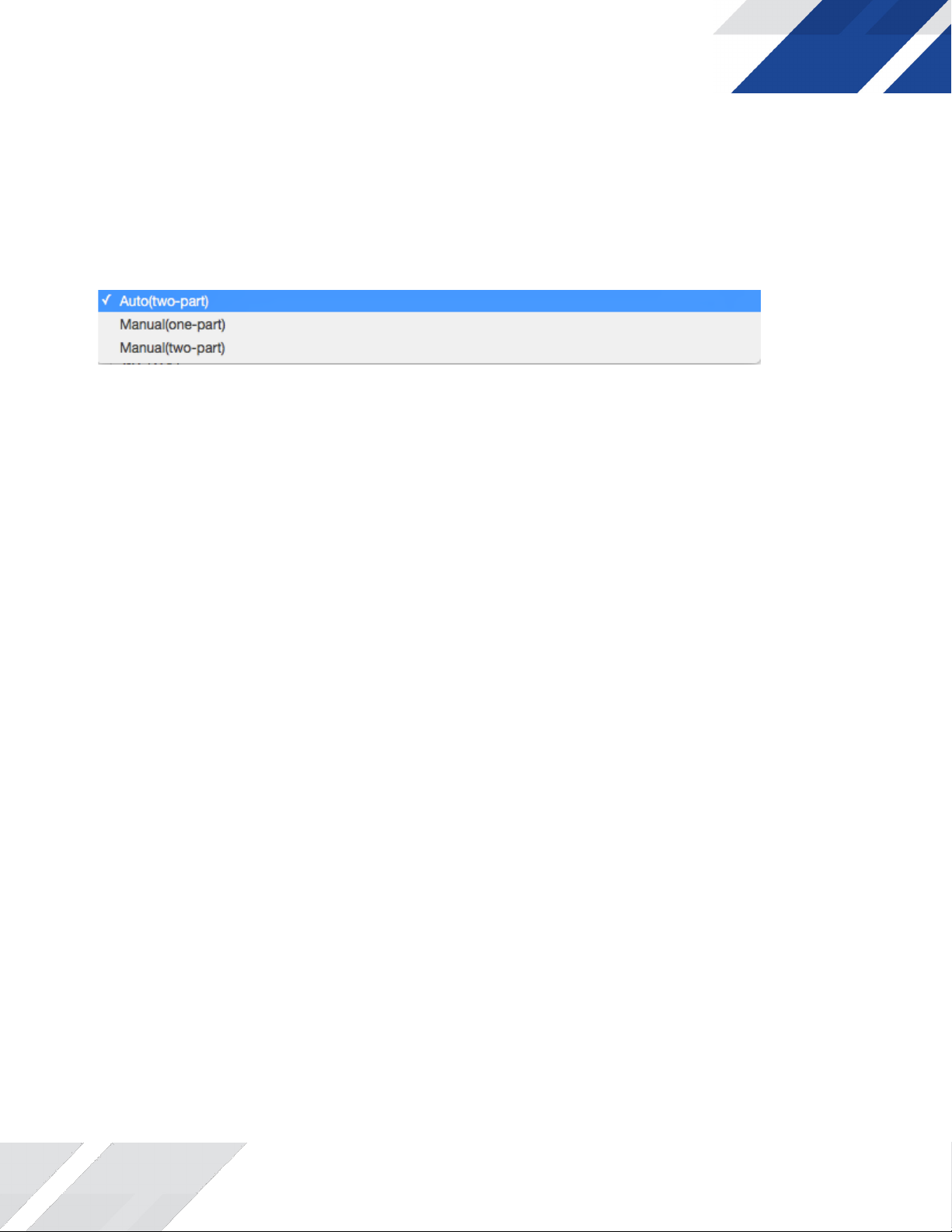

VCN Mode Options:
Enter VCN Mode: Enter the VCN Mode as required.
Factory Default: Auto (two-part)
VCN Mode (Auto two-part)-VCN Auto 2-part- will force the VCN channels to be based on the CH/freq. selected
on the RF Output Setup page of the device.
Examples:
CH VCN Channel
57 57.1
101 101.1
134 134.1
- This mode automatically sets the VCN based on the RF Cha/freq. set in the RF Output Setup section.
VCN Mode (Manual two-part)- VCN Manual 2-part- will allow the installer to control VCN channels regardless of
the CH/freq. selected on the Output Setup page of the device.
Examples:
CH VCN Channel
57 55.1
101 101.2
134 134.2
Selecting this option requires the user to enter a VCN channel #.
VCN (Channel Number):
Enter VCN CHANNEL NUMBER: Enter the VCN Channel Number as required.
Factory Default: 102.1 (located in the RF Output Section)
VCN Mode (Manual one-part)-VCN Manual 1-part- will allow the installer to control VCN channel regardless of
the CH/freq. selected on the Output Setup page of the device.
Examples:
CH VCN Channel
57 2
101 105
134 133

Z-RF Encode 001 Manual V.1
Rev 5.4.21
11
Selecting this option requires the user to enter a VCN channel #.
VCN (Channel Number):
Enter VCN CHANNEL NUMBER: Enter the VCN Channel Number as required.
Factory Default: 102 (located in the RF Output Section)
Short Name: Set Short Name.
Short Name will appear on the TV.
Factory Default: DTV-1
Long Name: Enter Long Short Name.
Factory Default: ATSC-DTV1
Source ID: Set as required
Factory Default: 101.
Video Input: Select and Set Video Input Source.
Options: Auto Detect (Factory Default, HDMI, Component, Composite)
HD Bitrate (Mbps): Set HD Bitrate
HD range (Mbps): 12 ~24 Mbps
Factory Default: 18 Mbps
SD Bitrate (Mbps): Set SD Bitrate
SD range (Mbps): 1 ~ 9 Mbps
Factory Default: 4 Mbps
Program Number: Program Number
Factory Default: 101
HDCP (Test Mode): Enable / Disable
Factory Default: Disabled
Video Output: Factor Set: MPEG-2 VBR
Closed Caption: Enable /Disable Closed Captioning
To enable Closed Captioning for the device, check the check box to enable the Closed Captioning function.
Application Note:
Closed Captioning requires an active Closed Captioning source from the input.
If the Source input does not supply the encoder with the Closed Captioning content no Closed Captioning will
be displayed.
- When using a Component Input Source, the Composite Input must be used to supply the CC source content.
Audio Input:
Audio Input Options: Auto detect, Analog
Audio Output: Select Audio Output Type
Use the Drop Down tool to Select the Audio Format required.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
12
Factory Default: MPEG1 Layer II
SAVE AND CONFIRM ALL CHANGES MADE ON THE ENCODER PAGE
All Changes made will be show in the applet window (see below example)
Select ‘Submit’
Note: To reset all changes made or saved go to the Administration Page and select 'Reset to Default'.
*Leaving the encoder page without saving changes will cause the previous settings to be used.
- If the unit is outputting video to the system there will be a brief delay in the video while the parameters are
saved.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
13
Section 4: RF Output Setup
Step 3: RF Output Setup
1. Select the ‘RF Output Setup’ tab from the top menu.
2. Modify all parameters as needed.
Use the Output Setup page to set the RF output type, RF Output CH/frequency, and Constellation.
1. Modify and set the required parameters for your installation
TSID: (Factory Default is 1)
* If installing multiple units in the same system – ensure each device has a unique TSID.
2. Select and set the RF Type.
RF: Normal, Inverted (Factory Default is Normal)
3. Select and set Channel Type.
Channel Type: J.83B STD, J.83B HRC, J.83B IRC (Factory Default is J.83B STD)
4. Select and set the required CH/Freq.
CH/Freq QAM.: Factory Default is 102 (CH range 7-135, Freq. range: 177~ 861MHz)
5. Select and set the required Constellation.
Constellation (QAM TYPE): 256 QAM, 64 QAM (Factory Default is 256)
Save and Confirm all changes settings on RF Output Setup page.
Application Note:
When installing more than 1 device into a system, each device must have a unique RF TS_ID.
We highly recommend you save your encoder configuration files.
See Administration tab for how to backup device settings.
Note: To reset all changes made or saved go to the Administration Page and select 'Reset to Default'.
*Leaving the RF Output Setup page without saving changes will cause the previous settings to be used.
- If the unit is outputting video to the system

Z-RF Encode 001 Manual V.1
Rev 5.4.21
14
Section 5: Network Configuration
Network Setup Tab
Management IP Setup:
Use the Network Setup to configure the device’s Management Port’s IP address (GUI address) of the device,
Subnet Mask, Gateway, Enable/Disable DHCP, and set Host Name.
Factory Default GUI IP is 10.1.10.200
Save and Confirm: Once all parameters are set remember to Save and Confirm all changes.
Note: It is highly recommended that the GUI / Remote Setup IP address is recorded locally for access to the GUI
in the field.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
15
Section 6: Administration
Reboot:
Use the Reboot command button to reboot the device.
Note: Any unsaved changes will be lost.
Reset to Default:
Use the Reset to Default button to reset all parameters to original factory settings.
Saving your configuration files
We highly recommend you save your configuration files. Simply Click the “Backup” button
and the config files will be saved to your computer.
Backup:
We highly recommend saving your device’s setting.
1. Select Administration tab.
2. Select backup from the menu.
3. Locate and name file for future use.
Restore/Upload saved file configurations:
1. Select Administration tab.
2. Select “Choose file” menu.
3. Locate the required file to be imported.
4. Select “Upload” to import the selected file into the device.
5. Remember to save and backup any and all changes.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
16

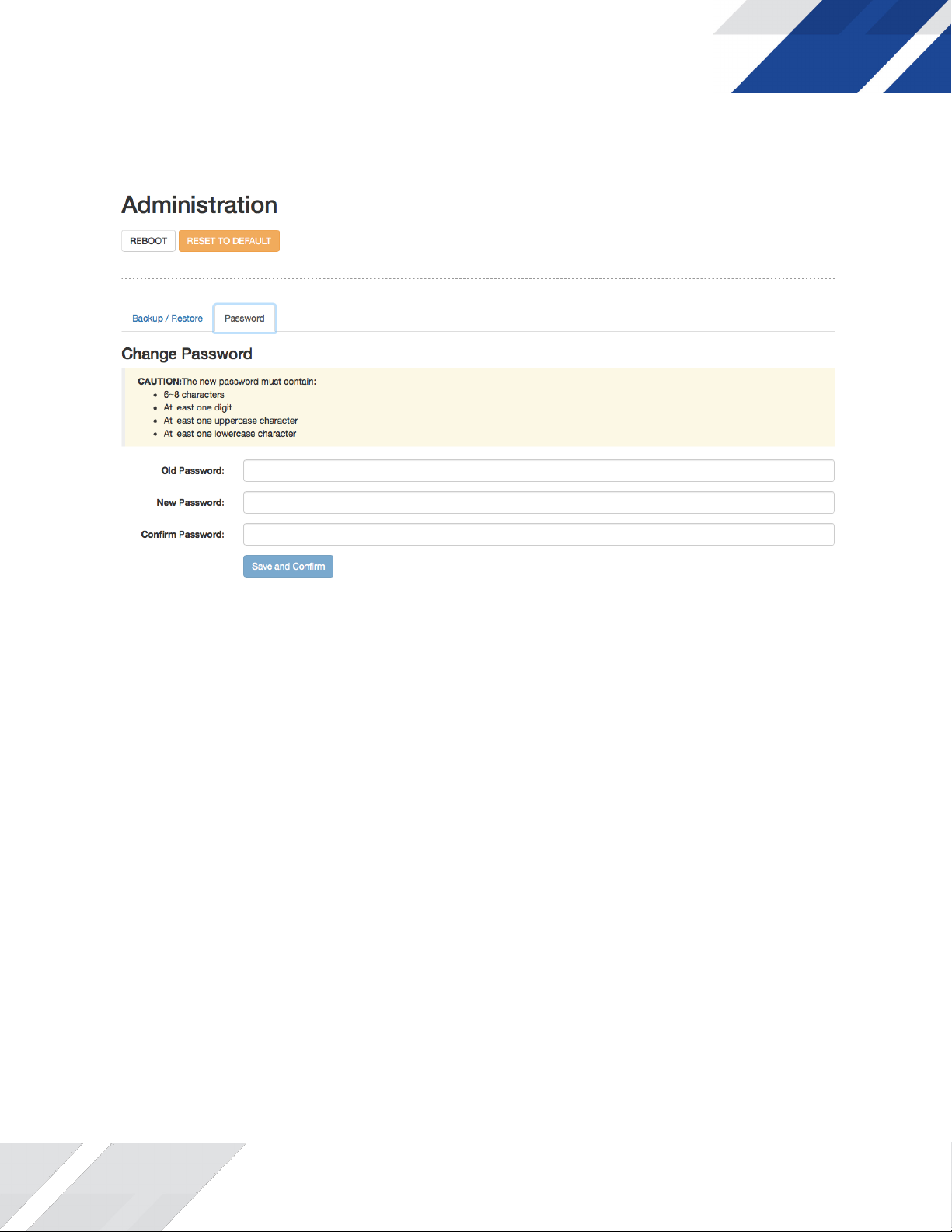

Change Password:
Use the Change Password section to change or modify the device’s password as desired.
Save and Confirm new password.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
17
EAS Support
EAS
This is equipped with EAS terminals / connections and CVBS (Composite Video Input) and L/R audio input
connections on the rear panel of the device.
If applicable, connect your EAS (Alert Device System) outputs to the Encoder.!If the encoder receives the
proper Event signal from your EAS device, the normal input audio/video program will be replaced by the
audio and video from the EAS system device. Once the encoder has received the proper signal from your
EAS device the normal input video and audio will return to a normal operating mode.
****THIS DEVICE IS NOT AN EAS RECEIVER****
Note: It is the responsibility of the Installer/User to properly connect, verify, and test the EAS functionality of this
device with the EAS receiver.
Note: It is the responsibility of the Installer/User to properly perform the required EAS tests as required by the
FCC or your specific Government Agency.
If the EAS functions on this device fail for any reason it is the responsibility of the Installer/User to replace this
device as required by the FCC or your specific Government Agency.

Z-RF Encode 001 Manual V.1
Rev 5.4.21
18
Front Panel Control
The Z-RF ENCODE 001 can be programmed using the front panel LCD to configure the unit as desired.
Once the unit has powered up it will go through an internal booting process the unit is ready for programming or
operation. and display Bit rate information in the LCD display when ready.
Press OK
LCD Password
– Press the OK button to enter the 4-digit password. Use the Scroll Up/Down button to search and select
individual numbers for the password. Press the OK button for each number to enter the password.
Password?: Default password is 0000.
Distributed by:
Password=?
***1
