Z GRILLS ZPG-700C User manual

VN08012019
WOOD PELLET GRILLS
ZPG-700C
OWNER’S MANUAL
MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME
SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS
EMAIL: suppo[email protected]
WEBSITE: www.zgrills.com

1
CONTENTS
WARNINGS
3
COMPONENT LIST
4
ASSEMBLY INSTRUCTIONS
5
INITIAL FIRING INSTRUCTIONS
13
SUBSEQUENT START-UP
14
OPERATING TIPS
15
MAINTENANCE & CLEANING
16
TROUBLESHOOTING
18
DIGTAL THERMOSTAT CONTROL WIRING DIAGRAM
20
Z GRILLS SUPPORT
21
3-Y LIMITED WARRANTY
22

2
SAVE THIS MANUAL FOR FUTURE REFERENCE

3
WARNINGS!
This grill is for outdoor use only. DO NOT use it in any enclosed area.
DO NOT store or use combustible materials or liquids near this appliance.
Keep children away while it is in use.
Maintain a safe distance between your grill and any combustible materials.
DO NOT move your grill while operating or while it is hot. Wait until the grill is
completely cold.
If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO
NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the
fire.
Clean and maintain your grill after each use.
We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically
made to work in our grills.
DO NOT use your grill on rainy days.
DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.
We suggest the use of heat-resistant gloves when operating this grill.
We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum
foil before using because it is easy to clean.
For convenient and safe assembly, use at least two people to assemble the grill.
Make sure the power cord is disconnected before performing any service or
maintenance.
Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart
and even jam the feed system if the pellets get wet or are exposed to high humidity.
DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.

4
COMPONENT LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
1
1
Grill Chamber Assembly
31
1
Hot Rod (Ignitor)
2
1
Thermal Baffle
32
1
Firepot Assembly
3
1
Hopper Bottom Assembly
33
1
Burner Box Assembly
4
1
Body Frame
34
1
Hopper Burner Gasket
5
1
Heat Baffle
35
1
Hopper Burner Assembly
6
1
Grease Drain Pan
36
1
Fan
7
1
Warming Rack
37
2
Bottom Pivot
8
1
Porcelain Grills
38
1
Left Door
9
1
Lid
39
1
Left Door Upper Pivot
10
2
Hinge Assembly
40
1
Left Plate
11
2
Hinge Pin
41
1
Magnet Fixing Plate
12
1
Lid Handle
42
1
Beam
13
1
RTD Temperature Probe
43
4
Magnet
14
1
Chimney Cap Assembly
44
1
Back Board
15
1
Smoke Stack Assembly
45
1
Right Plate
16
1
Smoke Stack Gasket
46
1
Right Door
17
1
Grease Bucket
47
2
Door Handle
18
1
Screwdriver
48
2
Wheels (without brake)
19
1
Hopper Burner Lid
49
2
Wheels (with brake)
20
1
Hopper Lid Handle
50
1
Platform
21
1
Hopper Guard
51
2
Cap Nuts
22
1
Digital Control
52
19
Bolt
23
1
Hopper Bottom Assembly
53
8
Hexagon Bolt
24
1
Hopper Bottom Cover
54
8
Gasket
25
1
Auger Drive Motor
55
2
Hexagon Nut
26
1
Auger Tube Bushing
56
1
Right Door Pivot
27
1
Power Cord
57
2
Gasket
28
1
Thick Gasket
58
2
Bolt
29
1
Power Cord Collector
59
2
Wrench
30
1
Auger
Remark: 52*(Screw package) has 19 screws in total, including 18 necessary screw and 1
spare screw.

5
ASSEMBLY INSTRUCTIONS

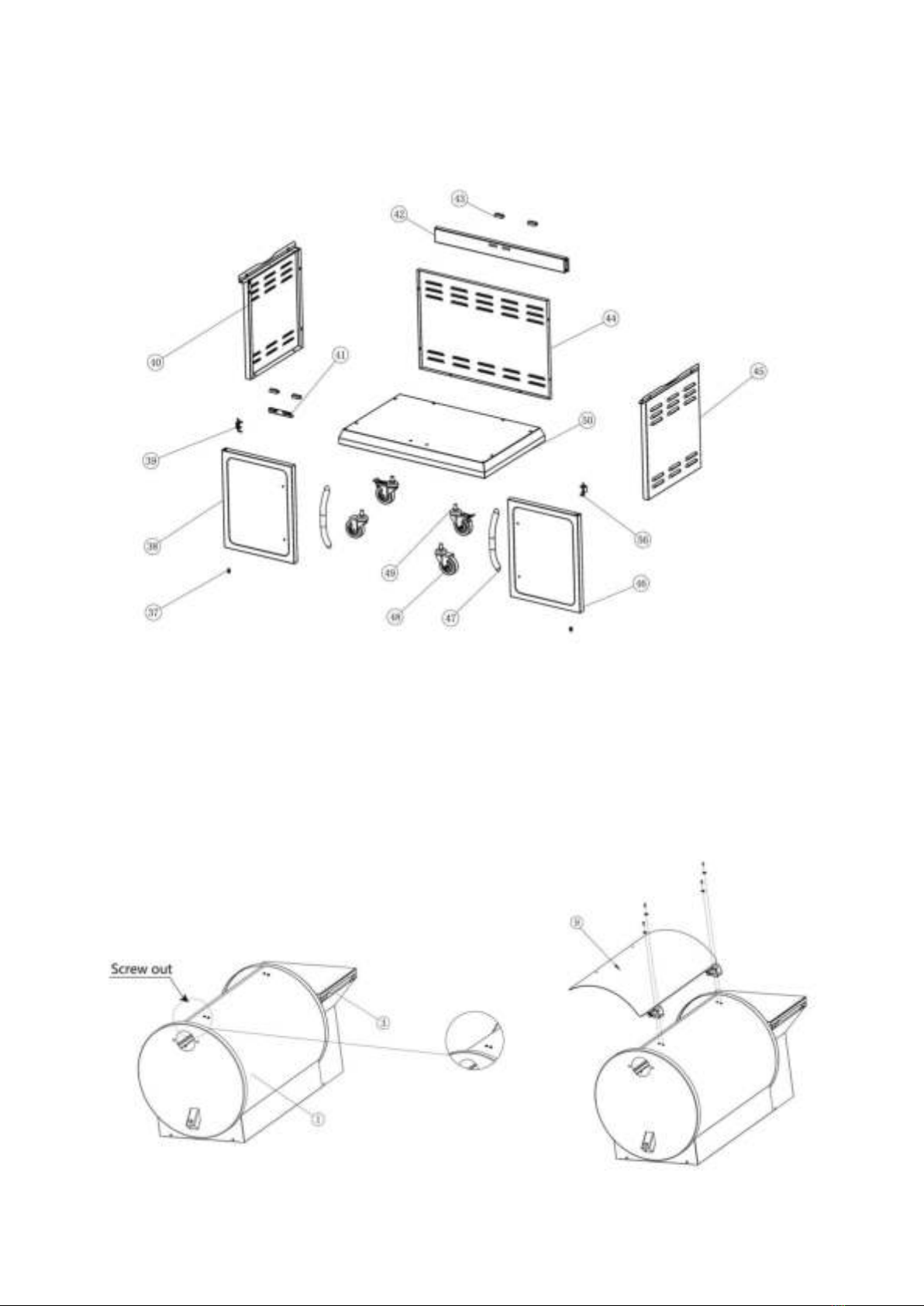

PARTS DIAGRAM
Hopper Burner Assembly:

6
Body Frame Assembly:
Lid Assembly:
1.Using a screwdriver to remove the screws and gaskets that have been assembled in the
Chamber.
2.Using the screws and gaskets to assemble the Lid as shown in the original position. Adjust
the Lid in the middle position of the Chamber and tighten the screws.

7
1.ASSEMBLING OF BOTTOM BASE
1.Turn the Platform (50) upside down. Install the wheels (without brake)(48) in the screw
holes. Tighten with wrench (59). Note: The 2 wheels (without brake)(48) should be installed
on the closed end of the platform.
2.Install the wheel (with brake)(49) into the screw holes. Tighten with wrench (59). Note: The
2 wheel (with brake)(49) should be installed on the open end of the platform.
3.Use the screws taken out from the Platform and assemble the magnet fixing plate (41) in
the original position. Clip the magnets into the square holes in the magnet fixing plate (41).
2.MOUNTING THE BODY FRAME
1.Secure Left Plate (40) on the Platform (50) with Bolt (52).
2.Secure Right Plate (45) on the Platform (50) with Bolt (52).
3.Secure Back Plate (44) on the Platform (50) with Bolt (52) and link with Left Plate (40) and
Right Plate (45).
4.Locate the Beam (42) between Left Plate (40) and Right Plate (45) with Bolt (52).

8
3.POSITIONING THE CHAMBER ON THE BODY FRAME
Lift up the Chamber (1) on the Body Frame (4). Make sure that the Chamber (1) is between
the left and right plate of the Frame (4). Align the Chamber holes with the plate holes and
secure with Bolt (52).
4.ATTACHING THE HOPPER BURNER LID DOOR HANDLE
Keep the Hopper Burner Lid (19) open. Penetrate the Bolt (58) into Gasket (57) and the hole
on the Hopper Burner Lid (19) from inside. Tight the bolt with screwdriver.

9
5.ATTACHING THE CHAMBER DOOR HANDLE
Penetrate Hexagon Bolt (53) through Gasket (54) and Lid (9) directly into the handle and
tighten. Do not screw too tightly.
6.ATTACHING THE SMOKE STACK AND CHIMNEY CAP
1.Align the holes in the Smoke Stack (15) with holes in the Smoke Stack Gasket (16), which
fits between the right end of the Grill and the Smoke Stack Gasket (16). Insert the Hexagon
Bolts (53) through the holes in the Smoke Stack (15) and the Smoke Stack Gasket (16).
2.Place a Gasket (54) on each bolt and secure with Hexagon Nut (55).

10
7.POSITIONING THE DOOR HANDLE
Align the holes in the Left Door (38) with the holes in the Handle (47). Place a Gasket (54)
on each Hexagon Bolt (53) and tighten with Wrench. Repeat the former step to assemble
the Right Door (46).

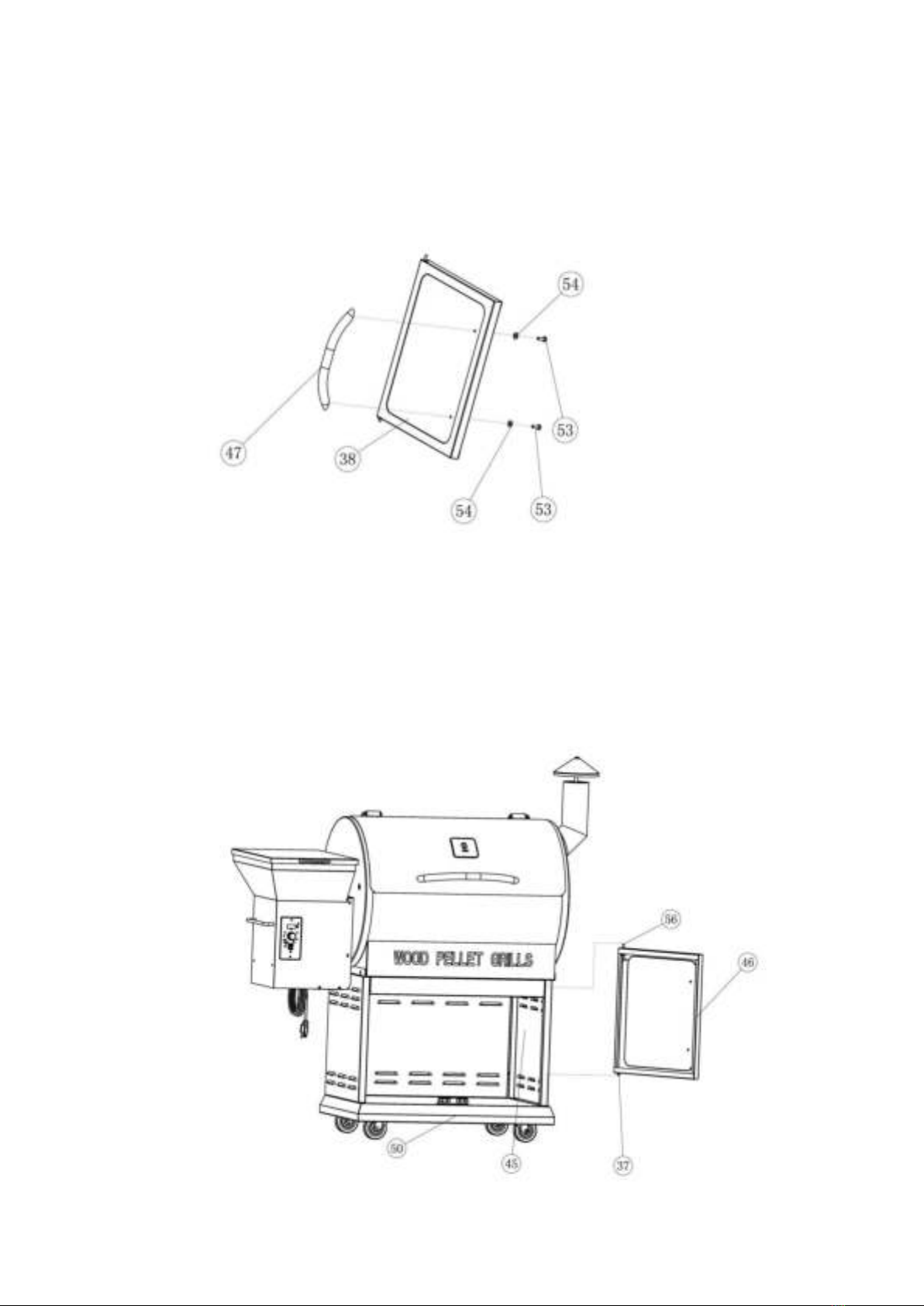

8.POSITIONING THE DOOR
1.Take the Right Door (46) with handle assembled. First insert the Bottom Pivot (37) into the
small hole on Platform (50).Then pull down the pivot until the upper end is aligned with top
edge of the door. Then align the pivot with the upper hole and pull up the pivot to secure the
door.
2.Repeat Step 1 to secure the Left Door (38). Make a proper adjustment until the doors can
be firmly closed.

11
9.POSITIONING THE HEAT BAFFLE
Position The Heat Baffle (5) on the locating brackets which are on the inside walls of
the Grill. The notched legs should be facing downward.
10.POSITIONING THE GREASE DRAIN PAN
Position The Grease Drain Pan (6) over the Firepot. The notched legs of the Grease Drain
Pan should be facing downward to fit onto the locating brackets so that the grease can flow
into the Grease Drain Tube.

12
11.POSITIONING THE PORCELAIN GRILL
Position the Porcelain Grill (8) inside the cooking area and locate the Warming Rack (7) on
the rack support inside the chamber.
12.HANG ON THE GREASE BASKET
Locate the Grease Drain Tube which is on the right side of the chamber, then hang
the Grease Bucket (17) on the hook.

13
INITIAL FIRING INSTRUCTIONS
Please read this manual carefully and follow it step by step before starting your
Z Grills for the first time and each time the grill runs out of pellets.
1.Remove the Porcelain Grills, Grease Drain Pan and Heat Baffle from the interior of the
grill.
2.Open the Pellet Hopper Lid, make sure there are no foreign objects in the Auger and
Hopper.
3.With the Switch in the OFF(O) position, plug the power cord into a 110 Volt AC grounded
outlet.
4.Turn on your Z Grill and turn the Temperature Dial to the SMOKE position. Please check
the following things:
(WARNING: Please do not touch it!)
Confirm the Auger is turning. (Wait for 1-2 minutes.)
Hold your fingers above the Firepot to confirm the fan is blowing air through the Firepot.
The hotrod will heat up and you should be able to sense the heat coming from it. (It takes
approximately 1-2 minutes.)
You should see a temperature number displayed on your LED DISPLAY. If you see
something different displayed it is an ERROR CODE. NOTE: PLEASE SEE
TROUBLESHOOTING FOR DETAILS ON ERROR CODES.
5.Turn the Temperature Dial to SHUT DOWN CYCLE.
(Please note the draft fan will stay on for 10 minutes in this mode.)
6.Fill the Pellet Hopper with Pellets. Then turn the Temperature Dial to HIGH. It takes some
time for the Pellets to travel through the tube, when the Pellets start to drop, turn the
Temperature Dial to SHUT DOWN CYCLE. Leave grill until it shuts off automatically.
7.Turn the Temperature Dial to SMOKE. Allow the Pellets to come to full flame. Once flames
are coming out of the Firepot, turn the Temperature Dial to SHUT DOWN CYCLE and let the
grill cool down.
[We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum
foil before using because it is easy to clean.]
8.Place components back in place. Open the lid and turn the Temperature Dial to SMOKE. A
few minutes later, when you see whitish-gray smoke coming out of the grill, close the lid and
turn the Temperature Dial to any cooking setting desired.
9.Set Temperature Dial to HIGH and let grill run for 45 minutes at this setting to rid it of any
foreign matter. This step must be done before cooking any food.
10.Please preheat the grill for 10 minutes before adding food. This makes your grill heat up
faster and quickly reach your desired cooking temperature. Adding food sooner will slow
down the heating process.
ALWAYS START THE GRILL ON SMOKE SETTING WITH THE LID OPEN !
After the Pellets are ignited, you can turn the Temperature Dial to any cooking temperature
desired. Please don’t turn the Temperature Dial to SHUT DOWN CYCLE while in use.

14
SUBSEQUENT START-UP
ATTENTION: If the grill fails to light or the fire in the Firepot goes out while cooking, it is vital
to follow these steps when sufficient pellets are still in the Pellet Hopper. Failure to follow the
steps may cause a hazardous “over-firing”of your grill due to an excess of unburned pellets
in the Firepot.
1.Turn OFF the appliance and unplug the Power Cord. After the grill cools down, remove all
food, the Porcelain Grills, Grease Drain Pan and the Heat Baffle.
2.Remove all unburned pellets and ash from inside and around the Firepot (See instruction
for proper handling and disposal of ash).
3.Plug the Power Cord and turn on the grill. Pellets should fall into the Firepot and the Hot
Rod should begin to heat (it will start to turn red).
4.If this step is successful, you will see flames come out of the Firepot.
Then turn the Temperature Dial to SHUT DOWN CYCLE and let it cool down. Next, put
components back in place, open the lid and turn the Temperature Dial to SMOKE. Wait a
few minutes until you see whitish-gray smoke coming out of the grill, then close the lid and
turn the Temperature Dial to any cooking setting desired.
5.If this step is not successful, see TROUBLESHOOTING or contact Z GRILLS Technical
Support to help diagnose the problem.
SHUTDOWN CYCLE
Auger turns off
Fan continues to run for 10 minutes
After you have finished cooking, turn the Temperature Dial to Shutdown Cycle position. The
function of this setting is to leave the Draft Induction Fan running for 10 minutes to burn
redundant pellets in the firepot. After the fan runs for 10 minutes, the fan will stop and the
controller will power off.
CAUTION: The main power switch will shut the power off to the controller and the
Temperature Dial Knob switch will cut off power to the grill components only. When servicing
the controller or any parts ensure that the power supply is disconnected by unplugging the
grill to avoid a shock hazard.

15
OPERATING TIPS
1.like all grills, the actual temperature of this grill and the cooking times will be affected by
external temperature, humidity, wind conditions, quality of pellets, etc.
2.It is beneficial to shelter your grill from the wind. This will aid in temperature output, heat
retention and heat recovery time when the lid is open.
3.Do not open the lid frequently, it will increase your cooking time. You can open the lid
when you want the grill to cool down quickly.
4.Please preheat the grill for 10 minutes before adding food. This will allow your grill to heat
up quickly and return to your desired temperature once food is added.
5.Never move your grill while in use.
6.Never put water into the Pellet Hopper or Firepot.
7.WARNING: NEVER ADD PELLETS TO THE FIREPOT DIRECTLY. IT IS DANGEROUS.
If you run out of pellets and lose your fire while cooking, let the grill cool down and start
again with the INITIAL FIRING INSTRUCTIONS.
8.We recommend you cover your Grease Drain Pan with heavy-duty aluminum foil and
change it frequently. This is the simplest way to clean your Grease Drain Pan. Failure to
clean the Grease Drain Pan, V-shaped Grease Drain and Grease Drain Tube may cause
grease fires. If this situation happens, turn the Temperature Dial to SHUT DOWN CYCLE
and keep the lid open until the fire is completely out. AT THE SAME TIME, BE CAREFUL
NOT TO BURN YOURSELF. When the grill is completely cool, clean any grease
accumulation from the V-shaped Grease Drain and the Grease Drain Pan. Replace the foil
on the Grease Drain Pan. Then restart the grill and resume cooking.

16
MAINTENANCE & CLEANING
Your Z GRILL requires regular maintenance.
Make sure your grill is OFF, unplugged and completely cold before performing any
maintenance and cleaning.
Grease
1.With regular use your grill will accumulate grease on the Flue Lining, the Grease Drain
Tube, the V-shaped Grease Drain and the Grease Drain Pan. Always be sure these areas
are clean and free of grease and debris. You should check and clean these areas regularly
to reduce the risk of fire.
2.It is easier to remove accumulated grease when the grill is still warm (not hot).
BE CAREFUL NOT TO BURN YOURSELF. Heat-resistant gloves are recommended.
If too much grease is allowed to build up in the V-shaped Grease Drain or is allowed to plug
the Grease Drain Tube, a grease fire could result. It is necessary to clean these area
regularly. You can scarp the grease accumulation from inside the V-shaped Grease Drain
and Grease Drain Tube by using a stiff, nonmetallic tool. Much of the loosened grease can
be pushed down through the Grease Drain Tube and fall into the Grease Bucket. Wipe up
remaining grease residue with paper towels or disposable rags.
Flue Pipe(Smoke Stack)
Remove the Chimney Cap Assembly, clean it with warm soapy water. Scrape the creosote
and grease accumulation from inside of the vertical and horizontal sections of the Flue Pipe
by using a stiff, nonmetallic tool such as a wooden paint stir stick. Once the creosote and
grease residue has been loosened from the Flue Pipe Lining, much of it can be cleaned with
paper towels or disposable rags. Do not spray water or other liquid cleaners onto the inside
of the grill.
Outside surfaces
1.Use warm soapy water to wipe away grease. Do not use oven cleaner, abrasive cleansers
or abrasive cleaning pads on the outside grill surfaces.
2.It is highly recommended that you use Z GRILLS Cover to protect your grill .
3.You can use a high-quality car wax on the outside surfaces of your grill to protect it’s finish.
Internal component
1.To clean the Porcelain-coated Grill Grates we recommend using a long-handled cleaning
brush designed for Porcelain-coated Grates.
2.It is recommended that you clean your Grill Grates after each use.
3.Clean the inner RTD temperature probe after each use.

17
Ash
Clean the ash from the interior of the grill periodically. If excessive ash is in the firepot, it may
cause the fire to go out. This is especially true in the SMOKE setting. A shop vac is an
excellent tool to use for removing the ash. WARNING: MAKE SURE THE GRILL FIRE IS
OUT, THE UNIT IS OFF, UNPLUGGED AND COLD BEFORE ATTEMPTING TO CLEAN
ASH FROM THE GRILL.

18
TROUBLESHOOTING
CAUTION: Make sure the grill is completely cool and unplugged before you do any
inspection, cleaning, maintenance or service work.
Problem
Potential
Cause
Solution
Grill does not work properly
Power
Make sure the power cord is plugged
in. Verify there is power at the electrical
outlet.
Fuse
Remove the digital control, check the
fuse on the back. Replace the fuse if
blown.
Hot Rod
If both of the Draft Inducer Fan and the
Auger Driver Motor are operating, the
Hot Rod needs to be replaced. If one or
both are not operating, please contact
customer support.
Wires &
Connections
Check the wires and connectors to
make sure they are fastened securely
and not damaged. Contact customer
support if you need help.
Auger Drive
Motor
Locate the small fan motor blade on
the back of the auger drive motor. Turn
unit on. If the fan does not turn on then
the Auger Drive Motor needs to be
replaced.
Fire goes out
Too much ash
Clean the ash. Refer to
MAINTENANCE & CLEANING.
How to start
SMOKE setting
Start your grill on the SMOKE setting
with the lid open. After 5 minutes, close
the lid and turn to any temperature
setting desired. Read the INITIAL
FIRING INSTRUCTIONS carefully.
