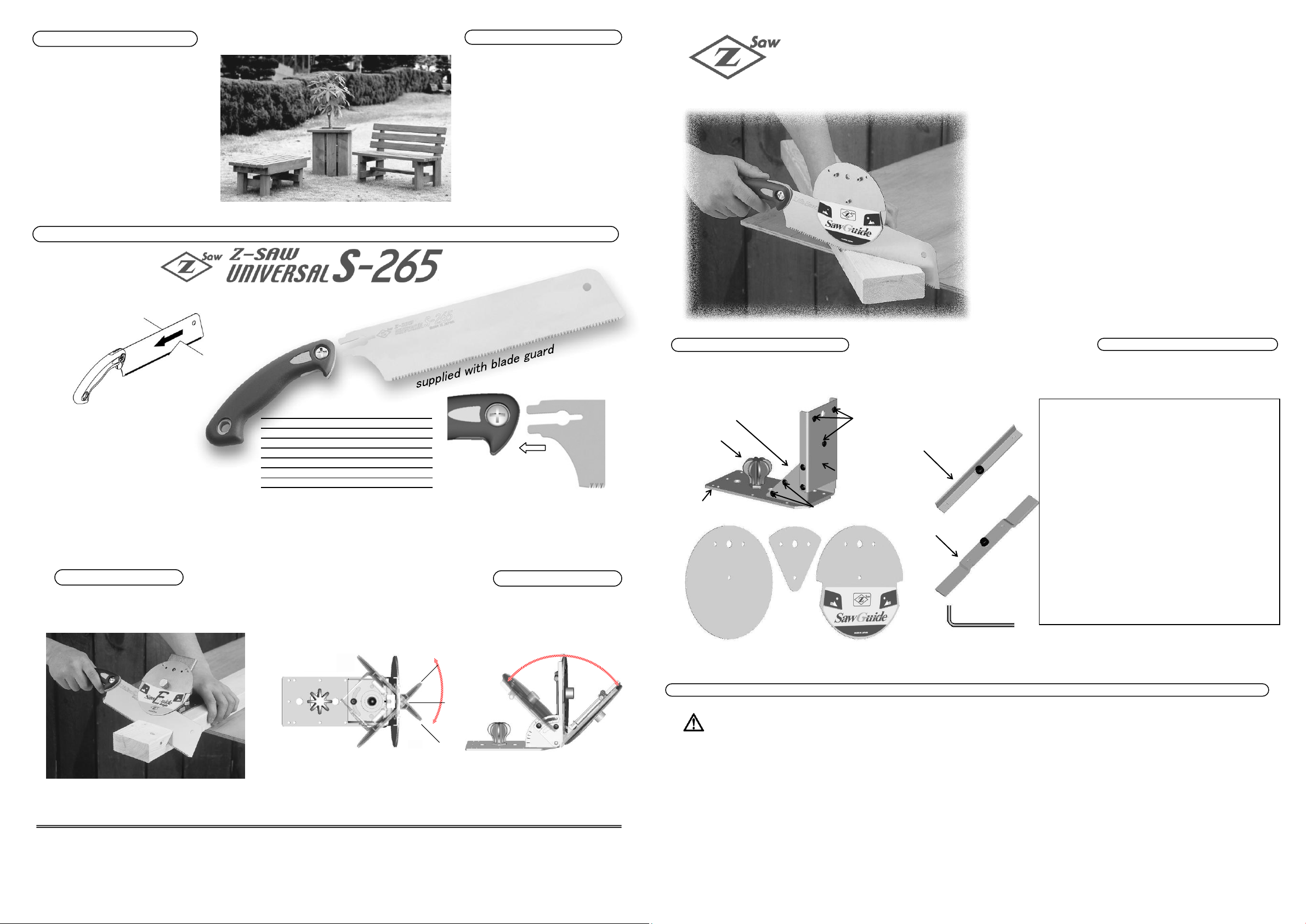

Z-Saw UNIVERSAL S-265 User manual

Saw Guide Instruction sheet
※Read the sheet prior to use, and keep it for future reference.
Part # Description Quantity
①BASE PLATE
②ANGLE BRACKET
③SAW GUIDE HOLDER
④INNER GUIDE PLATE
⑤GUIDE PLATE
⑥SPACER
⑦GUIDE FENCE
⑧PARALLEL SLIDING HOLDER
⑨KNOB
⑩SCREWS (8mm length)
⑪SPARE SCREWS
(5mm & 8mm length)
⑫HEX KEY WRENCH
※
※
③SAW GUIDE HOLDER
②ANGLE BRACKET
⑦GUIDE FENCE
①BASE PLATE
⑧PARALLEL SLIDING HOLDER
⑨KNOB
⑩SCREWS
⑪SPARE SCREWS
⑫HEX KEY WRENCH
part # ①､ ②､ ③､ and ⑨are adjusted at the factory for 90°cutting.
④
INNER GUIDE PLATE
⑤
GUIDE PLATE
⑥SPACER
Saw Guide
All these furniture were actually made by using Z-SAW UNIVERSAL S-265 & Saw Guide.
1
1
1
1
1
1
1
1
1
3
2
1
※
※marked parts are packed in a paper envelope.
45°
90°
45°
45°
45°
90°
See Saw Guide-Free Angle
Vertical Adjustment
Horizontal Adjustment
SPECIAL FEATURES:
Designed to freely adjust sawing angles both horizontally and vertically from left 45˚to right 45˚.
You may think sawing straight is very difficult
and that only professionals can do it. But,
using the Saw Guide, you can make precise
cuts just like professional carpenters do. It’s
ideal for users who always need to cut precise
90°straight cuts, both right and left 45°angle
cuts or inclined 45°angle cuts. From picture
frames to practical and useful household and
garden furniture of your own, the Guide will
definitely be an indispensable tool for your
D.I.Y. activities.
Caution
○Over tighten screws may damage the screws and Hex key wrench.
○Being used with saws other than Z-saw Universal S-265 may damage both saw blade and guide.
○Bumping saw handle against guide plates amid the strokes may cause inaccurate sawing result.
○Do not drop the guide on the ground, as doing so may cause distortions on it.
○Wear safety goggles.
Notice
○Specification may change without notice to improve quality.
○Copyright © Okada Hardware Manufacturing Company Limited.
Oh, did you make these by yourself?
Look for more versatile saw guide?
THIS SAW IS SPECIALLY DESIGNED AND PRODUCED TO BE USED WITH
SAW GUIDE-FREE ANGLE AND SAW GUIDE .
ADVANTAGES OF Z-SAW UNIVERSAL S-265
●HIGH QUALITY SAW BLADE IS DURABLE, FLEXIBLE AND RUST RESISTANT.
●SPECIAL CUTTING EDGE DESIGNED FOR RIP, CROSS & SLANT CUTS.
●EASY & QUICK BLADE REPLACEMENT STYLE (Convenient for tool box storage).
●NON-SLIP ELASTOMER COVERED GRIP HANDLE.
Cutting on the pull-stroke prevents the
blade from buckling, binding, and allows
the blade to be thin. The thinner blade
removes less material, makes sawing
easier, faster and more accurate!
Saw Blade Universal s-265
Teeth Type Medium fine
Blade Length 265mm(10-½”)
Blade Thickness 0.60mm(0.024”)
Kerf 0.92mm(0.037”)
Pitch 14TPI
Handle Pistol S-160 Green
Overall Length 420mm(16-½”)
Insert the saw blade into the
handle until the slit in the
blade is completely covered,
then tighten the screw firmly.
CUTS ON
THE PULL
STROKE
ZSGE000910-01
Okada Hardware Mfg.Co.,Ltd.
561 Omura, Miki-shi, Hyogo, Japan 673-0404
Phone: [phone] / Fax: [phone]
URL: http://www.z-saw.co.jp/en E-mail: [email protected]

For cutting wide board, clamp rule or straight wood piece. Set
⑧PARALLEL SLIDING HOLDER along the rule, then start
sawing slowly by moving the saw guide backward.
How to assemble Saw Guide
Variation of Saw Guide
Square cuts (90°)
P
e
n
c
i
l
Triangle marks
Protruding part of ②ANGLE BRACKET
45°
⑧PARALLEL SLIDING HOLDER
Clamp
Rule or straight wood piece
45°
⑦GUIDE FENCE
Straight ruler
45°
45-degree perpendicular lean cut
(Before setting up the Saw guide in this arrangement,“①BASE PLATE”,“②BRACKET”and“③SAW GUIDE HOLDER”must be disassembled.)
Fasten“③SAW GUIDE HOLDER”to 45°edge of“②ANGLE BRACKET”then fasten“②ANGLE BRACKET”
to“①BASE PLATE”with screws. Before fastening screws tightly, adjust angles carefully to the degrees
shown in the picture. The screw holes have approximately±1°of adjusting allowance.
90°
Ａ
Ｂ
Square cut
(SPARE SCREWS ARE AVAILABLE ON THE②ANGLE BRACKET.)
Align“④INNER GUIDE PLATE”,“⑥SPACER”and “⑤GUIDE PLATE”together through 8mm hole.
Putting a pencil through 8mm holes makes alignment. See figure 1.
45°
45°
90°
90°
Illustration A shows right-handed use
and B is for left-handed use.
When cutting square timber, hold the
saw guide firmly in position by hand
with ⑦GUIDE FENCE.
Handle can be reversed to provide hand
clearance.
Z SAW UNIVERSAL- S265
⑦GUIDE FENCE
⑧PARALLEL SLIDING
HOLDER
Clamp
For cutting wide board, clamp rule or straight wood
piece. Set ⑧PARALLEL SLIDING HOLDER along the
rule, then start sawing slowly by moving the saw
guide backward.
When cutting square timber, hold the
saw guide in position firmly by hand
with ⑦GUIDE FENCE.
When cutting square timber, hold the
saw guide in position firmly by hand
with ⑦GUIDE FENCE.
⑦GUIDE FENCE
⑧PARALLEL SLIDING HOLDER
45-degree cutting
Saw guides are supplied as a“Square cut set”. First, loosen the“②ANGLE BRACKET”setting screws
from“①BASE PLATE”and take the square cut set in pieces. Find two triangular marks on“①BASE
PLATE”and“②ANGLE BRACKET”, align these marks and turn“②ANGLE BRACKET”on“①BASE
PLATE”until three screw holes are aligned. Screw“②ANGLE BRACKET”to“①BASE PLATE”.
IMPORTANT: Before tightening screws fully, adjust the angle carefully to 45 degrees. The screw holes
have approximately±1°of adjusting allowance.
Straight ruler
⑦GUIDE FENCE
⑦GUIDE FENCE
⑧PARALLEL SLIDING HOLDER
⑦GUIDE FENCE
