ZAAZ 15-K User manual

ZAAZ 15K USER MANUAL
15•K

Thank you for purchasing the ZAAZ 15K. Please read this
instruction manual carefully before operating this machine.
Please pay attention to the important safety warnings and keep
this manual for future use.

ZAAZ STUDIOS | USER MANUAL 5
SAFETY GUIDE
When using this machine basic precautions should always be followed including the following:
DANGERTo reduce the risk of electric shock: Always unplug this machine from the electrical outlet
immediately after using and before cleaning.
WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:
1. The machine should never be left unattended when plugged in. Unplug from outlet when not in use,
and before putting on or taking off parts.
2. Do not operate with blanket or pillow. Excessive heating can occur and cause fire, electric shock, or
injury to persons.
3. Supervision is necessary when this machine is used near children, or by or near invalids or disabled
persons.
4. Use this machine only for its intended use as described in this manual. Do not use attachments not
recommended by T-Zone.
5. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Call the T-Zone service number for examination
and repair.
6. Do not pull on or use the power cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the machine with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors. The machine is intended for home and indoor use.
11. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
12. To disconnect, press the console OFF switch, turn the power switch off, then remove plug from
outlet.
13. The machine must be kept on level ground.
14. Do not use with wet hands or near water.
15. Do not move the machine if the power is on.
16. Do not use this machine within one hour of meals.
17. Do not use this machine for more than 12 minutes per session, unless following an appropriate
program.
18. There have not been enough studies done on the effects of Whole Body Vibration on children.
However since weight training is not supported for kids as their bodies are still developing, we do
not recommend Whole Body Vibration for children. Children and pets should always be supervised
when around Vibration Technology machines.
19. Do not use the machine if you have a pacemaker, an implant, are pregnant or have an existing
medical condition. Please consult your physician first. More information on contraindications is
listed on page 13.
20. If you feel any distress or soreness abandon your exercise immediately.
21. Should your machine malfunction, disconnect it from your power source and call our service
number, listed on page 3. Do not attempt any repairs yourself.
CONTENTS
SAFETY GUIDE 5
ASSEMBLY INSTRUCTIONS 6
TROUBLE SHOOTING 8
SERVICE AND MAINTENANCE 8
PARTS 9
OPERATION 10
BODY FAT VALUE REFERENCE 11
EXERCISE GUIDE 12
PRESET PROGRAMS 12
CHOOSING THE RIGHT SPEED 13
INTENSITY 13
REST 13
STRENGTHEN 14
STRETCH 15
MASSAGE 15
SPECIFICATIONS 17
CONTRAINDICATIONS TO VIBRATION 17

ZAAZ STUDIOS | USER MANUAL 6 ZAAZ STUDIOS | USER MANUAL 7

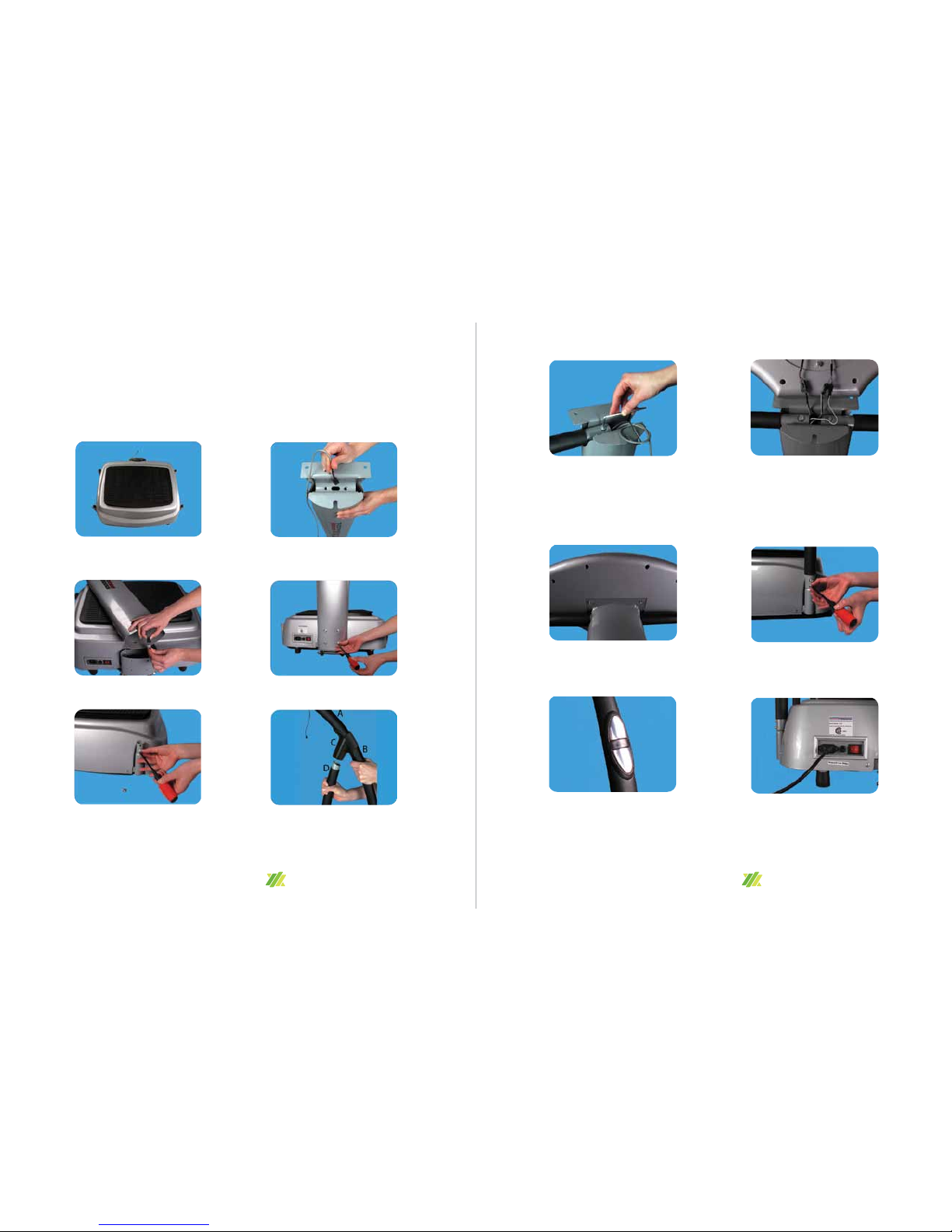

ASSEMBLY INSTRUCTIONS
This advanced design is ergonomically designed and maintains a high level of reliability and smooth
noiseless functionality.
PACKAGING: Retain all packing materials for your 15K until you are certain you have all components.
COMPONENTS: The ZAAZ 15K components include the Vibration unit, post, console, handlebars,
tool kit, power cord and User’s Manual.
7. Put the left long handlebar onto the top of
the post. Attach loosely with the long bolt by
first feeding the bolt through the hole in the
top of the arm and then lining it up with the
hole in the top of the post. Connect bottom of
left arm to the base. Tighten the screws loosely.
Then assemble the right handlebar the same
way. Tighten the top bolts and bottom screws
snugly.
9. Remove the screws from the underside of the
console and attach to the top of the post. As
you attach to the post, feed the cable down the
centre of the post so you don’t pinch the wires
when you tighten the screws.
11. To use the body fat measurement function,
remove the protective plastic film from the
sensors on the handles.
13. Connect the plug to the power outlet, and
press the red switch on the back of the base to
turn on the machine.
12. Connect the plug to the power outlet, and
press the red switch on the back of the base to
turn on the machine.
NOTE
Re-Tightening of screws and bolts may be
required every 3-6 months, depending on use.
8. Attach the 3 cables from the underside of the
console to the 2 from the curved handles and
the 1 from the centre of the post.
10. Tighten all screws and bolts snugly.
1. Remove all packaging.
5. Unscrew the 4 screws on both sides of the
base, (2 at the front and 2 at the back).
3. Connect the cable to the base.
2. At the top of the post, insert the cable
through the small hole in the middle so it pro-
trudes out both ends. Grip the top of the cable
and don’t let it fall into the post.
4. Affix the post to the base with the 4 bolts,
using the screwdriver provided or a 12 mm
socket wrench.
6. Starting with the left handlebar, connect
and screw the handle pieces (A and B) with the
plastic connector (C). Then connect piece D to
the plastic connector. Put the two handlebars
onto the end tubes simultaneously.
NOTE
Tighten all screws only 3 or 4 turns at first.
Tighten the screws until snug (not over-tight)
when assembly is finished.

ZAAZ STUDIOS | USER MANUAL 8 ZAAZ STUDIOS | USER MANUAL 9
SERVICE AND MAINTENANCE
Careful maintenance not only helps you stay safe but extends the life of your machine. Please follow
these basic guidelines:
Check and retighten screws when required.
Keep away from exposed areas and excessive heat.
Clean the machine with a soft cloth after use.
Switch off the ZAAZ 15K when not in use.
For service, call: Canada: 416 285 6055
Please refer to the back cover of this booklet for further information on your warranty.
The machine must be grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. The machine is equipped with a
cord having an equipment-grounding conductor and a grounding plug. This plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
machine is properly grounded. Do not modify the plug provided with the machine – if it will not fit the
outlet; have a proper outlet installed by a qualified
electrician.
This product is for use on a nominal 120-V circuit and looks like the
plug illustrate. Make sure that the machine is connected to an outlet
having the same configuration as the plug. No adapter should be used.
TROUBLE SHOOTING
ITEM FAILURE SOLUTION
1
2
3
4
NOISE WHILE OPERATING
NO SCREEN DISPLAY
POWER ON BUT 10K WILL
NOT START
FAT CHECKER DOES NOT
FUNCTION
CHECK THE 4 ADJUSTABLE FEET & ENSURE
THE MACHINE IS LEVEL, CHECK & TIGHTEN
ANY LOOSE PARTS
ENSURE THE MACHINE IS PLUGGED IN AND
TURNED ON
PUSH THE ON BUTTON AND SELECT SPEED
FAT CHECKER DOES NOT FUNCTION
PARTS
15K FEATURES
 Ergonomic design
 Three LED screens- displays time, speed and
body fat
 8 Pre-set programs
 Built-in body fat monitor
 70 speed adjustments, appropriate for different
fitness levels, including strength excercises and
massage
 Overload protection
 High performance monitor
No. Part QuaNtity
1
2
3
4
5
6
7
8
9
1
2
1
1
2
1
1
2
1
base
left support poles
left curved handle
post
right support poles
right curved handle
console
console pulse cable
console post cable
10
11
12
13
14
15
16
17
18
2
1
2
3
4
8
8
2
4
handle bolts
centre post cable
handle pulse cable
console screws
elbow bracket screws
support pole screws
spring washers
post elbow brackets
post bolts

ZAAZ STUDIOS | USER MANUAL 10 ZAAZ STUDIOS | USER MANUAL 11

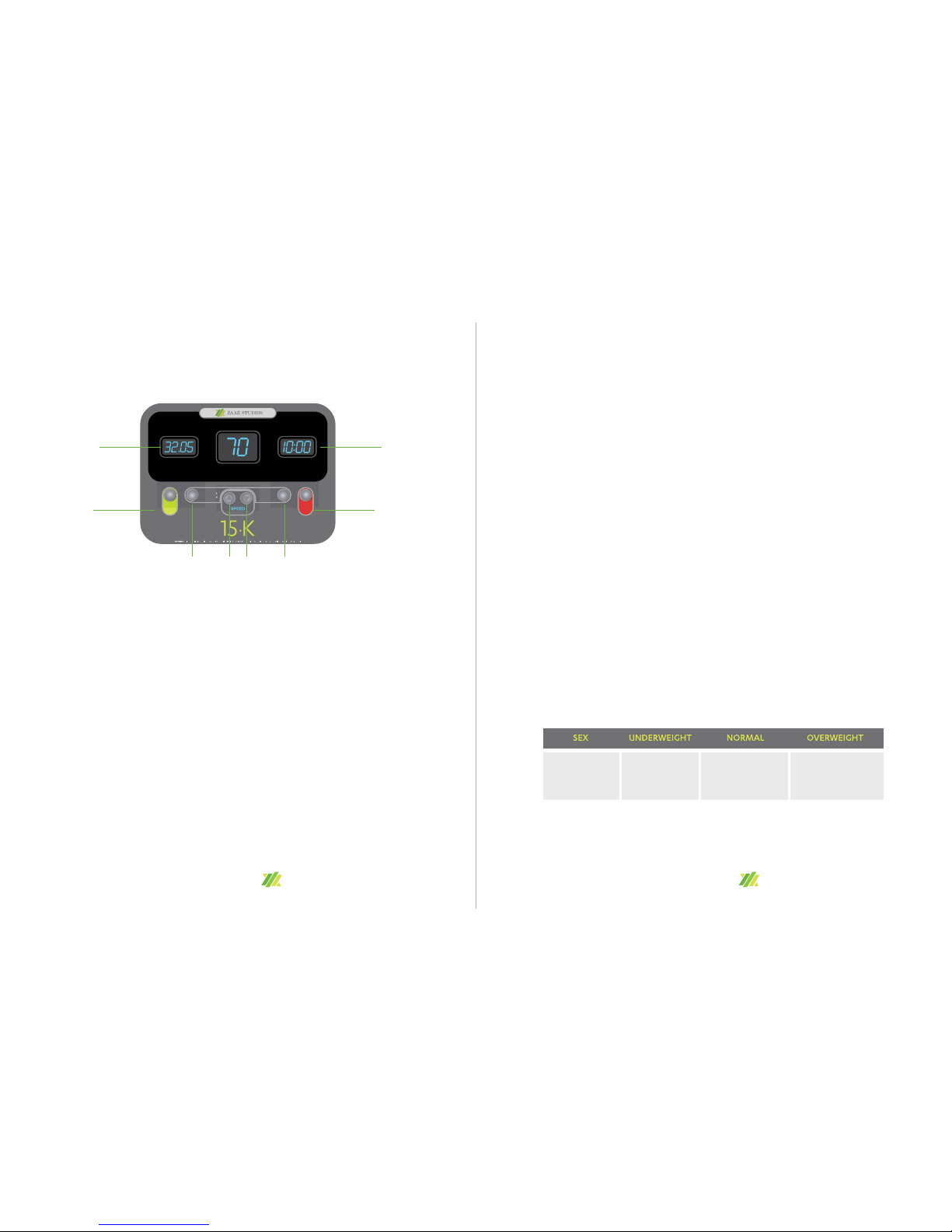

OPERATION
BUTTON AND CONSOLE DESCRIPTION
OFF/ON: Press to start or stop the machine
PROGRAM AUTOSCAN: Displays the Program Mode or Body Fat Value
SPEED: Displays the speed of the vibrating Platform
TIME: Displays the exercise time remaining on the machine
OPERATING INSTRUCTIONS
To reduce the risk of electric shock, the machine has a polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not
change the plug in any way.
The warning below is on the base of the machine:
KEEP CHILDREN OFF!
WARNING – Pinch Point!
Do not place fingers, toes or any other object near the Vibration Pad edge while in motion!
MANUAL MODE 10 MINUTE TIME
1. Press the “ON” button to power the machine.
2. Select desired speed level using the SPEED up and down arrows.
3. Keep knees slightly bent, with feet wide apart.
4. Refer to exercise chart for optional positions.
PRESET TIME
1. To operate in the Manual Mode for less than 10 minutes, press the “TIME” button initially (instead
of “ON”), then use the SPEED arrows to select the number of minutes. We recommend changing your
position after 30 seconds, unless following a specified program. 2. Press “ON” to confirm your time
selection. The speed can then be adjusted by pressing the SPEED arrows once the timer has started.
PROGRAMS
1. Press the “AUTO SCAN” button if you want to shift from the Manual Mode to Pre-set Automatic
Mode (including the 8 pre-set programs P1 – P8) or the Body Fat Monitor Mode. The screen will
display 88-P1-…-P8-1 in sequence: 88 represents the Manual Mode and “1” represents Body Fat
Monitor Mode.
2. Press the “AUTO SCAN” button continually until the screen displays your selection.
3. P1 – P8 are pre-set programs so the speed cannot be modified.
4. In the Body Fat Monitor Mode, if you press the “TIME” button, you can input your personal details
using the SPEED arrows.
5. Select your gender first, “1” is male and “2” is female.
6. Next set your age by pressing the “TIME” button. The default is 20 years.
7. Now set your height in metres using the “TIME” button. The default is 170 cm.
8. Finally set your weight in kilograms, also using the “TIME” button. The default is 70 kg.
9. After all settings are complete, push the “TIME” button again and the screen will now display “---”.
Hold both “Body Fat Sensors” with your hands and the screen will display your Body Fat Value.
BODY FAT VALUE REFERENCE
FEMALE
MALE
< 17
< 14
17-27
14-23
>27
>23
Alwaysconsult with a certi edmedical professional before embarking on this or any exercise program.
HEALTHCENTER
ON OFF
AUTO
TIME
SCAN TIME
AUTOSCAN
PROGRAM
TIME
SPEED
AUTOSCAN
PROGRAM
SPEED
PROGRAM
BODY FAT SCREEN
TIME SCREEN
PROGRAM AUTOSCAN TIME
SPEED
ON OFF

ZAAZ STUDIOS | USER MANUAL 12 ZAAZ STUDIOS | USER MANUAL 13
EXERCISE GUIDE
HOW AND WHY TO STAND
All you have to do to get benefits from the machine is stand in a comfortable straight position. How-
ever, if you want to strengthen certain muscles, just add a few changes as follows:
Stand tall with your tummy and behind tucked in (pelvic tilt). Keep your muscles firm (contracted) -
you can do this by pretending you are holding a pencil between your bum cheeks! This position will
keep you standing straight with muscles tight. Remember to keep your shoulders back and away from
the ears too. You can gain a significant amount of benefits by just standing in this position.
There are two ways of holding the knees, slightly bent and straight. If you are doing weights or stress
exercises, then the knees should be slightly bent to protect your back muscles. What bent knees
do is cushion or soften the vibration. However, if you want the vibration to go through your body as
strongly as possible, then your knees should be straight.
Just try it for yourself - feel your lower back and shoulders when the knees are bent and compare to
when the knees are locked, and you will be able to judge for yourself. The amplitude of the plate makes
a very gentle stress on the joint.
In this case, for a standing static position, the knees should ideally be straight. This straight knee posi-
tion allows more muscle reactions through out the body. Do this only if it feels right for you. If you
need a break, soften your knees.
If you hold the pencil firmly, you are doing a pelvic tilt. A pelvic tilt activates the three muscles of the
pelvic girdle or pelvic sling or muscles of core stability. Rotating the body while in this position helps
core stability, flexibility and balance.
CHOOSING THE RIGHT SPEED
The following speeds are a recommendation only and would depend on your state of health and physi-
cal condition. To enable good balance, your feet should be equally distanced from the center axis with
knees slightly bent.
• LOWER SPEED
Lower speeds are ideal for posture and strength exercises.
• MIDDLE AND HIGHER SPEEDS
Middle speeds are for weight training and stretching.
• HIGHER SPEEDS
Higher speeds are for massage and muscle relaxation.
INTENSITY
To increase the intensity of your workout we suggest you:
1. Extend the time of each position by progressively increasing from 30 to 45 to 60 seconds.
2. Perform exercise dynamically i.e. with movement
3. Increase the speed
4. Incorporate unilateral movement (i.e. perform exercises on one leg, etc.)
5. Increase amplitude by moving your feet further apart
FOR STRENGTH
Start at 30 second s for each position; up to 10 minutes total exercise time per session; 3 times per
week (alternate with day’s rest).
FOR MASSAGE
Essi Start at 30 seconds for each position; up to 10 minutes total excercise time per session; 3-5 times
per week.
(If you are following a program the reccomended duration of exercise may vary).
REST
New users should start off gradually and may need to rest by stepping off the ZAAZ 15K for 30-60 sec-
onds between strength exercises.
PRESET PROGRAMS
These programs are great for exercise and massage. Each speed is designed to change every minute,
as indicated in the table below.
NOTE
These programs run for 10 minutes but we suggest you build up your session time gradually. This is important as your body may need time to
become conditioned to Vibration therapy. Please consult your health care Practitioner before trying any new exercise program.
SPEED
P1
P2
P3
P4
P5
P6
P7
P8
5
2
10
10
16
20
20
40
10
5
25
16
20
30
30
50
15
7
10
20
26
40
40
60
20
10
25
16
30
30
50
70
25
12
10
10
26
20
40
60
27
15
40
16
30
30
30
70
35
35
10
20
26
40
40
60
40
25
40
16
30
30
50
50
25
20
10
10
16
20
40
40
15
15
25
43
16
20
30
40

ZAAZ STUDIOS | USER MANUAL 14 ZAAZ STUDIOS | USER MANUAL 15
STRENGTHEN STRETCH
MASSAGE
MAJOR BENEFITS: Slims, tones and increases your metabo-
lism as you build strength. Also good for building bone
density.
MAJOR BENEFITS: Improves flexibility, range of motion and
helps build bone density.
MAJOR BENEFITS: For relaxation, boosting circulation and
reducing cellulite. Also helps to build bone density.

ZAAZ STUDIOS | USER MANUAL 16 ZAAZ STUDIOS | USER MANUAL 17
SPECIFICATIONS
CONTRAINDICATIONS TO VIBRATION
Whole Body Vibration is very safe, but may not be suited for some people. Please be sure to seek medi-
cal advice before using ‘whole body vibration’. In particular, if you are pregnant, have a pacemaker or
other implant, or have any medical condition whatsoever, please do not undertake ‘whole body vibra-
tion’ without the approval of your medical practitioner.
The information in this document is for information only and is not intended to treat, diagnose, or cure
any physical disease or ailment. Again, please discuss with your medical practitioner before beginning
this or any exercise program.
PERFORMANCE
QUALITY
Motor High performance motor
Plate Surface 53 cm x 37 cm
Speed Range 1-70
Time Setting Up to 10 minutes (high speeds for massage)
Displays 3 Large easy to read LED displays, featuring: Auto/Fat Scan; Time;
Speed
Body Fat Monitor Calculates body fat based on sex, age, height and weight
(sensor pads on hand rails)
Programs 8 pre-set programs
Vibration ‘See-Saw’ motion to stimulate walking
Amplitude 1-10 mm
Handle Bars Side mounted for easy grip and supported balance
Maximum Load 150 kg
Warranty 5 years on motor; 2 years on parts and 1 year labour
Machine Weight 48 kg
Frame Steel frame with high quality plastic base
Assembled Height 137 cm
Base Height (Step-Up) 25.5 cm
Footprint 72 cm x 62 cm

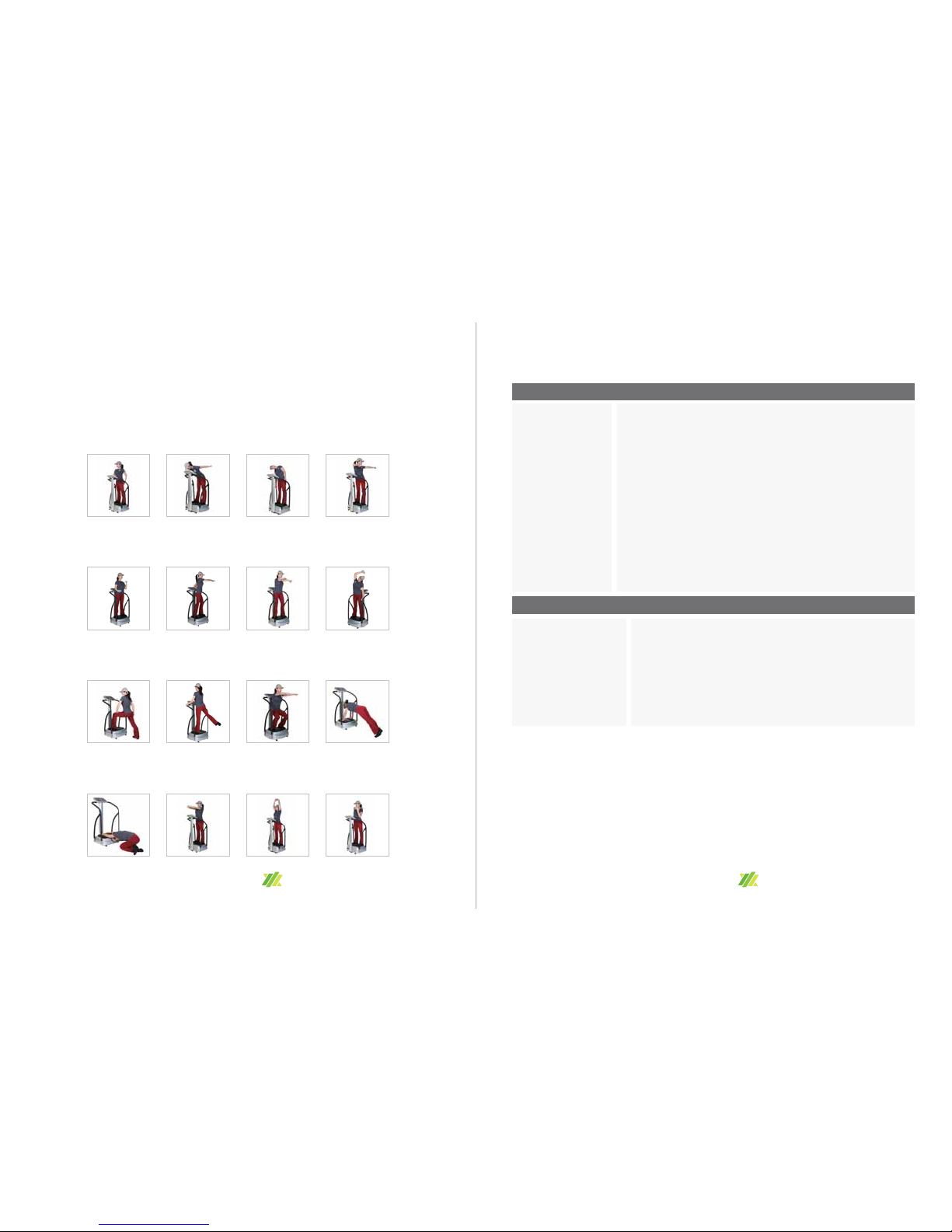

ZAAZing POSITIONS
LEVEL 1 - BEGINNER
LEVEL 2 - INTERMEDIATE
FOR EVERYONE - STRETCH IT OUT
LEVEL 3 - EXPERIENCED
Below are examples of the varied levels and positions one can develop
throughout their ZAAZ training.

 8 PRESET PROGRAMS  70 SPEED ADJUSTMENTS  THREE LED SCREENS  ERGONOMIC DESIGN  BODY FAT MONITOR 
ZAAZ 15K
Select your program, plant your feet, take hold of ergonomic rubberized grips
and experience the future of Whole Body Vibration on the ZAAZ 15K. Powerful
in its construction, quiet in its operation and cutting-edge in its technological
achievements, the ZAAZ 15K cradles you in an effective workout, punctuated
by sophistication and style. Seventy unique speed adjustments ensure
sessions that are comfortable for you while providing well-segmented
intensity to lightly increase your workout. The result? A faster path to
achieving your goals.
• Ergonomic Design
• Three LED screens - displays time, speed and body fat
• 8 Pre-Set Programs
• Built-In Body Fat Monitor
• 70 Speed Adjustments, appropriate for different fitness
levels, including strength, exercises and massage
• Overload Protection
• High Performance Motor
15•K
