Zanussi ZPAC9002 User manual

9000/11000 BTU Portable Air
Conditioner
For Customer Services & Spare Parts please call0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number: ZPAC9002/11001
220-240V AC 50Hz

Page(s)
Safety Instructions and Electrical Safety
3 - 5
Feature
Diagram 6
Control Panel
Diagram 7
Installing your Air Conditioner
8 -10
Display Screen Diagram
11
Using your Air Conditioner
12 -20
Draining your Air Conditioner
21 -22
Cleaning your Air Conditioner
23 -24
Start/End of Season Operations
25 -26
Troubleshooting
27
Guarantee and Customer Services
28
Spare Parts
29
Specification
30 -31
CONTENTS
Page 2

Page 3
Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation and
usage as described in this booklet.
•This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R290 (Propane) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting
the product to ensure that none of the refrigeration circuit components are
damaged.
•Do not obstruct ventilation openings on the appliance and never insert your
finger or any other object into the air outlet.
•Do not cover the appliance or place any object on the control panel.
•The appliance must not be placed or rested on its power cord.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply.
•Do not use the appliance if the plug is damaged.
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
•Always store the unit in an upright position in order to maintain the
compressor working in a proper condition.
•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance.
•The appliance is intended for residential use only.
•When defrosting and cleaning the appliance, do not use any tools other
than those recommended by the manufacturing company.
•The appliance must be installed, used and stored in an area that is greater
than 13 m2.

Page 4
Safety Instructions
•The appliance must be placed in an area without any continuous sources of
ignition (for example: open flames, gas or electrical appliances in
operation).
•R290/R32 is a refrigerant gas that complies with the European directives on
the environment. Do not puncture or damage any part of the refrigerant
circuit.
•If the appliance is installed, operated or stored in a non-ventilated area, the
room must be designed to prevent the accumulation of refrigerant leaks.
•Individuals who operate or work on the refrigerant circuit must have the
appropriate certification issued by an accredited organisation that ensures
competence in handling refrigerants according to a specific evaluation
recognized by associations in the industry.
•Maintenance and repairs that require the assistance of other qualified
personnel must be performed under the supervision of an individual
specified in the use of flammable refrigerants.
•Be aware that the refrigerants may not contain an odour.
•Compliance with national gas regulations shall be observed.
•The appliance shall be stored so as to prevent mechanical damage from
occurring.
•WARNING: System contains refrigerant under very high pressure. The
system must be serviced and repaired as recommended by the equipment
manufacturer and by qualified persons only.
•Do not use in the following locations: -
Next to a source of fire.
An area where oil is likely to splash.
An area exposed to direct sunlight.
An area where water is likely to splash.
Near a bath, shower or a swimming pool.
In a greenhouse.
An area where flammable gasses or liquids are present.

Page 5
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage the
unit.
•This product may be fitted with a non rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug fitted.
This should be carried out by a qualified electrician. The plug removed must be
disposed of safely, as insertion into a 13 Amp socket is likely to cause an
electrical hazard.

FEATURE DIAGRAM
Front
1. Control panel
2. Deflector
3. Display screen
4. Handle (both sides)
5. Castors
Rear
6. Filter
7. Remote control holder
8. Power cable
9. Filter
10. Condensation drain
11. Plug fixer
12. Air exhaust hose
13. Holes for power cable
hooks
Page 6
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk

CONTROL PANEL DIAGRAM
1. Fan button
2. Decrease button
3. Increase button
4. Mode button
5. ON/OFF button
Page 7

Exhausting Hot Air
In the COOL mode the appliance must be placed close to a window
or opening so that the warm exhaust air can be ducted from outside.
First position the unit on a flat floor and make sure there is a
minimum of a 45cm (18inch) clearance around the unit and ensure
this is within the vicinity of a plug socket.
1. Extend either side of the hose (Fig. 1) and screw on the hose
inlet (Fig. 2).
2. Extend the other side of the hose and screw it into the hose
outlet (Fig. 3)
3. Install the hose inlet into the unit (Fig. 4)
4. Affix the hose outlet into the window slider kit and seal (Fig. 5+6)
Your window slider kit has been designed to fit most standard vertical
and horizontal windows; however, it may be necessary for you to
modify some aspects of the installation procedures for certain types
of windows. The window slider kit can be fastened with screws (may
not be supplied).
INSTALLING YOUR AIR
CONDITIONER
Page 8

NOTE: If the window opening is less than the minimum length of the
window slider kit, cut the end without the hole in so that it is short
enough to fit in the window opening. Never cut out the hole in the kit.
Window Slider Kit Installation
1. Parts
A = Panel
B = Panel with one hole
C = Locking Pin
INSTALLING YOUR AIR
CONDITIONER
Page 9
C

2. Assembly
•Slide Panel B into Panel A and size to the width of the window
(window size may vary). When sizing the window width, be sure
that the window assembly kit is free from any gaps and/or air
pockets when taking measurements.
•Place the locking pin into the corresponding hole. Ensuring the
installation kit is the correct size, without gaps or air pockets.
Location
•The unit should be placed on firm ground to help minimise noise
and vibration. For safe and secure positioning, place the unit on a
smooth, level floor which is strong enough to support the unit.
•This unit has castors to aid placement but it should only be rolled
on smooth, flat surfaces. Use caution when rolling on carpeted and
wooden surfaces. Do not attempt to roll the unit over other
objects.
•The unit must be placed within reach of a properly rated grounded
socket.
•Never place any obstacles around the air inlet or outlet of the unit.
•Allow at least 45cm of space around, above and away from the
wall to ensure the appliance works efficiently.
•The hose can be extended but it is best to keep it to the minimum
length required. Also ensure that the hose does not have any sharp
bends or sags.
INSTALLING YOUR AIR
CONDITIONER
Page 10

DISPLAY SCREEN DIAGRAM
Page 11
1. Cool symbol
2. Heat symbol*
3. Fan speed indicator
4. Timer symbol
5. Temperature symbol
6. Temperature indicator
‘*’ means that only heat pump models have this function.

USING YOUR AIR CONDITIONER
Page 12
Operating from the control panel
The control panel is on top of the appliance and it enables you to manage
functions without using the remote control. However, to use the appliance
to its full potential you are advised to use the remote control.
To turn the appliance on plug it into a mains socket and the appliance will
enter standby mode.
Press the ON/OFF button to turn the appliance on, the last function that
was active when the appliance was turned off will appear.
“Never turn the appliance off by unplugging it from the mains. Always
press the ON/OFF button, then wait for a few minutes before
unplugging. This allows the appliance to perform a cycle of checks to
verify the operation”
COOL Mode
Ideal for hot humid weather when you need to cool and dehumidify the
room.
To set this mode correctly:
-Press the ‘M’ button several times until the COOL symbol appears.
- Select the desired temperature by pressing the INCREASE and
DECREASE buttons until the value you want is displayed. The
temperature ranges from 18-32°C (64-90°F) in this mode.
- Select the required fan speed by pressing the FAN button.
- There are 4 fan speeds to choose from: High/Medium/Low/Auto
High Speed: For maximum fan power
Medium Speed: Reduces noise levels but still maintains a
good level of comfort
Low Speed: For silent operation
Auto Speed: The appliance will automatically select the
most suitable fan speed in relation to the temperature which
it is set at

USING YOUR AIR CONDITIONER
Page 13
HEAT Mode*
‘*’ means only the heat pump model have this function.
To set this mode correctly:
-Press the ‘M’ button several times until the HEAT symbol appears.
- Select the desired temperature by pressing the INCREASE and
DECREASE buttons until the value you want is displayed. The
temperature ranges from 13-27°C (55-81°F) in this mode.
- Select the required fan speed by pressing the FAN button.
- There are 4 fan speeds to choose from: High/Medium/Low/Auto
High Speed: For maximum fan power
Medium Speed: Reduces noise levels but still maintains a
good level of comfort
Low Speed: For silent operation
Auto Speed: The appliance will automatically select the
most suitable fan speed in relation to the temperature which
it is set at
FAN Mode
When using the appliance in this mode, the air hose does not need to be
attached.
To set this mode correctly:
-Press the ‘M’ button several times until the symbol appears.
- Select the required fan speed by pressing the FAN button.
- There are 3 fan speeds to choose from: High/Medium/Low
Medium Speed: Reduces noise levels but still maintains a
good level of comfort
Low Speed: For silent operation
High Speed: For maximum fan power

USING YOUR AIR CONDITIONER
Page 14
DRY Mode
Ideal to reduce room humidity (good for use in spring, autumn, damp
rooms and rainy periods)
When in DRY mode the appliance should be prepared in the same way as
for COOL mode, with the air exhaust hose attached to enable the moisture
to be discharged outside.
To set this mode correctly:
-Press the ‘M’ button several times until the symbol appears.
- In this mode, the fan speed is automatically selected by the appliance
and can not be set manually.
Switching the unit of temperature
When the appliance is in standby, hold the ‘M’ button until the appliance
beeps (approx. 20 seconds). Once the appliance has beeped you will be
able to change the unit of temperature.
For example:
Before change and when in cool mode the screen
will display like this.
After the change the screen will then display like
this.

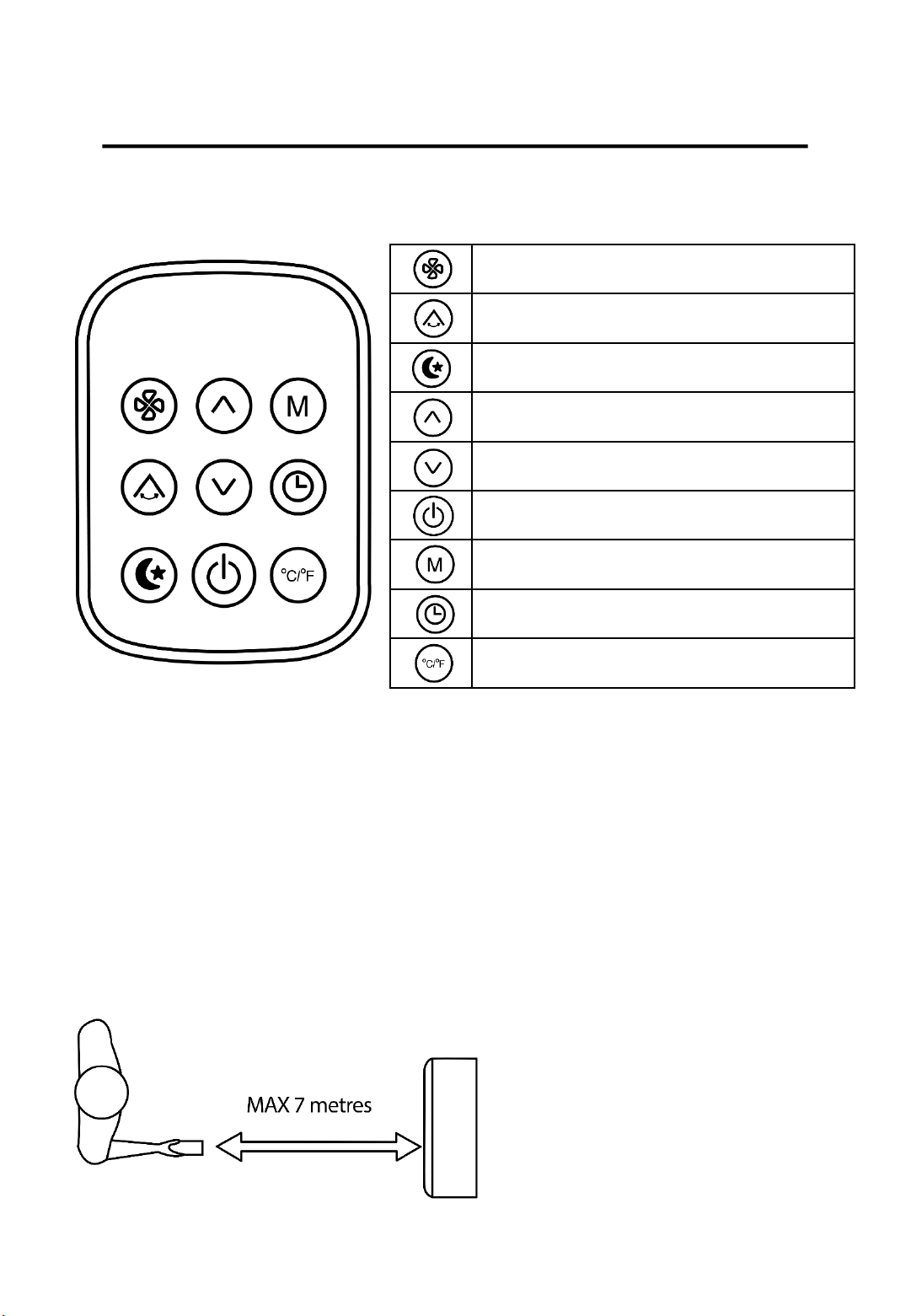

Operating from the remote control
USING YOUR AIR CONDITIONER
Page 15
Fan button
Oscillating button
Night Mode button
Increase button
Decrease button
On/Off button
Mode button
Timer button
Unit Switch button
•Point the remote control at the receiver on the appliance.
•The remote control must be no more that 7 meters away from the
appliance (without obstacles between the remote control and the
receiver).
•The remote control must be handled with extreme care to ensure
continuous usage. Do not drop or expose the remote to direct sunlight
or sources of heat.

The remote comes with a battery already installed. To use the remote
for the first time, remove the transparent insulating strip by pulling it
out gently.
Replacing the Battery
To replace the battery follow the steps below:
1. Press down the pin and remove the battery cover
2. Replace the battery and then reinstall the battery cover into the
remote.
WARNING: Chemical Burn Hazard –Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used
lithium button/cell battery is swallowed or enters the body, it can cause
severe internal burns and can lead to death in as little as 2 hours. Always
make sure you completely secure the battery compartment. If the
battery compartment does not close securely, stop using the product,
remove the battery and keep it away from children. If you think the
battery might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
The cells should be disposed of correctly, including keeping them away
from children, even used cells may cause injury.
USING YOUR AIR CONDITIONER
Page 16

COOL Mode, HEAT Mode, FAN Mode, DRY Mode
To correctly set these four modes using the remote control, follow
the same steps that are stated in the ‘Operating from the control
panel’ section of this manual but instead of pressing the buttons
mentioned on the control panel press the corresponding buttons on
the remote control.
Oscillating function
This function is useful for selecting the up and down flow of air
delivery.
To set this function correctly:
- Select the desired operating mode as detailed above.
- Press the OSCILLATING button and the deflector will begin to
swing.
Night Mode function
This function is useful for the night as it gradually reduces the
operation of the appliance.
To set this function correctly:
- Select the COOL or HEAT mode.
- Press the NIGHT MODE button.
The appliance will then operate in the previously selected mode.
When in this function the display screen will reduce in brightness and
the room will be maintained at the optimum temperature without
excessive fluctuations in temperature or humidity with silent
operation. The fan speed will always be low so you are not disturbed
by excessive noise while you sleep.
When in COOL mode, the selected temperature will increase by 1°C
(1°F) per hour over a 2-hour period. This new temperature will then
be maintained for the next 6 hours. After 6 hours the appliance will
turn itself off.
USING YOUR AIR CONDITIONER
Page 17

USING YOUR AIR CONDITIONER
Page 18
When in HEAT mode, the selected temperature will increase by 1°C
(1°F) per hour over a 3-hour period. This new temperature will then
be maintained for the next 5 hours. After 5 hours the appliance will
turn itself off.
This function can be cancelled at any time during operation by
pressing either the NIGHT MODE, MODE or FAN SPEED button.
Switching the unit of temperature
When the appliance is in standby, press the UNIT SWITCH button and
this will allow you to change the unit of temperature from °C to °F
and vice versa.
Setting the timer
The timer can be used to schedule the start up or shutting down of
the appliance.
Programming start up:
- Turn on the appliance and select the mode, temperature and fan
speed you desire, then turn off the appliance.
- Press the TIMER button and the screen will display 1-24 hours
while the COOL, FAN SPEED and TIMER symbol all flash together
(Fig. 3).
- Adjust the timer until the desired time is displayed. Wait for
approximately 5 seconds and then the timer will then be active.
Only the TIMER symbol should be displayed on the screen (Fig. 4).
- Press either the TIMER or the ON/OFF button and the timer will be
cancelled. The TIMER symbol will then disappear from the screen.

USING YOUR AIR CONDITIONER
Page 19
Programming shut down:

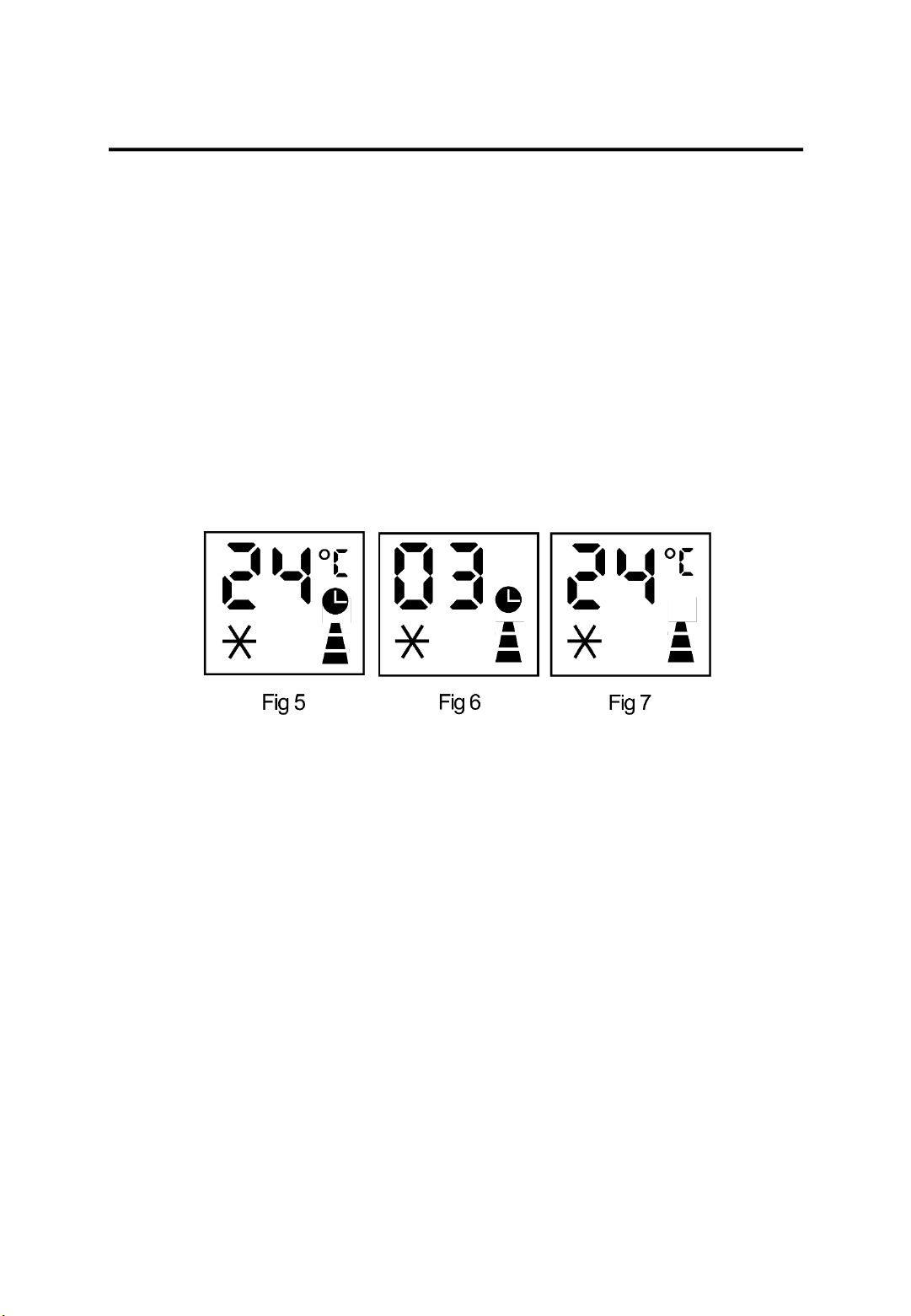

- When the appliance is running press the TIMER button, the screen
will then display the hours and several symbols will flash together
(Fig. 5).
- Adjust the timer until the desired time is displayed. Wait for
approximately 5 seconds and then the timer will be active. Only the
TIMER symbol should be displayed on the screen (Fig. 6).
- Press either the TIMER or the ON/OFF button and the timer will be
cancelled. The TIMER symbol will then disappear from the screen
(Fig. 7).
Tips for correct use
To get the best out of your appliance, follow these
recommendations:
•If possible, close the windows and doors in the room you want to
be air conditioned (Fig 21). When installing the appliance semi-
permanently you should leave a door slightly open (as little as 1cm)
to guarantee correct ventilation.
•Protect the room from direct exposure to the sun by partially
closing curtains and/or blinds to make the appliance much more
economical to run (Fig 22).
•Never rest objects of any kind on the appliance.
•Do not obstruct the air intake and outlet (Fig 23). Ensure the grills
are left free.
•Make sure there are no heat sources within the room.

USING YOUR AIR CONDITIONER
Page 20
•Never use the appliance in very damp rooms (e.g. Laundry Rooms).
•Never use the appliance outdoors.
•Make sure the appliance is standing on a level surface. If necessary,
place the castor locks under the front wheels.
Self-Diagnosis
This appliance has a self-diagnosis system to help identify a number
of malfunctions.
The following error messages will be displayed is the appliance has
identified a malfunction.
DISPLAY WHAT SHOULD YOU DO?
LOW
TEMPERATURE
The appliance is fitted with a frost protection
device to avoid the excessive formation of ice.
You DO NOT need to do anything when this
happens, the appliance will start back up
automatically once defrosted.
PROBE FAILURE
If this is displayed please contact our Customer
Service team by calling
0330 1230 597.
FULL TANK
Empty the internal safety tank, following the
instructions in the “End of Season Operations”
section of this Instruction Manual
