Zanussi ZCI68330BA User manual

EN
ZCI68330BA
ZCI68330WA
ZCI68330XA
User Manual
Cooker

Contents
Safety information 2
Safety instructions 4
Product description 6
Before first use 7
Hob - Daily use 8
Hob - Hints and tips 12
Hob - Care and cleaning 13
Oven - Daily use 13
Oven - Clock functions 15
Oven - Hints and tips 16
Oven - Care and cleaning 21
Troubleshooting 22
Installation 24
Energy efficiency 26
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•Only a qualified person must install this appliance and replace
the cable.
2 www.zanussi.com

•This appliance must be connected to the mains with a H05VV-
F type cable to withstand the temperature of the rear panel.
•This appliance is intended for use up to an altitude of 2000 m
above sea level.
•This appliance is not intended to be used on a ships, boats or
vessels.
•Do not install the appliance behind a decorative door in order
to avoid overheating.
•Do not install the appliance on a platform.
•Do not operate the appliance by means of an external timer or
separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blanket.
•CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door or the glass of hinged lids of the hob since
they can scratch the surface, which may result in shattering of
the glass.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•If the glass ceramic surface / glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock.
•After use, switch off the hob element by its control and do not
rely on the pan detector.
•WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
www.zanussi.com 3

•Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
•The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The use
of inappropriate guards can cause accidents.
Safety instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied
with the appliance.
• Always take care when moving the appliance
as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
Electrical Connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical
ratings of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or come near
the appliance door, especially when the door
is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
4 www.zanussi.com

the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not use the appliance as a work surface
or as a storage surface.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the appliance
is in operation.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or heated
objects away from fats and oils when you
cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a
mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless steel
has no effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance or
directly on the bottom of the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up when
you have to move them on the cooking
surface.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Fat and food remaining in the appliance can
cause fire.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
www.zanussi.com 5

• Make sure the cavity and the door are wiped
dry after each use. Steam produced during
the operation of the appliance condensates
on cavity walls and can cause corrosion. To
decrease the condensation operate the
appliance for 10 minutes before cooking.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use any
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance is only for household
appliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Product description

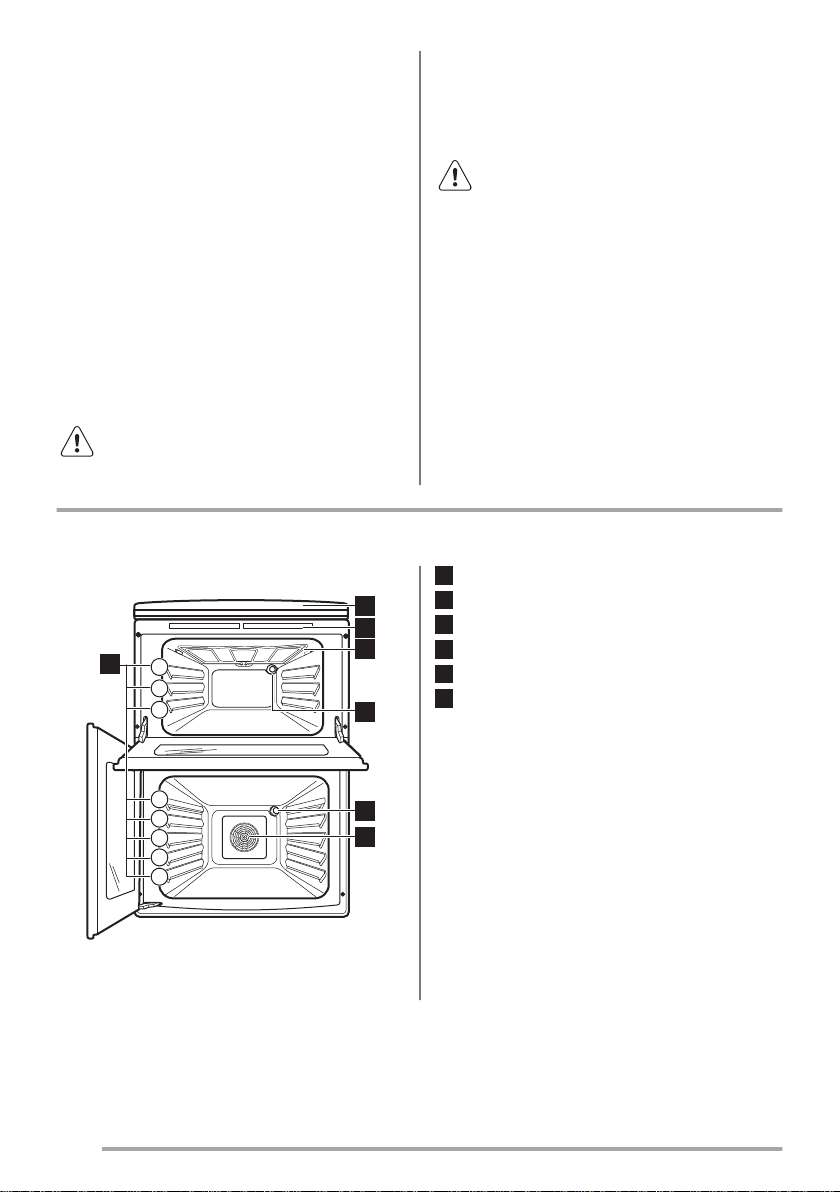

General overview
2
1
3
4
4
5
3
2
1
5
4
3
2
1
6
1Control panel and hob
2Air vents for the cooling fan
3Heating element
4Lamp
5Fan
6Shelf positions
6 www.zanussi.com

Cooking surface layout
2
210 mm 180 mm
180 mm
140 mm
1 3
6
4
5
1Induction cooking zone 1400 W with the
Power function 2500 W
2Steam outlet - number and position depend
on the model
3Induction cooking zone 1800 W with the
Power function 2800 W
4Induction cooking zone 1800 W with the
Power function 2800 W
5Control panel
6Induction cooking zone 2300 W with the
Power function 3600 W
Cooker control panel
56
1 2 43 1
1Knobs for the hob
2Knob for the top oven functions
3Electronic programmer
4Knob for the main oven functions
5Temperature indicator / symbol for the main
oven
6Temperature indicator / symbol for the top
oven
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Trivet
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
Before first use
WARNING!
Refer to Safety chapters.
Initial Cleaning
Remove all accessories from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories before
first use.
Put the accessories back to their initial position.
Using the sensor fields
To activate a function touch and hold the
selected symbol on the display for minimum 1
second.
Setting and changing the time
You must set the time before you operate the
oven.
When you connect the appliance to the
electrical supply or after a power cut,
flashes.
Press the or to set the correct time.
www.zanussi.com 7

After approximately 5 seconds, the flashing
stops and the display shows the time of day.
To change the time, press again and again
until starts to flash.
Preheating
Preheat the empty appliance before first use.
Preheat the two ovens. Heat up one
oven at a time.
1. Set the maximum temperature.
2. Let the appliance operate for 1 hour.
3. Set the function .
4. Let the appliance operate for 15 minutes.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow is sufficient.
Hob - Daily use
WARNING!
Refer to Safety chapters.

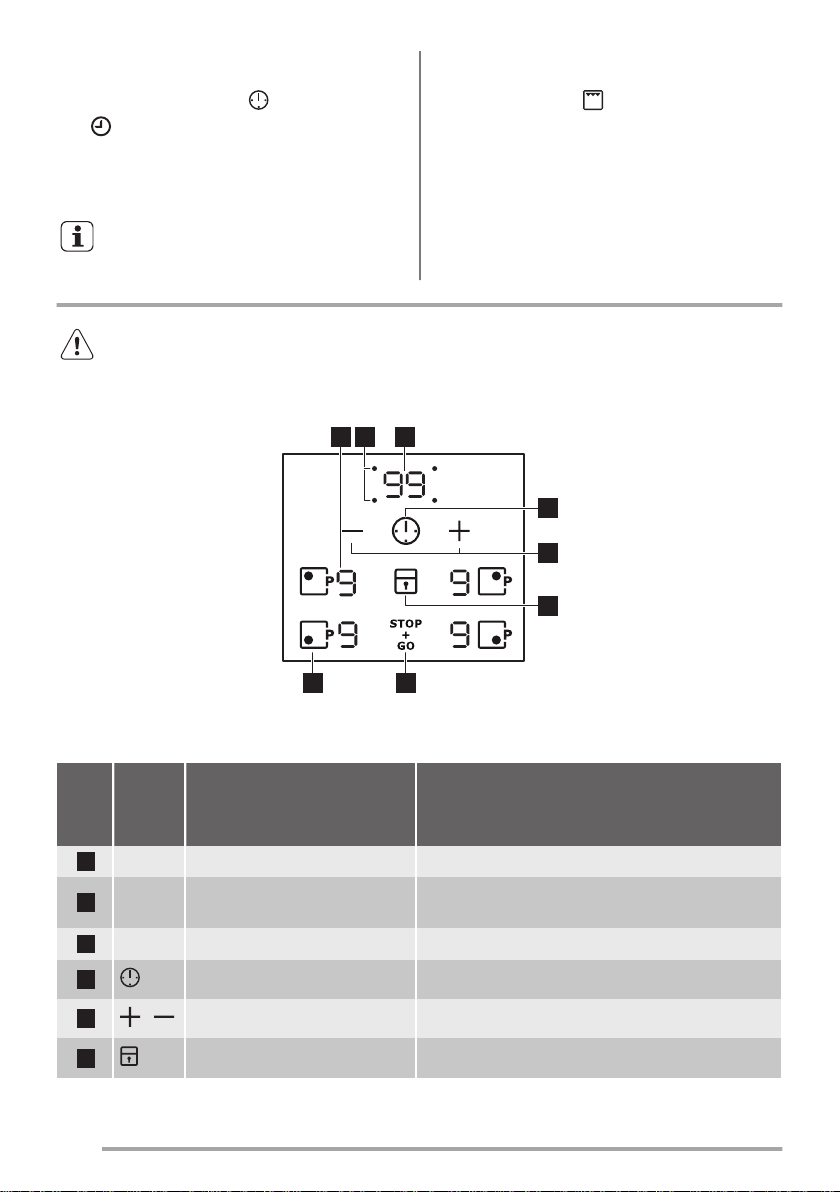

Hob control panel
321
4
5
6
8 7
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sen-
sor
field
Function Comment
1- Heat setting display To show the heat setting.
2- Timer indicators of cooking
zones To show for which zone you set the time.
3- Timer display To show the time in minutes.
4- To select the cooking zone.
5/ - To increase or decrease the time.
6Lock / The Child Safety Device To lock / unlock the control panel.
8 www.zanussi.com

Sen-
sor
field
Function Comment
7STOP+GO To activate and deactivate the function.
8Power function To activate and deactivate the function.

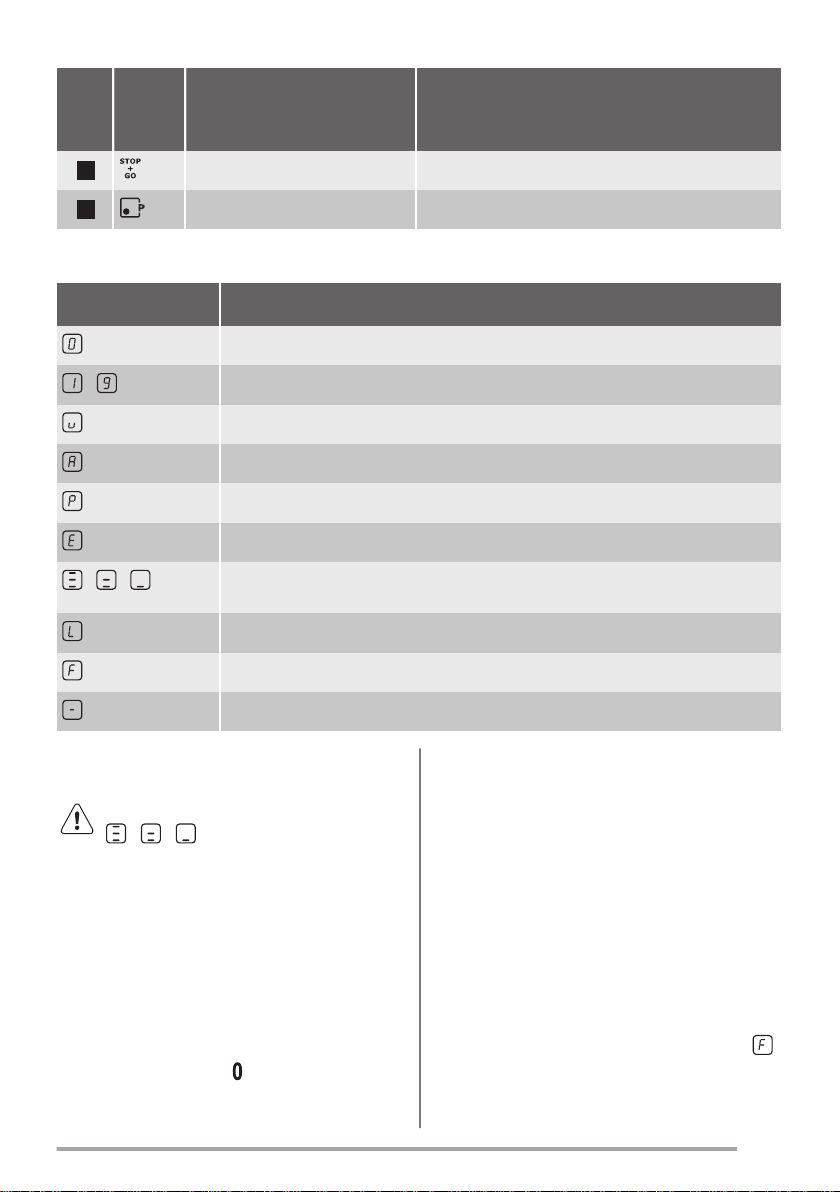

Heat setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
STOP+GO function operates.
Automatic Heat Up function operates.
Power function operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator): continue cooking / keep
warm / residual heat.
Lock / The Child Safety Device function operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off function operates.
OptiHeat Control (3 step Residual heat
indicator)
WARNING!
/ / There is a risk of burns
from residual heat. The indicator
shows the level of the residual heat.
The induction cooking zones make the heat
necessary for cooking process directly in the
bottom of the cookware. The glass ceramic is
heated by the heat of the cookware.
The heat setting
To set or change the heat setting turn the knob
to the correct heat setting. To deactivate turn
the knob to off position .
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on the
control panel for more than 10 seconds (a
pan, a cloth, etc.). An acoustic signal sounds
and the hob deactivates. Remove the object
or clean the control panel.
• the hob gets too hot (e.g. when a saucepan
boils dry). Let the cooking zone cool down
before you use the hob again.
• you use incorrect cookware. The symbol
comes on and the cooking zone deactivates
automatically after 2 minutes.
www.zanussi.com 9

• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting and
the time after which the hob deactivates:
Heat setting The hob deacti-
vates after
, 1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour
Automatic Heat Up
If you activate this function you can get a
necessary heat setting in a shorter time. The
function sets the highest heat setting for some
time and then decreases to the correct heat
setting.
To activate the function the cooking
zone must be cold.
To activate the function for a cooking
zone: turn the knob for a cooking zone to
position A. comes on in the display.
Immediately set the correct heat setting.
To deactivate the function: turn the knob to
the off position.
Power function
This function makes more power available to the
induction cooking zones. The function can be
activated for the induction cooking zone only for
a limited period of time. After this time the
induction cooking zone automatically sets back
to the highest heat setting.
To activate the function for a cooking
zone: touch . comes on.
To deactivate the function: change the heat
setting.
Timer
Count Down Timer
You can use this function to set how long the
cooking zone should operate for a single
cooking session.
First set the heat setting for the cooking zone
then set the function.
To set the cooking zone: touch again and
again until the indicator of a necessary cooking
zone comes on.
To activate the function: touch of the
timer to set the time (00 - 99 minutes). When
the indicator of the cooking zone starts to flash
slowly the time counts down.
To see the remaining time: set the cooking
zone with . The indicator of the cooking zone
starts to flash quickly. The display shows the
remaining time.
To change the time: set the cooking zone
with . Touch or .
To deactivate the function: set the cooking
zone with and touch . The remaining time
counts back to 00. The indicator of the cooking
zone goes out. To deactivate the function you
can also touch and at the same time.
When the time comes to an end, the
sound operates and 00 flashes. The
cooking zone deactivates.
To stop the sound: touch .
CountUp Timer (The count up timer)
You can use this function to monitor how long
the cooking zone operates.
To set the cooking zone: touch again and
again until the indicator of a necessary cooking
zone comes on.
To activate the function: touch of the
timer. comes on. When the indicator of the
cooking zone starts to flash slowly the time
counts up. The display switches between
and counted time (minutes).
To see how long the cooking zone
operates: set the cooking zone with . The
indicator of the cooking zone starts to flash
quickly. The display shows how long the zone
operates.
To deactivate the function: set the cooking
zone with and touch or . The indicator
of the cooking zone goes out.
10 www.zanussi.com

Minute Minder
You can use this function as a Minute Minder
when the hob is activated and the cooking
zones do not operate. The heat setting display
shows .
To activate the function: touch . Touch
or of the timer to set the time. Cooking
zones display deactivates automatically after 10
seconds. When the time comes to an end, the
sound operates and 00 flashes.
To stop the sound: touch .
To deactivate the function: activate for a
short time and deactivate left front cooking
zone.
The function has no effect on the
operation of the cooking zones.
STOP+GO
This function sets all cooking zones that operate
to the lowest heat setting.
The function does not stop the timer functions.
To activate the function: touch .
comes on.
To deactivate the function: touch . The
previous heat setting comes on.
If you change the heat setting, the
function stops and the display
shows the new heat setting.
Lock
You can lock the sensors on the hob while
cooking zones operate.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch . The
previous heat setting comes on.
When you deactivate the hob, you
also deactivate this function.
The Child Safety Device
This function prevents an accidental operation
of the hob.
To activate the function: the hob must be
deactivated. Touch until flashes. Touch
. comes on for 4 seconds.
To deactivate the function: the hob must be
deactivated. Touch until flashes. Touch
. comes on for 4 seconds.
To override the function for only one
cooking time: activate the cooking zone.
comes on. Touch until comes on. Set
the heat setting in 4 seconds. You can
operate the hob. When you deactivate the
appliance the function operates again.
Power management function
• All cooking zones are connected to one
phase. See the illustration.
• The phase has a maximum electricity load.
• The function divides the power between
cooking zones.
• The function activates when the total
electricity load of the cooking zones is
exceeded.
• The function decreases the power to the
other cooking zones.
• The heat setting display of the reduced
zones changes between two levels.
www.zanussi.com 11

Hob - Hints and tips
WARNING!
Refer to Safety chapters.
Cookware
For induction cooking zones a
strong electro-magnetic field creates
the heat in the cookware very
quickly.
Use the induction cooking zones
with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled steel,
stainless steel, the bottom made of multi-
layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction hob
if:
• some water boils very quickly on a zone set
to the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware must be
as thick and flat as possible.
Cookware dimensions
Induction cooking zones adapt to the dimension
of the bottom of the cookware automatically to
some limit.
The cooking zone efficiency is related to the
diameter of the cookware. The cookware with a
smaller diameter than the minimum receives
only a part of the power generated by the
cooking zone.
Minimum cookware diameter
Cooking zone Cookware diam-
eter (mm)
Left rear 125 - 140
Right rear 145 - 180
Right front 145 - 180
Left front 180 - 210
The noises during operation
If you can hear:
• crack noise: cookware is made of different
materials (sandwich construction).
• whistle sound: you use the cooking zone
with high power level and the cookware is
made of different materials (sandwich
construction).
• humming: you use high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not refer to
hob malfunction.
Examples of cooking applications
The relation between the heat setting and the
cooking zone consumption of power is not
linear. When you increase the heat setting, it is
not proportional to the increase of the cooking
zone consumption of power. It means that the
cooking zone with the medium heat setting uses
less than a half of its power.
The data in the table is for guidance
only.
Heat setting Use to: Time
(min) Hints
- 1 Keep cooked food warm. as neces-
sary Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: butter,
chocolate, gelatine. 5 - 25 Mix from time to time.
12 www.zanussi.com

Heat setting Use to: Time
(min) Hints
1 - 2 Solidify: fluffy omelettes, baked
eggs. 10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes,
heating up ready-cooked meals. 25 - 50 Add the minimum twice as much liquid as rice, mix milk dishes part
procedure through.
3 - 4 Steam vegetables, fish, meat. 20 - 45 Add some tablespoons of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. ¼ l water for 750 g of
potatoes.
4 - 5 Cook larger quantities of food,
stews and soups. 60 - 150 Up to 3 l liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cordon
bleu, cutlets, rissoles, sausages, liv-
er, roux, eggs, pancakes, dough-
nuts.
as neces-
sary Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks,
steaks. 5 - 15 Turn halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Boil large quantities of water. Power function is activated.
Hob - Care and cleaning
WARNING!
Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have
no effect on how the hob operates.
• Use a special cleaner applicable for the
surface of the hob.
• Use a special scraper for the glass.
Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar. If not,
the dirt can cause damage to the hob. Take
care to avoid burns. Put the special scraper
on the glass surface at an acute angle and
move the blade on the surface.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat stains,
shiny metallic discoloration. Clean the hob
with a moist cloth and non-abrasive
detergent. After cleaning, wipe the hob dry
with a soft cloth.
•Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a moist cloth.
Oven - Daily use
WARNING!
Refer to Safety chapters.
www.zanussi.com 13

Top oven functions
Symbol Oven function Application
Off position The appliance is off.
Oven Lamp To activate the lamp without a cooking function.
100 - 250 Conventional Cooking To bake and roast food on one shelf position.
Dual Circuit Grill To grill food items in medium quantities in the middle of the
shelf. To make toasts.
Full Grill To grill flat food and to toast bread.
Main oven functions
Symbol Oven function Application
Off position The appliance is off.
Oven Lamp To activate the lamp without a cooking function.
Defrost This function can be used for defrosting frozen foods, such
as vegetables and fruits. The defrosting time depends on the
amount and size of the frozen food.
100 - 250 Thermaflow® To bake on up to two shelf positions at the same time and to
dry food. Set the temperature 20 - 40 °C lower than for
Conventional Cooking.
Activating and deactivating the top /
main oven
It depends on the model if your
appliance has knob symbols,
indicators or lamps:
• The indicator comes on when the
oven heats up.
• The lamp comes on when the
oven operates.
• The symbol shows whether the
knob controls one of the cooking
zones, the oven functions or the
temperature.
1. Turn the knob for the top / main oven
functions to select an oven function.
2. To deactivate the oven turn the knob for the
top / main oven functions to the off position.
Cooling fan
When the oven operates, the cooling fan turns
on automatically to keep the surfaces of the
oven cool. If you turn off the oven, the cooling
fan can continue to operate until the oven cools
down.
Trivet and Grill- / Roasting pan
WARNING!
Be careful when you remove the
accessories from a hot appliance.
There is a risk of burns.
14 www.zanussi.com

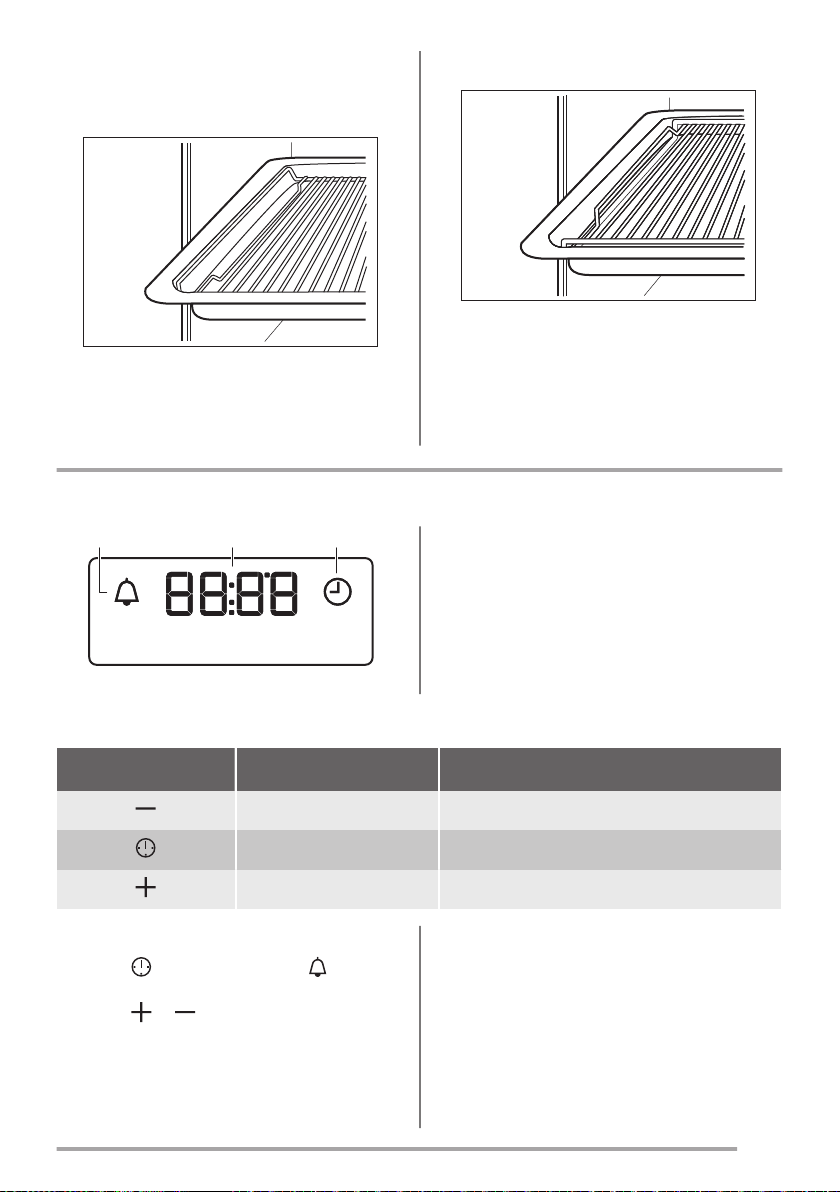

You can use the trivet to roast larger pieces of
meat or poultry on one shelf position.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in large
quantities and to toast.
1. Put the trivet into the deep pan so that the
supports of the wire shelf point down.
2. Put the deep pan into the oven on the
necessary shelf position.
Oven - Clock functions
Display
A B C
A. Minute minder indicator
B. Time display
C. Time of day indicator
Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
Setting the MINUTE MINDER
1. Press again and again until starts to
flash.
2. Press or to set the necessary time.
The Minute Minder starts automatically after 5
seconds.
3. When the set time ends, an acoustic signal
sounds. Press any button to stop the
acoustic signal.
4. Turn the knob for the oven functions to the
off position.
www.zanussi.com 15

Cancelling the clock functions
1. Press the again and again until the
necessary function indicator starts to flash.
2. Press and hold .
The clock function goes out after some
seconds.
Oven - Hints and tips
WARNING!
Refer to Safety chapters.
The temperature and baking times in
the tables are guidelines only. They
depend on the recipes and the
quality and quantity of the
ingredients used.
Always preheat an empty oven at the
temperature required for the food for
20 minutes before you start cooking.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf positions. Use it to cook smaller
quantities of food. It gives especially good
results when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for
cooking larger quantities of food.
Baking
• Your oven may bake or roast differently to
the appliance you had before. Adapt your
usual settings such as temperature, cooking
time and shelf position to the values in the
tables.
• Use the lower temperature the first time.
• If you cannot find the settings for a special
recipe, look for the similar one.
• You can extend baking times by 10 – 15
minutes if you bake cakes on more than one
shelf position.
• Cakes and pastries at different heights do
not always brown equally at first. If this
occurs, do not change the temperature
setting. The differences equalize during the
baking procedure.
• Trays in the oven can twist during baking.
When the trays become cold again, the
distortions disappear.
Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
browned sufficiently. The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy, lumpy or streaky. The oven temperature is too high. The next time you bake, set a slightly lower oven temperature.
The cake sinks and becomes
soggy, lumpy or streaky. The baking time is too short. Set a longer baking time. You cannot decrease baking
times by setting higher tem-
peratures.
The cake sinks and becomes
soggy, lumpy or streaky. There is too much liquid in the mixture. Use less liquid. Be careful with mixing times, especially if you use
a mixing machine.
The cake is too dry. The oven temperature is too low. The next time you bake, set a
higher oven temperature.
16 www.zanussi.com

Baking results Possible cause Remedy
The cake is too dry. The baking time is too long. The next time you bake, set a
shorter baking time.
The cake browns unevenly. The oven temperature is too high
and the baking time is too short. Set a lower oven temperature and a longer baking time.
The cake browns unevenly. The mixture is unevenly distrib-
uted. Spread the mixture evenly on the baking tray.
The cake is not ready in the bak-
ing time given. The oven temperature is too low. The next time you bake, set a slightly higher oven temperature.
Conventional Baking - Top Oven
Food Temperature (°C) Time (min) Shelf posi-
tion
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 2
Bread rolls / buns 200 - 220 10 - 15 2
Cakes: Small & Queen 160 - 180 18 - 25 2
Cakes: Sponges 160 - 175 20 - 30 2
Cakes: Victoria Sandwich 160 - 170 18 - 25 2
Cakes: Madeira 140 - 150 75 - 90 2
Cakes: Rich Fruit 140 - 150 120 - 150 2
Cakes: Gingerbread 140 - 150 80 - 90 2
Cakes: Meringues 90 - 100 150 - 180 2
Cakes: Flapjack 160 - 170 25 - 30 2
Cakes: Shortbread 130 - 150 45 - 60 2
Cakes: Apple Pie 170 - 180 50 - 60 2
Casseroles: Beef / Lamb 160 - 170 150 - 180 2
Casseroles: Chicken 160 - 180 80 - 90 2
Convenience Foods Follow manufacturer`s instructions. 2
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
Milk Puddings 150 - 170 90 - 120 2
Pasta Lasagne etc. 170 - 180 40 - 50 2
www.zanussi.com 17

Food Temperature (°C) Time (min) Shelf posi-
tion
Pastry: Choux 180 - 190 30 - 40 2
Pastry: Eclairs, Profiteroles 180 - 190 30 - 40 2
Pastry: Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrusts: Mince Pies 190 - 200 15 - 20 2
Shortcrusts: Meat Pies 190 - 210 25 - 35 2
Shortcrusts: Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 3
Shepard`s Pie 190 - 200 30 - 40 2
Souffles 170 - 180 20 - 30 2
Vegetables: Baked Jacket Potatos 180 - 190 60 - 90 2
Vegetables: Roast Potatos 180 - 190 60 - 90 2
Yorkshire Pudding Large 220 - 210 25 - 40 2
Yorkshire Pudding Individual 210 - 220 15 - 25 2
Roasting Meat, Poultry Refer to the Roasting table. 2
Thermaflow® Baking - Main Oven
Shelf positions are not critical but
ensure that the oven accessories are
evenly spaced when more than one
is used.
Food Temperature (°C) Time (min) Shelf posi-
tion
Biscuits 180 - 190 10 - 20 1 – 3
Bread 190 - 210 30 - 35 2
Cakes: Small & Queen 150 - 170 18 - 25 1 – 3
Cakes: Sponges 160 - 170 20 - 25 3
Cakes: Madeira 140 - 160 60 - 80 3
Cakes: Rich Fruit 130 - 140 120 - 150 3
Cakes: Christmas 130 - 140 180 - 270 3
Cakes: Apple Pie 160 - 170 50 - 60 3
- Shortbread 130 - 150 45 - 60 1 – 3
18 www.zanussi.com

Food Temperature (°C) Time (min) Shelf posi-
tion
Fish 160 - 180 30 - 40 3
Fruit Pies, Crumbles 170 - 180 30 - 50 3
Milk Puddings 140 - 160 60 - 90 3
Pastry: Choux 180 - 190 30 - 40 3
Pastry: Shortcrust 180 - 190 25 - 35 3
Pastry: Flaky 180 - 190 30 - 40 3
Pastry: Puff Follow manufacturer`s instructions. Reduce
the temperature for Fan oven by 20 °C. 3
Plate Tarts 180 - 190 25 - 45 3
Quiches / Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 1 – 3
Roasting: Meat, Poultry 160 - 180 Refer to the Roasting
table. 2
Roasting
• Use heat-resistant ovenware to roast. Refer
to the instructions of the ovenware
manufacturer.
• You can roast large roasting joints directly in
the deep pan or on the wire shelf above the
deep pan.
• Put some liquid in the deep pan to prevent
the meat juices or fat from burning on it's
surface.
• All types of meat that can be browned or
have crackling can be roasted in the roasting
tin without the lid.
• If necessary, turn the roast after 1/2 to 2/3
of the cooking time.
• To keep meat more succulent:
– roast lean meat in the roasting tin with
the lid or use roasting bag.
– baste large roasts and poultry with their
juices several times during roasting.
Thermaflow® - Main Oven
Roasting
Food Temperature (°C) Time (min)
Beef / Beef boned 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 20 - 30 minutes
over
Mutton / Lamb 170 - 190 20 - 35 minutes per 0.5 kg (1 lb) and 25 - 35 minutes
over
Pork / Veal / Ham 170 - 190 30 - 40 minutes per 0.5 kg (1 lb) and 30 - 40 minutes
over
Chicken 180 - 200 20 - 25 minutes per 0.5 kg (1 lb) and 20 minutes over
www.zanussi.com 19

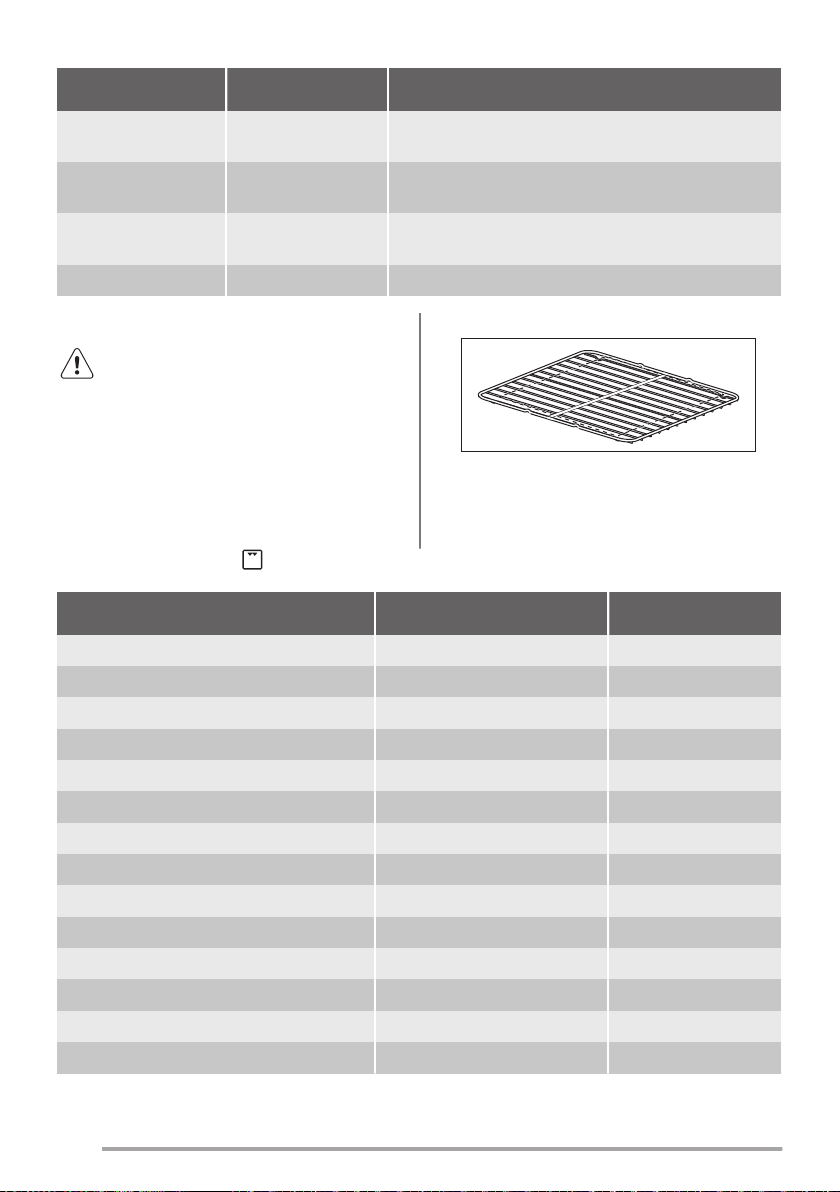

Food Temperature (°C) Time (min)
Turkey / Goose 170 - 190 15 - 20 minutes per 0.5 kg (1 lb) up to 3.5 kg (7 lb)
then 10 minutes per 0.5 kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25 - 35 minutes per 0.5 kg (1 lb) and 25 - 30 minutes
over
Pheasant 170 - 190 35 - 40 minutes per 0.5 kg (1 lb) and 35 - 40 minutes
over
Rabbit 170 - 190 20 minutes per 0.5 kg (1 lb) and 20 minutes over
Grilling in general
WARNING!
Always grill with the oven door
closed.
•Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the deep pan to collect the fat
into the first shelf position.
• Grill only flat pieces of meat or fish.
The grilling area is set in centre of the shelf.
Dual Grill - Top Oven
Food Time (min) Shelf position
Bacon Rashers 5 - 6 3
Beefburgers 10 - 20 3
Chicken Joints 20 - 40 2
Chops - Lamb 15 - 25 2 - 3
Chops - Pork 20 - 25 2 - 3
Fish - Whole / Trout / Makarel 10 - 12 2
Fillets - Plaice / Cod 4 - 6 2
Kebabs 12 - 18 2 - 3
Kidneys - Lamb / Pig 6 - 10 2 - 3
Sausages 20 - 30 3
Steaks: Rare 4 - 6 3
Steaks: Medium 6 - 8 3
Steaks: Well Done 12 - 15 3
Toasted Sandwiches 3 - 4 3
20 www.zanussi.com
