2
Installation
●This appliance is heavy. Care should be taken
when moving it.
●It is dangerous to alter the specifications or
attempt to modify this product in any way.
●Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
●Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
● If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
●If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(available as an accessory).
●This tumble dryer is designed to be vented
through to the open air. It should have its own
ventilation system which should not be joined
with any other ventilation system connected to
any other appliance.
Child Safety
●This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
●Pets and children have been known to climb into
tumble dryers. Please check your drum before
use.
●Keep all packaging well away for children.
Use
●Do not overload the appliance (see programme
chart).
●Clothes which are dripping wet should not be
placed in the dryer.
●As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
●Please make sure that no gas lighters or matches
have accidentally been left in pockets of garments
to be loaded into appliance.
●Danger of explosion: Never tumble dry items
that have been in contact with inflammable
solvents (petrol, methylated spirits, dry cleaning
fluid and the like). As these substance are volatile,
they could cause an explosion. Tumble dry only
items washed with water.
●Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
●If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
●In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
●Cushions, quilts and the like (these items
accumulate heat).
●Items containing rubber foam or materials similar
to rubber foam.
●Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
●Clean fluff filter after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filter is damaged.
●Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force repair agent. Always insist on
genuine Zanussi spare parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
125981014.qxp 2005-12-06 14:07 Page 2

3
For the User
Important Safety Information 2
●Installation 2
●Child Safety 2
●Use 2
Your New Tumble Dryer 4
Description of the Appliance 5
The Control Panel 6
●Buttons 6
●Mains-on light 6
●Time selector dial 6
Programme Chart 7
Operating Sequence 8
●Load the laundry 8
●Select the option 8
●Select the drying time 8
●When drying is completed 8
Hints & Tips on Drying 9
Maintenance and Cleaning 10
●External cleaning 10
●Cleaning the door 10
●Cleaning fluff filter 10
Something Not Working 11
Service and Spare Parts 11
Customer Care 11
Guarantee Conditions 12
For the Installer
Installation Instructions 13
Technical Specifications 13

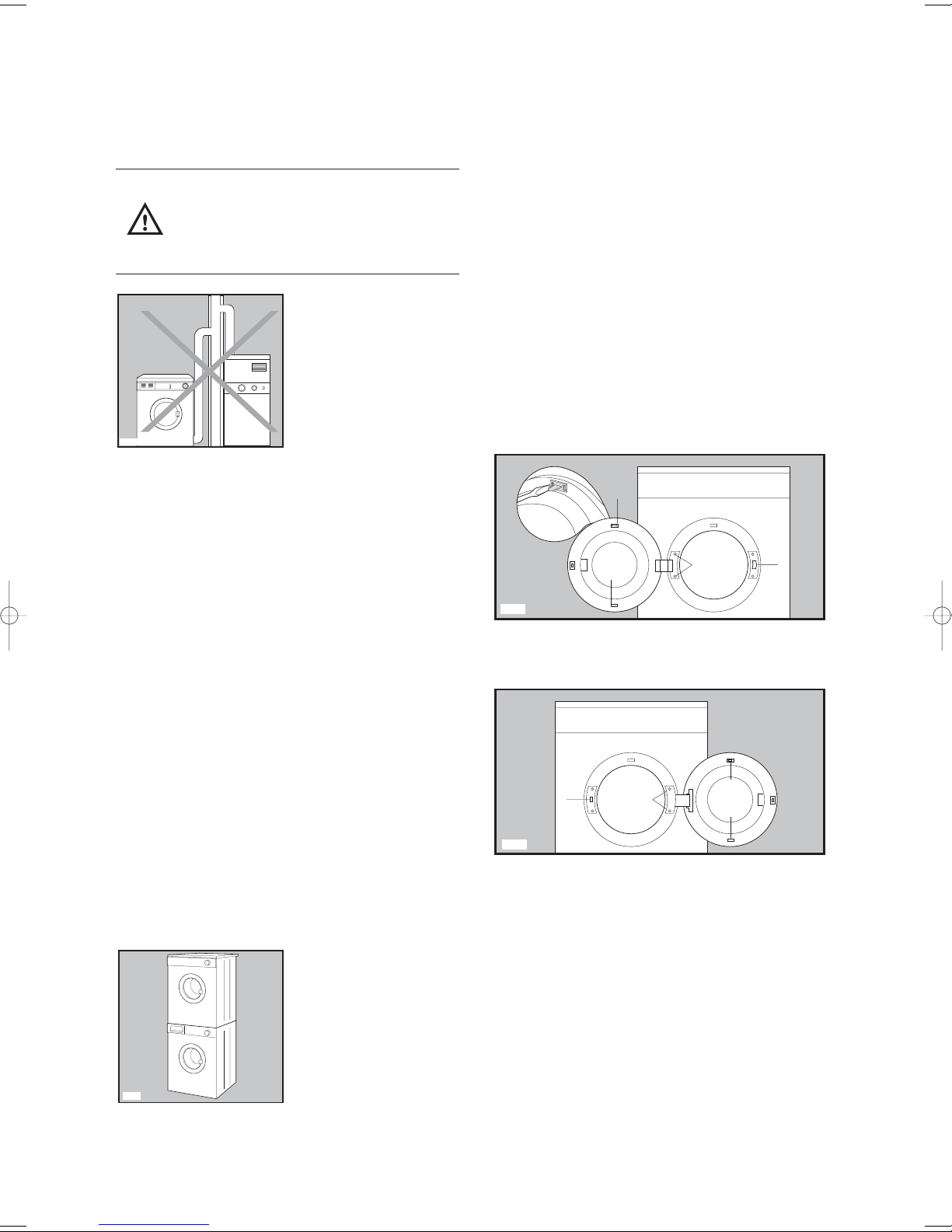

●Positioning 14
●Fitting the vent hose 14-15
●Stacking kit (optional accessory) 15
●Door reversal 15
●Electrical connection 16
Contents
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
125981014.qxp 2005-12-06 14:07 Page 3

4
This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.
Your New Tumble Dryer
In the interest
of the environment
●Materials marked with the symbol are
recyclable.
●Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
●When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
●Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
•Old appliance
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by in appropriate
waste handling of this product. For more detailed
information about recycling of this product, please contact
your local city office, your household waste disposal
service or the shop where you purchased the product
Energy saving tips
To save energy we recommend that you follow these
hints:
●Try to load the maximum capacity of the machine
as small loads are uneconomical.
●Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.
●Do not over-dry laundry, this avoids creasing and
saves energy.
●Clean the filter regularly to avoid excessive
drying times and high electricity consumption.
●Ventilate the room well. The room temperature
should not exceed +35°C during drying.
125981014.qxp 2005-12-06 14:07 Page 4

5
Description of the Appliance
01 Work top
02 Programme chart
03 Low Temperature Button
04 Cool Button
05 Mains-On Light
06 Drying Time Selector Dial
07 Rating Plate
08 Fluff filter
09 Door Handle
10 Adjustable feet
11 Side vent outlet
12 Ring nut
13 Rear vent outlet
10
8
7
2
9
1
1 3 4556
TD
4212
W
Mains on
Timer
Low
Temp.
Synthetic
STORE DRY
IRON DRY STORE DRY
Cotton
AUTOREVERSE 6 kg
kg 6
kg 3
kg 2.5
kg 1
ESSENTIAL
Spun at rpm
Spun at rpm
30' - 40'
15' - 25'
800/1000 1200/1400 800/1000 1200/1400 600
45- 70 35- 55
90-115 80- 100 105-135 95-120
60- 85 50 - 70
Cool
11
12
13
125981014.qxp 2005-12-06 14:07 Page 5

6
123 45
Mains on
Timer
Synthetic
STORE DRY
IRON DRY STORE DRY
Cotton
AUTOREVERSE 6 kg
kg 6
kg 3
kg 2.5
kg 1
TD
4113
W
ESSENTIAL
Spun at rpm
Spun at rpm
30' - 40'
15' - 25'
Low
Temp.
800/1000 1200/1400 800/1000 1200/1400 800
45- 70 35- 55
90-115 80- 100 105-135 95-120
60- 85 50 - 70
Cool

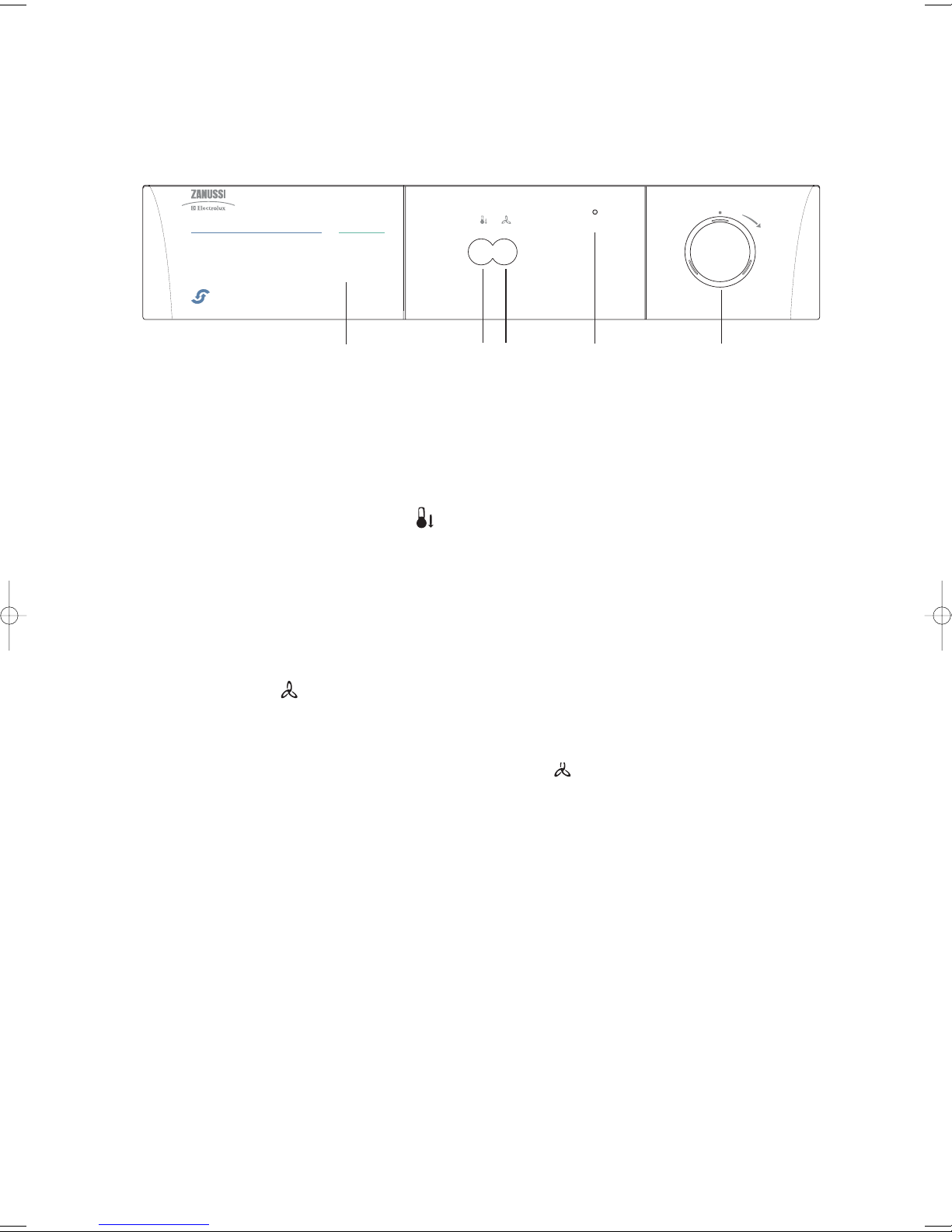

The Control Panel
1 Programme Chart
This will help you to select the correct time for
drying.
2 Low Temperature Button
Press this button to reduce the temperature when
drying particularly delicate cotton or linen items.
In this case you should select a longer drying time.
On the programmes for synthetics the temperature is
automatically reduced.
Therefore it is not necessary to depress this button.
3 Cool Button
By depressing this button the heat is cut off. This is
particularly useful to freshen the laundry (e.g. to
remove a persistent odour of moth-balls). Select 20-
30 mins max.
4 Mains-On Light
This lights up when the machine starts operating and
goes out at the end of the programme.
5 Drying Time Selector Dial
The selector dial incorporates two drying cycles, one
of up to 120 minutes at a high temperature for cotton
and linen, and one of up to 80 minutes at a low
temperature for synthetic fabrics.
To set the machine to the selected time, turn the dial
clockwise until the time you want coincides exactly
with the pointer.
NEVER attempt to turn the dial in an anticlockwise
direction.
When selecting the drying time, you should
remember that it includes a 8 minute cooling phase
(position on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages to
the laundry.
125981014.qxp 2005-12-06 14:07 Page 6

7
Programme Chart
Cotton and linen
Selector dial: up to 120 minutes
Type of laundry:
Cotton
Towelling
Shirts
Sheets
Hand towels
Tablecloths
Table napkins
Degree of drying
Store dry
(wardrobe dry)
660
3
105-135
60-85
95-120
50-70
6
3
90-115
45-70
80-100
35-55
Iron dry
(not completely dry;
suitable for ironing)
Amount
of laundry
in kg
Drying time in minutes for
laundry spun at
800/1000 rpm 1200/1400 rpm
ATTENTION! If you are drying delicate cotton, select the ‘low temperature’ option
Synthetics
Selector dial: up to 80 minutes
Type of laundry:
Synthetics or mixed fabrics
which do not require
ironing.
Synthetics or mixed fabrics
which have to be ironed.
(Please see labels on items)
Degree of drying
Store dry 2.5 30-40
15-25
25-35
15-20
1
2.5
1
Iron dry
Amount of laundry
in kg Drying time in minutes for laundry
spun at a minimum speed of 800 rpm
ATTENTION! Please follow the instructions on labels when drying mixed fabrics.
Drying times are given as a guide only. Experience will soon enable you to estimate the drying time needed for
your usual laundry loads.
Do not start by selecting a long drying time. It is better to determine the required degree of dryness by gradually
increasing the drying time.
For a mixed load (cotton and synthetics, for example) select the time for the most delicate fibres and increase it
by 10 mins.
125981014.qxp 2005-12-06 14:07 Page 7

8
Before using your tumble dryer for the first time, we
recommend you place a few damp cloths inside the
appliance and dry for approximately 20 minutes.
There may be dust inside a brand new tumble dryer.

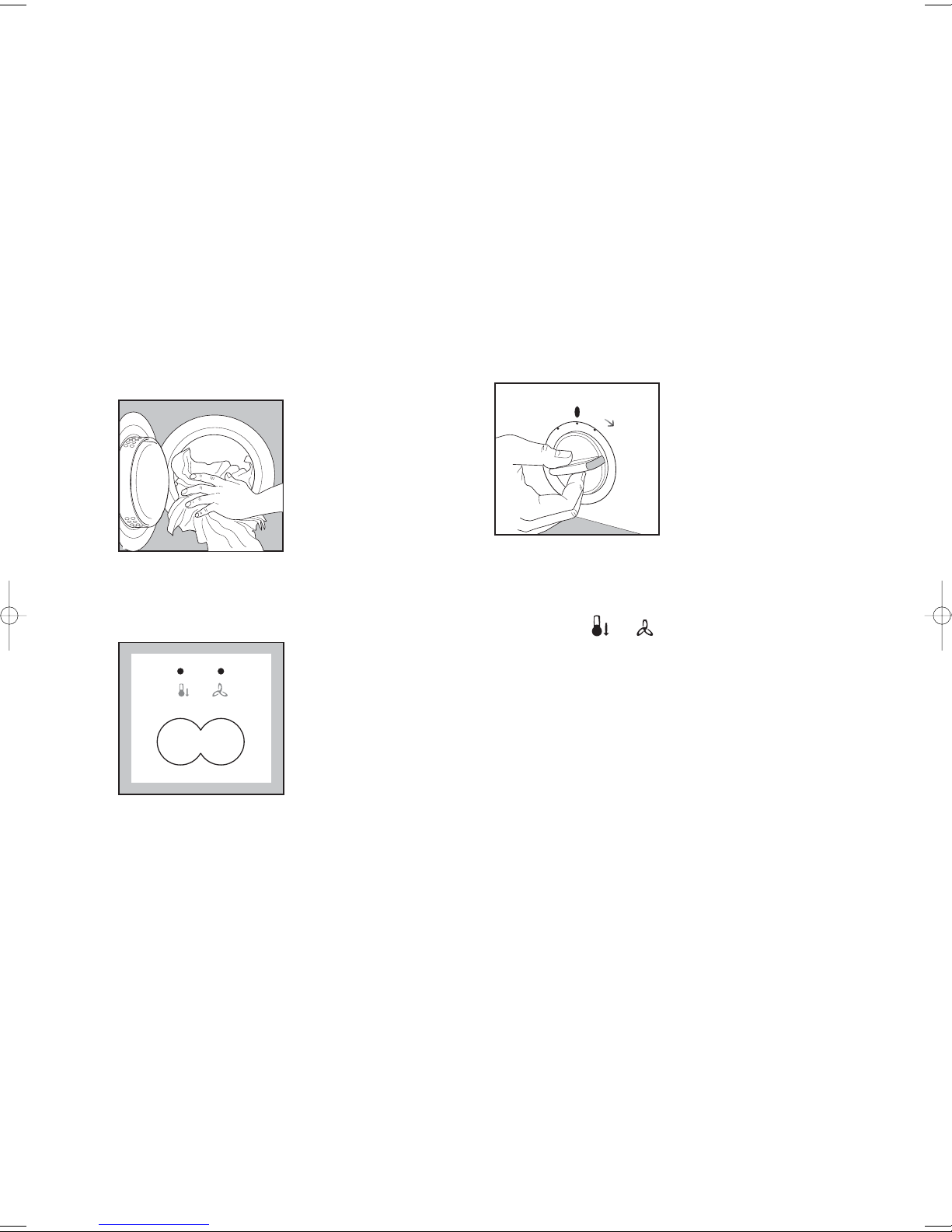

1. Load the laundry
Open the door by pulling the door handle forwards.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught between
the door and filter.
2. Select the required option
Depress Low Temp. or Cool Button depending on the
fabrics you have to dry.
Low
Temp. Cool
P0305
Operating Sequence
3. Select the drying time
Turn the selector dial clockwise to the desired time
(in the high or low temperature range, according to
the fabrics). The mains-on light illuminates and the
programme starts.
4. When drying is completed
The machine stops automatically and the mains-on
light goes out.
Release button or , if depressed.
Open the door and take out the laundry.
Clean the filter after every drying programme.
A clean filter ensures correct functioning of the
appliance.
100
120
80
M0046S
125981014.qxp 2005-12-06 14:07 Page 8

9
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
Care Labels you may find on your laundry
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
may be tumble dried
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet 700 to 1000 g
Pillowcase 100 to 200 g
Tablecloth 400 to 500 g
Table Napkin 50 to 100 g
Kitchen Towel 70 to 120 g
Linen Hand Towel 100 to 150 g
Hand Towel 150 to 250 g
Bath Towel 700 to 1000 g
Bathrobe 1000 to 1500 g
Shirt 200 to 300 g
Apron 150 to 200 g
●Always load well spun laundry. The higher the
spin speed the lower the electricity consumption
and the shorter the drying time.
●DO NOT load dripping wet laundry into the
dryer. Roll the article in a towel or spin to remove
excess water.
●Close poppers and zips and fasten any buttons.
●Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
●Remove the laundry immediately after the
programme has finished.
●Use a fabric conditioning sheet to reduce static.
We recommend the sheet is pinned to an article of
laundry (using a safety pin).
●Mix the load i.e. large and small articles.
●When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the
following:
●Articles contaminated with inflammable
substances e.g. petrol, cleaning solvents, cooking
oil, fats or hair lacquer.
●Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
●Very delicate articles such as silk.
●Very large and bulky items such as duvets or
sleeping bags.
Hints & Tips on Drying
125981014.qxp 2005-12-06 14:07 Page 9

10
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.

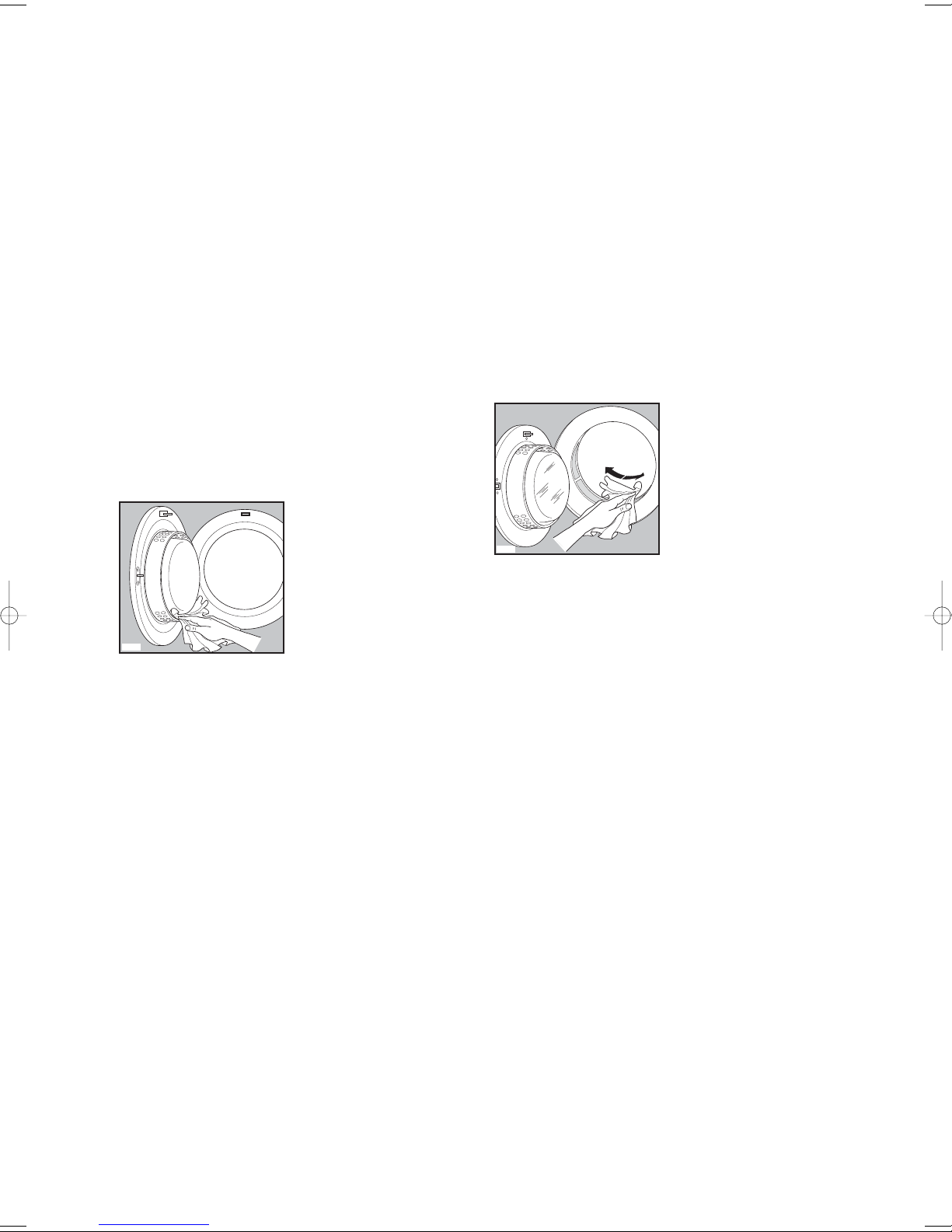

Cleaning the door
Clean periodically the interior part of the door to
remove any fluff.
Accurate cleaning ensures correct drying.
P0328
Maintenance and Cleaning
Cleaning the filter
Your dryer will only function well if the filter is
clean.
The filter collects all the fluff which accumulates
during drying and it must therefore be cleaned at the
end of each programme, before removing the
laundry, with a damp cloth.
The filter cannot be removed.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
P0767
125981014.qxp 2005-12-06 14:07 Page 10

11
The tumble dryer does not start ●The door has not been closed.
●The plug is not properly inserted in the power
socket.
●There is no current at the socket
●The main fuse or the fuse in the plug has blown.
●A drying time has not been selected.
Drying takes too long or laundry is not dry
enough.
●The laundry has not been spun properly.
●The filter is clogged up.
●The room temperature is too high.
●The selected time or sector was not suitable for
the laundry
●There is too much laundry inside the appliance.
●The dryer is not correctly installed.
●The Low Temperature or Cool Tumble Button
has been depressed.
Something Not Working
Symptom Possible causes
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect
use or installation, a charge will be made even if the appliance is under guarantee.
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read
the details under the heading “Something Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture)
5. The purchase date.
Please note that a valid purchase receipt or
guarantee documentation is required for in-
guarantee service calls.
To buy accessories, consumables and spare parts at
our online shop please visit: http://www.zanussi-
electrolux.co.uk
Customer Care Department
For general enquiries concerning your Zanussi
Electrolux appliance or for further information on
Zanussi Electrolux products, please contact our
Customer Care Department by letter or telephone at
the address below or visit our website at
www.zanussi.co.uk
Customer Care Department
Major Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel [phone]*
* calls to this number may be recorded for training
purposes.

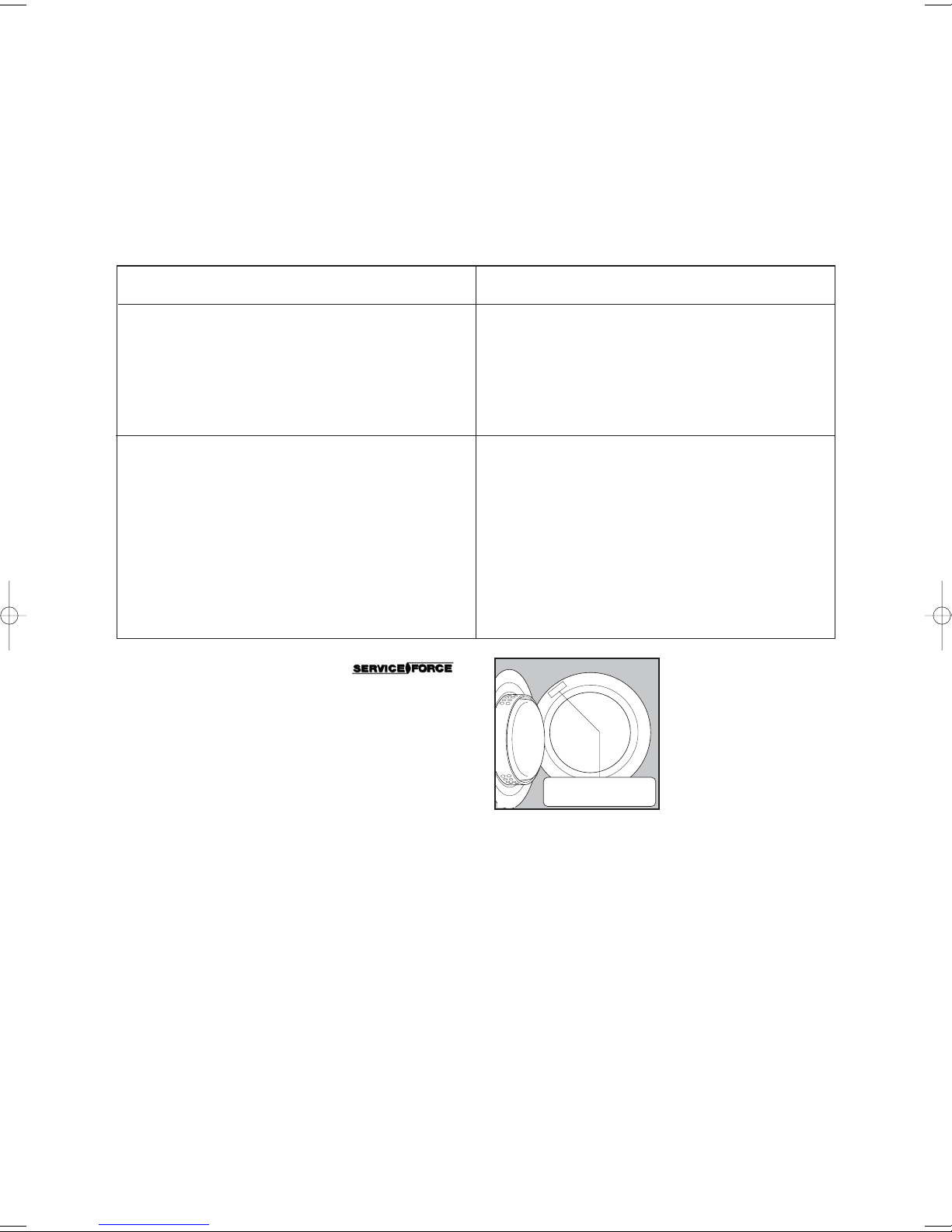

P0307
Mod. ...
Prod. No. ........
Ser. No. ............
125981014.qxp 2005-12-06 14:07 Page 11

12
Zanussi Guarantee Conditions
Standard guarantee conditions
We, Zanussi Electrolux, undertake that if, within 12
months of the date of the purchase, this ZANUSSI
ELECTROLUX appliance or any part thereof is
proved to be defective by reason only of faulty
workmanship or materials, we will, at our option
repair or replace the same FREE OF ANY CHARGE
for labour, materials or carriage on condition that:
●The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
●The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
●The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
●All service work under this guarantee must be
undertaken by a Service Force Centre.
●Any appliance or defective part replaced shall
become the Company’s property.
●This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
●Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
●Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.
●Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.
●Products of Zanussi Electrolux manufacture
which are NOT marketed by Zanussi Electrolux.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
●The guarantee starts from the date you first
purchased your product.
●The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
●The guarantee relates to you and cannot be
transferred to another user.
●Your new home is within the European
Community (EC) or European Free Trade Area.
●The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
●The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]
125981014.qxp 2005-12-06 14:07 Page 12

13
Installation Instructions
Technical Specifications
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
DIMENSIONS Height 85 cm (33.5”)
Width 60 cm (23.6”)
Depth 57 cm (22.4”)
POWER SUPPLY VOLTAGE 230-240 V/50 Hz
TOTAL POWER ABSORBED 2250 W (10A)
MAXIMUM RECOMMENDED LOAD Cotton, linen 6.kg (11 lbs)
Synthetics 2.5 kg (5.5 lbs)
DRUM VOLUME 108 l
CONSUMPTIONS 4.00 kWh (6 kg store dry)
3.20 kWh (6 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
125981014.qxp 2005-12-06 14:07 Page 13

14

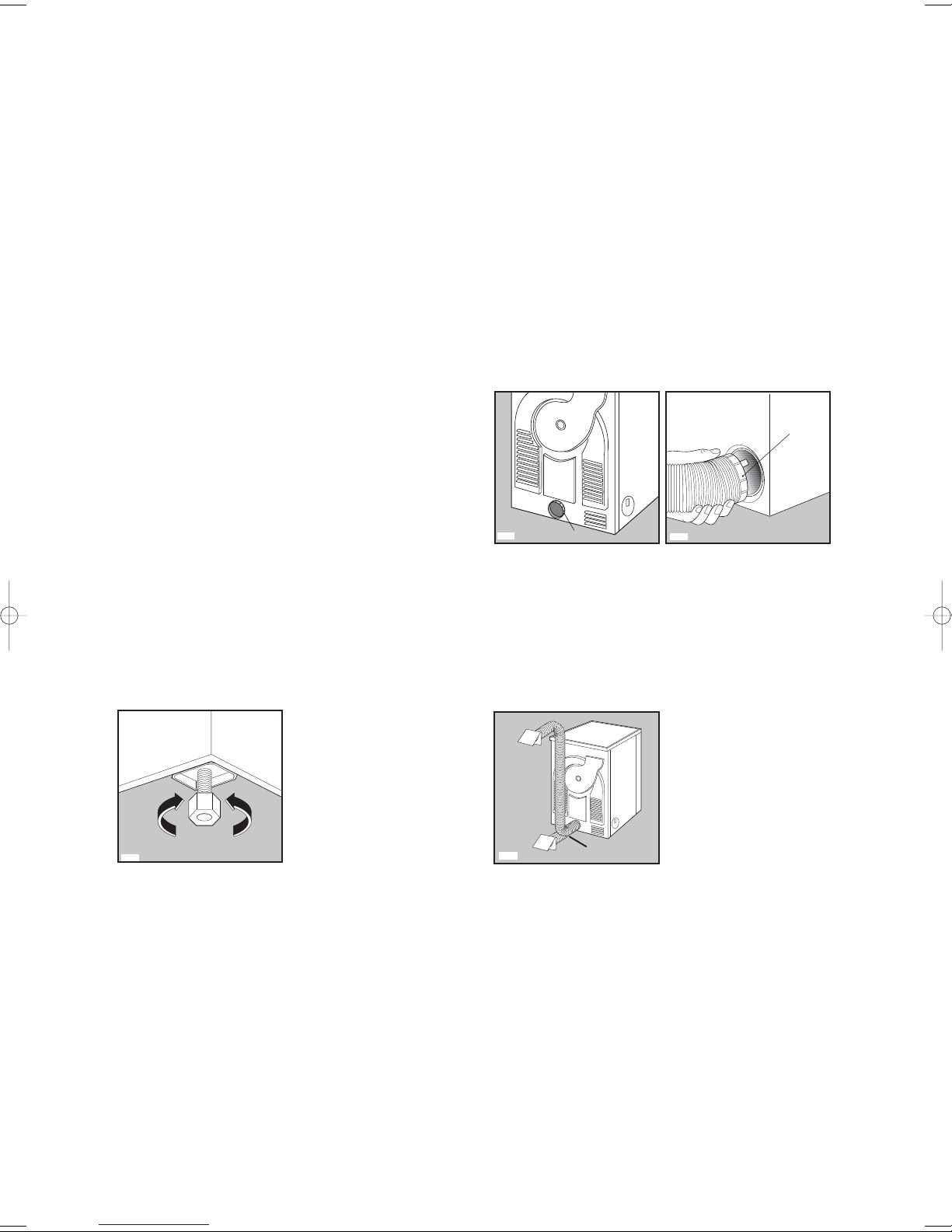

Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
Whilst drying, the tumble dryer will expel a certain
amount of warm, very moist air, and this should be
removed from the room as quickly as possible to
prevent condensation. In an extremely well ventilated
room or close to an open window, this may occur
naturally.
However, in general, it is better to carry the dryer's
exhaust outside via a 100 mm diameter flexible hose
(supplied with the machine); ending either
temporarily at an open window, or permanently at a
fixed ventilation grille, fitted to an exterior wall or
window.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no obstructing items or material
near the air-intake louvres provided at the back (e.g.
paper, rags etc.).
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the two adjustable
feet at the front of the machine until it is.
The feet must never be removed.
Do not restrict the floor clearance through deep-
pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
P0046
Fitting the vent hose
To simplify the installation, there is a choice of vent
outlets: one at the back, the others in the left and
right-hand side.
Connect the hose to whichever is the more
convenient by pulling the ring nut (A) from the vent
outlet at the back, screwing it on to the hose and
pushing it firmly back into place.
The unused vents should now be sealed with the
special snap covers provided.
Advice: If the hose is long and the room temperature
low, the moisture might condense to water inside the
hose. This is an unavoidable natural phenomenon.
To prevent this water from lying in the hose or
flowing back into the tumble dryer, it is advisable to
drill a small hole (dia. 3 mm) in the lowest point of
the hose and to place a small container below it.(See
picture, point B).
Once connected to the dryer, run the vent hose to the
desired outlet point, ensuring that the run’s overall
length is less than 2.5 m, and that it contains no more
than two bends. As to the outlet itself, if you have
decided on a fixed wall/window grille, a good local
builder’s merchant should be able to supply you with
the necessary fittings and installation advice.
P1056B
P1027
A
A
P1028
125981014.qxp 2005-12-06 14:07 Page 14

15
It is important not to connect the vent
hose to, for example, a cooker hood,
or a chimney or flue pipe designed to
carry the exhaust from a fuel burning
appliance.
Note that to avoid condensation problems, it is
essential that the dryer be fitted with the flexible hose
to carry its “exhaust” at least beyond the kitchen
units; preferably outside the kitchen.
In order to prevent the appliance from overheating, it
is important that the steam exhaust is unobstructed.
Therefore, in case of a permanent hose fitted to an
exterior wall or ceiling, it must have an exhaust
capacity of at least 150 m3/h.
If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. If the hose
is partially squashed, drying efficiency will be
reduced, resulting in longer drying times and
higher energy consumption.
If the hose is completely squashed, the safety cut-
outs with which the machine is fitted may operate.
Stacking kit
It should be possible to stack your new dryer on top
of your washing machine.
Please contact your local Service Force Centre for
further advice.
P0280
P0055
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by your local
Service Force repair agent (tel [phone]).
This will be a chargeable option.
Operate as follows:
- Remove the door by unscrewing the two screws (1)
fastening the hinge to the cabinet (Fig. A).
- Remove the safety catch (2) and the plug (3) by
bending the two fastening tags (Fig. A).
- Refit the safety catch (2) and plug (3) on the door
by reversing their positions (Fig. B).
- Remove the plastic plate (4) by unscrewing the two
fastening screws (Fig. A).
- Refit the plastic plate (4) on the opposite side
(Fig. B).
- Refit the door by screwing in the two screws (1)
which fasten the door to the cabinet (Fig. B).
P0748B
1
4
2
3
P0283 A
2
3
4
1
125981014.qxp 2005-12-06 14:07 Page 15

16
Electrical connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture).
The appliance is supplied with a 10amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 10amp ASTA approved (BS 1363/A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13 A
P1041
E
N
L
P0307
Mod. ...
Prod. No. ........
Ser. No. ............
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 10 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
The power supply cable must be easily accessible
after installing the machine.
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
125981014.qxp 2005-12-06 14:07 Page 16

© Electrolux plc 2005
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
125981014.qxp 2005-12-06 14:07 Page 17
