Zanussi ZVH 66 F Operation manual

User
information
Ceramicglass
hob
ZVH 66 F

2
Contents
Operating Instructions- - - - - - - - - - - - - - - 3
Safety instructions - - - - - - - - - - - - - - - - - 3
Description of the Appliance - - - - - - - - - - 4
Operating the appliance - - - - - - - - - - - - - 7
Tips on Cooking and Frying- - - - - - - - - - - 15
Cleaning and Care - - - - - - - - - - - - - - - - - 17
What to do if … - - - - - - - - - - - - - - - - - - - 18
Disposal - - - - - - - - - - - - - - - - - - - - - - - - 19
Installation Instructions- - - - - - - - - - - - - - 20
Assembly - - - - - - - - - - - - - - - - - - - - - - - 21
Service - - - - - - - - - - - - - - - - - - - - - - - - - 27
Thank you for selecting our appliance
W
e wish youlots ofenjoyment with your new appli-
a
nce and we hope that you will consider our brand
a
gain when purchasing household appliances.
P
lease read this user manual carefully and keep it
t
hroughout the product life cycle as a reference doc-
u
ment.Theusermanualshouldbepassedontoany
f
uture owner of the appliance.
T
he following symbols are usedin thisuser information:
1
Warning! This must be read! Important advice forthe safety ofpersons andinformation on
avoiding damage to the appliance
3General information and advice
2Information on environmental protection
zDangerous voltage

3
Operating Instructions
1Safety instructions
Pleasecomplywiththeseinstructions.Ifyoudo
not,anydamageresultingisnotcoveredbythe
warranty.
Correct use
•Thisapplianceisnotintendedforusebychil-
dren or other persons whose physical, sen-
sory or mental capabilities or lack of
experienceand knowledge prevents them
from using the appliance safely without su-
pervision or instruction by a responsible per-
son to ensure that they can use the
appliance safely.
•Do not leave the appliance unattended dur-
ing operation.
•This appliance should be used only for nor-
mal domestic cooking and frying of food.
•The appliance must not be used as a work
surface or as a storage surface.
•Additions ormodifications to the appliance
are not permitted.
•Donotplaceorstoreflammableliquids,high-
ly inflammablematerials or fusible objects
(e.g. plastic film, plastic,aluminium) on or
near the appliance.
Children’s safety
•Smallchildren must be kept away from the
appliance.
•Only let bigger children work on the appli-
ance under supervision.
•To avoid smallchildren and pets unintention-
ally switching the appliance on, we recom-
mend activation ofthe child safety device.
General safety
•The appliance mayonly be installed and
connected by trained, registered service en-
gineers.
•Built-in appliances may only be used after
theyhavebuiltintosuitablebuilt-inunitsand
work surfaces that meet standards.
•In the event of faults with the appliance or
damage to the glassceramic (cracks,
scratches or splits), the appliance must be
switched off and disconnected from the elec-
trical supply, to prevent the possibility of an
electric shock.
•Repairstotheappliancemustonlybecarried
out by trained registered service engineers.
Safety during use
•Overheated fats and oils can ignite very
quickly. Warning! Fire hazard!
•There is the risk ofburns from the appliance
if used carelessly.
•Remove stickers and film from the glass ce-
ramic.
•Cables from electrical appliancesmust not
touch the hot surface of the appliance or hot
cookware.
•Switch the cooking zones off after each use.
Safety when cleaning
•Forcleaning,theappliancemustbeswitched
off and cooled down.
•For safety reasons, the cleaning of the appli-
ance with steam jet orhigh-pressure clean-
ing equipment is not permitted.

4
How to avoid damage to the appli-
ance
•The glass ceramic can be damaged by ob-
jects falling onto it.
•The edge of the glass ceramic can be dam-
aged by being knocked by the cookware.
•Cookwaremadeofcastiron,castaluminium
or with damaged bottoms can scratch the
glassceramic ifpushedacross the surface.
•Objectsthat melt and thingsthat boil over
can burn onto the glass ceramic andshould
be removed straightaway.
•To avoid damaging cookware and glass ce-
ramics, do not allow saucepans or frying
pans to boil dry.
•Do not use the cooking zones with empty
cookware or without cookware.
Description of the Appliance

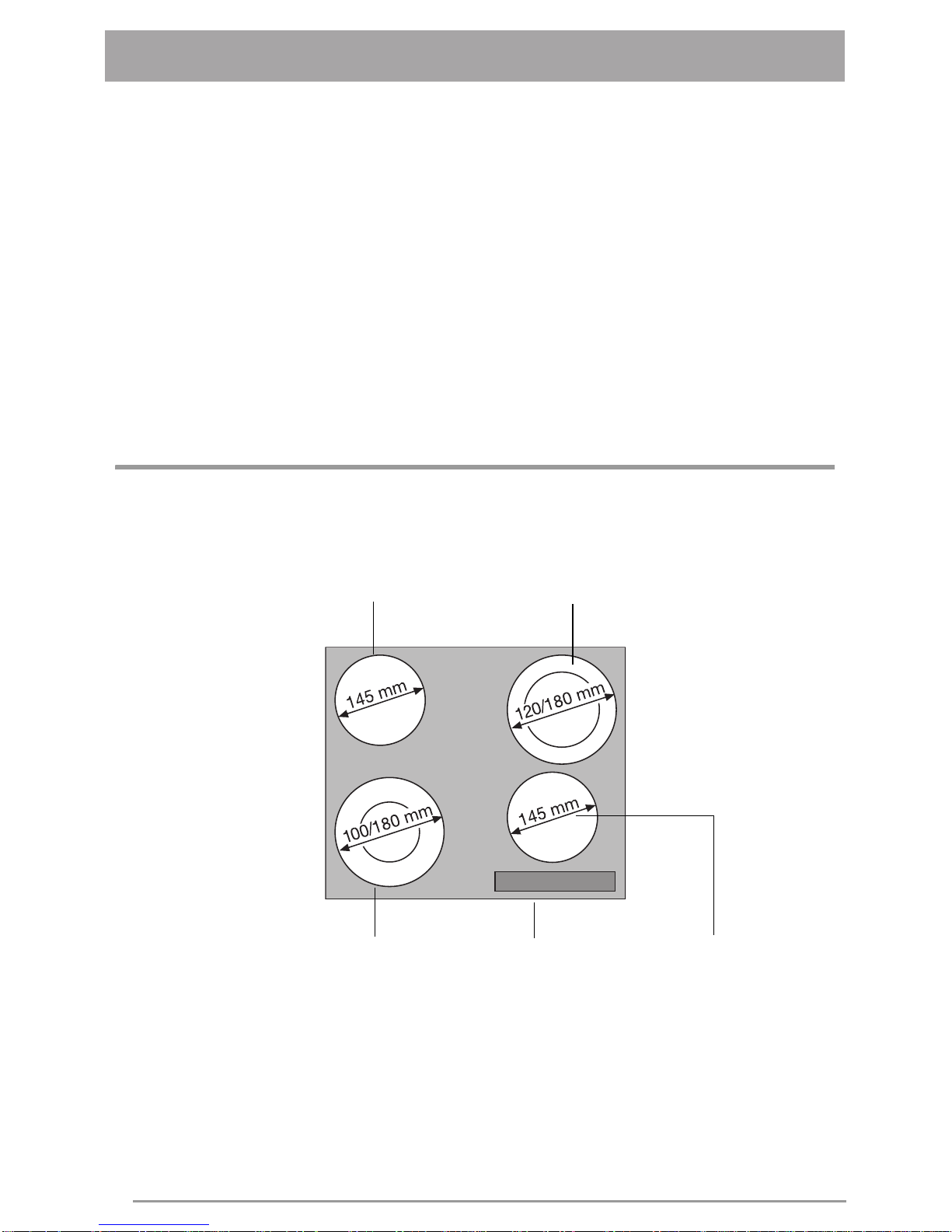

Cooking surface layout
Double ring cooking zone 600/1700 W
Doublering cookingzone 700/1700 W
Single cooking zone 1000 W
Control panel Single cooking zone 1000 W

5

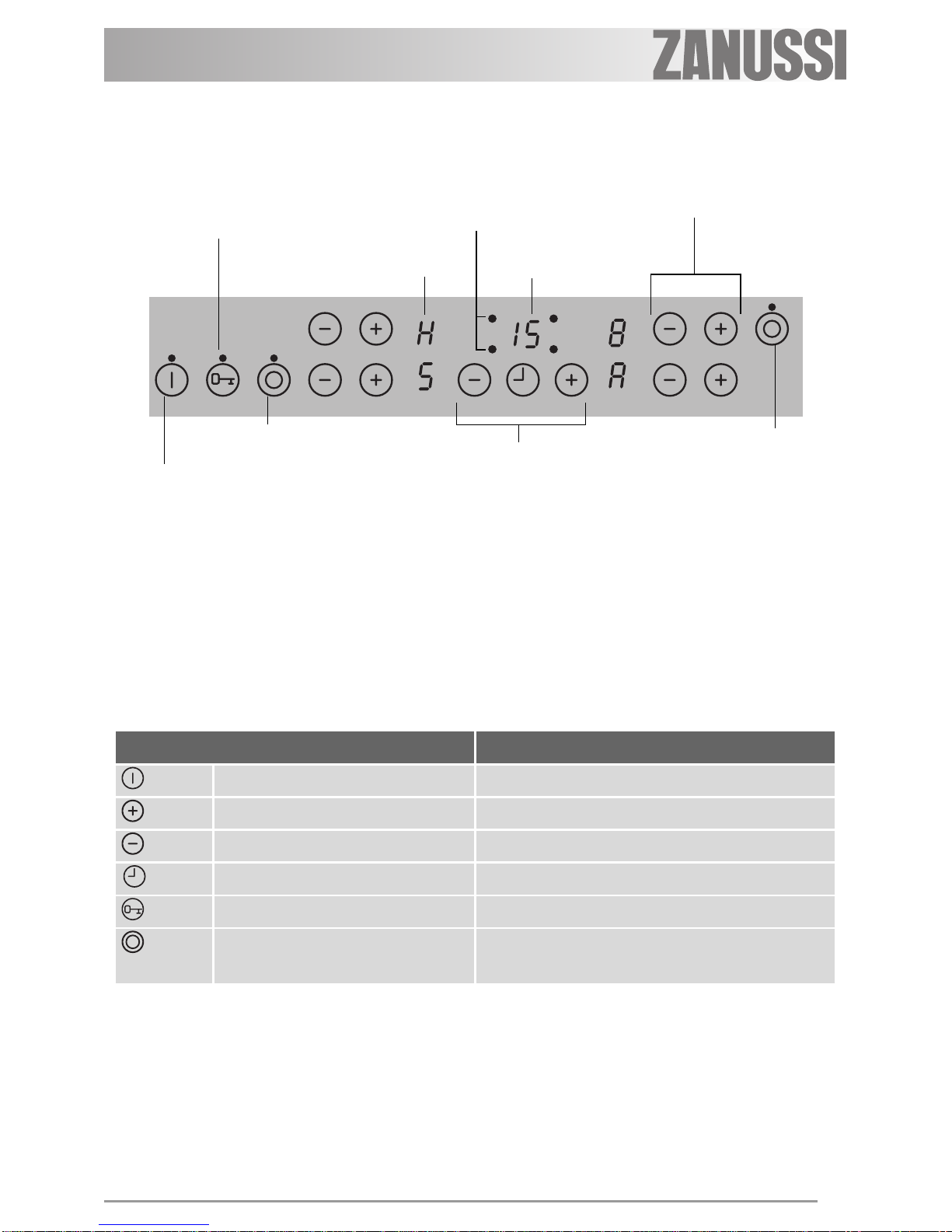

Control panel layout
Touch Control sensor fields
Theapplianceis operatedusingTouchControl
sensor fields. Functions are controlled by
touching sensor fieldsand confirmed by dis-
plays and acoustic signals.
Touch thesensor fields from above, without
covering other sensor fields.
On/Off
with power indicator
Timer display
Cooking zone indicators
Timer function
Lock
with pilot light
Heat setting selection
Timer
Display
Double ring
cooking zone
switch with pilot
Doubleringcookingzoneswitch
with pilot light
Sensor field Function
On / Off To switch the appliance on and off
Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Double ring switch Switches outside ring
on and off

6
Displays
Residual heat indicator
1Warning! Risk of burns from residual
heat.Afterbeingswitched off,thecooking
zones need some time to cool down. Look
at the residual heat indicator .
3Residualheatcanbe usedformeltingand
keeping food warm.
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
Automatic warm up function Automatic warm-upfunction is activated
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
Child safety device Lock/child safety deviceis engaged
Automatic switch off Switch off is active.

7
Operating the appliance
Switchingtheapplianceonand
off
3Afterswitchingon, within approx.
10 seconds a heat setting or a function
must be set, otherwise the appliance auto-
matically switches itself off.
Setting the heat setting
3The keep warm setting lies between
and . It is used to keep food warm.
Switching the outside ring on
and off
By switching the outside rings onor off, the ef-
fective heating surface can be matched to the
size of the cookware.
3Beforeanoutsideringcanbeswitchedon,
the inside ring must be switched on.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Indicator
To increase Touch to
To decrease Touch to
To switch off Touch and at the same time
Double ring cooking
zones Sensor field Pilot light
To switch on outside ring Touch for 1-2 seconds is lit
To switch off outside ring Touch for 1-2 seconds goes out

8
Locking/unlocking the control
panel
The controlpanel, with the exception of the
“On/Off”sensorfield,canbelockedatanytime
in order to prevent the settings being changed
e.g. by wiping over the panel with a cloth.
3When you switch the appliance off, the
locking function is automatically switched
off.
Control panel Display
Switch on Touch (for 5 seconds)
Switch off Touch previously set heat setting

9

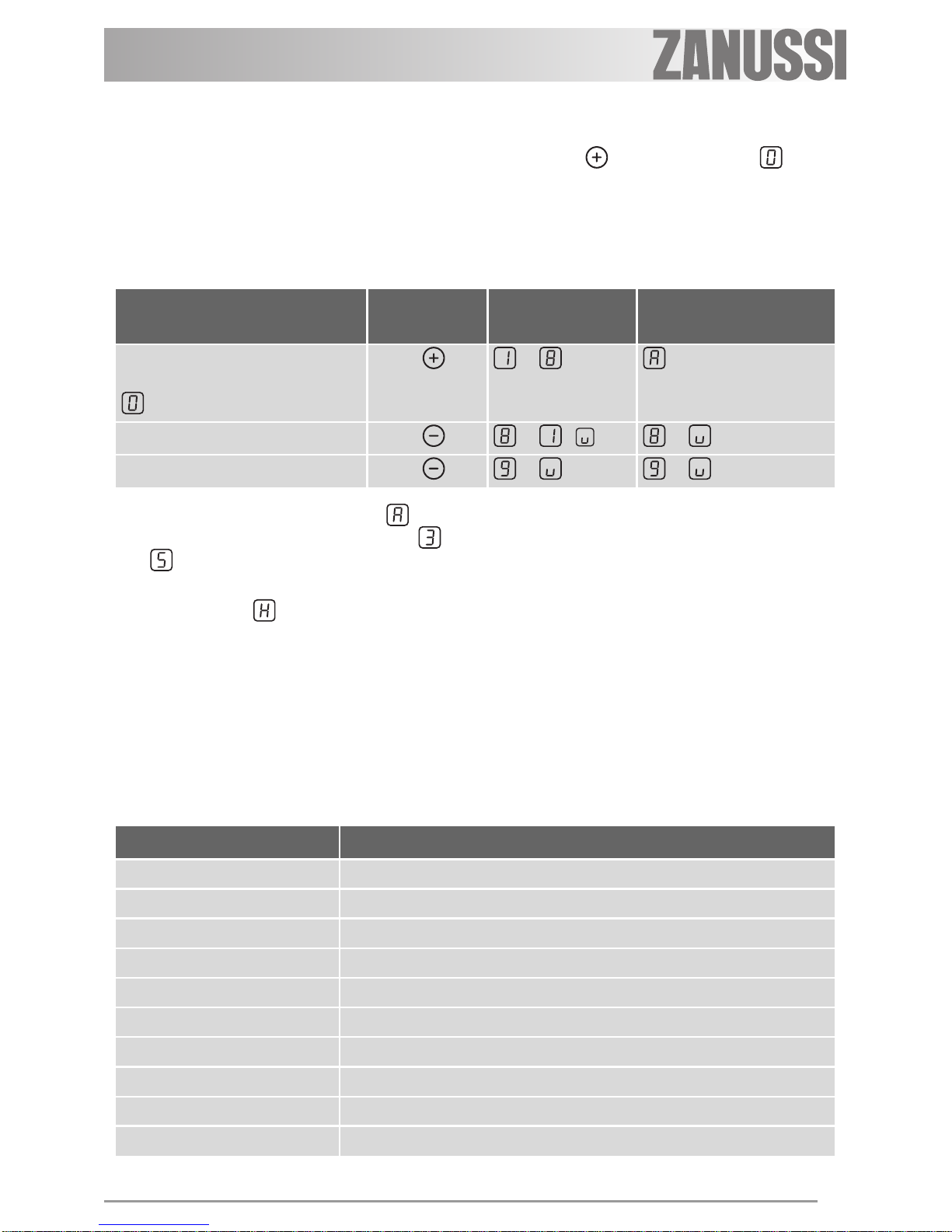

Using the automatic warm-up
function
All cooking zones are equpped with an auto-
matic warm up function When setting aheat
setting using , when starting from , the
cookingzone switches to full powerfor acer-
tain amount of time and then automatically
switches back to the heat setting set.
3If during the automatic warm up a high-
erheat setting is selected,e.g. from to
, the automatic warm up is adjusted.
3If there is still residual heat on the cooking
zone(display ), the automatic warm up
is not performed.
3If the power of a cooking zone is reduced
by the Power Management, the automatic
warm up for this cookingzone is ended.
The length of timethat theautomatic warm up
function operates depends on the heat setting
selected.
Control
panel possible heat settings
Display
Switch on
(only when starting at
)
Touch to (after 5 seconds)
Switch off Touch to / to
Not used Touch to to
Heat setting Length of the automatic warm up [min:sec]
v0:30
11:00
21:40
34:50
46:30
510:10
62:00
73:30
84:30
9---

10
Using the child safety device
The child safety deviceprevents unintentional
use of the appliance.
Switching on the child safety device
Switching off the child safety device
Overriding the child safety device
The child safety device can be switched off in
thiswayforasinglecookingsession;itremains
activated afterwards.
3After overriding the child safety device, a
heatsettingor a function must be set with-
in approx. 10 seconds, otherwise the ap-
pliance automatically switches itself off.
Step Control panel Display/Signal
1. Switch on appliance. (Do not set
a heat setting.)
2. Touch for 4 seconds
The child safety device is switched on.
Step Control panel Display/Signal
1. Switch on appliance. (Do not set
a heat setting.)
2. Touch for 4 seconds lights up
3. Switch appliance off.
The child safety device is switched off.
Step Control panel Display/Signal
1. Switch appliance on
2. Touch for 4 seconds lights up
Until the appliance is next switched off, it can used as normal. After switching off the appliance,
the child safety device is activeagain.

11
Power Management
Theappliancehasamaximumpoweroutput.If
this maximum power is exceeded, thePower
Management automaticallyreduces the power
of the last cooking zone to be switched on.
This can happen by:
•switching on another cooking zone
•switching on an outer ring, when other cook-
ing zones are already switched on at high
settings
•increasing the heat setting on a cooking
zone,whenother cookingzonesare already
switched on at high settings
The display for the last cookingzone to be
switched on alternates for 1 minute between
the heat setting set andthe maximumpossible
heatsetting.Duringthisperioditisnotpossible
to increase the heat setting. Thereafter the ac-
tual heat setting is displayed.
Example: heat setting 9 is selected on a cook-
ing zone. Heat setting 9 is also set for another
cookingzone.Ifthisexceedsthemaximumout-
put,thePowerManagementreducesthepower
of the last cooking zone to be switched from 9
to 7, for example, and the display forthis cook-
ing zone alternates between 9 and 7 and then
remains on the current maximum of 7.(Wheth-
er the display alternates between 9 and 7 or 9
and 6 or other values, depends on the appli-
ance type andthe size ofthe cooking zone.)

12

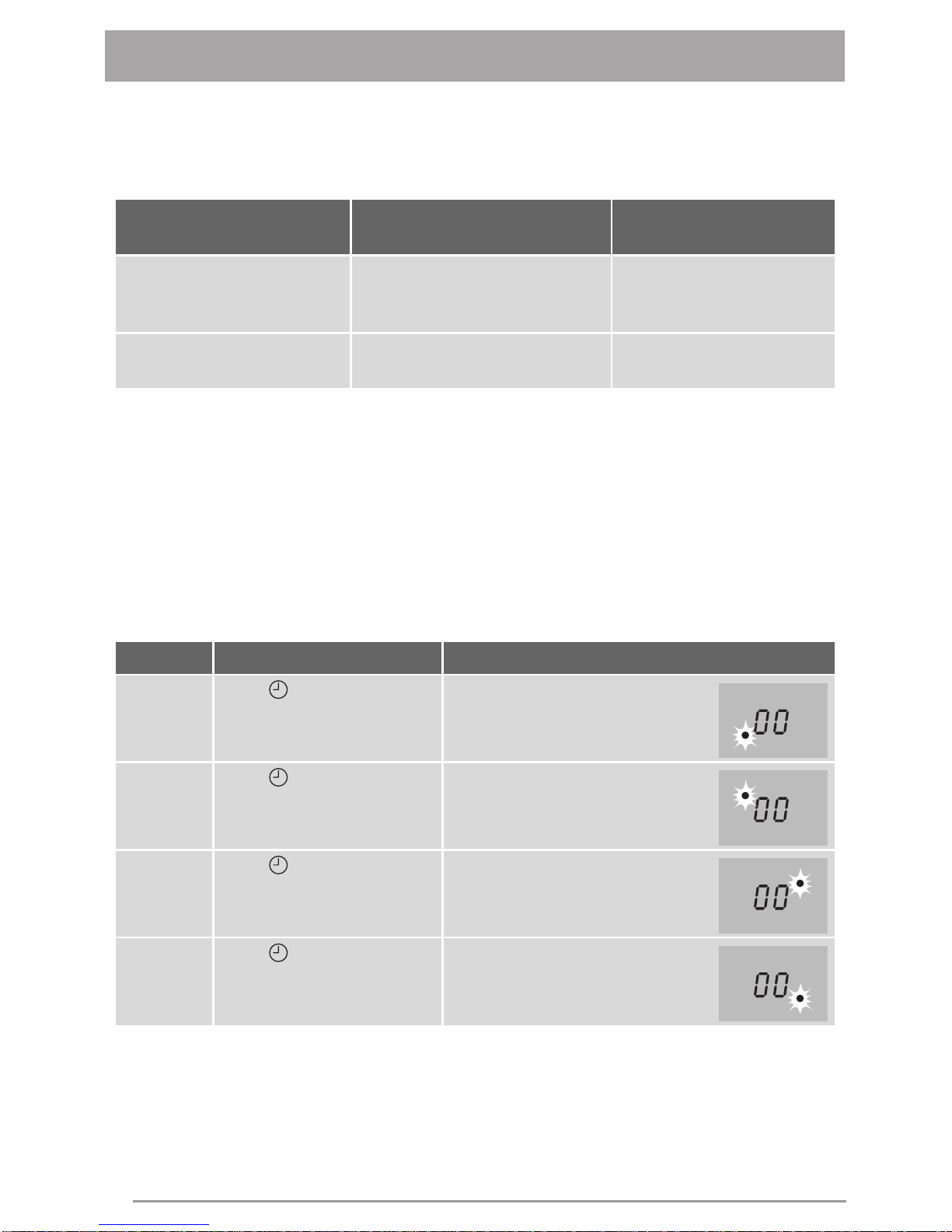

Using the timer
3Ifaheatsettingissetonthiscookingzone
in addition to a countdown timer, the cook-
ing zoneis switched off after the time set
has elapsed.
3If acooking zone is switched off, the timer
function set is also switched off.
Selecting a cooking zone
3Ifthepilotlightisflashingmoreslowly, the
heat setting can be set or modified.
3If other timer functions are set, after a few
seconds the shortest remaining time of all
the timer functions is displayedand the
corresponding pilot light flashes.
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switches off
Countdown timer cooking zones not in use acoustic signal
00 flashes
Step Control panel Display
1. Touch once Pilot light of the first cooking zone
flashes
2. Touch once Pilot light of the second cooking
zone flashes
3. Touch once Pilotlight of the third cooking zone
flashes
4. Touch once Pilotlightofthefourthcookingzone
flashes

13
Setting the time
Switching off the timer function
Changing the time
Displaying the time remaining for a
cooking zone
Step Control panel Indicator
1. Select cooking zone Pilot light for the cooking zone selected flashes
2. Touch or 00 to 99 minutes
After a fewseconds the pilot light flashes moreslowly.
The time is set.
The time counts down.
Step Control panel Indicator
1. Select cooking zone Pilot light of cooking zoneselected flashes faster
Time remaining is displayed
2. Touch The time remaining counts backwards to 00.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel Indicator
1. Select cooking zone Pilot light of the selected cooking zone flashes fast-
er
Time remaining is displayed
2. Touch or 01 to 99 minutes
After afewseconds, thepilot lightflashes more slowly.
The time is set.
The time counts down.
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected flashes fast-
er
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.

14
Switching off the acoustic signal
Automatic switch off
Cooking surface
•If after switchingon the cooking surface, a
heat setting is not set for a cooking zone
within approx. 10 seconds, the cooking sur-
face automatically switches itself off.
•If one or more sensor fields are covered by
objects (a pan, cloths, etc.) for longer than
approx.10seconds,asignalsoundsandthe
cooking surface switches off automatically.
•If all cooking zones are switched off, the
cookingsurfaceautomaticallyswitchesitself
off after approx. 10 seconds.
Cooking zones
•Ifoneofthecookingzonesisnotswitchedoff
after acertain time, orif the heat settingis
notmodified, the relevant cooking zone
switches off automatically. is displayed.
Before being used again, the cooking zone
must be set to .
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.
Heat setting Switches off after
v, 1 - 26 hours
3- 45 hours
54 hours
6- 91.5 hours

15
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowl-
edge,intensivebrowningoffood,especial-
ly in products containing starch, can
constituteahealthriskduetoacrylamides.
Therefore werecommend cooking at the
lowestpossible temperaturesand not
browning foods too much.
Cookware
•You can recognise good cookware from the
bottoms of the pans. The bottom should be
as thick and flat as possible.
•Cookware made of enamelled steel orwith
aluminium or copper bottoms can leave dis-
colorations on the glass ceramic surface
which are difficult or impossible to remove.

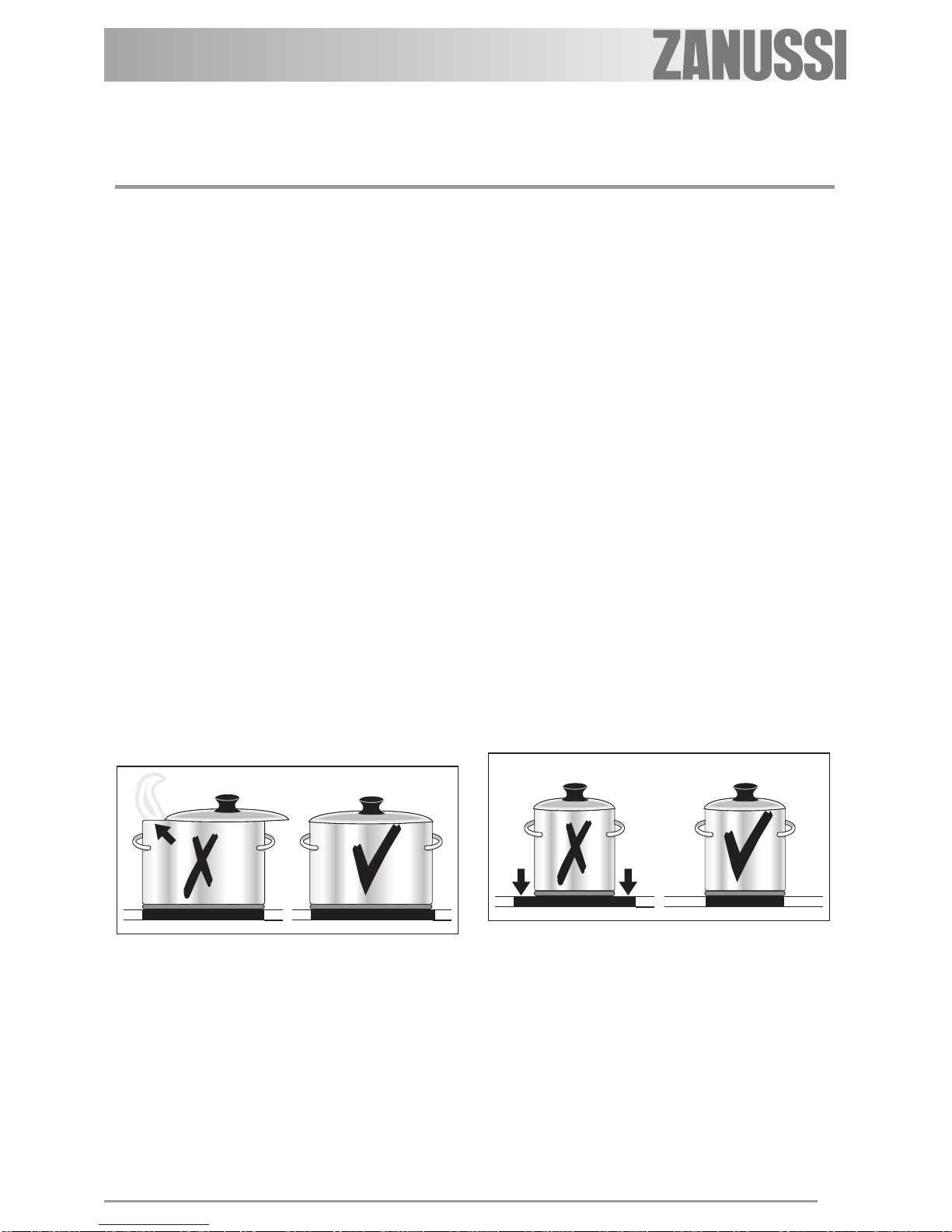

Energy saving
2Always place cookware on the cooking
zone before it is switched on.
2If possible,always place lids onthe pans.
2Switchcookingzonesoffbeforetheendof
the cooking time, to take advantage of re-
sidual heat.
2Bottom of pans and cooking zones should
be the same size.

16
Examples of cooking applica-
tions
The information givenin the following tableis
for guidance only.
Heat
setting Cooking- process suitable for Cooking time Tips/Hints
0Residual heat, Off position
VKeeping
food warm Keeping cooked foods warm as required Cover
1-2 Melting Hollandaise sauce,
melting butter, chocolate, gelatine 5-25 mins. Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
2-3 Simmer-
ing on low
heat
Simmering rice and milk-based
dishes
Heating up ready-cooked meals 25-50 mins. Add at least twice as much liq-
uidasrice,stirmilkdishespart
way through cooking
3-4 Steaming
Braising Steaming vegetables, fish braising meat 20-45 mins. With vegetables add only a lit- tle liquid (a few tablespoons)
4-5 Boiling
Steaming potatoes 20-60 mins. Use only a little liquid, e. g.:
max. ¼l water for
750 g potatoes
Cooking larger quantities of food,
stews and soups 60-150 mins. Up to 3 l liquid plus ingredients
6-7 Gentle
Frying
Frying escalopes, veal cordon
bleu, cutlets, rissoles, sausages,
liver, roux, eggs, pancakes,
doughnuts Steady frying Turn halfway through cooking
7-8 Heavy
Frying
Hash browns, loin steaks, steaks,
Flädle (pancakes for garnishing
soup) 5-15 mins.
per pan Turn halfway through cooking
9
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast),
deep frying chips

17
Cleaning and Care
1Take care! Risk of burns from residual
heat.
1Warning! Sharp objects and abrasive
cleaning materials will damage the appli-
ance.Cleanwithwaterandwashingupliq-
uid.
1Warning! Residues from cleaning
agents will damage the appliance. Re-
moveresidueswithwaterandwashingup
liquid.
Cleaning the appliance after each
use
1.Wipe the appliance with a damp cloth and a
little washing up liquid.
2.Rub the appliance dry using a clean cloth.
Removing deposits
1.Placeascraperontheglassceramicsurface
at an angle.
2.Remove residues by sliding the blade over
the surface.
3.Wipe the appliance with a damp cloth and a
little washing up liquid.
4.Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless
steel can be purchased in specialized shops
3Remove stubborn residues with a cleaner
for glass ceramic or stainless steel.
3Scratches or dark stains on the glass ce-
ramic that cannot be removed do not how-
everaffectthefunctioningoftheappliance.
Remove
Type of dirt immedi-
ately when the appliance has cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ceramic
or stainless steel*
fat splashes --- yes
shiny metallic discolouration --- yes

18
What to do if …
Problem Possible cause Remedy
Thecookingzoneswillnotswitchon
or are not functioning More than10 seconds havepassed sincetheappliancewasswitchedon Switch the appliance on again.
The child safety device is switched
on Deactivate the child safety device (See the section “Child safety de-
vice”)
Several sensor fields were touched
at the same time Only touch one sensor field
Automatic switch off has been trig-
gered Remove any objects (pan, cloths, etc.) that are lying on the control
panel. Switch theappliance on
again
The lock is switched on Switch off the lock (See the section
“Locking/unlocking the control pan-
el”)
Acoustic signal sounds when appli-
ance is switched off The control panel is whollyor partly covered by objects. Remove objects.
The residual heat indicator isnot
displaying anything The cooking zone was only on for a short time and is therefore not hot If the cooking zone is supposed to be hot, call the Customer Service
Department.
The automatic warm up function is
not switching itself on There is still residual heat on the cooking zone Letthe cooking zone cool down
The highest heat setting is set The highest heat setting has the
same power as the automaticwarm
up function
The heat setting was set using the
sensor field 1. Switching off the cooking zone
1. Set the cooking zone using the
sensor field
Acoustic signal sounds and appli-
ance switches itself on and then off
again; after 5 seconds another
acoustic signal sounds
The On/Off sensor field has been
covered up, e.g. by a cloth Donotplaceanyobjectsonthe con- trol panel
is lit Overheating protection for the cook-
ing zone has been triggered Switch off the cooking zone. Switch the cooking zone on again
Automatic switch off has been trig-
gered Switch off the cooking zone. Switch the cooking zone on again

19
If you are unable to remedy the
problem by following the above
suggestions, please contact your
local Service Force Centre.
1Warning! Repairs to the appliance are
only to be carried out by qualified service
engineers. Considerable danger to the
usermay result from improperrepairs.
3If the appliance has been operated incor-
rectly, the engineer's visit will be chargea-
ble, even during the warranty period.
Disposal
2Packaging material
The packaging materials are environmen-
tally friendly and can be recycled. The
plastic components are identifiedby mark-
ings, e.g. >PE<, >PS<, etc. Please dis-
pose of the packaging materialsin the
appropriate container at the community
waste disposal facilities.
2Old appliance
The symbol Won the product oron its
packaging indicates that this product may
not be treated as household waste. In-
stead it shall be handed over to the appli-
cable collection point for the recycling of
electricalandelectronicequipment.Byen-
suringthisproductisdisposedofcorrectly,
you will help prevent potentialnegative
consequencesfortheenvironmentandhu-
man health, whichcould otherwise be
causedbyinappropriatewastehandlingof
thisproduct.Formoredetailedinformation
aboutrecyclingofthisproduct,pleasecon-
tactyour local city office, your household
wastedisposal service or the shop where
you purchased the product.
and number are displayed Electronics fault Disconnect the appliance from the
electricalsupply for a few minutes
(Take the fuse out of the house’s
wiring system)
Ifafterswitchingonagain, isdis-
played again, call the customer
service department
Problem Possible cause Remedy

20
Installation Instructions
1Safety instructions
Warning! This must be read!
Thelaws,ordinances,directivesandstandards
inforce inthecountryofuseareto befollowed
(safety regulations, proper recycling in accord-
ance with the regulations, etc.)
Installation may only be carried out bya quali-
fied electrician.
The minimum distances to otherappliances
and units are to be observed.
Anti-shock protection must be provided by the
installation, for example drawers may only be
installed with a protective floor directly under-
neath the appliance.
The cut surfaces of the worktop are to be pro-
tected against moisture using a suitable seal-
ant.
Thesealantsealstheappliancetotheworktop
with no gap.
Avoidinstallingtheappliancenexttodoorsand
under windows. Otherwise hot cookware may
be knocked off the rings when doors and win-
dows are opened.
zRisk of injury from electrical cur-
rent.
•The electrical mains terminal is live.
•Make electrical mainsterminal free ofvolt-
age.
•Follow connection schematic.
•Observe electrical safety rules.
•Ensure anti-shock protection by installing
correctly.
•The appliance must be connected to the
electrical supply by a qualified electrician.
zRisk of injury from electrical cur-
rent.
•Looseand inappropriate plugand socket
connectionscanmaketheterminaloverheat.
•Have the clamping connections correctly in-
stalled by a qualified electrician.
•Use strain relief clamp on cable.
•In the event of single-phase or two-phase
connection, the appropriate mains cableof
type H05BB-F Tmax 90°C(or higher) or an
equivalent type must be used.
•Ifthisappliance’smainscableisdamaged,it
must be replaced by a special cable (type
H05BB-F Tmax90°C;orhigher)oranequiv-
alent type. The latter isavailable from the
Customer Care Department.
A device must be provided in the electrical in-
stallation which allows the appliance to be dis-
connectedfrom themains atall poles with a
contact opening widthof at least3 mm.
Suitable isolation devicesinclude line protect-
ing cut-outs, fuses (screw typefuses are tobe
removed from the holder), earth leakage trips
and contactors.
Sticking on the seal
•Clean the worktop around the cut-out area.
•Stick the single-sided adhesive sealing tape
providedontheundersideofthehobaround
the outside edge ensuring that it is not
stretched. The two ends of the tape should
join in the middle of one side. After trimming
the tape (allow it to overlap by 2-3 mm),
press the two ends together.
