Installation and Operating Instructions g

2
Dear Customer,
Please read these user instructions carefully and keep them to refer to later.
Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1Safety instructions
Warning! Notes that concern your personal safety.
Important! Notes that show how to avoid damage to the appliance.
3Useful tips and hints
2Environmental information
zDangerous Voltage

3
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Touch Control sensor fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Switching the appliance on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting the heat setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic switch off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tips on cooking and frying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Guarantee/Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting
is not covered by the warranty.
Correct use
•Persons (including children) who, due to their physical, sensory or mental
capacity or their inexperience or lack of knowledge are unable to use the
appliance safely should not operate this appliance without the supervision
or instruction of a responsible person.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for normal domestic cooking and fry-
ing of food.
•The appliance must not be used as a work surface or as a storage sur-
face.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or
fusible objects (e.g. plastic film, plastic, aluminium) on or near the appli-
ance.
Child safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
•To avoid small children and pets unintentionally switching the appliance
on, we recommend activation of the child safety device.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers, or competent persons.
•Built-in appliances may only be used after they have been built in to suita-
ble built-in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and dis-
connected from the electrical supply to prevent the possibility of an elec-
tric shock.
•Repairs to the appliance must only be carried out by trained registered
service engineers.

5
Safety during use
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•There is the risk of burns from the appliance if used carelessly.
•Remove stickers and film from the glass ceramic.
•Cables from electrical appliances must not touch the hot surface of the
appliance or hot cookware.
•Switch the cooking zones off after each use.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high-
pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The ceramic glass can be damaged by objects falling onto it.
•The edge of the ceramic glass can be damaged by being knocked by the
cookware.
•Cookware made of cast iron, cast aluminium or with damaged bottoms
can scratch the ceramic glass if pushed across the surface.
•Objects that melt and things that boil over can burn onto the ceramic
glass and should be removed straightaway.
•To avoid damaging cookware and glass ceramics, do not allow sauce-
pans or frying pans to boil dry.
•Do not use the cooking zones with empty cookware or without cookware.

6
Description of the Appliance
Cooking surface layout
Control panel layout
Single cooking zone 2300 W
Single cooking zone 1800 W
Single cooking zone 1200 W
Control panel Single cooking zone 1200 W
On/Off
Heat setting selection
Display

7
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are
controlled by touching sensor fields and confirmed by displays and acoustic
signals.
Touch the sensor fields from above, without covering other sensor fields.
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the
cooking zones need some time to cool down. Look at the residual heat indi-
cator .
3Residual heat can be used for melting and keeping food warm.
Sensor field Function
On / Off Switches appliance on and off
Increase settings To increase heat settings
Reduce settings To reduce heat settings
Display Description
Cooking zone is switched off
- Heat settings Heat setting is set
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is set.
Automatic switch off Switch off is active.

8
Operating the appliance
Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a function
must be set, otherwise the appliance automatically switches itself off.
Selecting the heat setting
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Switching on the child safety device
Control panel Display
Switch on Touch for 2 seconds /
Switch off Touch for 1 second / none
Control panel Indicator
To increase Touch to
To decrease Touch to
To switch off Touch and at the same time
Step Control panel Display/Signal
1. Switch on appliance (Do not
set a heat setting).
2. Tou ch of both the cooking zones
at the front simultaneously for 4
seconds.
3. Switch appliance off.
The child safety device is switched on.

9
Switching off the child safety device
3The child safety device can only be switched on and off, if no heat setting is
set.
Overriding the child safety device
The child safety device can be switched off in this way for a single cooking
session; it remains activated afterwards.
3After overriding the child safety device, a heat setting or a function must be
set within approx. 10 seconds, otherwise the appliance automatically
switches itself off.
Step Control panel Display/Signal
1. Switch on appliance (Do not
set a heat setting).
2. Tou ch of both the cooking zones
at the front simultaneously for 4
seconds.
3. Switch appliance off.
The child safety device is switched off.
Step Control panel Display/Signal
1. Switch appliance on
2. Tou ch of both the cooking zones
at the front simultaneously for 4
seconds.
Until the appliance is next switched off, it can used as normal. After
switching off the appliance, the child safety device is active again.

10
Automatic switch off
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for a
cooking zone within approx. 10 seconds, the cooking surface automati-
cally switches itself off.
•If one or more sensor fields are covered by objects (a pan, cloths, etc.) for
longer than approx. 10 seconds, a signal sounds and the cooking surface
switches off automatically.
•If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Cooking zones
•If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off auto-
matically. is displayed. Before being used again, the cooking zone
must be set to .
Heat setting Switches off after
1 - 2 6 hours
3 - 4 5 hours
54 hours
6 - 9 1.5 hours

11
Tips on cooking and frying
3Information about acrylamides
According to the latest scientific research, intensive browning of food, espe-
cially in products containing starch, may present a health risk due to acryla-
mide. Therefore we recommend cooking at low temperatures and not
browning foods too much.
Cookware
•You can recognise good cookware from the bottoms of the pans. The
bottom should be as thick and flat as possible.
•Cookware made of enamelled steel or with aluminium or copper bottoms
can leave discolourations on the ceramic glass surface which are difficult
or impossible to remove.

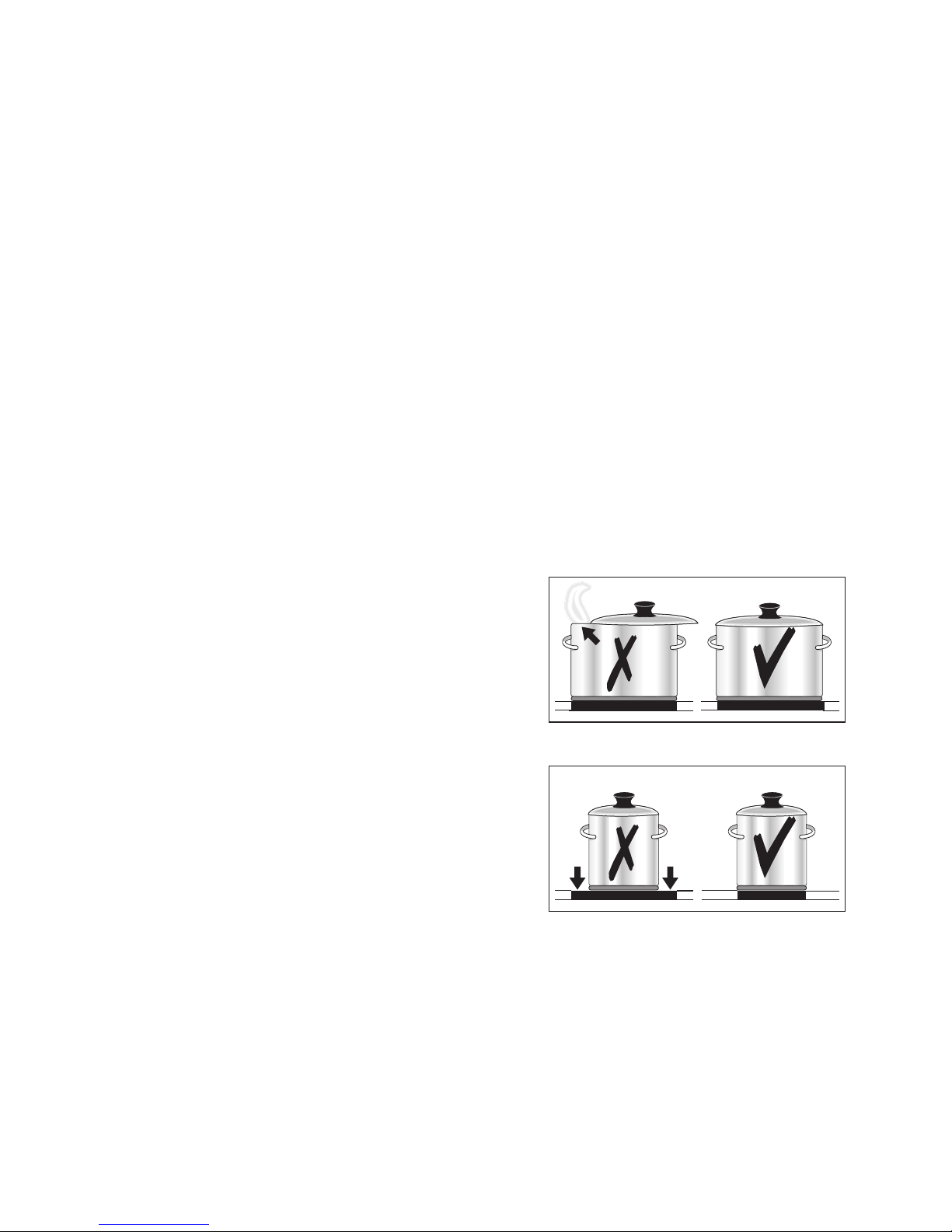

Energy saving
2Always place cookware on the cooking
zone before it is switched on.
2If possible, always place lids on the pans.
2Switch cooking zones off before the end
of the cooking time, to take advantage of
residual heat.
2Bottom of pans and cooking zones
should be the same size.

12
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
set-
ting
Cooking
process suitable for Cook time Tips/Hints
0Residual heat setting, Off
position
1
Keeping
food
warm
Keeping cooked foods
warm as required Cover
1-2
Melting
Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidify-
ing
Fluffy omelettes, baked
eggs 10-40 mins. Cook with lid on
2-3
Simmer-
ing
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
3-4
Steaming
Braising
Steaming vegetables, fish
Braising meat 20-45 mins.
With vegetables add
only a little liquid (a few
tablespoons)
4-5
Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e.
g.: max. ¼ l water for
750 g of potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 l liquid plus in- gredients
6-7
Gentle
frying
Frying escalope, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
as required Turn halfway through
cooking
7-8
Heavy
frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (gou-
lash, pot roast), deep frying chips

13
Cleaning and care
1Take care! Risk of burns from residual heat.
1Important Sharp objects and abrasive cleaning materials will damage the
appliance. Clean with water and washing up liquid.
1Important Residues from cleaning agents will damage the appliance. Re-
move residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place the scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops, su-
permarkets, the parts department of your local Service Force Centre or from www.shop.elec-
trolux.co.uk
3Remove stubborn residues with a cleaner for glass ceramic or stainless
steel.
3Scratches or dark stains on the glass ceramic that cannot be removed do
not however affect the functioning of the appliance.
Remove
Type of dirt imme-
diately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ce-
ramic or stainless
steel*
fat splashes --- yes
shiny metallic discolouration --- yes

14
What to do if …
If you are unable to remedy the problem by following the above sug-
gestions, please contact your local Service Force Centre.
Problem Possible cause Remedy
The cooking zones will not
switch on or are not function-
ing
More than 10 seconds have
passed since the appliance
was switched on
Switch the appliance on
again.
The child safety device is
switched on
Deactivate the child safety
device (See the section
“Child safety device”)
Several sensor fields were
touched at the same time
Only touch one sensor field
Automatic switch off has
been triggered
Remove any objects (pan,
cloths, etc.) that are lying on
the control panel. Switch the
appliance on again
Acoustic signal sounds when
appliance is switched off
The control panel is wholly or
partly covered by objects.
Remove objects.
The residual heat indicator is
not displaying anything
The cooking zone was only
on for a short time and is
therefore not hot
If the cooking zone is sup-
posed to be hot, call your lo-
cal Service Force Centre.
Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic
signal sounds
The On/Off sensor field has
been covered up, e.g. by a
cloth
Do not place any objects on
the control panel
is lit Overheating protection for
the cooking zone has been
triggered
Switch off the cooking zone.
Switch the cooking zone on
again
Automatic switch off has
been triggered
Switch off the cooking zone.
Switch the cooking zone on
again
and number are displayed Electronics fault Disconnect the appliance
from the electrical supply for
a few minutes (Take the fuse
out of the house’s wiring sys-
tem)
If after switching on again,
is displayed again, call the
customer service department

15
1Warning! Repairs to the appliance are only to be carried out by qualified
service engineers. Considerable danger to the user may result from improp-
er repairs.
3If the appliance has been operated incorrectly, the engineer's visit will be
chargeable, even during the warranty period.

16
Disposal
2Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at
your local waste disposal facilities.
2Old appliance
The symbol Won the product or on its packaging indicates that this prod-
uct may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electron-
ic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.

17
Installation Instructions
1Safety instructions
Warning! This must be read!
The laws, ordinances, directives and standards in force in the country of use
are to be followed (safety regulations, proper recycling in accordance with
the regulations, etc.)
Installation may only be carried out by a qualified electrician.
The minimum distances to other appliances and units are to be observed.
Anti-shock protection must be provided by the installation, for example
drawers may only be installed with a protective floor directly underneath the
appliance.
The cut surfaces of the worktop are to be protected against moisture using
a suitable sealant.
The sealant seals the appliance to the work top with no gap.
The sealant seals the appliance to the work top with no gap.
Do not use silicon sealant between the appliance and the work top.
Avoid installing the appliance next to doors and under windows. Otherwise
hot cookware may be knocked off the rings when doors and windows are
opened.
zRisk of injury from electrical current.
•The electrical mains terminal is live.
•Make electrical mains terminal free of voltage.
•Follow connection schematic.
•Observe electrical safety rules.
•Ensure anti-shock protection by installing correctly.
•The appliance must be connected to the electrical supply by a qualified
electrician.
zRisk of injury from electrical current.
•Loose and inappropriate plug and socket connections can make the ter-
minal overheat.
•Have the clamping connections correctly installed by a qualified electri-
cian.
•Use strain relief clamp on cable.
•In the event of single-phase or two-phase connection, the appropriate
mains cable of type H05BB-F Tmax 90°C (or higher) must be used.
•If this appliance’s mains cable is damaged, it must be replaced by a spe-
cial cable (type H05BB-F Tmax 90°C; or higher). Please contact your local
Service Force Center for further advice.

18
A device must be provided in the electrical installation which allows the ap-
pliance to be disconnected from the mains at all poles with a contact open-
ing width of at least 3 mm
Suitable isolation devices include line protecting cut-outs, fuses (screw type
fuses are to be removed from the holder), earth leakage trips and contac-
tors.
Electrical Connection Diagram
For UK only: 230V...240V~

19
Assembly

20
