Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, we recommend you
activate it.
•Cleaning and user maintenance shall not be made by children
without supervision.
•Children of less than 3 years should be kept away unless
continuously supervised.
General Safety
•Only a qualified person must install this appliance and replace
the cable.
2 www.zanussi.com

•Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always
use oven gloves to remove or put in accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Excess spillage must be removed before the pyrolytic cleaning.
Remove all parts from the oven.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls. Install
the shelf supports in the opposite sequence.
Safety instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Do not let mains cables touch or come near
the appliance door, especially when the door
is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
www.zanussi.com 3

• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door, before you
connect the mains plug to the mains socket.
• This appliance complies with the E.E.C.
Directives.
Use
WARNING!
Risk of injury, burns and electrical
shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface
or as a storage surface.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a
mixture of alcohol and air.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects in
the appliance directly on the bottom.
– do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• This appliance is for cooking purposes only.
It must not be used for other purposes, for
example room heating.
• Always cook with the oven door closed.
Care and cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Service.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Pyrolytic cleaning
Risk of Injury / Fires / Chemical
Emissions (Fumes) in Pyrolitic Mode.
• Before carrying out a Pyrolitic self-cleaning
function or the First Use please remove from
the oven cavity:
– any excess food residues, oil or grease
spills / deposits.
4 www.zanussi.com

– any removable objects (including
shelves, side rails etc., provided with the
product) particularly any non-stick pots,
pans, trays, utensils etc.
• Read carefully all the instructions for
Pyrolytic cleaning.
• Keep children away from the appliance while
the Pyrolytic cleaning is in operation.
The appliance becomes very hot and hot air
is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature
operation that can release fumes from
cooking residues and construction materials,
as such consumers are strongly advised to:
– provide good ventilation during and after
each Pyrolytic cleaning.
– provide good ventilation during and after
the first use at maximum temperature
operation.
• Unlike all humans, some birds and reptiles
can be extremely sensitive to potential fumes
emitted during the cleaning process of all
Pyrolytic Ovens.
– Remove any pets (especially birds) from
the vicinity of the appliance location
during and after the Pyrolytic cleaning
and first use maximum temperature
operation to a well ventilated area.
• Small pets can also be highly sensitive to the
localized temperature changes in the vicinity
of all Pyrolytic Ovens when the Pyrolytic self
cleaning program is in operation.
• Non-stick surfaces on pots, pans, trays,
utensils etc., can be damaged by the high
temperature Pyrolytic cleaning operation of
all Pyrolytic Ovens and can be also a source
for low level harmful fumes.
• Fumes released from all Pyrolytic Ovens /
Cooking Residues as described are not
harmful to humans, including infants or
persons with medical conditions.
Internal light
• The type of light bulb or halogen lamp used
for this appliance is only for household
appliances. Do not use it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
Product description
General overview
75
6
5
4
3
2
1
21
4
3
1Control panel
2Electronic programmer
3Heating element
4Lamp
5Fan
6Shelf support, removable
7Shelf positions
www.zanussi.com 5

Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
Before first use
WARNING!
Refer to Safety chapters.
Initial Cleaning
Remove all accessories and removable shelf
supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable shelf
supports back to their initial position.
Setting the time
You must set the time before you
operate the oven.
When you connect the oven to the electrical
supply or after a power cut, the symbol
flashes.
Press the or button to set the correct
time.
Changing the time
1. Press again and again until the symbol
flashes.
2. Press the or button to set the correct
time.
After approximately 5 seconds, the flashing
stops and the display shows the time of day you
set.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and the maximum
temperature.
4. Let the appliance operate for 15 minutes.
Accessories can become hotter than usual. The
appliance can emit an odour and smoke. This is
normal. Make sure that the airflow in the room is
sufficient.
Daily use
WARNING!
Refer to Safety chapters.
6 www.zanussi.com

Display
A B C
A) Oven function
B) Temperature
C) Time
Buttons
Button Function Description
On / off To activate or deactivate the oven.
Selection To set an oven function.
Fast Heat Up To activate the Fast Heat Up function.
Pyrolysis To start the pyrolytic cleaning.
Minus, plus To set the time and temperature.
Clock To set a clock function.
Setting an oven function
When you set an oven function, the
temperature symbol flashes. The
symbol shows that the temperature
in the appliance increases.
When the appliance is at the set
temperature, an acoustic signal
sounds and the temperature symbol
stops flashing.
1. Press to activate the appliance.
2. Press again and again until the symbol
for the necessary oven function flashes.
The display shows the default temperature. If
you do not change the temperature in
approximately five seconds, the appliance starts
to operate.
3. To change the temperature, press or .
Changing the temperature
1. Press the button .
The symbol ° flashes.
2. Press the button or to change the
temperature.

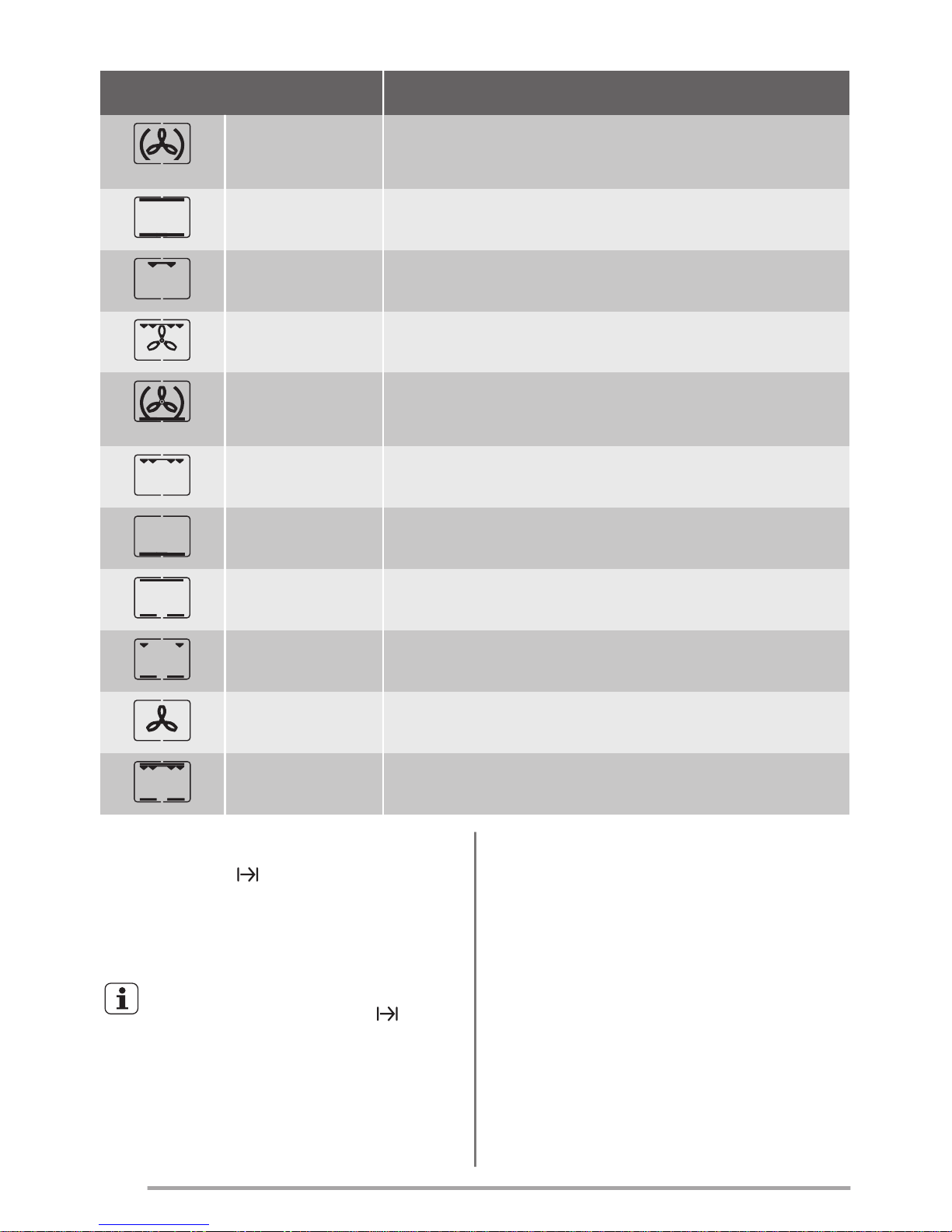

Oven functions
Oven function Application
Light To activate the lamp without a cooking function.
www.zanussi.com 7

Oven function Application
True Fan Cooking To bake on up to 3 shelf positions at the same time and to dry
food. Set the temperature 20 - 40 °C lower than for Convention-
al Cooking.
Conventional Cook-
ing To bake and roast food on 1 shelf position.
Grilling To grill flat food and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1 shelf posi-
tion. Also to make gratins and to brown.
Pizza Setting To bake food on 1 shelf position for a more intensive browning
and a crispy bottom. Set the temperature 20 - 40 °C lower than
for Conventional Cooking.
Fast Grilling To grill flat food in large quantities and to toast bread.
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Meat To prepare very tender and juicy roasts.
Keep Warm To keep food warm.
Defrost To defrost frozen food.
Pyrolysis To activate the automatic pyrolytic cleaning of the oven. This
function burns off residual dirt in the oven.
Residual heat function
With the Duration function, the oven
deactivates automatically some minutes before
the time period ends. The oven uses the
residual heat to complete the cooking without
energy consumption.
The residual heat function is
applicable only if the Duration is
more than 20 minutes.
Fast heat up function
The Fast Heat Up function works only if the
necessary temperature is 100 °C higher than
the current temperature in the oven.
With the Fast Heat Up function you decrease
the preheating time. You can use it with each
oven function except Keep Warm and Defrost.
8 www.zanussi.com

WARNING!
Do not put the food into the oven
until the Fast Heat Up function is
completed.
1. Set an oven function. If necessary, change
the temperature.
2. Press .
The display shows FHU. The Fast Heat Up
function starts to operate.
When the Fast Heat Up function is completed,
an acoustic signal sounds. FHU goes out. The
set oven function continues to operate.
3. Put the food in the oven.
Clock functions
Clock functions table
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set countdown time. This function has no effect on the operation of
the appliance.
Duration To set the cooking time of the oven.
End To set the time of day when the oven should deactivate.
You can use the functions Duration
and End at the same time to
set the time for how long the
appliance should operate and when
the appliance should deactivate.
This lets you activate the appliance
with a delay in time. First set the
Duration and then the End .
Setting the clock functions
For Duration and End , set an oven
function and temperature. This is not necessary
for the Minute Minder . Refer to "Setting an
oven function".
1. Press again and again until the symbol
for the necessary clock function flashes.
2. Press or to set the necessary clock
function.
The display shows the symbol for the clock
function you set. When the set time ends, the
symbol flashes and an acoustic signal sounds
for two minutes.
With the Duration and End
functions, the appliance deactivates
automatically.
3. Press a button to stop the signal.
4. Deactivate the appliance.
Cancelling the clock functions
1. Press again and again until the symbol
for the necessary clock function and
flash in the display.
2. Press and hold the button until the clock
function goes out.
Additional functions
Using the Child Lock
The oven must be deactivated.
www.zanussi.com 9

When the Child Lock is on, you
cannot operate the oven. The oven
door blocks when the Child Lock is
activated.
Activating the Child Lock
Press and at the same time, until the
display shows SAFE.
The Child Lock is on.
To deactivate the Child Lock, do the same step
again.
Control beep
To deactivate the control beep, the
appliance must be deactivated.
It is not possible to deactivate the
sound of the On / off button.
Press and hold the buttons and at the
same time for approximately 2 seconds, until an
acoustic signal sounds.
The control beep is deactivated.
To activate the control beep, do the same step
again.
Automatic Switch-off
For safety reasons the appliance deactivates
automatically after some time if an oven function
operates and you do not change any settings.
Temperature (°C) Switch-off time (h)
30 - 115 12.5
Temperature (°C) Switch-off time (h)
120 - 195 8.5
200 - 245 5.5
250 - maximum 3
After an automatic switch-off, deactivate the
appliance fully. Then you can activate it again.
The Automatic switch-off does not
work with the functions: Duration,
End.
Error code
If some parameters are not correct, the control
unit stops the functions which operate and the
display shows the related error code. Refer to
the chapter "Troubleshooting".
Cooling fan
When the appliance operates, the cooling fan
activates automatically to keep the surfaces of
the appliance cool. If you deactivate the
appliance, the cooling fan can continue to
operate until the appliance cools down.
Safety thermostat
Incorrect operation of the appliance or defective
components can cause dangerous overheating.
To prevent this, the oven has a safety
thermostat which interrupts the power supply.
The oven activates again automatically when the
temperature drops.
Hints and tips
WARNING!
Refer to Safety chapters.
The temperature and baking times in
the tables are guidelines only. They
depend on the recipes and the
quality and quantity of the
ingredients used.
General information
• The appliance has five shelf positions. Count
the shelf positions from the bottom of the
appliance floor.
• The appliance has a special system which
circulates the air and constantly recycles the
steam. With this system you can cook in a
steamy environment and keep the food soft
inside and crusty outside. It decreases the
cooking time and energy consumption to a
minimum.
• Moisture can condense in the appliance or
on the door glass panels. This is normal.
Always stand back from the appliance when
you open the appliance door while cooking.
To decrease the condensation, operate the
appliance for 10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
10 www.zanussi.com

• Do not put the objects directly on the
appliance floor and do not put aluminium foil
on the components when you cook. This can
change the baking results and cause
damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of the
set cooking time is up.
• If you use two baking trays at the same time,
keep one empty level between them.
Cooking meat and fish
• Use a deep pan for very fatty food to prevent
the oven from stains that can be permanent.
• Leave the meat for approximately 15 minutes
before carving so that the juice does not
seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recipes
and quantities when you use this appliance.
Baking and roasting table
Cakes
Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Whisked
recipes 170 2 160 3 (2 and 4) 45 - 60 In a cake mould
Shortbread
dough 170 2 160 3 (2 and 4) 20 - 30 In a cake mould
Buttermilk
cheesecake 170 1 165 2 80 - 100 In a 26 cm cake mould
Apple cake
(Apple pie)1)
170 2 160 2 (left and
right) 80 - 100 In two 20 cm cake moulds
on a wire
shelf
Strudel 175 3 150 2 60 - 80 In a baking
tray
Jam-tart 170 2 165 2 (left and
right) 30 - 40 In a 26 cm cake mould
Sponge cake 170 2 150 2 40 - 50 In a 26 cm
cake mould
Christmas
cake / Rich
fruit cake1)
160 2 150 2 90 - 120 In a 20 cm
cake mould
www.zanussi.com 11

Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Plum cake1) 175 1 160 2 50 - 60 In a bread tin
Small cakes
- one level1)
170 3 150 - 160 3 20 - 30 In a baking
tray
Small cakes
- two levels1)
- - 140 - 150 2 and 4 25 - 35 In a baking
tray
Small cakes
- three levels
1)
- - 140 - 150 1, 3 and 5 30 - 45 In a baking
tray
Biscuits /
pastry stripes
- one level
140 3 140 - 150 3 25 - 45 In a baking
tray
Biscuits /
pastry stripes
- two levels
- - 140 - 150 2 and 4 35 - 40 In a baking
tray
Biscuits /
pastry stripes
- three levels
- - 140 - 150 1, 3 and 5 35 - 45 In a baking
tray
Meringues -
one level 120 3 120 3 80 - 100 In a baking tray
Meringues -
two levels1)
- - 120 2 and 4 80 - 100 In a baking
tray
Buns1) 190 3 190 3 12 - 20 In a baking
tray
Eclairs - one
level 190 3 170 3 25 - 35 In a baking tray
Eclairs - two
levels - - 170 2 and 4 35 - 45 In a baking tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake mould
Rich fruit
cake 160 1 150 2 110 - 120 In a 24 cm cake mould
Victoria
sandwich1)
170 1 160 2 (left and
right) 30 - 50 In a 20 cm cake mould
1) Preheat the oven for 10 minutes.
12 www.zanussi.com

Bread and pizza
Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
White bread
1)
190 1 190 1 60 - 70 1 - 2 pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread tin
Bread rolls1) 190 2 180 2 (2 and 4) 25 - 40 6 - 8 rolls in
a baking tray
Pizza1) 230 - 250 1 230 - 250 1 10 - 20 In a baking
tray or a
deep pan
Scones1) 200 3 190 3 10 - 20 In a baking
tray
1) Preheat the oven for 10 minutes.
Flans
Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan 200 2 175 2 45 - 60 In a mould
Quiches1) 180 1 180 1 50 - 60 In a mould
Lasagne1) 180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannelloni1) 180 - 190 2 180 - 190 2 25 - 40 In a mould
1) Preheat the oven for 10 minutes.
Meat
Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Beef 200 2 190 2 50 - 70 On a wire
shelf
Pork 180 2 180 2 90 - 120 On a wire
shelf
www.zanussi.com 13

Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Veal 190 2 175 2 90 - 120 On a wire
shelf
English roast
beef, rare 210 2 200 2 50 - 60 On a wire shelf
English roast
beef, medi-
um
210 2 200 2 60 - 70 On a wire
shelf
English roast
beef, well
done
210 2 200 2 70 - 75 On a wire
shelf
Shoulder of
pork 180 2 170 2 120 - 150 With rind
Shin of pork 180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Conventional Cooking True Fan Cooking Time
(min) Com- ments
Tempera-
ture (°C) Shelf po- sition Tempera- ture (°C) Shelf po- sition
Trout / Sea
bream 190 2 175 2 40 - 55 3 - 4 fish
Tuna fish /
Salmon 190 2 175 2 35 - 60 4 - 6 fillets
14 www.zanussi.com

Grilling
Preheat the empty oven for 3
minutes before cooking.
Food Quantity Tempera-
ture (°C) Time (min) Shelf po- sition
Pieces (g) 1st side 2nd side
Fillet steaks 4 800 max. 12 - 15 12 - 14 4
Beef steaks 4 600 max. 10 - 12 6 - 8 4
Sausages 8 - max. 12 - 15 10 - 12 4
Pork chops 4 600 max. 12 - 16 12 - 14 4
Chicken (cut
in 2) 2 1000 max. 30 - 35 25 - 30 4
Kebabs 4 - max. 10 - 15 10 - 12 4
Breast of
chicken 4 400 max. 12 - 15 12 - 14 4
Hamburger 6 600 max. 20 - 30 - 4
Fish fillet 4 400 max. 12 - 14 10 - 12 4
Toasted
sandwiches 4 - 6 - max. 5 - 7 - 4
Toast 4 - 6 - max. 2 - 4 2 - 3 4
Turbo Grilling
Beef
Food Quantity Temperature
(°C) Time (min) Shelf position
Roast beef or fillet, rare
1)
per cm of thick-
ness 190 - 200 5 - 6 1 or 2
Roast beef or fillet, me-
dium1)
per cm of thick-
ness 180 - 190 6 - 8 1 or 2
Roast beef or fillet, well
done1)
per cm of thick-
ness 170 - 180 8 - 10 1 or 2
1) Preheat the oven.
www.zanussi.com 15

Pork
Food Quantity (kg) Temperature
(°C) Time (min) Shelf position
Shoulder, neck, ham
joint 1 - 1.5 160 - 180 90 - 120 1 or 2
Chop, spare rib 1 - 1.5 170 - 180 60 - 90 1 or 2
Meat loaf 0.75 - 1 160 - 170 50 - 60 1 or 2
Pork knuckle (pre-
cooked) 0.75 - 1 150 - 170 90 - 120 1 or 2
Veal
Food Quantity (kg) Temperature
(°C) Time (min) Shelf position
Roast veal 1 160 - 180 90 - 120 1 or 2
Knuckle of veal 1.5 - 2 160 - 180 120 - 150 1 or 2
Lamb
Food Quantity (kg) Temperature
(°C) Time (min) Shelf position
Leg of lamb, roast
lamb 1 - 1.5 150 - 170 100 - 120 1 or 2
Saddle of lamb 1 - 1.5 160 - 180 40 - 60 1 or 2
Poultry
Food Quantity (kg) Temperature
(°C) Time (min) Shelf position
Poultry portions 0.2 - 0.25 each 200 - 220 30 - 50 1 or 2
Chicken, half 0.4 - 0.5 each 190 - 210 35 - 50 1 or 2
Chicken, poulard 1 - 1.5 190 - 210 50 - 70 1 or 2
Duck 1.5 - 2 180 - 200 80 - 100 1 or 2
Goose 3.5 - 5 160 - 180 120 - 180 1 or 2
Turkey 2.5 - 3.5 160 - 180 120 - 150 1 or 2
Turkey 4 - 6 140 - 160 150 - 240 1 or 2
Fish
Food Quantity (kg) Temperature
(°C) Time (min) Shelf position
Whole fish 1 - 1.5 210 - 220 40 - 60 1 or 2
16 www.zanussi.com

Defrost
Food Quantity
(g) Defrosting time (min) Further defrost- ing time (min) Comments
Chicken 1000 100 - 140 20 - 30 Place the chicken on an up-
turned saucer placed on a
large plate. Turn halfway
through.
Meat 1000 100 - 140 20 - 30 Turn halfway through.
Meat 500 90 - 120 20 - 30 Turn halfway through.
Trout 150 25 - 35 10 - 15 -
Strawberries 300 30 - 40 10 - 20 -
Butter 250 30 - 40 10 - 15 -
Cream 2 x 200 80 - 100 10 - 15 Cream can also be whipped
when still slightly frozen in
places.
Gateau 1400 60 60 -
Drying - True Fan Cooking
• Cover trays with grease proof paper or
baking parchment.
• For a better result, stop the oven halfway
through the drying time, open the door and
let it cool down for one night to complete the
drying.
Vegetables
Food Temperature
(°C) Time (h) Shelf position
1 position 2 positions
Beans 60 - 70 6 - 8 3 1 / 4
Peppers 60 - 70 5 - 6 3 1 / 4
Vegetables for sour 60 - 70 5 - 6 3 1 / 4
Mushrooms 50 - 60 6 - 8 3 1 / 4
Herbs 40 - 50 2 - 3 3 1 / 4
Fruit
Food Temperature
(°C) Time (h) Shelf position
1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
www.zanussi.com 17

Food Temperature
(°C) Time (h) Shelf position
1 position 2 positions
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4
Care and cleaning
WARNING!
Refer to Safety chapters.
Notes on cleaning
• Clean the front of the appliance with a soft
cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each use.
Fat accumulation or other food remains may
result in a fire. The risk is higher for the grill
pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and let
them dry. Use a soft cloth with warm water
and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
edged objects or a dishwasher. It can cause
damage to the nonstick coating.
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean the
oven control panel with the same
precautions.
Removing the shelf supports
To clean the oven, remove the shelf supports.
1
Pull the front of the
shelf support away
from the side wall.
1
2
1
2
Pull the rear end of
the shelf support
away from the side
wall and remove it.
2
Install the shelf supports in the opposite
sequence.
Pyrolysis
CAUTION!
Remove all accessories and
removable shelf supports.
Do not start the Pyrolysis if you did not fully
close the oven door.
WARNING!
The appliance becomes very hot.
There is a risk of burns.
CAUTION!
If there are other appliances installed
in the same cabinet, do not use
them at the same time as the
Pyrolysis function. It can cause
damage to the appliance.
18 www.zanussi.com

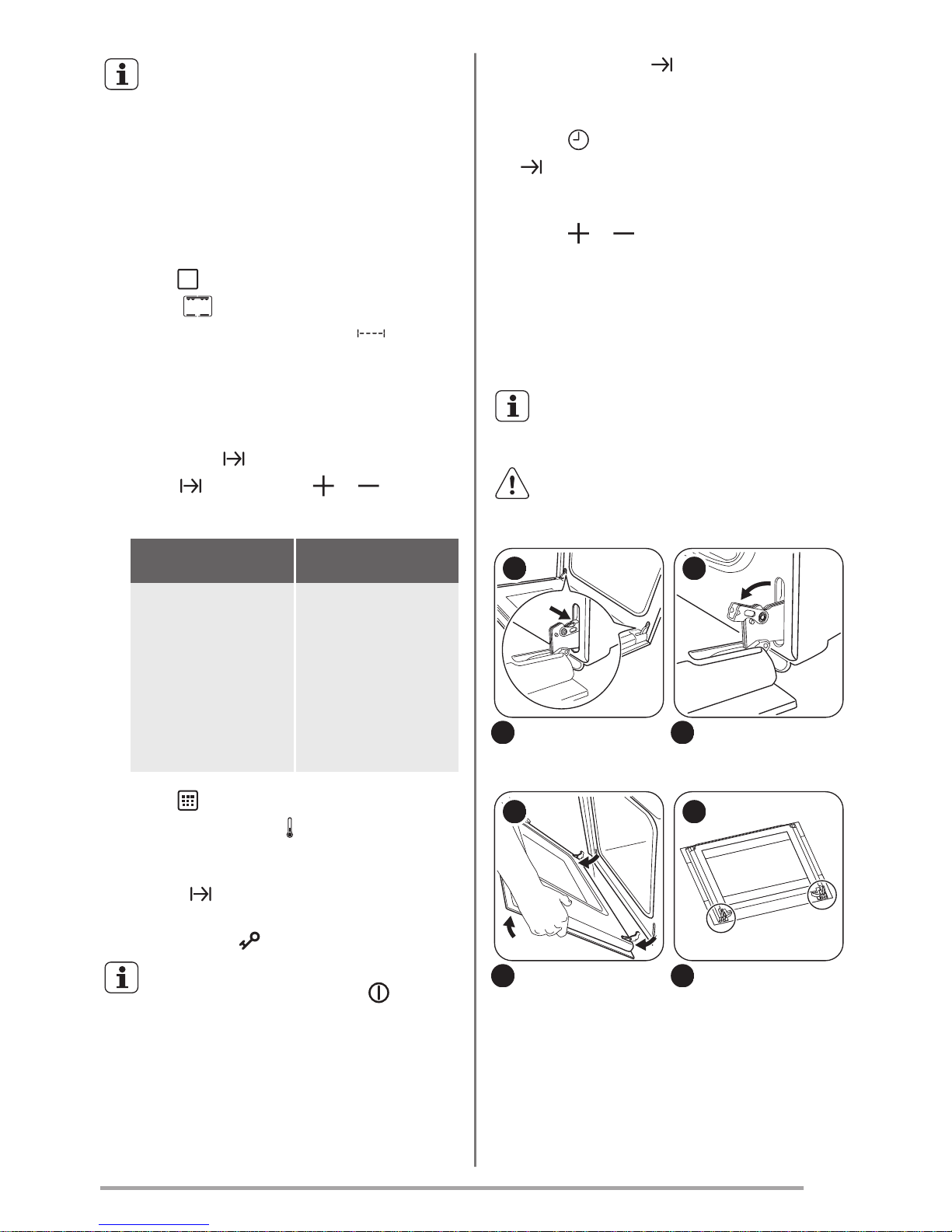

To remind you that the Pyrolysis is
necessary, PYRO flashes in the
display for 15 seconds after each
activation and deactivation of the
oven. For as long as no complete
cleaning function is carried out,
cleaning reminders come on in the
display each time the oven is
activated or deactivated.
1. Remove the worst dirt manually.
2. Press again and again until the display
shows .
• The display shows P1 and one after
the other.
• An acoustic signal sounds as a reminder
to remove all accessories and shelf
supports from the appliance.
• The clock display shows 1:30.
• Duration flashes.
3. When flashes, press or to set the
necessary procedure:
Option Description
P1 If the oven is not
very dirty. Time
of the proce-
dure: 1 h 30 min.
P2 If the oven is
more dirty. Time
of the proce-
dure: 2 h 30 min.
4. Press to start the procedure.
The bars on the symbol come on one by one
to show that the temperature in the appliance
increases.
The symbol flashes.
After some minutes the door locks. The display
shows the symbol .
To stop the cleaning procedure
before it is completed, press .
When Pyrolysis is completed, the display shows
the time of day. The oven door stays locked.
When the appliance is cool again, an acoustic
signal sounds and the door unlocks.
Setting the End Time for the Pyrolysis
You can use the End function to delay the
start of the pyrolytic cleaning procedure.
1. Start the Pyrolysis function.
2. Press again and again until the symbol
flashes.
The display shows the time for the end of the
Pyrolysis.
3. Press or to adjust the time for the
end of the Pyrolysis.
Cleaning the oven door
The oven door has four glass panels. You can
remove the oven door and the internal glass
panels to clean them.
The oven door can close if you try to
remove the glass panels before you
remove the oven door.
CAUTION!
Do not use the appliance without the
glass panels.
1
Open the door fully
and hold the two
door hinges.
1
2
Lift and turn the
levers on the two
hinges.
2
3
Close the oven door
halfway to the first
opening position.
Then pull forward and
remove the door from
its seat.
3
4
Put the door on a soft
cloth on a stable
surface.
4
www.zanussi.com 19

5
Release the locking
system to remove the
glass panels.
5
90°
6
Turn the two
fasteners by 90° and
remove them from
their seats.
6
2
1
7
First lift carefully and
then remove the
glass panels one by
one. Start from the
top panel.
7
Clean the glass panels with water and soap.
Dry the glass panels carefully.
When the cleaning is completed, install the
glass panels and the oven door. Do the above
steps in the opposite sequence.
Make sure that you put the glass panels (A, B
and C) back in the correct sequence. The
middle panel (B) has a decorative frame. The
screen-printing zone must face the inner side of
the door. Make sure that after the installation
the surface of the glass panel frame (B) on the
screen-printing zones is not rough when you
touch it.
A B C
Make sure that you install the middle panel of
glass in the seats correctly.
Replacing the lamp
Put a cloth on the bottom of the interior of the
appliance. It prevents damage to the lamp glass
cover and the cavity.
WARNING!
Danger of electrocution! Disconnect
the fuse before you replace the
lamp.
The lamp and the lamp glass cover
can be hot.
CAUTION!
Always hold the halogen lamp with a
cloth to prevent grease residue from
burning on the lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
20 www.zanussi.com
