Zanussi ZHB92670XA User manual

GETTING
STARTED?
EASY.
User Manual
ZHB92670XA
ZHB62670XA
EN User Manual
Cooker Hood

VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanussi.com/support
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
Children of less than 8 years of age and persons with very
extensive and complex disabilities shall be kept away from the
appliance unless continuously supervised.
•Children should be supervised to ensure that they do not play
with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
GENERAL SAFETY
•This appliance is intended for domestic use above hobs,
cookers and similar cooking devices.
•Before carrying out any maintenance, disconnect the appliance
from the power supply.
•CAUTION: Accessible parts may become hot during use with
cooking appliances.
2

•Use only the fixing screws supplied with the appliance if not
supplied, use the screws recommended in the installation
instructions. Install the appliance in a safe and suitable place
that meets installation requirements.
•WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
•Do not use adhesives to fix the appliance.
•The minimum distance between the hob surface on which the
pans stand and the lower part of the appliance shall be at least
65 cm, unless otherwise specified in the installation instructions
for the appliance or hob.
•The discharge of air must comply with local authorities
regulations.
•Ensure good air ventilation in the room where the appliance is
installed to avoid the backflow of gases into the room from
appliances burning gas or other fuels, including open fires.
•Make sure that the ventilation openings are not blocked and the
air collected by the appliance is not conveyed into a duct used
to exhaust smoke and steam from other appliances (central
heating systems, thermosiphons, water-heaters, etc.).
•When the appliance operates with other appliances the
maximum vacuum generated in the room should not exceed
0.04 mbar.
•Make sure not to cause damage to the mains cable. Contact
our Authorised Service Centre or an electrician to change a
damaged mains cable.
•If the appliance is connected directly to the power supply, the
electrical installation must be equipped with an isolating device
that allows to disconnect the appliance from the mains at all
poles. Complete disconnection must comply with conditions
specified in the overvoltage category III. The means for
disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
•Do not flambé under the appliance.
•Do not use to exhaust hazardous or explosive materials and
vapours.
3

•Clean the appliance regularly with a soft cloth to prevent the
deterioration of the surface material.
•Do not use a steam cleaner, water spray, harsh abrasive
cleaners or sharp metal scrapers to clean the surface of the
appliance. Use only neutral detergents.
•Clean grease filters regularly (at least every 2 months) and
remove grease deposits from the appliance to prevent the risk
of fire.
•Use a cloth to clean the interior of the appliance.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
SAFETY WARNINGS
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
Children of less than 8 years of age and persons with very
extensive and complex disabilities shall be kept away from the
appliance unless continuously supervised. Children must not play
with the appliance. Keep all packaging away from children and
dispose of it appropriately. Children shall not carry out cleaning
and user maintenance of the appliance without supervision. If the
appliance has a child safety device, it should be activated.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching heating
elements.
WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
If the supply cord is damaged, it must be replaced with an
identical one by the manufacturer, its service agent or similarly
4

qualified persons in order to avoid a hazard - risk of electrical
shock.
This appliance is for household use only. Do not change the
specification of this appliance.
Always cook with the oven door closed. Use oven gloves to
remove pans and accessories.
Do not use a steam cleaner to clean the appliance. Do not use
harsh abrasive cleaners or sharp metal scrapers to clean the
glass door since they can scratch the surface, which may result in
shattering of the glass.
The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
INSTALLATION
WARNING!
Risk of injury, electric shock, fire, burns or damage to the
appliance.
•Only a qualified person must install this appliance.
•Do not install or use a damaged appliance.
•Follow the installation instructions supplied with the appliance.
•Always take care when moving the appliance as it is heavy.
Always use safety gloves and enclosed footwear.
•Before installing the appliance remove all the packaging, the
labelling and the protective film.
•Do not install the exhaust air into a wall cavity, unless the cavity
is designed for that purpose.
ELECTRICAL CONNECTION
WARNING!
Risk of fire and electric shock.
•All electrical connections should be made by a qualified
electrician.
•Make sure that the parameters on the rating plate are
compatible with the electrical ratings of the mains power
supply.
5

•If the symbol ( ) is not printed on the rating plate, the
appliance must be earthed.
•Always use a correctly installed shockproof socket.
•Do not let the electricity mains cable tangle.
•Do not use multi-plug adapters and extension cables.
•If the mains socket is loose, do not connect the mains plug.
•Do not pull the mains cable to disconnect the appliance.
Always pull the mains plug.
•The shock protection of live and insulated parts must be
fastened in such a way that it cannot be removed without tools.
•Make sure the appliance is installed correctly. Loose and
incorrect electricity mains cable can make the terminal become
too hot.
•Connect the appliance at the end of the installation. Make sure
that there is access to the mains after the installation.
USE
WARNING!
Risk of injury, burns and electric shock.
•This appliance is for cooking purpose only. Do not use the
appliance for other purpose.
•Do not change the specification of this appliance.
•Do not operate the appliance with wet hands or when it has
contact with water.
•Use only the accessories supplied with the appliance.
•Keep flames or heated objects away from fats and oils during
cooking and frying.
•Do not use uncovered electric grills.
•Do not use the appliance as a storage surface.
•Do not use magnifying glasses, binoculars or similar optical
devices to look directly at the lighting of the appliance.
SERVICE
•To repair the appliance contact the Authorised Service Centre.
Use original spare parts only.
6

•Concerning the lamp(s) inside this product and spare part
lamps sold separately: These lamps are intended to withstand
extreme physical conditions in household appliances, such as
temperature, vibration, humidity, or are intended to signal
information about the operational status of the appliance. They
are not intended to be used in other applications and are not
suitable for household room illumination.
DISPOSAL
WARNING!
Risk of injury or suffocation.
•Contact your municipal authority for information on how to
dispose of the appliance.
•Disconnect the appliance from the mains supply.
•Cut off the mains electrical cable close to the appliance and
dispose of it.
INSTALLATION
WARNING! Refer to Safety chapters. INSTALLATION INSTRUCTIONS
For complete information about the
installation of the appliance refer to a
separate installation booklet.
PRODUCT DESCRIPTION

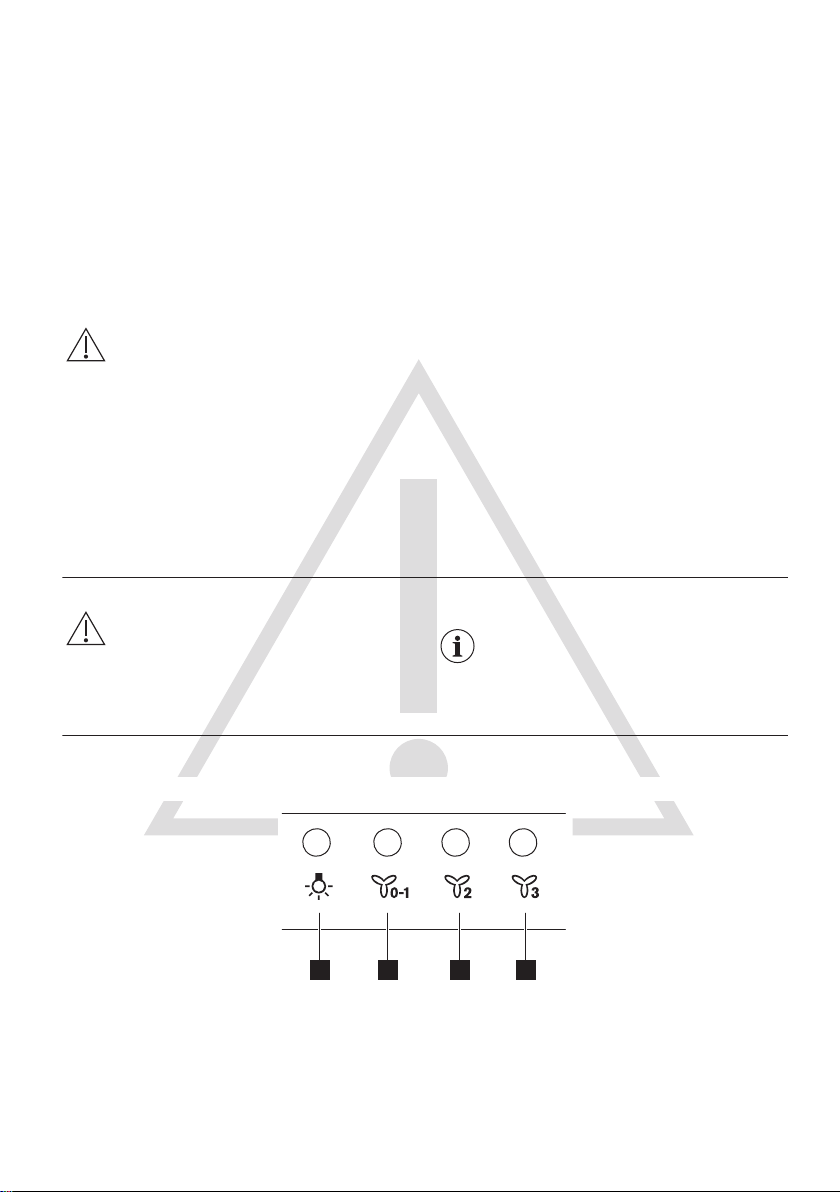

CONTROL PANEL OVERVIEW
4321
7

Function Description
1Lamp Turns the lights on and off.
2First speed / Off The motor switches to first speed level. Second press turns
off the appliance.
3Second speed The motor switches to second speed level.
4Third speed The motor switches to third speed level.
DAILY USE
USING THE HOOD
Check the recommended speed according to the
table below.
While heating up food, cooking with covered pots.
While cooking with covered pots on multiple cooking zones or burners, gentle frying.
While boiling and frying big quantities of food without a lid, cooking on multiple cooking
zones or burners.
It is recommended to leave the hood
operating for approximately 15 minutes
after cooking.
To operate the hood:
1. Press the first speed button to switch on
the appliance.
2. If needed, change the speed by pressing the
desired button.
The hoods light works independently
to other hood functions. To illuminate
the cooking surface press the light
button .
To turn off the appliance press the first speed
button again.
CARE AND CLEANING
NOTES ON CLEANING
Cleaning
Agents
Do not use abrasive detergents and brushes.
Clean the surface of the appliance with a soft cloth with warm water and a mild
detergent.
After cooking some parts of appliance can get hot. To avoid stains appliance
must be cooled down and dried with clean cloth or paper towels.
Clean stains with a mild detergent.
8

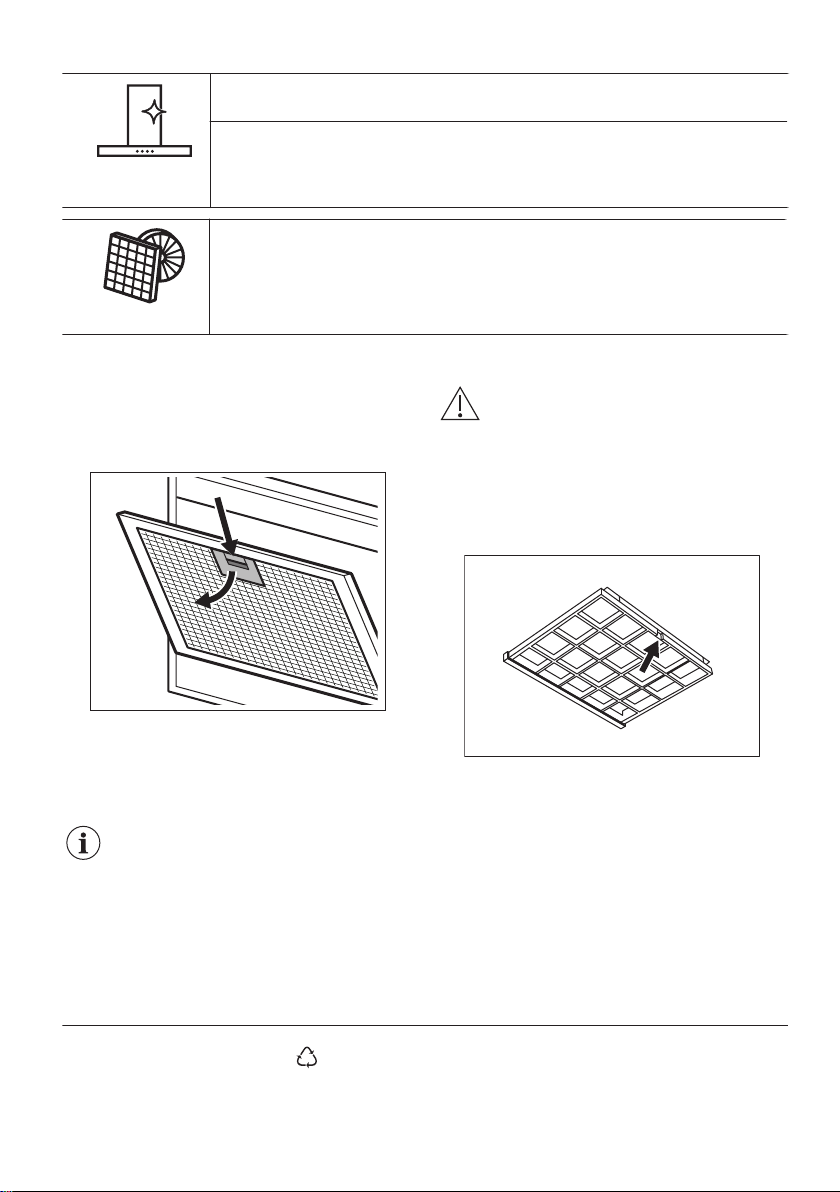

Keep the hood
clean
Clean the appliance and grease filters each month. Clean the interior and grease
filters carefully from fat. Fat accumulation or other residue may cause fire.
Grease filters can be washed in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease
filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter
The time of saturation of the charcoal filter varies depending on the type of cook-
ing and the regularity of cleaning the grease filter. The activated charcoal filter is
not washable, cannot be regenerated and must be replaced approximately every
4/6 months of operation, or more frequently for particularly heavy usage.
CLEANING THE GREASE FILTER
Filters are mounted with the use of clips and pins
on the opposite side.
To clean the filter:
1. Press the handle of the mounting clip on the
filter panel underneath the hood (1).
1
2
2. Slightly tilt the front of the filter downwards (2),
then pull.
Repeat the first two steps for all filters.
3. Clean the filters using a sponge with non
abrasive detergents or in a dishwasher.
The dishwasher must be set to a low
temperature and a short cycle. The
grease filter may discolour, it has no
influence on the performance of the
appliance.
4. To mount the filters back follow the first two
steps in reverse order.
Repeat the steps for all filters if applicable.
REPLACING THE CHARCOAL FILTER
WARNING! The charcoal filter is non-
washable!
To replace the filter:
1. Remove the grease filters from the appliance.
Refer to "Cleaning the grease filter" in this chapter.
2. Press the front edge in slot towards the bottom
part of the filter. Slightly tilt the front of the filter
downwards.
3. To install a new filter, perform the same steps in
reverse order.
In any case, it is necessary to replace the filters at
least every four months.
REPLACING THE LAMP
This appliance is supplied with a LED lamp and
separate control gear (LED driver). These parts can
be replaced by a technician only. In case of any
malfunction refer to "Service" in the "Safety
Instructions" chapter.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it. Help
protect the environment and human health by
recycling waste of electrical and electronic
appliances. Do not dispose of appliances marked
9

with the symbol with the household waste.
Return the product to your local recycling facility or
contact your municipal office.
10
*

WWW.ZANUSSI.COM/SHOP
867351591-A-362021
