SAFETY INFORMATION
For your own safety and to
ensure proper operation of
the appliance, please read this
manual carefully before installation
and operation. Keep these instruc-
tions together with the appliance,
even if it is sold or transferred to
third parties. It is important that
users know all the appliance’s
operating and safety characteris-
tics.
Thecablesmustbeconnected
by a trained technician.
• Themanufacturershallnotbecon-
sidered responsible for any injury
or damage caused by improper
installation or use.
• The minimum safety distance
between the hob and the suction
hood is 650 mm (some models
may be tted at a lower height;
please see the paragraph relat-
ing to working dimensions and
installation).
• If the instructions for installation
of the gas hob specify a distance
greaterthantheoneindicated,this
must be taken into account.
• Check that the mains power
supply corresponds to the one
indicated on the data plate afxed
inside the hood.
• The cut-out devices must be in-
stalled in the xed system accord-
ing to wiring system regulations.
• For Class I appliances, check
that the domestic power supply
is adequately earthed.
• Connect the hood to the ue using
a pipe with a minimum diameter of
120 mm. The fumes must travel
the shortest distance possible.
• Allthe air venting regulationsmust
be complied with.
• Do not connect the ducting hood
to ues that also carry combustion
fumes (e.g. boilers, chimneys,
etc.).
• If the hood is used in combination
with non electric appliances (e.g.
gas appliances), a sufcient level
of ventilation must be guaran-
teed in the room to prevent any
exhaust backow. If the kitchen
hood is used in combination with
appliances that are not electrically
powered,thenegative pressure in
the room must not exceed 0.04
mbarto avoidanyriskofthe fumes
being sucked back into the room
by the hood.
• The air must not be extracted
through a ue that is also used as
an exhaust ue for fumes from gas
or other fuel powered combustion
devices.
• If it is damaged, the power cable
must be replaced by the manu-
facturer or by a service technician.
• Connect the plug to a socket that
complies with current regulations
and is in an accessible position.
• Asregardsthetechnicalandsafety
measures to be taken for exhaust-
ing of fumes, it is important that the
EN

3
www.zanussi.com
regulations set by local authorities
be complied with scrupulously.
WARNING:removetheprotec-
tive lms before installing the
hood.
• Only use screws and hard-
ware of a sort suitable for the
hood.
WARNING:failuretoinstallthe
screws or xing devices as
described in these instructions
may mean there is a risk of
electric shocks.
• Do not look directly at the light
through optical devices (binocu-
lars, magnifying glasses…).
• Do not ambé food under the
hood: you might cause a re.
• This appliance may be used by
children over the age of 8 years
and by persons with limited
psycho-physical and sensory
abilities or with insufcient expe-
rience and knowledge, provided
they are carefully supervised and
instructed on how to use the ap-
pliance safely and on the dangers
that it involves. Make sure that
children are not allowed to play
with the appliance. Cleaning and
maintenance to be performed by
the user must not be carried out
by children, unless they are under
supervision.
• Supervise children, to make sure
theydonotplaywiththeappliance.
• Theappliancemustnotbeusedby
persons (including children) with
limitedpsycho-physicalorsensory
capacities or with insufcient ex-
perience and knowledge, unless
they are carefully supervised and
instructed.
Accessible parts may become
extremely hot during the use
of cooking appliances.
• Clean and/or replace the
lters after the period of time in-
dicated (danger of re). See the
paragraph on Maintenance and
cleaning.
• The room must be adequately
ventilated when the hood is used
simultaneously with appliances
that use gas or other fuels (not
applicable to appliances that only
discharge air into the room).
• The symbol on the product or
on its packaging indicates that the
product must not be disposed of
with the normal domestic waste.
The product must be disposed
of at a specialist re-cycling cen-
tre for electrical and electronic
components. By making sure
that this product is disposed of
properly, you will help prevent
possible negative consequenc-
es for the environment and for
health that might result from its
improper disposal. For more
detailed information on how to
re-cycle this product, please con-
tact your local municipal ofces,
local waste disposal service or
the shop in which the product
was purchased.

4www.zanussi.com
2. USE
• The suction hood has been de-
signed exclusively for domestic
use, to eliminate kitchen odours.
• Never use the hood for purposes
other than those for which it was
designed.
• Never leave high ames under
the hood when it is in operation.
• Adjust the intensity of the ame so
that it is directed onto the bottom
of the cooking pan, making sure it
does not wrap around the sides.
• Deep-fryers must be kept under
constant supervision when in
use: the oil may catch re if it
gets too hot.

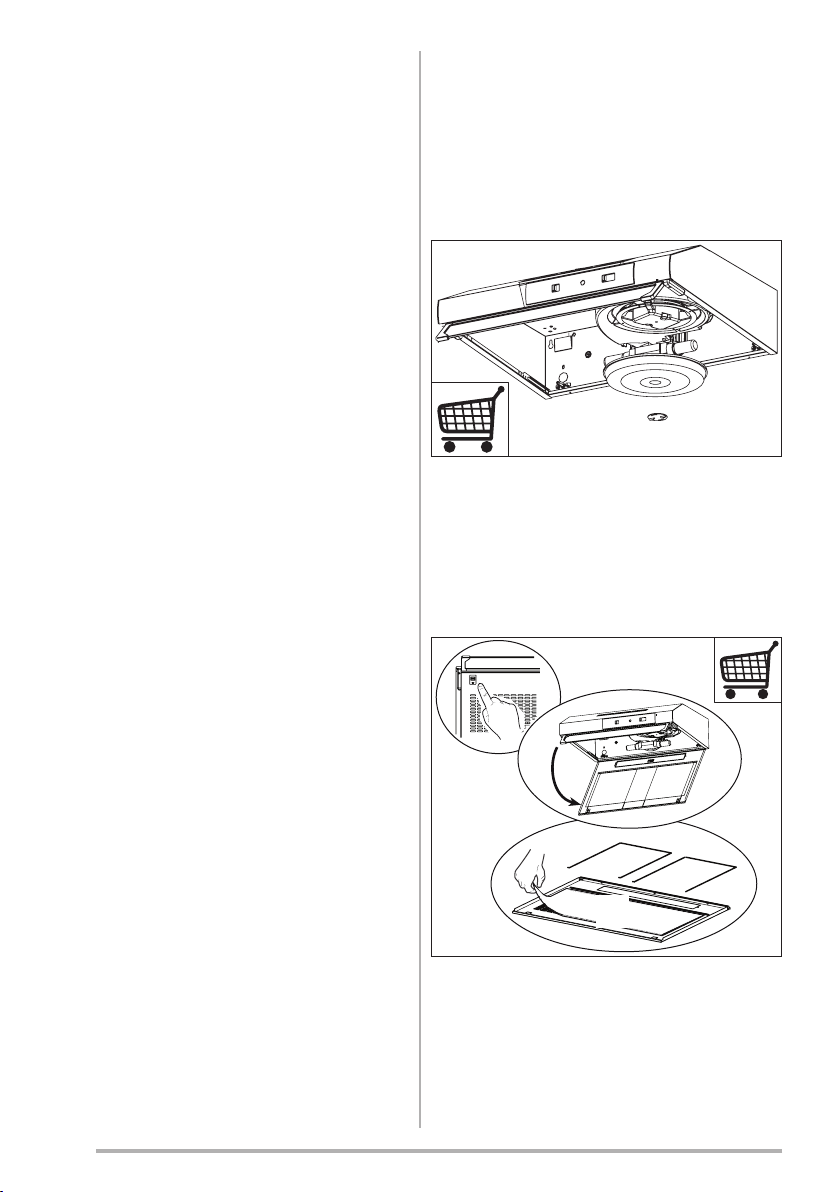

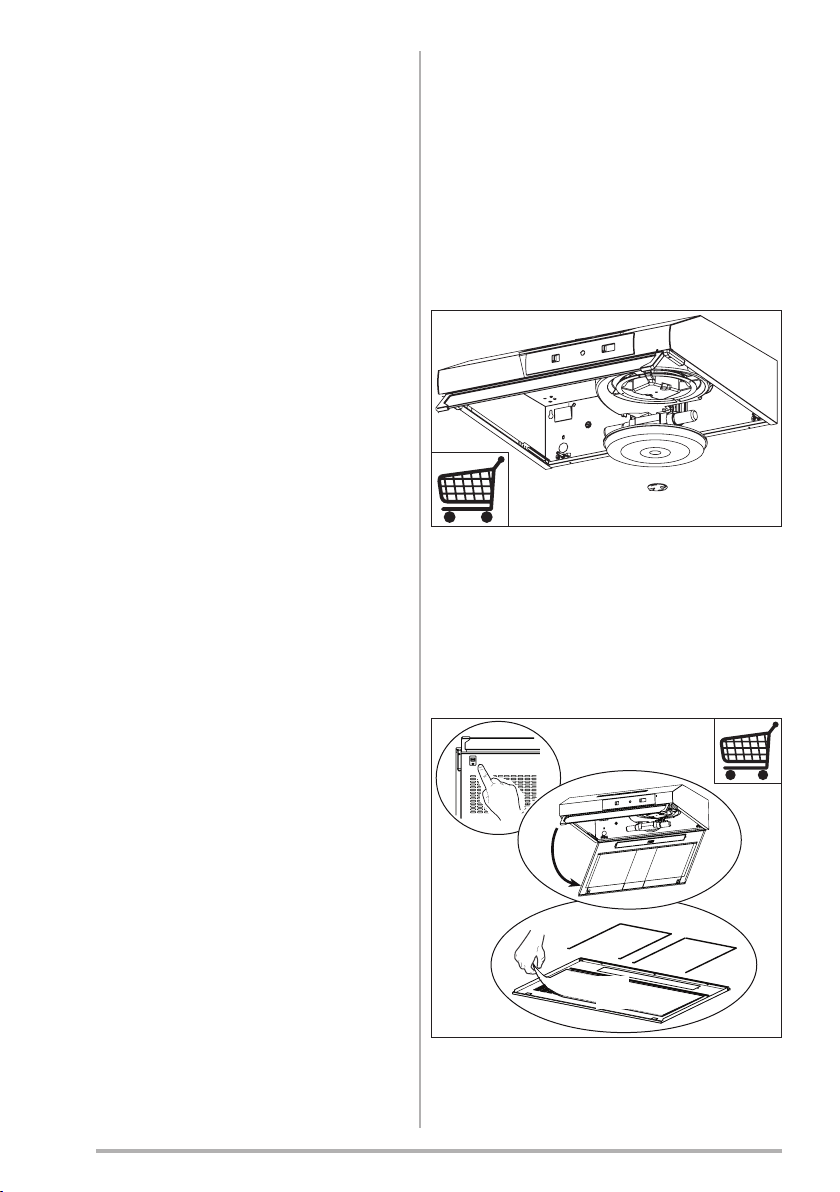

3. CLEANING AND
MAINTENANCE
- The activated charcoal
filter cannot be washed or
regenerated, and must be
changed approximately every
4 months of operation, or
more frequently in the case of
particularly intensive use (W).
W
- The grease filters must be
cleaned every 2 months of
operation, or more frequently in
the case of particularly intensive
use. They can be washed in a
dishwasher (Z).
H
• Clean the hood using a damp
cloth and neutral liquid detergent.

5
www.zanussi.com

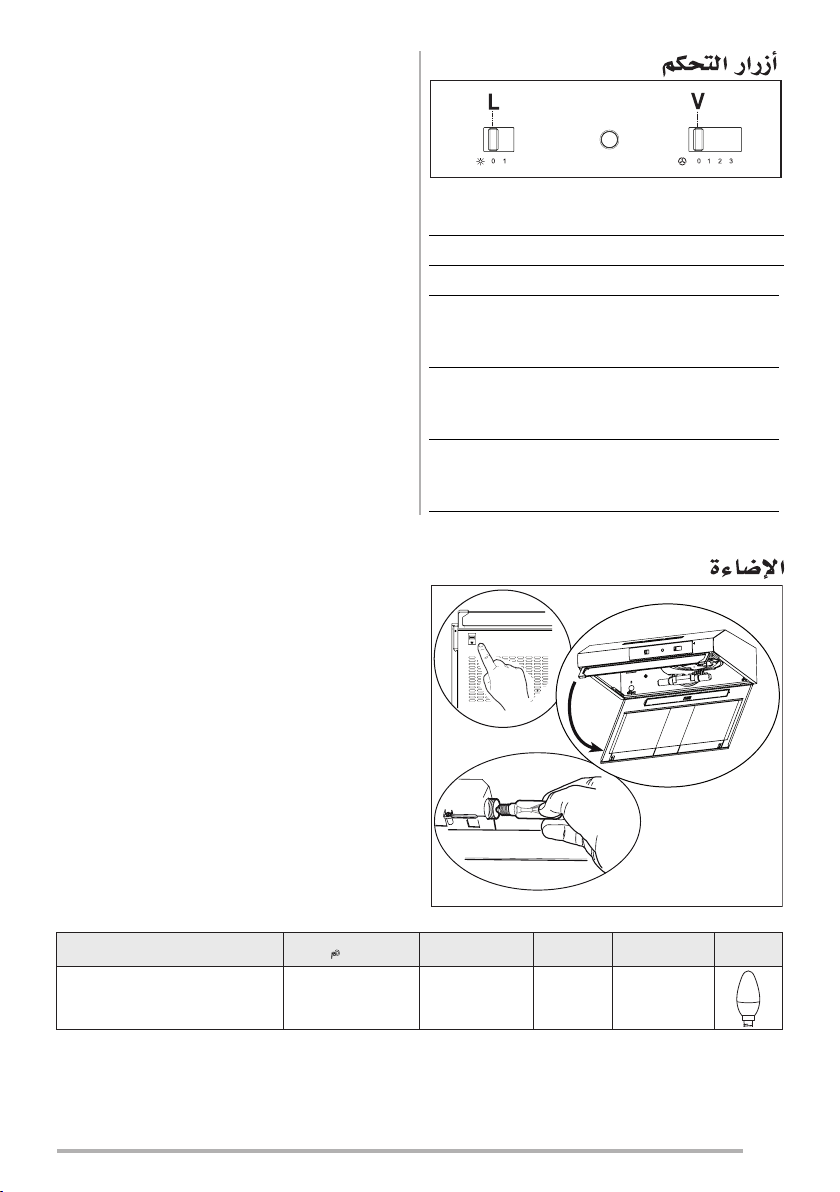

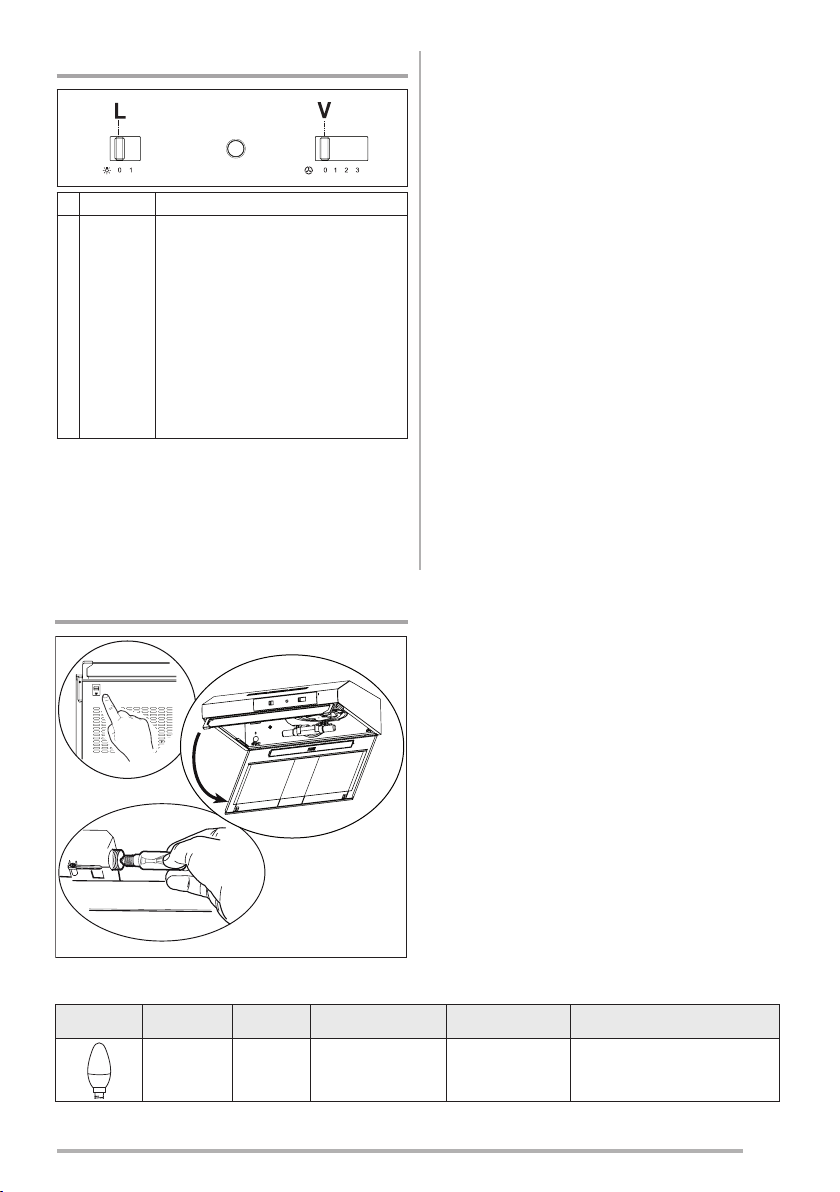

CONTROLS
LLight Switches the lighting system on and off
VSpeed Sets the operating speed of the extractor:
0. Motor Off.
1. Low speed, used for a continuous and
silent air change in the presence of light
cooking vapour.
2. Medium speed, suitable for most operat-
ing conditions given the optimum treated
air ow/noise level ratio.
3. Maximum speed, used for eliminating
the highest cooking vapour emission,
including long periods.
LIGHTING
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
