Zanussi ZHT910X User manual

XP022572(1)
Before using this range hood , please read these instructions completely.
MODEL
ZHT910X

目錄 / Index
Safety Notice
Part List
Installation Guidelines
P1
P3-P5
P2
Operation Instruction
Maintenance and Cleaning
Hood Measurement P8
P7
P6
注意事項
安裝前須知

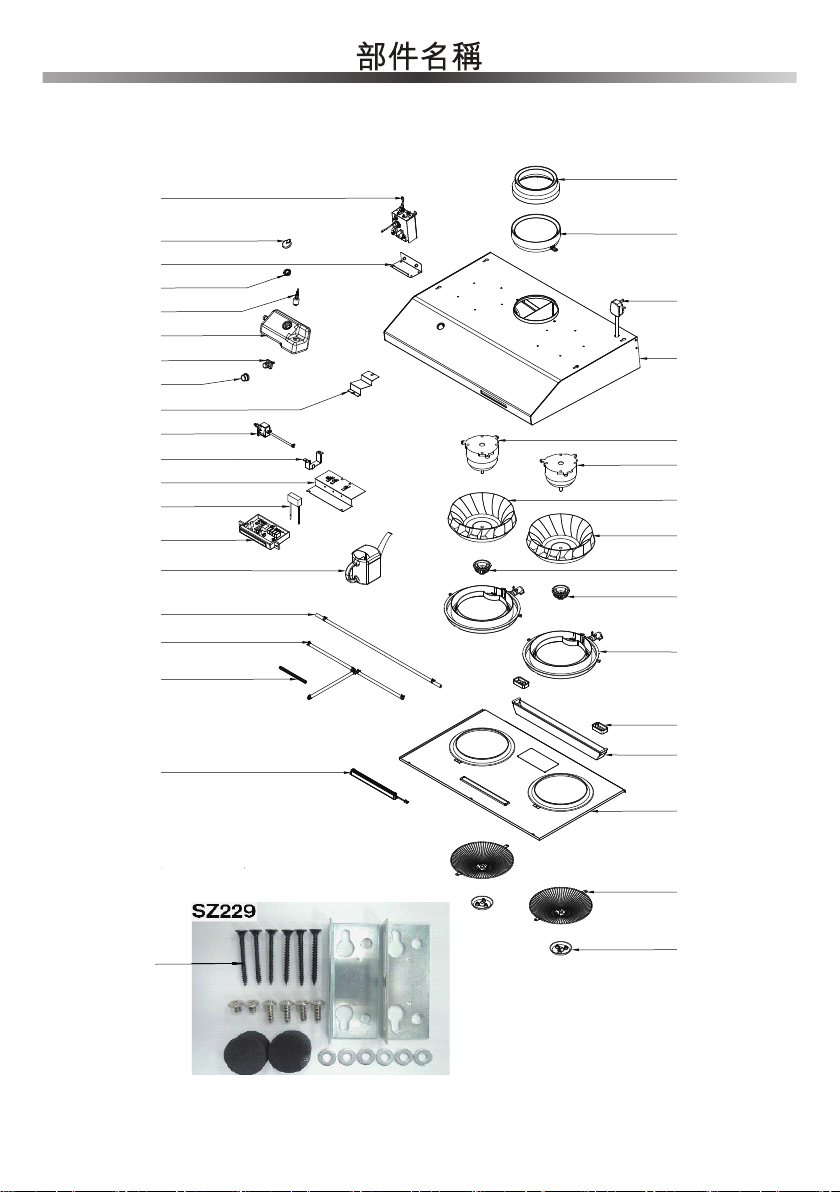

部件名稱
P1
P3-P5
P2
油機尺寸
保養與清潔
操作介紹
P8
P7
P6
規格性能表與配線圖 P9
Specification & Wiring Diagram P9

注󶟞事項
1
重要說明
為安全起見，初次使用產品前請先細閱本說明書，並保存本說明書，
以便作參考之用。
本產品只供家居使用，請必須依照本說明書內的指示安裝及操作。
* * 安裝前請先撕除抽油煙機機箱外的保護膠膜。
1. 請依照本說明書內的指示安裝及操作。
2. 維修抽油煙機前，請務必切斷電源。
3. 維修抽油煙機時，請戴上橡膠手套。
4. 請勿直接噴水在抽油煙機上。
5. 當與易燃氣體一起使用時，廚房請保持良好的通風，以避免危險。
6. 不可在抽油煙機下方直接燃燒。
7. 請勿與其他易燃氣體共用排氣通道。
8. 孩童不可玩耍此抽油煙機。且不可在無人監督下操作此抽油煙機。
9. 若未依此說明書執行清潔可能產生危險或引起火災。
10. 不可在抽油煙機下方點燃酒精等易燃物品。
11. 在煮食過程部份零配件有可能會變燙。
12. 排出的油煙不得藉由瓦斯或其他燃料之排氣通道釋出。
13. 排出的油煙程序需符合相關的排放空氣法規。
14. 若電源線損壞，請勿操作抽油煙機。必須由製造廠或服務處或具有類似
資格的技術人員更換以避免危險。
15. 不可使用此抽油煙機的人:生理、感官或心智能力不足(包括兒童)，或缺
乏相關經驗和知識。除非他們是在被監督或有其他具相關訓練的人員指
導下方可使用。
16. 清潔、維修抽油煙機或更換燈膽前或卸下抽油煙機前請切斷電源。
17. 此抽油煙機需安裝於煮食爐上方65~75厘米處。
18. 此抽油煙機必須接地。
19. 為避免抽油煙機積油產生危險或引起火災，每月至少清洗兩次保護網、
扇葉和其他容易積油的零配件。

36
1
2
3
4
19
20
21
22
23
24
25
26
27
28
34
35
5
6
7
8
9
10
11
12
13
14
15
16
17
18
29
30
31
32
33
ZHT910X
機箱
電源線
風管圈
螺絲包
橡膠墊
6#1 1/2" 木螺釘
3/16 x 1/4華司頭螺絲
3/16 x 1/2華司頭螺絲
收縮管
加熱器組合
掀式水箱蓋
加熱器固定片
水箱(旋轉)螺栓
水位開關組
水箱
噴水接頭
防水塞
水箱固定板
蠕動泵浦組
泵浦固定座
開關固定板
電容器
觸控開關組
量杯
矽膠管組
T型管組
溢水管壓簧
LED條燈
六溫控迫(左)
六溫控迫(右)
風葉
風葉
反轉牙風葉心
正轉牙風葉心
蒸氣油槽組合
集水座
黑白油杯
煙罩
油杯座保護網
三腳小油杯
2

3
(一) 安裝前檢查
1. 包裝材料 ( 如：塑膠袋、發泡膠等 ) 有潛在性的危險請勿讓孩童接觸。
2. 請由受過專業訓練的技術人員進行安裝。
3. 安裝前請確認規格線路標籤上所列示的電壓符合您家的電壓。
4. 安裝前接上電源，檢查照明、摩打及開關是否正常。
5. 安裝前檢查下列附件：
ZHT910X
a. 風管圈 ( 6" 轉 6" x 1、6" 轉5" x 1 )
b. 油杯2個、大油杯1個
c. 說明書1本
d. 螺絲包1組 ( 大吊掛片 x 2、3/16 x 1/4 華司頭螺絲 x 2、3/16 x 1/2
華司頭螺絲 x 4、6# 1 1/2"木螺釘 x 6、5 x 12 x 1T華司
x 6、橡膠墊 x 2 )

4
(二) 安裝守則
1. 周圍環境(圖一)
• 抽油煙機安裝位置如在窗上或附近有太多門窗
，請在開動抽油煙機前先關閉門窗。
• 建議油煙上升至25厘米以上，抽油煙機始能充
份發揮抽油煙效果。
2. 安裝高度和機體位置(圖二)
• 抽油煙機安裝高度，自本機底板至瓦斯爐面之
距離以700±50毫米為最理想。
• 機體應保持左、右水平，避免油杯積油溢出。
3. 排風管(圖三)
• 排風管必須配合本機出風管接頭之直徑(6吋)及
避免太多彎位，以免影響抽風效果。若為 5 吋
出風管，請使用附件的轉換風管圈。
• 安裝前先以強力膠注入風管圈後將風管崁入，
再用強力膠接合排風管與風管圈。
(三) 吊掛方式
1. 後吊掛-掛牆
• 使用兩支木螺絲(如果牆身物料並非木材，請使用
爆炸螺絲)及兩個墊片將抽油煙機固定於牆壁面
上(圖四)。
2. 上吊掛(僅ZHT910X )
• 使用四支螺絲及四個墊片，將抽油煙機固定於櫥
櫃下方。先將四支螺絲鎖在櫥櫃下方，再將抽
油煙機扣上螺絲後，將四支螺絲鎖緊，並確認
抽油煙機牢固且不會移動(圖五)。
• 在抽油煙機頂部兩端黏貼圖型海綿墊(圖六)。
(注意：必須確認抽油煙機已牢固不能移動，否
則抽油煙機會有下塌風險。)
風管護蓋
700mm ±50mm
(圖一)
(圖二)
(圖三)
(圖四)
(圖五)
(圖六)

排風管洞鑽洞
抽油煙機安裝位置
上面兩角釘上鋼釘
調好掛鈎準備安裝
合板
排氣管
(四) 安裝注意事項
1. 排氣管的理想安裝位置為於爐台正對窗戶安裝
，可敲下一方玻璃，安裝一塊穿有彎管孔大的
合板，排氣管由此孔穿出，絕不損壞壁面。
2. 若排風管為鑽穿牆洞，鑽洞時應要留意牆壁結
構和質料，切勿破換牆洞以外之壁面。
3. 在壁面畫好鑽洞範圍，在使用電鑽鑽穿牆壁。
4. 在已選定的安裝位置上，釘上螺絲釘。
5. 調整機體兩側之掛鈎(吊鐵)，將機體懸掛於螺
絲釘上。
6. 先量好彎管正對牆面位置，釘頭與牆壁間最多
保持 3 毫米距離，作掛鈎之用此舉有助機身保
持水平。
7. 懸掛後，機體要保持一定水平。
8. 照已選好排氣管的適當位置，選擇適當長度的
直管進行裝設。
9. 機體前後請調整 2 - 4 毫米的斜度固定機體，以
保持油槽運行方向順暢。
水平
傾斜
安裝水平:
抽油煙機的安裝應保持水平，
防止油汙從油杯溢出來。
2-4mm
3毫米(最大之距離)
螺絲釘
牆壁
5

6
ZHT910X
(1) 長按此鍵 啟動延遲關機功能，自動進入最低風速，啟動計時5分鐘
自動關機功能，但LED燈不受影響。
(2) 延遲關機啟動時可變換風速上下，當執行計時中按蒸氣清洗鍵無效。
(3) 延遲關機啟動時按一下延遲開關按鍵，只會關閉延遲功能，按電源/
開關按鍵會直接關機結束風扇動作。
1. 電源/開關按鍵:
(1) 按壓一次開啟風扇；再按壓一次關閉風扇。
2. 電燈按鍵:
3.
風速加速按 鍵:
4.
風速 減速按鍵:
(1) 按第一次全亮﹔按第二次微亮﹔再按一次關閉電燈。
(2) 此按鍵獨立控制不受電源/開關按鍵和延遲開關按鍵影響。
(1) 風速上調至高速為止，每按一次則速度遞增。
(2) 在風扇停止運轉時，按風速減速按鍵或風速加速按鍵即以上次關
機之速度啟動。
(1) 風速下調至低速為止，每按一次則速度遞減。
(2) 在風扇停止運轉時，按風速減速按鍵或風速加速按鍵即以上次關
機之速度啟動。
5. 蒸氣清洗按鍵:
(1) 按下開始蒸氣清洗流程，清洗動作時燈恆亮，其餘時熄滅狀態。
(2) 啟動蒸氣清洗時，按風速上、下鍵皆無效。
(3) 缺水時，按此鍵無效並且會持續閃爍警示，直到加水為止。
(4) 清洗功能異常時，會啟動自動鎖定功能，所有指示燈會閃爍警示
該鎖定功能啟動。
6. 延遲關機按鍵:

1. 清潔前，務必要切斷電源。
2. 定期清潔抽油煙機的內外側，可以保持抽油煙機
壽命。

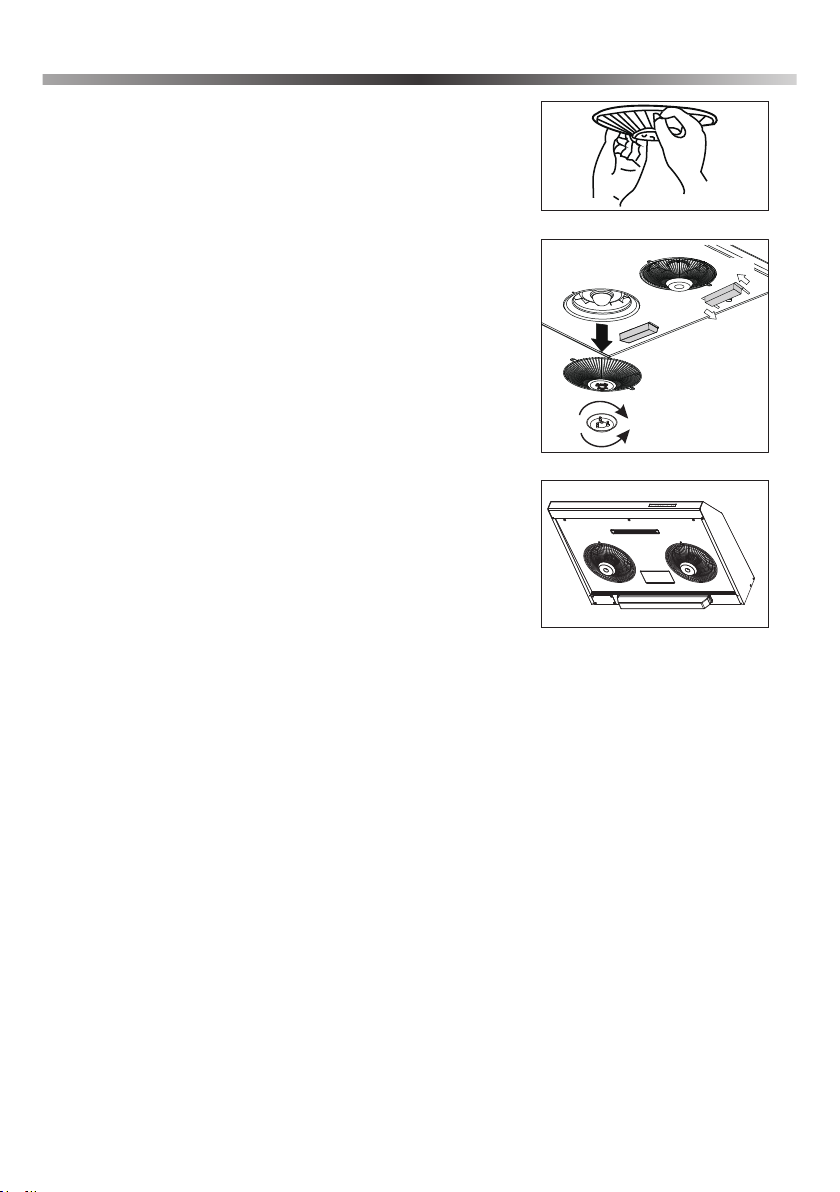

3. 使用螺絲起子可拆卸風扇保護網的螺絲取下保護
網進行清洗。完成後，必須重新裝回原位。
4. 按逆時針方向旋轉可取下保護網的小油杯進行清
潔。 完成後按順時針方向旋轉，即可重新裝回。
5. 抽油煙機的小油杯可拆卸作定期清潔。
6. 在開啟煮食爐前，請先開啟抽油煙機，以免廚房
溫度過高。
7.
請勿擅自對本產品進行拆卸、修理、或改造。
如需更換LED燈條，必須由合格技術人員負責進
行。除專業人員外，任何維修操作均可帶來危險
。
注意 : ZHT910X請洽販售商購買新條燈。
右轉裝置
左轉拆卸
安裝
拆卸
7

8

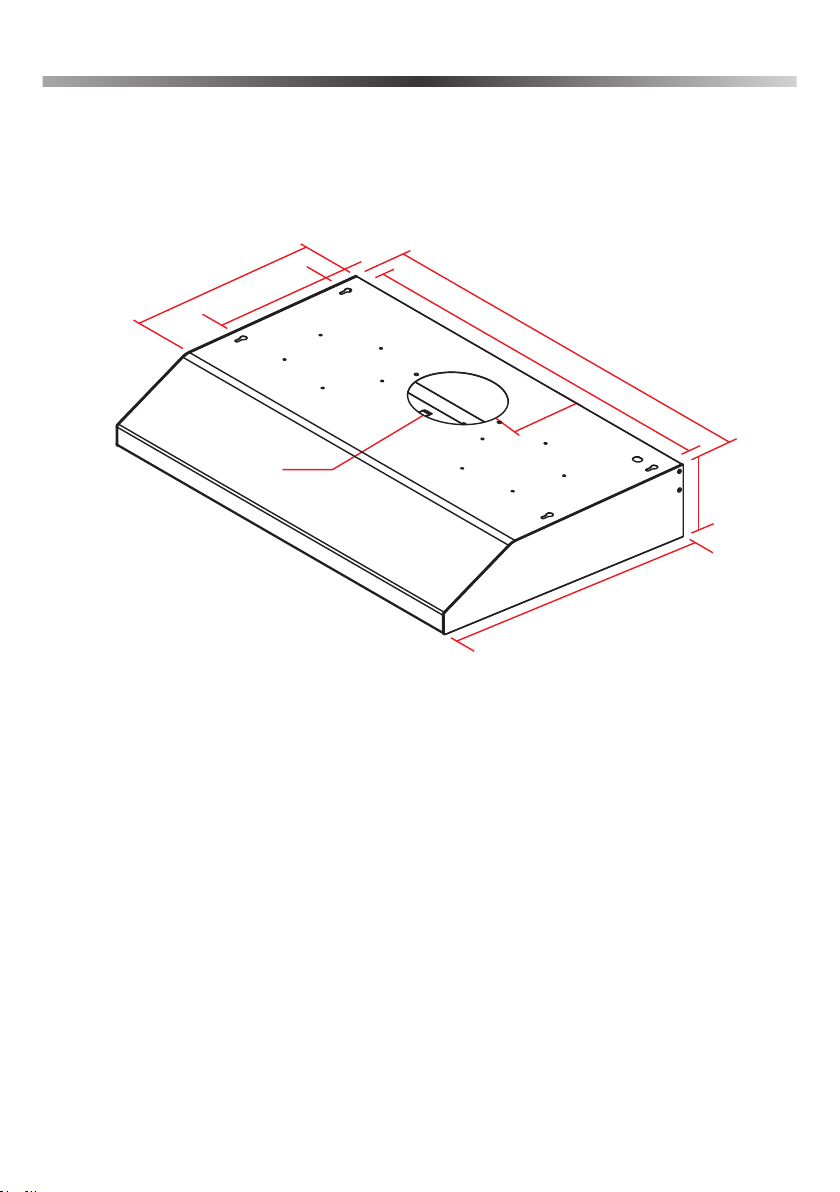

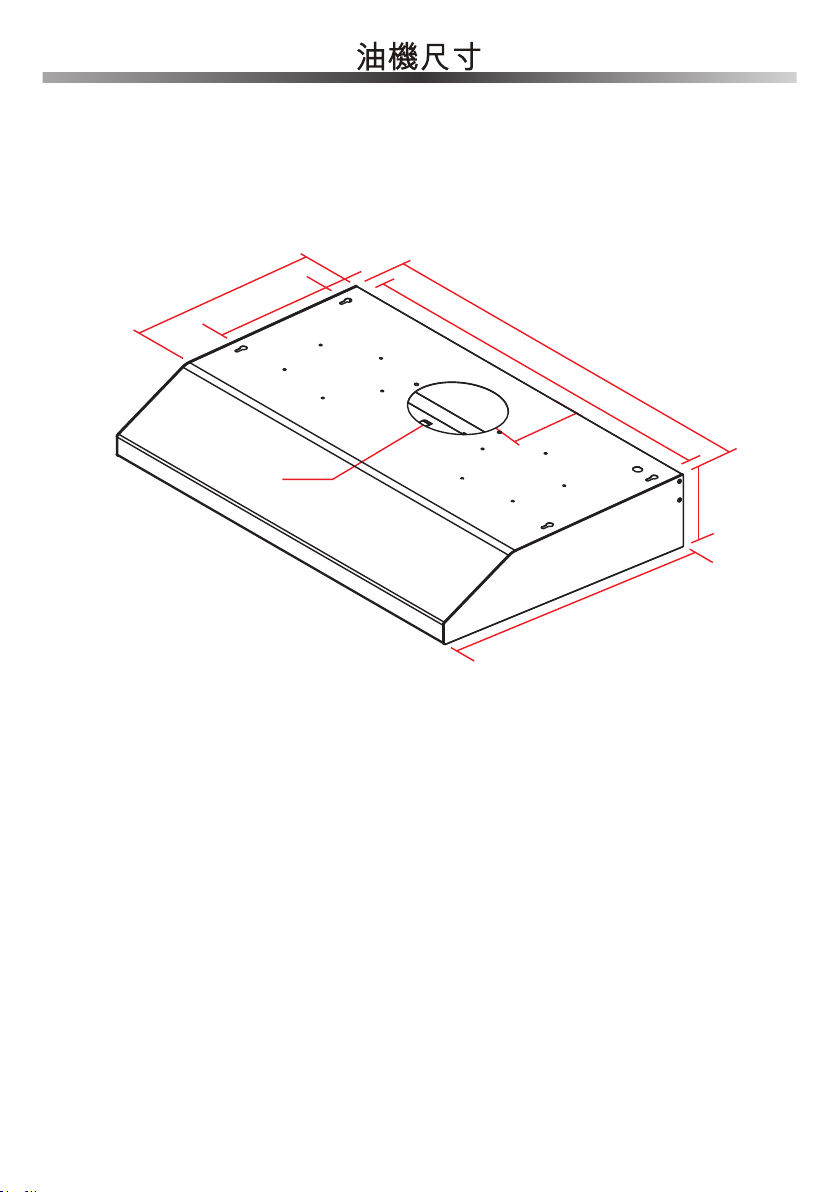

ZHT910X
228
710
135
134.5
Ø155
530
664
365
40
單位：mm

9
電 壓
型 號
淨 重
毛 重
機 種尺寸
包裝尺寸
燈 膽
ZHT910X
12.6 千克
14.9 千克
220V , 50Hz
5W LED燈條
710 x 530 x 135 mm
800 x 600 x 220 mm
ZHT910X
CIRCUIT DIAGRAM
FUSE 15A
M3
LIGHT BAR
WHITE BLACK
機體
綠
紅 紅
藍 藍
棕 棕
灰 灰
白 白
棕
白 黑
黑
μF 450V AC X 2

Important:
For safety purpose, you should read the instructions carefully before
using the appliance for the first time. Save the instruction for future
reference.
The appliance is designed for domestic use and may only be installed
and operated in accordance with these instructions for use.
1. Please follow the instruction in this user manual.
2. Unplug the power before doing maintenance job on the hood.
3. Wear rubber gloves when doing maintenance job on the hood.
4. Do not spray the hood with water directly.
9. There is a fire risk if cleaning is not carried out in accordance with the
instructions
8. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
6. Do not burn directly under the range hood.
7. Do not share duct with other flammable gas pipes.
5. When using the hood with flammable gas, please keep a good air flow
in the kitchen to avoid hazard.
10. Do not flame under the range hood.
17. The appliance should be positioned 65 – 75 cm above the cooking
range.
18. The range hood must be earthed.
19. To prevent fire hazard in case of oil build-up, the turbine impellers
and other easily-soiled parts must be cleaned at least twice a month.
15. The appliances is not to be used by persons (including children), with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
16. Disconnect the power supply before cleaning, repairing, replacing
light bulb or dismantling the range hood.
14. If the supply cord is damaged, do not operate the appliance, it must
be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
12. The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
13. Regulations concerning the discharged of air have to be fulfilled.
11. Accessible parts may become hot when using with cooking appliances.
1
Safety Notice

Part List
ZHT910X
2
36
1
2
3
4
19
20
21
22
23
24
25
26
27
28
34
35
5
6
7
8
9
10
11
12
13
14
15
16
17
18
29
30
31
32
33
Collar
Collar
Electrical wires
Shell
Motor (left)
Motor (right)
Fan Blade (right)
Fan Blade (right)
Fan blade cap
Fan blade cap
Residual pan
Water collector
Oil cup
Shell cover
Safety grill
Oil dish
Heating block
Water tank cap
Water tank screw
Water sensor
Water tank
Nozzle
Plug
Water tank bracket
Pump set
Bracket, Pump
Control bracket
Capacitor
Touch Control Assembly
Water refiller
Plastic tube
T-shape tube assembly
Spring
LED light strip
Hardware packet
Heating block bracket

Installation Guidelines
A. Before using the hood
1. Packing materials (plastic bags, polystyrene, etc.) must be kept out
of children’s reach, as they are potentially dangerous.
2. Installation must be carried out by a qualified technician.
3. Check the voltage on the rating plate which should corresponds to
the voltage in your home.
4. Connect the power and switch on the motors and lighting system to
check the operation.
5. Check the following accessories before installation:
ZHT910X
a. Exhaust duct adapter ( 6" to 6" x 1 pc, 6" to 5" x 1 pc )
b. Detachable oil cup 1 pc, oil dish 2 pcs
c. Instruction manual 1 pc
d. Hardware package x 1 set ( Bracket x 2 pcs, 3/16 x 1/4Washer head
screw x 2 pcs, 3/16 x 1/2Washer head screw x 4 pcs, 6# 1 1/2"
Wooden screw x 6 pcs, 5 x 12 x 1TWasher x 6 pcs, Rubber x 2 pcs )
3

Installation Guidelines
4
700mm ±50mm
(FIG. 1)
(FIG. 2)
Exhaust
duct
(FIG. 3)
(FIG. 4)
(FIG. 5)
(FIG. 6)
B. Installation
(FIG. 1)1. Location:
the effectiveness of hood.To suggest close
window/door before use hood.
the range of suction efficiency.
• The smoke has to rise up to 25 cm to be within
• Air turbulence is from window/door may reduce
2. Position:(FIG. 2)
from center of fan grille of hood to the top of
the stove.
• The minimum installation height should not
be less than 650mm and the recommended
height is 700±50 mm.
• Avoid left-right or front-dropped inclination.
• The installation height is measured vertically
3. Exhaust duct:(FIG. 3)
enclosed in the packaging can be used.
• Before installing the hood,please apply fast
drying glue to the collar and securely attach
it to the top of the cooker hood’s vent lid.
Install the cooker hood and exhaust duct to
the plastic collar and seal with fast drying
glue.
• 6-inch diameter exhaust duct is recommended
to use in order to maximize suction efficiency.
In case of 5-inch exhaust duct, an adapter as
C. Mounting Method
1. Rear mounting
• Use 2 wooden screws and 2 washers to secure
the hood to the wall. (See FIG. 4)
2. Top mounting
hood onto screws located on cabinet bottom
hood to cabinet. (See FIG. 5)
of hood's top (See FIG. 6).
(Note: Make sure all 4 key-holes cover the
the hood to the bottom of the cabinet. Lift
screws and each screw was tightened.
Otherwise, there will be potential risk of
machine fall down.)
and lock into place. Make sure all 4 key-holes
• Use 4 wooden screws and 4 washers to secure
cover the screws. Tighten each screw to secure
Stick the two round rubber stands on the sides

C. Procedure
1. Find a suitable installation position of hood
which should be next to a window and can
be cut to let the exhaust duct pass through.
2. If the exhaust duct has to pass through the
wall, particular attention must be paid to the
structure of the wall as steel reinforcement
may be embedded.
3. Mark the location of exhaust outlet hole, the
cut/drill the hole with care.
4. Fix the position of hood and mark the position
of the two hanging hooks.
5. Drive 2 steel nails into the selected wall with
3 mm(maximum)space leave behind for
hanging the hood.
6. Adjust the hanging hooks on both sides of
the hood and hang the hood on the steel
nails, and then adjust the hood from side to
side and from front and back to a horizontal
position.
7. Follow the instruction print on the enclosed
exhaust duct adapter and connect the
exhaust duct adapter to the hood and window
/wall 5-inch or 6-inch duct can be used.
8. Fasten the hanging bracket to the wall by
screws from the fixed holes to avoid of being
hanged up by accident.
9. To ensure drainage performance, hood shall
be installed with slope (2 - 4 mm) as shown
in figure.
5
Plywood
Exhaust
duct
Lever
Tilted
Keeps the hood in level to avoid
the oil leaking from oil cup.
2-4mm
3mm(maximum limit)
Screw
Wall
Drill a hole for the air tube
Drive 2 steel nails in, on the
upper corner of the both side
of the hood.
Adjust the hang hood
and prepare to install
Installation Guidelines

6
ZHT910X
Operation Instruction
(1) From off, press one time for bright light. Press again for dim light.
Press again to turn lights off.
(2) The button is not controlled by on / off and delay off.
(1) This button will increase the speed with each press.
(2) Press the speed up or speed down button when the fans are off to
turn on the range hood at the last speed and light level it was last
turned off at
(1) Press to turn on the fans and press again to turn off the fans.
1. On/off
2. Light switch
3. Speed up
(1) This button will decrease speed with each press.
(2) Press the speed up or speed down button when the fans are off to
turn on the range hood at the last speed and light level it was last
turned off at.
4. Speed down
(1) Press to start steam cleaning process, the indication light is illuminate
when the range hood is cleaning.
(2) When steam cleaning process is operating, speed up and down
buttons are not available.
(3) When water level is low, the steam clean button will blink to warn
until water is added.
(4) Steam clean function will auto-locking when the function is unusual,
all indication lights will blink.
5 . Steam clean
(1) Long Press to start the delay off function, range hood is adjusted
to the lowest speed automatically, it will turn off after 5 minutes.
But light is not impacted.
(2) Under this mode, speed can be adjusted. Steam clean function is
not available.
(3) Under this mode, press the button again will stop the delay off function.
Light will not be impacted. Press on/off button to turn off the fans.
6. Delay Off

Clockwise to install
Anti-clockwise to detach
Assembly
Remove
4. Oil dish on the grill can also be detached for
cleaning by turning the dish anti-clockwise.
5. The oil cup in the centre of the hood for holding
grease can be detached and cleaned regularly.
6. Make a habit to turn on the hood before using
stove to avoid high heat in the kitchen.
7. Never dismantle, repair, or modify the appliance
by yourself. Repair service including
replacement of LED light must only be carried
out by qualified technician. It is dangerous for
anyone other than the above mentioned people
to perform replace service.
Please contact distributors for the LED strip
for ZHT910X.
3. Fan safety grill can be detached for cleaning
by removing the screws with a screwdriver.
lt must be reinstalled after cleaned.
1. Always disconnect from power supply before
cleaning.
2. Clean both exterior and interior of the hood
long lasting.
7
Maintenance and Cleaning

8
ZHT910X
228
710
135
134.5
Ø155
530
664
365
40
Unit：mm
Hood Measurement

9
ZHT910X
12.6 KGs
14.9 KGs
220V , 50Hz
5W LED strip
710 x 530 x 135 mm
800 x 600 x 220 mm
Model
Net Weights
Gross Weights
Hood Size
Packing Size
Voltage
Light Bulb
ZHT910X
Specification
Wiring Diagram
GREEN
BLACK
WHITE
REMARKS:CAPACITOR 2.5+2.5μf 450V AC FIT AC220V 50Hz
CIRCUIT DIAGRAM
FUSE 15A
M3
RED
RED
WHITE WHITE
BROWN BROWN
BLUE BLUE
BLACK
BROWN
GREY GREY
LIGHT BAR
WHITE BLACK
