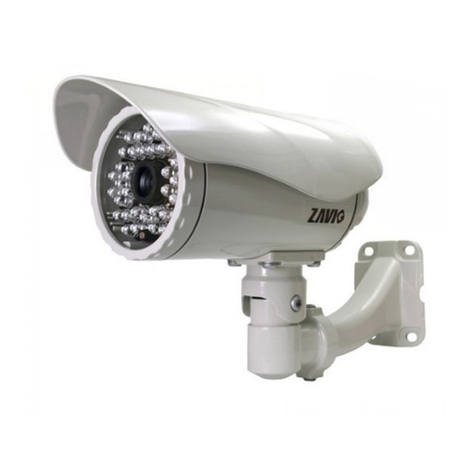

Zavio F531E User manual

0
F531E, F731E

F531E & F731E User Manual
- CONTENT -
CHAPTER 1 AFETY INSTRUCTION......................................................................3
CHAPTER 2 SYSTEM REQUIREMENT & PRODUCT FEATURE ...................5
2.1. SYSTEM REQUIREMENT ...........................................................................5
2.2. PRODUCT FEATURE ...................................................................................6
CHAPTER 3 USING IP CAMERA VIA WEB BROWSER ....................................7
3.1. WINDOWS WEB BROWSER.......................................................................7
3.2. MAC WEB BROWSER .................................................................................8
CHAPTER 4 USING IP CAMERA VIA MOBILE PHONE .................................10
4.1. MOBILE PHONE VIEWING ......................................................................10
4.2. USING IP CAMERA VIA IPHONE.............................................................11
CHAPTER 5 MSN MESSENGER ...........................................................................12
CHAPTER 6 CONFIGURATION OF MAIN MENU............................................17
6.1. LIVE VIEW ..................................................................................................17
6.2. SETTING......................................................................................................19
6.3. CLIENT SETTING.......................................................................................20
6.4. IMAGE SETUP ............................................................................................21
CHAPTER 7 SETTING-BASIC...............................................................................22
7.1. SYSTEM.......................................................................................................22
7.1.1. Information ..................................................................................22
7.1.2. Date/Time.....................................................................................22
7.1.3. Initialize .......................................................................................23
7.2. CAMERA .....................................................................................................25
7.2.1. General.........................................................................................25
7.2.2. MPEG-4 .......................................................................................26
7.2.3. MJPEG.........................................................................................29
7.3. NETWORK...................................................................................................30
7.3.1. INFORMATION ..........................................................................30
7.3.2. PPPoE(Point-to-Point Protocol over Ethernet)............................31
7.3.3. DDNS(Dynamic DNS) ................................................................33
7.3.4. UPnP(Universal Plug and Play)...................................................37
7.3.5. Bonjour ........................................................................................38
7.3.6. IP Notification..............................................................................38
1

F531E & F731E User Manual
7.3.7. Messenger ....................................................................................40
7.4. SECURITY...................................................................................................42
7.4.1. Account........................................................................................42
7.4.2. HTTPS .........................................................................................43
CHAPTER 8 SETTING-ADVANCE .......................................................................44
8.1. FTP CLIENT.................................................................................................44
8.1.1. General.........................................................................................44
8.1.2. Alarm Sending .............................................................................45
8.1.3. Periodical Sending .......................................................................46
8.2. SMTP ............................................................................................................48
8.2.1. General.........................................................................................48
8.2.2. Alarm Sending .............................................................................50
8.2.3. Periodical Sending .......................................................................51
8.3. HTTP EVENT...............................................................................................53
8.3.1. General.........................................................................................53
8.3.2. Alarm Sending .............................................................................54
8.4. ALARM OUTPUT........................................................................................57
8.5. SCHEDULE..................................................................................................59
8.6. ALARM INPUT............................................................................................60
8.7. ALARM BUFFER ........................................................................................61
8.8. MOTION DETECTION ...............................................................................62
8.9. SYSTEM LOG..............................................................................................63
APPENDIX.................................................................................................................64
A. FRAME-RATE AND BITRATE TABLE ....................................................64
B. STORAGE REQUIREMENT TABLE ........................................................66
C. TESTING SYSTEM SPECIFICATION ......................................................68
D. D1 PERFORMANCE OF 16 CHANNEL IP CAMERA ............................68
EUROPE – EU DECLARATION OF CONFORMITY.........................................69
FEDERAL COMMUNICATION COMMISSION INTERFERENCE
STATEMENT .............................................................................................................70
2

F531E & F731E User Manual
Chapter 1 AFETY INSTRUCTION
Before you use this product
This product has been designed with safety in mind. However, the electrical products
can cause fires which may lead to serious body injury if not used properly. To avoid
such accidents, be sure to heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to
country. Check the laws in your local region before using this product for surveillance
purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to
dangerous voltage or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g.,
near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV
transmitters
Locations subject to strong vibration or shock
3

F531E & F731E User Manual
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the cable and the
connecting cables. 2 Contact your authorized dealer or the store where you
purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in
materials of equal quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains
can be removed using a soft cloth dampened with a small quantity of detergent
solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage
the surface.
4

F531E & F731E User Manual
Chapter 2 SYSTEM REQUIREMENT &
PRODUCT FEATURE
2.1. SYSTEM REQUIREMENT
We strongly recommend your computers follow our minimum requirements in
order to use this IP-Camera normally. If computer level is lower than this, it might
causesomeproblems.
Item Requirements
CPU Pentium 4 1600MHz (or equivalent AMD)
Graphic Card 64 MB RAM graphic cards(or equivalent on-board graphic cards)
RAM 512 MB
Operating System Windows 98, Windows ME (Please see Note)
Windows2000, 2003, XP, Vista, Mac OS X Leopard
Web Browser Internet Explore 6 or later
Note:
1. If you are using Windows 98 or Windows ME, please install IP Installer before
using WEB UI to ensure the system runs normally.
2. If you can't view the record video file, please install Xvid codec while installing
Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not
work properly. You’ll need to download Xvid codec 1.0 from the internet.
3. Please always update the latest Windows component. (.Net Framework, Windows
Media Player, Enhance ActiveX Security)
5

F531E & F731E User Manual
2.2. PRODUCT FEATURE
SYSTEM
Resolutions MPEG-4/MotionJPEG/JPEG:
2 resolutions from 640x480 to 320x240 via API and configuration web page
Compressing format MPEG-4 / Motion JPEG / JPEG
Frame Rate MPEG-4: Up to 30 fps at 640x480
Motion JPEG: Up to 15 fps at 640x480
Rotation: Mirror, Flip, Mirror Flip
Brightness / Contrast / Saturation / Hue
Image settings
Overlay capabilities: time, date, text and privacy image
Shutter Time 1/7.5 ~ 1/120 sec.
Image snapshot Yes
Video Recording Yes
Full Screen Viewing Yes
Digital Zoom 10x digital
Two-way (full / half duplex)
Audio Audio compression: G.711 PCM, 8kHz, 64kbit/s
Instant Messenger Support MSN Live View
Mobile Phone Live View Through 2.5 WAP, 3GPP, 3G Streaming, and 3G Browser
Alarm Sending FTP Client / SMTP
Security Passward Protection / HTTPS encryption / WEP64/128 bit, WPA/WPA2-PSK
Alarm and Event Management Input: alarm buffer, alarm input, motion diction
Output: FTP/SMTP/HTTP Event
Supported protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP,
UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Simultaneous Connection Up to 5 users
Operating conditions -30°C ~ 50 ℃(-22℉~ 122 ℉)
HARDWARE
Lens F1.5, 4.0mm board lens (for F531E) / 4.3&6&8mm (selectable for F731E)
IR LEDs / Working Distance 8 φLEDs x 21 (850nm) / 15M (for F531E)
8 φLEDs x 36 (850nm) / 35M (for F731E)
Input / Output Alarm Output Max 30W
Power 12V DC, 1A, Max 5W
PoE Build-in IEEE 802.3af
6

F531E & F731E User Manual
Chapter 3 USING IP CAMERA VIA
WEB BROWSER
3.1. WINDOWS WEB BROWSER
1. Start your web browser, and enter the IP address or host name of the IP
camera in the Location / Address field of your browser.
Note :
If you only want to view the video without setting page, enter
“http://<IP>/index2.htm” as your web URL.
2. Use the default account “admin” and default password “admin”.
Note :
The default user name “admin” and the password are set at the factory
for the administrator. You can change them in the Account Menu (Please
check “Setting →Basic →Security →Account”)
3. The monitor image will be displayed in your browser. In the far left side of
main configuration are Setting, Client Setting, and Image Setup. For more
details, you can check Chapter 6.2、Chapter 6.3 and Chapter 6.4.
7

F531E & F731E User Manual
3.2. MAC WEB BROWSER
1. Click the Safari icon, and enter the IP address of the IP camera in the
Location / Address field of your browser.
Note :
If you only want to view the video without setting page, enter
“http://<IP>/index2.htm” as your web URL.
2. Use the default account “admin” and default password “admin”.
Note :
The default user name “admin” and the password are set at the factory
for the administrator. You can change them in the Account Menu (Please
check “Setting →Basic →Security →Account”)
8

F531E & F731E User Manual
3. The monitor image will be displayed in your browser. In the far left side of
main configuration are Setting, Client Setting, and Image Setup. For more
details, you can check Chapter 6.2、Chapter 6.3 and Chapter 6.4.
9

F531E & F731E User Manual
Chapter 4 USING IP CAMERA VIA
MOBILE PHONE
4.1. MOBILE PHONE VIEWING
You can use Zavio Web User Interface via iPhone. Please follow the setting
process below. Then you can use Zavio web UI via iPhone.
1. Select Safari function 2. Enter IP address in your web link.
3. Type name and password. 4. The Zavio User Interface and live
image will show up in the middle of
screen.
Default value is admin / admin.
Then click Login In
Note: It will show continuous snapshots not
a real time video streaming. Therefore, the
recording feature is disabled.
10

F531E & F731E User Manual
4.2. USING IP CAMERA VIA IPHONE
To use IP cameras via mobile phones, please make sure your RTSP is set to “On”
(Default is “On”). To change the settings of IP cameras, Please check “Settings →
Basic →Camera →General.”
4.2.1. 3G Mobile Phone Streaming Viewing
For 3G mobile phone viewing, type “ rtsp://<IP>:<PORT>/video.3gp ” into your
3G Streaming Link. <IP> is the Public IP address of your IP camera; <PORT> is
the RTSP port of your IP camera (Default value is 554.) Example:
rtsp://100.10.10.1:554/video.3gp
Note:
You can also use RTSP clients (RealPlayer, VLn
“rtsp://<IP>:<PORT>/video.3gp” as the Player URL.
4.2.2. 2.5G Mobile Phone WAP Viewing
For 2.5G mobile phone viewing, type “http://<IP>/mobile.wml ” into your 2.5G
WAP Browser. <IP> is the Public IP address of your IP camera.
4.2.3. 2.5G Mobile Phone Browser Viewing
For 2.5G mobile phone viewing, type “http://<IP>/mobile.htm ” into your 2.5G
Web Browser. <IP> is the Public IP address of your IP camera.
11

F531E & F731E User Manual
Chapter 5 MSN MESSENGER
Please see the following steps to set up the Messenger function.
1. Application of a new MSN account: You can download MSN software freely and
create a new MSN account (camera at home) to use Microsoft Live Messenger.
2. Login Account and Password:Go to Setting→Basic→Network→Messenger , set
the Messenger to “ON” . Then, login in new account and password (Camera at
home).
3. IP Notification: Choose “On” at the option of IP Notification. If this feature
switches On, camera will send IP notification to the users who are allowed.
4. Privacy & User & Allow List: Choose “On” at the option of Privacy, then User
column will appear and be able to build Allow List.
5. Log in Working Account: Use your working account to login in the Messenger
software. Then, add the new MSN account (camera at home ).
12

F531E & F731E User Manual
6. The Camera at home will show up with its Public IP and Private IP after enter
“Ping” in the lower key-in column to show up with Public IP and Private IP. (If the
option of IP Notification is “On.”)
7. Click on the small camera icon . Then, choose “View a new contact's
webcam”.
Camera at home says:
8. The IP Camera will accept your invitation; the live video will show up in the right
screen after few seconds.
13

F531E & F731E User Manual
9. Click Action button and choose Start control panel to use control panel.
10. The dialog box will show up with “This application is not part if Window Live
Message…….”
Tick the box of “Don’t show me this again” and click OK
14

F531E & F731E User Manual
11. The IP Camera will accept your invitation to start Control Panel.
12. You can click Camera icon to snapshot then the picture will send to
you immediately.
Snapshot
15

F531E & F731E User Manual
13. You can click paint palette icon showing up with tool bar to set up image.
Then, you can use the tool bar to optimize video Brightness ,Contrast ,
Saturation andHue .After the adjustment of all setting, you can still
click to make the setting back to the original setting.
Image Setup
16

F531E & F731E User Manual
Chapter 6 CONFIGURATION OF
MAIN MENU
In the far left side of main configuration are Setting, Client Setting, Image Setup.
Please see the content behind for more details. In the right hand side of the below
picture, you can see the Live View screen of web user interface. There are some
functions, such as Snapshot, Zoom and Audio and Video Play.
Snapshot Full Screen
Zoom in / Out
Video Play Audio Button
6.1. LIVE VIEW
6.1.1. Snapshot
You can capture a still image shot by the camera and save it in your computer.
17

F531E & F731E User Manual
6.1.2. Zoom in / out the image via the monitor window
Click to display the digital zoom in window.
Pull the
to adjust the digital zoom range, and it will be showed on the above window.
You can use the left click of your mouse to move the to any where on the
window.
6.1.3. Video play buttons
Symbols Meaning
Pause the current video
Play the video
Stop the current video
Record the current video
Note:
Concerning the recording storage requirement of your hard disk, please refer to
the APPENDIX / B. Storage Requirement Table.
18

F531E & F731E User Manual
6.1.4. Audio buttons
Symbols Meaning Note
Speakers turned on mean the speakers of your computer are
turned on to transmit the sounds from the
connected IP camera(s)
Speakers turned off
Microphone turned on mean you can broadcast to the connected
IP camera(s) via the Ethernet using your
microphone
Microphone turned off
Volume control bar
6.2. SETTING
This function is only for the Administrator. Click this button to get into the Basic
and Advancd Setting menu. The former includes for sub-folders, such as System,
Camera, Network, and Security. The latter includes FTP Client, SMTP, Http
Event, Schedule, Motion Detection, and System Log.
19
