Zaxcom ZaxMote User manual

1
USER MANUAL
Published March 2015
Software Version 1.0
ZaxMote
Remote Control Your Wireless
interstage
Phistersvej 31, 2900 Hellerup, Danmark
Telefon [phone], fax [phone]
www.interstage.dk
-pro audio with a smile

2
WHAT IS ZAXMOTE ....................................................................................................................................... 3
SYSTEM REQUIREMENTS...............................................................................................................................................3
CONNECTING THE DONGLE TO A QRX ............................................................................................................................3
ESTABLISHING BLUETOOTH COMMUNICATIONS................................................................................................................ 3
HOME SCREEN EXPLAINED ............................................................................................................................ 4
TRANSMITTER ROWS...................................................................................................................................................4
CONTROL KEYS...........................................................................................................................................................4
CONTROLLING THE TRANSMITTERS ............................................................................................................... 5
SETTING THE FREQUENCY.............................................................................................................................................5
CHANGING THE GAIN ..................................................................................................................................................5
REMOTE TRANSMITTER RECORDING.............................................................................................................................. 6
PUTTING THE TRANSMITTERS INTO STANDBY ...................................................................................................................6
LOCKING THE TRANSMITTER SETTINGS ...........................................................................................................................7
LOCKING THE CONTROL SETTINGS..................................................................................................................................7
PRODUCT SUPPORT ...................................................................................................................................... 8
ZAXCOM WARRANTY POLICY AND LIMITATIONS............................................................................................ 9

ZaxMote ZaxMote Basics
3
What is ZaxMote
ZaxMote is an IOS app, that when used in conjunction with the ZaxMote blue tooth dongle plugged into a QRX
with a QIFB board installed will give you wireless control of Zaxcom TRX wireless transmitters. The ZaxMote
app will allow you to remotely change the frequency, gain, put the transmitters into standby and take them
out of standby as well as starting and stopping the internal recorder.
System requirements
•ZaxMote app - available free of charge from the Apple App Store and will run on apple IOS platform.
•ZaxMote dongle – available from Zaxcom and will attach to either serial port on a QRX100 or QRX235 that
has a QIFB option board installed.
Please note that the QRX will need to be running software version 3.66 or higher.
Connecting the dongle to a QRX
•Plug the serial connector into either serial port on the QRX.
•Plug the 3.5mm plug into either the IFB or time code jack on the QRX. The 3.5 mm connector is for
grounding purposes only and no data or audio is transferred with it.

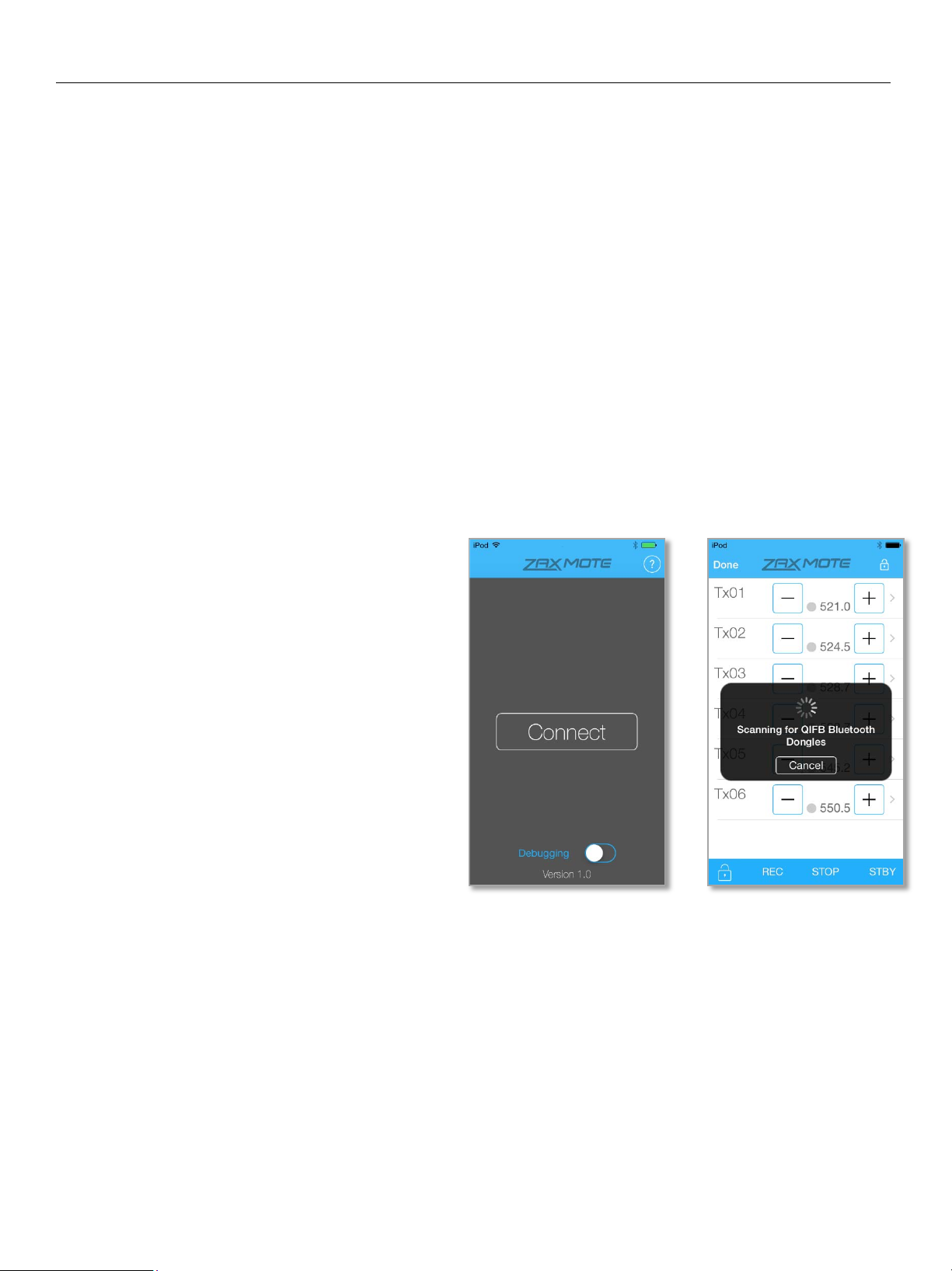

Establishing Bluetooth communications.
•Press the connect key on the ZaxMote app.
•ZaxMote will search for the QIFB dongle
and connect.

ZaxMote ZaxMote Basics
4
Home Screen Explained
Transmitter Rows
•TX Number
The Tx number is the unit code that ZaxMote app will send
commands to. So for example Tx01 will control a TRX
transmitter that has its unit code set to 1, Tx02 will control a
TRX with its unit code set to 2.
•Keys
These keys are used to increase and decrease and increase the
gain of the transmitter being controlled.
•Record Indicator
Shows that the transmitters are recording and the indicatotors
will turn red when record commands are being sent.
•Frequency
This is where the UHF frequency will be displayed.
Control Keys
The control keys are located at the bottom of the screen
•Lock Key
Locks the control keys to prevent accidental changes to the
control functions.
•Record / Stop
Sends record and stop commands to the transmitters.
•STBY
Will cause transmitters to go into Low 2 standby mode.

ZaxMote Operations
5
Controlling the transmitters
Setting the Frequency
•From the home screen select the TX that that you want to
change.
•When in the frequency adjust menu you can manually enter
the frequency using the numeric keyboard or drag the slider
to the left to lower the frequency or drag it to the right to
increase the frequency.
•To remotely change the frequency tap SAVE on the top left
corner.
•To exit the frequency adjustment menu without changing
the frequency tap CANCEL on the top right corner.
•Any changes to the frequency when a transmitter is out of
ZaxNet range will not be executed.
Changing the Gain
•From the home screen press that corresponds to
transmitter that you want to control to decrease the gain.
•From the home screen press that corresponds to
transmitter that you want to control to increase the gain.
•Any changes to the gain when a transmitter is out of ZaxNet
range will not be executed.

ZaxMote Operations
6
Remote Transmitter Recording
•From the home screen tap the REC control key on the
bottom of the screen. To stop recording tap the STOP key.
•When recording the record indicator will turn red.
•Please note that the record control is a global setting
meaning that all TRX transmitters being controlled will go
into and out of record at the same time.
•If a transmitter is out of ZaxNet range when tapping REC that
transmitter will begin to record when it gets into ZaxNet
range.
•Please note the red record indicator does not necessarily
reflect if a TRX transmitter is recording. You should confirm
the record status on the QRX receiver display.
Putting the transmitters into Standby
•From the home screen tap the STBY key in the lower left
corner to open the standby menu
•When turning standby on will put the transmitters into Low 2
mode. Low 2 disables the RF power amplifier, RF board and
microphone pre-amp. The TRX will run on approximately
50% of the power of normal operations which will extend the
battery life of the transmitter. When a transmitter is in Low 2
stand mode the TRX will display LOW2.
•If a transmitter is out of ZaxNet range when going into and
out of standby it will stay in the mode it was previously in
until the transmitter comes back into range.

ZaxMote Operations
7
Locking the Transmitter Settings
To prevent accidental changes to the frequency and the gain of
the TRX transmitters the ZaxMote app has a lock key located on
the top right of the screen. Taping the lock key will lock the
transmitter rows preventing any changes being made to the
frequency or gain. When the transmitters are lock you will see
the lock to the right of each transmitter row.
To unlock the transmitters tap the lock key again.
The transmitter lock is a global setting.
Locking the Control Settings
To prevent accidental changes the record mode and standby
status of the transmitters the ZaxMote app has a lock key
located on the bottom left of the screen. Taping the lock key
will lock the control settings preventing any changes being
made to the record mode and standby status of the
transmitters being controlled. When the transmitters are lock
you will see the lock to the right of each transmitter row.
To unlock the transmitters press the lock key again.

ZaxMote Product Support
8
Product Support
Register your product with Zaxcom: http://zaxcom.com/support/product-registration/
Download the latest Firmware from: http://zaxcom.com/support/updates/
Download the latest User Manuals from: http://zaxcom.com/support/updates/
Submit Technical Questions at: http://www.zaxcom.com/submit-a-technical-question
Submit information for Repair Services at: http://www.zaxcom.com/support/repairs
Join the Zaxcom User Forum at: http://www.zaxcom.com/forum/forum.php
Join the Zaxcom Face Book User Group at:
https://www.facebook.com/groups/682199065139938/

9
Zaxcom Warranty Policy and Limitations
Zaxcom Inc. values your business and always attempts to provide you with the very best service.
No limited warranty is provided by Zaxcom unless your ZaxMote dongle “Product” was purchased from an authorized distributer or authorized reseller.
Distributers may sell Product to resellers who then sell Product to end users. Please see below for warranty information or obtaining service. No warranty
service is provided unless the Product is returned to Zaxcom Inc. or a Zaxcom dealer in the region where the Product was first shipped by Zaxcom.
Warranty Policy
The Product carries a Standard Warranty Period of one (1) year.
NOTE: The warranty period commences from the date of delivery from the Zaxcom dealer or reseller to the end user.
There are no warranties which extend beyond the face of the Zaxcom limited warranty. Zaxcom disclaims all other warranties, express or implied,
regarding the Product, including any implied warranties of merchantability, fitness for a particular purpose or non-infringement. In the United States, some
laws do not allow the exclusion of the implied warranties.
Troubleshooting & Repair Services
No Product should be returned to Zaxcom without first going through some basic troubleshooting steps with the dealer you purchased your gear from.
To return a product for repair service, go to the Zaxcom Repair Services page http://www.zaxcom.com/repairs and fill in your information; there is no
need to call the factory for an RMA. Then send your item(s) securely packed (in the original packaging or a suitable substitute) to the address that was
returned on the Repair Services page. Insure the package, as we cannot be held responsible for what the shipper does.
Zaxcom will return the warranty repaired item(s) via two-day delivery within the United States at their discretion. If overnight service is required, a FedEx
or UPS account number must be provided to Zaxcom to cover the shipping charges.
*Please note a great resource to troubleshoot your gear is the Zaxcom Forum: http://www.zaxcom.com/forum.
Warranty Limitations
Zaxcom’s limited warranty provides that, subject to the following limitations, each Product will be free from defects in material and workmanship and will
conform to Zaxcom’s specification for the particular Product.
Limitation of Remedies
Your exclusive remedy for any defective Product is limited to the repair or replacement of the defective Product.
Zaxcom may elect which remedy or combination of remedies to provide in its sole discretion. Zaxcom shall have a reasonable time after determining that
a defective Product exists to repair or replace a defective Product. Zaxcom’s replacement Product under its limited warranty will be manufactured from
new and serviceable used parts. Zaxcom’s warranty applies to repaired or replaced Product for the balance of the applicable period of the original
warranty or thirty days from the date of shipment of a repaired or replaced Product, whichever is longer.
Limitation of Damages
Zaxcom’s entire liability for any defective Product shall, in no event, exceed the purchase price for the defective Product. This limitation applies even if
Zaxcom cannot or does not repair or replace any defective Product and your exclusive remedy fails of its essential purpose.
No Consequential or Other Damages
Zaxcom has no liability for general, consequential, incidental or special damages. These include loss of recorded data, the cost of recovery of lost data, lost
profits and the cost of the installation or removal of any Product, the installation of replacement Product, and any inspection, testing or redesign caused
by any defect or by the repair or replacement of Product arising from a defect in any Product.
In the United States, some states do not allow exclusion or limitation of incidental or consequential damages, so the limitations above may not apply to
you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
Your Use of the Product
Zaxcom will have no liability for any Product returned if Zaxcom determines that:
•The Product was stolen.
•The asserted defect:
•Is not present,
•Cannot reasonably be fixed because of damage occurring when the Product is in the possession of someone other than Zaxcom, or
•Is attributable to misuse, improper installation, alteration, including removing or obliterating labels and opening or removing external covers (unless
authorized to do so by Zaxcom or an authorized Service Center), accident or mishandling while in the possession of someone other than Zaxcom.
•The Product was not sold to you as new.
Additional Limitations on Warranty
Zaxcom’s warranty does not cover Product, which has been received improperly packaged, altered or physically abused.

10
FCC and IC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IC Statements:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of
the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
FCC et IC
Déclaration d’IC :
Ce dispositif est conforme aux normes RSS exemptes de licence d’Industrie Canada. Son fonctionnement est assujetti aux deux conditions
suivantes : (1) ce dispositif ne doit pas provoquer de perturbation et (2) ce dispositif doit accepter toute perturbation, y compris les
perturbations qui peuvent entraîner un fonctionnement non désiré du dispositif. Selon les réglementations d’Industrie Canada, cet émetteur
radio ne doit fonctionner qu’avec une antenne d’une typologie spécifique et d’un gain maximum (ou inférieur) approuvé pour l’émetteur par
Industrie Canada. Pour réduire les éventuelles perturbations radioélectriques nuisibles à d’autres utilisateurs, le type d’antenne et son gain
doivent être choisis de manière à ce que la puissance isotrope rayonnée équivalente (P.I.R.E.) n’excède pas les valeurs nécessaires pour
obtenir une communication convenable.
Si des antennes amovibles sont utilisées :
Cet émetteur radio (identifier le dispositif à l’aide de son numéro de certification ou de son numéro de modèle s’il appartient à la Catégorie II)
a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés ci-dessous, avec le gain admissible maximum et
l’impédance d’antenne requise pour chaque type d’antenne indiqué. Les types d’antennes qui ne figurent pas dans cette liste ont un gain
supérieur au gain maximum indiqué pour ce type ; il est donc strictement défendu de les utiliser avec ce dispositif. Consulter le tableau 8 pour
découvrir les antennes approuvées pour BLE112.
MIC Japan
BLE112 has type approval with certification ID R 209- J00046
KCC (Korea)
BLE112 is KCC certified with following certification numbers
BLE112-A: KCC-CRM-BGT-BLE112-A
BLE112-E: KCC-CRM-BGT-BLE112-E
BLE112-N: KCC-CRM-BGT-BLE112-N
interstage
Phistersvej 31, 2900 Hellerup, Danmark
Telefon [phone], fax [phone]
www.interstage.dk
-pro audio with a smile
