ZBA ZLIM-211 User manual

ZBA Inc.
V1.04 ZBA, Inc. Page 1 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
ZLIM-211 Programming barcode manual
V1.04

ZBA Inc.
V1.04 ZBA, Inc. Page 2 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
1,) Summary
The ZLIM-211 is ultra-compact size scan engine, and built in high performance CCD,
The ZLIM-211 is ideal for OEM applications where space is limited for scanner integration in both
portable and fixed devices, including hand held terminals, PDAs, PC and cell phone peripherals,
lottery terminals, time and attendance terminals, ski-pass, automated sorting machines and
more.
二Factory default setting
RS-232 communication Default
Baud rate 9600
Parity None
Data Bits 8
Stop Bit 1
RTS/CTS off
Terminator <CR><LF>
Decoder Selection Default
EAN/UPC Enable
CODE 39 Enable
Code 32 Disable
CODABAR Enable
ITF 2 OF 5 Enable
MSI Disable
Chinese Post code Disable
Code 93 Enable
Code 128 Enable
EAN-128 Disable
Standard 2 of 5 Disable
Industries 2 of 5 Disable
Code 11 Disable
Beeper sound Default
Frequency High
Duration 50 msec.
Code Identifiers Default
Code ID off
Code 39 identifier code M
ITF 2 of 5 identifier code I

ZBA Inc.
V1.04 ZBA, Inc. Page 3 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
Chinese post code identifier code H
UPC-A identifier code A
UPC-E identifier code E
EAN-13 identifier code F
EAN-8 identifier code FF
Codabar identifier code N
Code 128 identifier code K
Code 93 identifier code L
MSI identifier code P
Industries 2 of 5 code D
Standard 2 of 5 code S
Code11 identifier code O
LED/Beep transmission Default
Led/Beep Before transmission On
Default data transmit format
Code Messageformat
EAN-13 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13
EAN-8 D1 D2 D3 D4 D5 D6 D7 D8
UPCA D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12
UPCE D1 D2 D3 D4 D5 D6 D7 D8
CODE128 D1-Dx (default 3~32)
EAN128 ]C1 D1-Dx (default 3~32)
CODE39 D1-Dx (default 3~32)
CODE32 D1-Dx (default 3~32)
CODABAR D1-Dx (default 6~32)
INTERLEAVED 2/5 D1-Dx (default 6~32)
CHINESE POST CODE D1-Dx (default 10~16)
CODE93 D1-Dx (default 3~32)
MSI D1-Dx (default 6~32)
Code 11 D1-Dx (default 4~32)
Standard 2 of 5 D1-Dx (default 6~32)
Industries 2 of 5 D1-Dx (default 6~32)

ZBA Inc.
V1.04 ZBA, Inc. Page 4 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
, Parameter setting (All items mark with grey shading indicates the default value)
System Function setting
Barcode Value Description Remark
.. Start Of Configuration
+- End Of Configuration
-- Reset (return to
factory default)
++
Abort(exit
programming
mode(no update)
%/ Display firmware
version
GR01 Medium beeper tone
GR02 Low beeper tone
GR03 High beeper tone
GR05 Speaker disable
GR10 Long sound duration
(100msec)
GR11 Medium sound
duration(50msec)
GR12 Short sound
duration(20msec)
GR13 Very short sound
duration(5 msec)
GR14 Long sound duration
(200msec)

ZBA Inc.
V1.04 ZBA, Inc. Page 5 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
GR15 Very long sound
duration (500 msec)
GR20 LOUD VOLUME
(50/50 duty)
GR21 MEDIUM VOLUME
(30/70 duty)
GR22 Slight volume
(20/80 duty)
LB00
Led/Beep after
transmission.Use this
bar code to indicate a
"good read" after a
bar code has
been successfully
decoded.
LB01
Led/Beep before
transmission, Use this
bar code to indicate a
good read" after
successfully
transmitting the bar
code data to the host.
LB03 Power-up tone enable
LB04 Power –up tone
disable

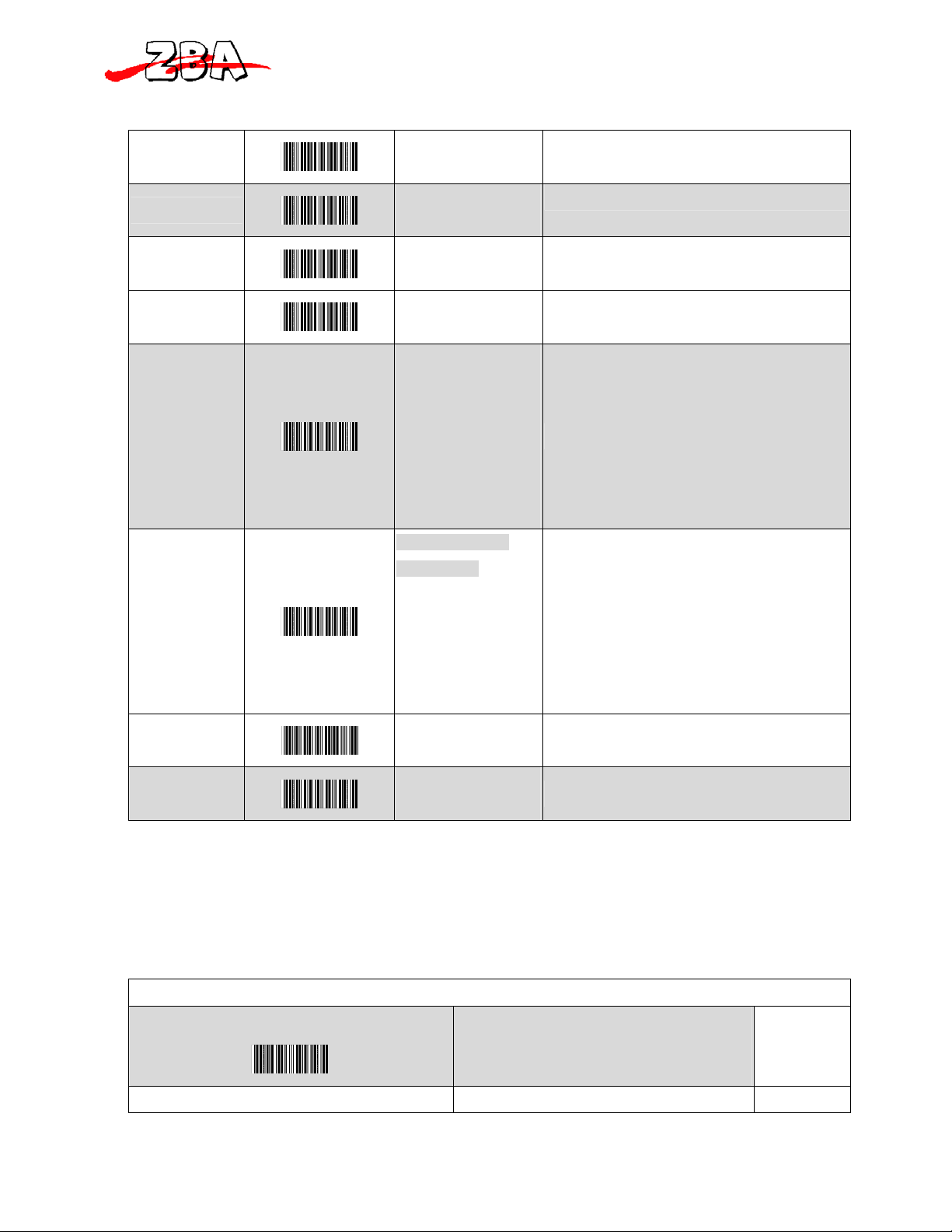

Scan function Setting
SM01 Trigger mode, The scanner becomes inactive
as soon as the data is transmitted. It must
be triggered to become active again.
SM02 Autoscan mode, In auto scan mode, the

ZBA Inc.
V1.04 ZBA, Inc. Page 6 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
scanner is still active after the data is
transmitted, but the successive transmission
of the same bar code is not allowed when the
trigger switch is pressed again..
SM04
Alternate mode. This scanner will light up
when press the scanner trigger switch once.
And, the scanner will turn off for next pressing
當在 Auto scan mode andAlternate mode時如果 over laser sleep timeout 則scanner為flash mode,Flash timing
as following
DATA
S.O.S
Laser_PE (P2.3)

ZBA Inc.
V1.04 ZBA, Inc. Page 7 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
LS00
Laser sleep mode off, The laser timeout
programming bar codes set the time for
switching the laser off if the scanner isn't
used.
只有效給 Auto
scan mode
and
Alternate
mode use.
LS01 Laser sleep time 5 second
LS02 Laser sleep time 10 second
LS03 Laser sleep time 15 second
LS04 Laser sleep time 20 second
LS05 Laser sleep time 30 second
LS06 Laser sleep time 60 second
MT00 Power save mode off,
.
MT01 Power save after 5 min
MT02 Power save after 10 min
MT03 Power save after 20 min
MT04 Power save after 30 min
MT05 Power save after 60 min
MT12 Power save after every trigger scan
RS-232C Interface setting
BR00 Baud Rate 38400

ZBA Inc.
V1.04 ZBA, Inc. Page 8 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/

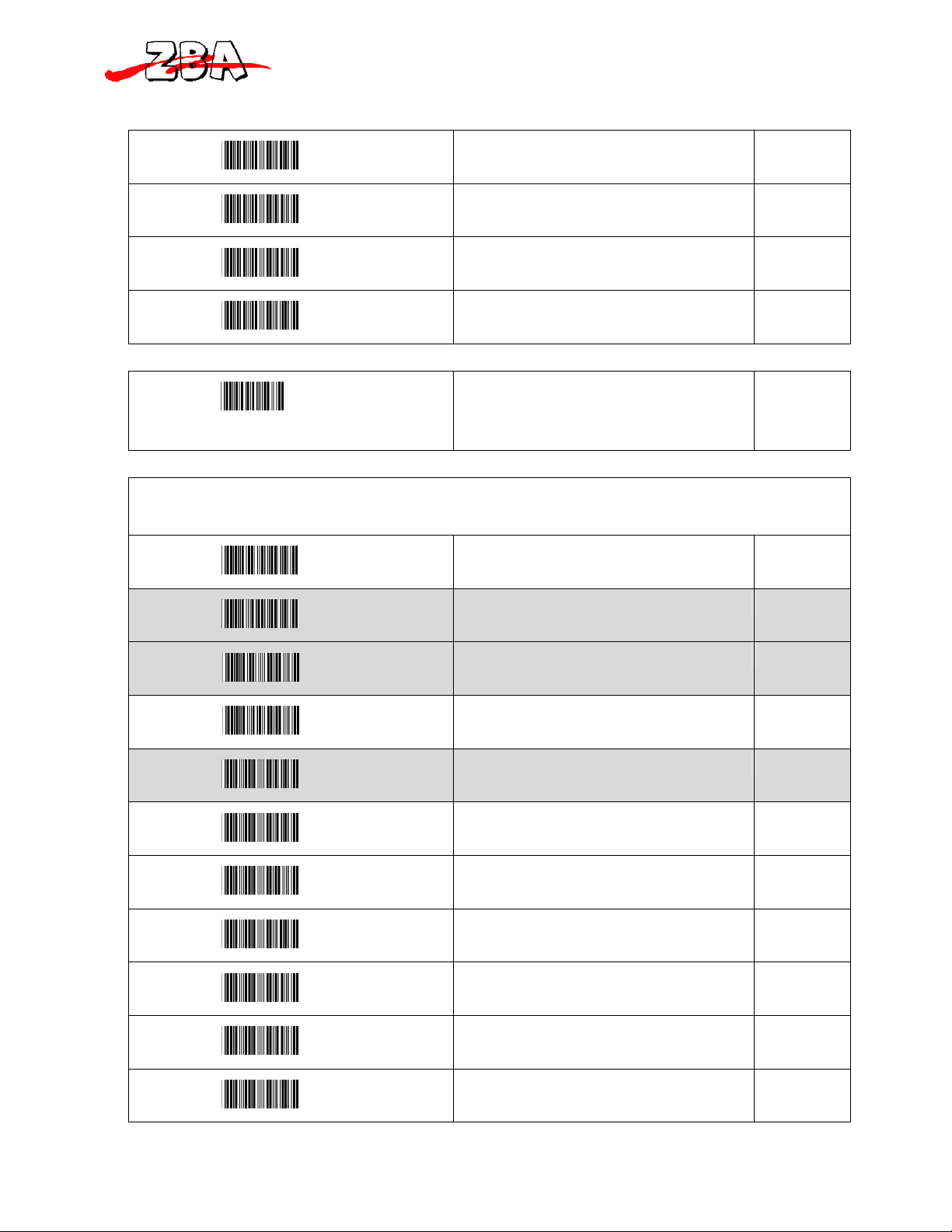

BR01 Baud Rate 19200
BR02 Baud Rate 9600
BR03 Baud Rate 4800
BR04 Baud Rate 2400
BR05 Baud Rate 1200
BR08 Baud Rate 57600
BR09 Baud Rate 115200
HP01 None handshaking
HP02 ACK/NAK
HP03 Xon/Xoff
HP04 RTS/CTS
PB01 Even parity
PB02 Odd parity
PB03 Mark parity
PB04 Space parity
PB05 None parity
LB07 Enable BEEPER ON<BEL> CHARACTER
LB08 Ignore BEEP ON <BEL> CHARACTER

ZBA Inc.
V1.04 ZBA, Inc. Page 9 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/

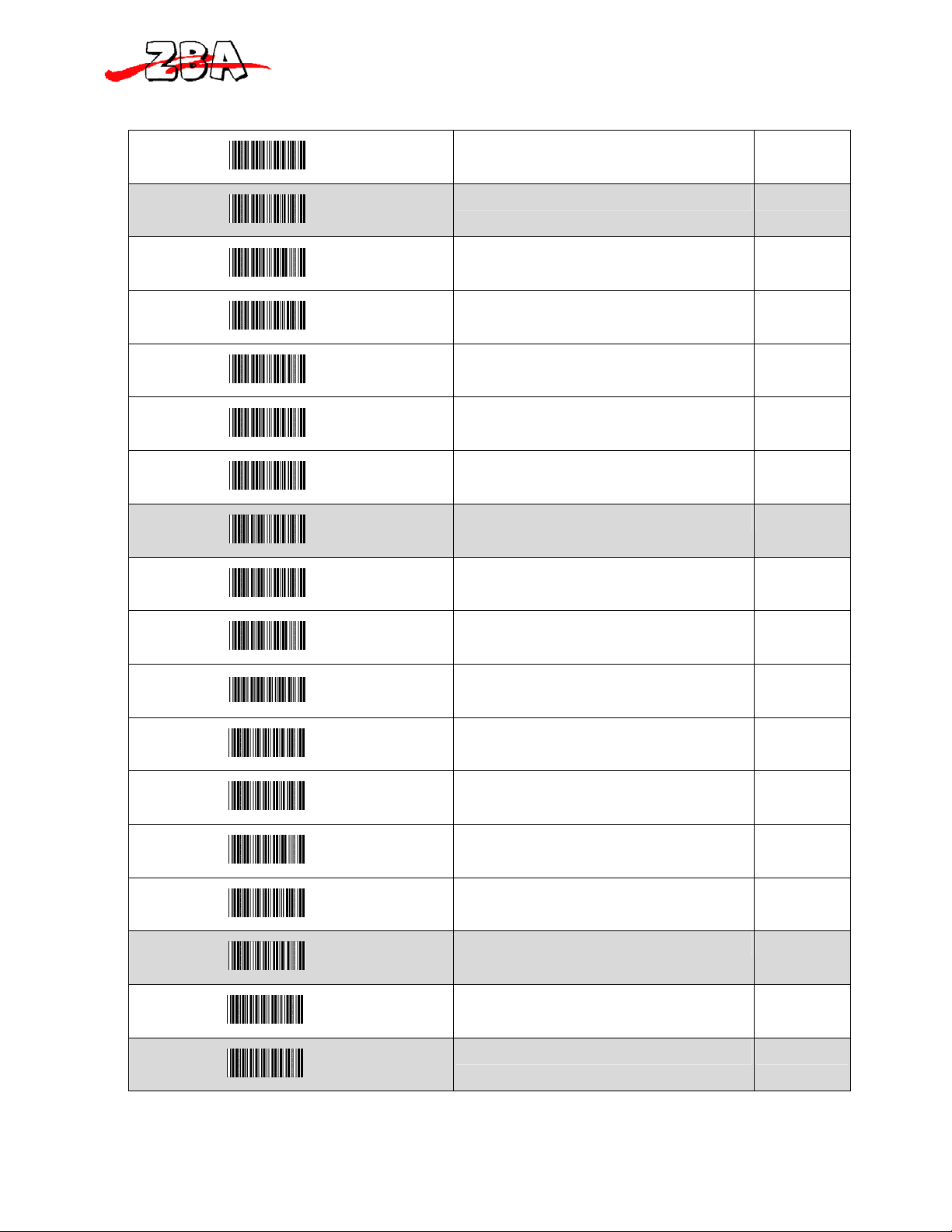

RT01 ACK/NAK response time 300ms
RT02 ACK/NAK response time 2s
RT03 ACK/NAK response time 500ms
RT04 ACK/NAK response time 3s
RT05 ACK/NAK response time 1s
RT06 ACK/NAK response time 5s
RT07 ACK/NAK response time infinity
SB01 1 stop bit
SB02 2 stop bit
DB07 7 data bit
DB08 8 data bit
DT11 RS-232 message terminator—none
DT12 RS-232 message terminator—CR/LF
DT13 RS-232 message terminator—CR
DT14 RS-232 message terminator—LF
DT15 RS-232 message terminator—H tab
DT16 RS-232 message terminator—STX/ETX
DT17 RS-232 message terminator—EOT

ZBA Inc.
V1.04 ZBA, Inc. Page 10 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
The Symbologies
CODABAR
RC02 Codabar enable
RD02 CODABAR disable
CB05 Codabar start/stop character
transmission-----none
CB06 Codabar start/stop character
transmission-----A,B,C,D
CB07 Codabar start/stop character
transmission-----DC1~DC4
CB08 Codabar start/stop character
transmission-----a/t,b/n,c/*,d/e
CB09 Codabar maximum length setting
CB10 Codabar minimum length setting
CB11 Codabar concatenation disable
CB12 Codabar concatenation enable
CB13 No check character
CB14 Validate modulo 16,but don’t transmit
CB15 Validate modulo 16,but transmit
DC50 Codabar data redundant check=off
DC51 Codabar data redundant check=1
DC52 Codabar data redundant check=2

ZBA Inc.
V1.04 ZBA, Inc. Page 11 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
Code39
RC01 Code 39 enable
RD01 Code 39 disable
RC13 Code 32 enable
RD13 Code 32 disable
DC00 Code 39 data redundant check=off
DC01 Code 39 data redundant check=1
DC02 Code 39 data redundant check=2
3901 Standard code 39
3902 FULLASCII code 39
3903 Code 39 start/stop character transmission
3904 Code 39 start/stop character without
transmission
3905 Code 39 check digit calculate and transmit
3906 Code 39 check digit calculate but without
transmit
3907 No check character
3908 Code 39 maximum length setting
3909 Code 39 minimum length setting
3910 Code 39 concatenation enable
3911 Code 39 concatenation disable

ZBA Inc.
V1.04 ZBA, Inc. Page 12 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/

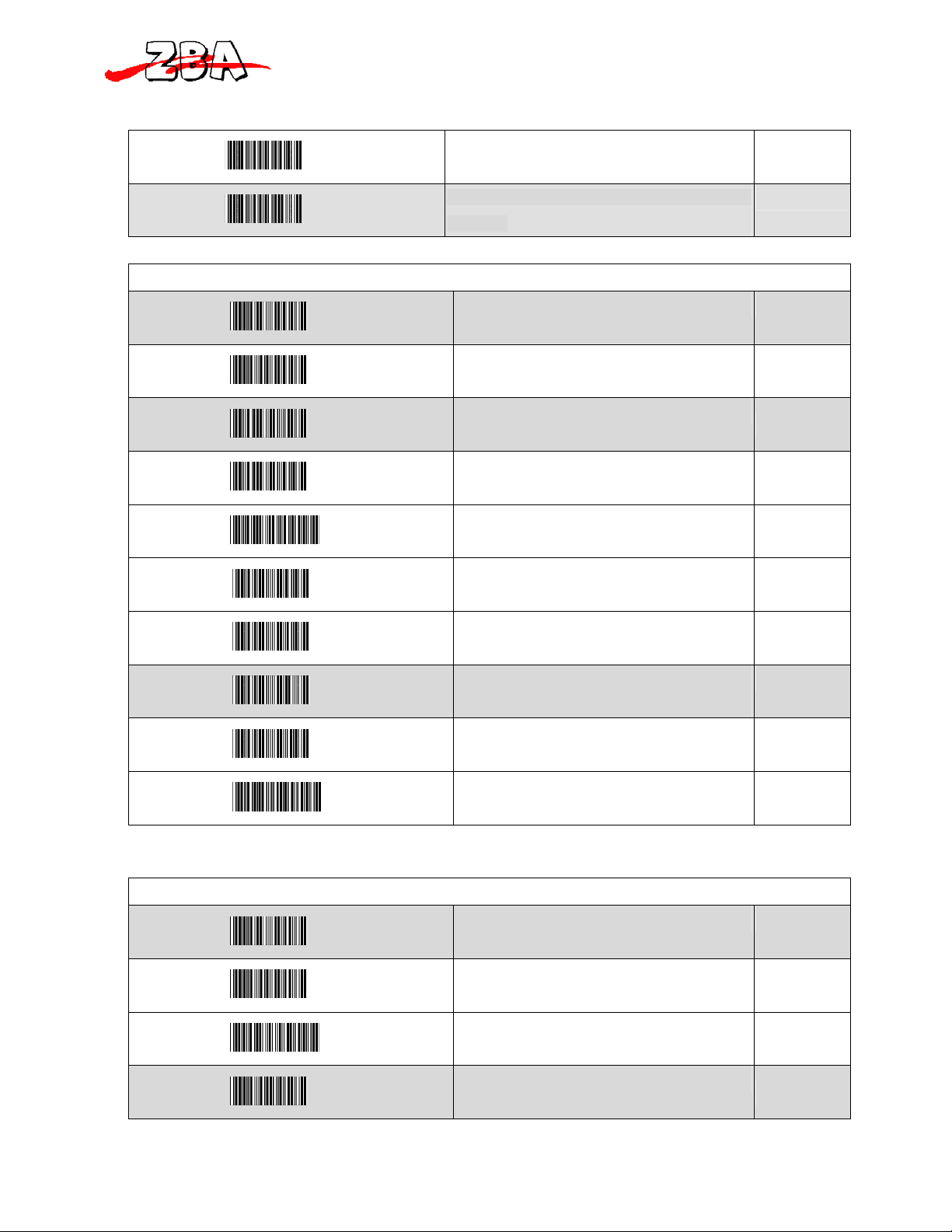

3912 Code 32 (Italian pharmacy)transmit “A”
character
3913 Code 32 (Italian pharmacy)without transmit ”A”
character
Code 93
RC08 Code 93 enable
RD08 Code 93 disable
DC30 Code 93 data redundant check=off
DC31 Code 93 data redundant check=1
DC32 Code 93 data redundant check=2
9301 Code 93 maximum length setting
9302 Code 93 minimum length setting
9303 Code 93 check digit calculate but without
transmit
9304 Code 93 check digit not calculate and without
transmit
9305 Code 93 check digit calculate and transmit
Code 128
RC06 Code 128 enable
RD06 Code 128 disable
RC10 EAN –128 enable
RD10 EAN-128 disable

ZBA Inc.
V1.04 ZBA, Inc. Page 13 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/

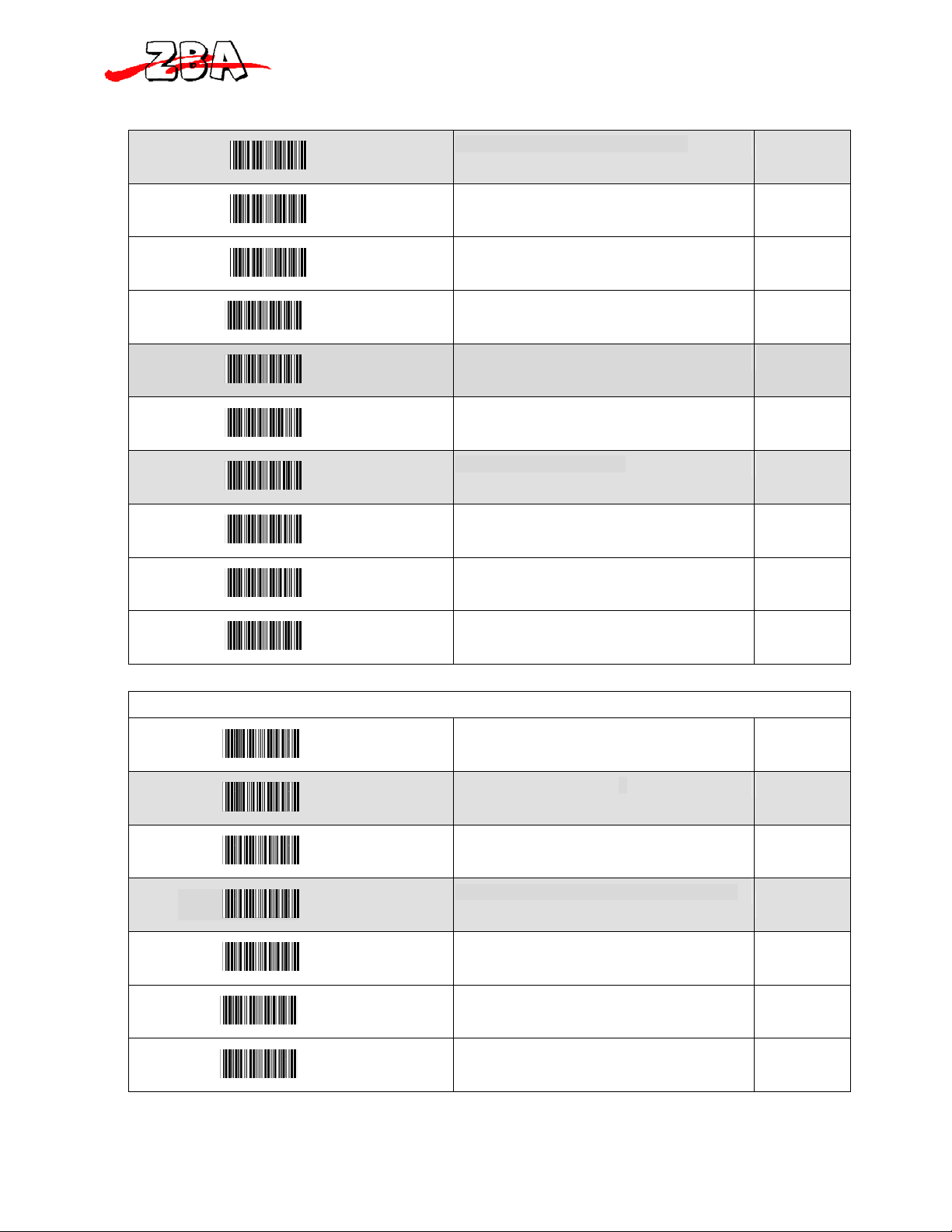

DC40 Code 128 data redundant check=off
DC41 Code 128 data redundant check=1
DC42 Code 128 data redundant check=2
1801 Code128 FNC2 concatenation enable
1802 Code128 FNC2 concatenation disable
1803 No check character
1804 Calculate but not transmitt
1805 Calculate and transmitt
1806 Code 128 maximum length setting
1807 Code 128 minimum length setting ALL
Chinese post code
RC05 Chinese post code enable
RD05 Chinese post code disable
DC60 Chinese post codedata redundant check=off
DC61 Chinese post code data redundant check=1
DC62 Chinese post codedata redundant check=2
SZ01 Chinese post code maximum length setting
SZ02 Chines post code code minimum length
setting

ZBA Inc.
V1.04 ZBA, Inc. Page 14 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/

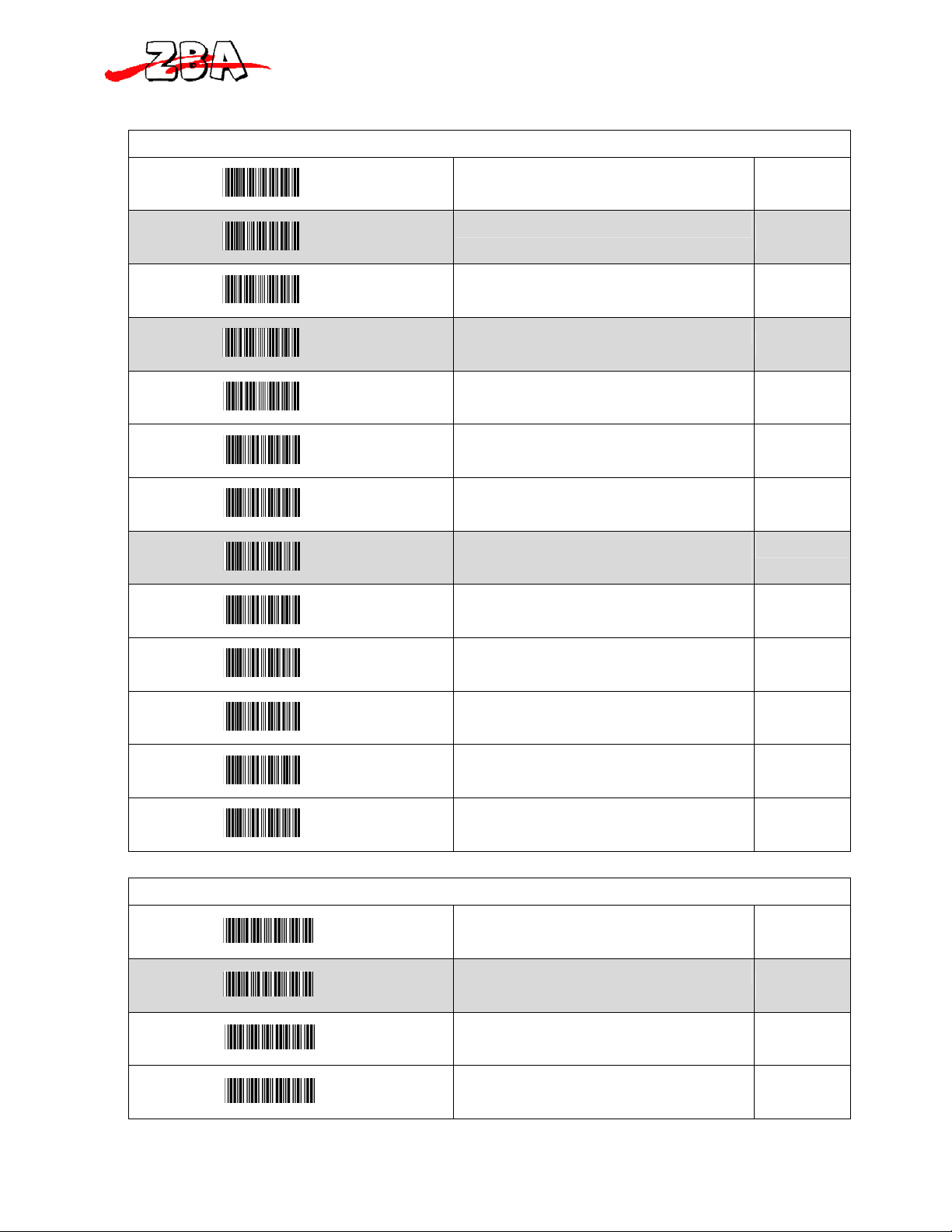

MSI/PLESSY
RC14 MSI enable
RD14 MSI disable
DC70 MSI data redundant check= off
DC71 MSI data redundant check=1
DC72 MSI data redundant check=2
MS01 MSI/PLESSY maximum length setting
MS02 MSI/PLESSY minimum length setting
MS03 MSI/Plessy double check digit calculate but
not transmit
MS04 MSI/Plessy double check digit without
calculate and transmit
MS05 MSI/Plessy double check digit calculate but
only first digit transmit
MS06 MSI/Plessy double check digit calculate and
both transmit
MS07 MSI/Plessy single check digit calculate but
without transmit
MS08 MSI/Plessy single check digit calculate and
transmit
CODE 11
RC07 CODE 11 enable
RD07 CODE 11 disable
1101 CODE 11 maximum length setting
1102 CODE 11 minimum length setting

ZBA Inc.
V1.04 ZBA, Inc. Page 15 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
1103 CODE 11 one check digit verification
1104 Code 11 two check digit verification
1105 Two Check for code 11 check digit if code
length is greater than 10 character
1106 Disable verification
1107 Code 11 check digit transmitted
1108 Code 11 check digit not transmitted
ITF 2 of 5
RC04 ITF 2 of 5 enable
RD04 ITF 2 of 5 disable
RC09 IATA code enable
RD09 IATA disable
DC80 ITF 25 data redundant check=off
DC81 ITF25 data redundant check=1
DC82 ITF25 data redundant check=2
IT01 ITF 2 of 5 code maximum length setting
IT02 ITF 2 of 5 code minimum length setting
IT03 ITF 2 of 5 no check character

ZBA Inc.
V1.04 ZBA, Inc. Page 16 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
IT04 ITF 2 of 5 check digit calculate and transmit
IT05 ITF 2 of 5 check digit calculate but without
transmit
IT06 ITF 2 of 5 one Fixed length setting
IT07 ITF 2 of 5 two Fixed length setting
SET Save setting to confirm (for need to reading
full ASCII
Table confirm use)
UPC/EAN/JAN
RC11 EAN convert toISSN/ISBN enable
RD11 EAN convert to ISSN.ISBN disable
RC03 UPC/EAN/JAN enable
RD03 UPC/EAN/JAN disable
UE01 UPC/EAN/JAN ALL ENABLE
UE02 EAN-8 OR EAN-13 ENABLE
UE03 UPC-AAND EAN-13 ENABLE
UE04 UPC-AAND UPC-E ENABLE
UE05 UPC-A ENABEL
UE06 UPC-E ENABLE
UE07 EAN-13 ENABLE

ZBA Inc.
V1.04 ZBA, Inc. Page 17 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
UE08 EAN-8 ENABEL
UE09 UPC/EAN addendum off
UE10 Addon 5 only
UE11 Addon 2 only
UE13 Force UPC-E to UPC-A format enable
UE14 Force UPC-E to UPC-A format disable
UE15 Force UPC-A to EAN-13 format enable
UE16 Force UPC-A to EAN-13 format disable
UE17 Transmit UPC-Acheck digit enable
UE18 Transmit UPC-Acheck digit disable
UE19 Transmit UPC-E leading character enable
UE20 Transmit UPC-E leading character disable
UE21 Transmit UPC-E check digit enable
UE22 Transmit UPC-E check digit disable
UE23 Transmit EAN-8 check digit enable
UE24 Transmit EAN-8 check digit disable
UE25 Transmit EAN-13 check digit enable
UE26 Transmit EAN-13 check digit disable

ZBA Inc.
V1.04 ZBA, Inc. Page 18 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
UE27 Transmit UPC-A leading character enable
UE28 Transmit UPC-A leading character disable
UE30 Addon format with separator
UE31 Addon format without separator
UE32 EAN/UPC +addon (none mandatory)
UE44 force EAN-8 to EAN-13 format enable
UE45 force EAN-8 to EAN-13 format disable
UE60 EAN-13 first “0” can transmitted
UE61 EAN-13 first:”0” can’t transmitted
Data Editing
CI01 CODE 39 identifier code setting
CI02 ITF 2 of 5 identifier code setting
CI03 CHINESE POST CODE identifier code setting
CI04 UPC-E identifier code setting
CI05 UPC-A identifier code setting
CI06 EAN-13 identifier code setting
CI07 EAN-8 identifier code setting

ZBA Inc.
V1.04 ZBA, Inc. Page 19 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
CI08 CODABAR identifier code setting
CI09 CODE 128 identifier code setting
CI10 CODE 93 identifier code setting
CI11 MSI identifier code setting
CI15 Industrial 2 of 5 Identifier code setting
CI16 Code 11 Identifier code setting
CI17 Standard 2 of 5 Identifier code setting
CP11 Add code length as header enable(all
barcode)
CP12 Add code length as header disable (all
barcode)
HT01 Header (Preamble)
HT02 Trailer (Postamble)
HT03 Truncate header character
HT04 Truncate trailer character
IC00 Inter character delay 5ms
IC01 Inter character delay 0ms
IC02 Inter character delay 10ms
IC03 Inter character delay 20ms
IC04 Inter character delay 50ms

ZBA Inc.
V1.04 ZBA, Inc. Page 20 of 25
94 Old Camplain Road Hillsborough, NJ 08844
Ph: 908-359-2070 Fax: [phone]
Web: http://www.zbausa.com/
IC05 Inter character delay 2ms
IC06 Inter character delay 100 msec
IC07 Inter character delay 90 msec
IM01 Inter message delay 0 ms
IM02 Inter message delay 100 ms
IM03 Inter message delay 500 ms
IM04 Inter message delay 1000 ms
IS00 Disable identifier code
IS01 Enable identifier code table as ZEBEX
standard
ALL
SET Save setting to confirm (for need to reading
full ASCII
Table confirm use)
ALL
Industrial 2 of 5
RC21 Industrial 2 of 5 code enable
RD21 Industrial 2 of 5 code disable
D251 Industrial 2 of 5 code maximum length
setting
D252 Industrial 2 of 5 code minimum length
setting
