zBoost ZB560FCS Installation guide

SETUP OVERVIEW zBoost®
Cellular Xtreme
REACH ZB560FCS
DMAN-0058 Rev 4914
SETTING UP YOUR zBOOST®SIGNAL BOOSTER
The zBoost ZB560FCS is designed to provide increased in-building voice and data
coverage, up to 9,000 square feet, and better reach into rural environments. The
ZB560FCS supports multiple users and all devices operating on (CEL) 800 MHz
Network.
Boost voice and data transmission and increase call clarity in 4 easy steps:
FIRST: Choose a location for the External Antenna using your cell phone to
determine the area of strongest signal. The coverage your zBoost provides is
largely determined by the quality of signal received by the External Antenna. This
location will be typically found on the roof.
Before installing, please note the following important factors in determining your
zBoost performance:
• At least 15 vertical feet is needed between the External Antenna (receives the
outside signal) and the Indoor Antenna (rebroadcasts the signal indoors). Separation
less than 15 vertical feet will result in decreased performance.
• Keep the External Antenna at least 2 feet above any metal such as wiring, A/C
ducts, truss plates, etc. When attaching the cable to the antenna, run the cable straight
down from the antenna. Avoid draping the coax near the antenna.
To get the maximum benefit, you will want to take special care in pointing the
External Antenna in the direction of best signal for your wireless service provider. If
you are unsure of the direction of your provider's closest network tower, see the
Antenna Aiming section of the User Manual or you may wish to use a YX699 RF
signal meter to help during this process.
Once you have determined the optimum location and angle, connect the bracket to
the antenna and secure the antenna bracket to a mast (not provided) using the
provided antenna hardware.
SECOND: Place the Indoor Antenna where you want to create a Cell ZoneTM.
The Base Unit can be easily mounted on a wall by first removing the silver bracket
from the Base Unit and using the provided mounting hardware to affix to wall.
Connect the Indoor Antenna to the 15 feet of RG-6. Then, using the TNC-F Adaptor,
connect the RG-6 to the Base Unit. *The FCC requires that this panel antenna has a
minimum horizontal separation of 6 feet (2 meters) from other CMRS (commercial
mobile radio service) devices.
The Indoor Antenna should be mounted on a wall facing the direction where
increased coverage is desired. Keep the Indoor Antenna off floor and at least 3 feet
away from other cords, metal objects or other wireless devices such as wireless
routers or wireless access points.
Remember, the zBoost REACH requires at least 15 feet of vertical separation
between the Indoor Antenna and the External Antenna. Generally, increasing this
distance (up to 40 feet) will increase the performance and decreasing the distance
will limit zBoost performance.
THIRD: Run the provided coaxial cable between the Base Unit and External
Antenna. Use the provided 35 feet of RG-6 coaxial cable to connect the External
Antenna and the Base Unit. To run the cable from exterior to interior through a
window, an 8 inch window-entry cable is available for purchase (Part: YX030-08W).
Should you need additional cable length, 15 foot extensions (Part: YX030-15W) are
available at www.zBoost.com. Please note: Cable longer than 65 feet is not
recommended.
FOURTH: Connect the zBoost Base Unit to the provided power supply and
plug into a power outlet. When your zBoost system is in place and fully connected,
walk throughout your building and verify that you are able to reliably place calls. If the
signal strength has improved, your zBoost is working.
Remember, coverage varies based on outdoor signal level, building construction,
and antenna placement. Coverage in adjoining rooms will be reduced by walls and
building materials.
Upon initial power up, the LED
will cycle RED, GREEN and
ORANGE for 30 seconds. After,
a series of GREEN flashes will
indicate the quality of your
setup. Following this, a solid
GREEN light indicates normal
conditions. If it is not solid
GREEN, follow the instructions
in the Base Unit LED Indicators
section. Adjustments may be
needed to optimize
performance. If you find the
increased signal coverage is
acceptable, however, no
additional adjustments are
needed.
Download the Cellular Xtreme REACH ZB560FCS User Manual at www.zBoost.com/Support
PACKAGE CONTENTS
Coax Cable
RG-6, 35 feet
zBoost Base Unit
See LED Indicator section for more information.
Should you desire to improve coverage, you may:
• Relocate the External Antenna in order to capture a better signal–higher is better.
• Increase the distance between the Indoor Antenna and the External Antenna.
Power Supply
Base Unit LED Indicators
During Initial Power Up
Light
Mode Status Solution
Cycle
RED,
GREEN,
ORANGE
System is
powering
up. Please
allow up to
30 seconds.
N/A
Flashing
GREEN BASE UNIT will
flash GREEN
once for every
2 dB less than
optimal system
gain. Three
flashes or less
indicates the
system will
still operate
properly.
1. Unplug the BASE UNIT power supply.
2. Relocate the EXTERNAL ANTENNA to pick up the
strongest signal from your wireless carrier.
3. Move the EXTERNAL ANTENNA as far away from the
INDOOR ANTENNA as possible, with at least 15 ft. of
vertical separation (height difference).
4. Plug the BASE UNIT power supply back in.
5. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #1
After Initial Power Up
Light
Mode Status Solution
SOLID
GREEN zBoost is
ready. N/A
Flashing
GREEN zBoost is
in use. N/A
SOLID
ORANGEEXTERNAL
ANTENNA
and INDOOR
ANTENNA
are too close
together.
1. Unplug the BASE UNIT power supply.
2. Move the EXTERNAL ANTENNA as far away from the
INDOOR ANTENNA as possible, with at least 15 ft. of
vertical separation (height difference).
3. Plug the BASE UNIT power supply back in.
4. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #2
SOLID
REDSignal from the
carrier’s cell
tower is too
strong for the
BASE UNIT
to operate
properly.
1. Unplug the BASE UNIT power supply.
2. Relocate the EXTERNAL ANTENNA to another spot.
3. If you have a directional antenna re-aim it to reduce
carrier signal strength.
4. Plug the BASE UNIT power supply back in.
5. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #3
Flashing
REDExcessive
electronic
noise in the
system – the
BASE UNIT will
not operate.
^ Refer toSolution #2
Indoor Antenna
and TNC-F Adaptor
External Antenna
and attached Bracket
Coax Cable
RG-6, 15 ft
zBoost Base Unit
Power Supply
Coaxial Cable
External Antenna
Indoor Antenna
External Antenna Bracket Assembly
15 ft. of
Vertical
Separation
FCC Requirement
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal
boosters. AT&T, Sprint, T-Mobile, Verizon and 90 additional carriers have already given consent for all consumers to use this device. Some providers may not consent to the
use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
FCC contact information: www.fcc.gov/signal-boosters/registration.
FCC Information
FCC ID: SO4ZB570-PCS-CEL
Warning: Changes or modifications to this device not expressly approved by zBoost could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element (antenna) shall be installed
such that a minimum separation distance of 20cm (8in) is maintained from all persons.
Industry Canada Regulations
Canada IC: 5544A-ZB570PCSCEL
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.
RF Exposure:
The manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be
reduced by 3.5 dB, especially where the output is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or
gain reduction and not by an attenuator at the output of the device.
Please note: This unit has been approved for use in Canada under RSS 131, however, consent for the use of this device to improve cellular or PCS coverage, must be
obtained through your cellular or PCS provider, prior to placing the unit in operation. Please refer to the Industry Canada document CPC 2-1-05, Section 6.1 available or
viewable at: http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.html
Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence canadienne causant des règlements d’équipement. L’opération est sujette aux
deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris
l’interférence qui peut causer l’opération peu désirée.
Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les situations lorsque plusieurs signaux porteurs sont présents, l’évaluation
devrait être réduite de 3.5 dB, en particulier lorsque le signal de sortie est ré-émise et peut provoquer des interférences adjacentes à la bande utilisateurs. Ce pouvoir est de
la réduction par le biais de la sortie d’alimentation ou la réduction de gain et non par un atténuateur à la sortie du dispositif.
PCS CEL
Frequency N/A 824 - 894 MHz
System Gain N/A 80 dB
Bands Supported N/A ALL: A,B, A’ & B’
Output Power Uplink: 19 dBm; Downlink: 4 dBm Uplink: 21 dBm; Downlink: 4 dBm
Networks Supported CDMA, GSM, TDMA, GPRS, EDGE, EVDO, HSPA, 3G
Wall Supply Input; Voltage 100-240VAC 50-60 Hz
Power Consumption 3W standby; 7W max signal - 2.0A Max
Input and Output Impedance TNC Connector: 50 Ohm; F Connector: 75 Ohm
FCC Parts 15 & 20, Industry Canada
Base Unit Size and Weight 5” x 7” x 1.25” - 9 oz.
Base Unit and Power Supply Indoor Use Only, 40° to 105° F
Coverage (open areas) 9,000 sq. ft.
The manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present,
the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band
users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
zBoost REACH ZB560FCS Technical Specifications
This product uses patented technology to protect the carrier network.
LIMITED 2 YEAR MANUFACTURER WARRANTY | WARRANTY REGISTRATION AT WWW.ZBOOST.COM
zBoost warrants every zBoost product to be free from defects in material and workmanship under normal use for the warranty period of 2 years.
Who Is Covered?
You must have proof of purchase to receive warranty service. A sales receipt or other documentation showing the product purchased and
the purchase date is considered proof of purchase. This limited warranty extends only to the original consumer purchaser or any person
receiving the product as a gift from the original consumer purchaser and to no other purchaser or transferee.
What is Covered?
Warranty coverage begins the day you purchase the product. For one year from the original date, the zBoost Cell Phone Signal Booster will
be repaired or replaced with a new, repaired, refurbished or comparable product (whichever is deemed necessary by zBoost) if it becomes
defective or inoperative. The exchange will be made without charge to you for parts and labor. You will be responsible for the cost of shipping
to the location designated by zBoost. If zBoost cannot reasonably repair or replace the unit then zBoost may, at its sole discretion, refund
the price you paid for the product or the price of the unit. All products, including replacement products, are covered only for the original
warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires.
What is Excluded?
Your warranty does NOT cover:
• Labor charges for set up of the unit.
• Product replacement because of misuse, accident, lightning damage, unauthorized repair or other cause not within the control of zBoost.
• Incidental or consequential damages resulting from the product. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion may not apply to you.
• Any modifications or other changes to the product, including but not limited to software or hardware modifications in any way other
than as expressly authorized by zBoost will void this limited warranty.
• Product that has been modified or adapted to enable it to operate in any country other than the country for which it was designed,
manufactured, approved and/or authorized, or repair of products damaged by these modifications.
All zBoost products that are packaged with other zBoost accessory products are intended for resale and use as a single unit, and such
product kits are required to be sold to the end user or subsequent reseller as packaged. The “de-kitting” and sale as a standalone product
of any one or more components of such a product kit is in violation of zBoost’ warranty. No “de-kitted” product will be eligible for return for
any reason. The sale of separate, not-kitted cable, antennas and other accessories is allowed and fully warranted
Make sure you keep…
Please keep your sales receipt or other document showing proof of purchase. Attach it to this Setup Overview and keep both nearby. Also,
keep the original box and packing material in case you need to return your product.
Before requesting repair service…
Please see the BASE UNIT LED INDICATORS section listed in this overview for troubleshooting.
To get warranty service…
Warranty service will be provided by zBoost. If you need service for your unit, contact us
at 1-800-871-1612 or [email protected]. A
representative will go through a diagnostic checklist with you. If the product needs to be returned for service or exchanged, you will receive
a return merchandise authorization (RMA) number. The representative will give you complete shipping details. Please do not return products
to zBoost without an RMA.
To get out of warranty service…
To obtain out of warranty service, contact zBoost at 1-800-871-1612 or [email protected] for information on the possibility of any costs
for repair or replacement of out-of-warranty products.
Reminder: Record the model and serial number found on the product:
Model #:
Serial #:
Purchase Date:
For questions or assistance, contact zBoost Customer Care at 1-800-871-1612 or email
[email protected].
The complete zBoost REACH ZB560FCS Manual and additional product information is available at
www.zBoost.com/Support.
Customer Support
Warranty Information

Other manuals for ZB560FCS

1

Other zBoost Extender manuals

zBoost YX520 Imternational User manual

zBoost

zBoost YX520 Imternational User manual

zBoost Trio Xtreme Reach ZB585X User manual

zBoost

zBoost Trio Xtreme Reach ZB585X User manual

zBoost ZB545 Installation guide

zBoost

zBoost ZB545 Installation guide

zBoost SOHO Premium ZB645SL User manual

zBoost

zBoost SOHO Premium ZB645SL User manual

zBoost DataBlast VLTE-AWS Installation guide

zBoost

zBoost DataBlast VLTE-AWS Installation guide

zBoost zForce YX240 User manual

zBoost

zBoost zForce YX240 User manual

zBoost SOHO YX545 User manual

zBoost

zBoost SOHO YX545 User manual

zBoost TRIO Pro ZBC775 User manual

zBoost

zBoost TRIO Pro ZBC775 User manual

zBoost Trio Workspace ZB570 Installation guide

zBoost

zBoost Trio Workspace ZB570 Installation guide

zBoost TRIO Pro ZBC775 Installation guide

zBoost

zBoost TRIO Pro ZBC775 Installation guide

zBoost ZB560Y Installation guide

zBoost

zBoost ZB560Y Installation guide

zBoost YX560SL User manual

zBoost

zBoost YX560SL User manual

zBoost SOHO Premium ZB645SL Installation guide

zBoost

zBoost SOHO Premium ZB645SL Installation guide

zBoost VLTE-AWS Installation guide

zBoost

zBoost VLTE-AWS Installation guide

zBoost Xtreme Reach ZB560SL Installation guide

zBoost

zBoost Xtreme Reach ZB560SL Installation guide

zBoost Reach ZB560P Installation guide

zBoost

zBoost Reach ZB560P Installation guide

zBoost YX645 Installation guide

zBoost

zBoost YX645 Installation guide

zBoost ZB645 Platinum User manual

zBoost

zBoost ZB645 Platinum User manual

zBoost METRO Workspace ZB540iP User manual

zBoost

zBoost METRO Workspace ZB540iP User manual

zBoost SOHO User manual

zBoost

zBoost SOHO User manual

zBoost YX560Y User manual

zBoost

zBoost YX560Y User manual

zBoost ZB545 Installation guide

zBoost

zBoost ZB545 Installation guide

zBoost YX560SL Installation guide

zBoost

zBoost YX560SL Installation guide

zBoost ZB450 User manual

zBoost

zBoost ZB450 User manual

Popular Extender manuals by other brands

DALRC QUHF operating manual

DALRC

DALRC QUHF operating manual

MaxiiCopper Vi2401A installation manual

MaxiiCopper

MaxiiCopper Vi2401A installation manual

opticis DPFX-300-TR user manual

opticis

opticis DPFX-300-TR user manual

ADT Pulse Cloud Link Quick installation guide

ADT Pulse

ADT Pulse Cloud Link Quick installation guide

MuxLab 500390 Quick installation guide

MuxLab

MuxLab 500390 Quick installation guide

Rextron EKU-222 manual

Rextron

Rextron EKU-222 manual

TiGHT AV EXT-H101L-HDBT user manual

TiGHT AV

TiGHT AV EXT-H101L-HDBT user manual

Wilson Electronics weBoost DRIVE SLEEK user manual

Wilson Electronics

Wilson Electronics weBoost DRIVE SLEEK user manual

Milwaukee FUEL PROPEX M12 Operator's manual

Milwaukee

Milwaukee FUEL PROPEX M12 Operator's manual

Gefen GTV-WVGA-LR user manual

Gefen

Gefen GTV-WVGA-LR user manual

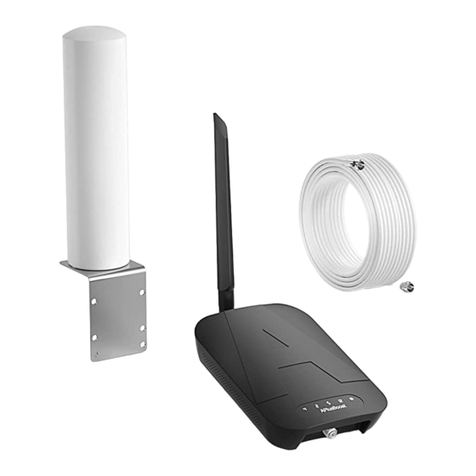

SUNFORD ELECTRONICS APlusBoost Home MultiRoom SF001 installation guide

SUNFORD ELECTRONICS

SUNFORD ELECTRONICS APlusBoost Home MultiRoom SF001 installation guide

Widearea AER800-24P installation manual

Widearea

Widearea AER800-24P installation manual

Behringer Intelligate XR2000 Technical specifications

Behringer

Behringer Intelligate XR2000 Technical specifications

Amulet Hotkey DXR-H4 user manual

Amulet Hotkey

Amulet Hotkey DXR-H4 user manual

ATZ DVI-E60 quick start guide

ATZ

ATZ DVI-E60 quick start guide

Intelix DIGI-USB2-4P installation guide

Intelix

Intelix DIGI-USB2-4P installation guide

Intelix AVO-A2-MINI-WP-F installation manual

Intelix

Intelix AVO-A2-MINI-WP-F installation manual

SLX 27823V user guide

SLX

SLX 27823V user guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
