ZyPer4K
Decoder Function
The function of the ZyPer4K Decoder device (Decoder) is to accept 10G Ethernet traffic that
represents the information to be decoded and displayed. When the appropriate IP stream is
received the Decoder unit will first strip off the encryption that protects the payload on its transit
across the network. It then reformats the video and audio information for display and plays it
out its HDMI video output. Audio is also played out the appropriate port as included.
Other ports on the Decoder devices are for the carriage of USB, IR, RS232 and audio data as
well as a 1Gbit/second utility port for general purpose connectivity of devices to the 10Gb bulk
data infrastructure.
Common Interfaces on all Decoders:
•Power Input (12VDC)
•RS232 Input/Output
•1Gbit/sec Utility Ethernet Port
•Analog Audio Output
•Infrared Input and Output
•HDMI 2.0 Output
•Equipotential Grounding Lug
Ethernet Bulk Media Interface:
10Gb Fiber or 10Gb Copper
Optional Interfaces on Decoder Units:
DisplayPort:
(none) or present
USB:
(none) or
2x USB Type-A Interface
Dante Transmitter:
(none) or present
In total there are 14 different, unique Decoder types that can be ordered.
HDMI Fiber
HDMI Fiber with USB
HDMI Copper
HDMI Copper with USB
DisplayPort Fiber
DisplayPort Fiber with
USB
DisplayPort Copper
DisplayPort Copper with
USB
HDMI Fiber with Dante
Transmitter
HDMI Fiber with USB
and Dante Transmitter
HDMI Copper with
Dante Transmitter
HDMI Copper with
USB and Dante
Transmitter
HDMI Fiber (Quiet/
Fanless)
HDMI Copper (Quiet/
Fanless)
Z4K Dante User Manual
Page of118

ZyPer4K
Decoder
The function of the ZyPer4K Decoder is to accept a 10Gb IP feed containing the video
information to be displayed. It decrypts, decodes and formats the video and audio information
for display on the attached viewing device. The decoder is capable of outputting any HDMI 2.0
resolution supplied by the encoder including full 4K, 4:4:4 at 60Hz. There are several different
variations based on the user’s desired media type and USB options.
Enclosure variants
There are three sizes of the ZyPer4K Decoder unit enclosure.
Common Ports
The following ports are common to all decoders, regardless
of the interface options.
Output Function
Box Size
HDMI Output
Base unit: 175mm Wide x 43mm High x 144mm Deep
HDMI Output (Quiet/Fanless)
Base unit: 164mm Wide x 44mm High x 145mm Deep
HDMI and DisplayPort Output
Base unit: 175mm Wide x 43mm High x 144mm Deep
HDMI + Dante Transmitter
Extended unit: 227mm Wide x 43mm High x 144mm Deep
Port Name
Index
Definition
Power
A
12VDC from supply at 1.2A (center +, ring-)
Port Name
Z4K Dante User Manual
Page of218
B
A
C

ZyPer4K
Utility
Network
B
10/100/1000Base-T Ethernet port. Used for general purpose
device attachment to network. Traffic will be switched on to
media network. (Not available on models with Dante transmitter)
Ground Lug
C
For equipotential referencing of the box, this lug may be
connected the environmental ground using a customer-supplied
ground lead.
Index
Definition
Port Name
Port Name
Index
Definition

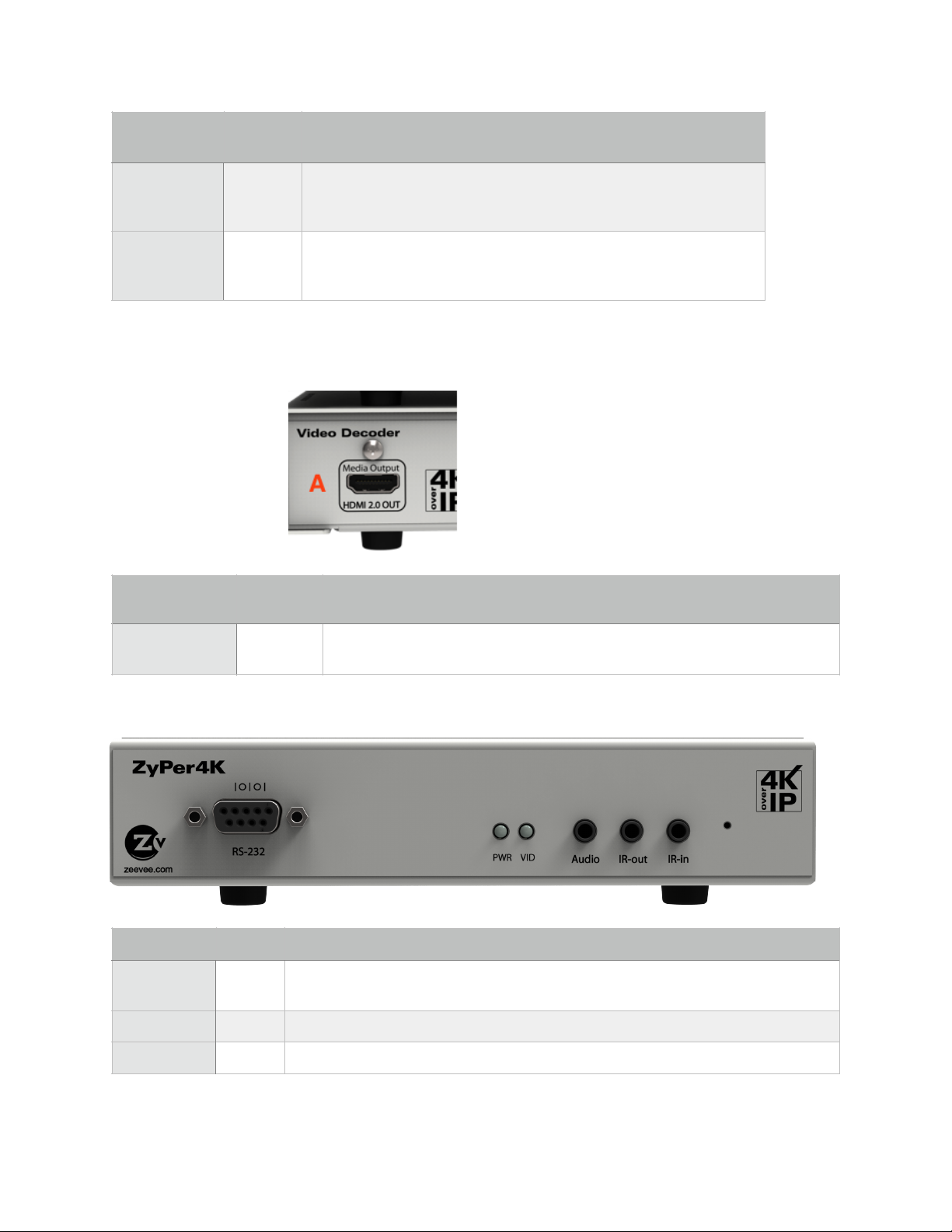

HDMI Output
A
HDMI 2.0 Output port. Capable of up to 4K60 4:4:4 with embedded
audio and HDCP2.2 encryption.
Port Name
Index
Definition
RS 232 Port
A
RS232 Control Port for sending and receiving side-band serial traffic to/from
encoders as directed by ZyPer Management Platform. (ZMP)
LED PWR
B
LED illuminated when unit is powered
LED VID
C
LED Illuminated when active video is being processed
Port Name
Z4K Dante User Manual
Page of318
A
B
C
E
F
D
G

ZyPer4K
Optional Ports: 10Gb Ethernet
Audio
D
Audio Output Jack. Drives line-level stereo audio on 3.5mm jack. (Not
available on models with Dante Transmitter)
IR-OUT
E
Infrared Commands information passed FROM Encoders to Decoders as
configured by ZMP.
IR-IN
F
Infrared Commands to be passed TO Encoders as configured by ZMP.
RESET
G
Reset to factory defaults. Using a wire or paper clip, lightly press into this hole
while unit is being powered on. Hold for 10 seconds to reset the unit to factory
defaults.
Index
Definition
Port Name
Port Name
Index
Definition

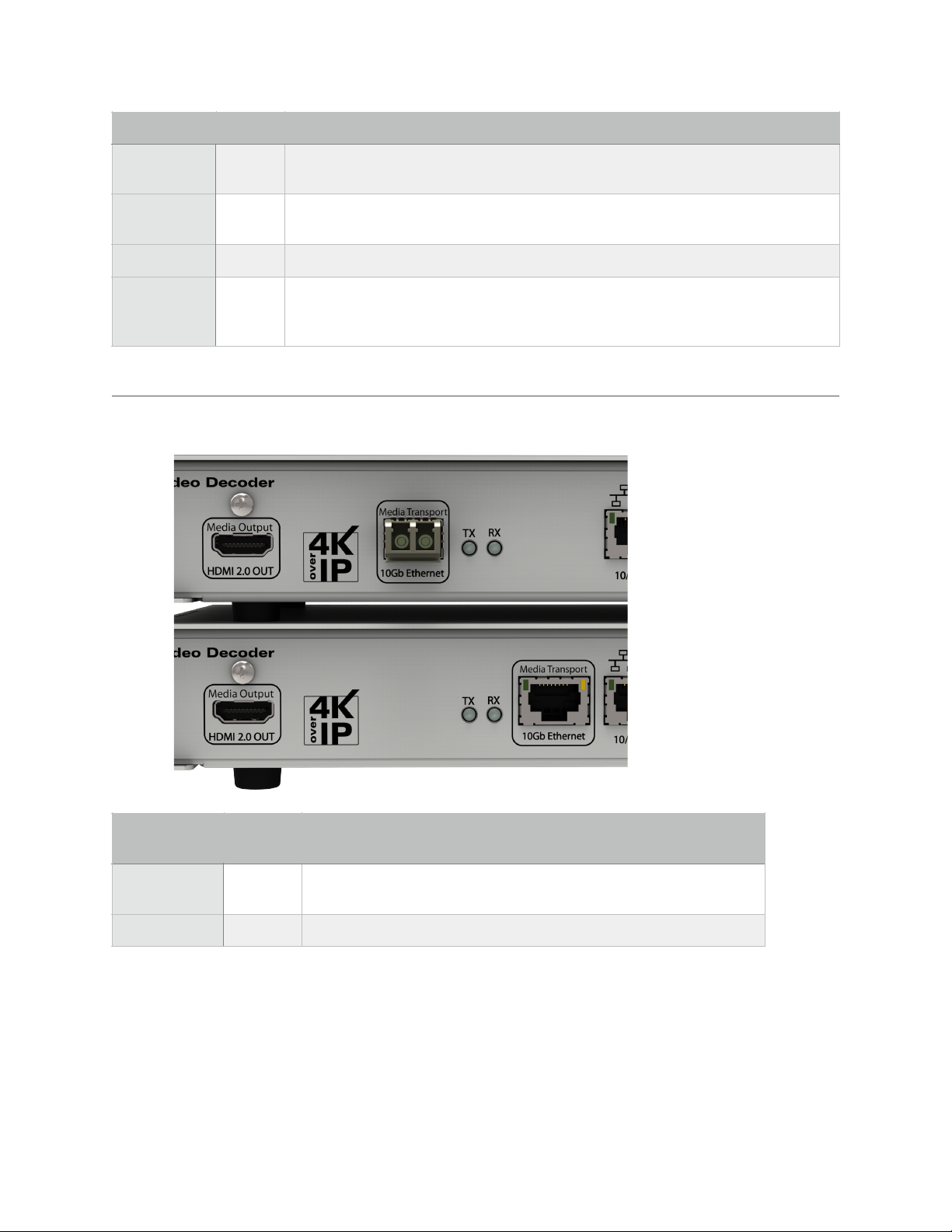

10G Fiber
A1
10 Gigabit Ethernet Connection. Uses standard 10Gb SFP
devices.
10G Copper
A2
10Gb Ethernet over Cat6a or better cabling. RJ45
Z4K Dante User Manual
Page of418
A1
A2

ZyPer4K
Optional Ports: USB

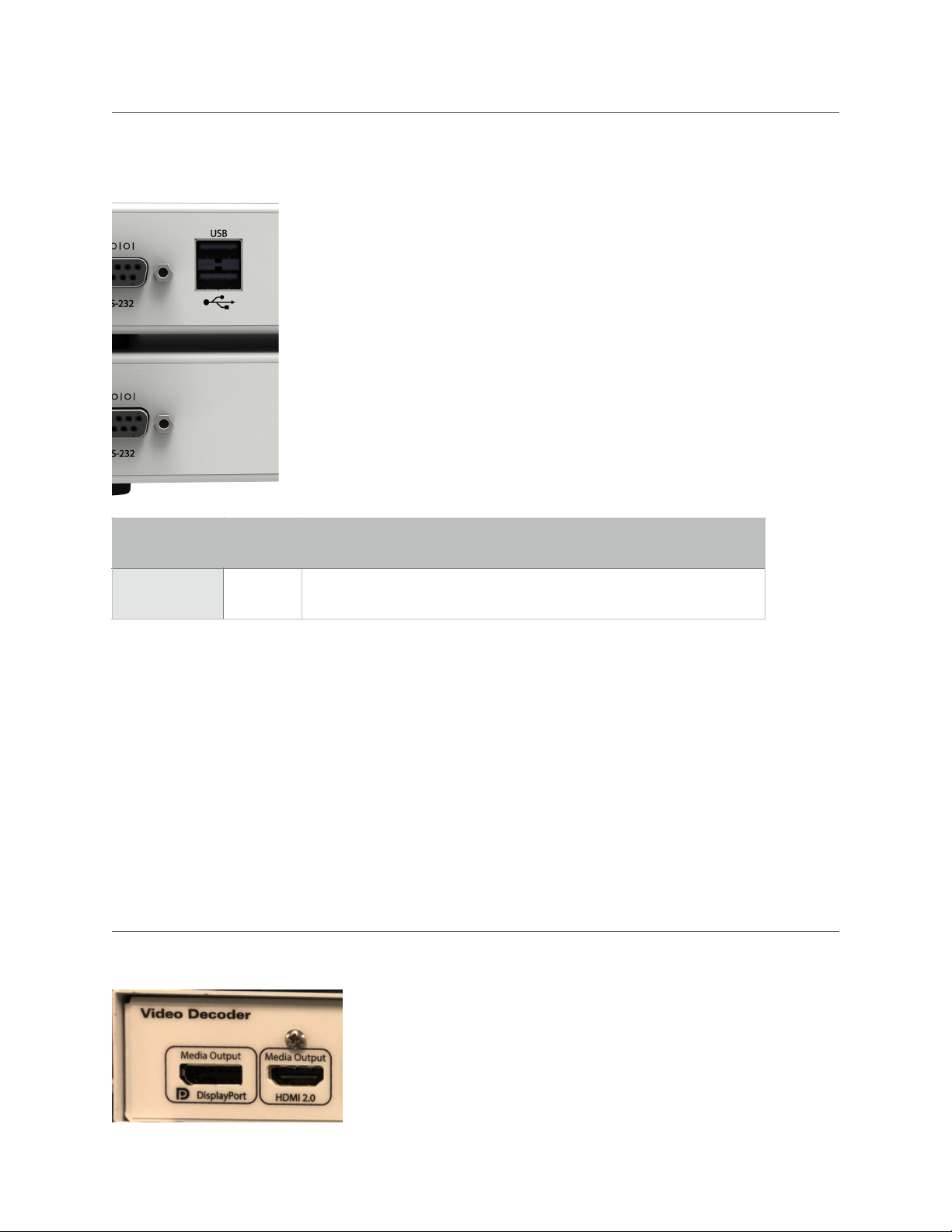

The ZyPer4K Decoder device can be ordered with optional USB
connectivity.
Shown to the left is a unit with the USB option (top) and without the
USB option (bottom) installed. This is a build-time option and is not
retrofittable to the product.
Important Note
!
The USB system requires its own IP Address that is different and independent from the IP
Address of the ZyPer4K itself. Customers that are using a DHCP server to generate IP
Addresses must ensure the pool of available IP Addresses accounts for any ZyPer4K USB
devices in the system.
If no DHCP server is available, the USB controller will assign itself a Link-Local address.
However, if there is a DCHP server, but there are not enough addresses available in the pool,
USB connections may fail.
There is no means of setting the USB controller with a Static IP address.
Optional Ports: Display Port
The ZyPer4K Decoder device can be ordered with an optional
DisplayPort output.
Note: DisplayPort output port does not support any Audio
capabilities.
Port Name
Index
Definition
USB
A
2 ports of USB 2.0 Type-A connectivity. Either port may be used
and both operate simultaneously.
Z4K Dante User Manual
Page of518
A

ZyPer4K
Option: Dante Transmitter
The ZyPer4K Decoder device can be ordered
with an optional internal Dante Transmitter.
Note this is an extended box to accommodate
the Dante Transmitter hardware.
Important Note
!
The Dante Transmitter requires its own IP Address that is different and independent from the IP
Address of the ZyPer4K itself. Customers that are using a DHCP server to generate IP
Addresses must ensure the pool of available IP Addresses accounts for any ZyPer4K decoders
with Dante Transmitters in the system.
If no DHCP server is available, the Dante Transmitter will assign itself a Link-Local address.
However, if there is a DCHP server, but there are not enough addresses available in the pool,
Dante connections may fail.
The Dante Transmitter can be assigned a Static IP address via the Dante Controller software.
Z4K Dante User Manual
Page of618

ZyPer4K
Dante Operation
It is expected that the user is familiar with Dante and the use of Dante networks. It is beyond the
scope of this document to provide Dante training.
The Dante Transmitter found in the ZyPer4K decoder will automatically insert the Down-mix
Audio stream that it is receiving onto the Dante Network. Refer to the ZyPer Management
Platform User Guide for details on streaming audio/video from an encoder to a decoder.
https://cdn2.hubspot.net/hubfs/4316736/SUPPORT/USER-GUIDES/ZyPer-Management-
Platform-User-Manual.pdf
Network settings are the same as standard ZyPer4K encoders/decoders.
Some switches may require additional settings to work with a Dante network. For example the
Netgear M4300 series requires settings detailed at the following location:
https://kb.netgear.com/000060205/M4300-Configuration-Guide-for-Dante-Audio-Devices
The user should consult the documentation for the switch provider being used.
In Dante Controller the device will appear as a Transmitter with the name ZV-XXXXXX-YYYYYY
XXXXXX - Represents the final bytes of the ZyPer4K MAC Address
YYYYYY - Represents the final bytes of the Dante AVIOAI2 Transmitter MAC Address
Note that the device can be renamed in Dante Controller software.
Below are screen shots from Dante Controller.
Z4K Dante User Manual
Page of718

ZyPer4K

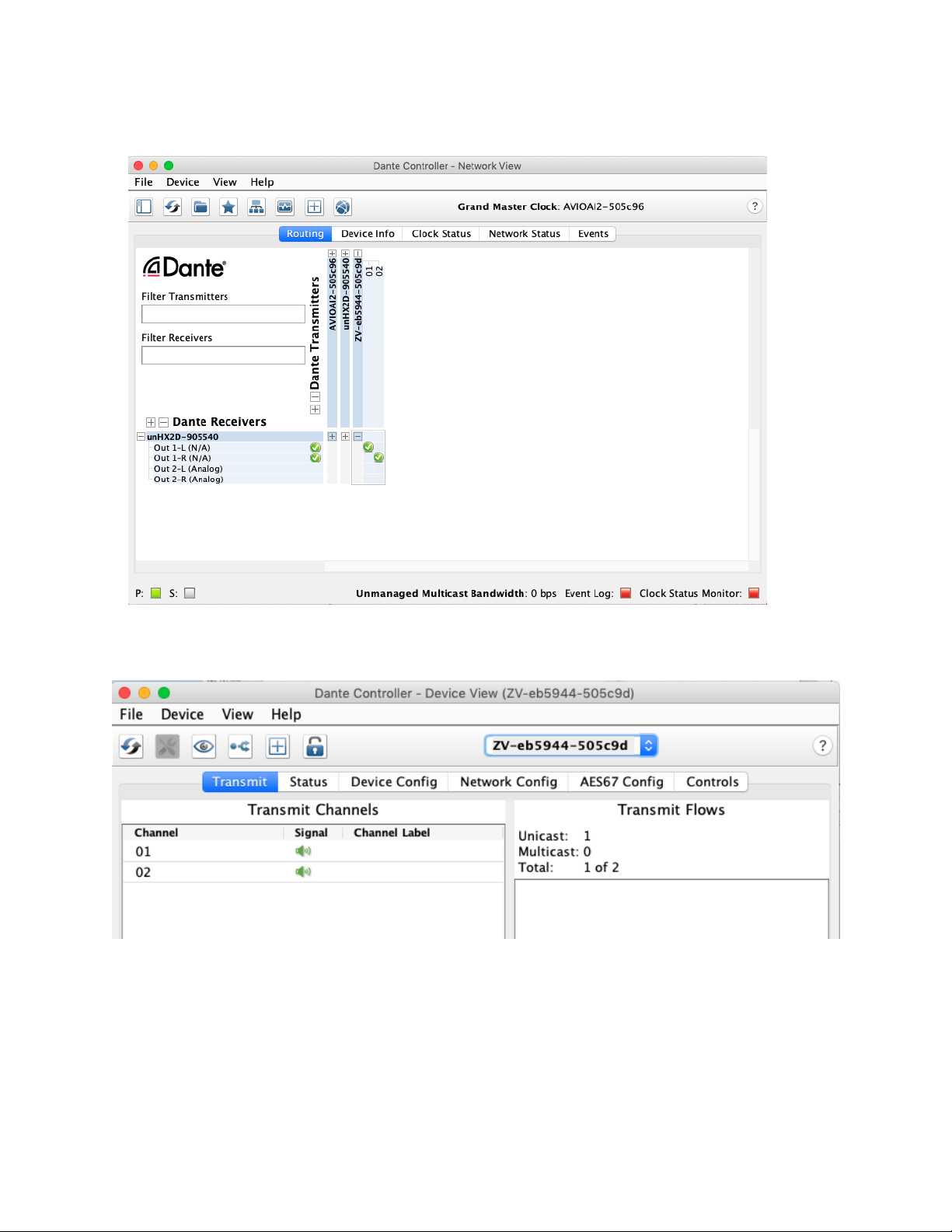

Dante Controller main screen Routing tab:
Transmit tab with details on Dante Transmitter
Z4K Dante User Manual
Page of818

ZyPer4K
Status tab with details on Dante Transmitter
Z4K Dante User Manual
Page of918

ZyPer4K

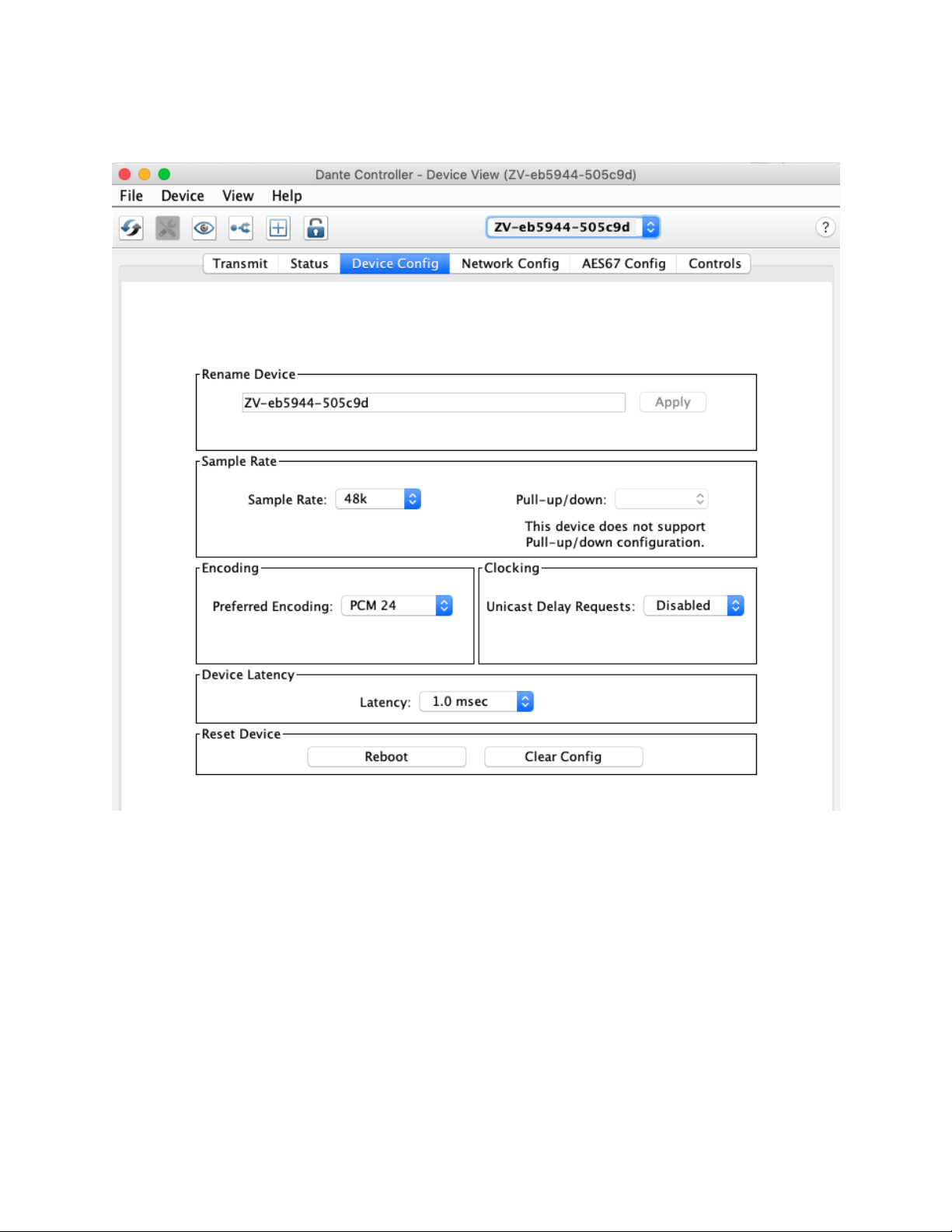

Device Config tab with details on Dante Transmitter
Z4K Dante User Manual
Page of10 18

ZyPer4K

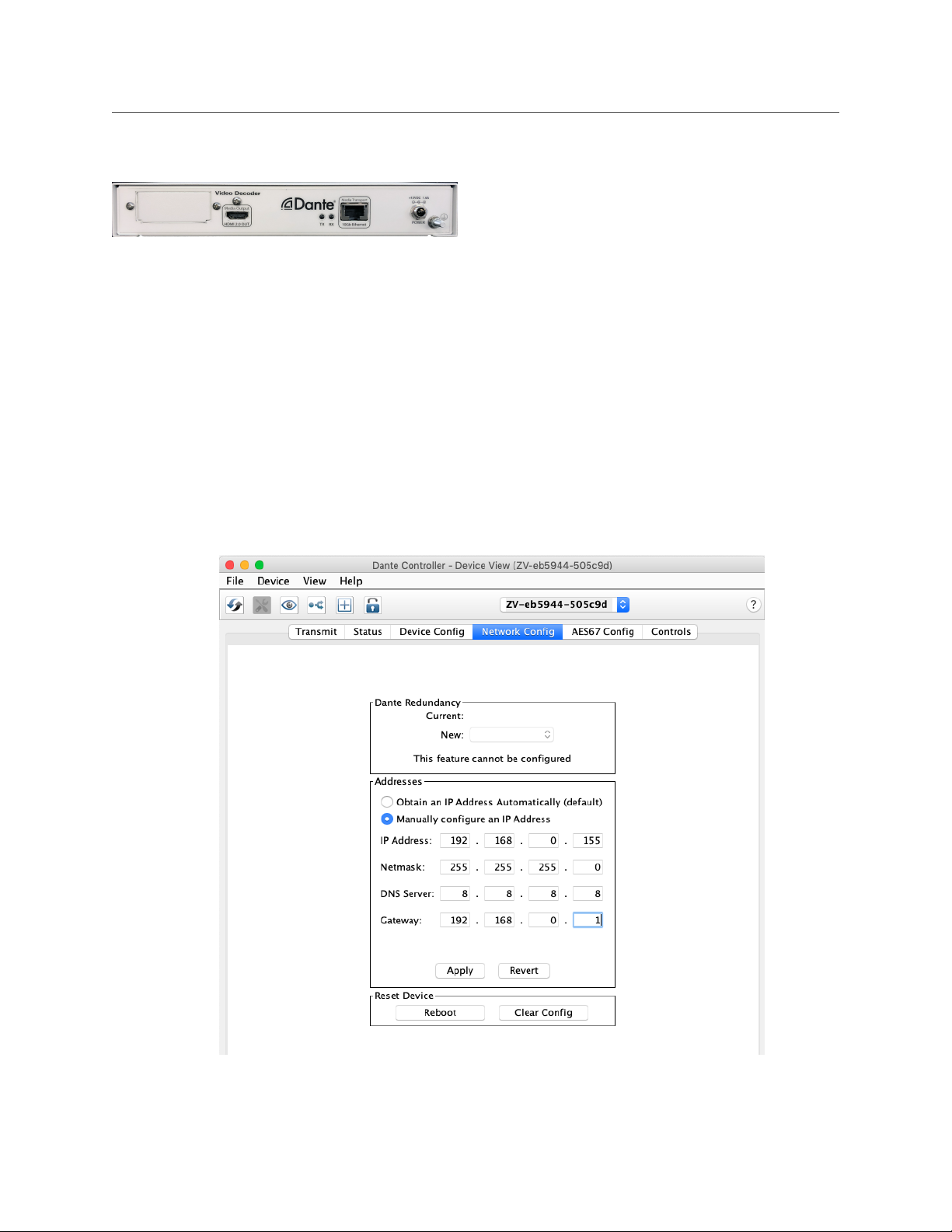

Network Config tab with details on Dante Transmitter
Note: You must Reboot the Dante Transmitter for new IP Address configuration to take effect.
Rebooting the Dante Transmitter will not cause the ZyPer4K unit itself to reboot.
Z4K Dante User Manual
Page of11 18

ZyPer4K

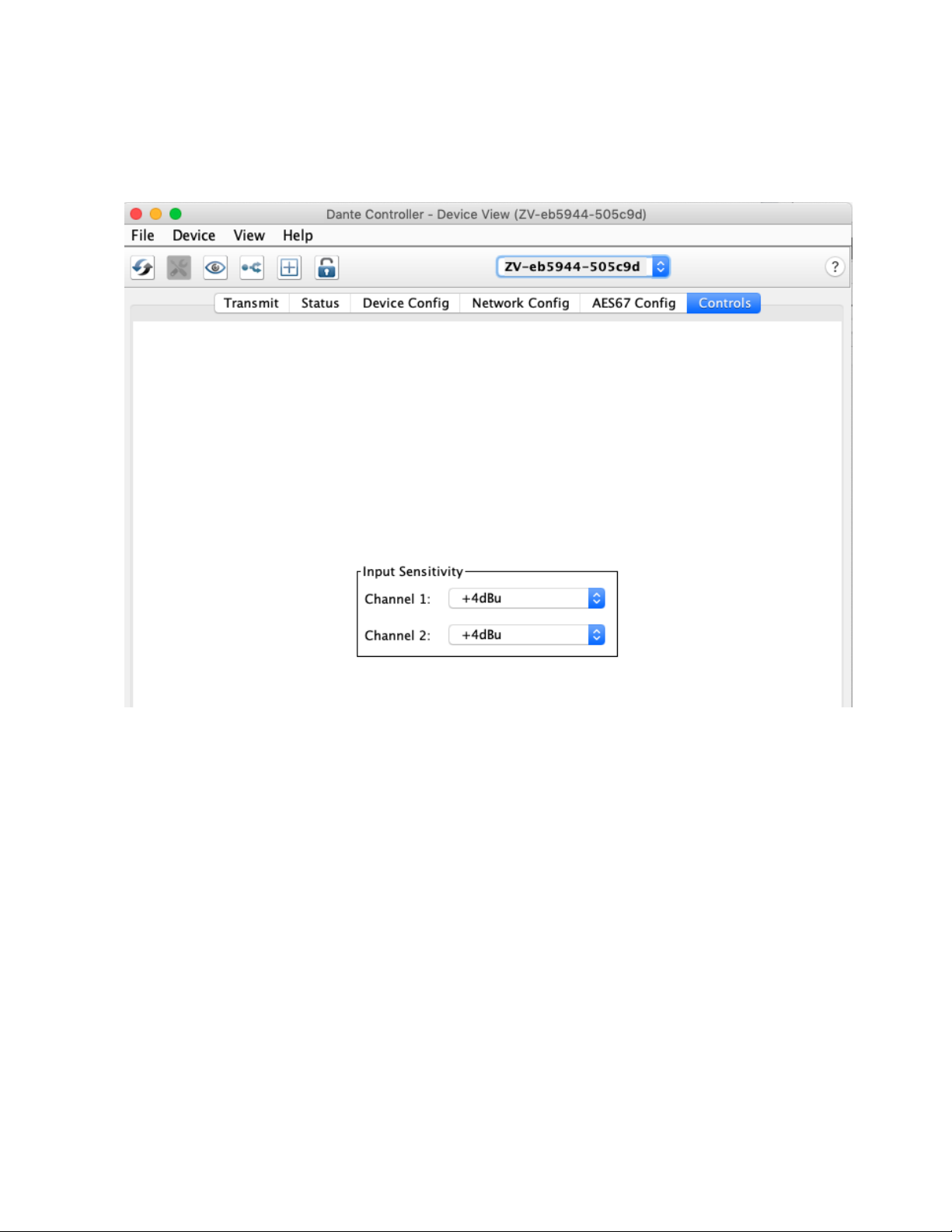

Controls tab with details on Dante Transmitter.
(Used to adjust input lever of audio to the Transmitter)
Z4K Dante User Manual
Page of12 18

ZyPer4K
Device Technical Specifications
Encoder and Decoder HDMI Video Specifications
All encoders and decoders have one exposed HDMI port. It is an input on the encoder and an
output on the decoder. All the parameters in terms of the formats of video and audio carried are
the same for either.
HDMI
ZyPer4K
Enc
Dec
HDMI Standard Port
✓
✓
HDMI 2.0 with HDR* and HDCP 2.2 Support
Direction
✓
Input
✓
Output
Connector
✓
✓
Type-A receptacle (female)
HDMI Resolutions
✓
✓
Supports all major VESA resolutions and variations
including full HDMI 2.0 and HDR* support:
640x480 (p/i)
720x576 (25Hz/50Hz)(p/i)
800x600 (p)
1024x768 (p)
1280x720 (p/i)
1280x1024 (p)
1366x768 (p)
1440x1080 (p)
1600x1200 (p)
1920x1080 (p/i)
2048x1536 (p)
3840x2160 (p) Including 4:4:4, 60 Hz support
4096x2160 (p) Including 4:4:4, 60 Hz support
all at 24/25/29.97/30/50/59.94/60Hz refresh rates except
where noted
HDR fully supported in “Genlocked” mode
HDR inputs reduced to 8-bits on output in “Fast-Switch
mode”
HDMI
Z4K Dante User Manual
Page of13 18

ZyPer4K
HDMI Audio
✓
✓
LPCM, Dolby (5.1, 6.1, 7.1), AC3, DTS, Dolby EX, THX,
DTS-ES, Dolby TrueHD, DTS-HD Master
(HDMI to HDMI audio is “passed-through” from encoder
to decoder)
Encoded audio formats such as AC3/Dolby only
supported in “Genlocked” mode.
Additional restrictions may result from the audio
supported at encoder’s input.
ZyPer4K
Enc
Dec
HDMI
Z4K Dante User Manual
Page of14 18

ZyPer4K
Dante Transmitter Specifications
* Values in bold are default settings, which can be changed in Dante Controller"
Dante Transmitter
ZyPer4K
Information
Dec
Dante Transmitter
✓
Audinate AVIO-DAI2 (See detailed specifications below)
Direction
✓
Output
Channels
✓
2
Connector
✓
No connector. Uses shared 10Gb Ethernet port
Dante Transmitter Feature
Specification
Max signal level (Balanced)*
+24dBu / +4dBu / 0dBu / 0dBV / -10dBV
Frequency Response
20Hz to 20kHz (±0.5dB)
Impedance
10k Ohm
Dynamic Range
> 100dB
Signal to Noise Ratio
> 100 dB
Total Harmonic Distortion
< 0.01% at +4dBu
Sample Rates
44.1, 48, 88.2, 96 kHz
Bit Depth
24
Dante Device Latency
1, 2, or 5ms (configurable via Dante Controller)
Network Transport
Dante Audio over IP
AES67 RTP
Z4K Dante User Manual
Page of15 18

ZyPer4K
Physical and Environmental
The following parameters apply to all encoders and decoders unless specifically stated
otherwise.
Type
Parameter
A/C Adapter
100-1240VAC 50-60Hz 0.7-0.45A draw on AC Mains
Output Max: 12VDC 2.5A
ZyPer4K unit
power consumption
12VDC at 1.2A max 12W nominal (Standard Fiber Encoder/Decoder)
12VDC at 1.6A max 15W nominal (Standard Copper Encoder/Decoder)
12VDC at 1.2A max 12.5W nominal (Extended input Fiber Encoder)
12VDC at 1.6A max 15.5W nominal (Extended input Copper Encoder)
12VDC at 1.2A max 12.5W nominal (Decoder with Dante Transmitter, Fiber)
12VDC at 1.6A max 15.5W nominal (Decoder with Dante Transmitter, Copper)
USB Option (Adds 660mW power to above versions)
Dimensions
(LxWxH)
maximum envelope
144mm x 175mm** x 43mm* (Decoder or Encoder with no extended option)
144mm x 228mm** x 43mm* (Encoder or Decoder with extended option)
145mm x 164mm x 44mm* (Quiet/Fanless Decoder)
*subtract 6mm from height if rubber feet are removed
** add 48mm to overall width if both mounting ears are installed
Weight
880g (Decoder, Encoder with no extended input option)
850g (Quiet/Fanless Decoder)
1070g (Encoder with extended input option)
1070g (Decoder with Dante Transmitter)
Operating
Temperature
0° C to +40° C (32° F to 104° F)
Non-Operating
Temp
-20° C to +80° C (-4° F to +176° F)
Humidity (op/
storage)
20% to 90% (Non-Condensing)
Coating
White, satin anti-microbial powder coat
Black, anti-microbial powder coat (Quiet/Fanless Decoder)
Z4K Dante User Manual
Page of16 18

ZyPer4K
Physical Dimension Diagrams
Extended encoders and decoder with Dante Transmitter
Z4K Dante User Manual
Page of17 18
