Preface
IMPORTANT!
Carefully read this manual before use.
The ComfoClime is hereinafter referred to as "device".
This manual explains how to install, configure and use the App in order to control the ComfoClime.
Since that application is continuously developed and improved, your actual release may differ a bit
from the descriptions shown in this document.
Due to the automatic update procedure of mobile app stores (Google Play and Apple Store), the App
will automatically upgrade as soon as an update is released.
NOTE : this manual has been compiled with the utmost care. However, no rights
can be derived from it. In addition, we at all times reserve the right to change the
contents of this manual, without prior notice.
The following pictograms are used in this document:
Symbol Meaning
Consult the manual before using/operate the equipment.
Point of attention / important informations.
Risk of compromised performance or damage to the ventilation system / risk of
personal injury.
Caution electrical hazard!
Zehnder Group International - Via G. di Vittorio 6 - 41011 Campogalliano (MO), Italy
T [phone] - F [phone]

EN - 4
1 Installation
To configure and operate the ComfoClime the user must install the ComfoClime Control app by
downloading it from Google Play or Apple Store.
Once installed the app will appear among the phone apps with its icon:

5 - EN
2 The provisioning
At the first launch of the app, the user will be prompted to detect the ComfoClime and connect it to
his home WiFi network (if available).
The ComfoClime can be controlled only through the ComfoClime Control app.
In case the user doesn’t have a WiFi network running in the house there is the possibility to get
connected to the ComfoClime anyway: through the Bluetooth connection or through a local WiFi
network generated by the ComfoClime.
ACTION IMAGE
Launching the APP the installation page, called
Apartment select, will appear.
To begin detecting the ComfoClime, proceed
by tapping the ADD button.

EN - 6
ACTION IMAGE
In the next page the user can choose whether
to go for a brand new installation or connect an
already installed ComfoClime.
If no ComfoClime device is listed, the user must
tap over Connect a new device to the WiFi .
Advise: please ensure in your mobile phone WiFi
settings that your WiFi allows to add additional
devices.
Note: check also if the router allows to add other
devices to the local network and in case, enable
the feature.
If a ComfoClime has already been detected
previously and properly connected the user
should tap on Connect new device than search
for it.
In case there is no WiFi present yet, the user
must tap on the line at the bottom of the page
Advanced configuration (see pag. 10).
Tapping on Connect a new device to the WiFi
the page to the right will show up.
Check if the smartphone has Bluetooth enabled;
if it is enabled then continue tapping on Next.

7 - EN
ACTION IMAGE

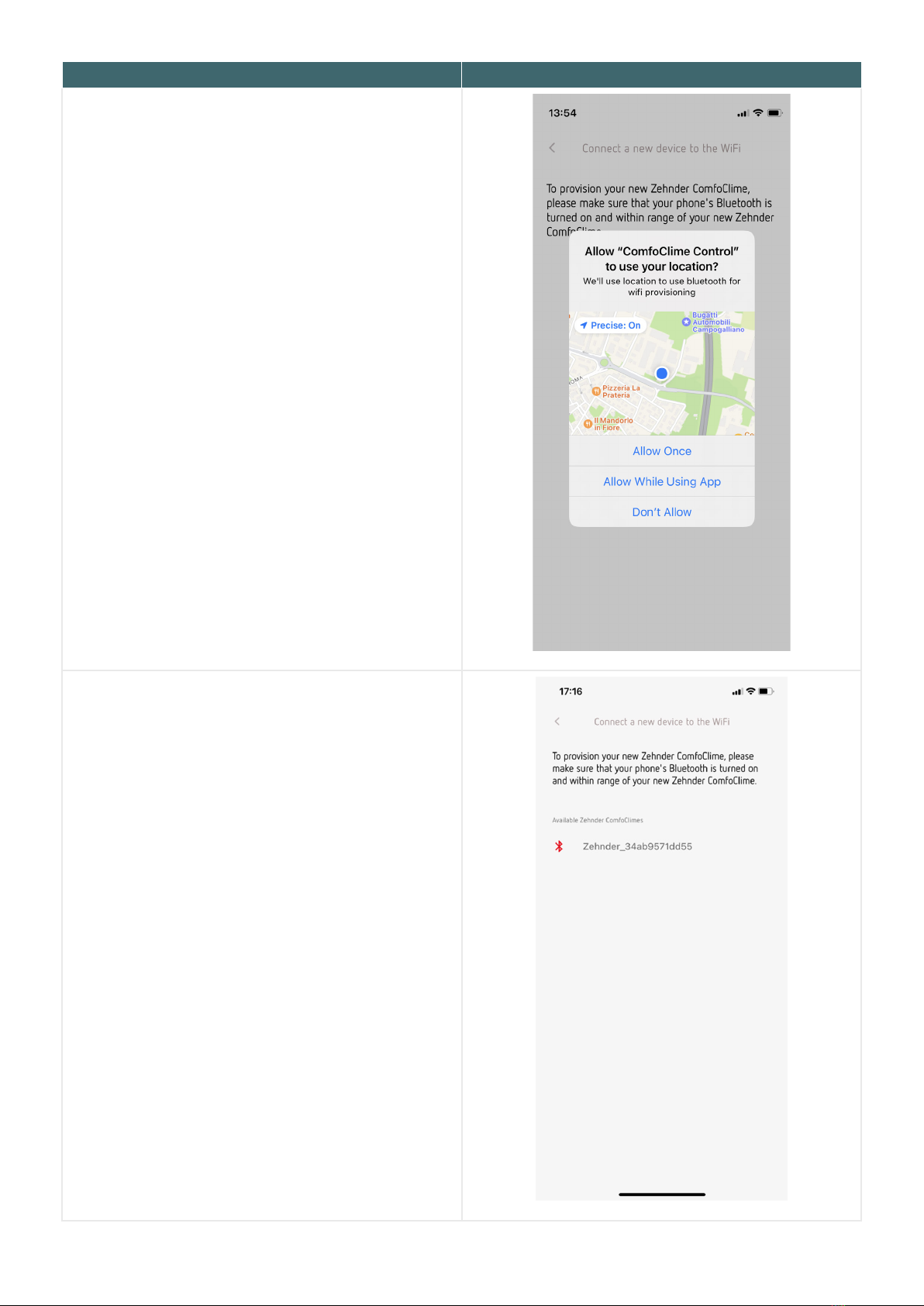

In this page, allow the ComfoClime Control app
to use your location by pressing Allow once or
Allow while using app.
The app will find the Bluetooth signal emitted by
the ComfoClime and will ask permission to do
the pairing.
Note: Choose the available Zehnder ComfoClime
Bluetooth signal ("Zehnder_34ab9571dd55" in
this case) by tapping on it.

EN - 8
ACTION IMAGE

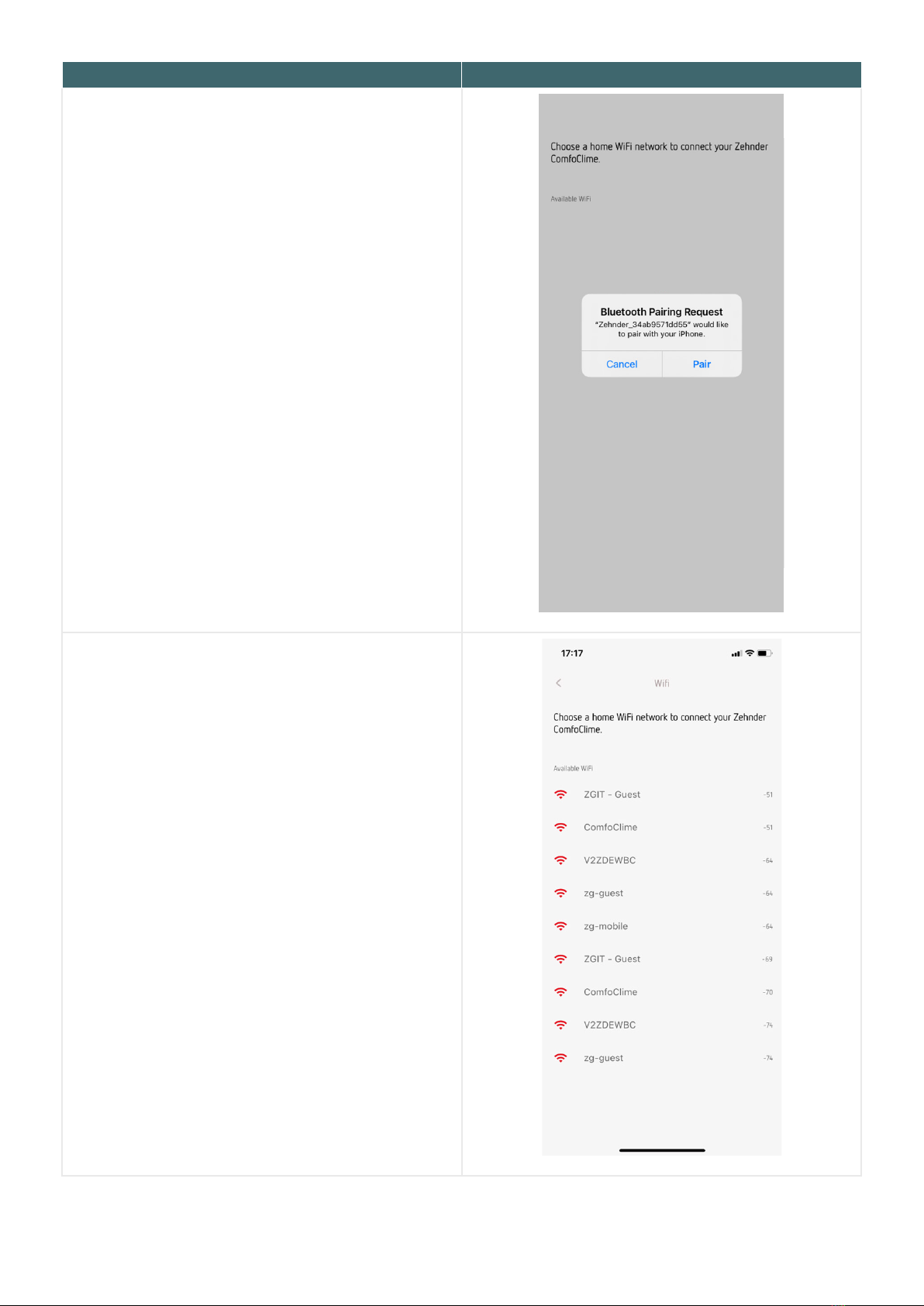

Tap on Pair to connect ComfoClime and
smartphone via the Bluetooth.
From now on the ComfoClime and the app are
connected through the Bluetooth.
As long as the WiFi connection is not triggered,
the two remain linked via Bluetooth.
Here the user can choose the preferred WiFi
network simply tapping on it and then typing its
password.

9 - EN
ACTION IMAGE
Go to WiFi settings can be used to check if the
smartphone is connected to the same WiFi as
will be by the ComfoClime.
Otherwise just tap on Search to list all the
ComfoClime already properly connected to the
selected WiFi.

EN - 10
ACTION IMAGE

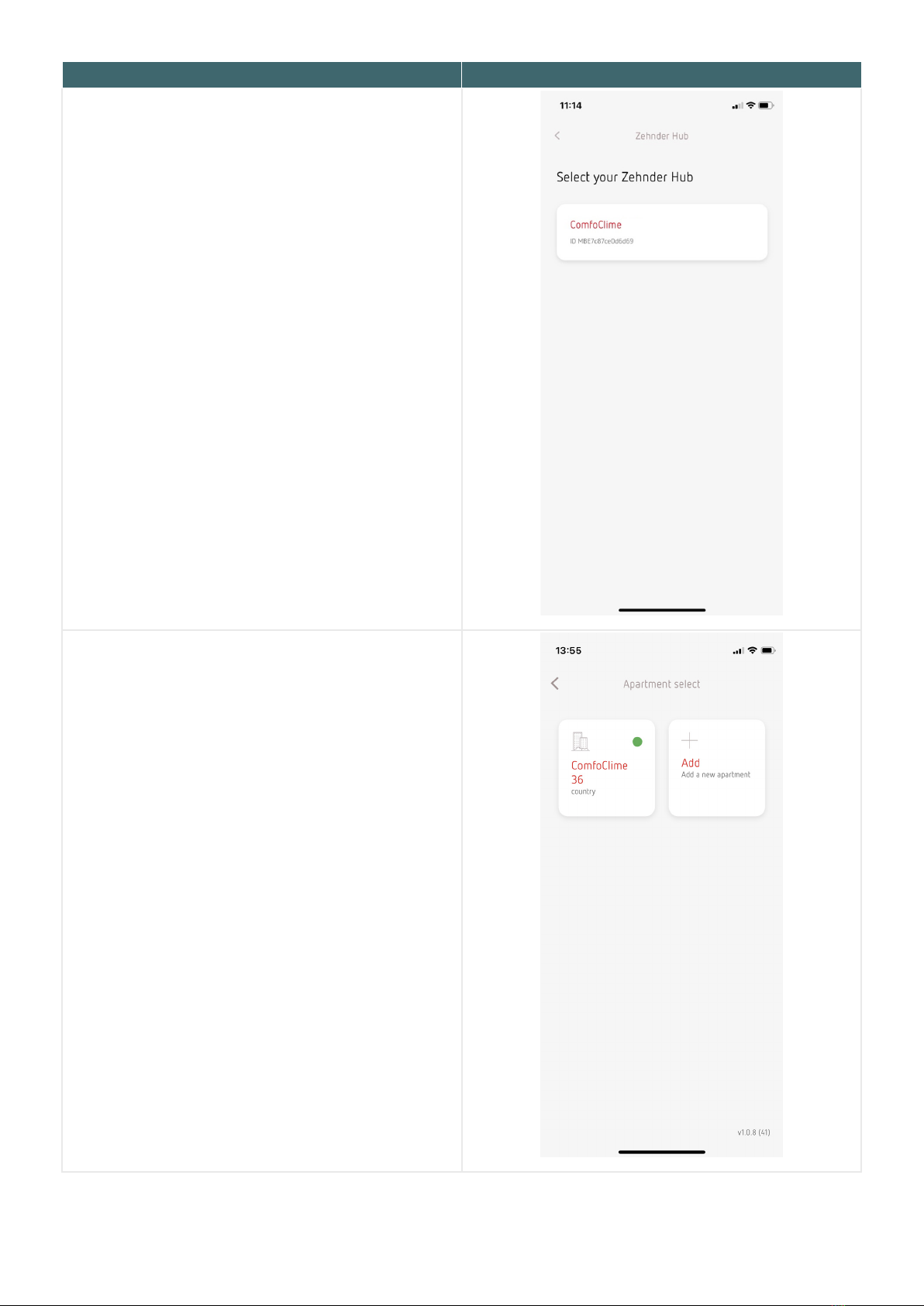

Once the device appears in the field "Select
your Zehnder hub", tap on it to establish the
connection between it and the WiFi network.
By default the device is named "ComfoClime".
Tapping on the unit's name the user will enter the
actual home page.
A green dot in the right corner indicates the unit
si properly connected and working.
A red dot means the unit is not connected to the
app.
In case the user has configured several
ComfoClimes in the same app (usually
corresponding to different installations in
different houses), only one device per time is
detected and connected with a green dot beside
its icon.

11 - EN
ACTION IMAGE
Now the app has found and recorded the device
in it and it is possible to finalise the naming
procedure reassigning a new name if desired
and including (not mandatory) an address, city,
country and a customised icon.
Finish tapping on the Save button.

EN - 12
2.1 Special circumstances
ACTION IMAGE
If a connection is not possible through WiFi or
Bluetooth, there is a further way to establish the
connection between the app and the unit.
With regard to the initial page (recalled on the
right), at the bottom there is the Advanced
configuration button which allows, if tapped,
to enter in the local “private” WiFi network
generated by the ComfoClime.
By selecting this option, the mobile device will
be able to connect directly to the ComfoClime's
private network. Please bear in mind that in order
to make this connection, the mobile device won't
not be connected to any other WiFi network.
The next page will show the name of the local
WiFi network created by the ComfoClime
called Zehnder_xxxxxxxxxxxxxxxx where
xxxxxxxxxxxxxxxx stands for its serial number.
Before proceeding further with the Search
button the user must check and set the mobile
device on the same WiFi network by tapping on
the Go to WiFi settings and setting the phone
up (see picture beside).

13 - EN
ACTION IMAGE
IMPORTANT: the password to gain access to the
local network is
Zehnder1
Once the mobile device is connected to the same
local network it is possible to continue like in the
procedure for normal WiFi networks choosing
the one called Zehnder_xxxxxxxxxxxxxxxx
among the ones found then confirm the choice
as it is explained at page 7.

EN - 14
2.2 Settings
ACTION IMAGE
When a reset is necessary, it is possible to
proceed entering the Settings page from the
main menu.
This way a “soft” reset is possible, equivalent to
unplugging the unit.
Tapping on Settings two new voices will appear:
• Advanced controls;
• Soft reset.
Advanced controls allows the user to have
access to advanced parameters in the thermal
profile in order to customize it according to his
needs (if not strictly necessary it is strongly
suggested not to play or change them).
Soft reset performs a light reset of the device
corresponding to unplugging e re-plugging it.

15 - EN
ACTION IMAGE
In order to enable the access to the Advanced
controls, it is necessary to enter the PIN 4210
then tap on Next.
The app automatically return to the Apartment
select page and the result will be visible in the
Thermal profile page.

EN - 16
ACTION IMAGE

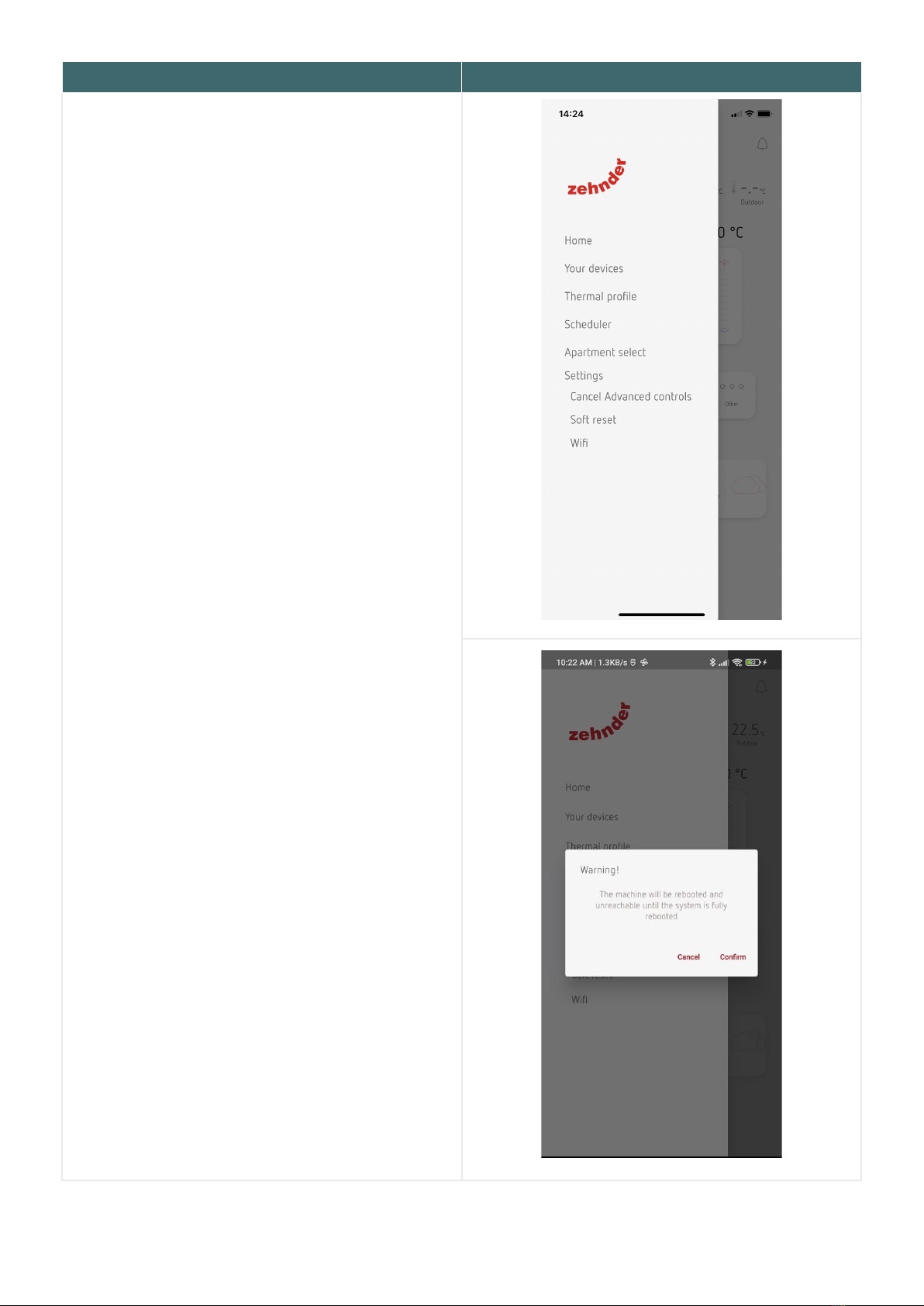

When selecting the Soft Reset option a warning
message will appear recommending the user to
wait until the unit is rebooted completely. Tap on
Confirm to proceed
A new menu item will appear called Soft reset.
When selecting this option a warning message
will appear recommending the user to wait until
the unit is rebooted completely. Proceed tapping
on Confirm then wait until the end of the reboot
process.
A new voice called WiFi appears when the
Advanced Controls are enabled. I allows the
user to switch the WiFi network to which the
ComfoClime has to be connected to, on the fly.

17 - EN
3 The home page
POS. DESCRIPTION
1Main menu
2
ComfoClime mode:
Blue wave=COOLING;
Red Wave=HEATING;
NONE= the device is not working.
3
ComfoAir Q airflow preset:
It is possible to select all three ComfoAir Q speeds by tapping on the circular icon. When
the preset is changed the unit will switch to manual mode.
4BOOST ventilation mode. Always visible. Red if enabled.
5Shortcut to the SCHEDULER.
6Notification bell: if a red dot appears, check the message in the notifications page tapping
on the bell.
7INDOOR and OUTDOOR temperature.
8
Mode selector:
POWER;
COMFORT;
ECO.
Slection through scrolling, in a loop
9SCENARIOs selector.
10 Shortcut to the THERMAL PROFILER.
1
2
3
4
5
6
7
8
9
10

EN - 18
4 The main menu
ACTION IMAGE

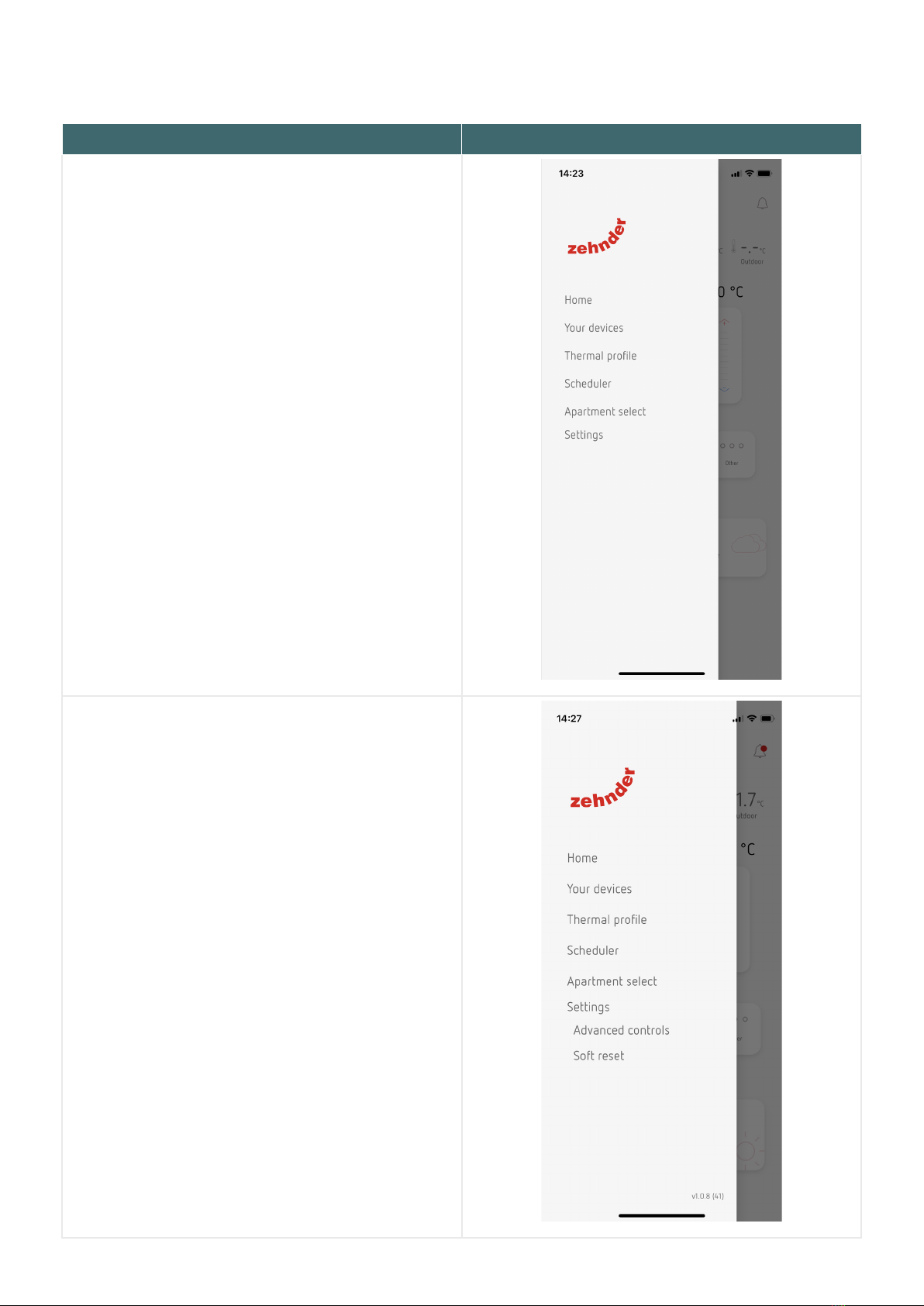

Tapping the 4 dots icon on the top left corner of
the app, the main menu will appear.
It is possible to browse through all the pages of
the app simply tapping on their names.
In the lower right corner of the main menu it is
possible to check the installed version of the
app.
NB: the Apartment select as well as the WiFi
are actually not useful anymore in case the
commissioning has been successfully done
and, especially, if the user doesn’t have other
ComfoClime to configure/add to his personal list.

19 - EN
5 Your devices
ACTION IMAGE

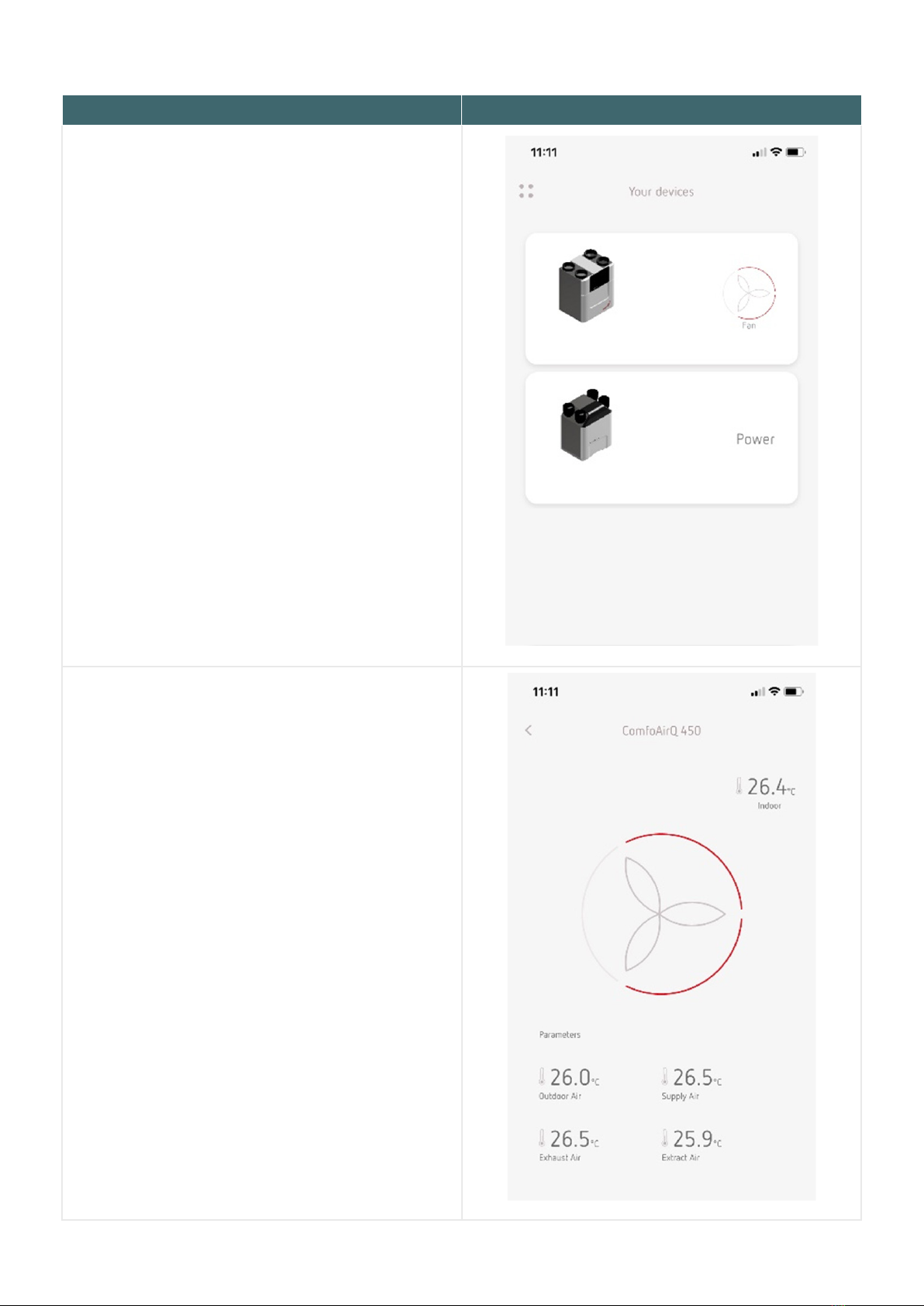

The "Your Devices" page lists all the devices
connected to the ComfoNet system.
The ComfoAir Q and the ComfoClime must
be present all the times; other devices are
accessories so they can appear only when
installed.
Tapping on each image a sub page will be opened
showing details of the specific unit (model and
size).
ComfoAir Q
ComfoClime
The sub-page of the ComfoAir Q unit shows the
4 working temperatures of the ComfoAir Q and
the indoor temperature.
The fan speed of the unit is adjustable tapping
on the big central wheel.
The red sectors indicate the actual speed

EN - 20
ACTION IMAGE

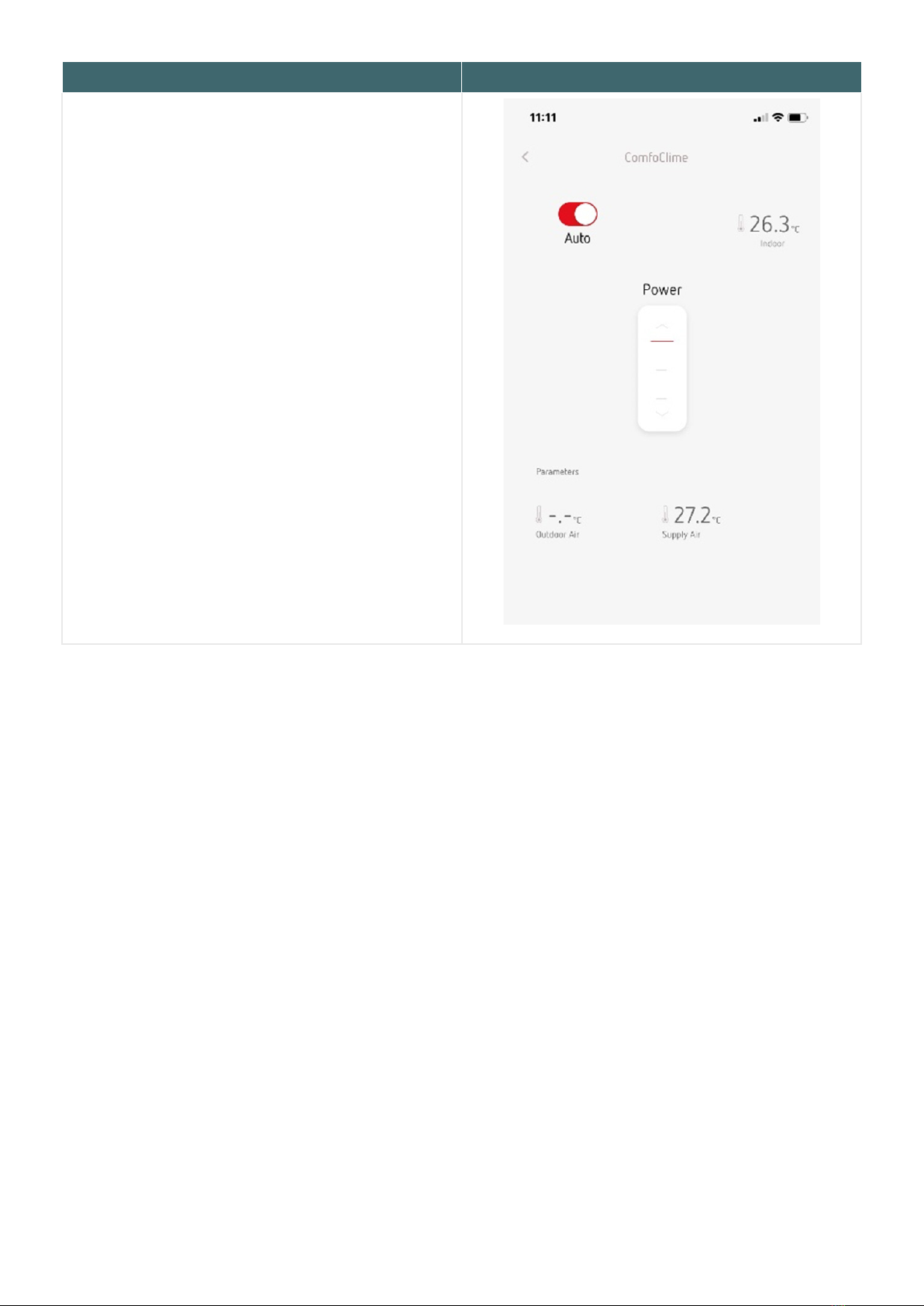

The sub-page of the ComfoClime unit shows:
• the working mode (Auto or Manual touching
the button on the left upper corner);
• the indoor temperature;
• the working mode switch (Power, Comfort,
Eco);
• the Supply Air Temperature.
ComfoClime working modes
ComfoClime automatic modes:
• Power: the unit works at full power with
a default setpoint of 23°C in heating and
cooling;
• Comfort: the unit works at a balanced mode
with a heating setpoint of 21°C and a cooling
setpoint of 25°C;
• Eco: the unit works at a reduced power with
a heating setpoint of 19°C and a cooling
setpoint of 27°C.
