Zehnder Rittling DX66 User manual

User´s Manual
DX 66
Digital Satellite Receiver
for 12/24 V and 230 V operation
English

- 2 -

- 3 -
Table of Contents
1. General Information ..................................................................... 5
1.1 Main Features.............................................................................................5
1.2 Safety instructions.....................................................................................6
1.3 Unpacking...................................................................................................7
1.4 General Operation of the DX 66................................................................7
1.5 Remote Control Unit..................................................................................8
1.6 Front Panel.................................................................................................9
1.7 Rear Panel ..................................................................................................9
2. Installation of DX 66................................................................... 10
2.1 Mains Connection....................................................................................10
2.2 Connecting to Antenna and TV...............................................................10
2.3 Connecting to TV/VCR using SCART Support ......................................11
2.4 Connecting to Digital Amplifier ..............................................................11
3. Menu Information ....................................................................... 12
4. Installation................................................................................... 13

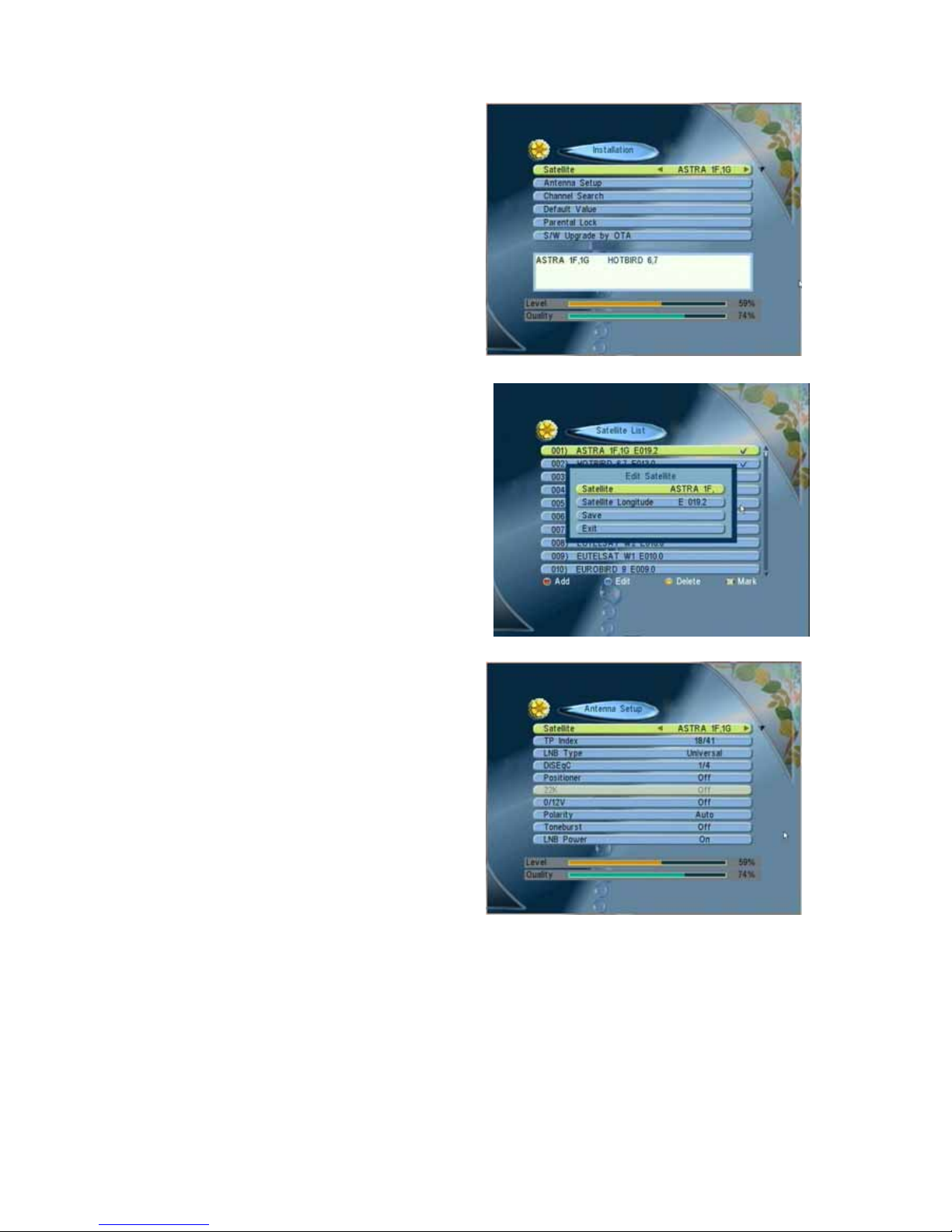

4.1 Satellites...................................................................................................13
4.2 Antenna Setup..........................................................................................13

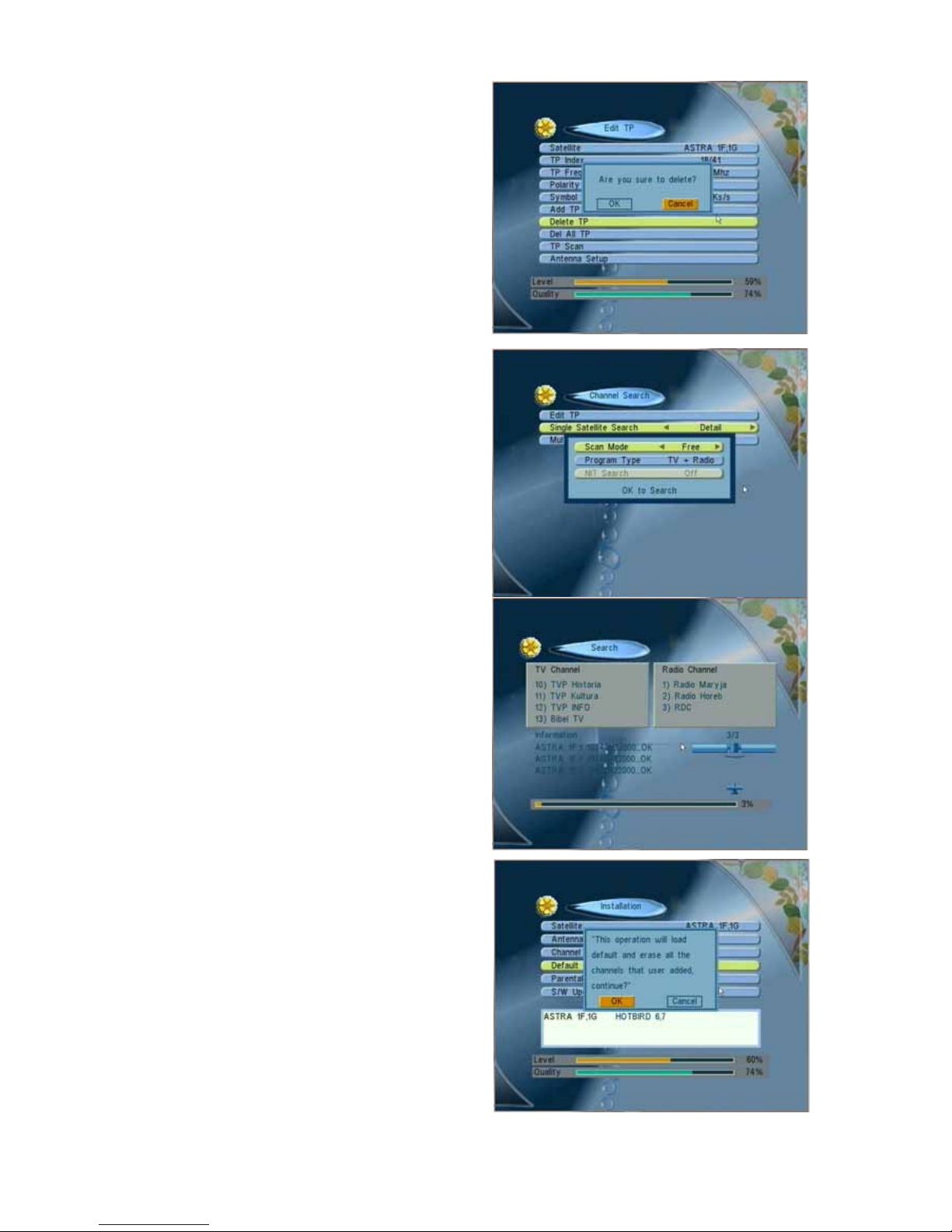

4.3 Channel Search:.......................................................................................14
4.3.1 Manual Search/Edit Transponder ........................................................15
4.3.2 Single Satellite Search:........................................................................16
4.3.3 Multi Satellite Search: ..........................................................................16
4.4 Default Value :..........................................................................................16

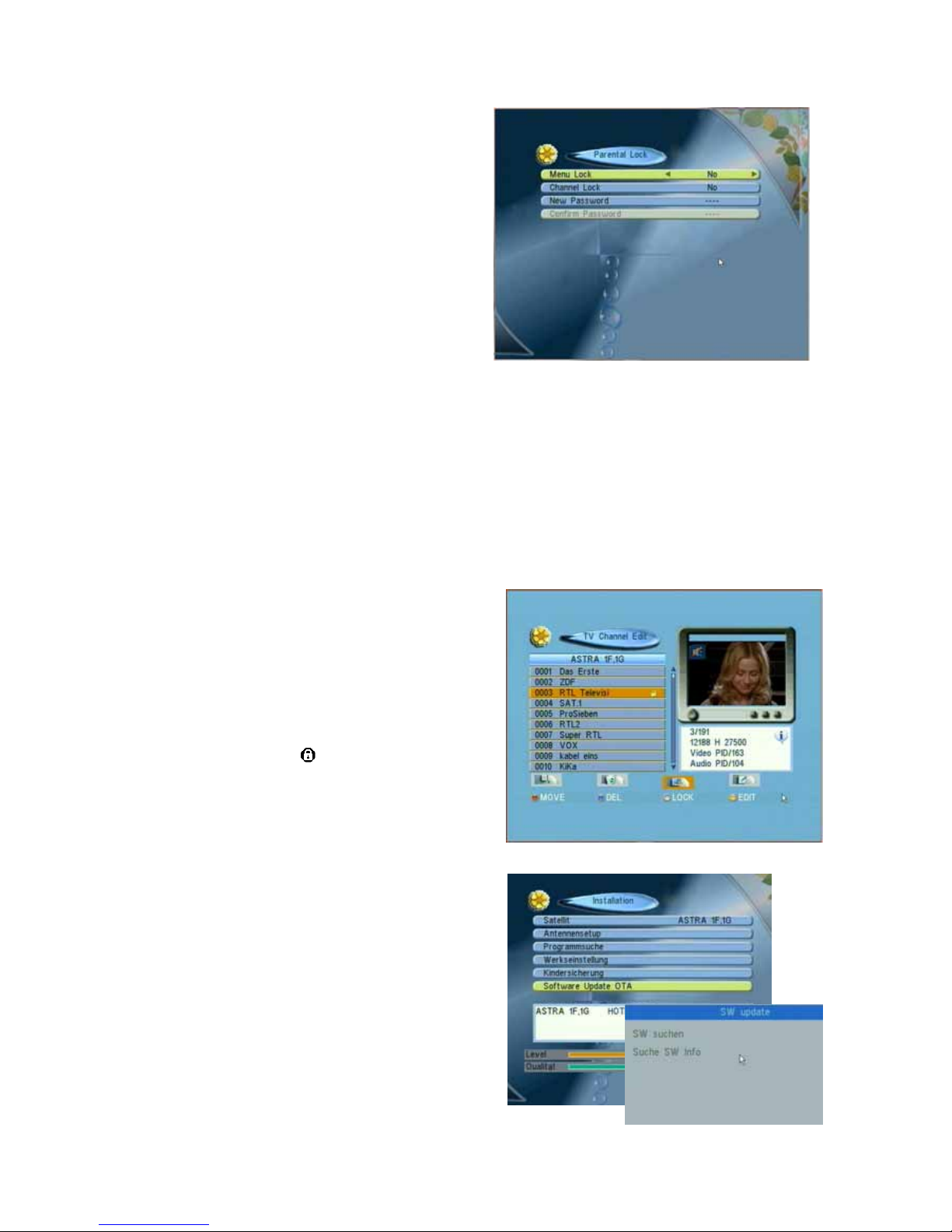

4.5 Parental Control.......................................................................................17
4.6 Software- Update via Satellite (OTA – Over The Air) ............................17
5. System Setting............................................................................ 18
5.1.Language..................................................................................................18
5.2.TV System.................................................................................................18
5.3 Local Time Setting...................................................................................18
5.4 Start Up Channel......................................................................................19
5.5 OSD Setting..............................................................................................19
5.6 Remote System........................................................................................19

- 4 -
6. General Viewing Functions ....................................................... 20
6.1 Select Channel .........................................................................................20
6.2 Previous Channel Recall.........................................................................20
6.3 TV & Radio Mode .....................................................................................20
6.4 TV & VCR Mode........................................................................................20
6.5 Channel Information................................................................................20
6.6 Favorite List ..................................................................................21
6.7 Volume & Audio Control..........................................................................21
6.8 Teletext .....................................................................................................21
6.9 Pause the frame.......................................................................................22
6.10 Multipicture.............................................................................................22
6.11 Position...................................................................................................22
6.12 Sat ...........................................................................................................22
7. Channel Manager........................................................................ 23
Channel Manager...........................................................................................23
7.1 Sort Channel.............................................................................................23
7.2 Favorite Channel......................................................................................23
7.3 Skip Channel............................................................................................24
7.4 Edit Channel.............................................................................................24
7.4.1 Move Channel......................................................................................24
7.4.2 Delete Channel ....................................................................................25
7.4.3 Lock Channel .......................................................................................25
7.4.4 Edit/Rename Channel..........................................................................25
8. EPG (Electronic Program Guide).............................................. 26
9. Timer............................................................................................ 27
Time Adjust ....................................................................................................27
Time Reservation...........................................................................................27
10. Software-Update via RS 232.................................................... 28
11. Trouble Shooting...................................................................... 32
12. SPECIFICATIONS ..................................................................... 34

- 5 -
1. General Information
The DX 66 allows you to view a variety of satellite programs. This user’s guide covers the
installation of the DX 66 and the necessary steps to operate various features. It also explains
special features available only in this DX 66 in detail, and will allow you to take full advantage of
these features.
1.1 Main Features
Fully MPEG2, DVB compliant
PIG (Picture In Graphic) support DiSEqC1.2 positioner and USUALS control for multi-
satellites (63 satellites)
C/Ku band control for each antenna
User Friendly and easy-to-use menu system
Various channel editing functions (favorite, moving, locking, renaming, deleting and
sorting)
User programmable various satellite & transponder information
Automatic search for newly added transponder (Network Auto Search)
Stores up to 2500 channels
Easy and fast software upgrade through RS-232 port
Plug-and-play data transfer system (DSR to DSR)
Timer function (8 events), automatically turns On/Off by setting function (daily, weekly,
monthly, one time), programmable through EPG
Electronic Program Guide (EPG)
OSD Teletext (DVB ETS 300 706) and Subtitle function support
VBI Teletext support
Multi picture screen (9)
Provides various switch types, LNB types and NTSC/PAL monitor type
SCPC/MCPC receivable from C/Ku band satellite
Multi LNB controlled by DiSEqC 1.2 and 22KHz
256 color On-Screen-Display
Automatic PAL/NTSC conversion
Automatic last channel saving
Dolby Digital AC 3 (coaxial)
Main on/off Switch
Operation with 12-24 V DC car adaptor or with 230 V AC power cable

- 6 -
1.2 Safety instructions
The following section contains important information relating to operation, place of installation
and connecting-up of the receiver.
Read these notes carefully before putting the unit into operation.
Important notes regarding operation
Extended absence / Thunderstorms
Always switch the unit off via its mains switch during periods of extended absence or at
the onset of thunderstorms. This also applies to any other equipment attached.
Mains lead
Make certain that the mains lead (power supply lead) is undamaged. Never put the unit
into operation if the mains lead is damaged.
Cleaning
Withdraw the mains plug before cleaning the unit. Use a dry cloth for cleaning.
Children-at-play
Pay attention that children do not insert objects into the ventilation slots. There is a risk of
mortal danger due to electric shock.
Repairs
On no account remove the housing cover since there are dangerous voltages inside the
unit that may be contacted. The und must only be opened by qualified specialists, so allow
them to carry out any repairs or adjustments to your receiver. Unauthorised opening
entails loss of guarantee.
The electrical safety of the unit can be affected by improper tampering with it.
The manufacturer's liability excludes accidents occurring to the user when the unit is
opened.
Important notes for sitting and installation
Place of installation
Every electronic device generates some heat. The rise in temperature, however, lies
within safe limits. Nevertheless, this does not rule out the possibility of slight colour
changes to sensitive furniture surfaces and veneers over time due to the constant effect of
heat.
In conjunction with treated furniture surfaces, the unit's rubber feet can likewise give rise
to changes in colour. Where necessary, place the unit on a suitable pad.
Ventilation
The heat that is generated in this unit is dissipated quite adequately. Never install the
receiver in a cabinet, shelf or rack with inadequate ventilation. Never close-off the
openings on the unit that are intended for heat dissipation.
Do not place objects on top of the unit. Maintain a clearance of at least 10 cm above the
unit so that the heat generated within the unit is convected away without obstruction.
Mains voltage
Run the receiver only from a mains voltage of 23OV / 5O/60Hz or 12-24 V DC.
The unit is not to be connected to the mains until after all the installation work has been
completed.
Humidity
Protect the unit against humidity, drips and splashes.

- 7 -
Solar radiation/heat
Do not place the receiver close to radiators nor expose it to direct sunlight.
Grounding
The parabolic antenna is to be grounded in accordance with regulations. Here, the
relevant German VDE regulations (or equivalent) are to be observed.
Connecting up and putting into operation
Attention
The following section is intended specifically for the specialist dealer. If you are not carrying
out the installation yourself, there is no need to pay any attention to this section. A sample
configuration is to be found in section: "Connection examples".
Do not connect the unit to the mains until after the installation work has been carried out
properly.
Please note the guidance given in section: “Safety- and Installation instructions”.
1.3 Unpacking
Unpack the DX 66 and check to make sure that all of the following items are included in the
packaging.
1 x Remote Control Unit (RCU)
1 x User’s Guide
2 x AAA batteries
1 x DX 66
12 V AC car adaptor
230 V AC power cable
1.4 General Operation of the DX 66
Throughout this manual you will notice that the everyday operation of your DX 66 is based on a
series of user friendly on screen display and menus. These menus will help you get the most from
your DX 66, guiding you through installation, channel organizing, viewing and many other functions.
All functions can be carried out using the buttons on the RCU, and some of the functions can also
be carried out using the buttons on the front panel.
Please be aware that new software may change the functionality of the DX 66.
Should you experience any difficulties with the operation of your DX 66, please consult the relevant
section of this manual, including the Problem Shooting.
Hotline
in Germany, in case of questions !
Daily between 8.00 – 16.00 h
Disposal
Electronic equipment is not household waste. In accordance with
directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of 27th January 2003 on used electrical and
electronic equipment, it must be disposed of properly.
„At the end of its service life, take this unit for disposal at the designated public collection points."

- 8 -
1.5 Remote Control Unit
Key Function
Turns power ON/OFF of the DSR.
When watching a channel, enables/disables
the audio.
0~9 Enter number of the required menu item or
Select a channel number to watch .
MENU Press this key one time to run menu on
screen, and call command box.
EXIT Returns to the previous menu on the menu
screen or escape from the menu.
PR+,PR-
When watching a channel, change channels,
or moves to the next higher or lower item in
the menu.
When watching a channel, adjust the volume,
or move to the left or right item in menu.
Moves up/down a page in the channel list.
OK, LIST
Executes the selected item in the menu
screen, or enters the desired value in any
input mode
EPG Calls up the EPG (Electronic Program Guide).
Shows information of the current channel.
Switch between TV and Radio mode.
Display the satellite list or searched channel..
Switches back to previous channel.
Display the favourite channel list.
1.When watching a channel, switches the
audio languages.
2. Selects the different audio modes for
speakers: Stereo, Left, right.
Makes 4, 6 or 9 pictures to the screen
red
1. Switches to teletext or subtitle mode.
2. Menu operations with red button.
green
1. Switches between TV or AV mode.
2. Menu operations with green button.
grey
1. Displays position bar on the screen to
adjust the antenna or for manual search.
2. Menu operations with grey button.
blue
1. To still picture in current channel
2. Menu operations with blue button.
yellow
1. Switches one channel up in FAV list.
2. Menu operations with yellow button.
white
1. Switches one channel down in FAV list
2. Menu operations with yellow button.

- 9 -
1.6 Front Panel
Figure 2: Front Panel
KEY FUNCTION
Power Turns on and off the power of the receiver (standby).
PR V/Λ
When watching, changing to the previous and next channel, or moves to the
next higher or lower item in the menu
1.7 Rear Panel
Power ON/OFF
Connect to a PC for
software upgrade
Connect to the TV using scart cable
SAT ANT OUT: Connect to another receiver
SAT ANT IN: Connect to satellite antenna
Connect to digital amplifie
r
Power connecto
r
DX 66
Power Input 12-24 V DC
for 12V car power
adaptor
Connect to the VCR using scart cable

- 10 -
2. Installation of DX 66
This section explains the installation of DX 66. Refer to the manuals supplied with the equipment
for the installation of outdoor equipment such as the dish antenna. When adding new equipment,
be sure to refer to the related parts of the manual for the installation and be sure you have correctly
adjusted the antenna to a satellite.
2.1 Mains Connection
For mobile operation use the attached 12 V car adaptor to connect to 12-24 V car power.
For stationary operation use the attached 230 V power cable and connect one of these to
the connector at the rearpanel of the receiver.
Caution!
Run the receiver only from a mains voltage of 12-24V DC or with attached power
cable at AC 23OV / 5O/60Hz, for not destroying the receiver.
The unit is not to be connected to the mains until after all the installation work has
been completed.
2.2 Connecting to Antenna and TV
Satellite antenna
antenna
cable
Scart cable

- 11 -
2.3 Connecting to TV/VCR using SCART Support
2.4 Connecting to Digital Amplifier
Cable or OFF-Air
antenna
VCR
TV
Dolby Digital
A
mplifier
Satellite Receiver
Satellite Receiver

- 12 -
3. Menu Information
Once you have installed and connected the cables of the DX 66, the menu is displayed.
This menu consists of 6 main menus as shown below.
Channel Manager (chapter 7)
Installation (chapter 4)
System Setting (chapter 5)
Information
Timer (chapter 9)Game
During the installation the OK key confirms a selection and key shows the Drop Down List Box.
You can also use the numeric keys on the RCU to enter a numeric value.
Use the PR+, PR- key to move up or down from one line to another line. Use the keys to
change parameters in sub menus.
To escape the menu system at anytime, press EXIT key on the RCU.

- 13 -
4. Installation
This menu consists of 6 sub-menus as shown
below.
1.Satellite
2.Antenna Setup
3.Channel Search
4.Default Value
5.Parental Lock
6.S/W Upgrade by OTA
4.1 Satellites
In this sub-menu, you can select satellite and
use color keyon the RCU to Add, Edit, Delete
and Mark satellite.
4.2 Antenna Setup
In this sub-menu, you can set Satellite, TP
Index, LNB Type, DiSEqC, Positioner, 22K,
0/12V,Polarity, Toneburst, LNB Power.
1. Satellite name: Select first satellite you
want.
2. Transponder: Select desired
transponder.press OK key will Display a
down list box which also let's you select
desired transponder.
3. LNB Type: Select you LNB type.
OK key will Display a down list box.
Low Freq.(MHz)/High Freq. (MHz): Enter
the proper LNB Frequency referring to
your LNB using the numeric keys.
Universal LNB is the standard LNB setting.
4. DiSEqC Switch Setting: Select DiSEqC with you want to configure the antenna with a DiSEqC
switch.
5. Positioner: You either can select DISEqC1.2 or USALS to configure a motor driven antenna,
see below.
6. SWITCHES ( 22K,0/12V, Polarity): you can select the switch with you want to configure the
antenna.
7. LNB Power: If your DSR is connected the LNB, Select LNB Powr ON or OFF.

- 14 -
4.2.1 Motor Setting/Positioner
Select ´Positioner´ DiSEcC1.2 or USALS then
press OK key, the screen will shown as beside:
1. Satellite: Select first satellite which you
want.
2. Transponder: Select desired transponder.
3. Position: Select number of position of
respective satellite.
4. Limit Setup: Select Disable or Enable. If
you select East/West Limit option, you can
operate as below:
Press the OK key on the RCU. The
message “Set Positioner limit!” will be
displayed for your confirmation.
Pressing the Left key on the RCU
continuously in next line “Continuous Move”
will take you to the eastern most point.
5. Continuous Mode: Use VOL- and VOL+
keys on the RCU to let motor move to west
or east to find correct position.
6. Execute command “Save Present
Position”.
7. Recalculation: Recalculate All Positions :
When all the locations of searched satellites
are shifted for any reason, you can realign
all of them once you adjusted one satellite
location.
8. Go to Reference: When you install the motor of DiSEqC 1.2 antenna, you can select this
function to move the center of the antenna to 0°.
4.3 Channel Search:
In this menu, you can select Edit TP, Single
Satellite Search or Multi Satellite Search.
Then press ok to select search mode, then
select OK to Search item to search program.

- 15 -
4.3.1 Manual Search/Edit Transponder
In this menu you can edit, add, delete
transponders or scan a transponder for
channels.
1. Satellite Name: Select first satellite you
want.
2. Transponder: Select desired
transponder.press OK key will display a
down list box which also let's you select
desired transponder.
3. Frequency & Symbol Rate: Edit the
frequency and symbol Rate. You can use
number keys on the RCU to modify
Frequency.
4. Polarization: select HOR or VER
polarization mode.
5. Symbol Rate: Edit the symbol Rate. You
can use number keys on the RCU to
modify symbol rate.
6. Add TP: You can add a new TP into the
list, see below
7. Delete TP: You can delete current
selected TP
8. Delete All TP: You an delete all TPs of the
selected satellite at once.
9. TP Scan: the channel searching process is
starting on selected TP. Select search
type: you can select only FREE channels,
or ALL channels.
NIT Search: set NIT Search ON or OFF.
Then press OK button, the DSR will search
only on this one transponder frequency as
shown below:
10. Antenna Setup: You can jump to the
Antenna setting menu.
Add Transponder
In Manual Search menu, press OK at ´Add TP´
line in the menu, the screen will display a
submenu, in this sub menu, you can add the
frequency and symbol rate, select Hor or Ver
polarization mode to add new transponder.

- 16 -
Delete Transponder
Delete TP : If you want to delete a
Transponder, please select the Transponder
which you want to delete and then press OK
on the RCU. A confirm message box will be
displayed. Confirm by YES to delete.
4.3.2 Single Satellite Search:
Select search mode, then select OK to search
programs of the actual satellite.
In this menu after pressing OK you can select
NIT Search ON or OFF, as well as only FREE
channels, or ALL. Select search channel
mode. Then press OK, the DSR will automatic
search and list channels as shown beside:
4.3.3 Multi Satellite Search:
Select search mode, then select OK to search
programs of all activated satellites in the
satelite list.
In this menu after pressing OK you can select
NIT Search ON or OFF, as well as only FREE
channels, or ALL. Select search channel
mode. Then press OK, the DSR will automatic
search and list channels as shown beside:
4.4 Default Value :
If you want to bring DSR back to the factory
default condition, select factory default and
press OK button. Then a warning message will
displayed. To confirm, select OK.
Warning: On selecting factory default you will
lose all of data and information, which was
previously installed.

- 17 -
4.5 Parental Control
This function allows you lock the channel with a
password in order to prevent children from
accessing the channel.
You can also protect your installed data and
information using the Menu Lock.
How to use Menu Lock
1. Enter the current password.
2. Select ON of Menu Lock
3. Enter new password
4. Confirm your new password entering new
password again
5. Exit this menu.
6. Select any menu and press OK on the RCU .
7. Then the Enter Password box will be displayed.
8. Unless you enter the correct password, you can not run any menu.
Note: Default password is 0000.
Warning: Do not forget your password. In case you forgot your personnel password the master
code is 8888.
How to use Channel Lock
1. To activate channel lock function, go to the
TV channel Manager Page.
2. Press “Edit” (Yellow key) and put in the
password
3. Press Lock key (White colour key) on the
RCU.
4. Select the channel which you want to Lock.
5. Press OK then symbol is displayed.
If you then select locked channel you will be
asked for the password before you can watch the
channel.
4.6 Software- Update via Satellite
(OTA – Over The Air)
Because of continuous changes in DVB
broadcasting it is also necessary to update your
recei vers software to be every time on the height
of the time. Therefore Zehnder company offers
actual upgrade software files on their homepage
or by satellite Astra 19,2° for download. But the
more easy and convenient way is the „upgrade
via satellite“ function offered in the main menu
„Installation“ of the receiver. Especially use this
function if you have problems with the function of
the receiver or the reception of some channels.
Simply follow the instructions at the menu screens.

- 18 -
5. System Setting
This menu consists of sub-menus as shown
below:
1. Language
2. TV System
3. Local Time Setting
4. Startup Channel
5. OSD Setting
6. Remote System
5.1.Language
You can select menu language, First audio,
second audio, subtitle language and teletext
Menu
1. Language: Select OSD language out of
about 8 languages.
2. First Audio
3. Second Audio
4. Subtitle Language
5. Teletext Language
5.2.TV System
1. Display Mode: You can adjust the TV
system type of your TV set Auto, PAL, PAL
M +N, NTSC,.
2. Aspect Mode: Select 4:3PS Pan&Scan),
4:3LB (LetterBox) or 16:9 screen ratio
depending on your TV screen.
3. Video Output: If your SCART supports RGB
control, Select RGB. Otherwise select CVBS.
5.3 Local Time Setting
Usually you get the information real time from
the satellite Automatically but sometimes they
transmit wrong information. In that case, you
can adjust the real time using this function.
Set Local time (GMT Offset) for central Europe
to +1.00h. During Summer Time switch this
option to ON
Time Display “ON” enables a Clock at the right
top of the TV screen.

- 19 -
5.4 Start Up Channel
1. Boot On Channel: If you switch to ON, the
selected channel starts whenever you turn
on the receiver.
2. Mode: Select, if you want to start on a TV or
Radio channel.
3. Starting Channel: If you press OK key, then
the channel list is displayed. You can select
one channel from the list.
5.5 OSD Setting
1. Subtitle Display: Select ON, if you want to
display the DVB subtitle as soon as it is
broadcasted.
2. OSD Timeout: Set OSD timeout from 1 Sec
to 10 Sec for automaticly fade out OSD.
3. Position: Select Bottom or Top like where
you want to see the channel information
window during channel up/down operation.
4. OSD Transparency: Set OSD transparency
from 10% to 40% or OFF.
5. Load OSD Setting Default: Pressing OK
resets the factory defaults only of the OSD
settings.
5.6 Remote System
Remote System: You can set to code B if
you have a Dual Remote Control FB22 from
Zehnder to use different RCU IR codes by
pressing SHIFT button..

- 20 -
6. General Viewing Functions
The following describes the basic functions of
your DX 66 while watching satellite TV or
listening to satellite radio.
6.1 Select Channel
If you want to select channel, use CH key on
the front panel or PR+, PR- key on the RCU or
numeric keys.
In addition to the above normal function, DX 66
provides more convenient channel change
function.
While watching, press OK key on the RCU. A
channel list will be displayed on the left side of
the screen. If you press EXIT key, the channel
list will disappear.
To select a channel, go up or down this
channel list and place the cursor on a desired
channel. Then, press OK key to watch the
selected channel.
If you press key on the RCU, the channel
list will scroll page by page.
If you press RED button you get into some
Channel Sort window, where you can sort on
special options.
6.2 Previous Channel Recall
Press key on the RCU to move to the
previous channel you watched.
6.3 TV & Radio Mode
While viewing a TV channel, press the
TV/RADIO key on the RCU to toggle between
TV and Radio modes.
6.4 TV & VCR Mode
The key on the RCU lets you change
the mode from satellite to TV or VCR.
Press once to move the TV mode.
Press twice to move to VCR mode.
Press three tomes to move back to satellite
mode.
6.5 Channel Information
Every time you change channels, you will
receive program information for a few seconds.
While watching the channel you can see the
current channel information at anytime by
pressing the INFO key on the RCU.
Note: Channel information will be displayed for
3 seconds by default and will disappear. You
can adjust the display time interval from 1 to 10
seconds in the OSD setting menu.
Table of contents
Other Zehnder Rittling Receiver manuals
Popular Receiver manuals by other brands

Fanimation
Fanimation fanSync WFR8531 SPECIFICATION AND INSTRUCTION SHEET

Boss marine
Boss marine MR1520UA user manual

Sony
Sony SAT-HD200 - Directv High Definition Satellite... Specifications

Lynx
Lynx Yellobrik ORX 1400 quick reference

Kenwood
Kenwood RC-R0507 Remote control manual

Panasonic
Panasonic SA-XR57K - AV Receiver operating instructions
